Understanding Boolean Logic: Truth Tables and Logic Gates
H
Hannah Crowley
@annahrowley_sqarhqzr
Boolean logic is the foundation of how computers make decisions using simple true/false statements. You'll learn about logic gates and truth tables that show exactly how computers process information using just 1s and 0s.

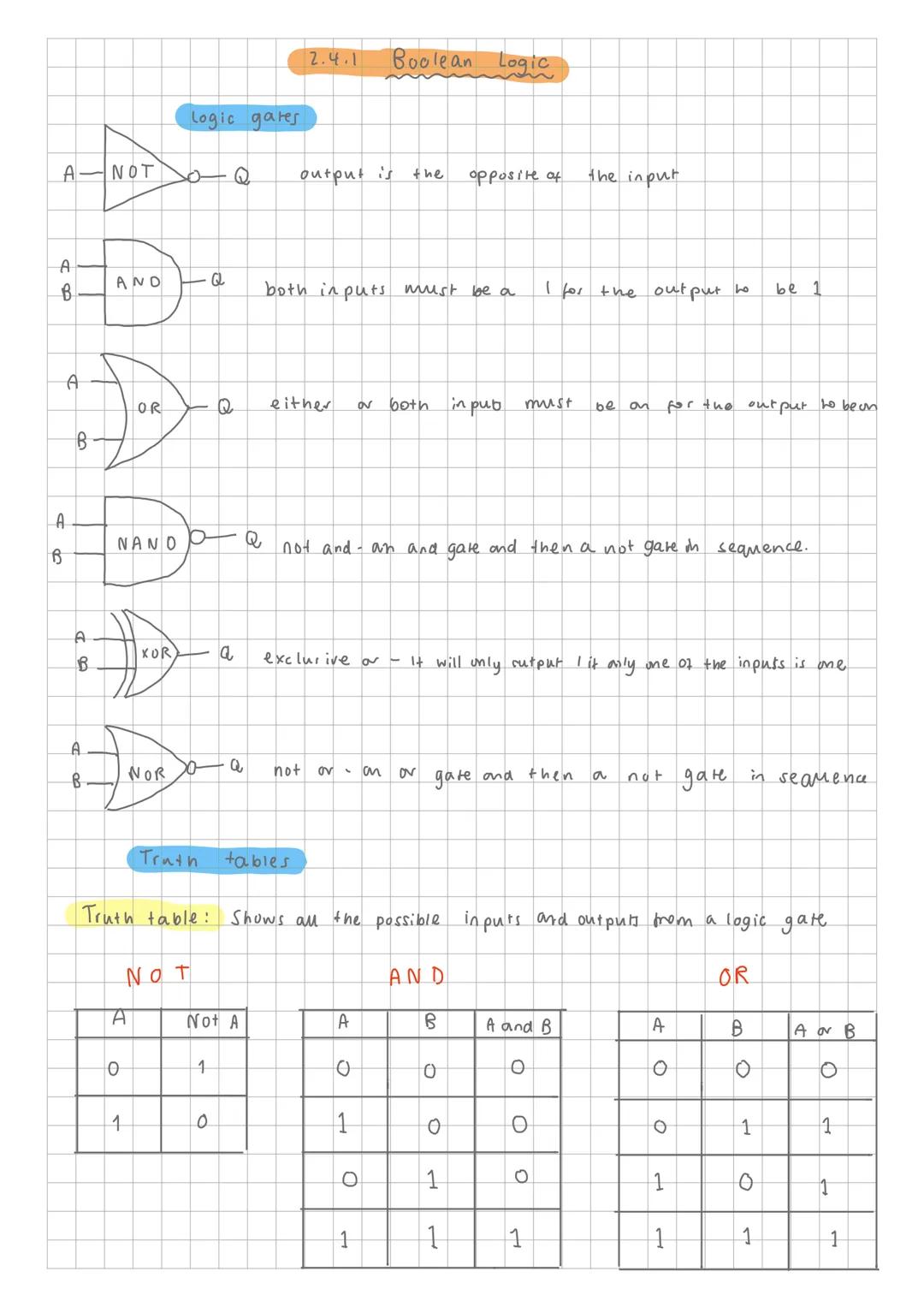

Logic Gates
Ever wondered how your computer decides what to do? It all comes down to logic gates - simple circuits that take inputs and produce outputs based on specific rules.
The NOT gate is the simplest one - it just flips whatever you put in. Input a 1, get a 0. Input a 0, get a 1. Think of it as the opposite machine.
AND gates are pickier - they only output 1 when both inputs are 1. It's like needing both keys to open a safe. OR gates are more generous - they output 1 if either input (or both) is 1.
Then you've got the combination gates: NAND (which is AND followed by NOT), NOR (OR followed by NOT), and XOR .
💡 Quick Tip: Remember NAND and NOR as "NOT-AND" and "NOT-OR" - they're just the opposite of AND and OR gates!
Truth tables show every possible combination of inputs and their outputs. They're like recipe cards for logic gates - follow the pattern and you'll always get the right answer.
Sign up to see the contentIt's free!
Access to all documents
Improve your grades
Join milions of students
By signing up you accept Terms of Service and Privacy Policy

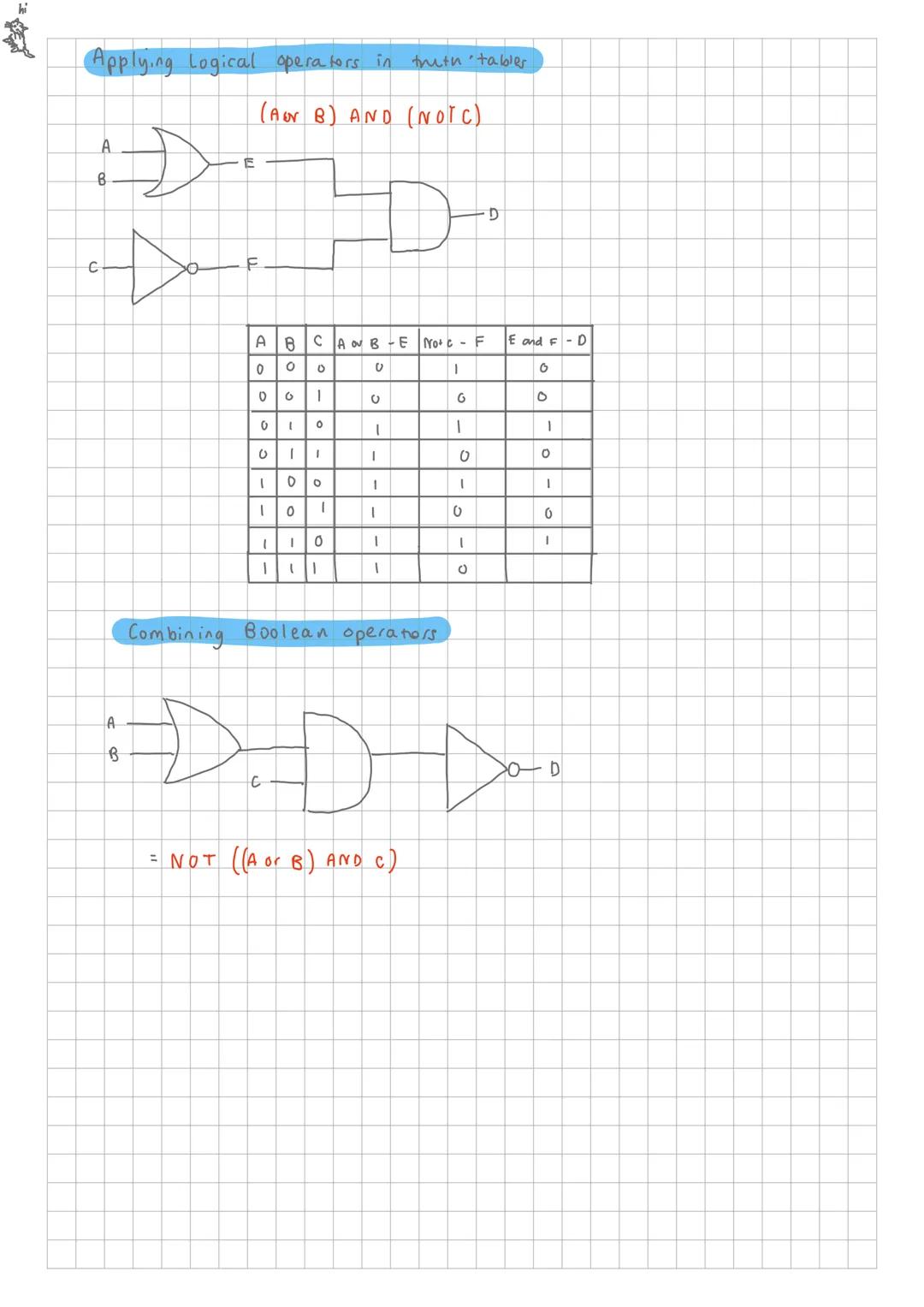

Combining Logic Gates
