KS3 Year 9 Science: Waves Summary and Revision

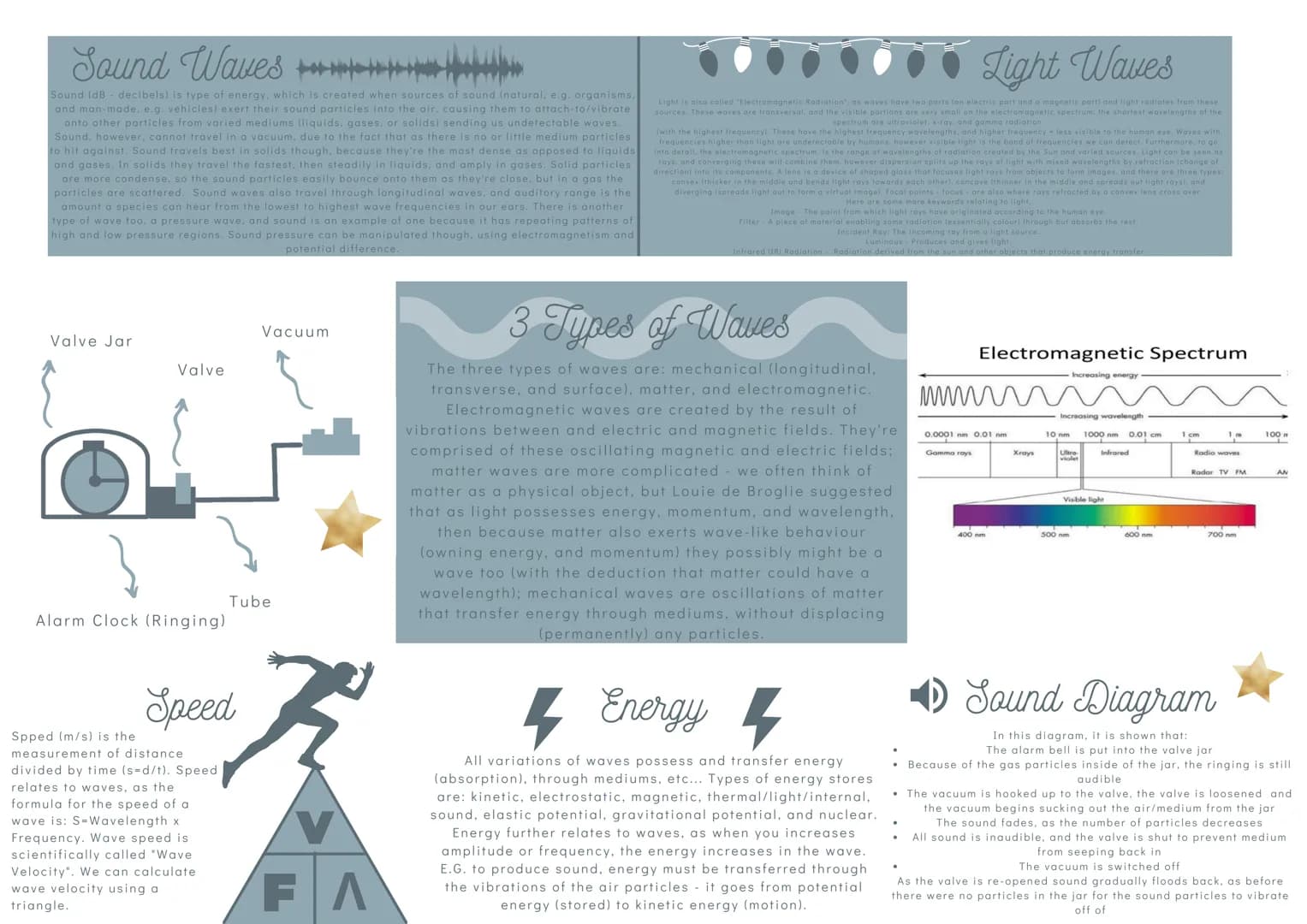

Sound Waves and Wave Speed
This section explores sound waves KS3 concepts and wave speed calculations, essential for KS3 Waves revision and BBC Bitesize waves KS3 study.
Sound waves are a type of energy created when sources vibrate particles in various mediums. Key points about sound waves include:
- Measured in decibels
- Travel best in solids due to particle density
- Cannot travel in a vacuum
- Propagate as longitudinal waves
- Are pressure waves with repeating patterns of high and low pressure regions
Vocabulary: Auditory range - The range of frequencies a species can hear, from lowest to highest.
Wave speed, also known as wave velocity, is crucial in understanding wave propagation. The formula for wave speed is:
Speed = Wavelength × Frequency
Highlight: Wave speed can be calculated using a triangle diagram, which is a helpful tool for KS3 waves questions.
Light waves, also called electromagnetic radiation, have unique properties:
- Consist of electric and magnetic parts
- Are transverse waves
- Visible light is a small portion of the electromagnetic spectrum
- Higher frequency waves are less visible to the human eye
Example: The electromagnetic spectrum includes visible light, as well as invisible waves like radio waves and gamma rays.
Understanding these concepts is crucial for mastering KS3 year 9 science waves summary GCSE and BBC Bitesize waves KS4 materials.
Page 2: Sound Waves and Wave Speed
This section covers Sound waves KS3 concepts in detail, explaining how sound energy propagates through different mediums and introduces wave speed calculations.
Definition: Sound waves are pressure disturbances that travel through mediums as longitudinal waves.
Vocabulary:
- Decibels : Unit of sound measurement
- Wave Velocity: Scientific term for wave speed
- Auditory Range: Frequency range detectable by species
Example: A vacuum jar demonstration shows how sound cannot travel through a vacuum due to lack of medium particles.
Highlight: The speed of a wave can be calculated using the formula: Speed = Wavelength × Frequency

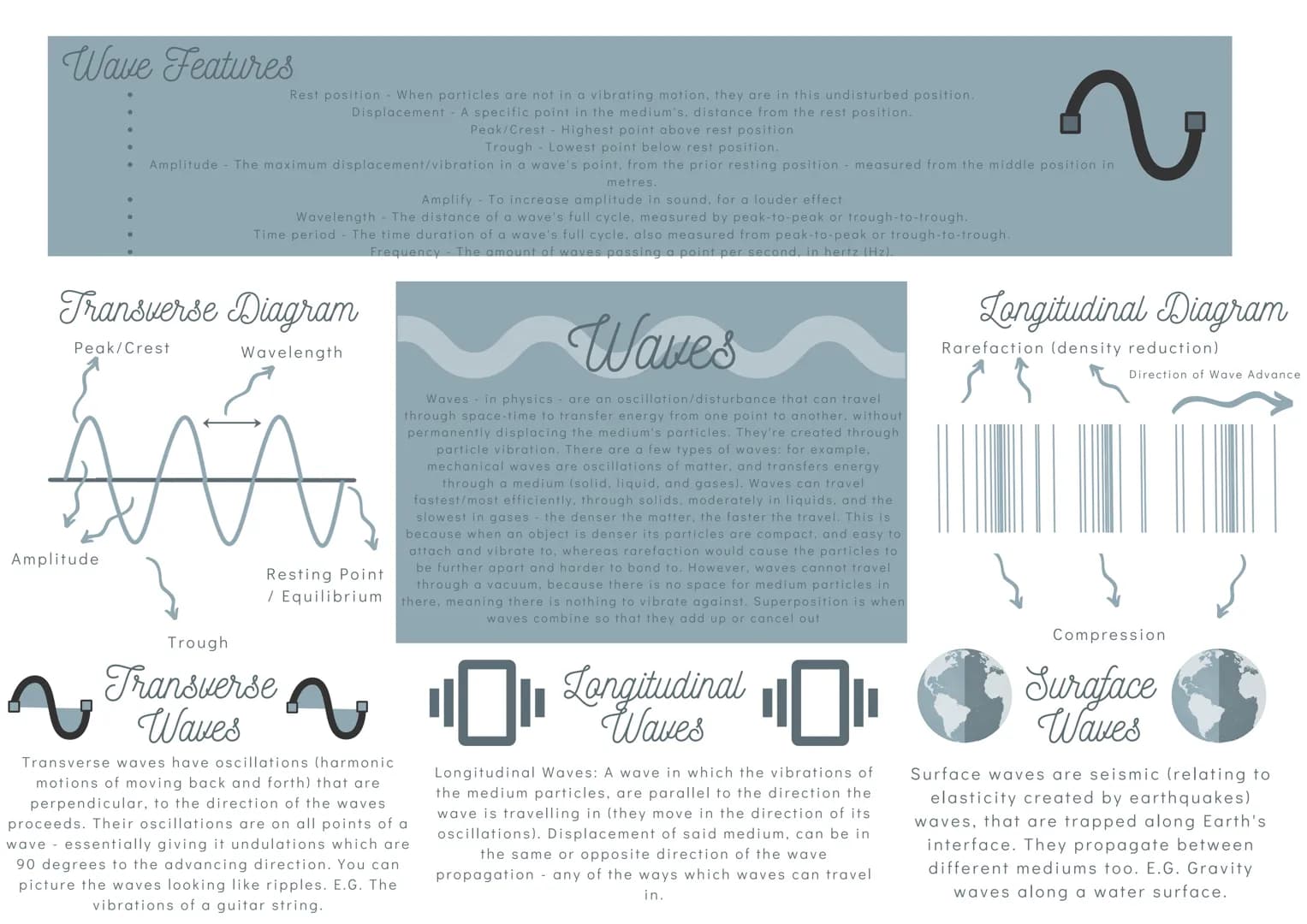

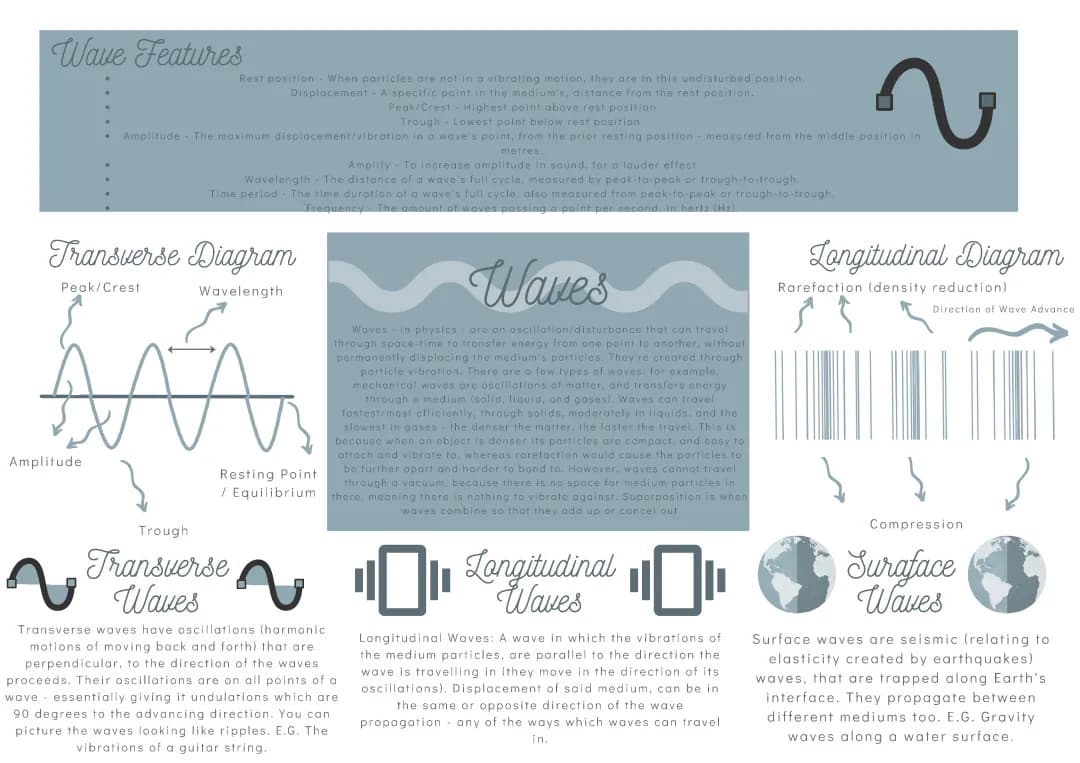

Wave Features and Fundamentals
Understanding wave features is crucial for KS3 waves questions and KS3 Waves revision. This section covers key concepts like rest position, displacement, and amplitude.
Definition: Waves in physics are oscillations or disturbances that transfer energy from one point to another without permanently displacing the medium's particles.
Wave features include:
- Rest position: The undisturbed state of particles when not vibrating.
- Displacement: The distance of a point in the medium from its rest position.
- Peak/Crest: The highest point above the rest position.
- Trough: The lowest point below the rest position.
- Amplitude: The maximum displacement from the rest position, measured in meters.
Vocabulary: Amplify - To increase the amplitude of sound, resulting in a louder effect.
- Wavelength: The distance of a full wave cycle, measured peak-to-peak or trough-to-trough.
- Time period: The duration of a full wave cycle.
- Frequency: The number of waves passing a point per second, measured in hertz .
Highlight: Waves travel fastest through solids, moderately in liquids, and slowest in gases due to particle density and compactness.
Types of waves include:
- Transverse waves: Oscillations perpendicular to the wave's direction.
- Longitudinal waves: Vibrations parallel to the wave's direction.
- Surface waves: Seismic waves trapped along Earth's interface.
Example: Transverse waves can be visualized as ripples, such as the vibrations of a guitar string.
