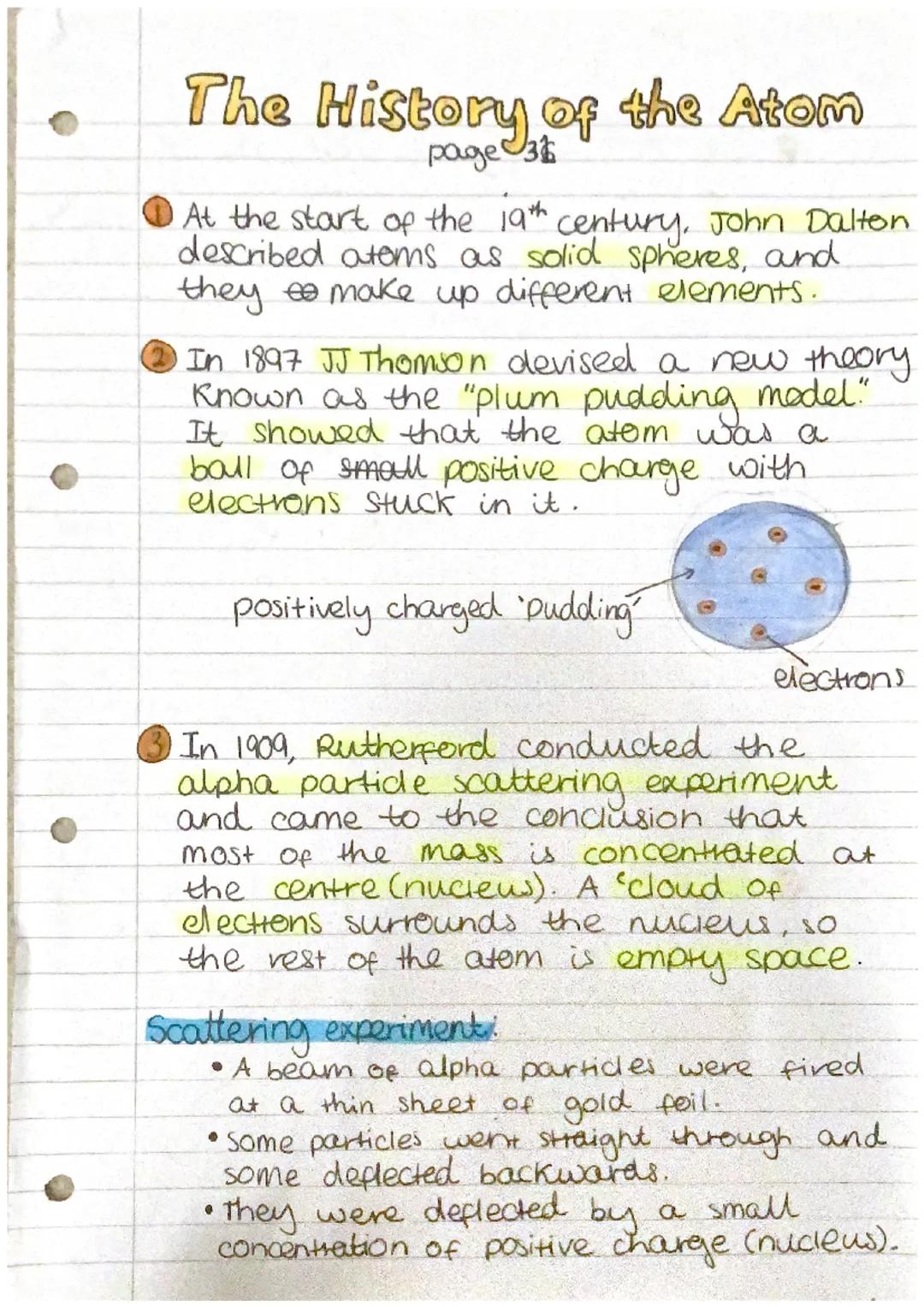

The History of the Atom
Back in the early 1800s, John Dalton had a pretty simple idea about atoms - he thought they were just solid spheres that made up different elements. Think of them like tiny, indestructible marbles that you couldn't break apart.
But in 1897, JJ Thomson shook things up with his famous "plum pudding model". He discovered that atoms weren't solid at all - they contained negatively charged particles called electrons. His model showed atoms as a ball of positive charge with electrons dotted throughout, just like raisins in a Christmas pudding.
Then came the game-changer. In 1909, Rutherford conducted his brilliant alpha particle scattering experiment using gold foil. He fired tiny alpha particles at an incredibly thin sheet of gold and watched what happened. Most particles sailed straight through, but some bounced back completely - which was totally unexpected!
Quick Tip: Remember Rutherford's surprise this way - imagine throwing tennis balls at tissue paper and having some bounce back. That's how shocked he was when his particles deflected!
This experiment proved that atoms have a tiny, dense nucleus at their centre containing most of the atom's mass, with electrons floating around in mostly empty space.
2
of 2

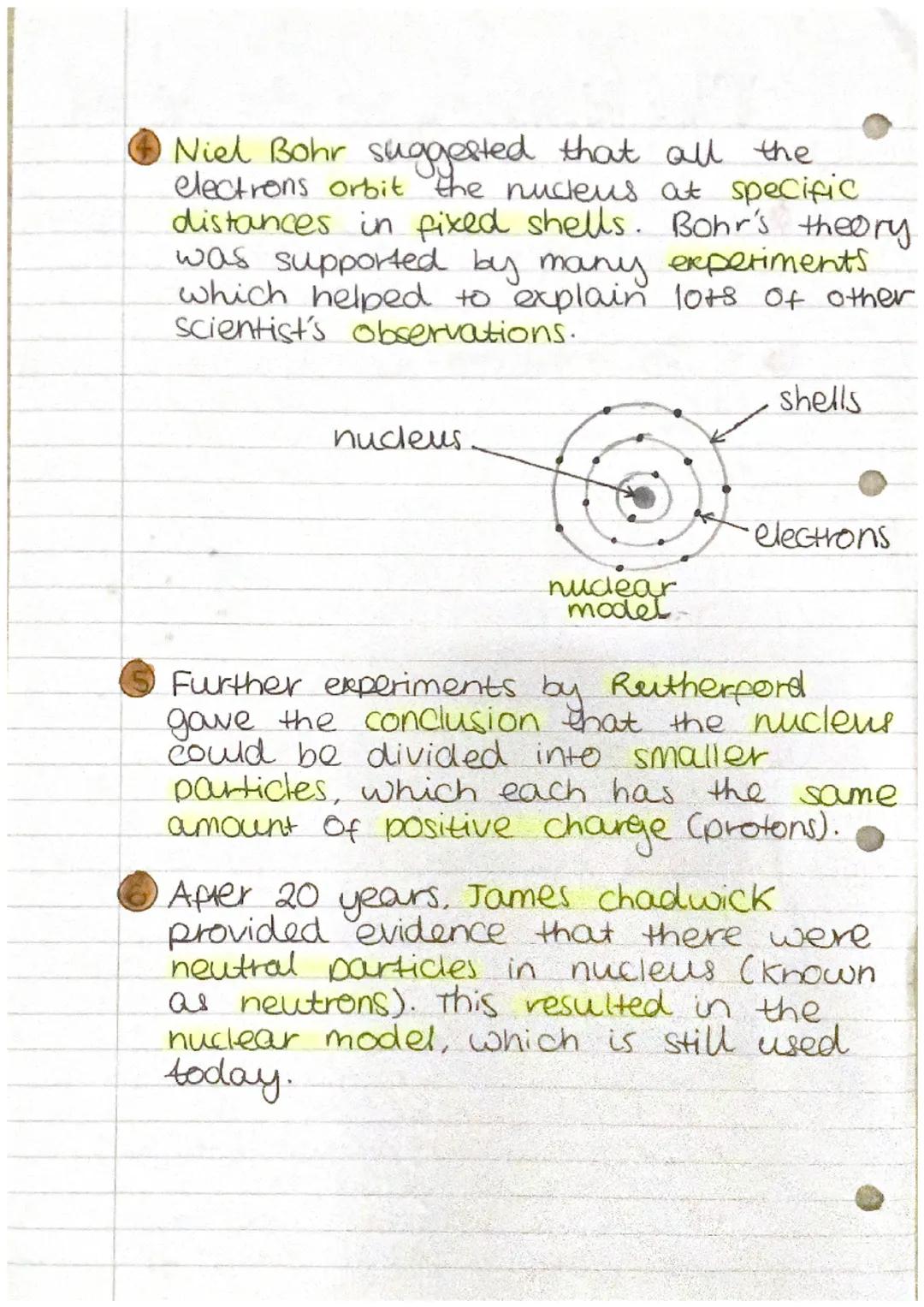

Modern Atomic Models
Niels Bohr wasn't satisfied with Rutherford's model and came up with something even better. He suggested that electrons don't just float randomly around the nucleus - instead, they orbit at specific distances in fixed shells. Picture it like planets orbiting the sun, but only at certain allowed distances.
Bohr's theory was brilliant because it explained loads of observations that other scientists had made but couldn't understand. Multiple experiments backed up his ideas, making it widely accepted in the scientific community.
Rutherford wasn't done yet though. His later experiments revealed that the nucleus itself could be broken down into smaller particles with positive charge, which we now call protons. This was another massive breakthrough in understanding atomic structure.
Remember This: It took 20 years after discovering protons before scientists found the missing piece of the puzzle!
Finally, in the 1930s, James Chadwick provided evidence for neutral particles in the nucleus called neutrons. This completed our modern nuclear model of the atom - the same model we still use today with protons and neutrons in the nucleus, surrounded by electrons in shells.
