Shapes of Molecules and Molecular Ions

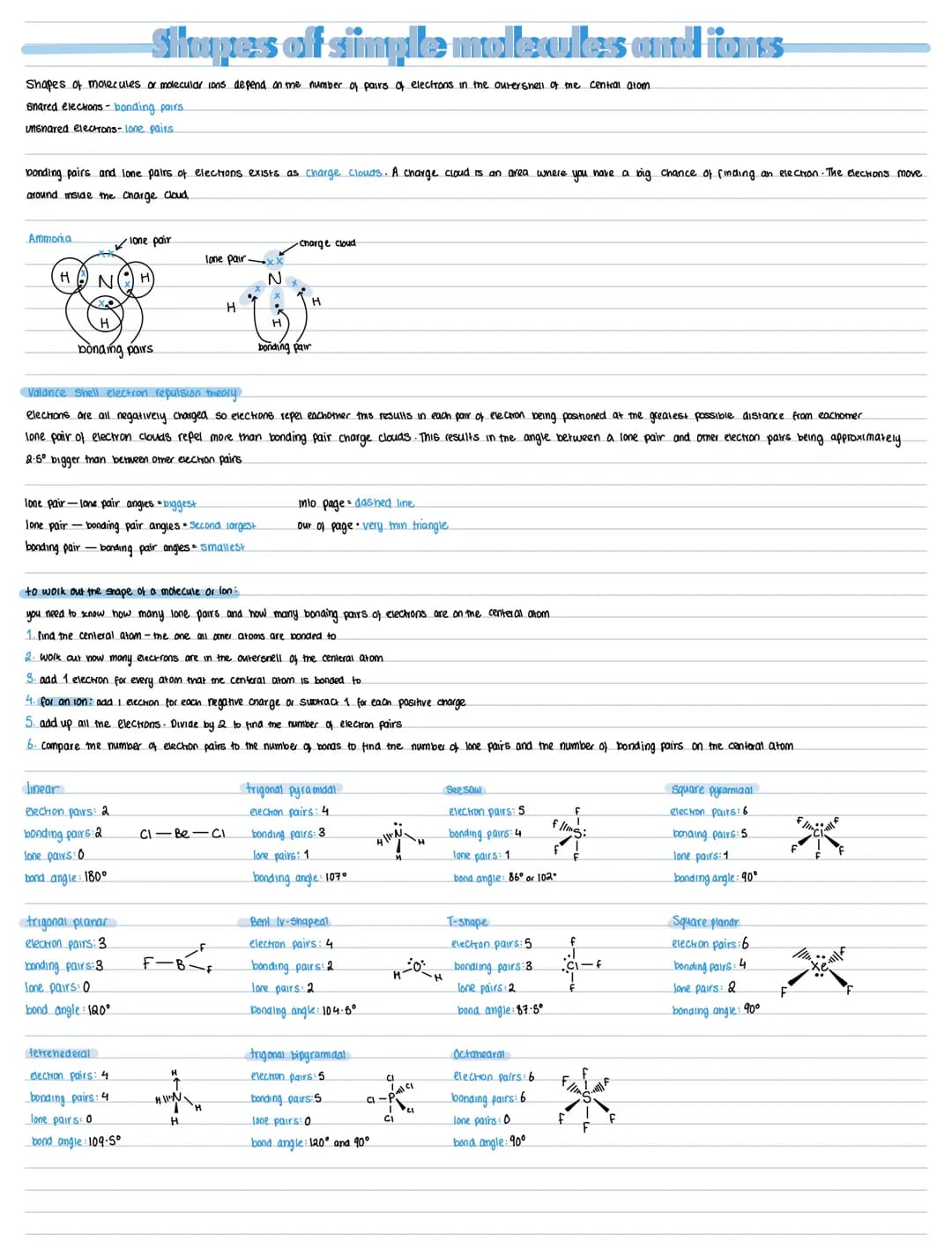

This page provides a comprehensive overview of the shapes of molecules and molecular ions, focusing on the principles that determine their geometries. The document begins by explaining that the shape of a molecule or molecular ion is dependent on the number of electron pairs in the outer shell of the central atom.

The concept of charge clouds is introduced, describing them as areas where electrons are likely to be found. The document then delves into the Valence Shell Electron Pair Repulsion (VSEPR) theory, which is fundamental to understanding molecular shapes.

Definition: A charge cloud is an area where there is a high probability of finding an electron, with electrons moving within this cloud.

The page presents a systematic approach to determining molecular shapes:

1. Identify the central atom
2. Count the electrons in the outer shell of the central atom
3. Add electrons for bonded atoms and account for ionic charges
4. Calculate the total number of electron pairs
5. Determine the number of lone pairs and bonding pairs

Various molecular geometries are illustrated, including:

• Linear (2 electron pairs)
• Trigonal planar (3 electron pairs)
• Tetrahedral (4 electron pairs)
• Trigonal pyramidal (4 electron pairs, 1 lone pair)
• Bent or V-shaped (4 electron pairs, 2 lone pairs)
• Trigonal bipyramidal (5 electron pairs)
• See-saw (5 electron pairs, 1 lone pair)
• T-shaped (5 electron pairs, 2 lone pairs)
• Octahedral (6 electron pairs)
• Square pyramidal (6 electron pairs, 1 lone pair)
• Square planar (6 electron pairs, 2 lone pairs)

Highlight: The VSEPR theory explains that electrons, being negatively charged, repel each other, resulting in electron pairs positioning themselves at the greatest possible distance from one another.

Example: Ammonia (NH₃) has a trigonal pyramidal shape with a bond angle of 107°, due to the presence of three bonding pairs and one lone pair on the nitrogen atom.

The document also notes the importance of understanding bond angles, which vary depending on the molecular geometry and the presence of lone pairs. For instance, the bond angle in a linear molecule is 180°, while in a tetrahedral molecule it's 109.5°.

Vocabulary: Bonding pairs refer to shared electrons between atoms, while lone pairs are unshared electrons on the central atom.

This comprehensive guide serves as an excellent resource for students studying molecular shapes in A-level Chemistry or those seeking to understand the VSEPR theory for B.Sc. first year courses.
