Fun with Chemistry: Easy Separation Techniques and Mind Maps!

Gracie

@gracefulgracie

This Chemistry separation techniques mind map worksheetprovides an overview... Show more

م.

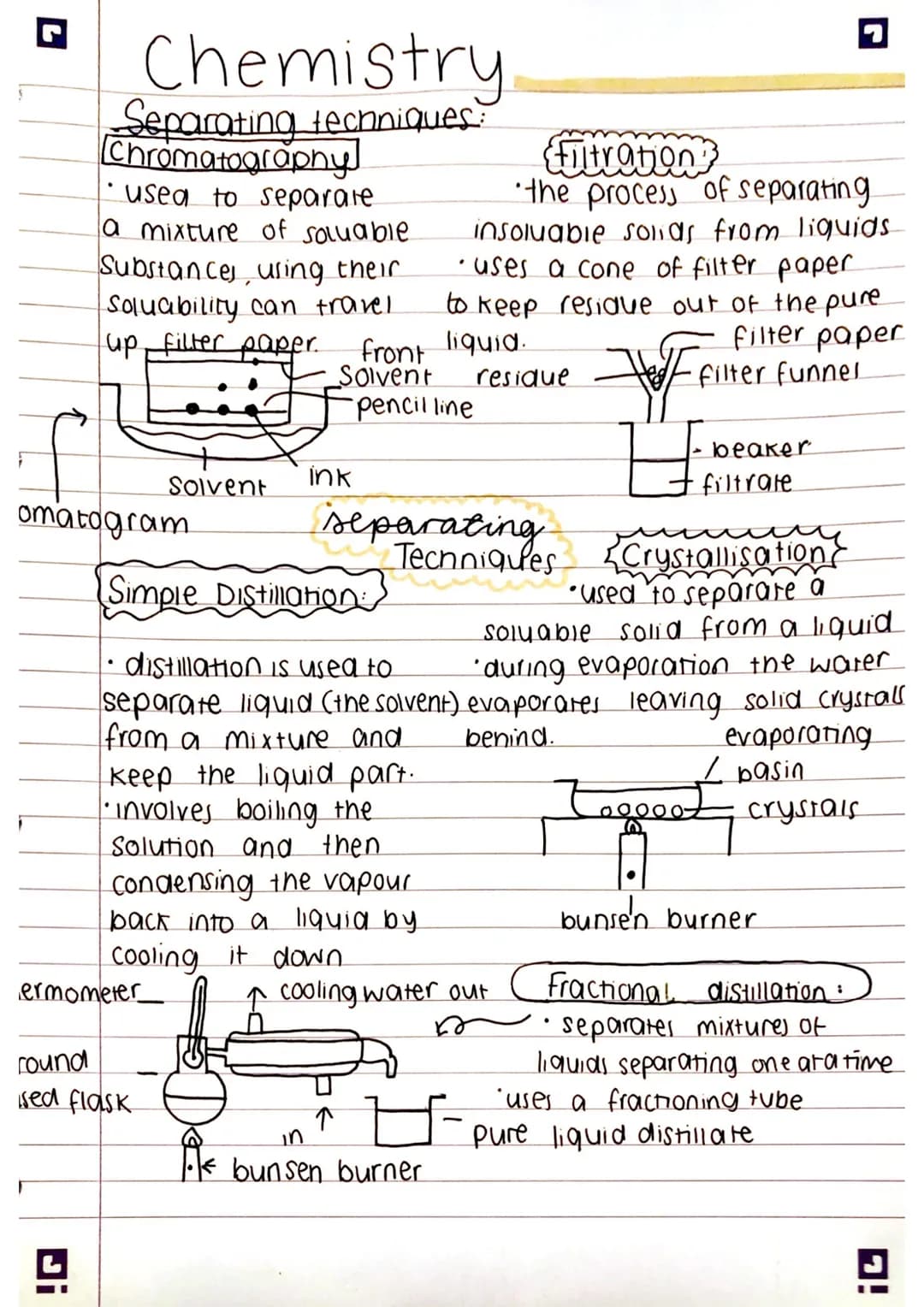

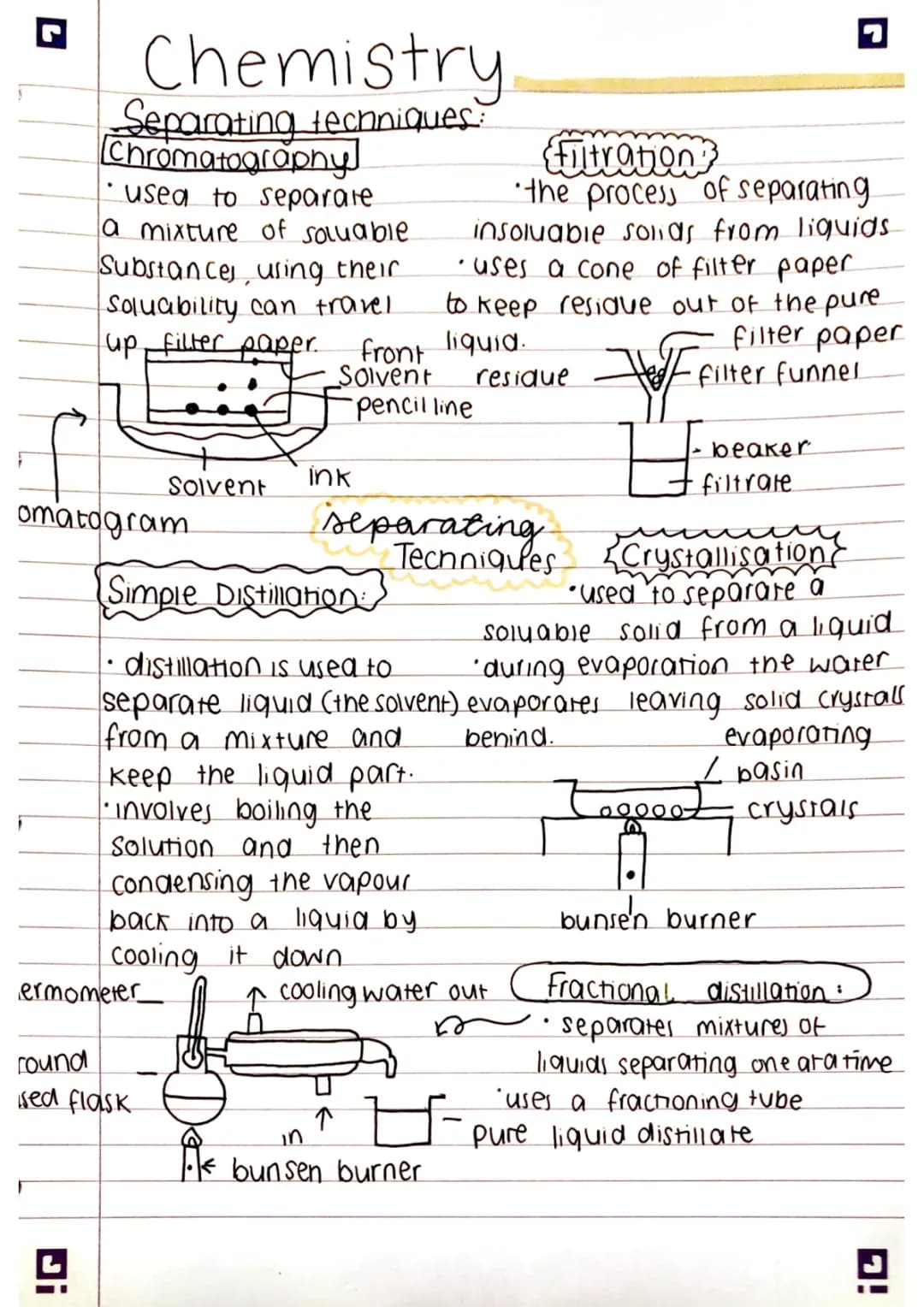

# Chemistry
## Separating techniques:
### Chromatography
- usea to separare
a mixture of soluable.
Substances, using their
Soluability ca

Chemistry Separation Techniques

This Chemistry separation techniques mind map PDF provides a comprehensive overview of five key separation methods used in chemistry: chromatography, filtration, simple distillation, crystallisation, and fractional distillation.

Chromatography

Chromatography is used to separate a mixture of soluble substances based on their solubility differences. The process involves a stationary phase (filter paper) and a mobile phase (solvent).

Definition: Chromatography is a technique that separates components of a mixture based on their different rates of migration through a medium.

The components of the mixture travel up the filter paper at different rates, creating distinct bands on the chromatogram.

Vocabulary: Chromatogram - the pattern of separated components on the filter paper after chromatography is complete.

Filtration

Filtration is the process of separating insoluble solids from liquids using a filter paper.

Example: Separating sand from a mixture of sand and water using filter paper in a funnel.

The setup includes a filter funnel with filter paper, through which the mixture is poured. The solid particles (residue) are trapped on the filter paper, while the liquid (filtrate) passes through.

Simple Distillation

Simple distillation is used to separate a liquid (the solvent) from a mixture and retain the liquid part.

Highlight: This method is particularly useful for purifying liquids or separating liquids with significantly different boiling points.

The process involves boiling the solution and then condensing the vapor back into a liquid by cooling it down. The setup typically includes a round-bottom flask, a thermometer, and a condenser.

Crystallisation

Crystallisation is used to separate a soluble solid from a liquid through evaporation.

Quote: "During evaporation, the water evaporates, leaving solid crystals behind."

This method is often used to purify solids or recover dissolved substances from solutions. The process involves heating the solution in an evaporating basin until crystals form.

Fractional Distillation

Fractional distillation separates mixtures of liquids with different boiling points, separating one component at a time.

Vocabulary: Fractioning tube - a column used in fractional distillation to increase the separation efficiency of liquids with similar boiling points.

This method is more efficient than simple distillation for separating liquids with close boiling points. It uses a fractionating column to provide a larger surface area for vapor-liquid contact, allowing for better separation.

These separation techniques in Chemistry PDF are essential for GCSE Chemistry separation techniques exam questions and are frequently covered in Separation techniques bbc Bitesize KS3 resources. Understanding these methods is crucial for mastering Separation techniques KS3 and beyond.
