Understanding Filtration and Crystallization Techniques in Chemistry

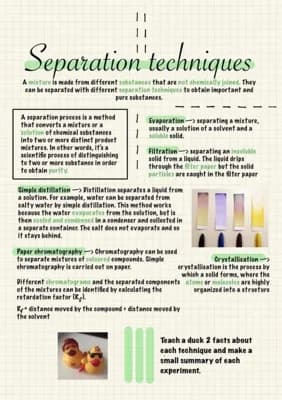

Understanding Basic Chemical Separation Techniques

Types of filtration technique in chemistry are essential methods used in laboratories and industry to separate mixtures into their components. The fundamental difference between mixtures and compounds lies in their chemical bonds - while compounds contain chemically bonded elements, mixtures can be physically separated.

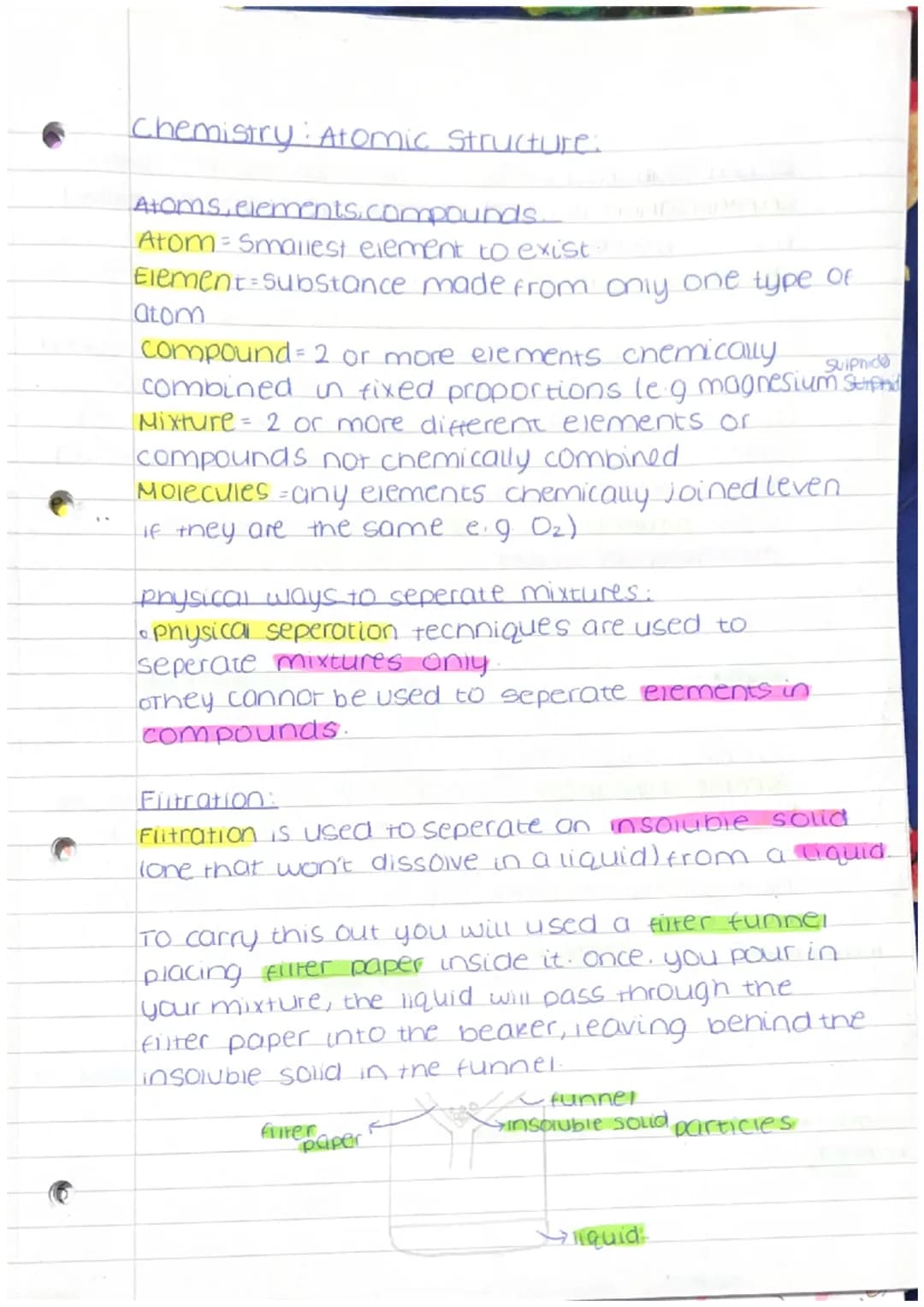

The filtration procedure step by step begins with understanding that filtration separates an insoluble solid from a liquid. This filtration method requires basic laboratory equipment including a filter funnel and filter paper. When the mixture is poured through, the liquid passes while solid particles remain trapped.

Definition: Filtration is a physical separation technique that uses a porous barrier (filter) to separate solid particles from a liquid.

Here are some key filtration technique in chemistry examples:

• Separating sand from water
• Removing coffee grounds from brewed coffee
• Purifying water through industrial filters
• Separating precipitates in chemical reactions

The effectiveness of filtration depends on particle size and filter pore size. Industrial applications often use more sophisticated filtration systems, but the basic principle remains the same.

Crystallization and Simple Distillation Processes

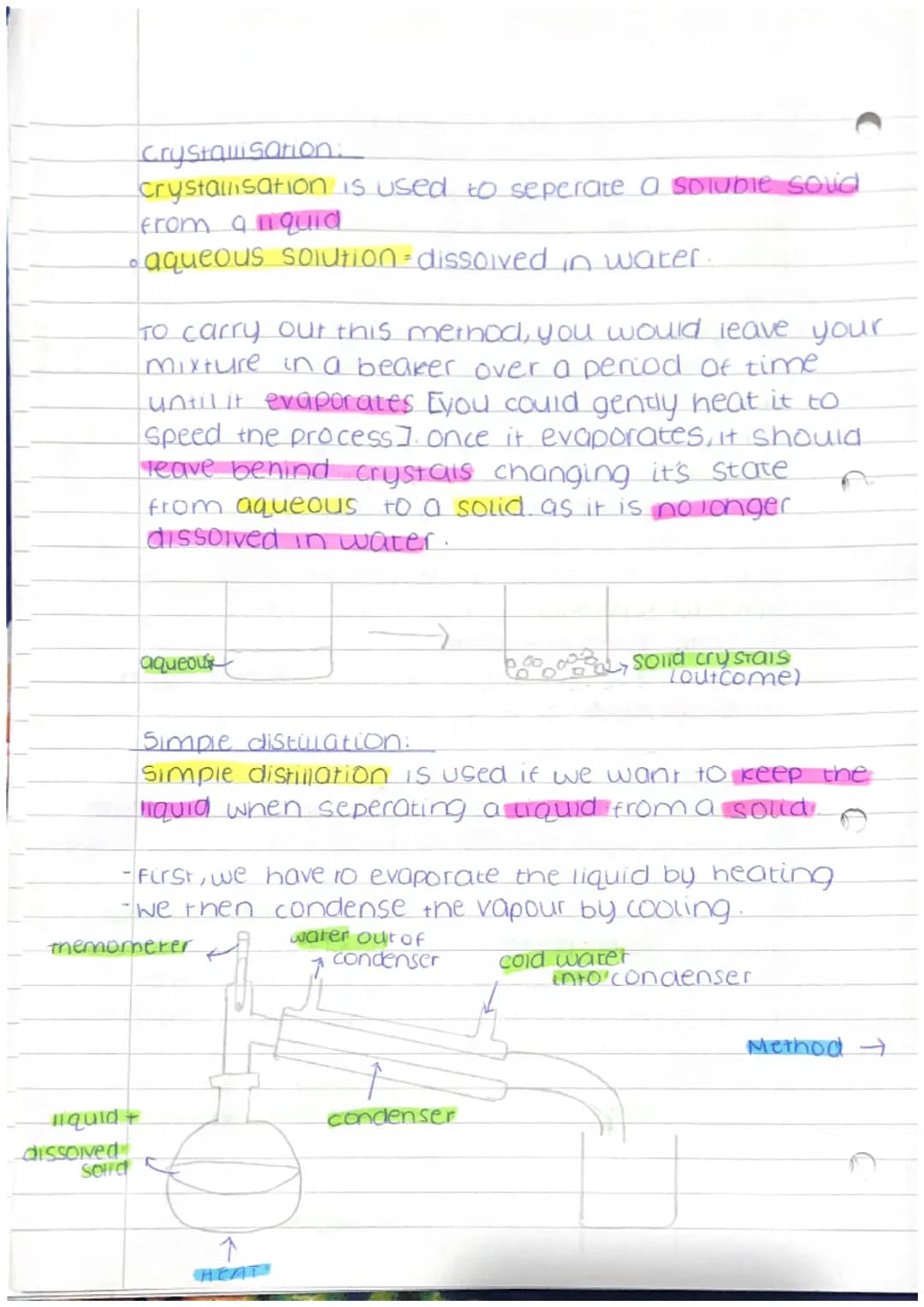

The crystallization separation process is a purification technique used to obtain pure solids from solutions. The crystallization process in chemistry involves several key steps:

1. Creating a saturated solution
2. Slowly evaporating the solvent
3. Crystal formation and growth
4. Collection and drying of crystals

Example: When salt water evaporates, cubic salt crystals form as the water leaves the solution.

The crystallization separation process steps must be carefully controlled to produce pure, well-formed crystals. Factors affecting crystallization include:

• Temperature
• Evaporation rate
• Solution concentration
• Presence of impurities

Simple distillation complements crystallization by allowing recovery of the solvent. This process involves heating the solution until the liquid vaporizes, then cooling the vapor to condense it back into pure liquid form.

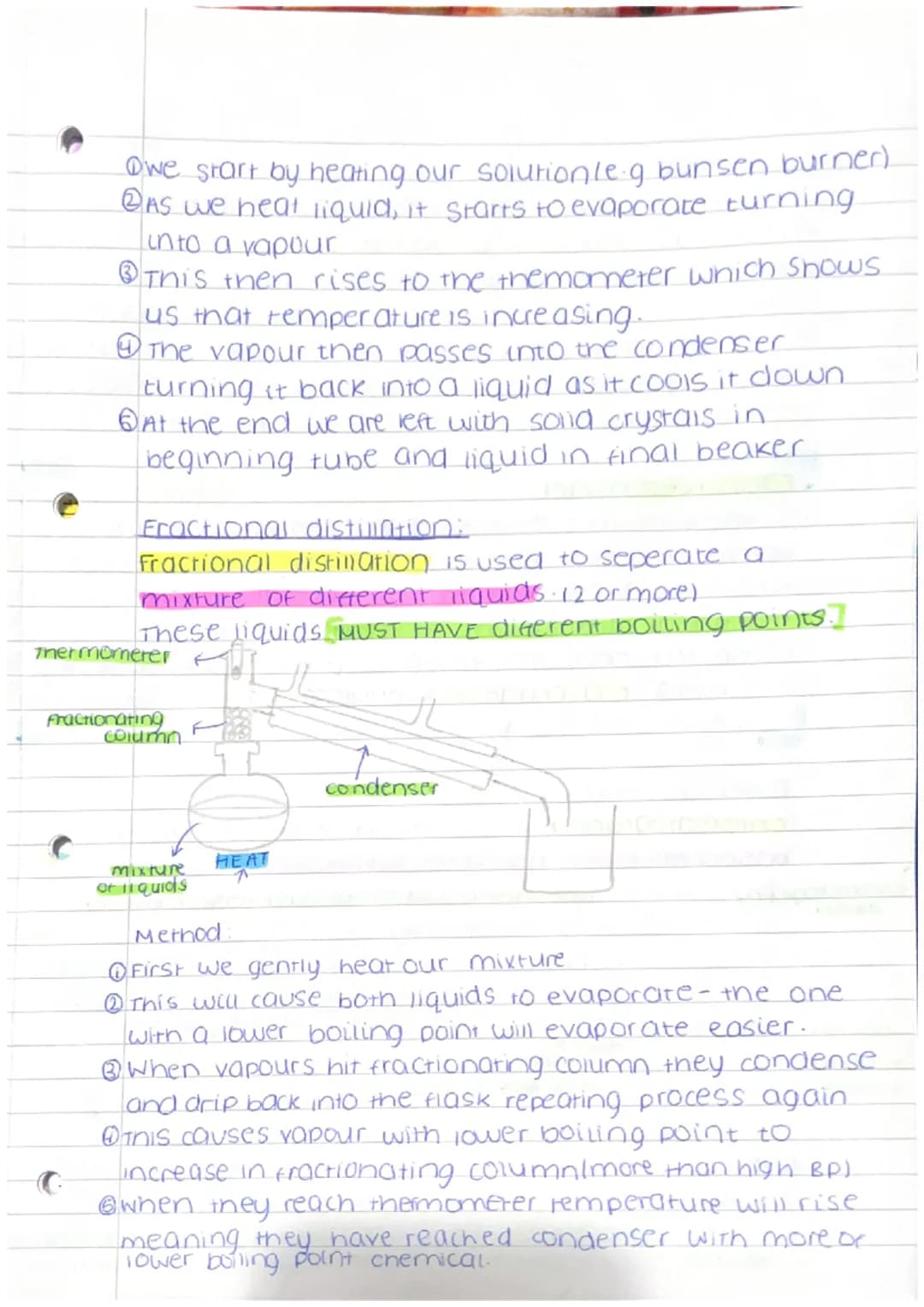

Advanced Separation: Fractional Distillation

The process of fractional distillation is more complex than simple distillation and is used to separate liquids with different boiling points. Understanding what is fractional distillation Class 9 level concepts requires focusing on the key components:

• Fractionating column
• Thermometer
• Condenser
• Collection vessels

Highlight: The success of fractional distillation depends on the difference in boiling points between the liquids being separated.

The fractional distillation method steps with diagram typically shows:

1. Initial heating of mixture
2. Vapor rising through fractionating column
3. Selective condensation based on temperature
4. Collection of separated components

The fractional distillation of crude oil is a prime industrial example, separating petroleum into gasoline, kerosene, and other products.

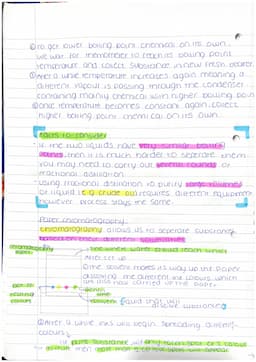

Paper Chromatography and Advanced Applications

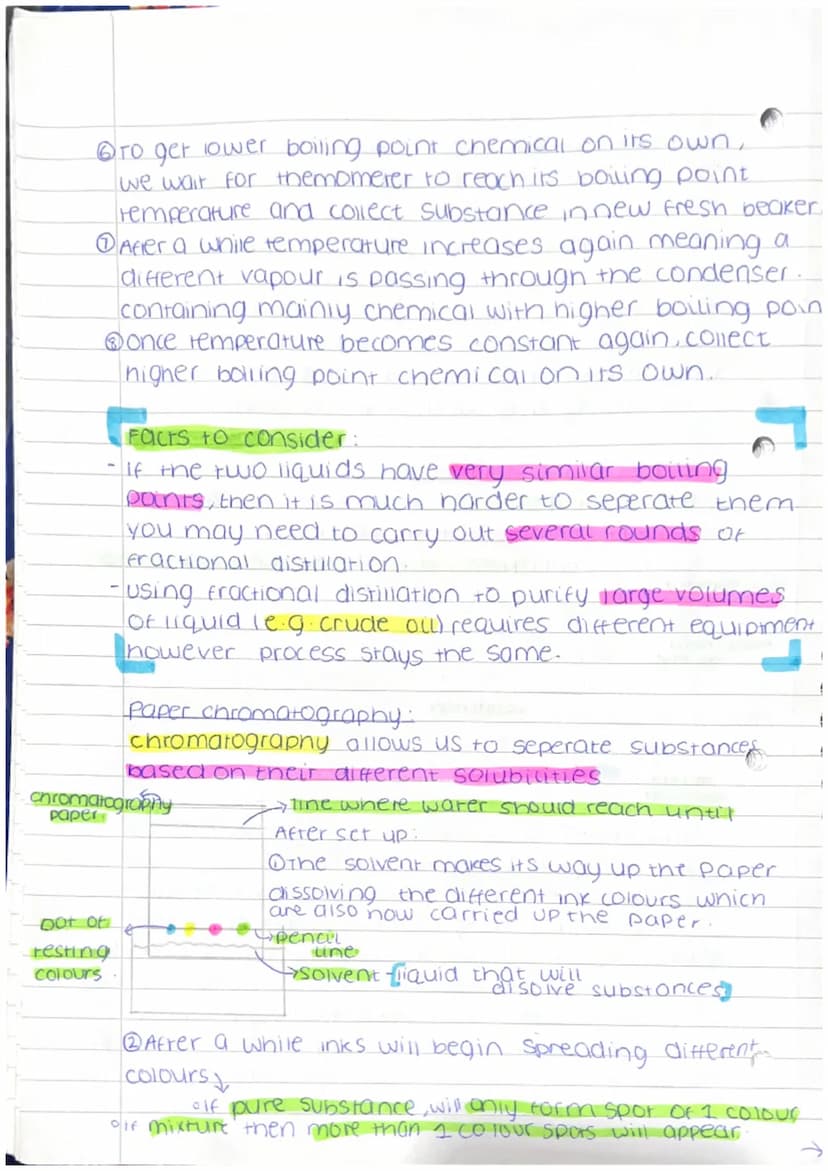

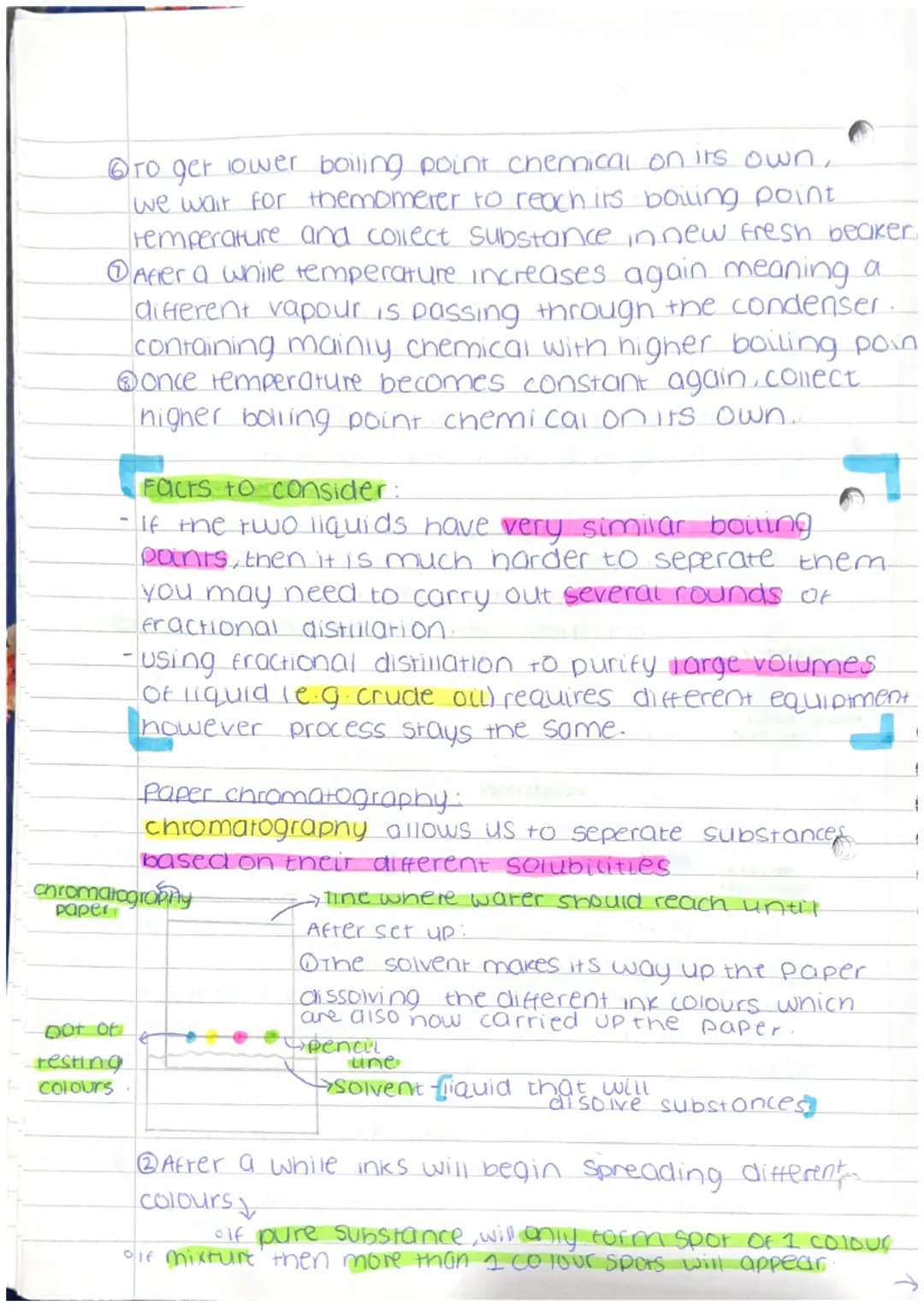

Paper chromatography represents another vital separation technique, particularly useful for analyzing mixtures of colored compounds. This method relies on different substances moving at different rates as a solvent travels up paper.

Key components include:

• Stationary phase (paper)
• Mobile phase (solvent)
• Sample mixture
• Development chamber

Vocabulary: Rf value (retention factor) measures how far each component travels relative to the solvent front.

The separation process depends on:

• Solvent polarity
• Paper type
• Temperature
• Development time

This technique finds applications in:

• Forensic analysis
• Food chemistry
• Pharmaceutical testing
• Environmental monitoring

Understanding these separation techniques provides a foundation for both laboratory work and industrial processes in chemistry.

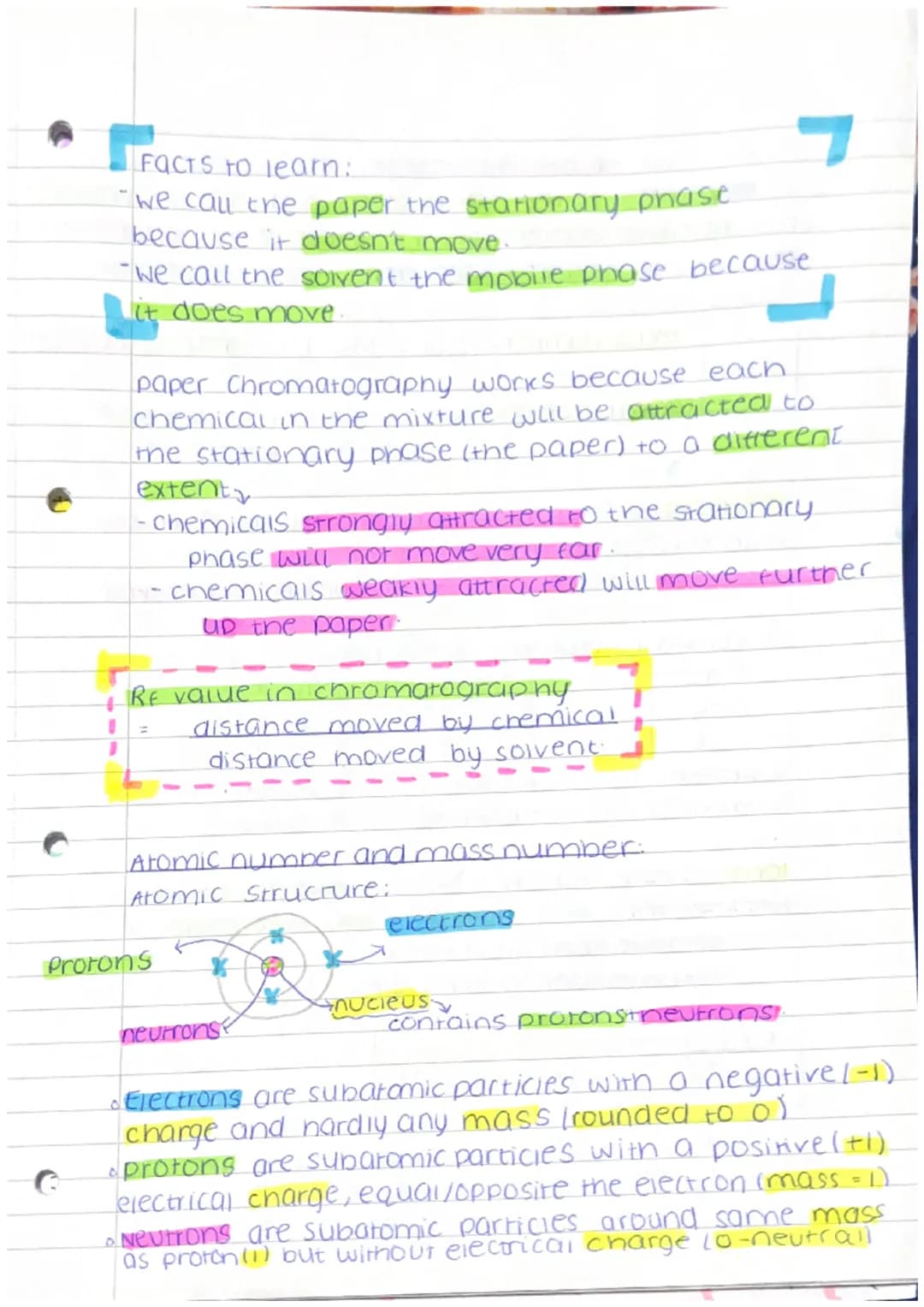

Understanding Paper Chromatography and Atomic Structure

Paper chromatography represents a fundamental filtration technique in chemistry that separates mixtures based on different attraction levels between components. The process involves two key phases - the stationary phase (paper) and the mobile phase (solvent).

Definition: Paper chromatography is a separation technique where chemicals move at different rates based on their attraction to the stationary phase (paper) and mobile phase (solvent).

The effectiveness of paper chromatography relies on the varying degrees of attraction between chemicals and the stationary phase. Substances with stronger attraction to the paper move slower, while those with weaker attraction travel further up. Scientists measure these movements using Rf values, calculated by dividing the distance moved by the chemical by the distance moved by the solvent.

Atomic structure forms the foundation for understanding chemical behavior. At its core, atoms consist of three main subatomic particles: protons, neutrons, and electrons. Each plays a crucial role in determining atomic properties and chemical behavior.

Vocabulary:

• Protons: Positively charged particles $+1$ located in the nucleus
• Neutrons: Neutral particles with no charge, found in the nucleus
• Electrons: Negatively charged particles $-1$ that orbit the nucleus

Atomic Number, Mass Number, and Isotopes

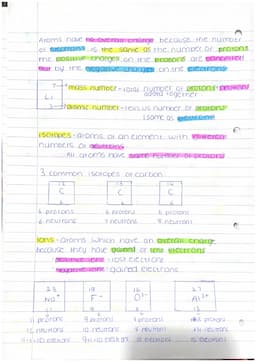

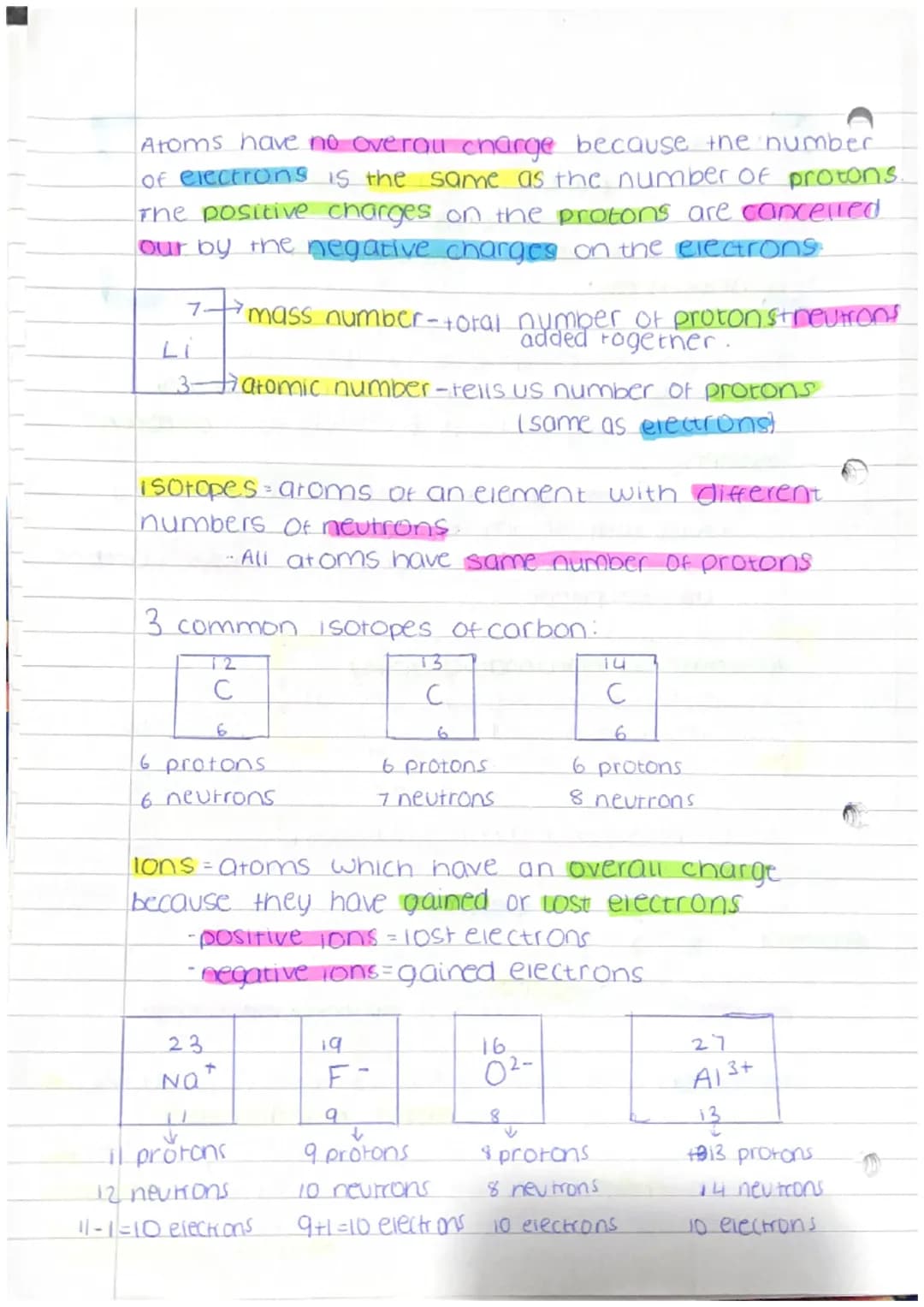

The relationship between protons and electrons creates the fundamental nature of atoms. In a neutral atom, the number of protons equals the number of electrons, resulting in no overall charge. This balance is essential for understanding atomic structure and chemical behavior.

Highlight: The atomic number represents the number of protons in an atom, while the mass number is the total of protons and neutrons combined.

Isotopes represent an important concept in atomic structure, defined as atoms of the same element containing different numbers of neutrons. For example, carbon has three common isotopes:

• Carbon-12: 6 protons, 6 neutrons
• Carbon-13: 6 protons, 7 neutrons
• Carbon-14: 6 protons, 8 neutrons

Ions form when atoms gain or lose electrons, creating charged particles. Positive ions result from electron loss, while negative ions form through electron gain. This process is fundamental to chemical bonding and reactions.

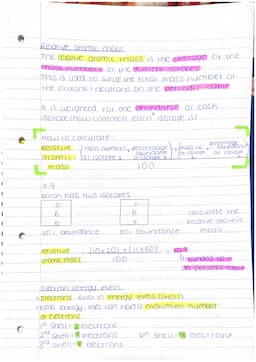

Relative Atomic Mass and Electron Energy Levels

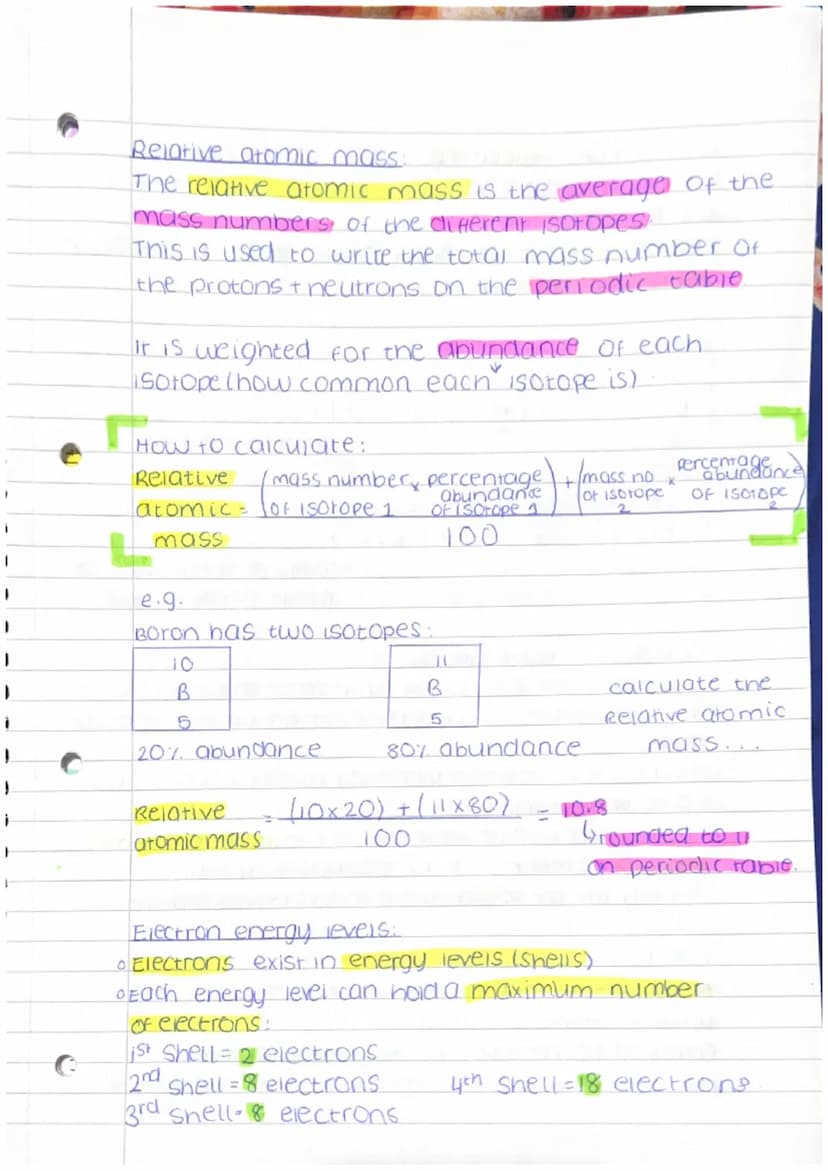

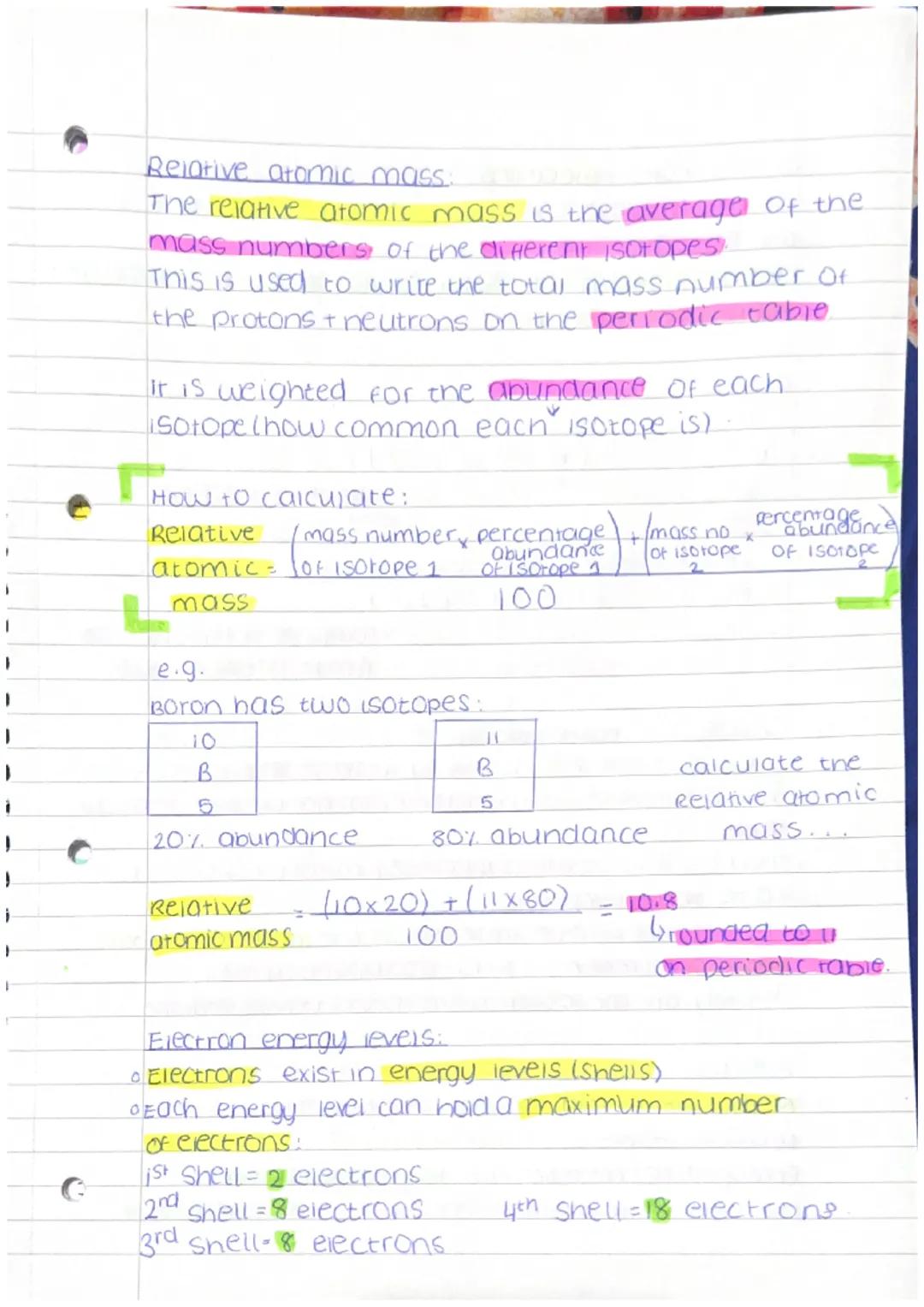

The relative atomic mass represents a weighted average of an element's isotopes, considering their natural abundance. This value appears on the periodic table and provides crucial information about atomic mass.

Example: Calculating relative atomic mass for Boron:

• Boron-10 (20% abundance)
• Boron-11 (80% abundance)
• Calculation: $(10 × 20) + (11 × 80)$ ÷ 100 = 10.8

Electron energy levels, or shells, determine how electrons are arranged around the nucleus. Each shell has a maximum electron capacity:

• First shell: 2 electrons
• Second shell: 8 electrons
• Third shell: 8 electrons
• Fourth shell: 18 electrons

Noble Gases and Metals in the Periodic Table

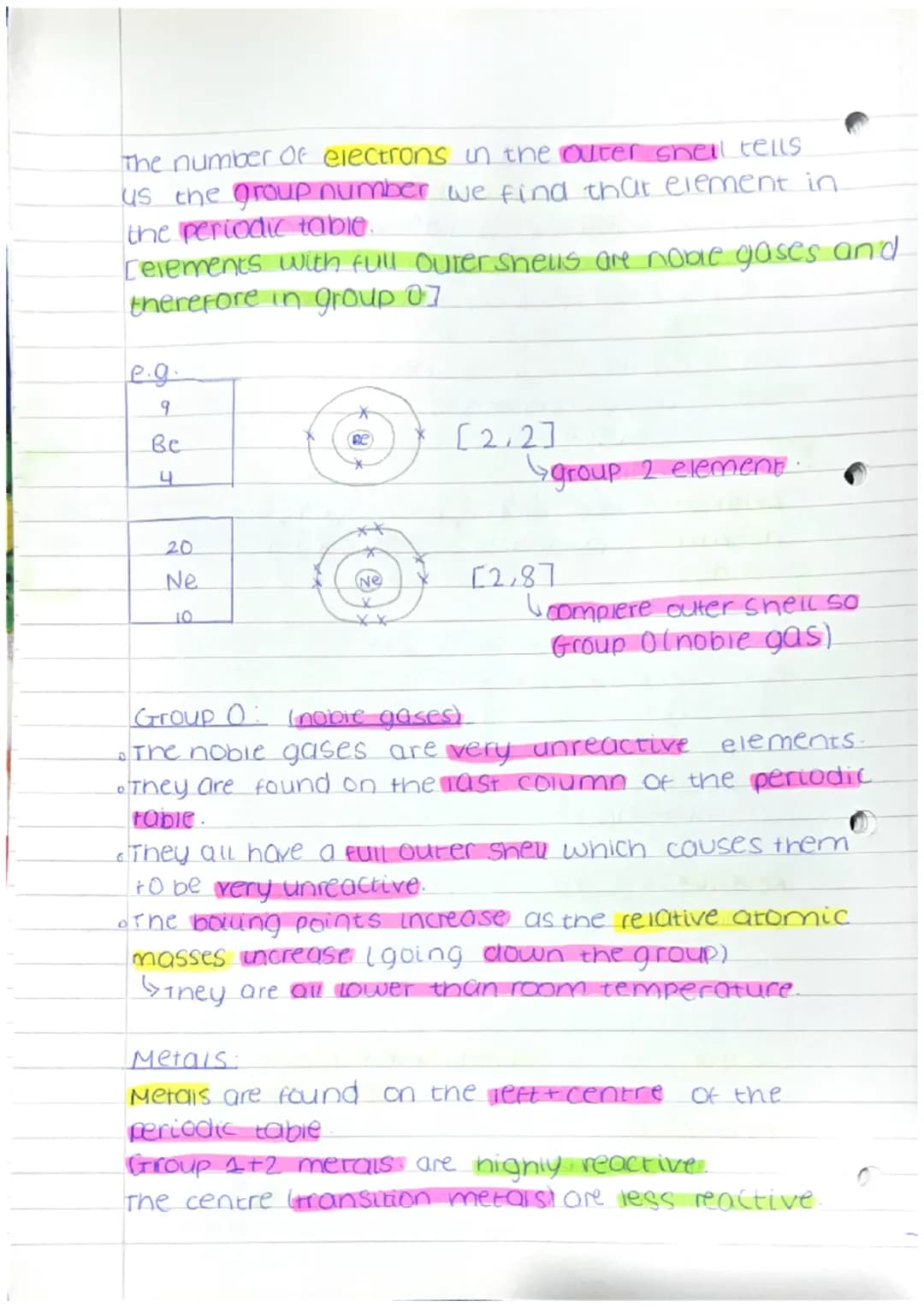

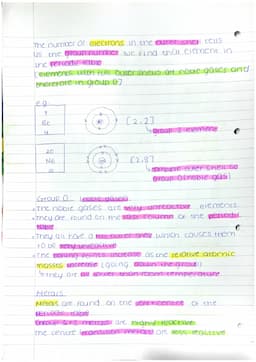

The periodic table organizes elements based on their electron configurations and chemical properties. Noble gases, found in Group 0, possess complete outer electron shells, making them extremely unreactive.

Definition: Noble gases are elements with full outer electron shells, resulting in exceptional stability and chemical inertness.

Metals, located on the left and center of the periodic table, exhibit distinct chemical behavior. Group 1 metals (alkali metals) are highly reactive due to their single outer electron. Their reactivity increases down the group because:

• Greater distance between nucleus and outer electrons
• Increased electron shielding from inner shells
• Easier electron loss in chemical reactions

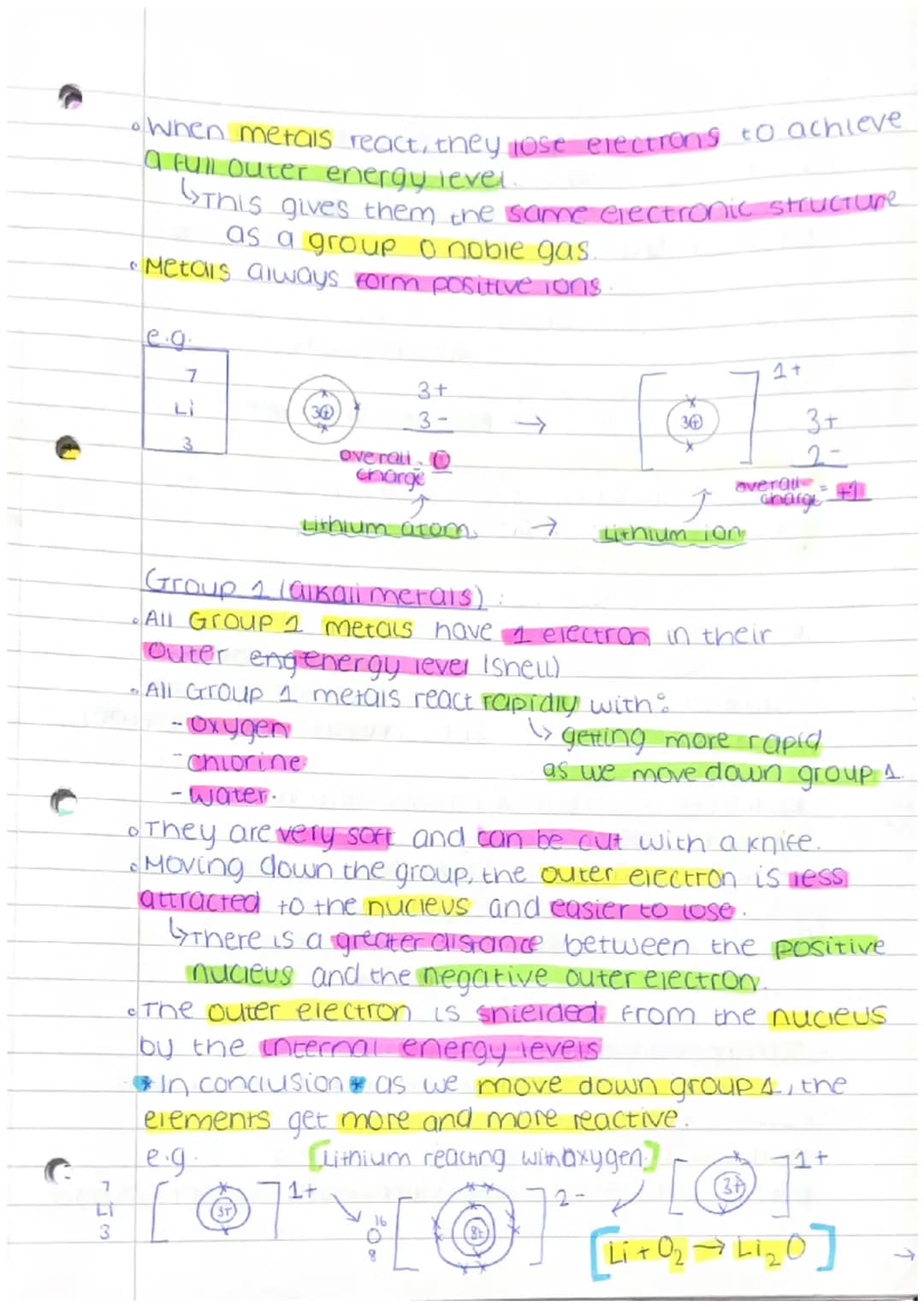

When metals react, they form positive ions by losing electrons to achieve noble gas configurations. This fundamental principle explains metal reactivity and chemical bonding patterns.

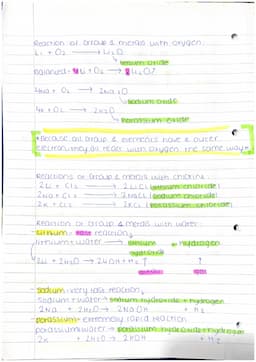

Chemical Reactions of Group 1 Metals: A Comprehensive Guide

Group 1 metals demonstrate predictable and fascinating reaction patterns with oxygen, chlorine, and water due to their single outer electron configuration. These reactions are fundamental to understanding basic chemical principles and have important practical applications.

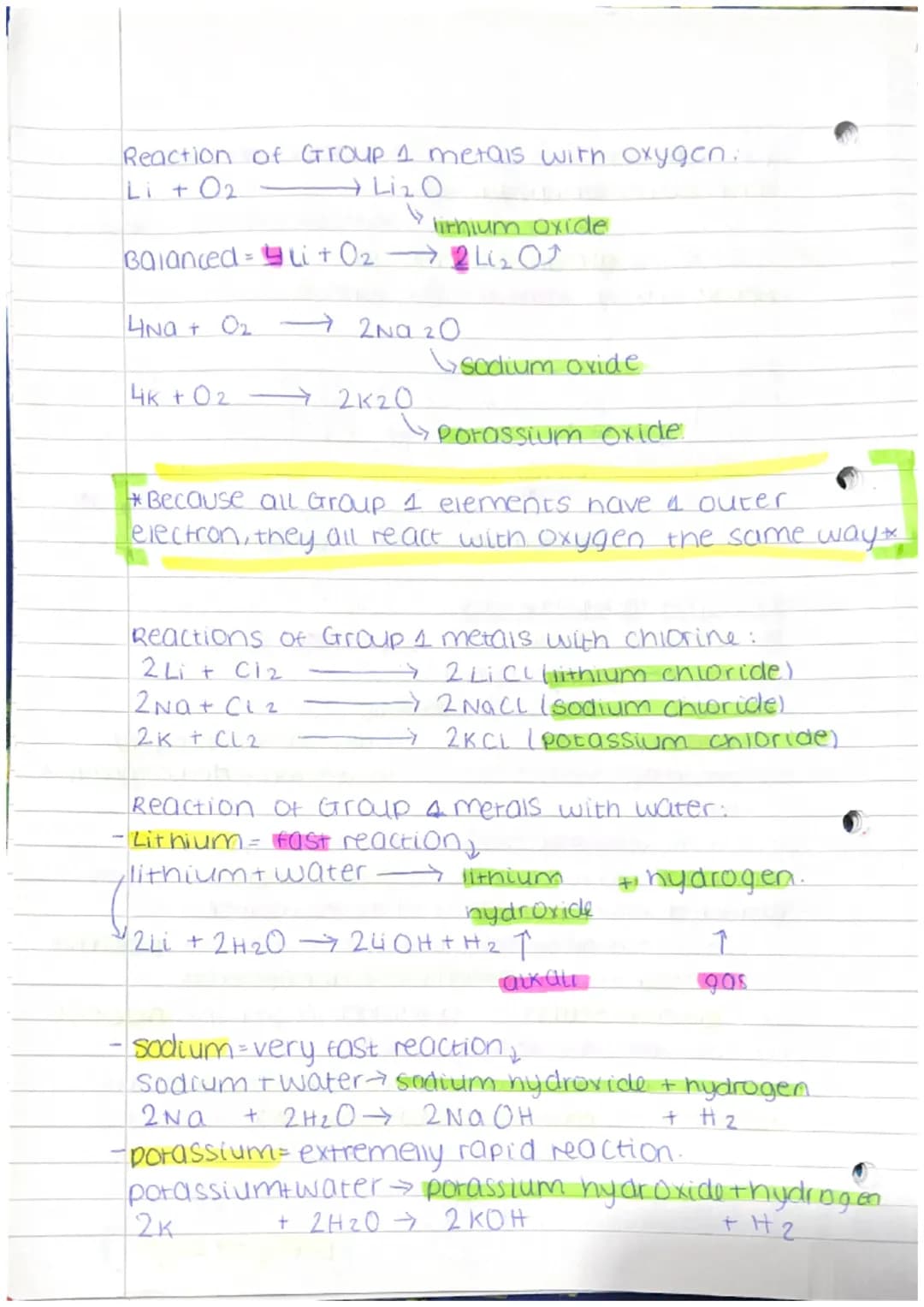

When Group 1 metals react with oxygen, they form metal oxides following a consistent pattern. Lithium reacts to form Li₂O (lithium oxide), sodium forms Na₂O (sodium oxide), and potassium produces K₂O (potassium oxide). These reactions follow the general equation: 4M + O₂ → 2M₂O (where M represents the Group 1 metal). The reactivity increases as you move down the group, with potassium showing the most vigorous reaction.

Definition: Group 1 metals, also known as alkali metals, are highly reactive elements that readily give up their single outer electron to form ionic compounds.

The chlorine reactions of Group 1 metals follow a similar pattern but produce metal chlorides. The balanced equations show: 2Li + Cl₂ → 2LiCl, 2Na + Cl₂ → 2NaCl, and 2K + Cl₂ → 2KCl. These reactions are particularly important as they produce essential compounds like sodium chloride (table salt). The reactions become increasingly exothermic down the group, requiring careful handling procedures.

When these metals react with water, they produce metal hydroxides and hydrogen gas. The reactions become progressively more violent down the group. Lithium reacts steadily (2Li + 2H₂O → 2LiOH + H₂), sodium reacts vigorously (2Na + 2H₂O → 2NaOH + H₂), and potassium reacts explosively $2K + 2H₂O → 2KOH + H₂$. These reactions demonstrate the increasing reactivity trend in Group 1 metals and their ability to displace hydrogen from water.

Highlight: The reactivity of Group 1 metals increases down the group due to increasing atomic size and decreasing ionization energy. This makes potassium the most reactive of these three elements.

Understanding Chemical Reactions and Safety Protocols

The systematic study of Group 1 metal reactions reveals important patterns in chemical behavior and reactivity. These patterns are crucial for predicting chemical outcomes and understanding periodic trends. The increasing reactivity down the group is directly related to the atomic structure and electron configuration of these elements.

Safety considerations are paramount when working with Group 1 metals. Due to their high reactivity, these metals must be stored under oil or in inert atmospheres to prevent contact with moisture or air. When conducting experiments, proper protective equipment and controlled conditions are essential, particularly for the more reactive elements like potassium.

Example: In a typical demonstration of sodium's reactivity with water, a small piece of sodium is carefully added to water, producing a vigorous reaction with flames and the evolution of hydrogen gas. This demonstrates both the metal's high reactivity and the formation of basic solutions.

The practical applications of these reactions extend beyond the laboratory. Sodium hydroxide, produced from the sodium-water reaction, is a crucial industrial chemical used in soap manufacturing and paper production. Understanding these reactions helps explain both natural phenomena and industrial processes, making them fundamental to chemical education and research.

Vocabulary: Exothermic reactions release energy to the surroundings, typically in the form of heat and light, as seen in Group 1 metal reactions with water.
