Comprehensive Isomerism Guide for A-Level Chemistry

user profile picture
Daniel@daniel_blja

Isomerism is one of the most important concepts in organic...

1
of 10

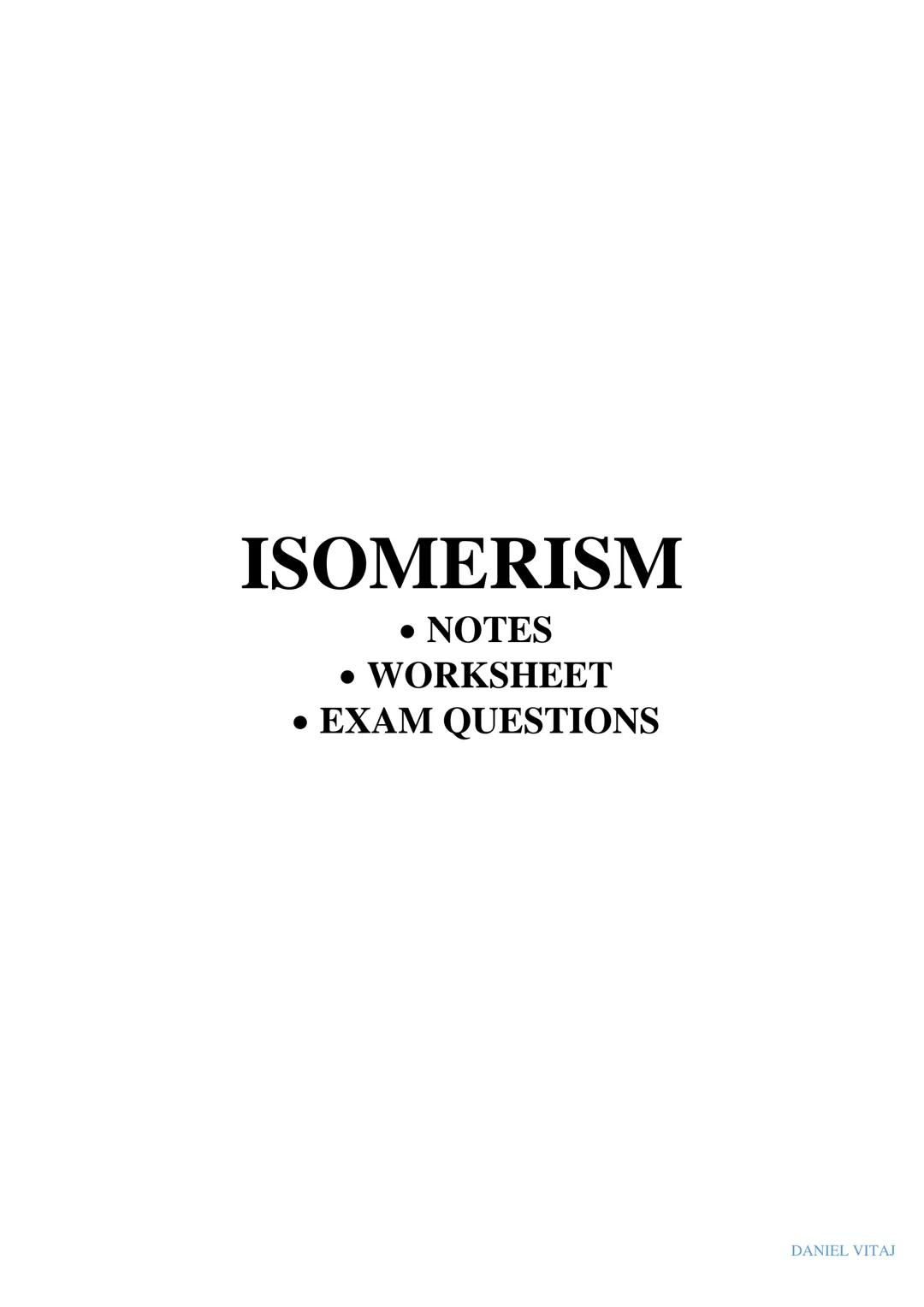

Isosmerism booklet A-level Chemistry – page 1

Introduction to Isomerism

Ever wondered why some molecules with the same chemical formula behave completely differently? That's where isomerism comes in - it's the reason why chemistry gets really interesting!

Isomers are molecules that share the same molecular formula but have different structures. It's like having identical ingredients but following different recipes. There are two main types you need to master: structural isomerism and stereoisomerism.

💡 Quick Tip: Remember that same formula + different structure = isomers. This simple rule will help you spot them every time!

2
of 10
Isosmerism booklet A-level Chemistry – page 2

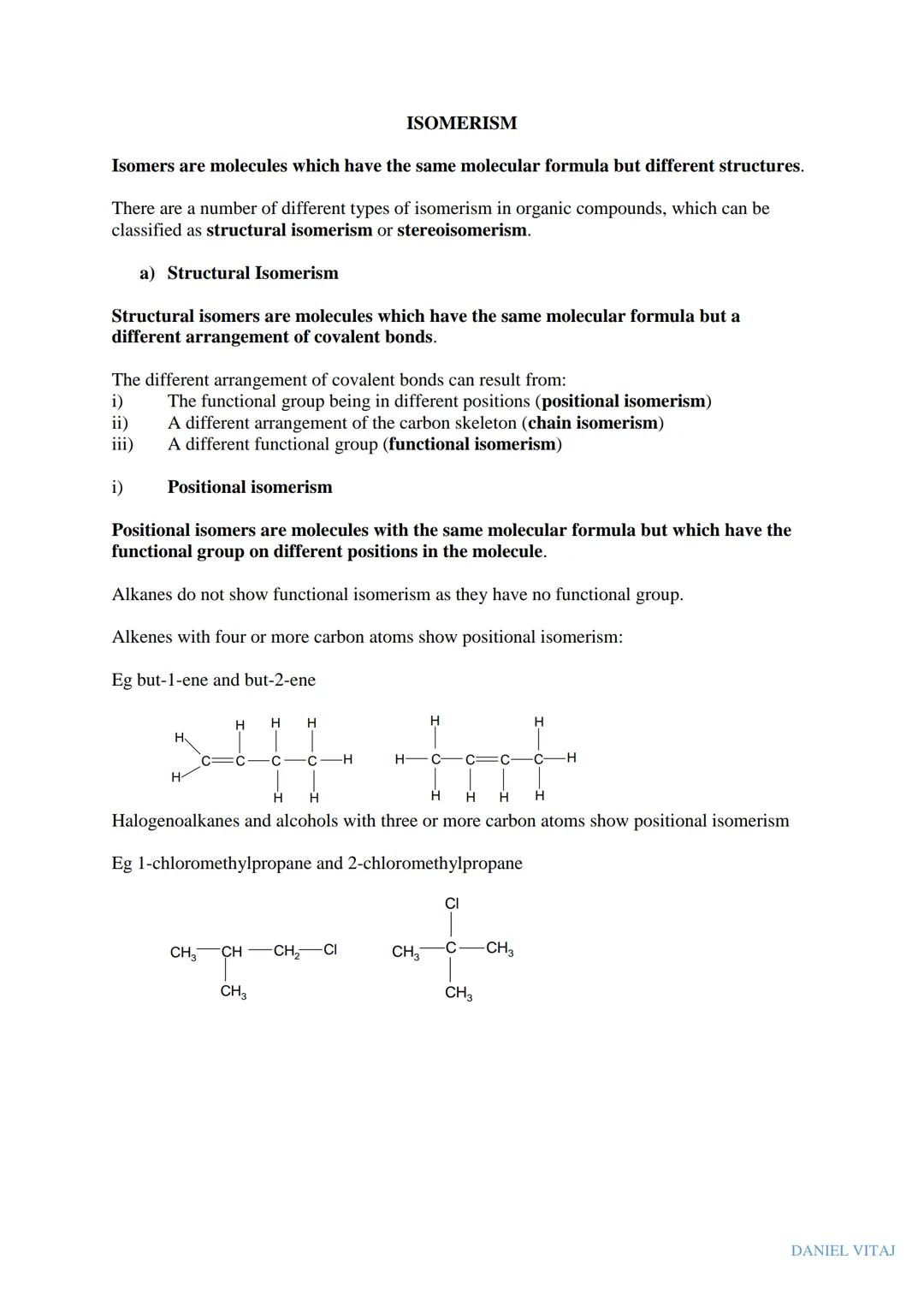

Structural Isomerism - The Big Three

Structural isomers have the same molecular formula but different arrangements of covalent bonds. There are three types that'll come up in your exams, and each one has its own personality.

Positional isomerism occurs when the functional group sits in different positions on the molecule. Think of but-1-ene versus but-2-ene - same carbon chain, but that double bond has moved house! This happens with alkenes (4+ carbons), alcohols, and halogenoalkanes (3+ carbons).

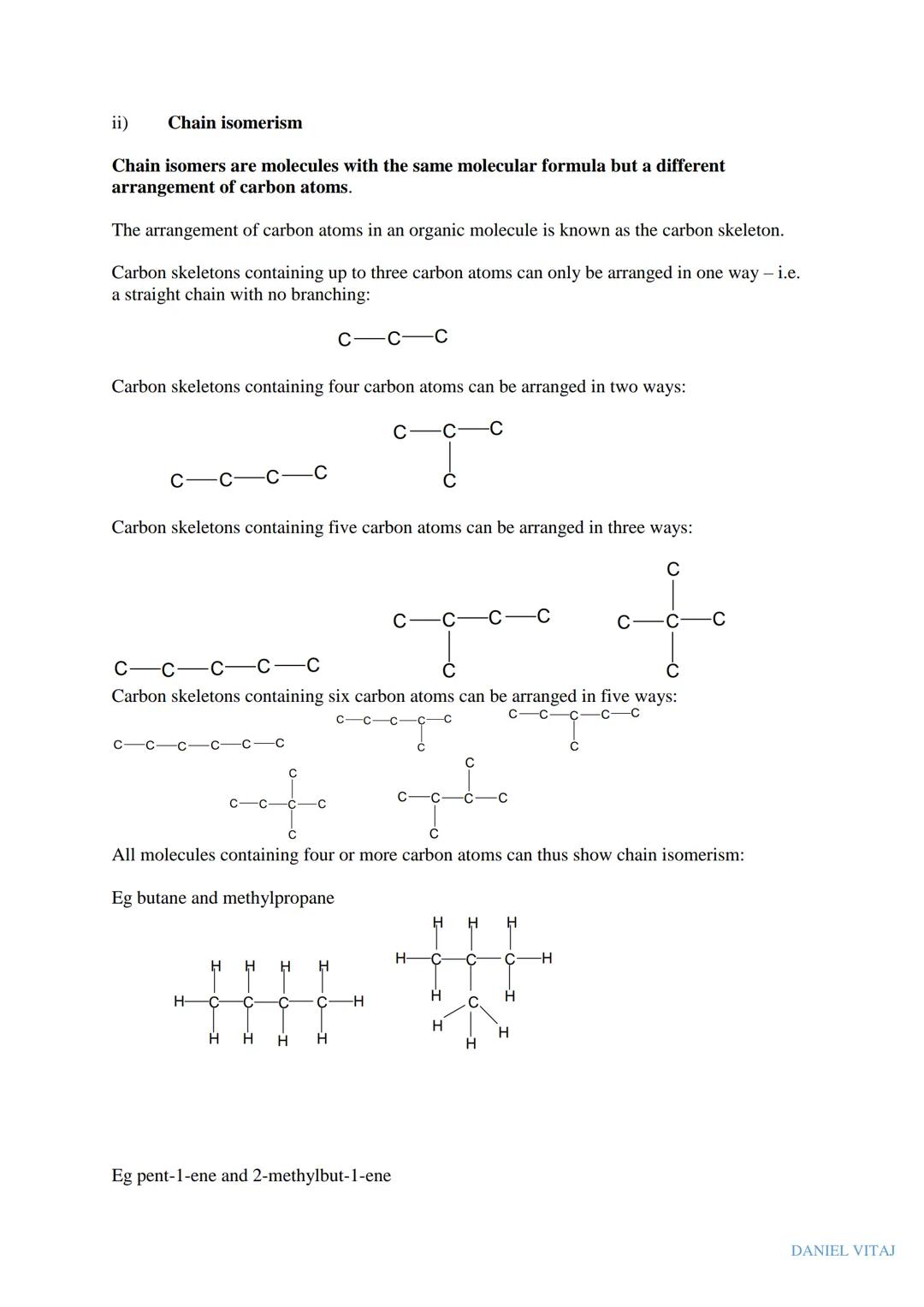

Chain isomerism is all about rearranging the carbon skeleton itself. Once you hit four carbon atoms, you can arrange them as a straight chain or add branches. More carbons = more possibilities for branching.

💡 Exam Alert: Alkanes don't show positional isomerism because they have no functional group to move around!

3
of 10
Isosmerism booklet A-level Chemistry – page 3

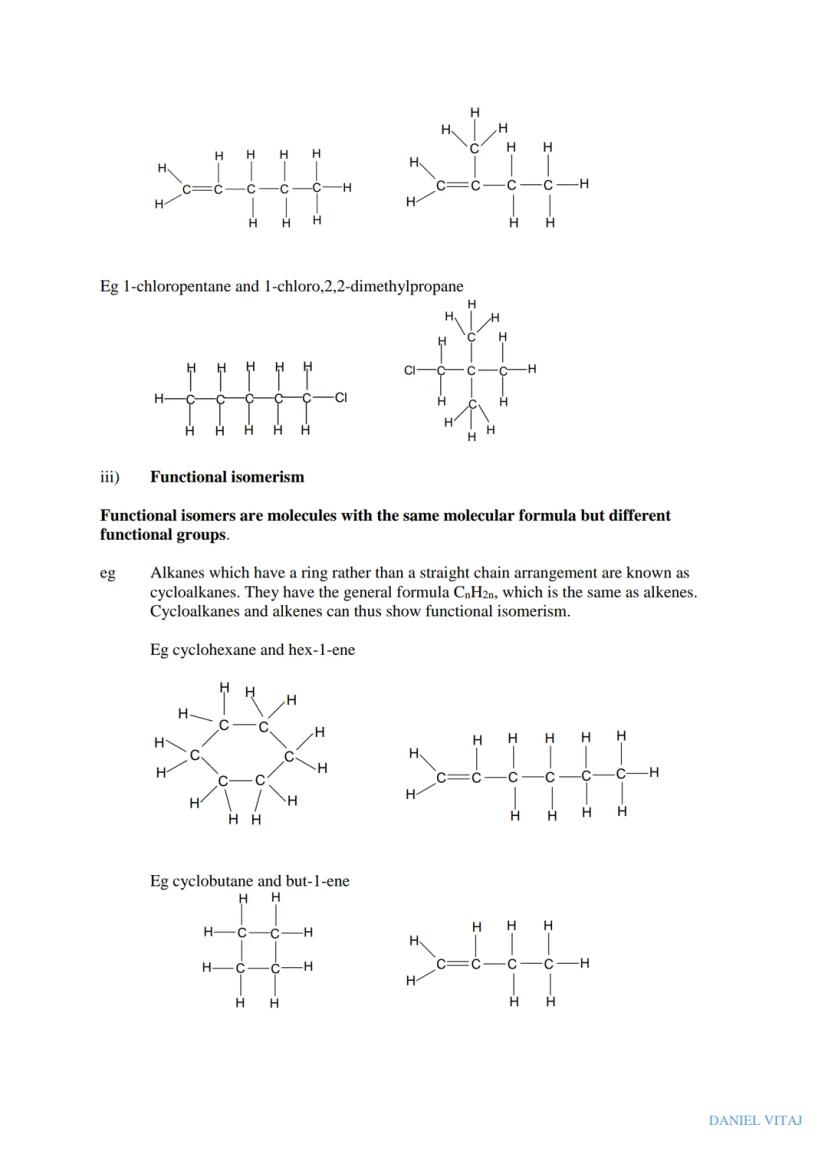

More Structural Isomerism Types

Chain isomerism gets more complex as molecules get bigger. With four carbons, you get two arrangements. Five carbons? Three ways. Six carbons gives you five different skeletons - the possibilities multiply quickly!

The key is understanding that branched molecules behave differently from straight-chain ones. Butane and methylpropane have the same formula (C₄H₁₀) but completely different shapes and properties.

Functional isomerism happens when molecules have the same formula but totally different functional groups. The classic example is cycloalkanes and alkenes - both have the formula CnH2n, but one's a ring and the other has a double bond.

💡 Memory Trick: More branching = lower boiling point. Branched molecules can't pack together as tightly, so weaker intermolecular forces!

4
of 10
Isosmerism booklet A-level Chemistry – page 4

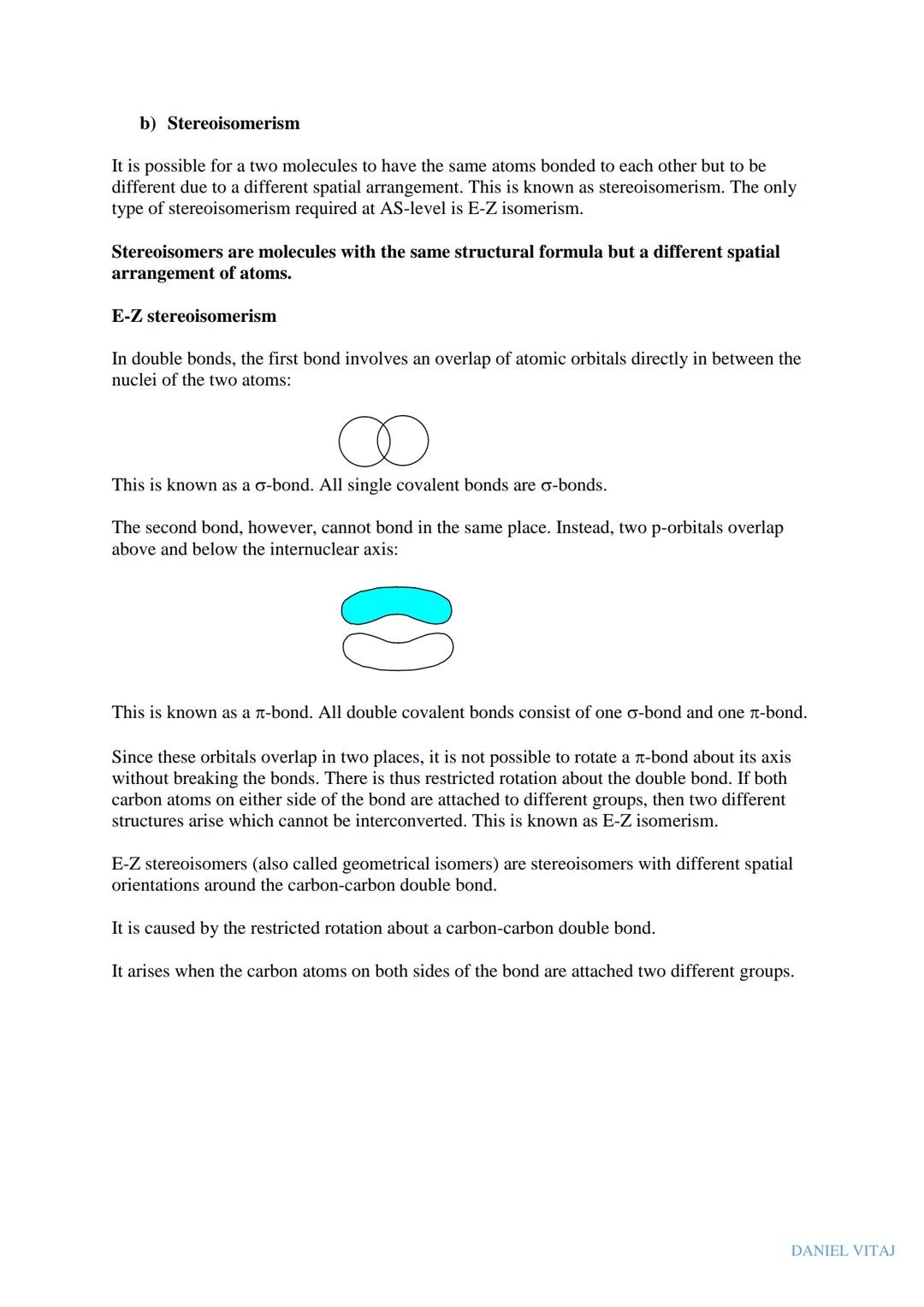

Stereoisomerism - E-Z Isomerism

Here's where chemistry gets three-dimensional! Stereoisomerism occurs when molecules have the same structural formula but different spatial arrangements of atoms.

The type you need to know is E-Z stereoisomerism (also called geometrical isomerism). It happens because of restricted rotation around carbon-carbon double bonds. Unlike single bonds that can spin freely, double bonds are locked in place.

For E-Z isomerism to exist, you need two specific features: a C=C double bond and both carbon atoms attached to two different groups. If these conditions aren't met, no stereoisomerism occurs.

💡 Key Concept: Double bonds contain a σ-bond and a π-bond. The π-bond prevents rotation, which creates the different spatial arrangements!

5
of 10
Isosmerism booklet A-level Chemistry – page 5

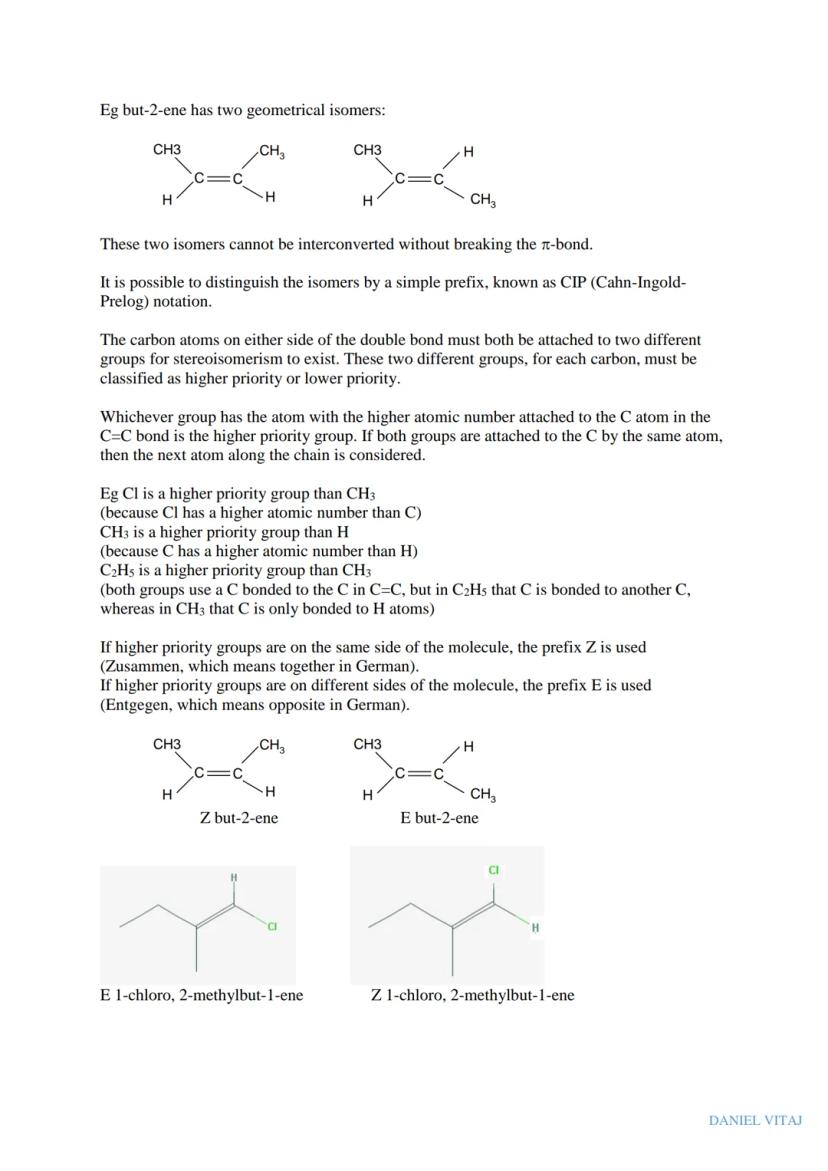

The E-Z Naming System

The Cahn-Ingold-Prelog (CIP) system helps you name E-Z isomers correctly. First, identify the higher priority group on each carbon - this goes to whichever group has the atom with the higher atomic number attached to the double-bond carbon.

If the higher priority groups are on the same side, use the prefix Z (from German "zusammen" meaning together). If they're on opposite sides, use E (from German "entgegen" meaning opposite).

For example, in but-2-ene, if both CH₃ groups are on the same side, it's Z-but-2-ene. If they're on opposite sides, it's E-but-2-ene. Crab notation makes this easier to visualize - draw the C=C bond flat with the four groups arranged around it.

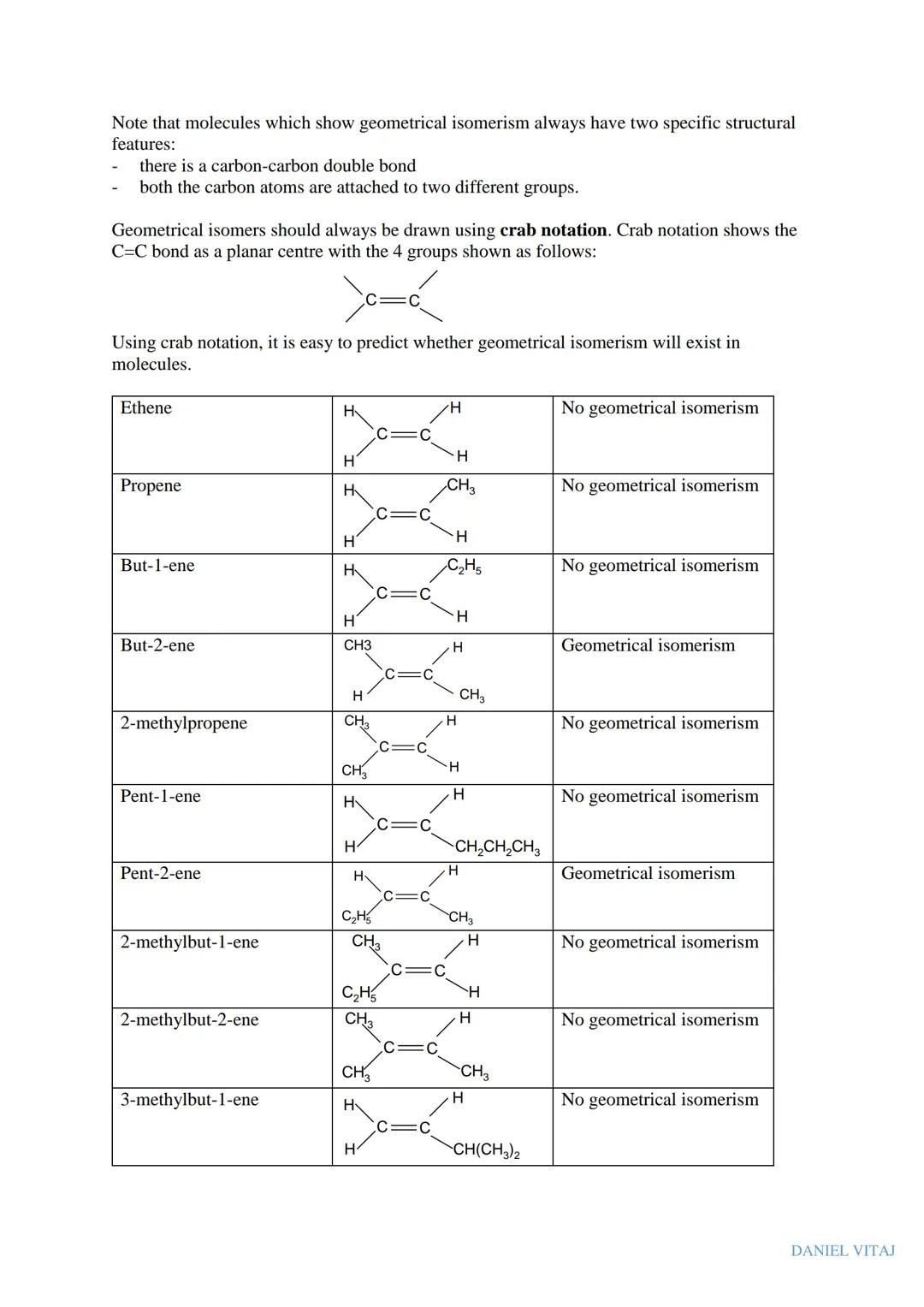

💡 Quick Check: Always use crab notation to predict if geometrical isomerism exists. If any carbon has two identical groups, no E-Z isomerism is possible!

6
of 10
Isosmerism booklet A-level Chemistry – page 6

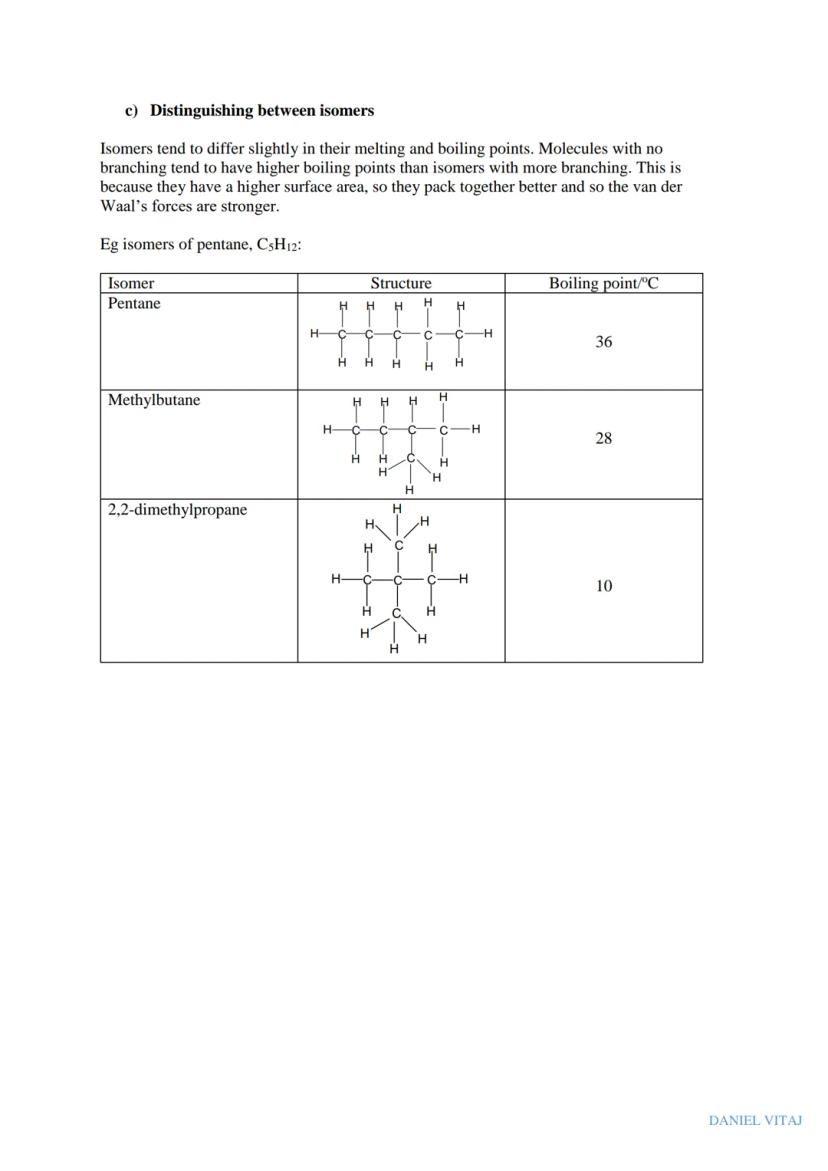

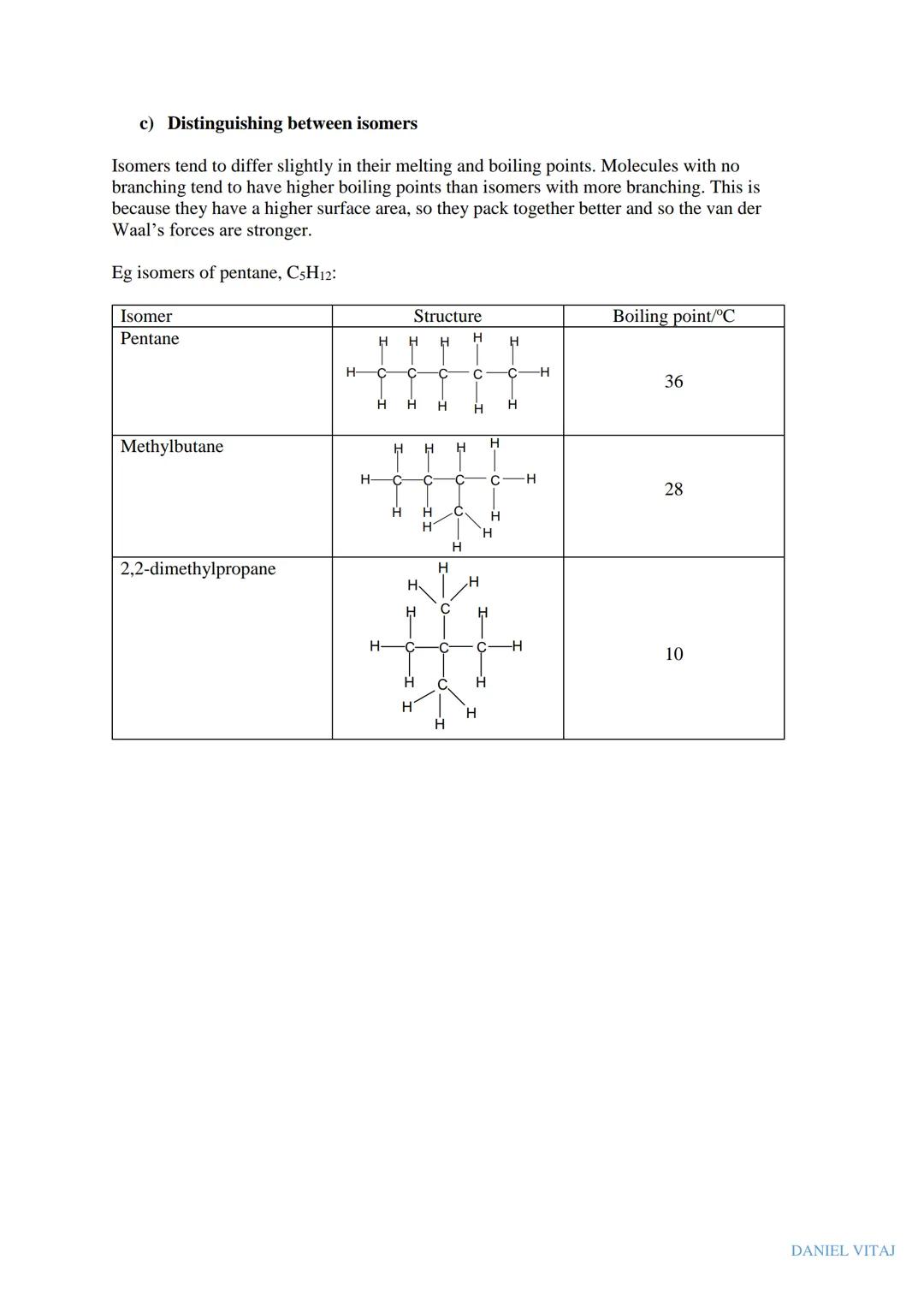

Distinguishing Between Isomers

Isomers might have the same formula, but they don't have identical properties - and that's how chemists tell them apart! Melting and boiling points are the most reliable way to distinguish between structural isomers.

Here's the pattern you need to remember: straight-chain molecules have higher boiling points than their branched isomers. This happens because straight chains have larger surface areas, so they pack together more efficiently and experience stronger van der Waals forces.

Looking at the pentane isomers, pentane (straight chain) has the highest boiling point, while 2,2-dimethylpropane (most branched) has the lowest. The more compact and spherical the molecule, the weaker the intermolecular forces become.

💡 Exam Strategy: When asked to arrange isomers by boiling point, always put the most branched structure at the lowest temperature and the straight chain at the highest!

7
of 10
Isosmerism booklet A-level Chemistry – page 7
8
of 10
Isosmerism booklet A-level Chemistry – page 8
9
of 10
Isosmerism booklet A-level Chemistry – page 9
10
of 10
Isosmerism booklet A-level Chemistry – page 10
