Higher Chemistry: Structure, Bonding, and Periodic Trends for Students

View

Higher Chemistry: Structure, Bonding, and Periodic Trends for Students
user profile picture

Olivia Churcher

@oliviachurcher

·

121 Followers

Follow

Chemical Changes and Structure - A comprehensive guide exploring periodic trends, chemical bonding, and structural relationships in chemistry.

• The document covers essential concepts of chemical bond formation and periodic table trends including covalent radius, electronegativity, and ionization energy
• Detailed explanations of different bonding types including covalent, ionic, and intermolecular forces
• In-depth analysis of oxidation-reduction reactions and their applications
• Structured approach to understanding electron affinity trend and other periodic properties

02/04/2023

1405

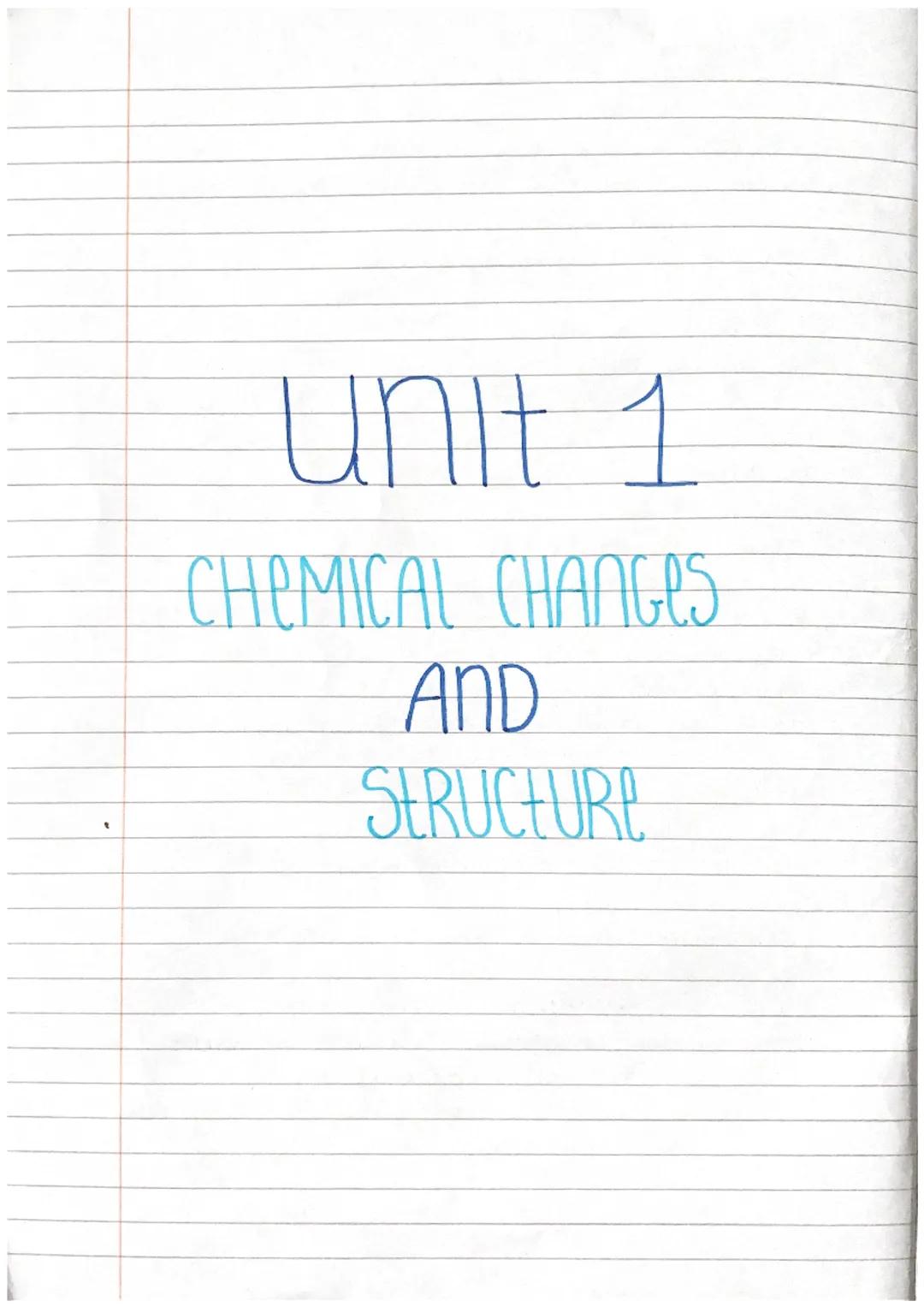

Unit 1
CHEMICAL CHANGES
AND
STRUCTURE Trends in the periodic table
Covalent Radius
the distance measured between two nuclei in a
Shared bond

View

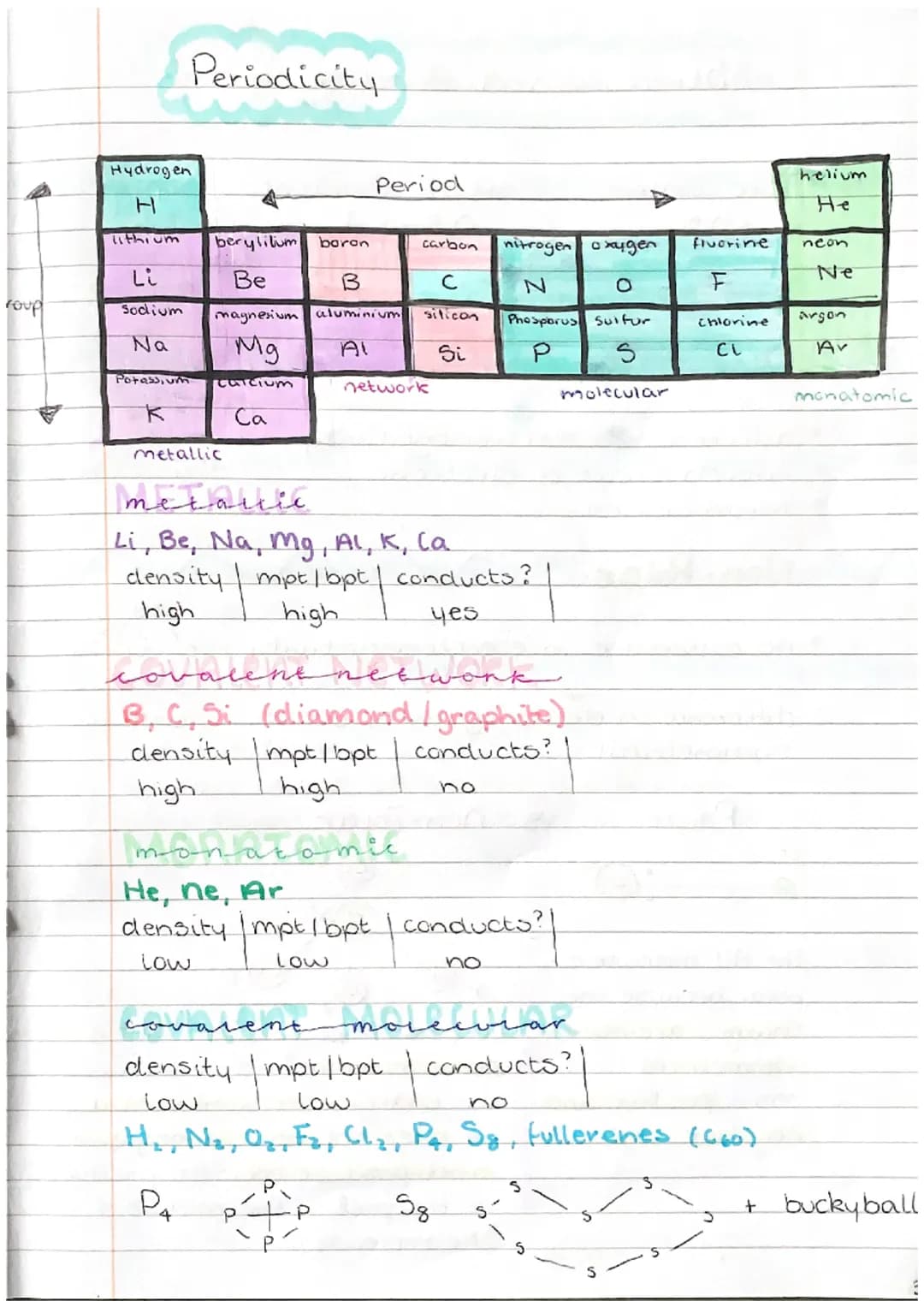

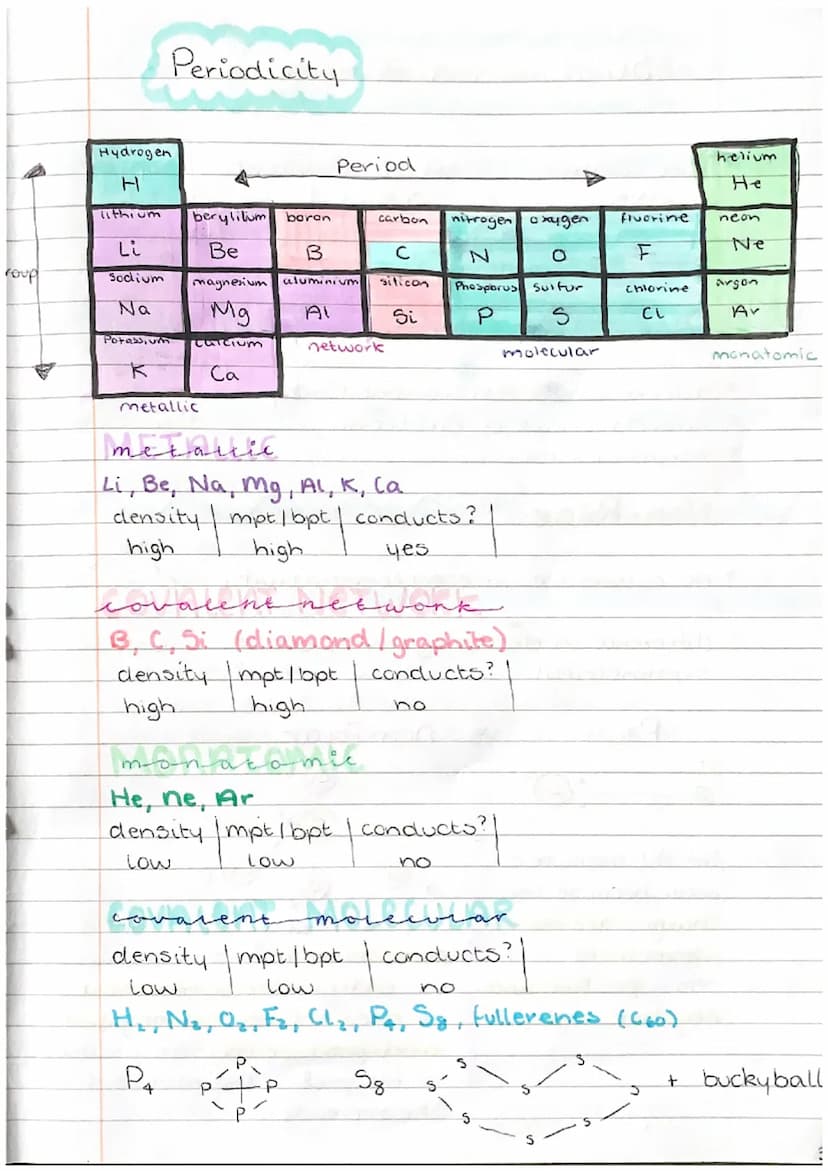

Periodicity and Element Properties

The periodic table is organized into groups and periods, with elements sharing similar properties within groups. This page explores the characteristics of different element types:

Metallic Elements:

  • Examples: Li, Be, Na, Mg, Al, K, Ca
  • Properties: High density, high melting/boiling points, good conductors

Covalent Network Elements:

  • Examples: B, C, Si (diamond/graphite)
  • Properties: High density, high melting/boiling points, variable conductivity

Monatomic Elements:

  • Examples: He, Ne, Ar
  • Properties: Low density, low melting/boiling points, non-conductors

Covalent Molecular Elements:

  • Examples: H₂, N₂, O₂, F₂, Cl₂, P₄, S₈, fullerenes (C₆₀)
  • Properties: Low density, low melting/boiling points, non-conductors

Highlight: Understanding these element categories helps predict their physical and chemical properties, which is crucial for GCSE and higher-level chemistry studies.

Unit 1
CHEMICAL CHANGES
AND
STRUCTURE Trends in the periodic table
Covalent Radius
the distance measured between two nuclei in a
Shared bond

View

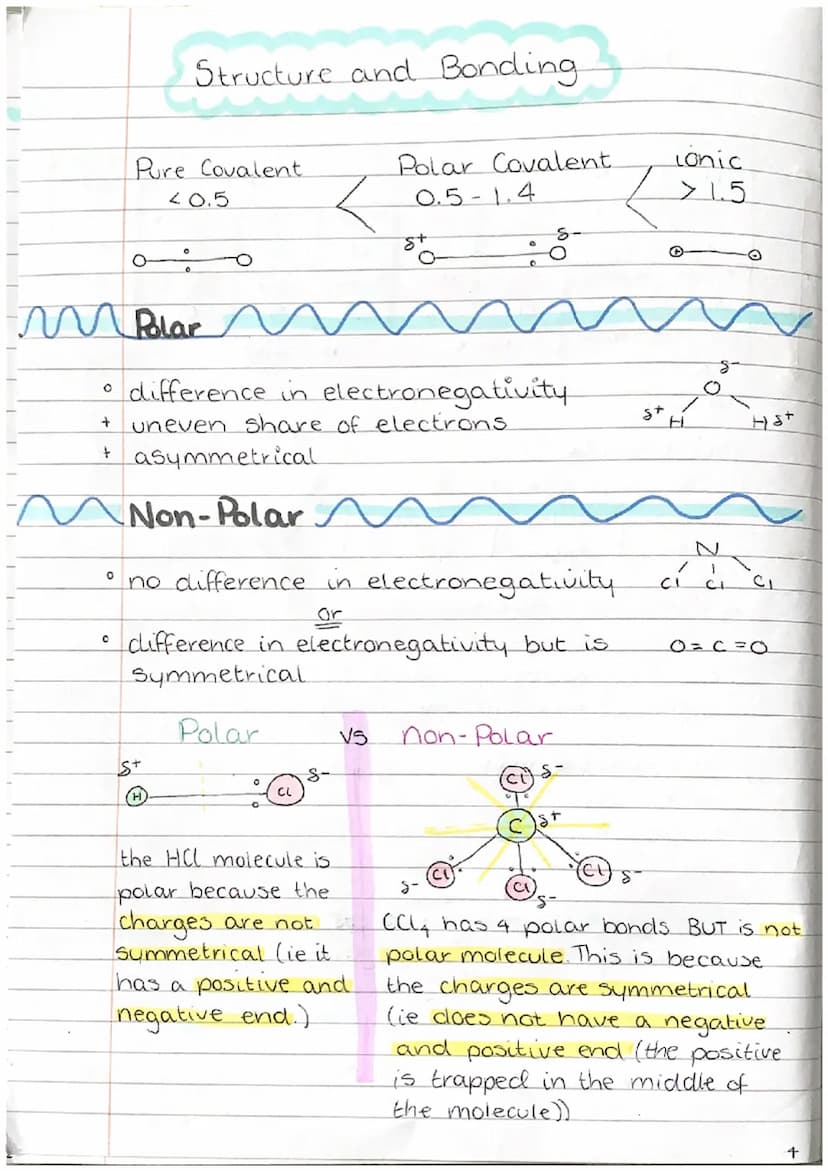

Structure and Bonding

This section explores different types of chemical bonds and their characteristics:

Pure Covalent Bonds:

  • Non-polar: No difference in electronegativity, even share of electrons
  • Polar: Difference in electronegativity (0.5-1.4), uneven share of electrons

Polar Covalent Bonds:

  • Difference in electronegativity (0.5-1.4), but symmetrical molecule

Example: HCl is a polar molecule because the charges are not symmetrical, having a positive and negative end.

Ionic Bonds:

  • Difference in electronegativity > 1.5

Highlight: Understanding bond polarity is crucial for predicting molecular behavior and interactions.

Unit 1
CHEMICAL CHANGES
AND
STRUCTURE Trends in the periodic table
Covalent Radius
the distance measured between two nuclei in a
Shared bond

View

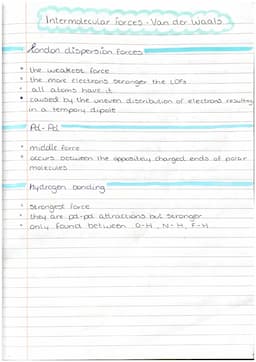

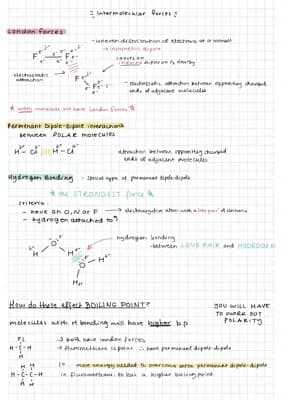

Intermolecular Forces - Van der Waals

This page discusses the three types of intermolecular forces, which are crucial for understanding molecular interactions:

  1. London Dispersion Forces (LDF):

    • Weakest force
    • Caused by uneven distribution of electrons, resulting in temporary dipoles
    • Present in all atoms
    • Strength increases with more electrons
  2. Dipole-Dipole Interactions:

    • Medium strength force
    • Occurs between oppositely charged ends of polar molecules
  3. Hydrogen Bonding:

    • Strongest intermolecular force
    • Found between O-H, N-H, and F-H bonds
    • A special type of dipole-dipole attraction

Highlight: Understanding these forces is essential for explaining physical properties like boiling points and solubility in higher chemistry.

Unit 1
CHEMICAL CHANGES
AND
STRUCTURE Trends in the periodic table
Covalent Radius
the distance measured between two nuclei in a
Shared bond

View

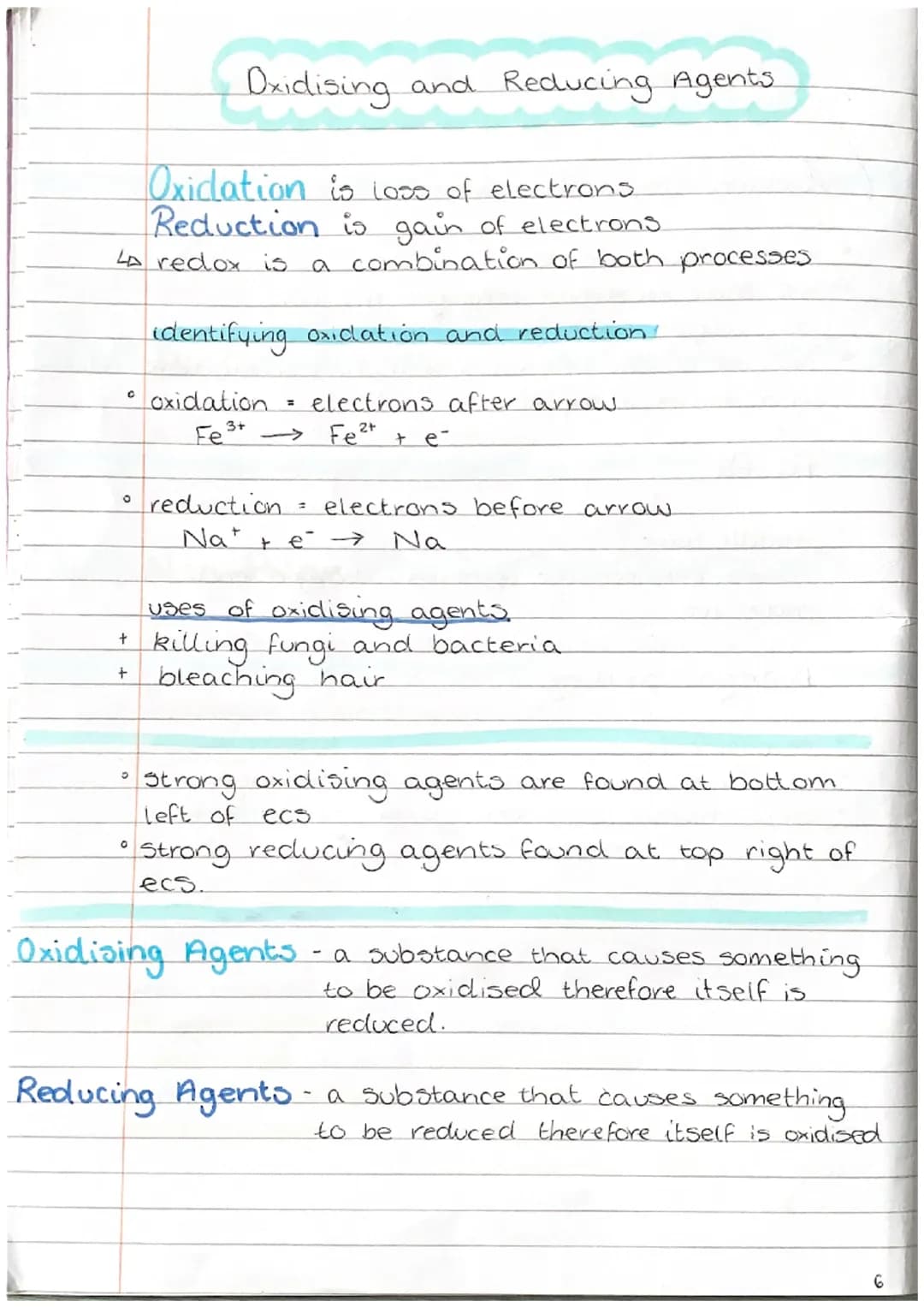

Oxidizing and Reducing Agents

This section covers the concepts of oxidation and reduction in chemical reactions:

Oxidation: Loss of electrons Reduction: Gain of electrons

Definition: Redox is a combination of both oxidation and reduction processes.

Identifying oxidation and reduction:

  • Oxidation: Electrons appear after the arrow in half-equations
  • Reduction: Electrons appear before the arrow in half-equations

Uses of oxidizing agents:

  • Killing fungi and bacteria
  • Bleaching hair

Highlight: Strong oxidizing agents are found at the bottom left of the electrochemical series, while strong reducing agents are found at the top right.

Oxidizing Agents: Substances that cause something to be oxidized, while being reduced themselves. Reducing Agents: Substances that cause something to be reduced, while being oxidized themselves.

Unit 1
CHEMICAL CHANGES
AND
STRUCTURE Trends in the periodic table
Covalent Radius
the distance measured between two nuclei in a
Shared bond

View

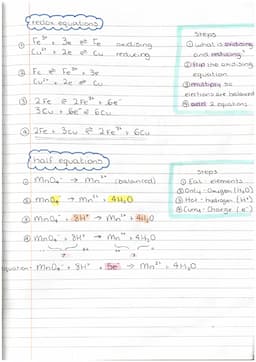

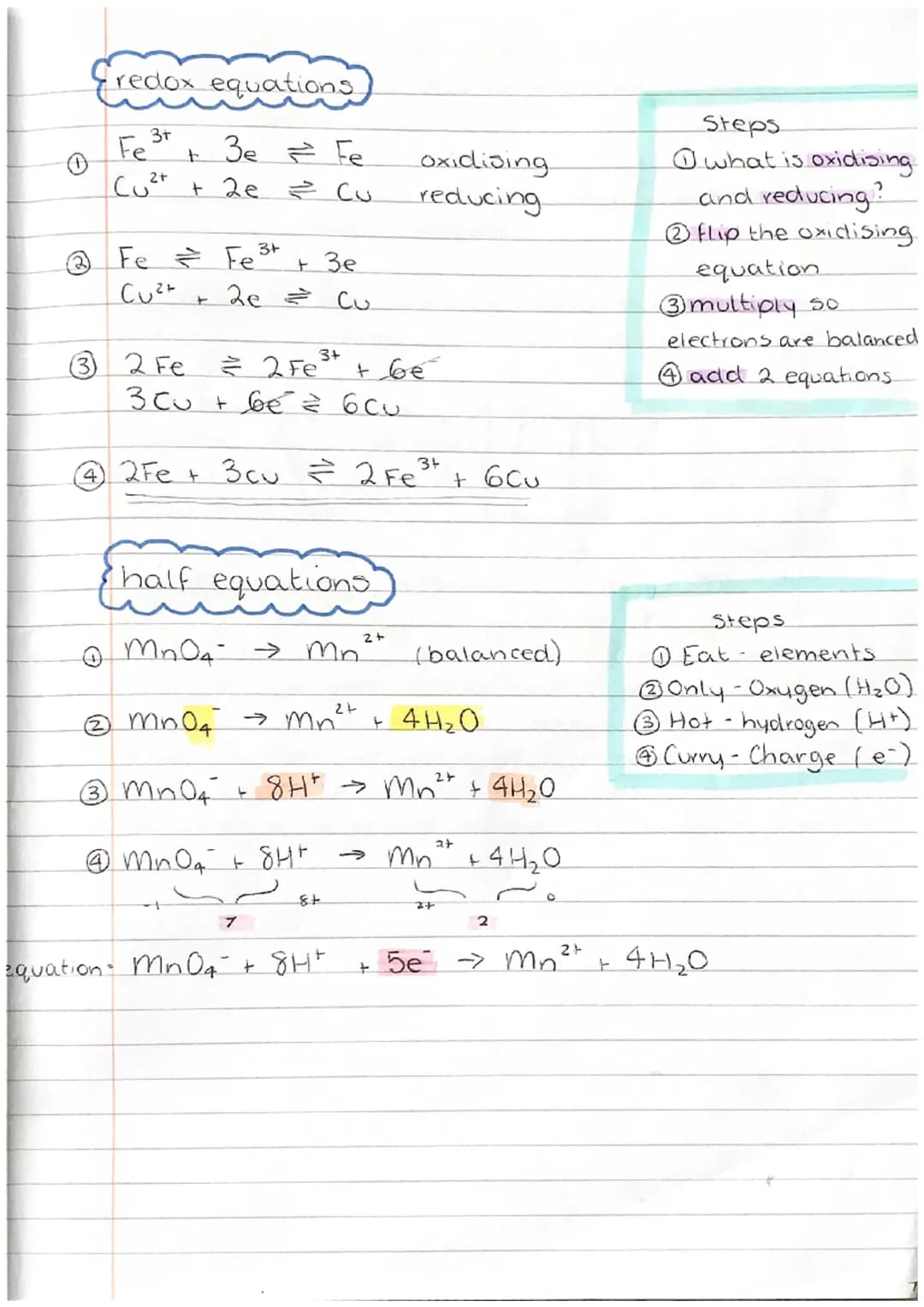

Redox Equations

This page explains how to balance redox equations using half-equations:

Steps for balancing redox equations:

  1. Identify the oxidizing and reducing agents
  2. Write half-equations for both reactions
  3. Flip the oxidizing equation
  4. Multiply equations so electrons are balanced
  5. Add the two equations together

Example: Oxidation: Fe²⁺ → Fe³⁺ + e⁻ Reduction: Cu²⁺ + 2e⁻ → Cu Balanced equation: 2Fe²⁺ + Cu²⁺ → 2Fe³⁺ + Cu

When balancing complex half-equations, remember the EHOC rule:

  • E: Elements
  • H: Hydrogen (H⁺)
  • O: Oxygen (H₂O)
  • C: Charge (e⁻)

Highlight: Mastering redox equations is crucial for understanding electrochemistry and many industrial processes in higher chemistry.

Unit 1
CHEMICAL CHANGES
AND
STRUCTURE Trends in the periodic table
Covalent Radius
the distance measured between two nuclei in a
Shared bond

View

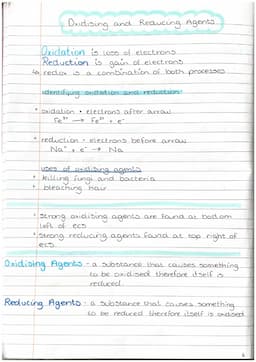

Oxidising and Reducing Agents

This page covers redox reactions and their applications in chemistry.

Definition: Oxidation involves electron loss, while reduction involves electron gain.

Example: Strong oxidising agents are found at the bottom left of the electrochemical series.

Highlight: Oxidising agents have practical applications in killing fungi, bacteria, and bleaching hair.

Unit 1
CHEMICAL CHANGES
AND
STRUCTURE Trends in the periodic table
Covalent Radius
the distance measured between two nuclei in a
Shared bond

View

Redox Equations

This page explains how to balance redox equations and work with half-equations.

Definition: Half-equations show either oxidation or reduction separately.

Example: The balancing process involves matching electrons and ensuring all elements are balanced.

Highlight: The ECHO method (Elements, Charge, Hydrogen, Oxygen) provides a systematic approach to balancing equations.

Unit 1
CHEMICAL CHANGES
AND
STRUCTURE Trends in the periodic table
Covalent Radius
the distance measured between two nuclei in a
Shared bond

View

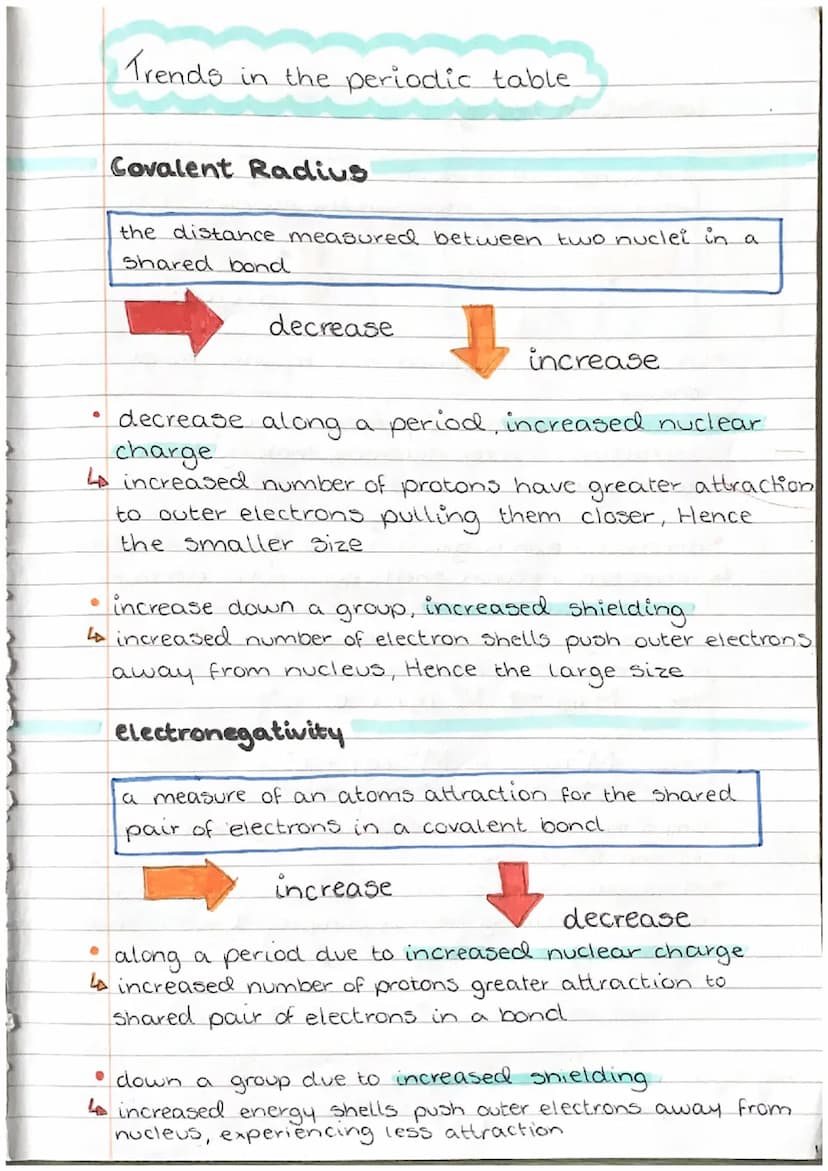

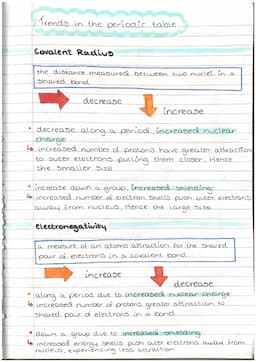

Trends in the Periodic Table

The periodic table exhibits several important trends that help explain element properties and behavior:

Covalent Radius: This trend decreases across a period and increases down a group.

Definition: Covalent radius is the distance measured between two nuclei in a shared bond.

Factors influencing covalent radius:

  • Across a period: Increased nuclear charge pulls outer electrons closer.
  • Down a group: Increased shielding pushes outer electrons away from the nucleus.

Electronegativity: This trend increases across a period and decreases down a group.

Vocabulary: Electronegativity is a measure of an atom's attraction for the shared pair of electrons in a covalent bond.

Factors affecting electronegativity:

  • Across a period: Increased nuclear charge enhances attraction to shared electrons.
  • Down a group: Increased shielding reduces attraction to shared electrons.

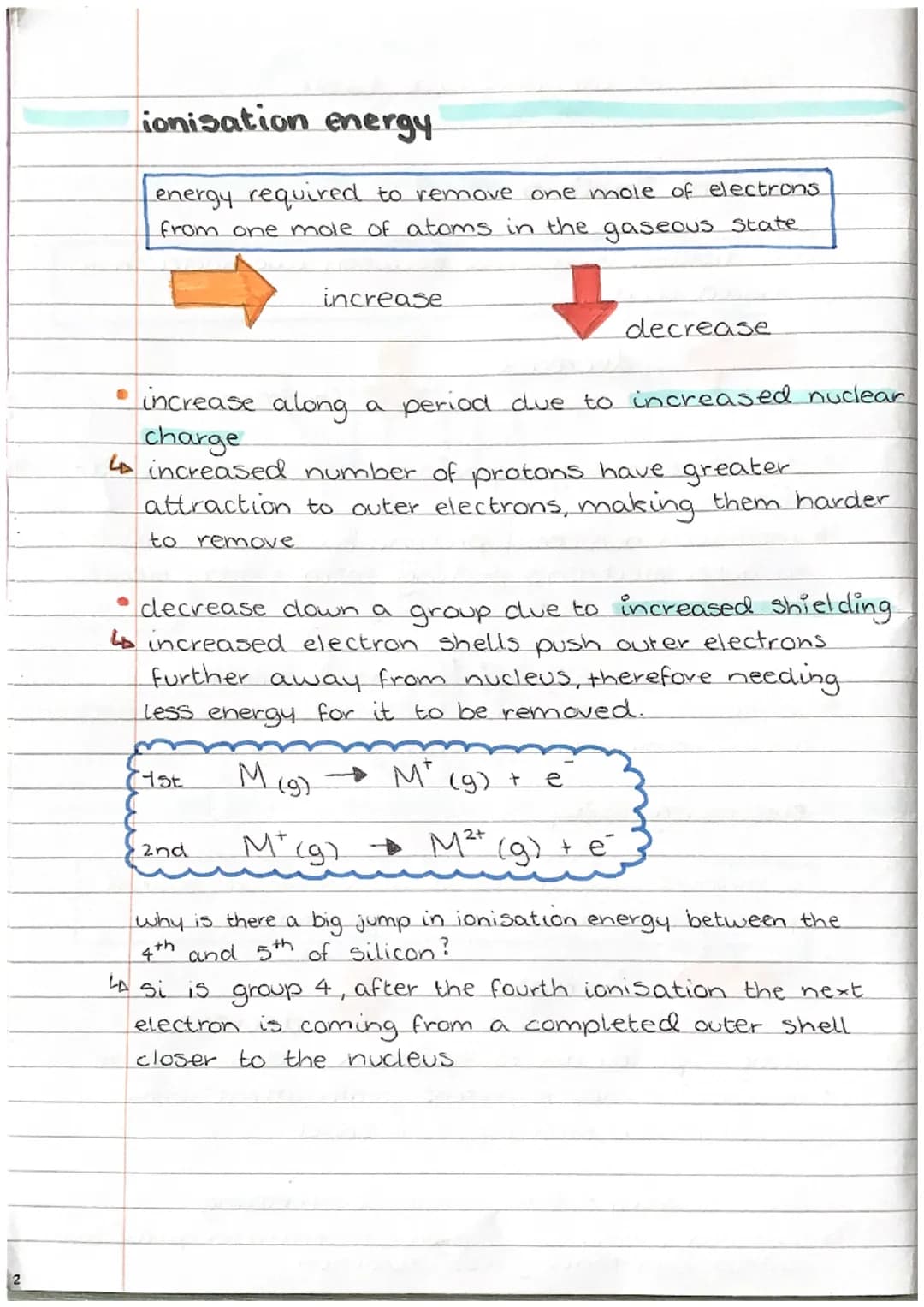

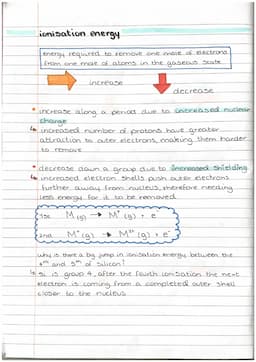

Ionization Energy: This trend generally increases across a period and decreases down a group.

Definition: Ionization energy is the energy required to remove one mole of electrons from one mole of atoms in the gaseous state.

Factors influencing ionization energy:

  • Across a period: Increased nuclear charge makes it harder to remove electrons.
  • Down a group: Increased shielding makes it easier to remove outer electrons.

Example: There's a significant jump in ionization energy between the 4th and 5th ionization of silicon because the 5th electron comes from a completed outer shell closer to the nucleus.

Can't find what you're looking for? Explore other subjects.

Knowunity is the #1 education app in five European countries

Knowunity has been named a featured story on Apple and has regularly topped the app store charts in the education category in Germany, Italy, Poland, Switzerland, and the United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the #1 education app in five European countries

4.9+

Average app rating

15 M

Pupils love Knowunity

#1

In education app charts in 12 countries

950 K+

Students have uploaded notes

Still not convinced? See what other students are saying...

iOS User

I love this app so much, I also use it daily. I recommend Knowunity to everyone!!! I went from a D to an A with it :D

Philip, iOS User

The app is very simple and well designed. So far I have always found everything I was looking for :D

Lena, iOS user

I love this app ❤️ I actually use it every time I study.

Higher Chemistry: Structure, Bonding, and Periodic Trends for Students

user profile picture

Olivia Churcher

@oliviachurcher

·

121 Followers

Follow

Chemical Changes and Structure - A comprehensive guide exploring periodic trends, chemical bonding, and structural relationships in chemistry.

• The document covers essential concepts of chemical bond formation and periodic table trends including covalent radius, electronegativity, and ionization energy
• Detailed explanations of different bonding types including covalent, ionic, and intermolecular forces
• In-depth analysis of oxidation-reduction reactions and their applications
• Structured approach to understanding electron affinity trend and other periodic properties

02/04/2023

1405



S5/S6



Chemistry

78

Unit 1
CHEMICAL CHANGES
AND
STRUCTURE Trends in the periodic table
Covalent Radius
the distance measured between two nuclei in a
Shared bond

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Periodicity and Element Properties

The periodic table is organized into groups and periods, with elements sharing similar properties within groups. This page explores the characteristics of different element types:

Metallic Elements:

  • Examples: Li, Be, Na, Mg, Al, K, Ca
  • Properties: High density, high melting/boiling points, good conductors

Covalent Network Elements:

  • Examples: B, C, Si (diamond/graphite)
  • Properties: High density, high melting/boiling points, variable conductivity

Monatomic Elements:

  • Examples: He, Ne, Ar
  • Properties: Low density, low melting/boiling points, non-conductors

Covalent Molecular Elements:

  • Examples: H₂, N₂, O₂, F₂, Cl₂, P₄, S₈, fullerenes (C₆₀)
  • Properties: Low density, low melting/boiling points, non-conductors

Highlight: Understanding these element categories helps predict their physical and chemical properties, which is crucial for GCSE and higher-level chemistry studies.

Unit 1
CHEMICAL CHANGES
AND
STRUCTURE Trends in the periodic table
Covalent Radius
the distance measured between two nuclei in a
Shared bond

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

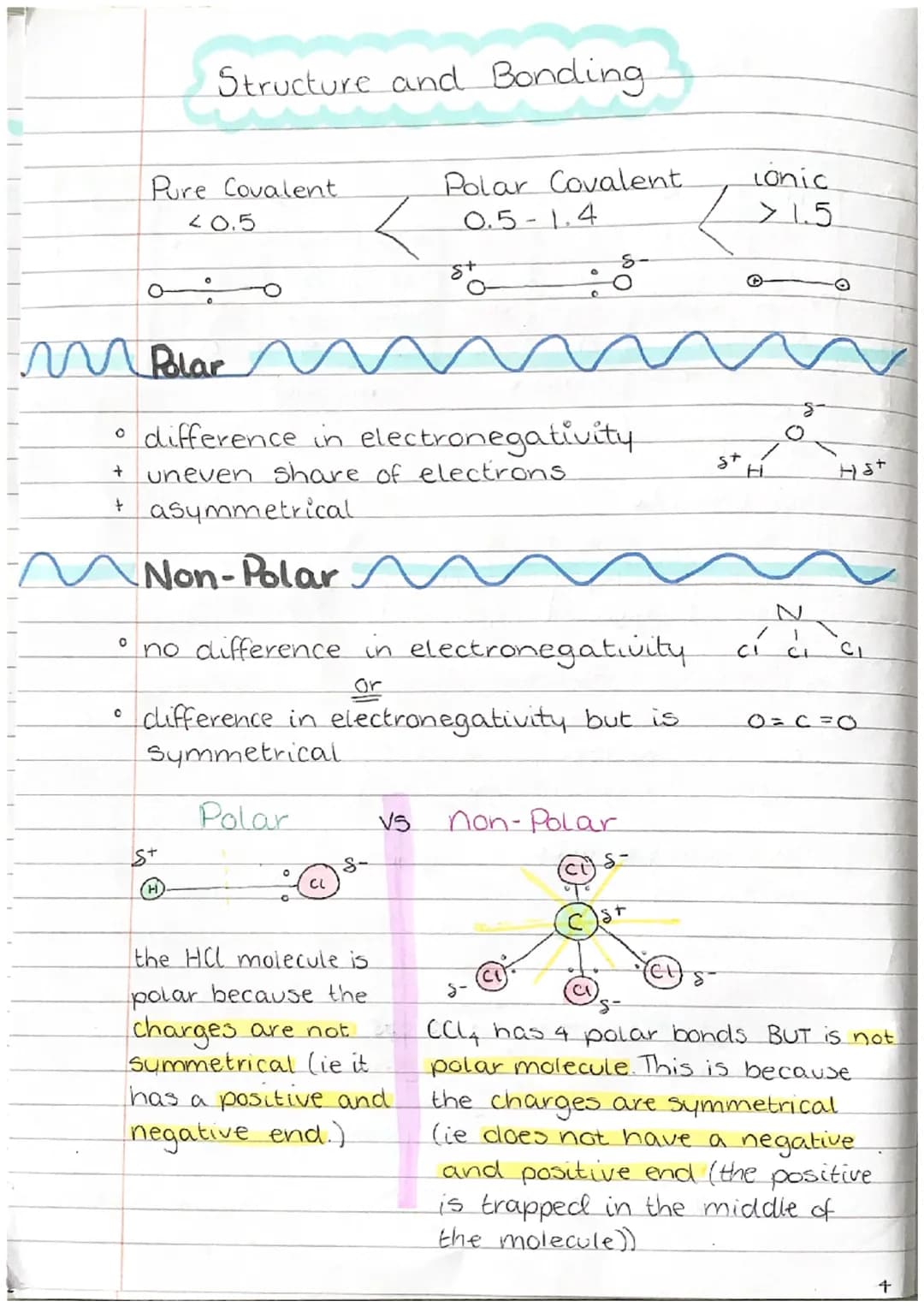

Structure and Bonding

This section explores different types of chemical bonds and their characteristics:

Pure Covalent Bonds:

  • Non-polar: No difference in electronegativity, even share of electrons
  • Polar: Difference in electronegativity (0.5-1.4), uneven share of electrons

Polar Covalent Bonds:

  • Difference in electronegativity (0.5-1.4), but symmetrical molecule

Example: HCl is a polar molecule because the charges are not symmetrical, having a positive and negative end.

Ionic Bonds:

  • Difference in electronegativity > 1.5

Highlight: Understanding bond polarity is crucial for predicting molecular behavior and interactions.

Unit 1
CHEMICAL CHANGES
AND
STRUCTURE Trends in the periodic table
Covalent Radius
the distance measured between two nuclei in a
Shared bond

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

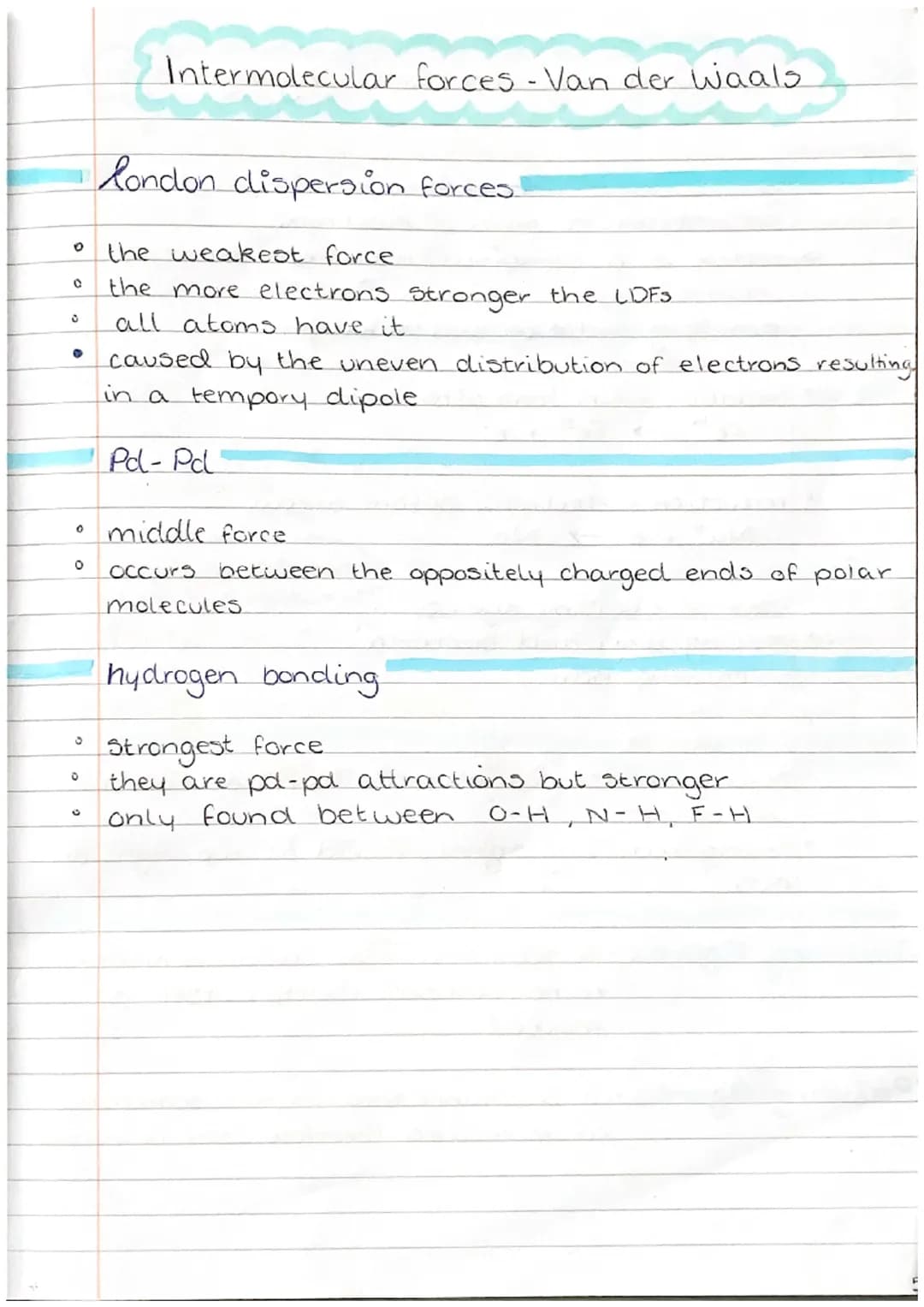

Intermolecular Forces - Van der Waals

This page discusses the three types of intermolecular forces, which are crucial for understanding molecular interactions:

  1. London Dispersion Forces (LDF):

    • Weakest force
    • Caused by uneven distribution of electrons, resulting in temporary dipoles
    • Present in all atoms
    • Strength increases with more electrons
  2. Dipole-Dipole Interactions:

    • Medium strength force
    • Occurs between oppositely charged ends of polar molecules
  3. Hydrogen Bonding:

    • Strongest intermolecular force
    • Found between O-H, N-H, and F-H bonds
    • A special type of dipole-dipole attraction

Highlight: Understanding these forces is essential for explaining physical properties like boiling points and solubility in higher chemistry.

Unit 1
CHEMICAL CHANGES
AND
STRUCTURE Trends in the periodic table
Covalent Radius
the distance measured between two nuclei in a
Shared bond

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Oxidizing and Reducing Agents

This section covers the concepts of oxidation and reduction in chemical reactions:

Oxidation: Loss of electrons Reduction: Gain of electrons

Definition: Redox is a combination of both oxidation and reduction processes.

Identifying oxidation and reduction:

  • Oxidation: Electrons appear after the arrow in half-equations
  • Reduction: Electrons appear before the arrow in half-equations

Uses of oxidizing agents:

  • Killing fungi and bacteria
  • Bleaching hair

Highlight: Strong oxidizing agents are found at the bottom left of the electrochemical series, while strong reducing agents are found at the top right.

Oxidizing Agents: Substances that cause something to be oxidized, while being reduced themselves. Reducing Agents: Substances that cause something to be reduced, while being oxidized themselves.

Unit 1
CHEMICAL CHANGES
AND
STRUCTURE Trends in the periodic table
Covalent Radius
the distance measured between two nuclei in a
Shared bond

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Redox Equations

This page explains how to balance redox equations using half-equations:

Steps for balancing redox equations:

  1. Identify the oxidizing and reducing agents
  2. Write half-equations for both reactions
  3. Flip the oxidizing equation
  4. Multiply equations so electrons are balanced
  5. Add the two equations together

Example: Oxidation: Fe²⁺ → Fe³⁺ + e⁻ Reduction: Cu²⁺ + 2e⁻ → Cu Balanced equation: 2Fe²⁺ + Cu²⁺ → 2Fe³⁺ + Cu

When balancing complex half-equations, remember the EHOC rule:

  • E: Elements
  • H: Hydrogen (H⁺)
  • O: Oxygen (H₂O)
  • C: Charge (e⁻)

Highlight: Mastering redox equations is crucial for understanding electrochemistry and many industrial processes in higher chemistry.

Unit 1
CHEMICAL CHANGES
AND
STRUCTURE Trends in the periodic table
Covalent Radius
the distance measured between two nuclei in a
Shared bond

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Oxidising and Reducing Agents

This page covers redox reactions and their applications in chemistry.

Definition: Oxidation involves electron loss, while reduction involves electron gain.

Example: Strong oxidising agents are found at the bottom left of the electrochemical series.

Highlight: Oxidising agents have practical applications in killing fungi, bacteria, and bleaching hair.

Unit 1
CHEMICAL CHANGES
AND
STRUCTURE Trends in the periodic table
Covalent Radius
the distance measured between two nuclei in a
Shared bond

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Redox Equations

This page explains how to balance redox equations and work with half-equations.

Definition: Half-equations show either oxidation or reduction separately.

Example: The balancing process involves matching electrons and ensuring all elements are balanced.

Highlight: The ECHO method (Elements, Charge, Hydrogen, Oxygen) provides a systematic approach to balancing equations.

Unit 1
CHEMICAL CHANGES
AND
STRUCTURE Trends in the periodic table
Covalent Radius
the distance measured between two nuclei in a
Shared bond

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Trends in the Periodic Table

The periodic table exhibits several important trends that help explain element properties and behavior:

Covalent Radius: This trend decreases across a period and increases down a group.

Definition: Covalent radius is the distance measured between two nuclei in a shared bond.

Factors influencing covalent radius:

  • Across a period: Increased nuclear charge pulls outer electrons closer.
  • Down a group: Increased shielding pushes outer electrons away from the nucleus.

Electronegativity: This trend increases across a period and decreases down a group.

Vocabulary: Electronegativity is a measure of an atom's attraction for the shared pair of electrons in a covalent bond.

Factors affecting electronegativity:

  • Across a period: Increased nuclear charge enhances attraction to shared electrons.
  • Down a group: Increased shielding reduces attraction to shared electrons.

Ionization Energy: This trend generally increases across a period and decreases down a group.

Definition: Ionization energy is the energy required to remove one mole of electrons from one mole of atoms in the gaseous state.

Factors influencing ionization energy:

  • Across a period: Increased nuclear charge makes it harder to remove electrons.
  • Down a group: Increased shielding makes it easier to remove outer electrons.

Example: There's a significant jump in ionization energy between the 4th and 5th ionization of silicon because the 5th electron comes from a completed outer shell closer to the nucleus.

Can't find what you're looking for? Explore other subjects.

Knowunity is the #1 education app in five European countries

Knowunity has been named a featured story on Apple and has regularly topped the app store charts in the education category in Germany, Italy, Poland, Switzerland, and the United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the #1 education app in five European countries

4.9+

Average app rating

15 M

Pupils love Knowunity

#1

In education app charts in 12 countries

950 K+

Students have uploaded notes

Still not convinced? See what other students are saying...

iOS User

I love this app so much, I also use it daily. I recommend Knowunity to everyone!!! I went from a D to an A with it :D

Philip, iOS User

The app is very simple and well designed. So far I have always found everything I was looking for :D

Lena, iOS user

I love this app ❤️ I actually use it every time I study.
