Electrode Potentials and Electrochemical Cells: A Comprehensive Guide
This guide... Show more

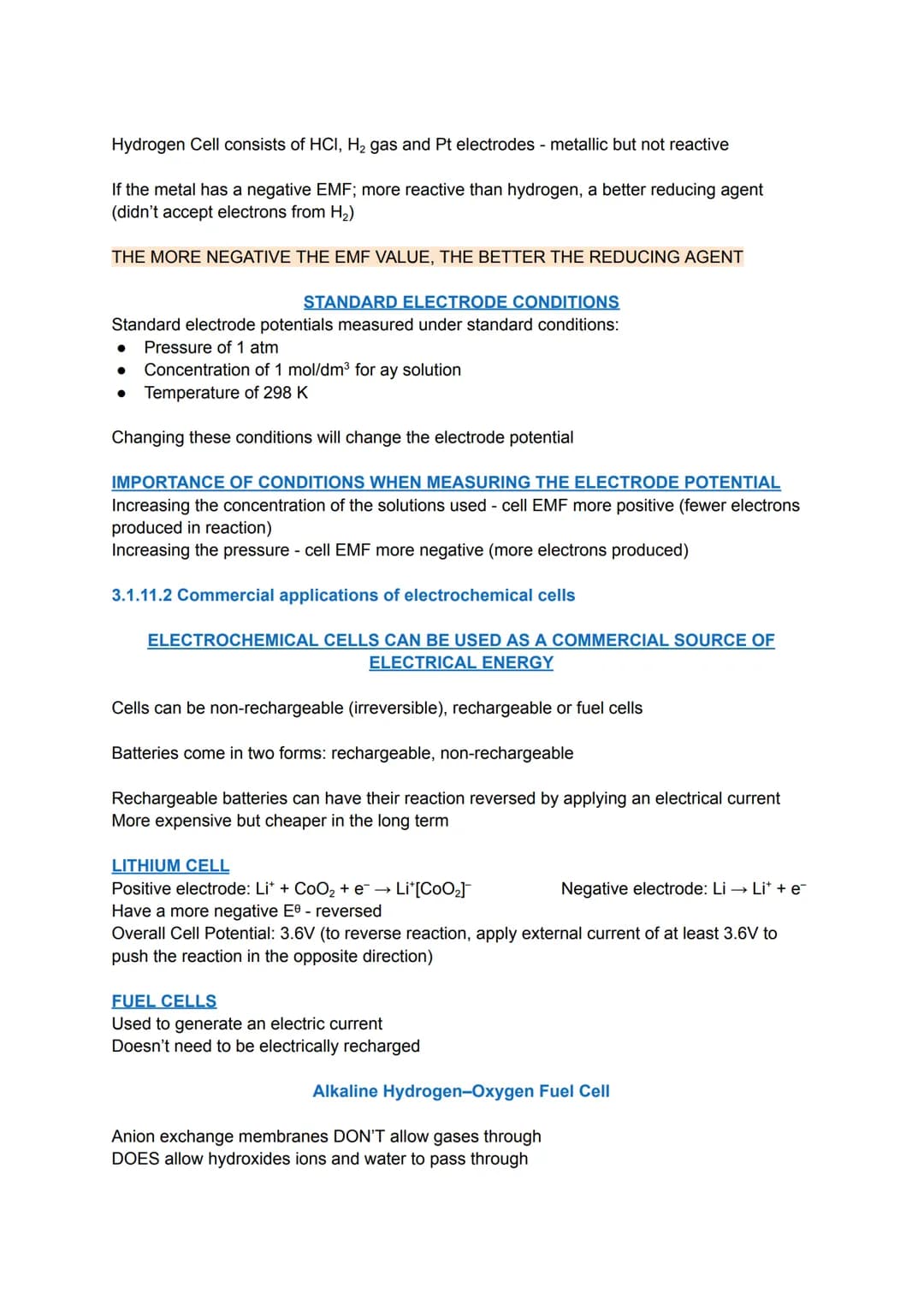

Page 2: Standard Conditions and Commercial Applications
This page details the importance of standardized conditions in measuring electrode potentials and introduces commercial applications of electrochemical cells.
Definition: Standard electrode conditions require 1 atm pressure, 1 mol/dm³ concentration, and 298 K temperature.
Highlight: The more negative the EMF value, the better the reducing agent performs in the cell.
Example: Lithium cells have a cell potential of 3.6V and can be recharged by applying an external current.
Vocabulary: EMF (Electromotive Force) - The potential difference or voltage generated by the cell.

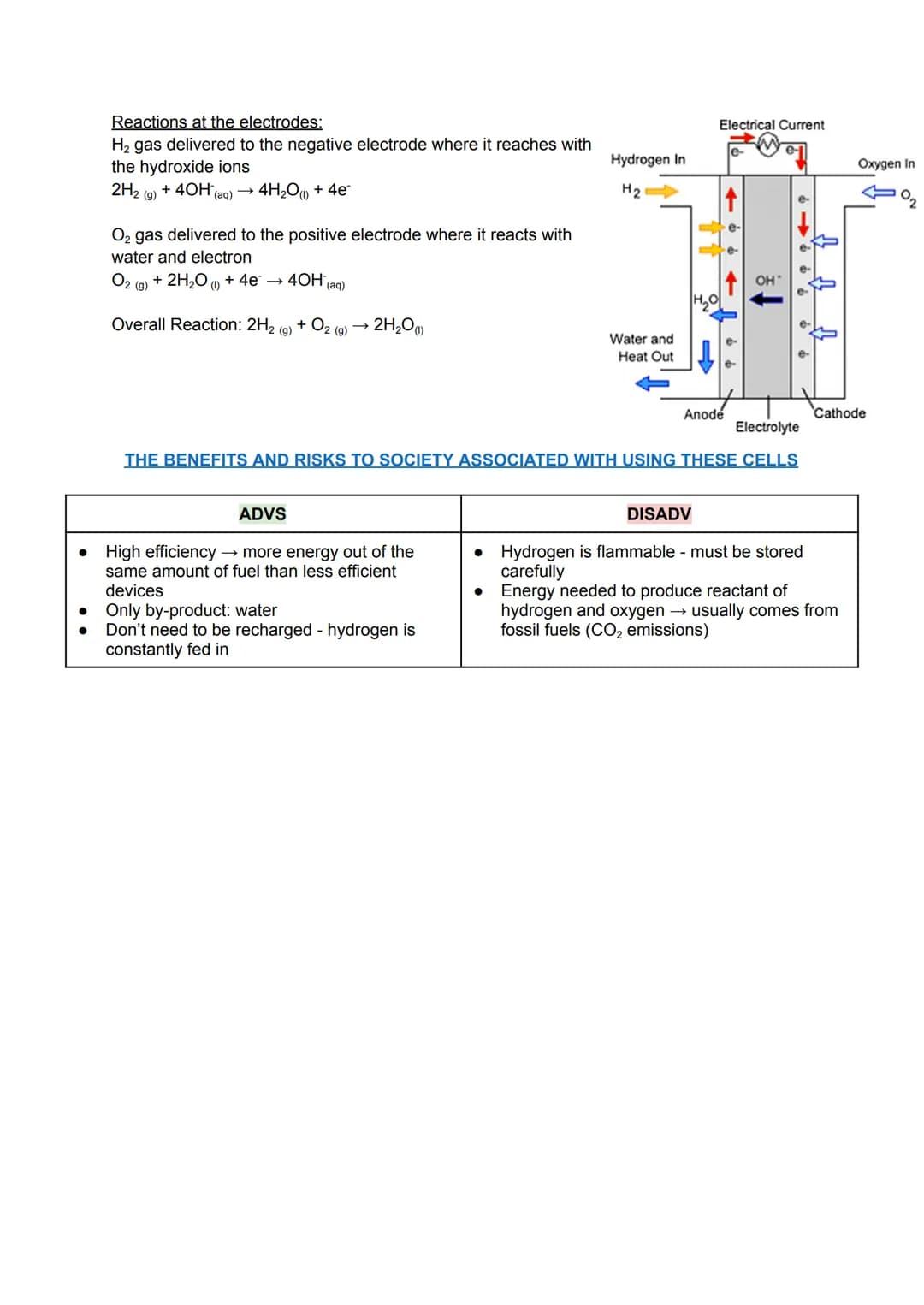

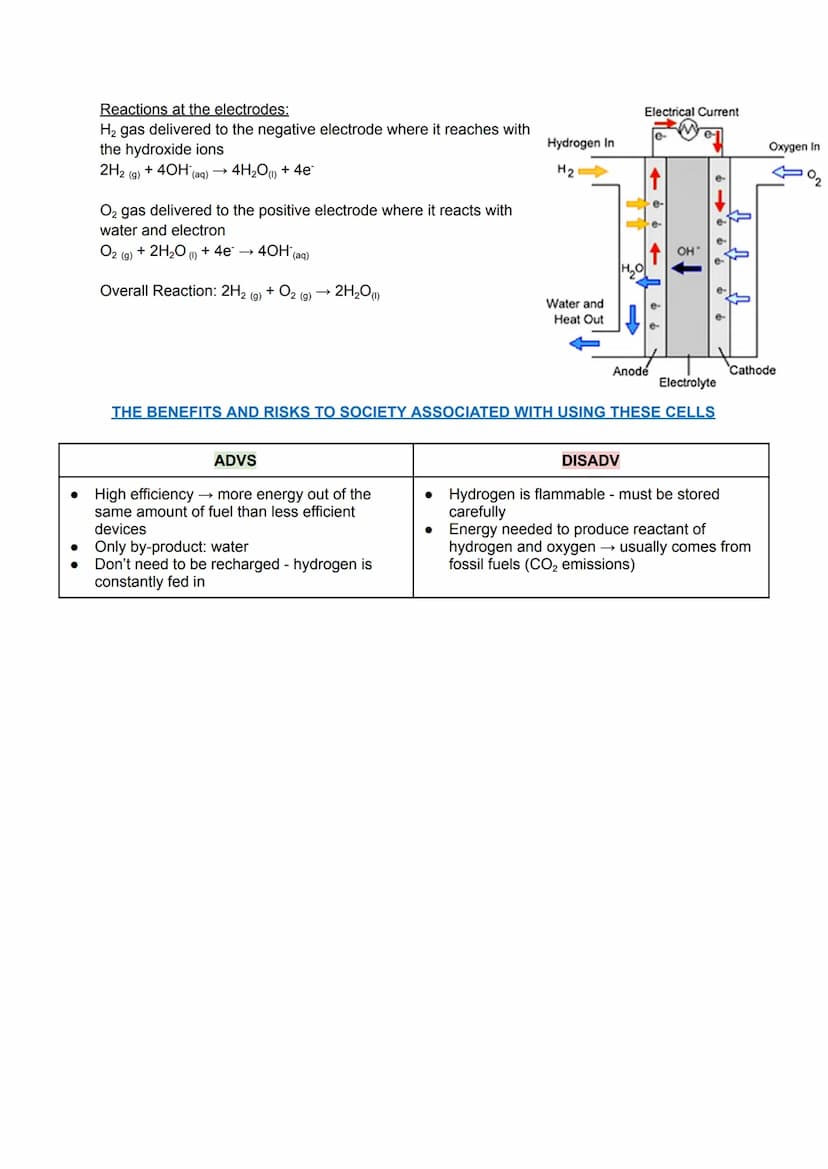

Page 3: Fuel Cells and Their Impact
The final page focuses on fuel cell technology, particularly the hydrogen-oxygen fuel cell, and discusses their societal implications.
Definition: Fuel cells generate electrical current through continuous chemical reactions without requiring electrical recharging.
Example: In a hydrogen-oxygen fuel cell, the overall reaction produces water: 2H₂ + O₂ → 2H₂O
Highlight: Fuel cells offer high efficiency and produce only water as a byproduct, but hydrogen storage presents safety challenges.
Quote: "High efficiency → more energy out of the same amount of fuel than less efficient devices"

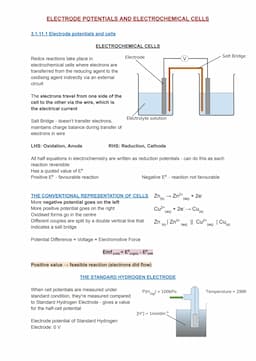

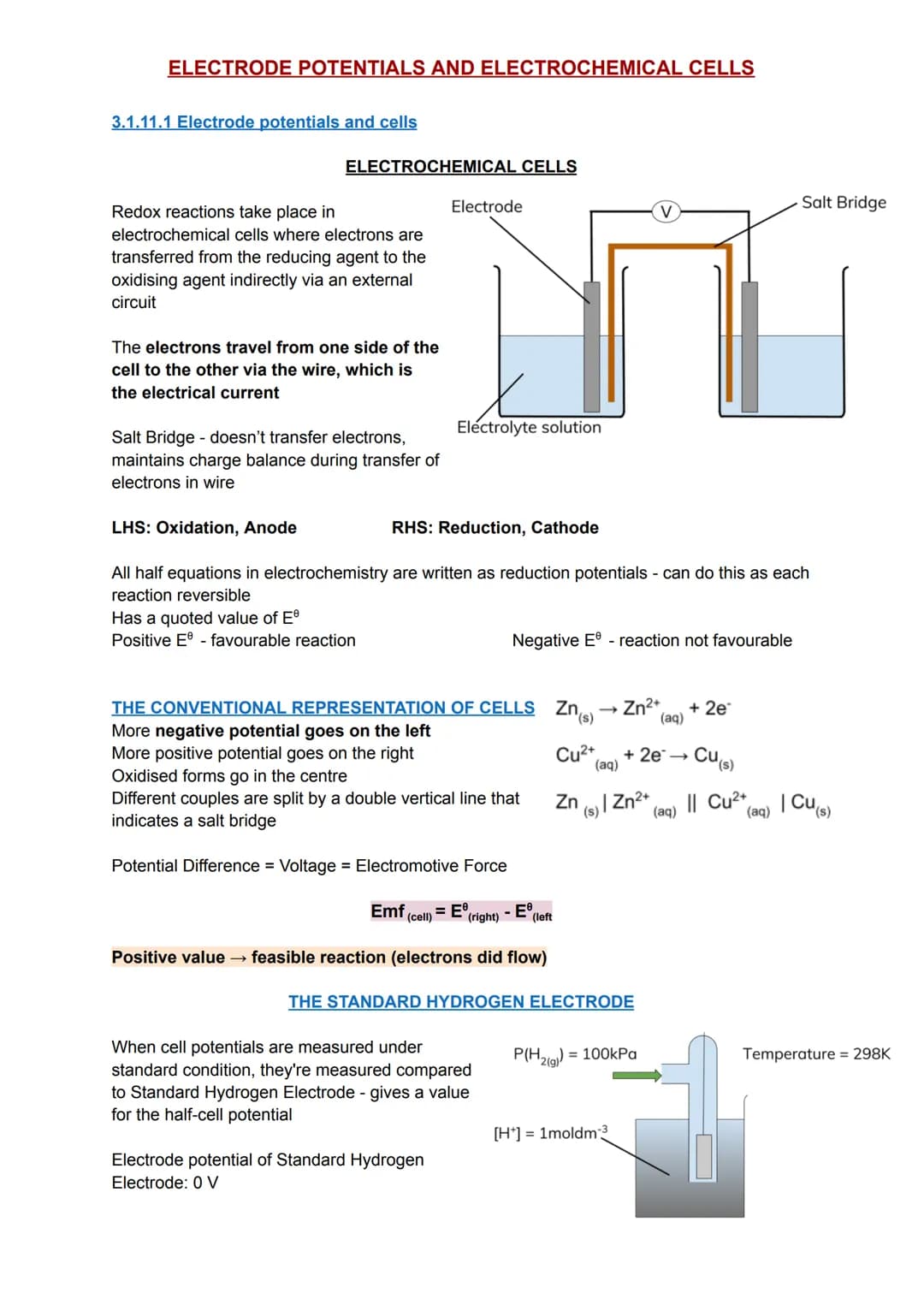

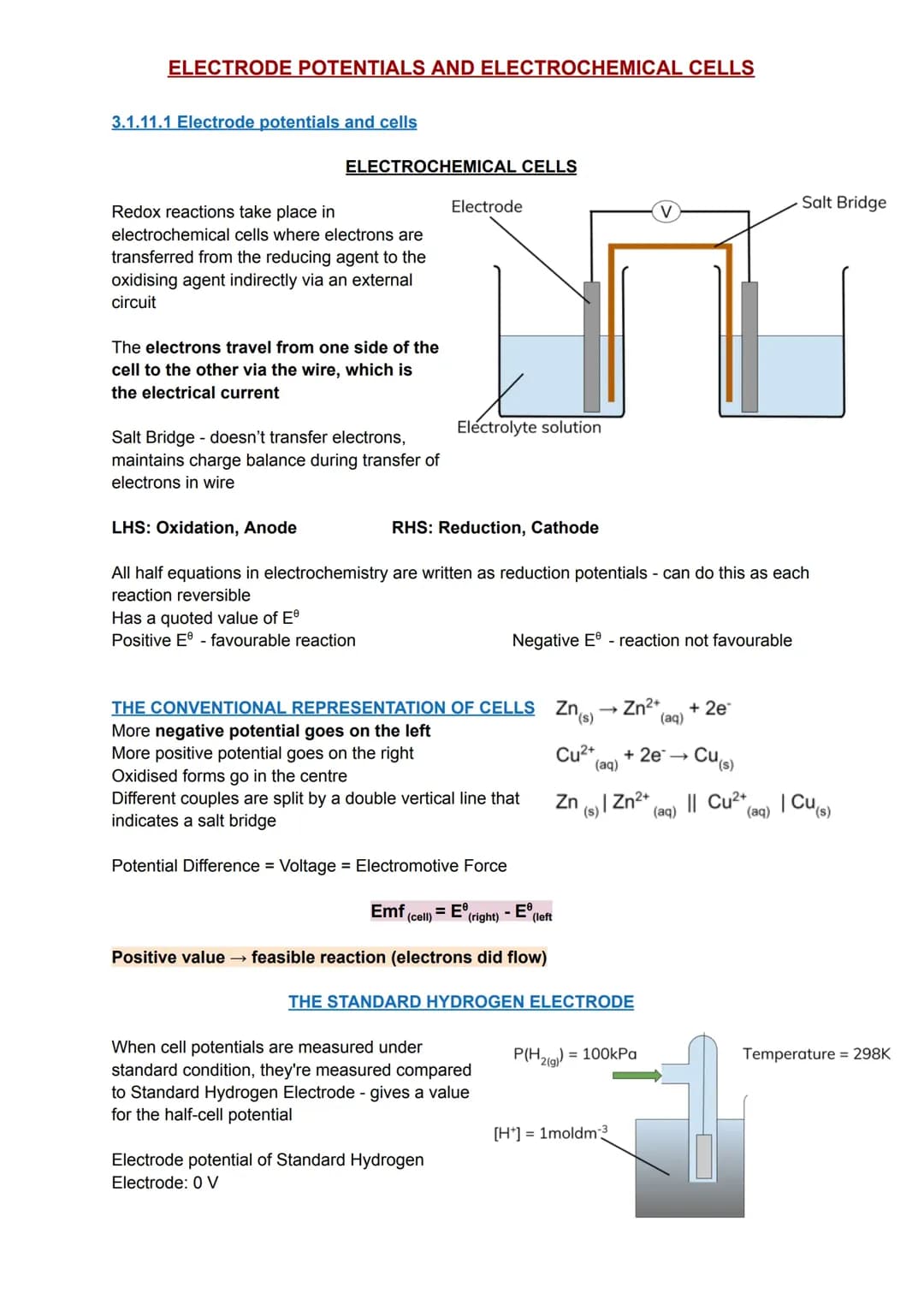

Page 1: Fundamentals of Electrochemical Cells
The first page introduces the basic concepts of electrochemical cells and their components. The cell structure consists of two electrodes connected by a salt bridge, allowing for controlled electron transfer through an external circuit.
Definition: Electrochemical cells are devices where redox reactions occur through indirect electron transfer via an external circuit.
Vocabulary: Salt Bridge - A component that maintains charge balance without transferring electrons between half-cells.
Highlight: The conventional representation places the more negative potential on the left and the more positive potential on the right.
Example: In a Zinc-Copper cell (Zn(s)|Zn²⁺||Cu²⁺|Cu(s)), electrons flow from zinc to copper through the external circuit.
