Understanding how water moves through plants is crucial for grasping...
Water Movement in Plants: Apoplast, Symplast, and Vacuolar Pathways

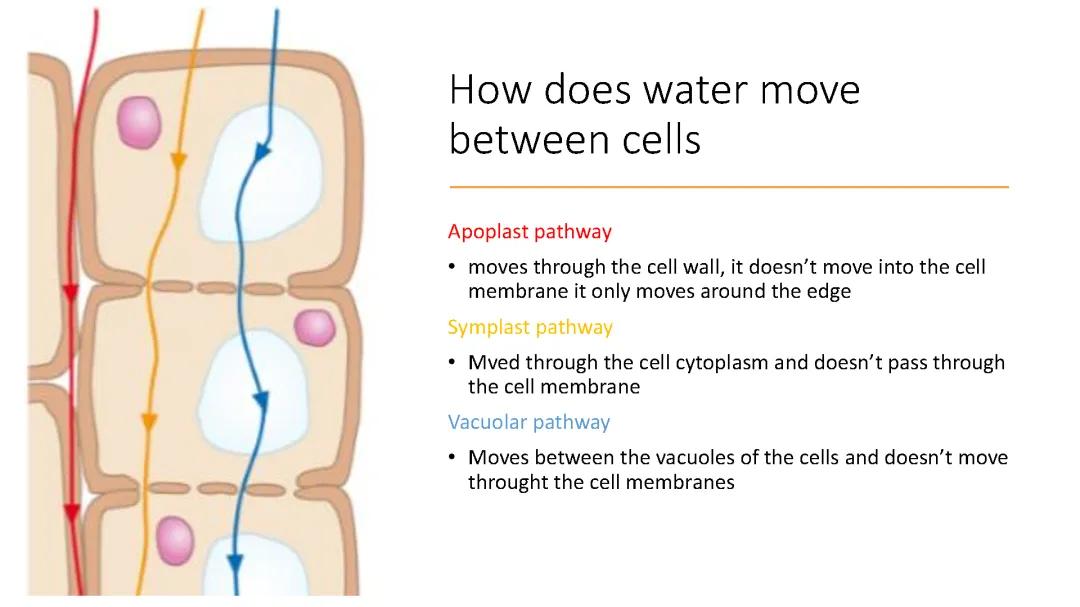

Water Movement Pathways Between Cells
Plants have three clever ways to move water between their cells, each taking a different route through the plant structure.
The apoplast pathway is like water flowing around the outside of houses in a neighbourhood. Water moves through cell walls without actually entering the cells themselves, staying outside the cell membrane the entire time.
The symplast pathway takes water directly through the cell's interior via the cytoplasm. Think of this as water flowing through connected rooms in a house, moving from one cell to another through special channels called plasmodesmata.
The vacuolar pathway involves water moving between the large storage compartments (vacuoles) inside cells. This route also bypasses cell membranes, creating another efficient transport option.
Quick Tip: Remember these pathways by location - apoplast (around cells), symplast (through cells), vacuolar (between storage areas).

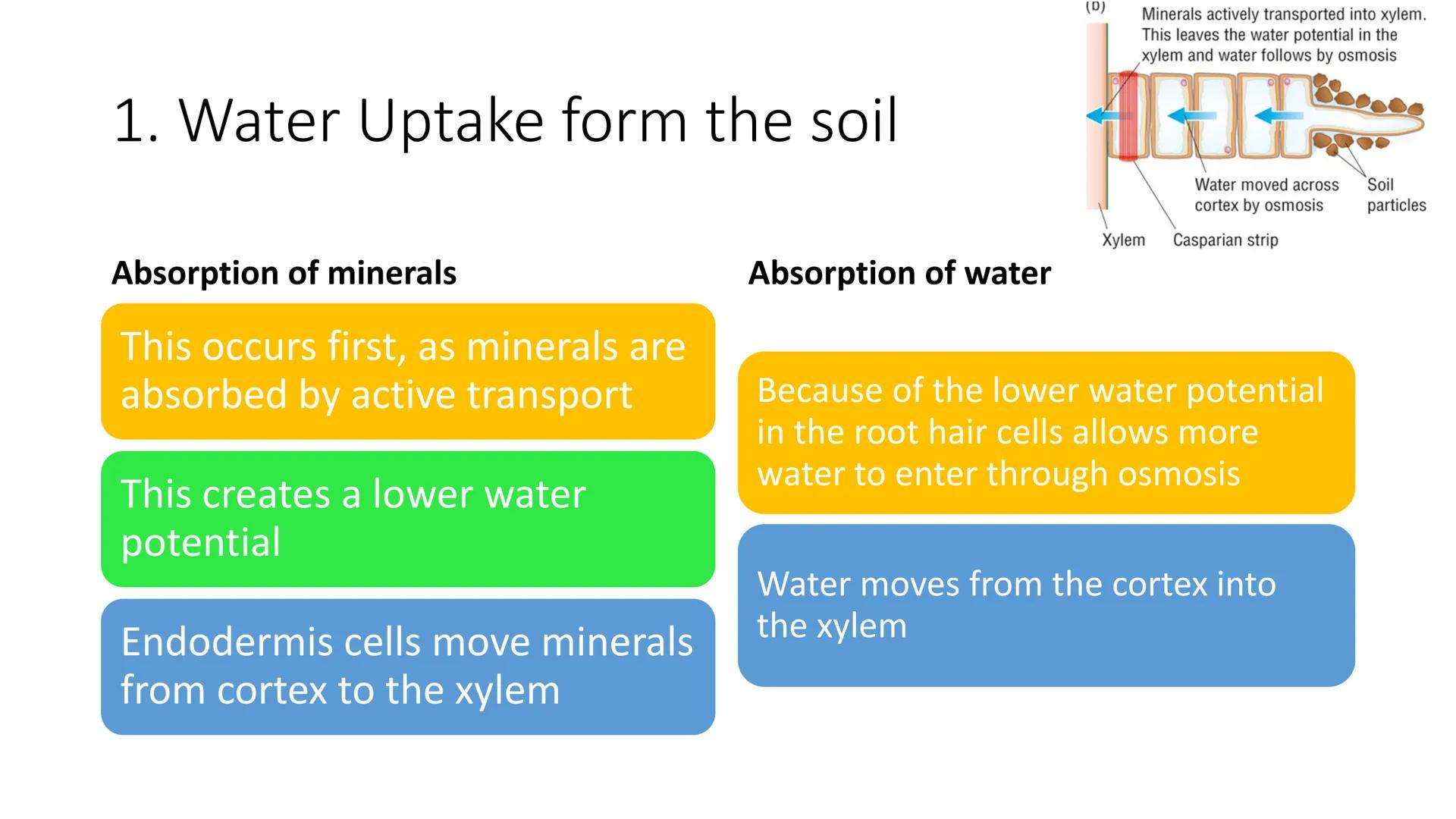

Water Uptake from Soil
Your plant's roots are like tiny pumps that create the perfect conditions for water absorption. The process starts with active transport of minerals into the xylem vessels.
When minerals get pumped into the xylem, they lower the water potential there. This creates a concentration gradient that draws water in naturally through osmosis - no extra energy required!
Root hair cells are perfectly designed for this job. Their large surface area and the lower water potential they maintain means water constantly flows in from the surrounding soil.
The endodermis cells act as gatekeepers, carefully controlling which minerals move from the cortex into the xylem. This selective process ensures the plant gets exactly what it needs whilst maintaining the water potential gradient.
Key Point: Active transport of minerals comes first - this creates the conditions that allow passive water uptake through osmosis.

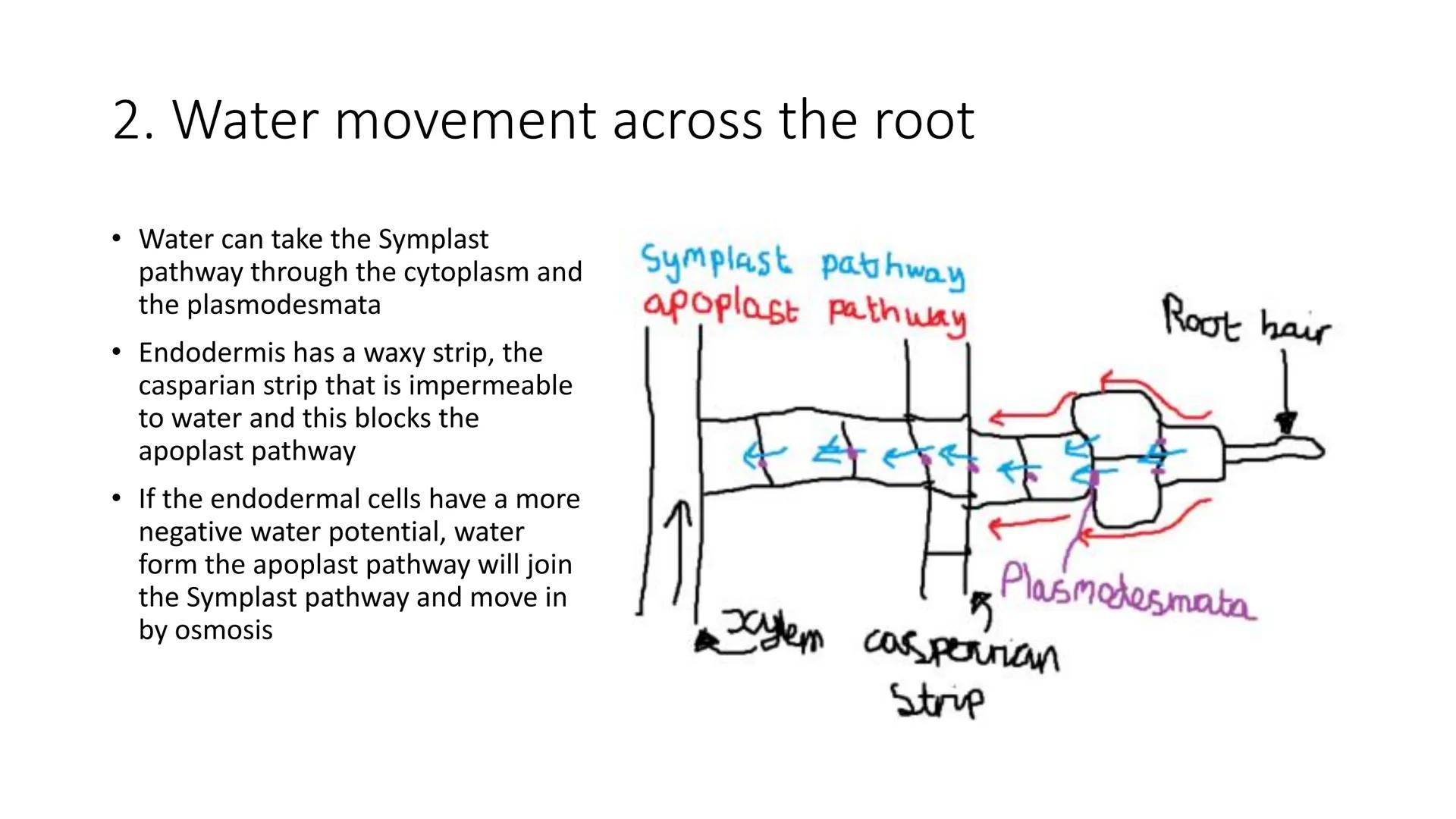

Water Movement Across the Root
Once water enters the root, it faces a crucial checkpoint that determines its final pathway to the xylem.
Water can initially travel through the symplast pathway, moving through cell cytoplasm and connecting via plasmodesmata. This route gives cells complete control over what passes through.
However, there's a waxy barrier called the Casparian strip in the endodermis that completely blocks the apoplast pathway. Think of it as a waterproof seal that forces all water to enter cells rather than flowing around them.
When water hits this barrier, it must join the symplast pathway and enter endodermal cells by osmosis. This only happens if these cells maintain a more negative water potential than the surrounding area.
Remember: The Casparian strip is nature's quality control - it ensures everything entering the xylem has been checked by living cells first.

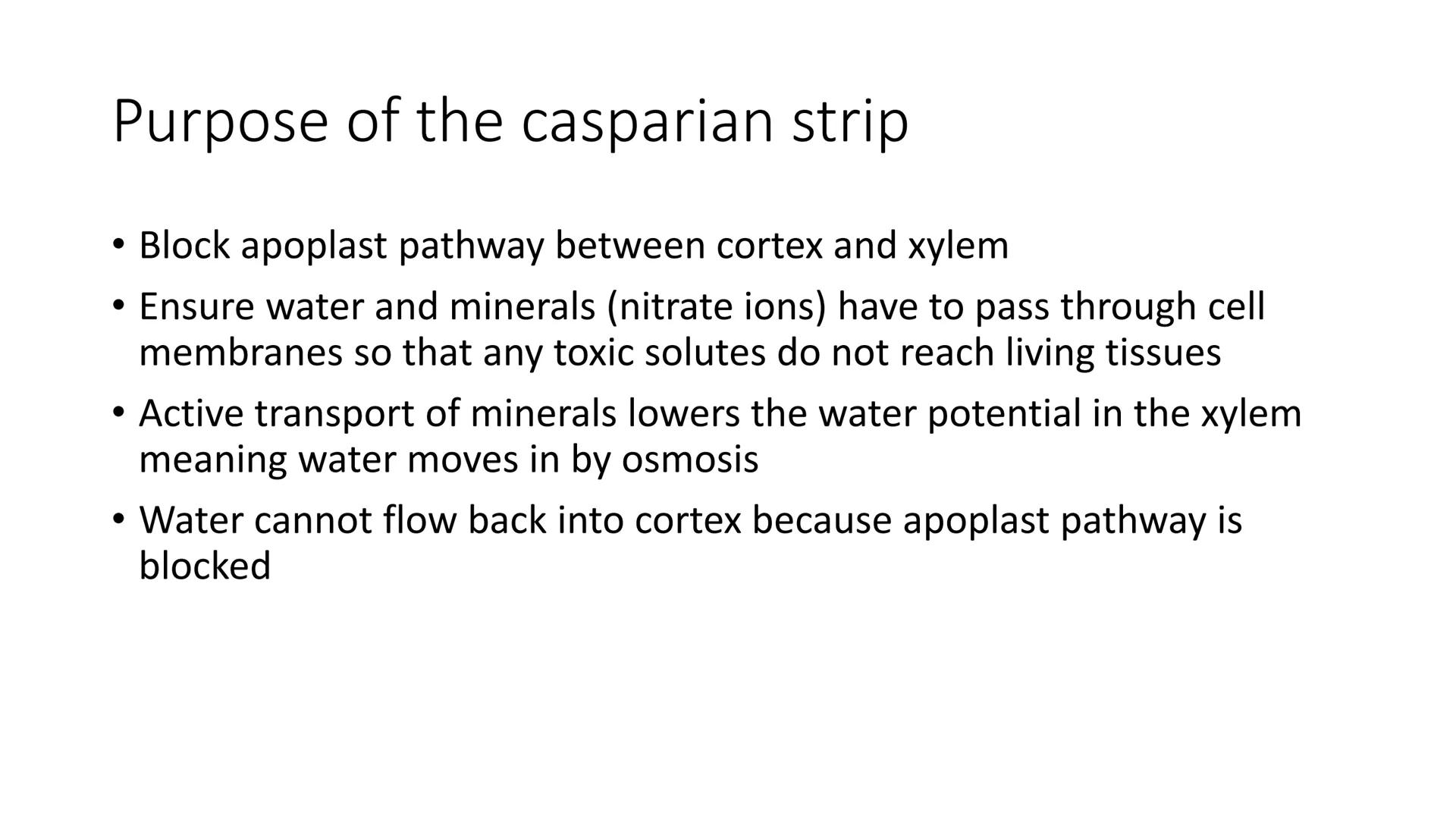

Purpose of the Casparian Strip
The Casparian strip acts as the plant's security system, serving several critical protective functions.
Its primary job is blocking the apoplast pathway between the cortex and xylem. This forces all water and dissolved substances to pass through cell membranes where they can be properly screened.
This membrane checkpoint prevents toxic solutes from reaching living tissues whilst allowing essential minerals like nitrate ions through. It's like having a bouncer at a club who checks everyone's ID.
The strip also maintains the water transport system's efficiency. Active transport of minerals keeps water potential low in the xylem, drawing water in by osmosis, and the blocked apoplast pathway prevents backflow into the cortex.
Top Tip: Think of the Casparian strip as a one-way valve with built-in security screening - essential for both protection and efficiency.

Water Movement Up the Stem
Getting water from roots to leaves in tall plants requires three different mechanisms working together, each effective at different heights.
Capillary action works through adhesion between water molecules and the lignin lining of xylem vessels. This attraction helps pull water upward but only works effectively over short distances of about 5 centimetres.
Root pressure extends the reach up to 5 metres by using active transport in endodermis cells to maintain the mineral concentration gradient. This creates enough pressure to push water considerably higher than capillary action alone.
For the really impressive heights up to 100 metres, plants rely on transpiration pull. Water molecules stick together (cohesion), forming continuous columns in xylem vessels. When water evaporates from leaves, it literally pulls the entire column upward through this cohesion-tension mechanism.
Amazing Fact: The same cohesion-tension theory that moves water up 100-metre trees works in your garden plants too - it's just operating on a smaller scale!
