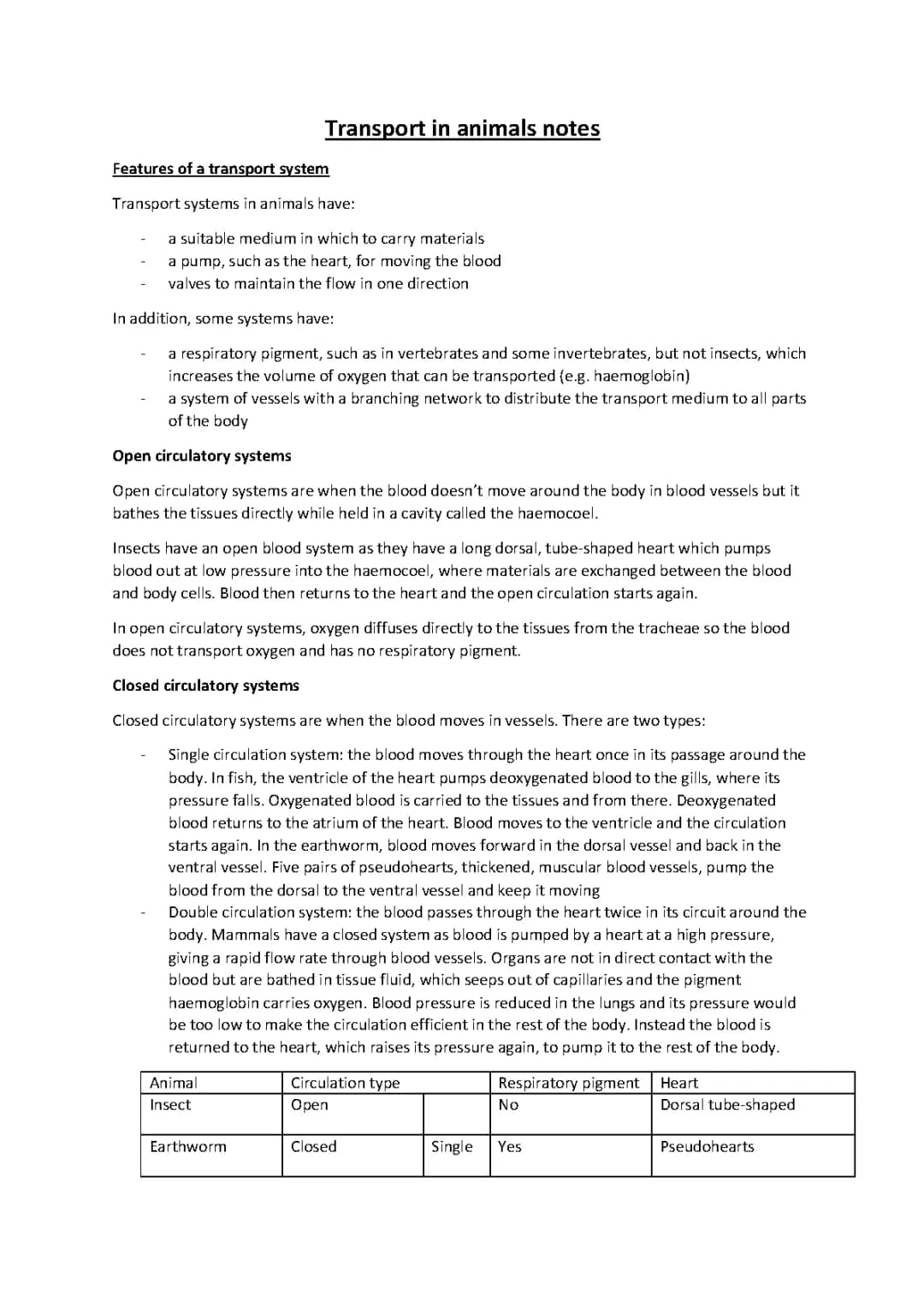

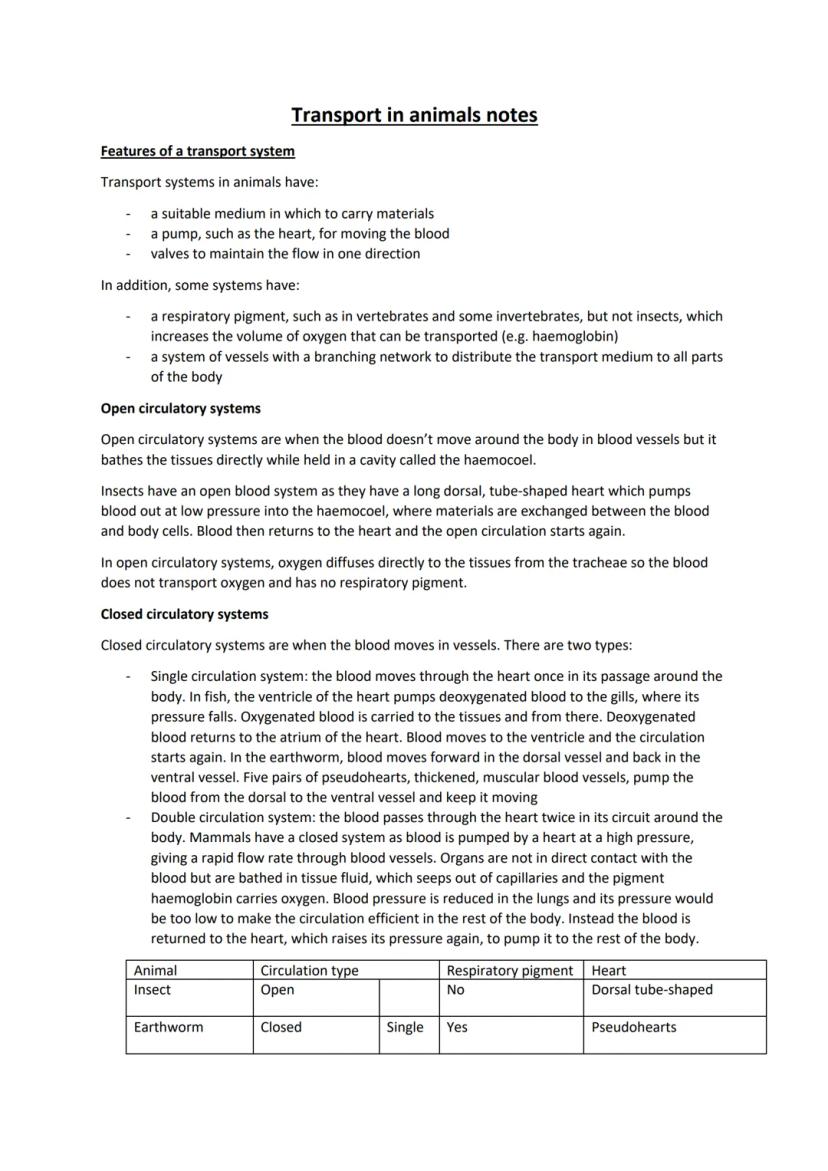

Transport System Basics
Every animal needs to move stuff around their body, and there are some brilliant patterns in how they do it. Transport systems always need a liquid medium (like blood), a pump (usually a heart), and valves to keep everything flowing in the right direction.
The clever bit is that some animals, like us, also have respiratory pigments such as haemoglobin that massively boost how much oxygen we can carry. Insects don't bother with this because they get oxygen directly through their breathing tubes.
Open circulatory systems work like a blood bath - literally! Insects pump blood into a body cavity called the haemocoel, where it sloshes around the organs directly. It's low pressure but works perfectly for their needs since oxygen reaches tissues through separate tubes anyway.
Closed circulatory systems keep blood locked in vessels, creating two main types: single circulation (like fish, where blood goes heart → gills → body → heart) and double circulation (like mammals, where blood passes through the heart twice per circuit).
Quick Tip: Remember that mammals need double circulation because blood pressure drops in the lungs - sending it back through the heart gives it the boost needed to reach your toes!
2
of 9

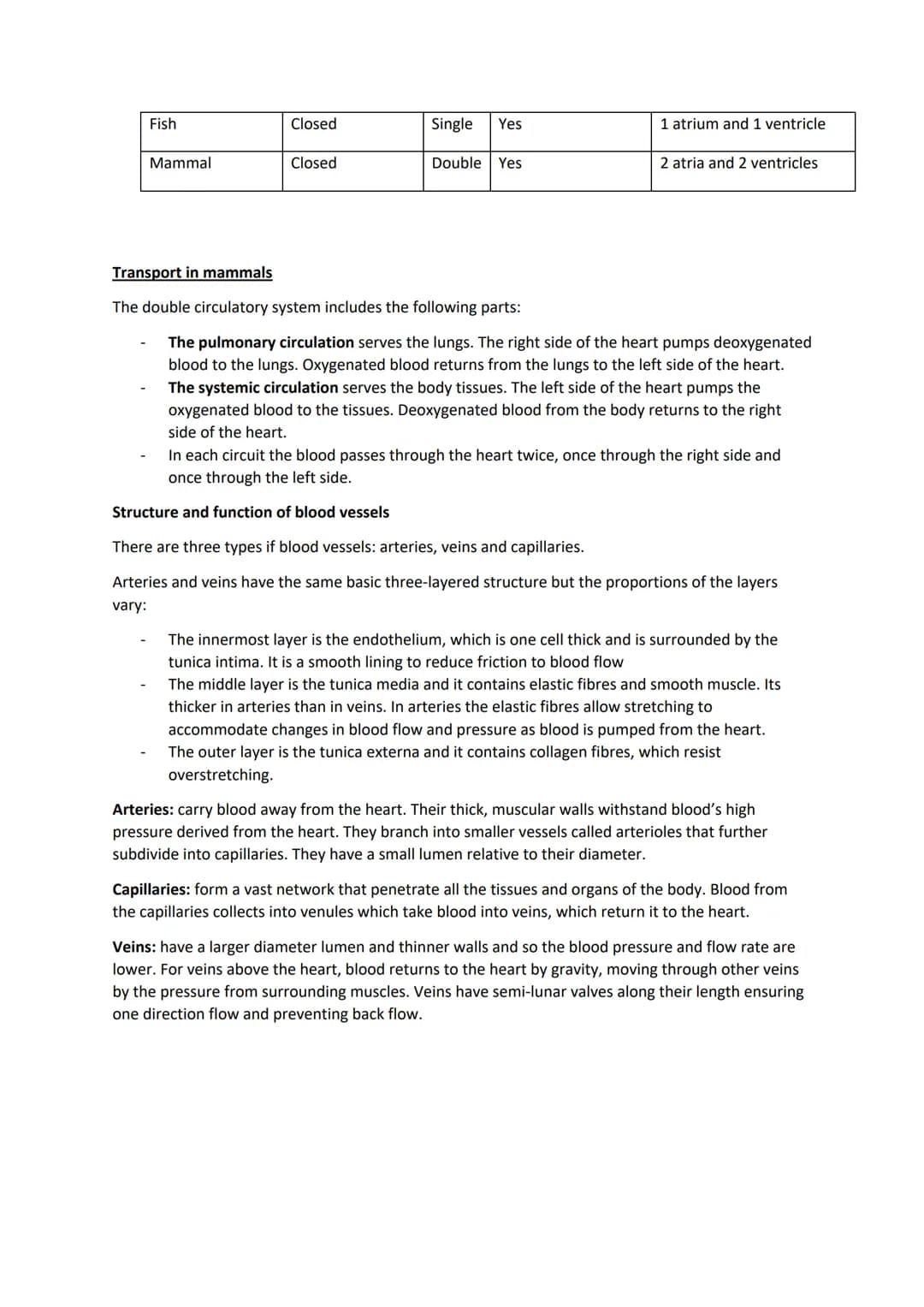

Mammalian Transport Systems
Your double circulatory system is basically two loops running simultaneously. The pulmonary circulation handles the lung run - right heart pumps deoxygenated blood to lungs, then oxygenated blood returns to left heart. The systemic circulation serves everything else - left heart pumps oxygenated blood around your body.
Blood vessels have three main types, each perfectly designed for their job. Arteries are the motorways - thick, muscular walls cope with high pressure from your heart, with elastic fibres that stretch as blood surges through.
Capillaries are where the real action happens. They're just one cell thick, creating massive networks that penetrate every tissue. Blood pressure drops right down here as materials exchange between blood and cells.
Veins are the return journey - much larger diameter but thinner walls since pressure is low. They've got semi-lunar valves every so often to prevent backflow, especially important when blood has to travel uphill back to your heart.
Memory Hack: Arteries = Away from heart, Veins = toVard heart (if you flip the V upside down it points toward something!).
3
of 9

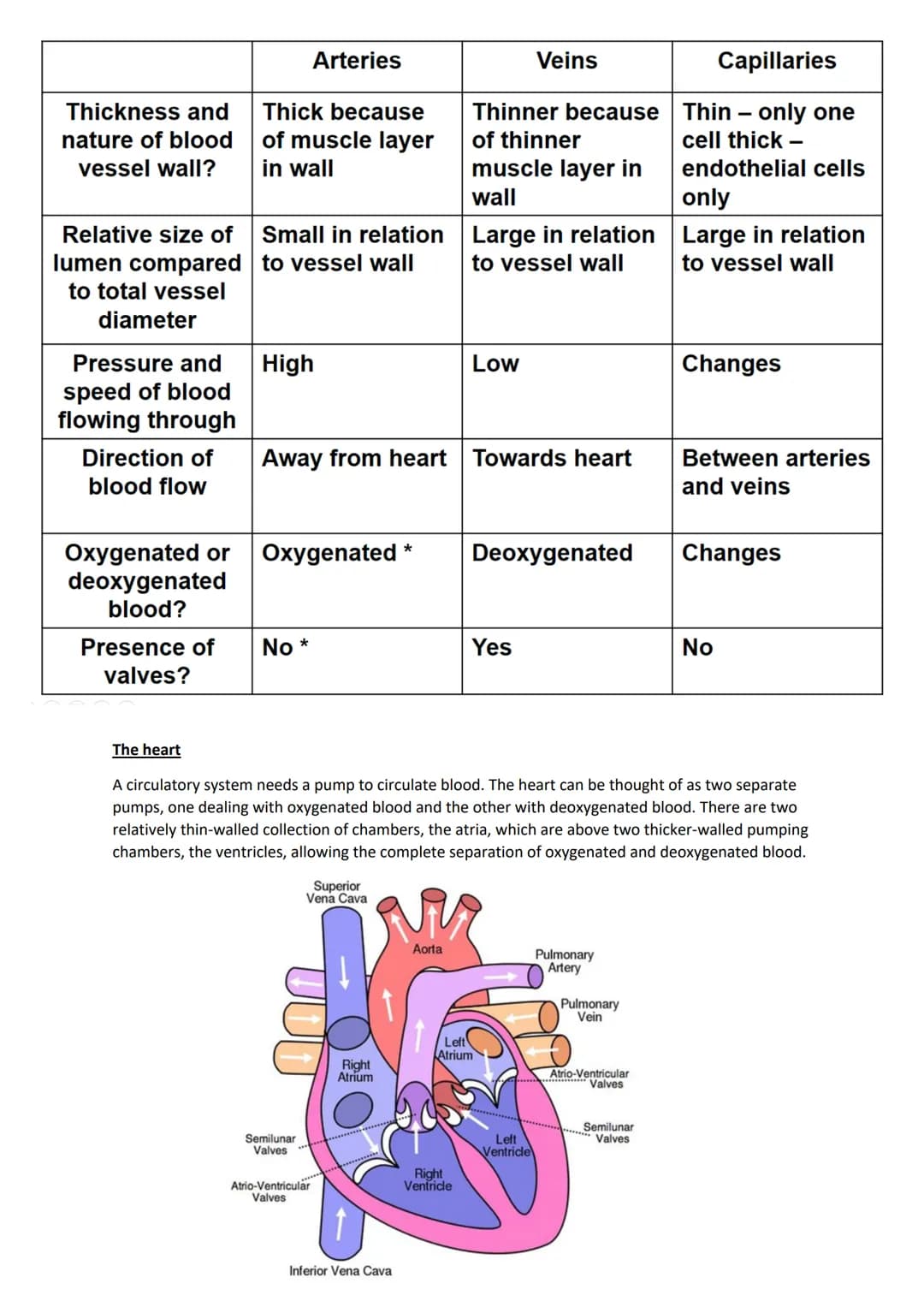

Heart Structure and Function
Your heart is essentially two pumps stuck together - one handling oxygenated blood, the other deoxygenated. The atria are thin-walled collection chambers sitting above the thick, muscular ventricles that do the heavy pumping work.
What makes your heart amazing is that it's myogenic - the muscle contracts on its own without needing signals from your brain. Cardiac muscle never gets tired like your arm muscles do, which is rather handy since it beats about 100,000 times per day!
The heart's structure makes perfect sense when you think about pressure. Atrial walls are thin because they only need to squeeze blood down to the ventricles below. Ventricular walls are much thicker, especially the left ventricle, because they've got to generate enough pressure to send blood either to your lungs or all the way to your fingertips.
Valves are the unsung heroes preventing backflow. The atrioventricular valves between atria and ventricles, plus semi-lunar valves at the exits, all snap shut when pressure builds up behind them.
Real-World Connection: Your left ventricle generates enough pressure to squirt blood about 9 metres - that's why arterial bleeding is so dangerous!
4
of 9

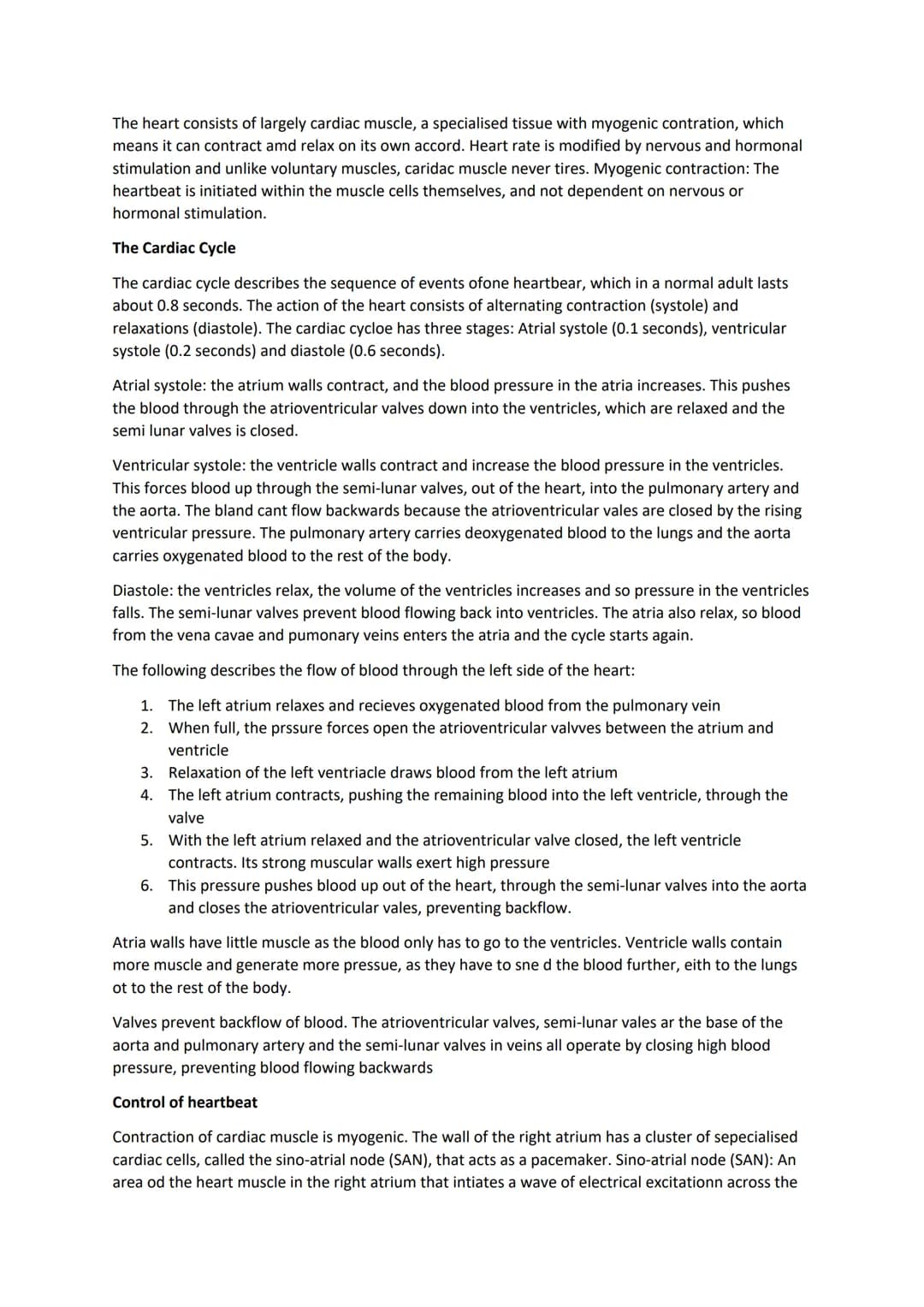

The Cardiac Cycle
Every heartbeat follows the same three-stage pattern, taking about 0.8 seconds in total. Atrial systole kicks things off (0.1 seconds) - atria contract, pushing blood through atrioventricular valves into the relaxed ventricles below.
Next comes ventricular systole (0.2 seconds) - the main event! Ventricles contract powerfully, forcing blood up through semi-lunar valves into the pulmonary artery and aorta. The atrioventricular valves slam shut to prevent backflow.
Finally, diastole (0.5 seconds) - everything relaxes. Ventricles expand, pressure drops, and semi-lunar valves close. Meanwhile, blood flows back into the atria from the vena cavae and pulmonary veins, ready for the next cycle.
The sinoatrial node (SAN) in your right atrium acts as the natural pacemaker, firing electrical signals that spread across both atria. The atrioventricular node (AVN) creates a crucial delay, ensuring atria finish emptying before ventricles start contracting.
Exam Tip: The delay at the AVN is vital - without it, atria and ventricles would contract simultaneously and blood wouldn't flow properly!
5
of 9

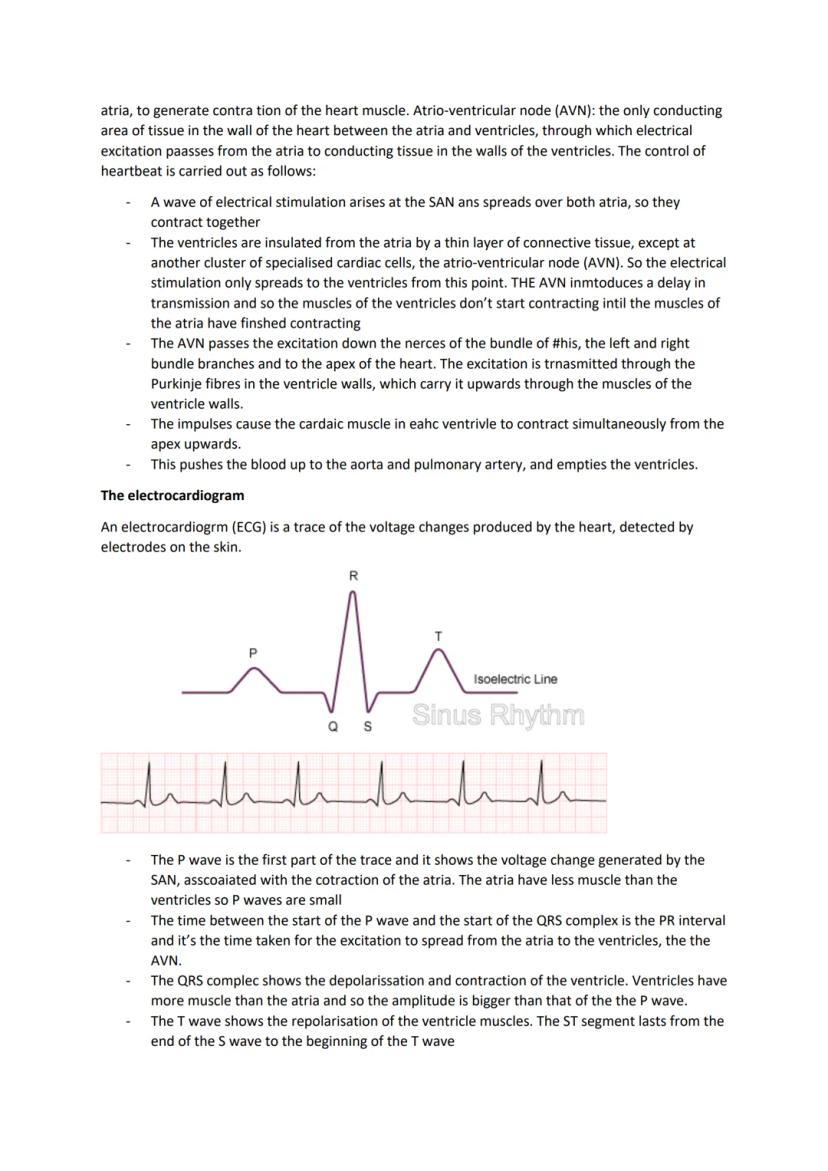

Heart Control and ECGs
Your heartbeat's electrical activity can be tracked using an electrocardiogram (ECG) - basically picking up the voltage changes your heart muscle produces. Each heartbeat creates a distinctive pattern that doctors can read like a book.
The P wave shows atrial contraction - it's small because atria have less muscle. The QRS complex represents ventricular contraction and is much bigger due to all that thick muscle. The T wave shows ventricular muscle resetting for the next beat.
Bundle of His and Purkinje fibres carry electrical signals down to the heart's apex, then up through the ventricular walls. This creates a coordinated squeeze from bottom to top, efficiently emptying the ventricles upward into the major arteries.
ECGs reveal loads about heart health. Atrial fibrillation shows up as missing P waves and irregular rhythm. Heart attacks can widen the QRS complex, while enlarged ventricles create bigger voltage changes.
Clinical Connection: Paramedics can spot heart attacks within seconds using ECGs - the ST segment changes are often the first sign of blocked coronary arteries!
6
of 9

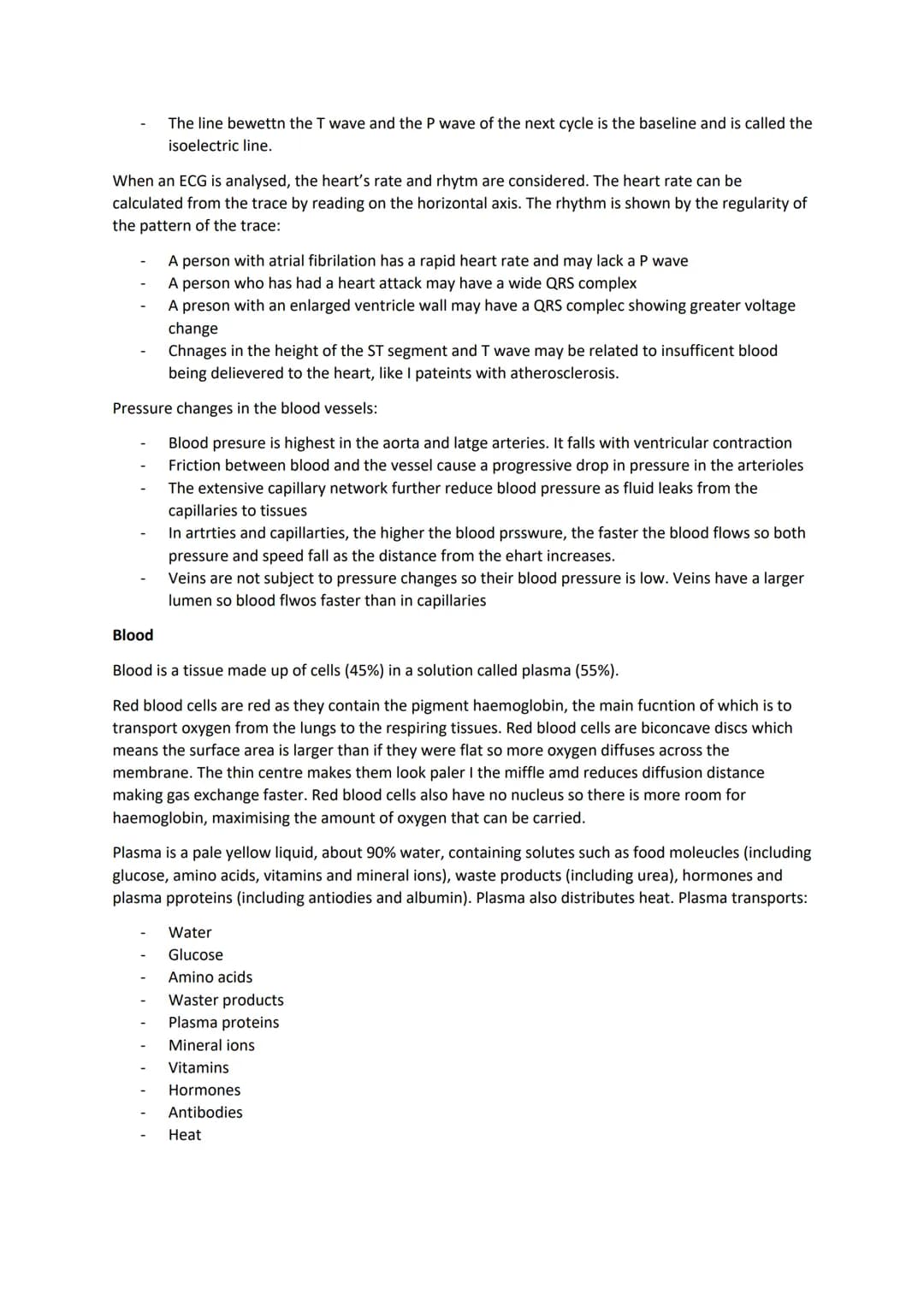

Blood Pressure and Blood Components
Blood pressure is highest in your aorta and large arteries, then drops steadily as blood moves away from your heart. Friction between blood and vessel walls causes pressure to fall progressively through arterioles, while the massive capillary network reduces pressure further as fluid leaks into tissues.
Veins operate at low pressure but have larger diameters than arteries, so blood actually flows faster than in capillaries. It's like water flowing through different sized pipes - narrow pipes slow things down even under high pressure.
Blood itself is 45% cells floating in 55% plasma. Red blood cells are brilliant little oxygen carriers - their biconcave disc shape maximises surface area for gas exchange while keeping them flexible enough to squeeze through tiny capillaries.
Plasma is your body's delivery service, carrying everything from glucose and amino acids to hormones and antibodies. It's about 90% water but packed with dissolved goodies including plasma proteins like albumin that help maintain blood pressure.
Cool Fact: Red blood cells have no nucleus to make more room for haemoglobin - they're literally packed to the brim with oxygen-carrying power!
7
of 9

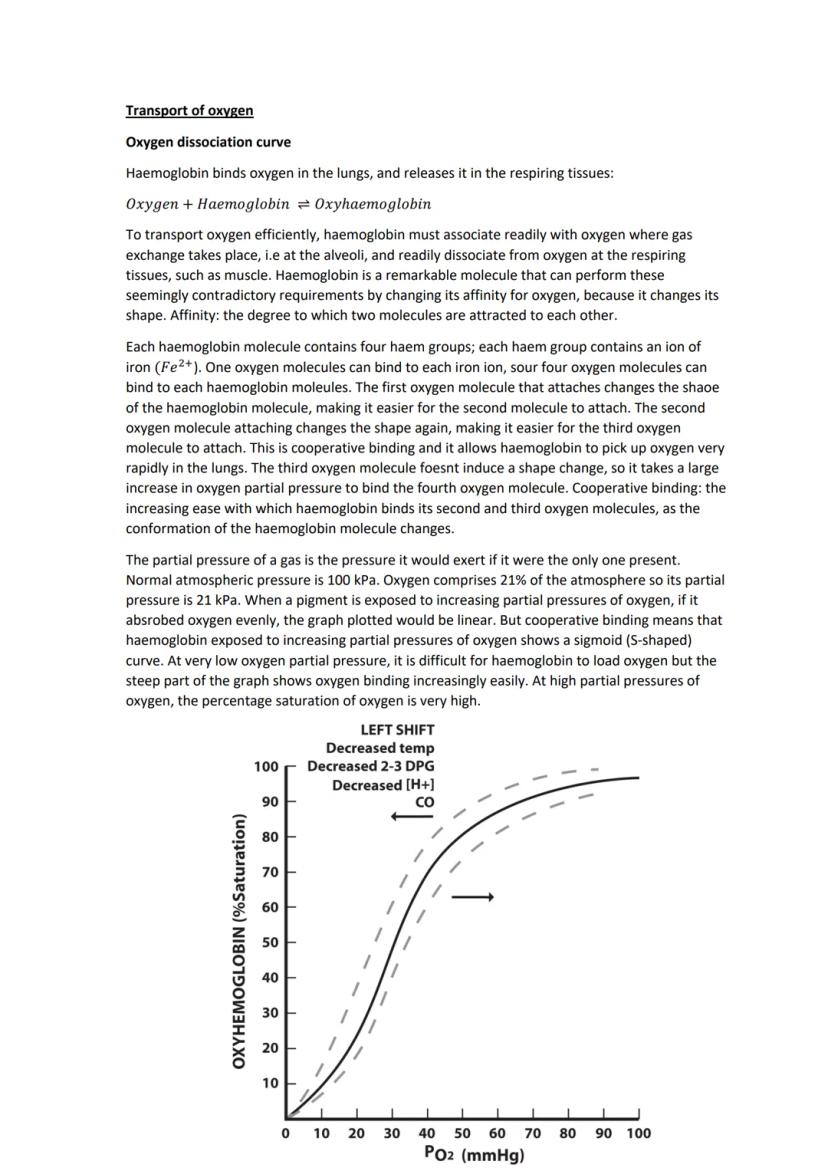

Oxygen Transport Mechanisms
Haemoglobin is absolutely brilliant at its job thanks to cooperative binding. Each haemoglobin molecule has four haem groups containing iron ions that can each grab one oxygen molecule. The clever bit is that when the first oxygen attaches, it changes the protein's shape, making it easier for the second and third oxygen molecules to bind.
This creates the famous sigmoid (S-shaped) oxygen dissociation curve. At low oxygen levels, haemoglobin struggles to pick up oxygen, but once it gets going, it rapidly becomes saturated. This means it loads up efficiently in your lungs where oxygen is abundant.
Partial pressure is just the pressure that each gas would exert on its own. Normal atmospheric pressure is 100 kPa, and since oxygen makes up 21% of air, its partial pressure is 21 kPa.
The curve's shape is perfect for oxygen transport - haemoglobin becomes saturated in lungs (high oxygen partial pressure) but readily releases oxygen in respiring tissues where partial pressure is low. A small drop in oxygen levels triggers massive oxygen release.
Exam Essential: The S-shaped curve is crucial - a straight line wouldn't work because haemoglobin would either hold onto oxygen too tightly or release it too easily!
8
of 9

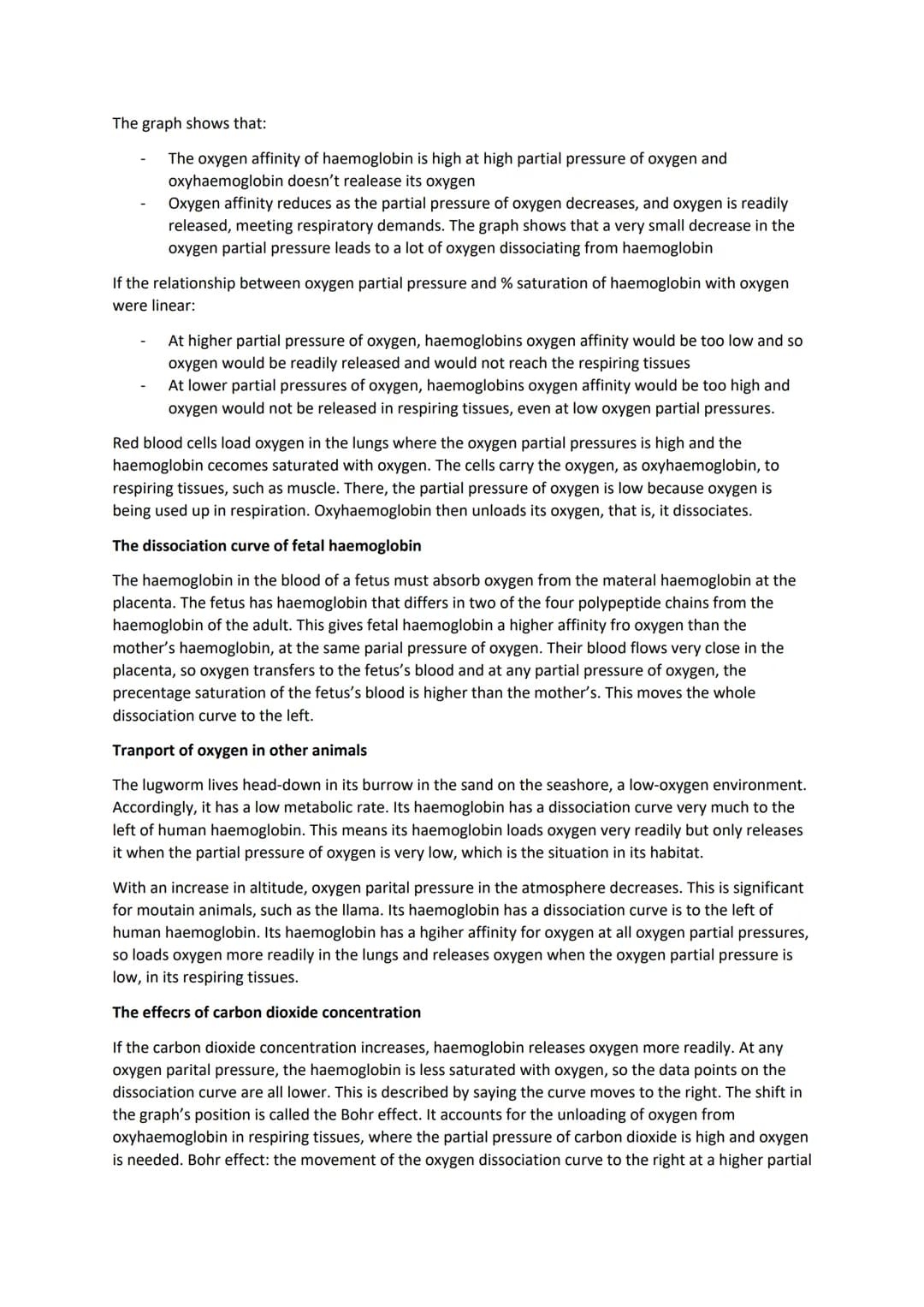

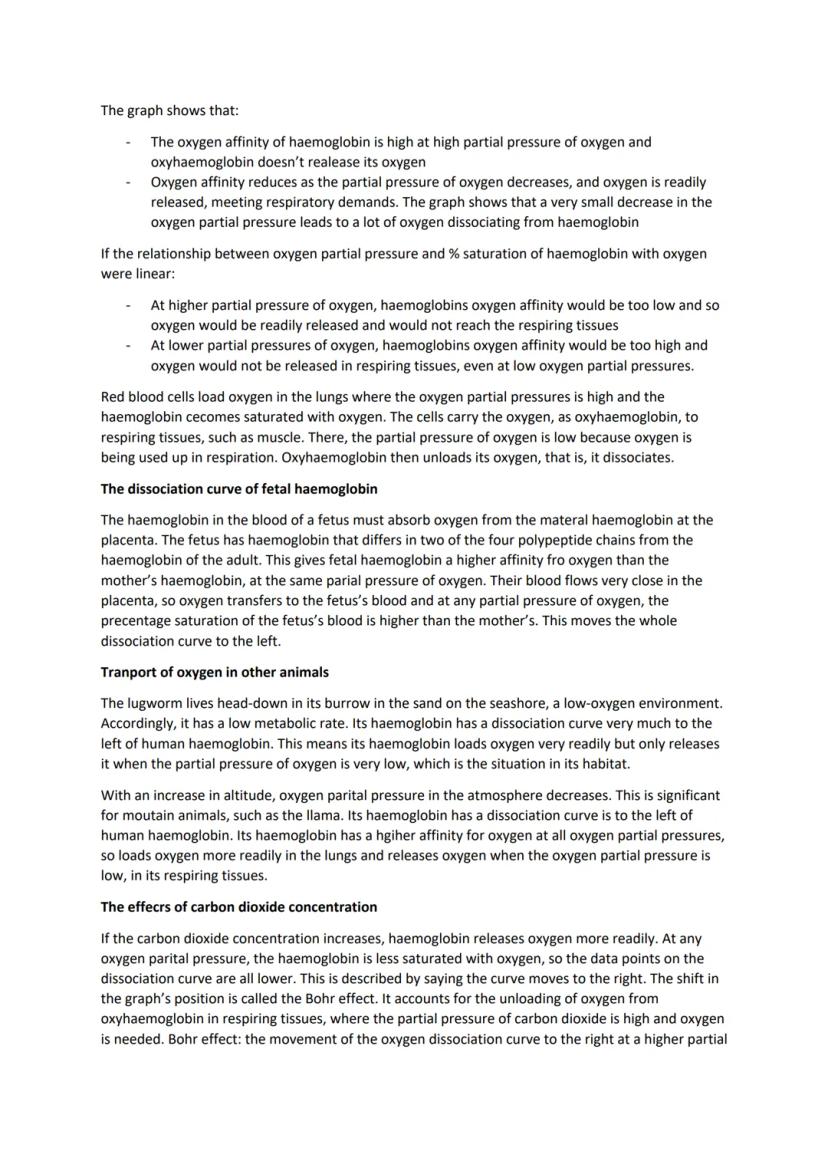

Specialised Oxygen Transport
Fetal haemoglobin shows how evolution fine-tunes oxygen transport. Babies need to grab oxygen from their mum's blood at the placenta, so their haemoglobin has higher oxygen affinity than adult haemoglobin. This shifts the whole dissociation curve to the left - at any oxygen level, fetal blood is more saturated than maternal blood.
Animals living in extreme environments have adapted accordingly. Lugworms live in low-oxygen sand burrows, so their haemoglobin curve is way to the left - they can extract oxygen even when there's barely any available. Llamas at high altitude face similar challenges with thin air.
The Bohr effect is oxygen transport's secret weapon. When carbon dioxide concentration increases (like in active muscles), haemoglobin's oxygen affinity drops. This shifts the curve to the right, making oxygen unload more easily exactly where it's needed most.
This explains why you breathe heavily during exercise - high CO₂ levels in working muscles trigger oxygen release while also stimulating your breathing to bring in fresh oxygen. It's a beautifully coordinated system.
Real Application: Mountain climbers often struggle initially because their haemoglobin isn't adapted for low oxygen - but their bodies gradually adjust by making more red blood cells!
9
of 9

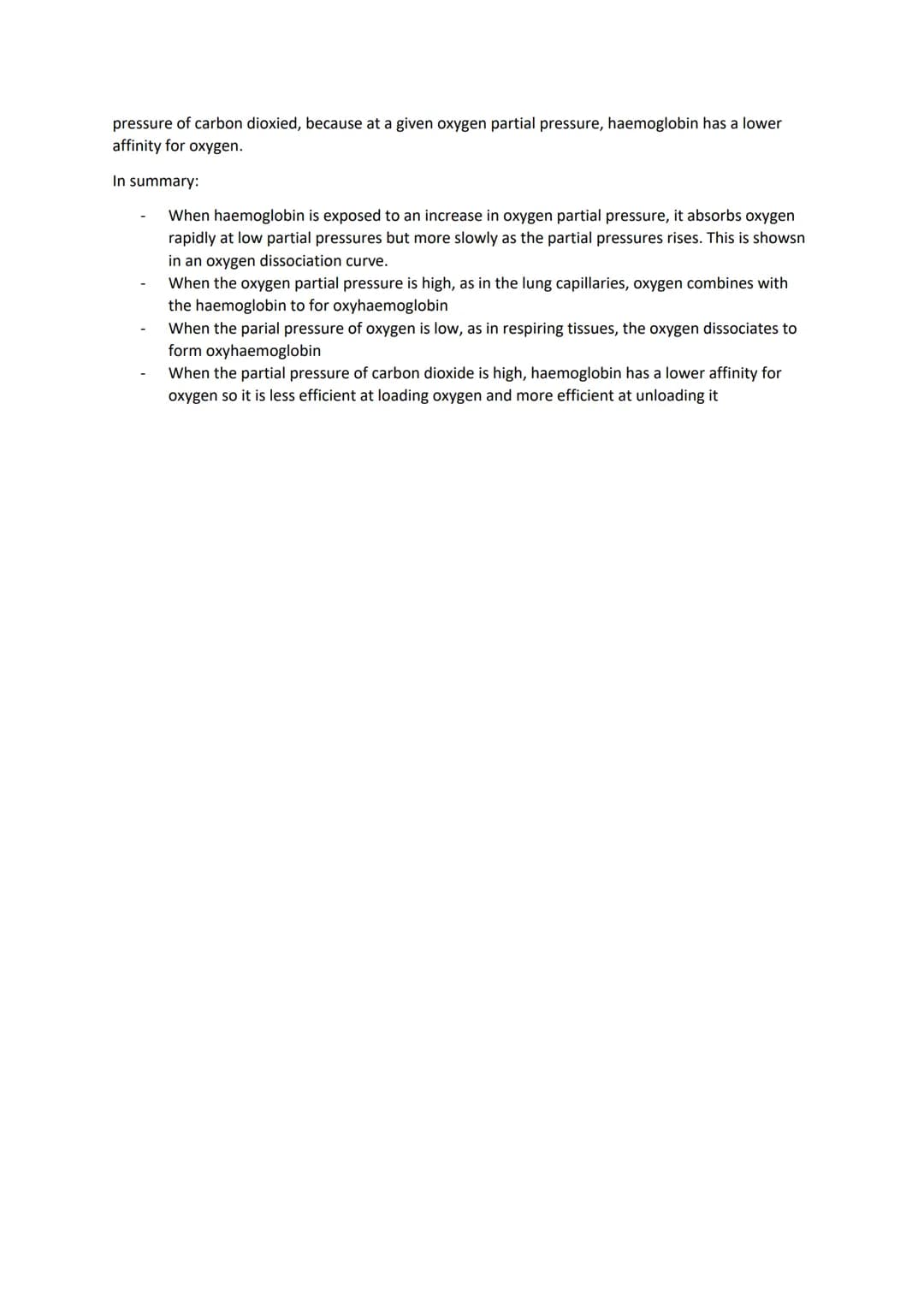

Oxygen Transport Summary
The oxygen dissociation curve tells the whole story of how your blood delivers oxygen. Haemoglobin loads up with oxygen in your lungs where partial pressure is high, travels around your body as oxyhaemoglobin, then unloads oxygen in respiring tissues where partial pressure is low.
Cooperative binding creates that crucial S-shaped curve - rapid oxygen uptake once it gets started, but easy release when oxygen levels drop. Without this, oxygen transport would be far less efficient.
The Bohr effect adds another layer of control. High carbon dioxide partial pressure in active tissues reduces haemoglobin's oxygen affinity, encouraging oxygen release precisely where it's needed. It's like having a smart delivery system that knows exactly where to drop off its cargo.
Different animals have evolved variations on this theme - fetal haemoglobin with higher affinity for grabbing oxygen from mum, or lugworm haemoglobin adapted for low-oxygen environments. Same basic principle, different fine-tuning.
Key Takeaway: Your oxygen transport system is incredibly sophisticated - it automatically adjusts delivery based on local conditions, ensuring every cell gets the oxygen it needs!
