The heart is a vital organ in the circulatory system, responsible for pumping blood throughout the body. It consists of four chambers and various blood vessels that work together to maintain blood flow. The heart's structure and function are crucial topics in IGCSE Biology and GCSE Biology.

Key points:

  • The heart has two sides: right (deoxygenated blood) and left (oxygenated blood)
  • Blood flows through the heart in a specific sequence
  • The heart's structure is adapted to its function
  • The circulatory system includes various blood vessels connecting the heart to other organs

26/12/2022

468

THE HEART
SUPERIOR VENA CAVA
Brings in deoxygenated
blood from
upper body
NFERIOR VENA
CAVA
Brings in deoxygenated
blood from lower!
·body
R

View

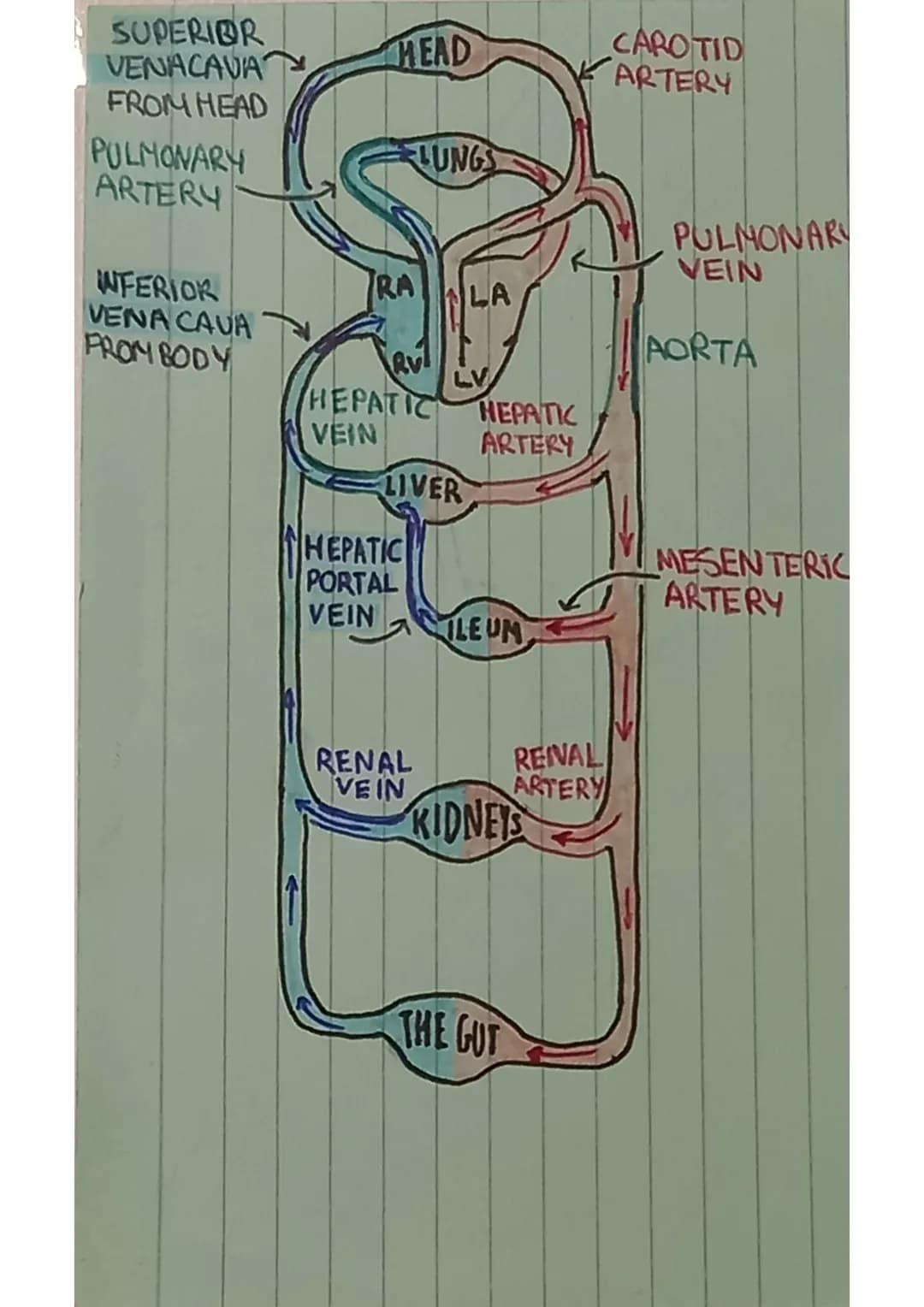

The Circulatory System Overview

This page provides a comprehensive view of the circulatory system, showcasing how the heart connects to various organs and body parts through an intricate network of blood vessels.

The circulatory system is a complex network that ensures blood reaches every part of the body. It consists of the heart as the central pump and various blood vessels that transport blood to and from different organs.

Definition: Circulatory system - The system that circulates blood throughout the body, consisting of the heart, blood vessels, and blood.

The diagram illustrates the major blood vessels and their connections to different organs:

  1. The Superior Vena Cava brings deoxygenated blood from the head and upper body to the right atrium of the heart.

  2. The Inferior Vena Cava carries deoxygenated blood from the lower body to the right atrium.

  3. The Pulmonary Artery takes deoxygenated blood from the right ventricle to the lungs for oxygenation.

  4. The Pulmonary Vein returns oxygenated blood from the lungs to the left atrium of the heart.

  5. The Aorta, the largest artery in the body, carries oxygenated blood from the left ventricle to the rest of the body.

Highlight: The aorta is the main artery that distributes oxygenated blood to the entire body.

The diagram also shows connections to specific organs:

  • The Carotid Artery supplies oxygenated blood to the head.
  • The Hepatic Artery and Hepatic Vein connect to the liver.
  • The Renal Artery and Renal Vein serve the kidneys.
  • The Mesenteric Artery supplies blood to the intestines.

Example: The liver receives blood from both the hepatic artery (oxygenated) and the hepatic portal vein (nutrient-rich blood from the intestines).

This comprehensive view of the circulatory system is essential for understanding how blood travels through the heart IGCSE GCSE and answering questions about the circulatory system IGCSE.

Vocabulary: Hepatic - Relating to the liver Vocabulary: Renal - Relating to the kidneys

Understanding this diagram and the connections between different parts of the circulatory system is crucial for success in IGCSE Biology heart Past Papers and Circulatory system IGCSE Questions.

THE HEART
SUPERIOR VENA CAVA
Brings in deoxygenated
blood from
upper body
NFERIOR VENA
CAVA
Brings in deoxygenated
blood from lower!
·body
R

View

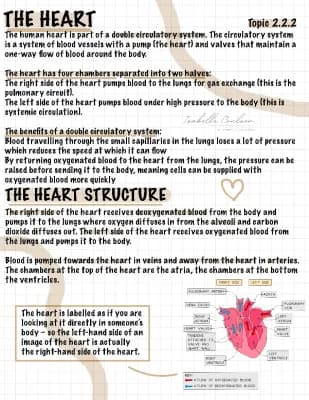

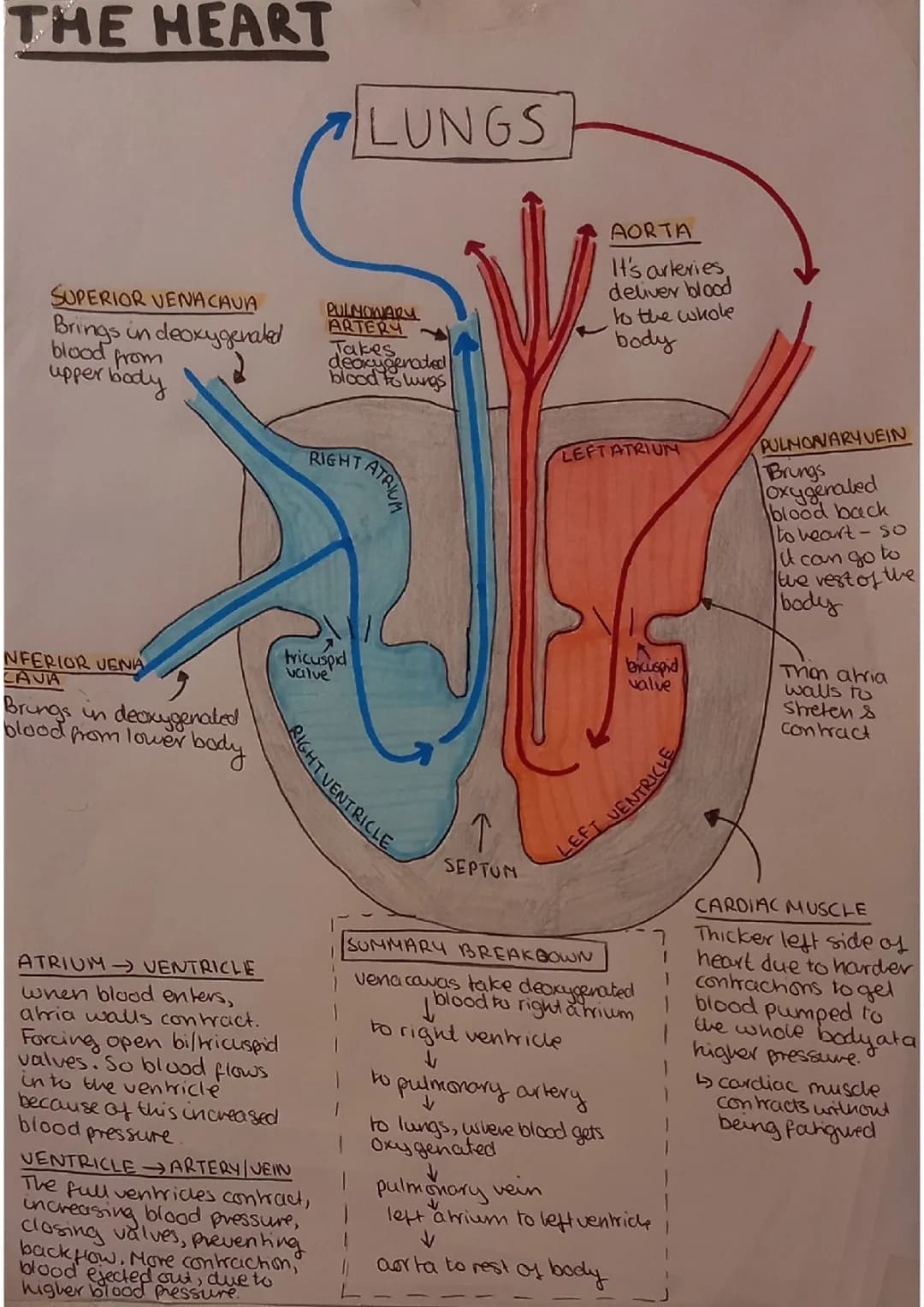

The Heart Structure and Function

The heart is a complex organ with a specific structure designed to efficiently pump blood throughout the body. This page provides a detailed overview of the heart's anatomy and how it functions within the circulatory system.

The heart is divided into four main chambers: two atria (upper chambers) and two ventricles (lower chambers). The right side of the heart deals with deoxygenated blood, while the left side handles oxygenated blood.

Vocabulary: Atria - The upper chambers of the heart that receive blood from the body or lungs.

Vocabulary: Ventricles - The lower chambers of the heart that pump blood out to the body or lungs.

Blood enters the heart through two major veins:

  1. The Superior Vena Cava, which brings deoxygenated blood from the upper body.
  2. The Inferior Vena Cava, which brings deoxygenated blood from the lower body.

These veins connect to the right atrium. From there, blood flows through the tricuspid valve into the right ventricle.

Definition: Tricuspid valve - A valve between the right atrium and right ventricle that prevents backflow of blood.

The right ventricle then pumps the deoxygenated blood through the pulmonary artery to the lungs, where it becomes oxygenated. Oxygenated blood returns to the heart via the pulmonary vein, entering the left atrium.

Highlight: The pulmonary circulation is the part of the circulatory system that oxygenates the blood.

From the left atrium, blood passes through the bicuspid valve (also known as the mitral valve) into the left ventricle. The left ventricle then pumps the oxygenated blood out through the aorta to the rest of the body.

Example: The left ventricle has thicker walls than the right ventricle because it needs to generate more pressure to pump blood throughout the entire body.

The heart's pumping action is controlled by specialized cardiac muscle. This muscle contracts rhythmically without fatigue, ensuring continuous blood flow.

Highlight: Cardiac muscle is unique in its ability to contract continuously without tiring, which is essential for the heart's non-stop function.

Understanding the heart diagram and the flow of blood through its chambers is crucial for answering IGCSE Biology heart questions and GCSE Biology the heart exam questions.

Can't find what you're looking for? Explore other subjects.

Knowunity is the #1 education app in five European countries

Knowunity has been named a featured story on Apple and has regularly topped the app store charts in the education category in Germany, Italy, Poland, Switzerland, and the United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the #1 education app in five European countries

4.9+

Average app rating

15 M

Pupils love Knowunity

#1

In education app charts in 12 countries

950 K+

Students have uploaded notes

Still not convinced? See what other students are saying...

iOS User

I love this app so much, I also use it daily. I recommend Knowunity to everyone!!! I went from a D to an A with it :D

Philip, iOS User

The app is very simple and well designed. So far I have always found everything I was looking for :D

Lena, iOS user

I love this app ❤️ I actually use it every time I study.

Helpful IGCSE Biology Heart Notes PDF | Heart Diagram & Past Papers

user profile picture

Aliya Tahreem

@aliyatahreem_focd

·

5 Followers

Follow

The heart is a vital organ in the circulatory system, responsible for pumping blood throughout the body. It consists of four chambers and various blood vessels that work together to maintain blood flow. The heart's structure and function are crucial topics in IGCSE Biology and GCSE Biology.

Key points:

  • The heart has two sides: right (deoxygenated blood) and left (oxygenated blood)
  • Blood flows through the heart in a specific sequence
  • The heart's structure is adapted to its function
  • The circulatory system includes various blood vessels connecting the heart to other organs

26/12/2022

468



10/11



Biology

12

THE HEART
SUPERIOR VENA CAVA
Brings in deoxygenated
blood from
upper body
NFERIOR VENA
CAVA
Brings in deoxygenated
blood from lower!
·body
R

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

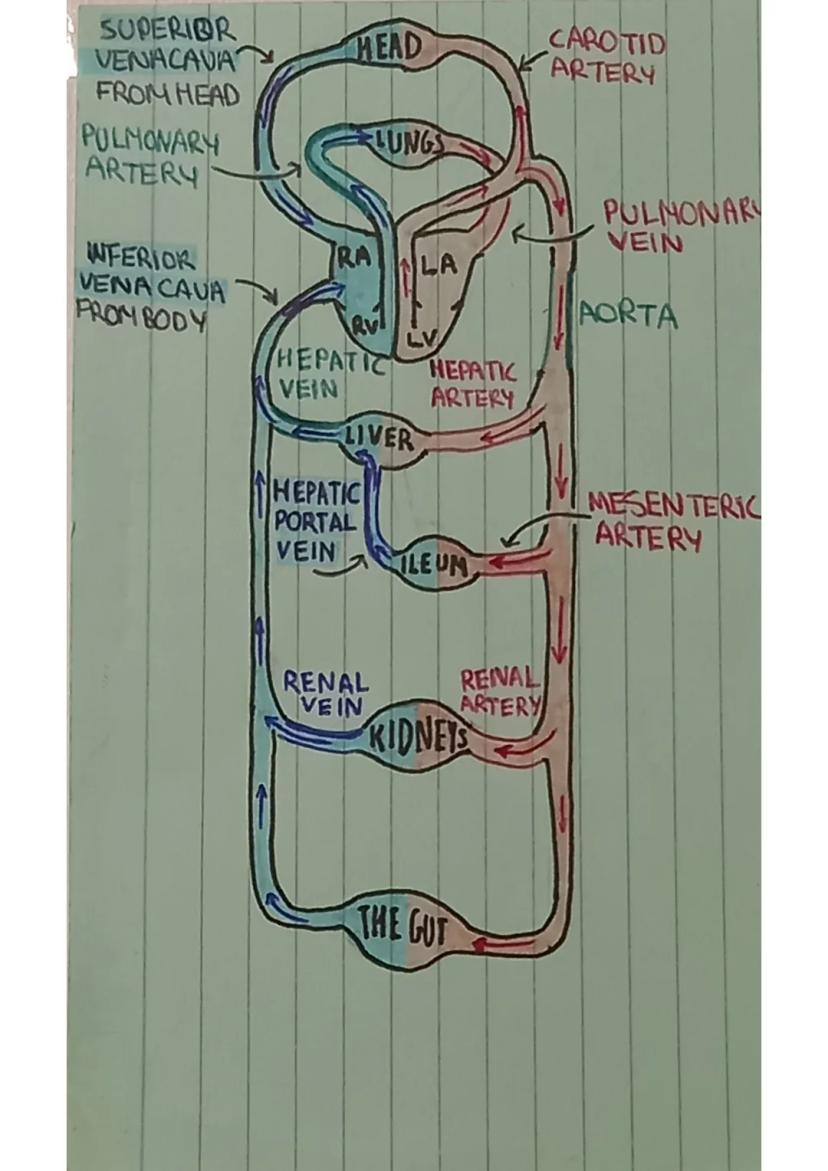

The Circulatory System Overview
