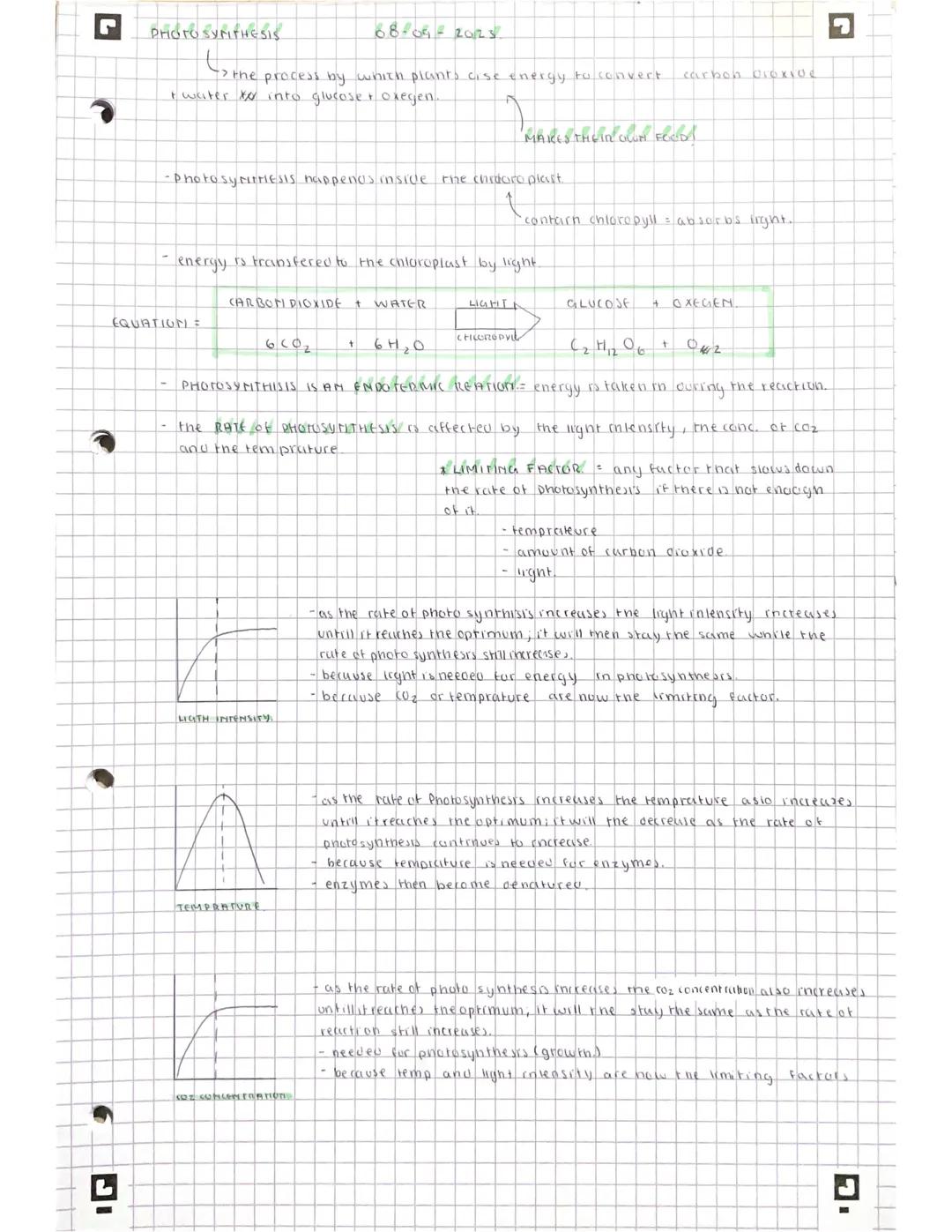

Photosynthesis Basics
Ever wondered how plants create their own food? Photosynthesis is the incredible process where plants use light energy to convert carbon dioxide and water into glucose and oxygen. This happens inside tiny structures called chloroplasts, which contain a green pigment called chlorophyll that absorbs light.
The equation you need to remember is: 6CO₂ + 6H₂O → C₆H₁₂O₆ + 6O₂ (carbon dioxide + water → glucose + oxygen). Photosynthesis is an endothermic reaction, meaning it takes in energy during the process.
Three main factors affect how fast photosynthesis happens: light intensity, temperature, and carbon dioxide concentration. Any of these can become a limiting factor - the thing that slows down the whole process when there's not enough of it.
Quick Tip: Think of limiting factors like the slowest person in a group project - they determine how fast the whole team can work!
2
of 4

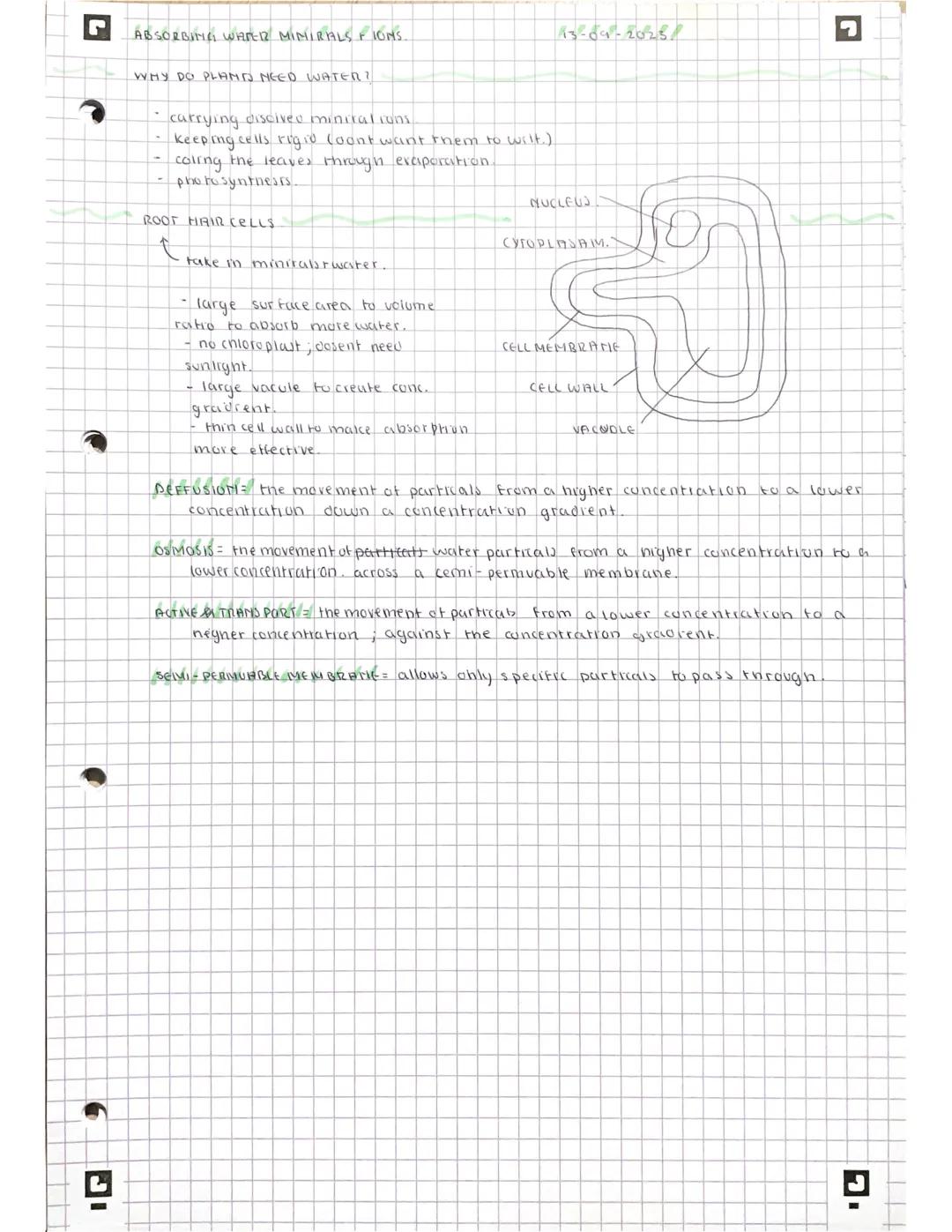

How Plants Absorb Water and Minerals
Plants need water for four crucial reasons: carrying dissolved mineral ions around the plant, keeping cells rigid so they don't wilt, cooling leaves through evaporation, and of course, photosynthesis. Root hair cells are perfectly designed for this job with their large surface area and thin walls.
You'll need to understand three key transport processes. Diffusion moves particles from high to low concentration naturally. Osmosis specifically moves water particles across a semi-permeable membrane from high to low concentration. Active transport is different - it moves particles against the concentration gradient (low to high) using energy.
Semi-permeable membranes are selective barriers that only let specific particles pass through. Root hair cells use these processes brilliantly, with large vacuoles creating concentration gradients and no chloroplasts since they don't need sunlight underground.
Remember: Active transport is like swimming upstream - it needs energy because you're going against the natural flow!
3
of 4

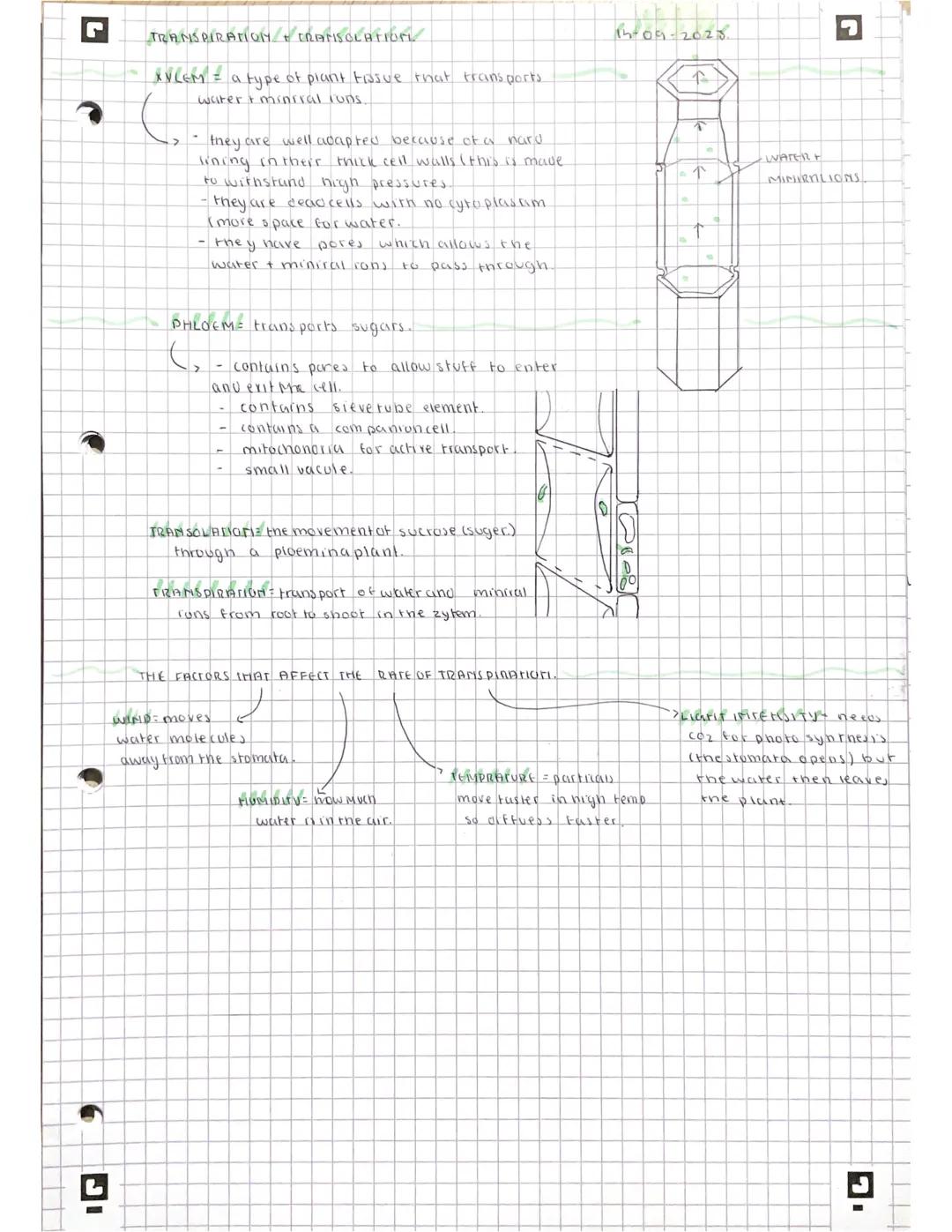

Transpiration and Translocation
Plants have two main transport systems that work like a circulatory system. Xylem tissue transports water and mineral ions upwards from roots to shoots. These are dead cells with thick, hard walls to withstand pressure and pores for easy water flow.
Phloem tissue transports sugars around the plant and contains living cells with companion cells and mitochondria for active transport. Translocation is the movement of sucrose through phloem, whilst transpiration is water and mineral transport through xylem.
Four factors affect transpiration rate: wind (moves water molecules away from stomata), humidity (amount of water already in the air), temperature (particles move faster in heat), and light intensity (opens stomata for photosynthesis but water escapes too).
Think About It: Transpiration is like sweating - plants lose water to cool down, but too much can be harmful!
4
of 4

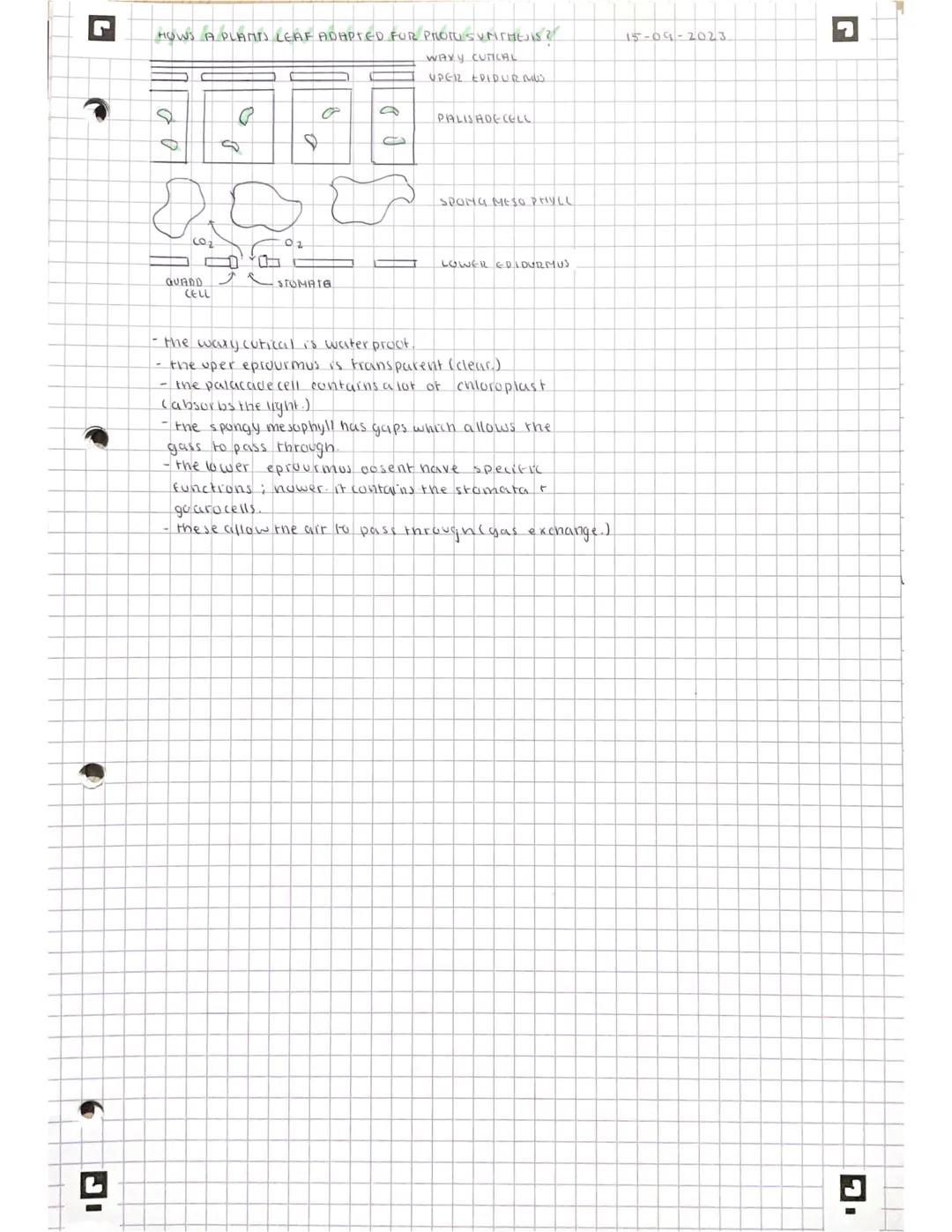

Leaf Adaptations for Photosynthesis
Plant leaves are engineering marvels, perfectly designed for photosynthesis. The waxy cuticle on top is waterproof, protecting the leaf. The upper epidermis is transparent, allowing light to pass through to the working cells below.
Palisade cells are packed with chloroplasts to absorb maximum light energy. Below them, the spongy mesophyll has air gaps allowing gases to move freely for gas exchange during photosynthesis.
The lower epidermis contains stomata (tiny pores) surrounded by guard cells that open and close to control gas exchange. This allows carbon dioxide in for photosynthesis and oxygen out as a waste product.
Fun Fact: A single leaf can have thousands of stomata - they're like tiny breathing holes that the plant can control!
