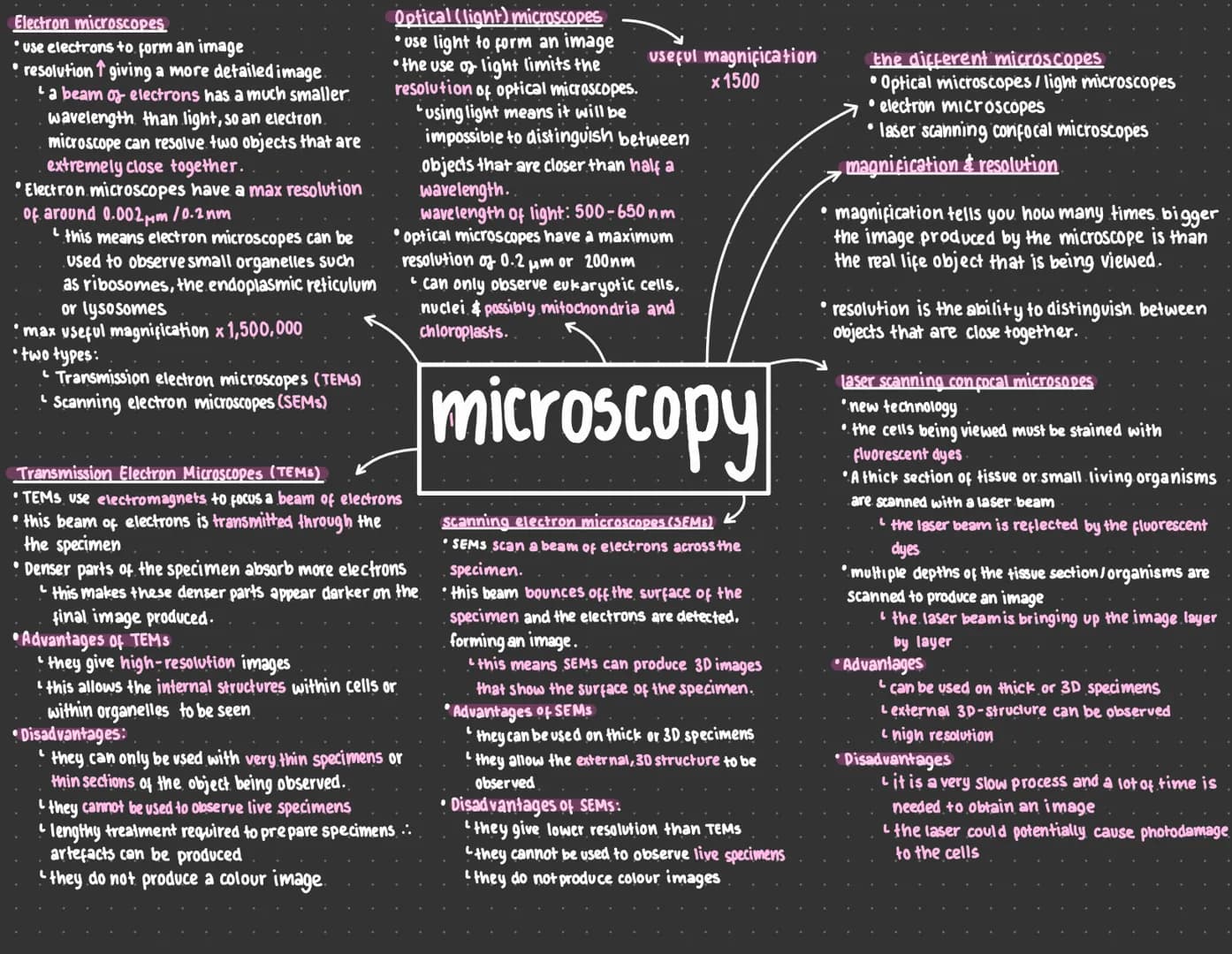

Microscopy mindmap

A-Level Biology Mind Maps: Microscopes and Evolution Notes

A comprehensive guide to microscopy techniques covering optical, electron, and laser scanning confocal microscopes, detailing their principles, advantages, and limitations in ocr a level biology. The guide explores various types of microscope and their applications in biological research.

• Different microscope types offer varying levels of magnification and resolution capabilities
Electron microscope technology provides superior resolution compared to optical microscopes
• Laser scanning confocal microscopes represent cutting-edge imaging technology
• Each microscope type has specific advantages and limitations for biological specimen observation
• Understanding microscope principles is crucial for ocr a level biology modules

...

22/03/2023

1156

Can't find what you're looking for? Explore other subjects.

Knowunity is the #1 education app in five European countries

Knowunity has been named a featured story on Apple and has regularly topped the app store charts in the education category in Germany, Italy, Poland, Switzerland, and the United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the #1 education app in five European countries

4.9+

Average app rating

20 M

Pupils love Knowunity

#1

In education app charts in 17 countries

950 K+

Students have uploaded notes

Still not convinced? See what other students are saying...

iOS User

I love this app so much, I also use it daily. I recommend Knowunity to everyone!!! I went from a D to an A with it :D

Philip, iOS User

The app is very simple and well designed. So far I have always found everything I was looking for :D

Lena, iOS user

I love this app ❤️ I actually use it every time I study.



Biology

1,156

22 Mar 2023

1 page

A-Level Biology Mind Maps: Microscopes and Evolution Notes

user profile picture

Diah Diamond

@diahdiamond

A comprehensive guide to microscopy techniques covering optical, electron, and laser scanning confocal microscopes, detailing their principles, advantages, and limitations in ocr a level biology. The guide explores various types of microscope and their applications in biological research.

•... Show more


<h2 id="electronmicroscopes">Electron Microscopes</h2>
<p>Electron microscopes use electrons to form an image, resulting in increased resol

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

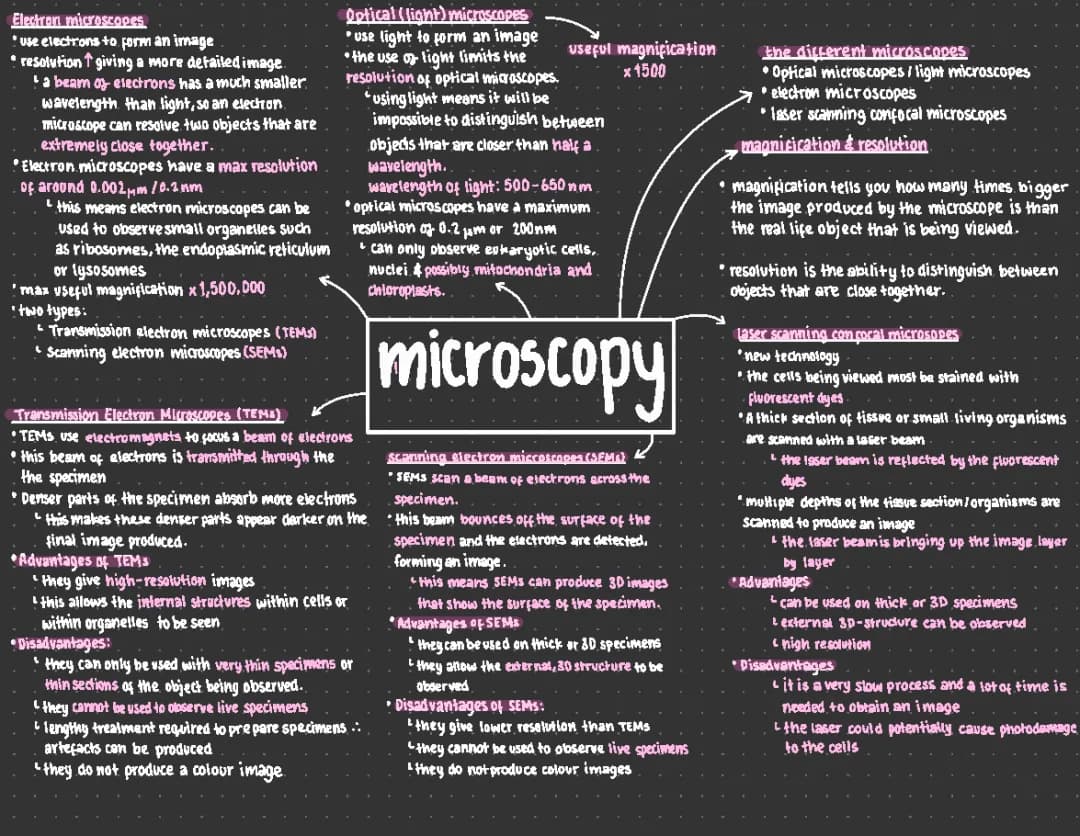

Microscopy Technologies and Their Applications

This comprehensive page explores various microscopy technologies, their working principles, and applications in biological research. The content covers three main types of microscopes: optical microscopes, electron microscopes, and laser scanning confocal microscopes.

Definition: Resolution is the ability to distinguish between objects that are close together, while magnification indicates how many times larger the image is compared to the real object.

Highlight: Electron microscope technology achieves a maximum resolution of 0.002μm/0.2nm, significantly higher than optical microscopes.

Example: The transmission electron microscope can observe small cellular organelles like ribosomes, endoplasmic reticulum, and lysosomes.

Vocabulary: Artifacts are artificial structures or features that appear in microscope images due to specimen preparation methods.

The page details specific characteristics of different microscope types:

  1. Optical Microscopes:
  • Use light for imaging
  • Maximum resolution of 0.2 μm (200nm)
  • Limited by light wavelength (500-650 nm)
  • Useful magnification up to x1500
  1. Transmission Electron Microscopes (TEMs):
  • Use electron beams and electromagnets
  • Provides high-resolution internal structure images
  • Maximum magnification x1,500,000
  • Requires thin specimen preparation
  1. Scanning Electron Microscopes (SEMs):
  • Creates 3D surface images
  • Lower resolution than TEMs
  • Effective for thick specimens
  • Produces detailed external structure views
  1. Laser Scanning Confocal Microscopes:
  • Uses fluorescent dyes and laser scanning
  • Produces layer-by-layer 3D images
  • High resolution capabilities
  • Suitable for thick specimens and living organisms

Quote: "The laser beam is bringing up the image layer by layer"
