Measuring cell size
67
•
3 Dec 2025
•
Techniques for Measuring Cell Size Accurately
That Idiot
@.that_idiot
1 / 3

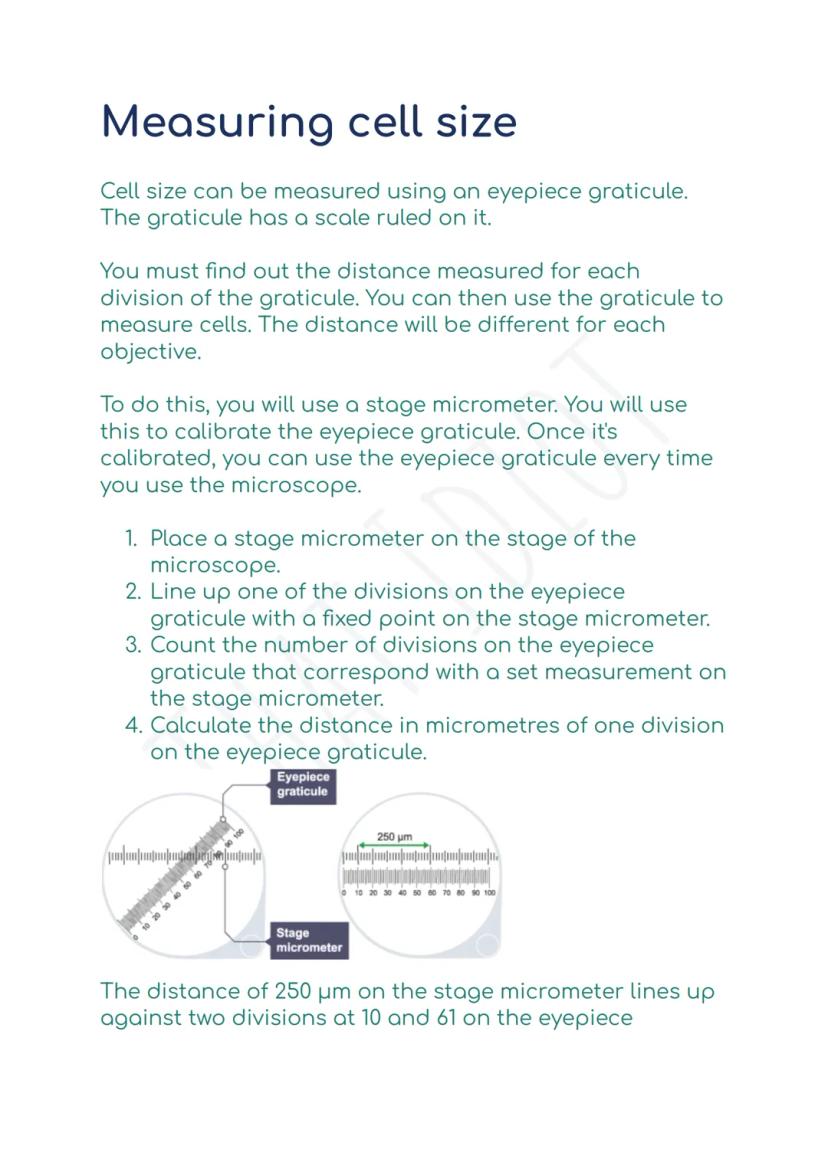

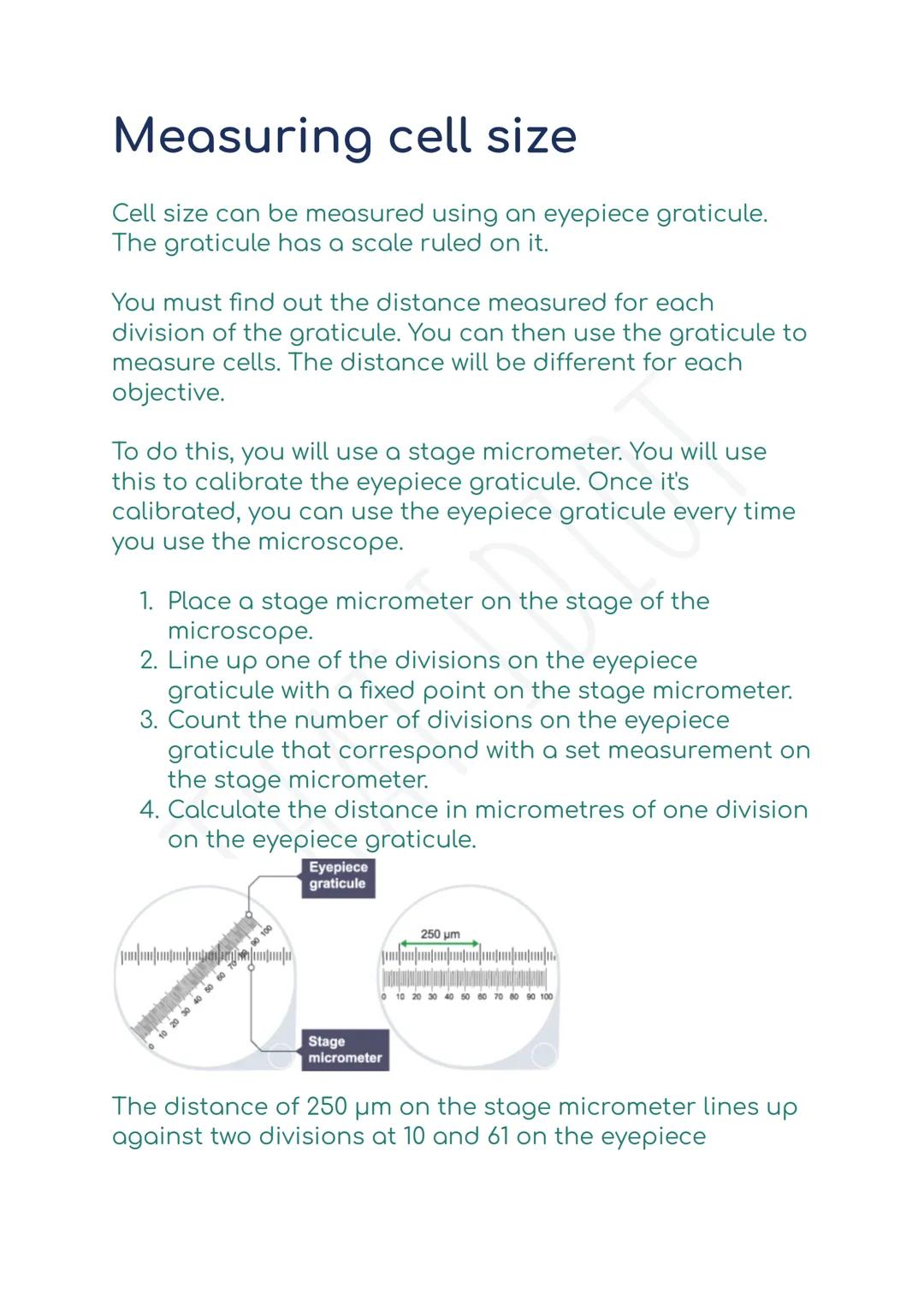

Setting Up Cell Measurements
You'll need two key pieces of kit to measure cells accurately: an eyepiece graticule and a stage micrometer. The eyepiece graticule is like a tiny ruler that sits in your microscope's eyepiece, but it needs calibrating first.
Here's the thing - the graticule divisions don't automatically equal real measurements. Each objective lens will give you different actual distances, so you need to calibrate using the stage micrometer (which has known measurements marked on it).
The process is straightforward: line up the graticule with the stage micrometer, count how many graticule divisions match a known distance, then calculate what each division actually represents. Once you've done this calibration, you can measure any cell using that same graticule.
Key tip: You only need to calibrate once per objective lens, then you can use that graticule repeatedly for measurements.
Calculating Real Cell Size

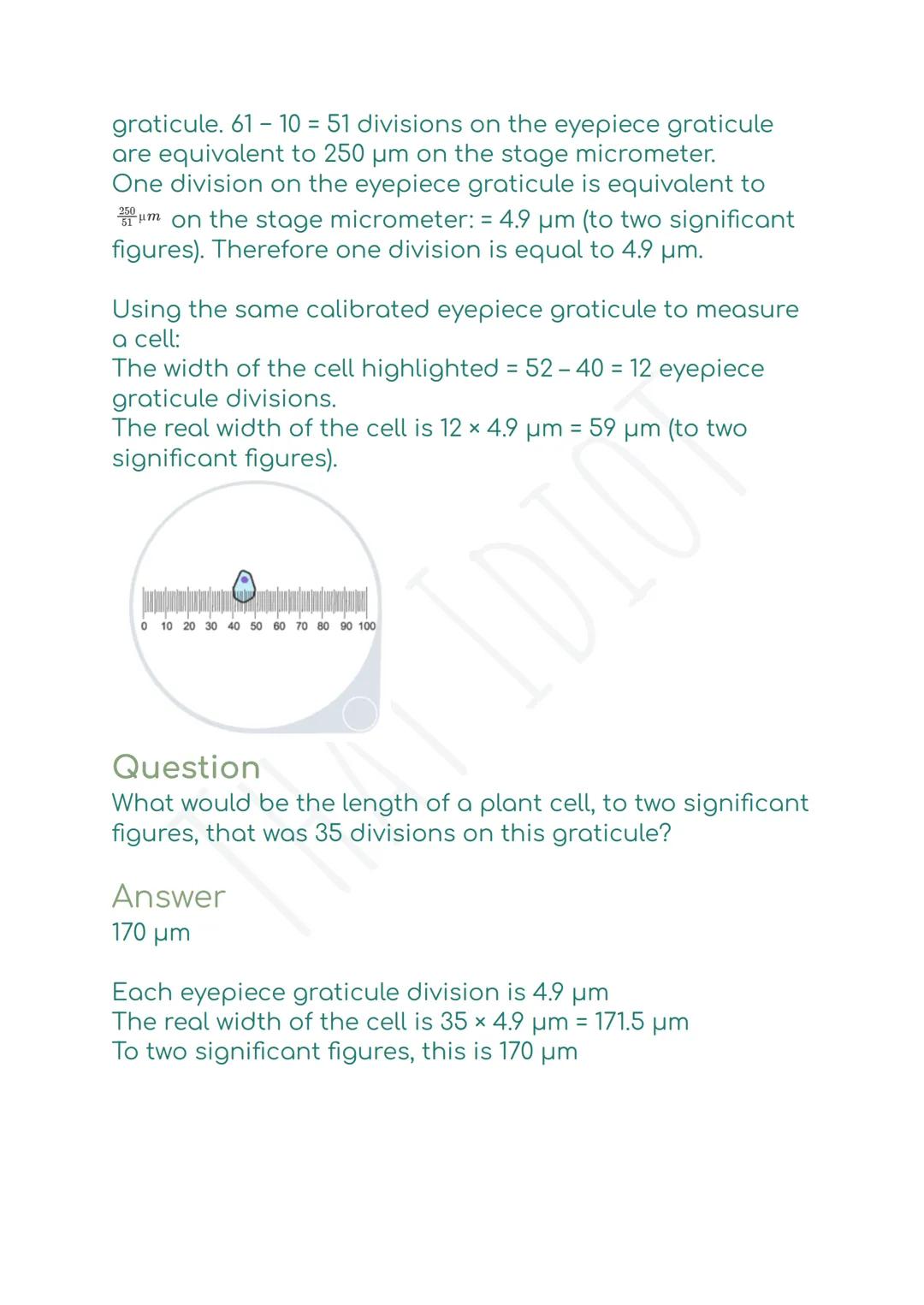

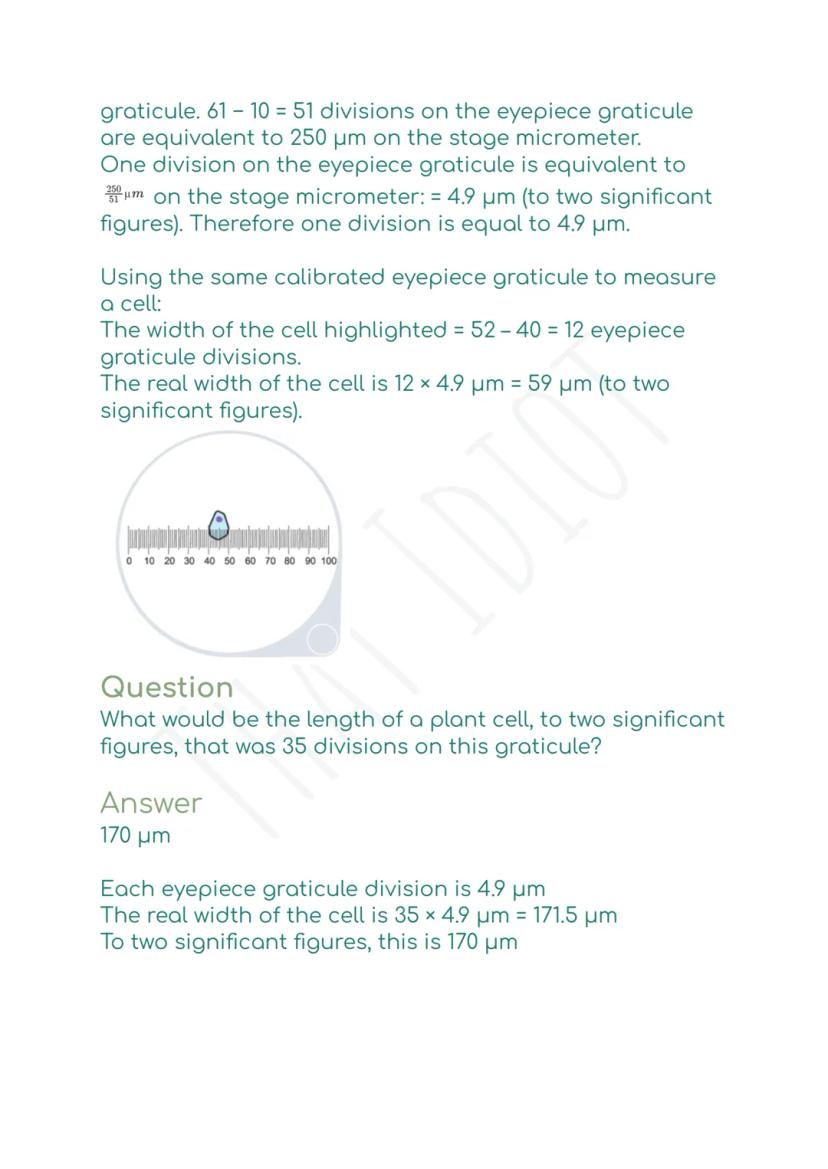

Let's work through a proper example to nail this technique. Say 51 eyepiece graticule divisions line up with 250 μm on the stage micrometer - this means each division equals 250 ÷ 51 = 4.9 μm.
Now you can measure actual cells! If a cell spans 12 divisions on your calibrated graticule, its real width is 12 × 4.9 μm = 59 μm. Always remember to give your answer to two significant figures unless told otherwise.
The beauty of this system is its simplicity once calibrated. Count the divisions across your cell, multiply by your calibration value, and you've got your measurement in micrometers.
Exam tip: Always show your working clearly - count the divisions, state your calibration value, then multiply for the final answer.
Working Backwards from Known Sizes

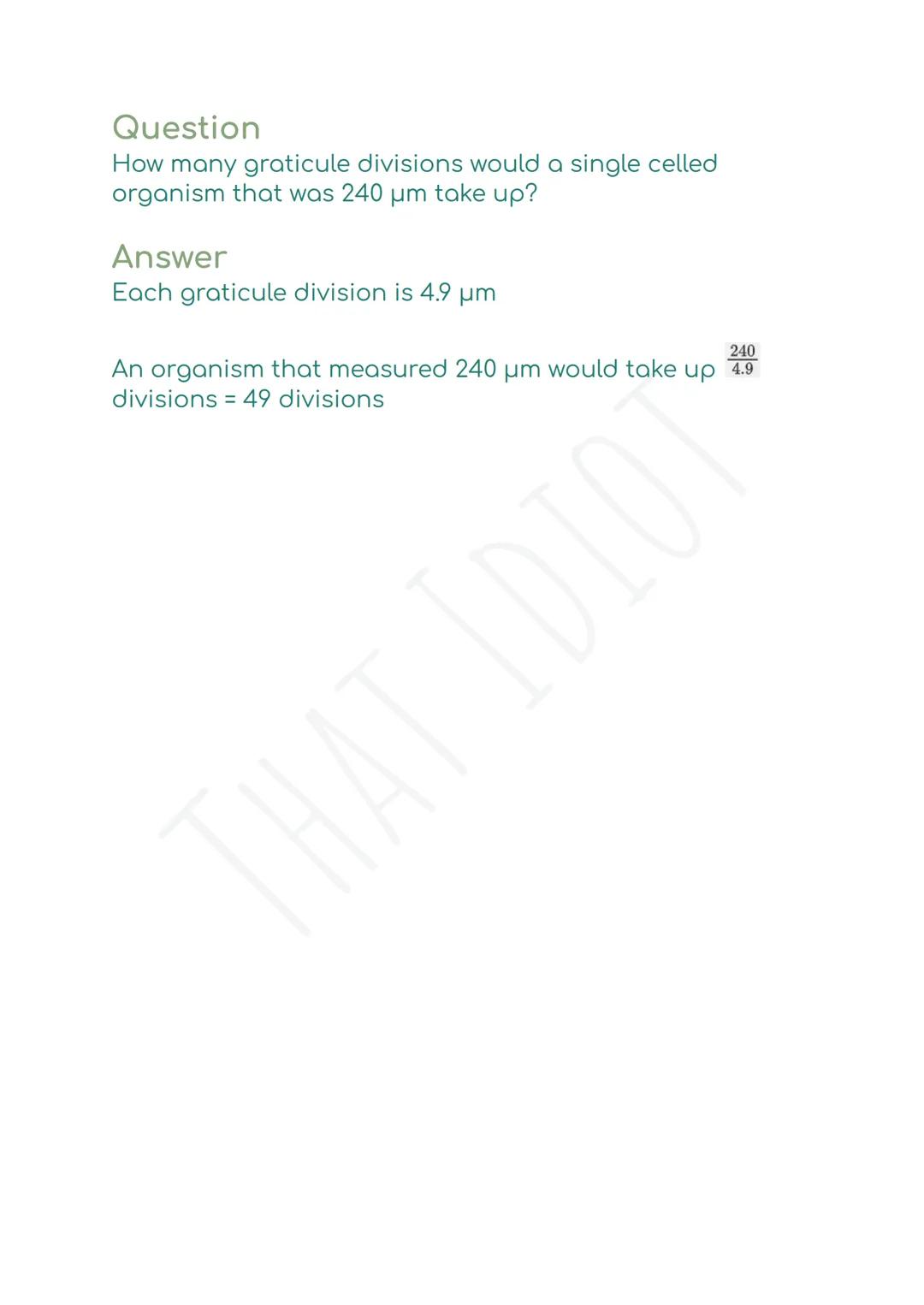

Sometimes you'll need to work the opposite way - if you know a cell's actual size, how many graticule divisions should it span? This is brilliant practice for understanding the relationship between real size and graticule measurements.
Using our calibrated graticule , a 240 μm organism would span 240 ÷ 4.9 = 49 divisions. This reverse calculation helps you predict what you should see under the microscope.
This skill becomes super useful when you're identifying different cell types or checking if your measurements seem reasonable. If something seems off, you can quickly work backwards to double-check your results.
Practice makes perfect: Try both forward calculations (divisions to real size) and backward calculations (real size to divisions) to master this technique completely.
