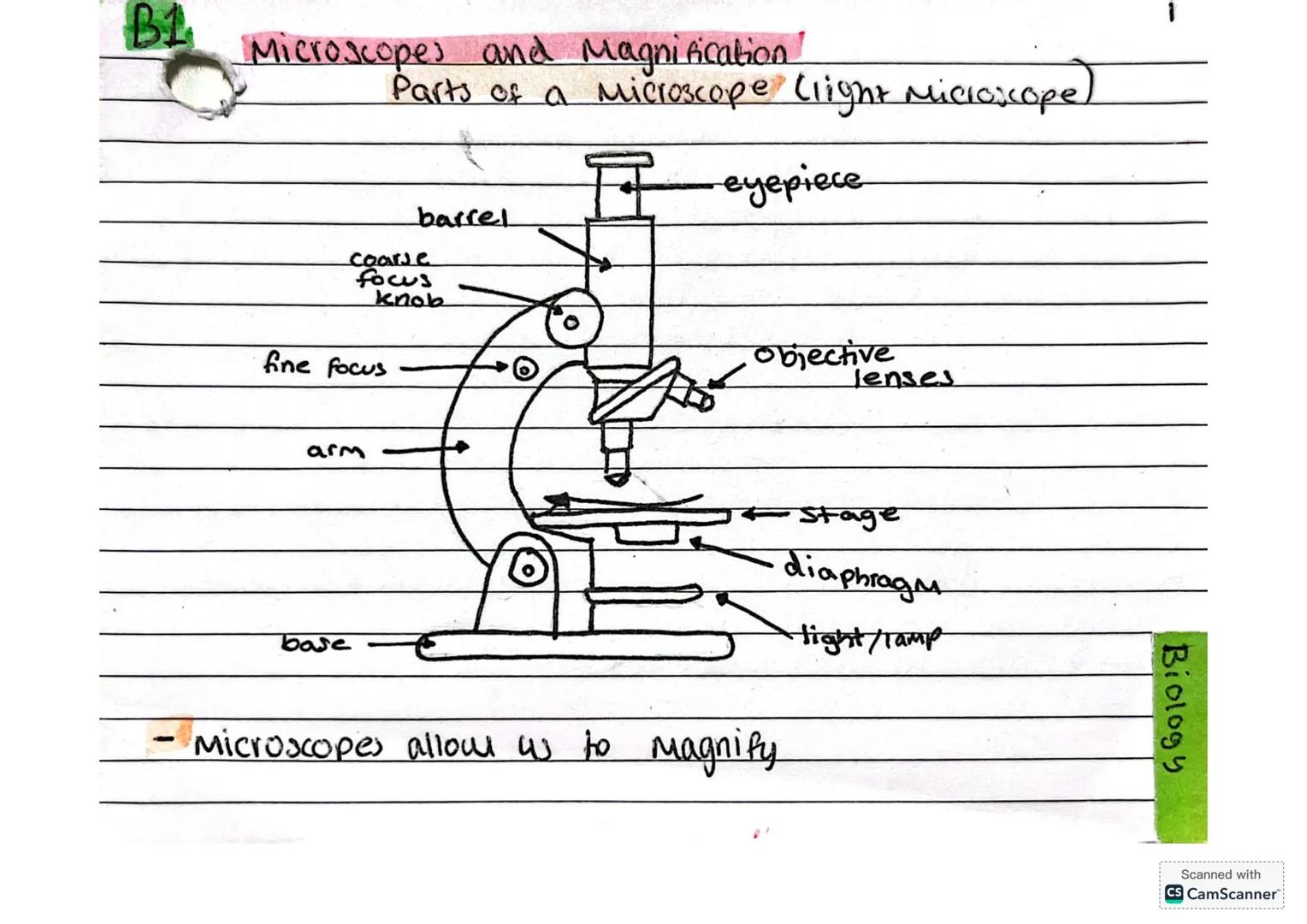

Parts of a Light Microscope

Getting familiar with a light microscope is like learning to drive - once you know the basic parts, everything else becomes much easier. The main components you'll use most are the eyepiece (where you look through), objective lenses (the bits that do the actual magnifying), and the stage (where your slide sits).

Don't worry about memorising every single part straight away. Focus on the coarse and fine focus knobs - these are your best mates for getting a clear image. The coarse focus gets you roughly in the right area, while the fine focus sharpens everything up perfectly.

Top Tip: Always start with the lowest magnification objective lens - it's much easier to find what you're looking for!

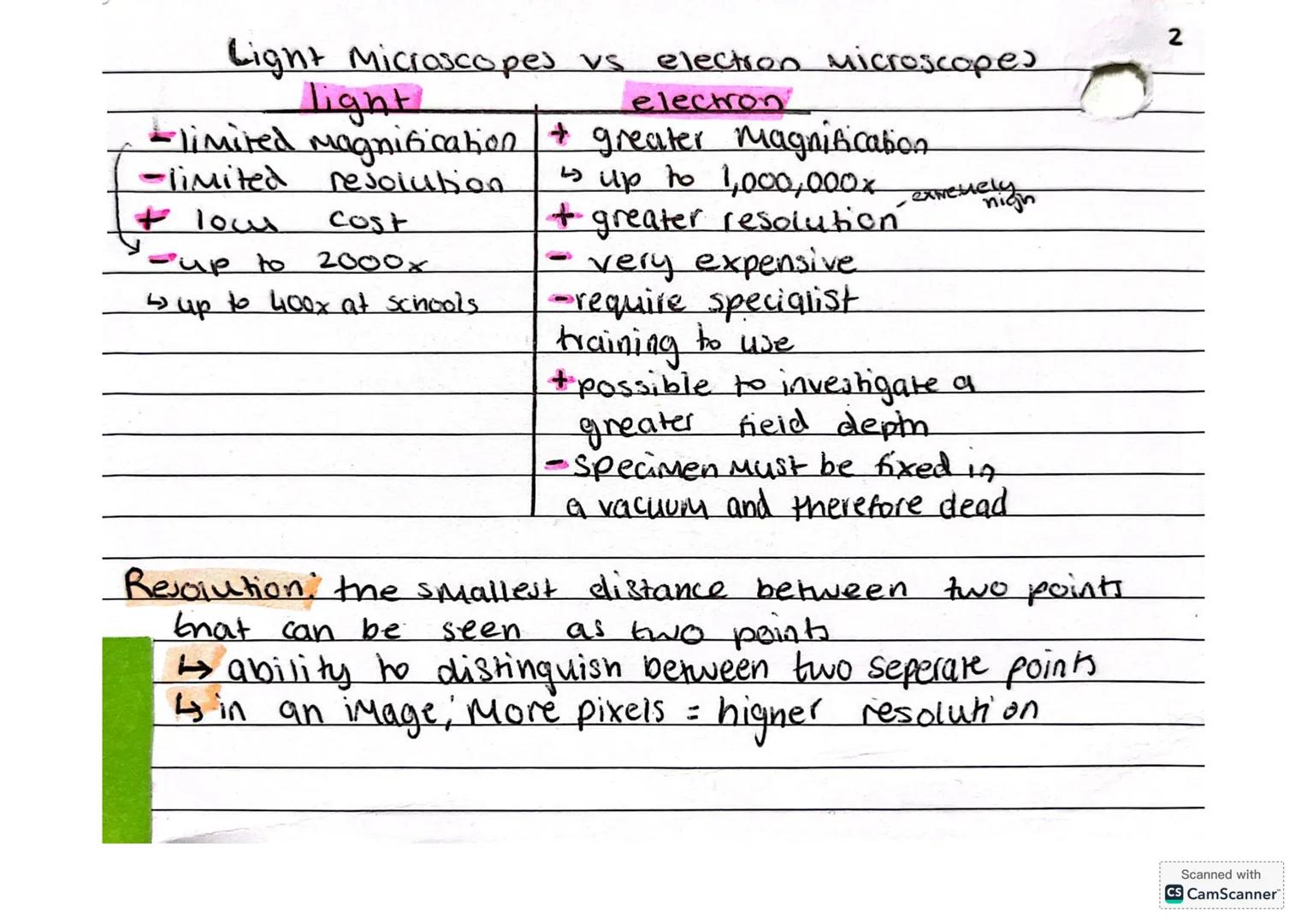

Light vs Electron Microscopes

Light microscopes are the ones you'll actually use in school, and they're brilliant for getting started. They can magnify up to about 400x in most schools (though some can go up to 2000x), they're relatively cheap, and you can observe living specimens without any fuss.

Electron microscopes are the superstars of the microscopy world - they can magnify up to an incredible 1,000,000x and show much finer detail. However, they're extremely expensive, need specialist training, and anything you want to look at has to be dead and placed in a vacuum.

Resolution is just as important as magnification - it's your ability to distinguish between two separate points in an image. Think of it like pixels on your phone screen: more pixels means sharper, clearer images.

Remember: Higher magnification doesn't always mean better - you need good resolution too!

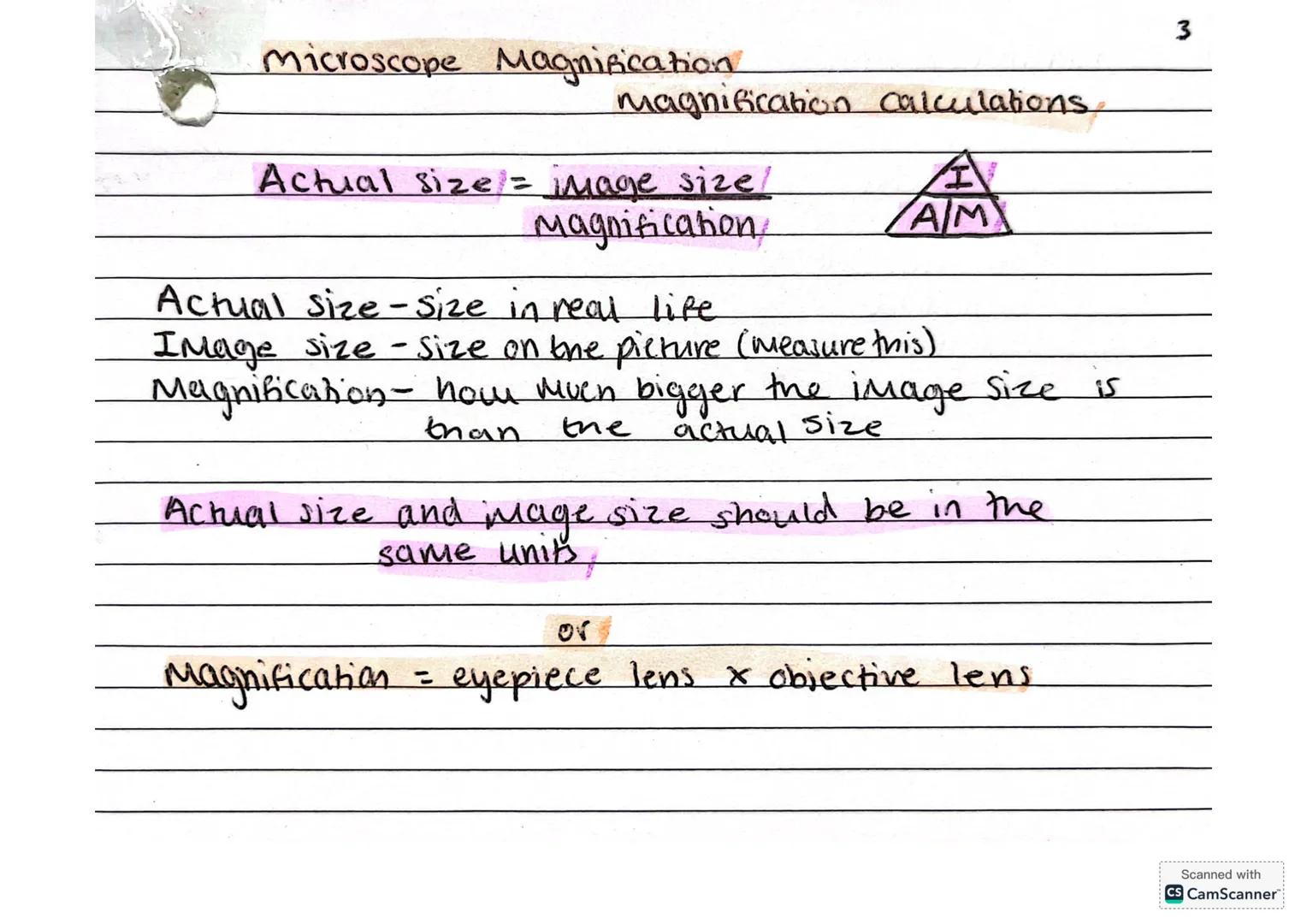

Microscope Magnification Calculations

Here's where the maths meets biology! Magnification calculations are actually pretty straightforward once you get the hang of them. The key formula is: Actual size = Image size ÷ Magnification.

You can also work out total magnification by multiplying the eyepiece lens power by the objective lens power. So if you're using a 10x eyepiece with a 40x objective lens, you get 400x total magnification.

The most important thing to remember is keeping your units consistent - make sure both your actual size and image size are in the same units before you start calculating.

Exam Tip: Always show your working clearly and double-check your units - it's an easy way to pick up marks!

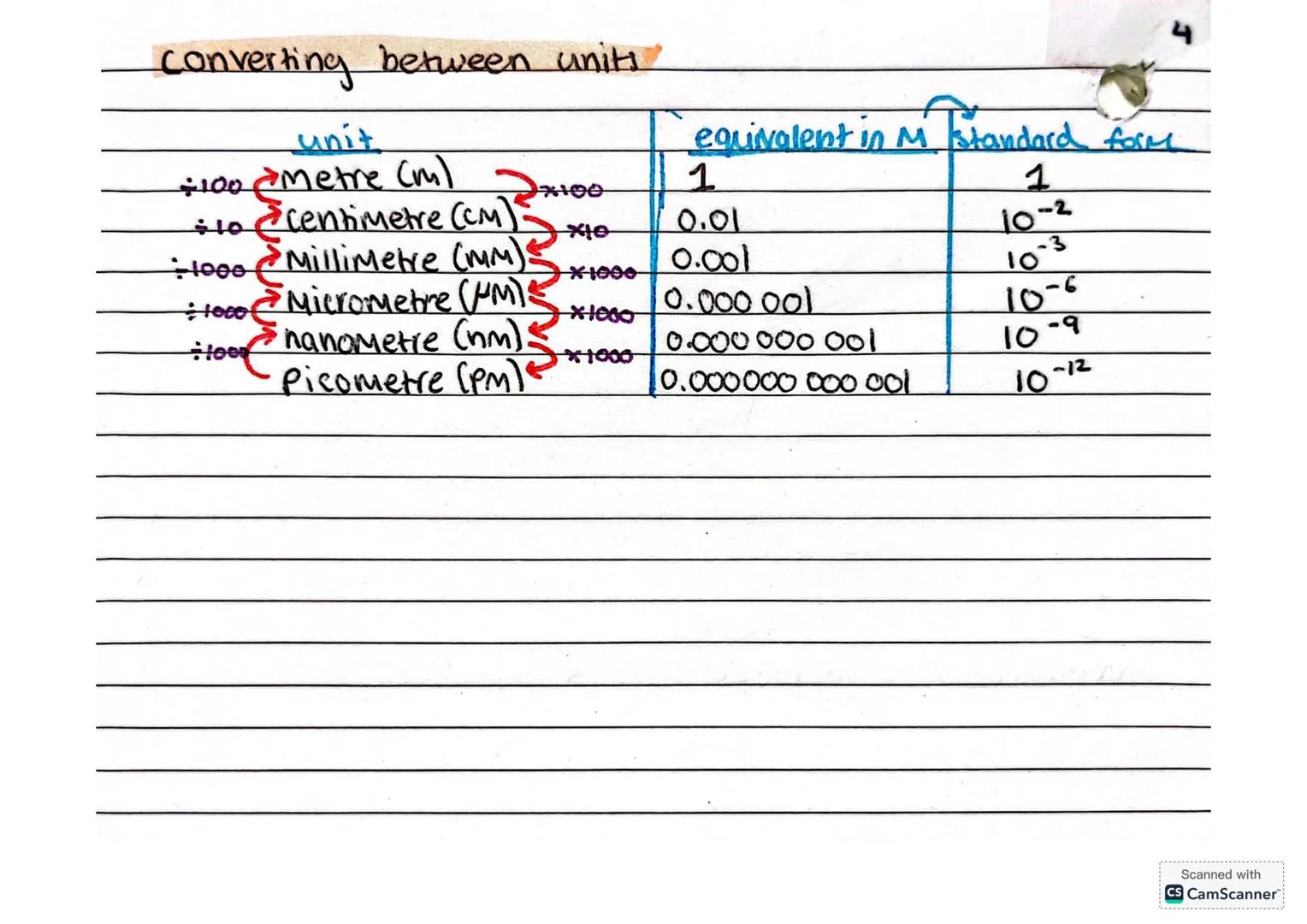

Converting Between Units

Unit conversions might seem scary, but they're actually quite logical once you see the pattern. You'll mainly be working with metres (m), centimetres (cm), millimetres (mm), and micrometers (μm).

Each step down gets 1000 times smaller (except from metres to centimetres, which is 100 times). So 1 metre = 1000 millimetres = 1,000,000 micrometers. The standard form numbers (like 10⁻³) are just a neat way of writing very small numbers.

When converting, remember: going from big units to small units means multiplying, and going from small units to big units means dividing.

Memory Trick: "My Very Smart Students" - Metres, micrometers, and the units in between follow the 1000x pattern!

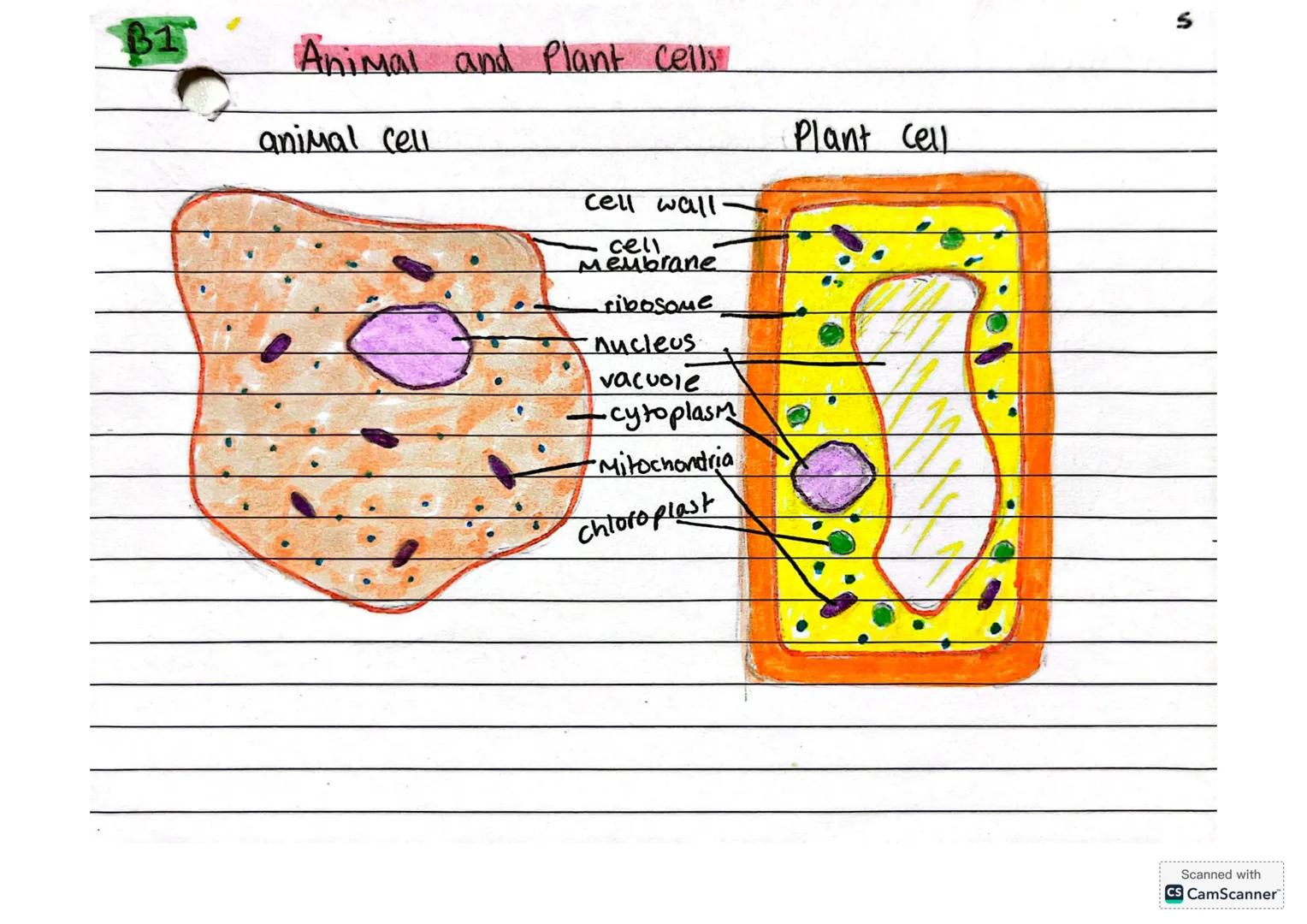

Animal and Plant Cells

Animal and plant cells share quite a lot in common, but plants have some extra bits that make them special. Both types have the basic cell membrane, nucleus, cytoplasm, mitochondria, and ribosomes - these are the essential life-support systems.

Plant cells get three bonus features that animal cells don't have: a cell wall for extra strength, chloroplasts for photosynthesis, and a large vacuole for storage and keeping the cell rigid.

Think of it this way: animal cells are like a basic smartphone, while plant cells are the same phone but with extra apps installed for their specific lifestyle needs.

Quick Check: If you see a cell wall under the microscope, you know it's definitely a plant cell!

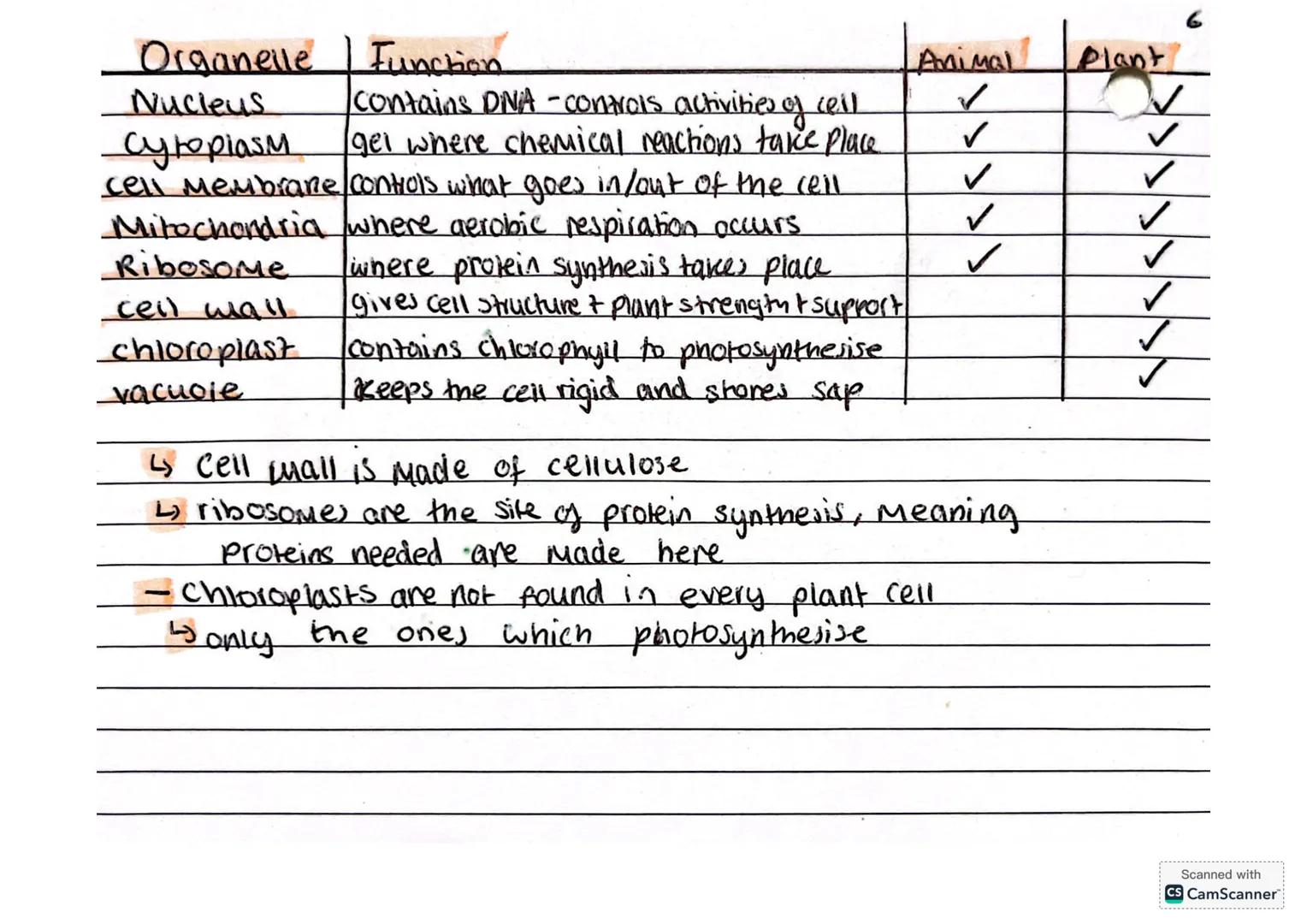

Cell Organelles and Their Functions

Each organelle in a cell has a specific job, like different departments in a company. The nucleus is the boss - it contains DNA and controls everything the cell does. The cytoplasm is where most of the action happens, like a busy workshop floor.

Mitochondria are your cell's power stations, producing energy through aerobic respiration. Ribosomes are the protein factories, making all the proteins the cell needs to function properly.

Plant-specific organelles have equally important roles: chloroplasts capture sunlight for photosynthesis, the cell wall provides structure and support (made of tough cellulose), and the vacuole keeps everything rigid and stores cell sap.

Fun Fact: Not all plant cells have chloroplasts - only the ones that actually do photosynthesis, like leaf cells!

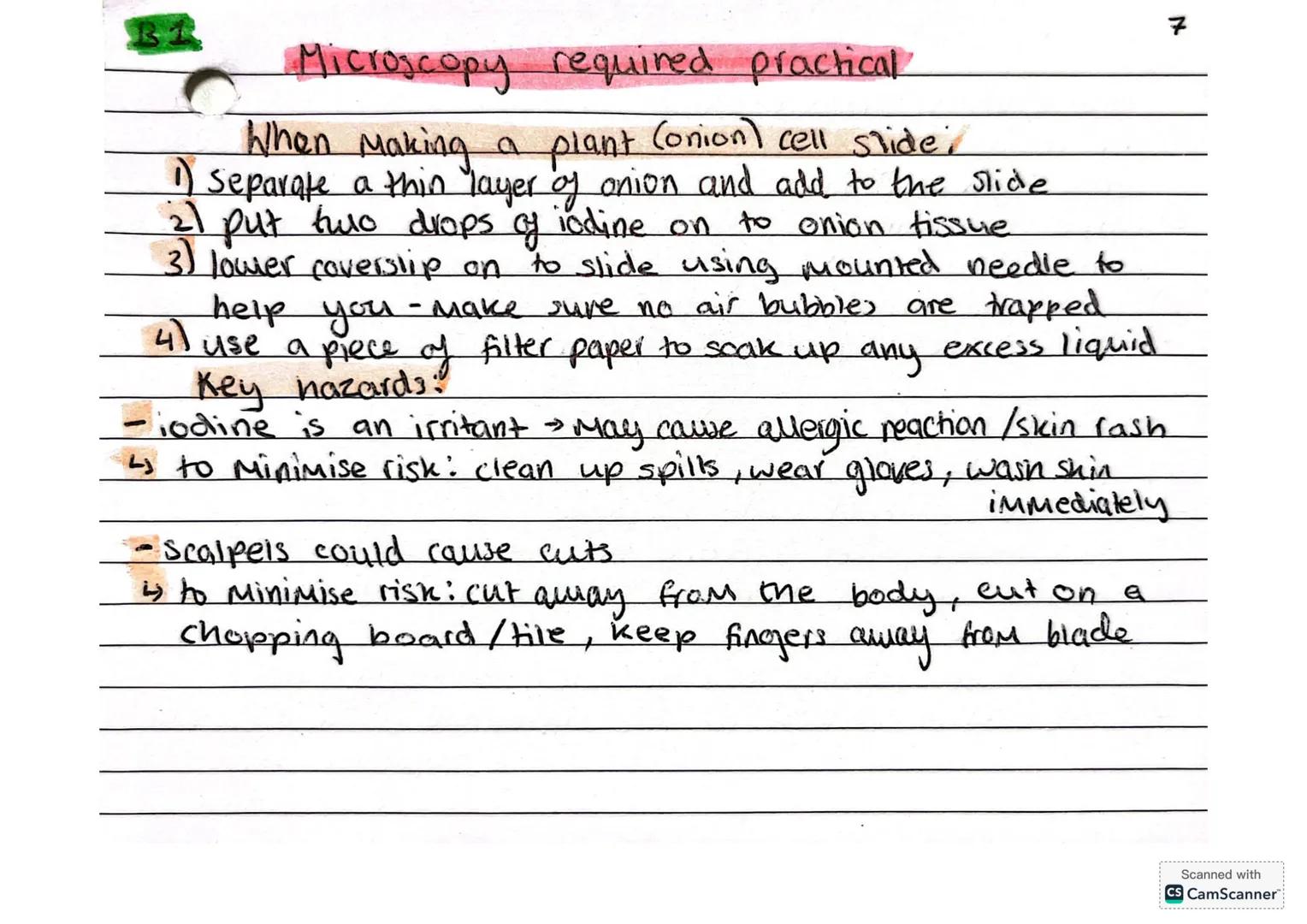

Making Plant Cell Slides

Creating your own plant cell slide using onion tissue is surprisingly satisfying! Start by peeling off a thin layer of onion and placing it on your slide. Add two drops of iodine to stain the cells, then carefully lower a coverslip using a mounted needle to avoid air bubbles.

Safety first - iodine can irritate your skin and cause allergic reactions, so wear gloves and clean up any spills immediately. If you're using scalpels, always cut away from your body and keep your fingers well away from the blade.

The iodine stain helps make the cell structures more visible under the microscope - without it, everything would look quite faint and hard to distinguish.

Pro Tip: Use filter paper to soak up excess liquid - it prevents messy slides and clearer viewing!

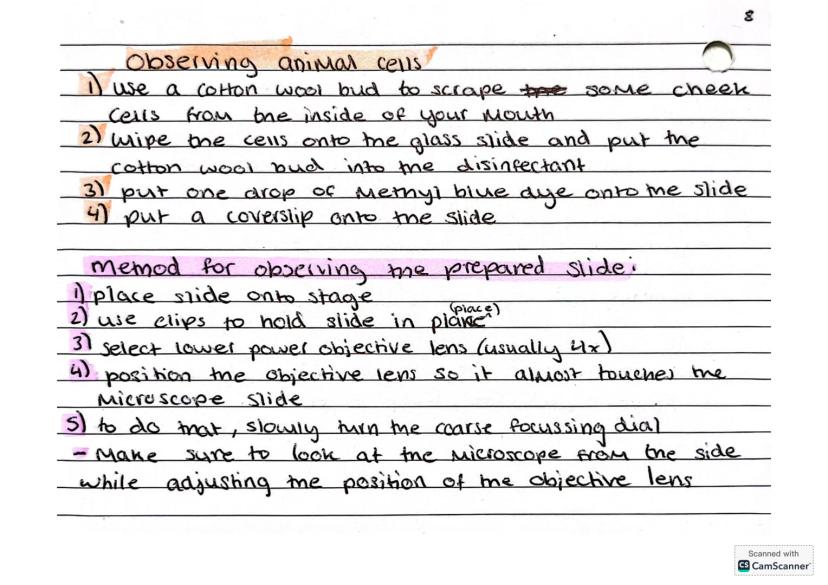

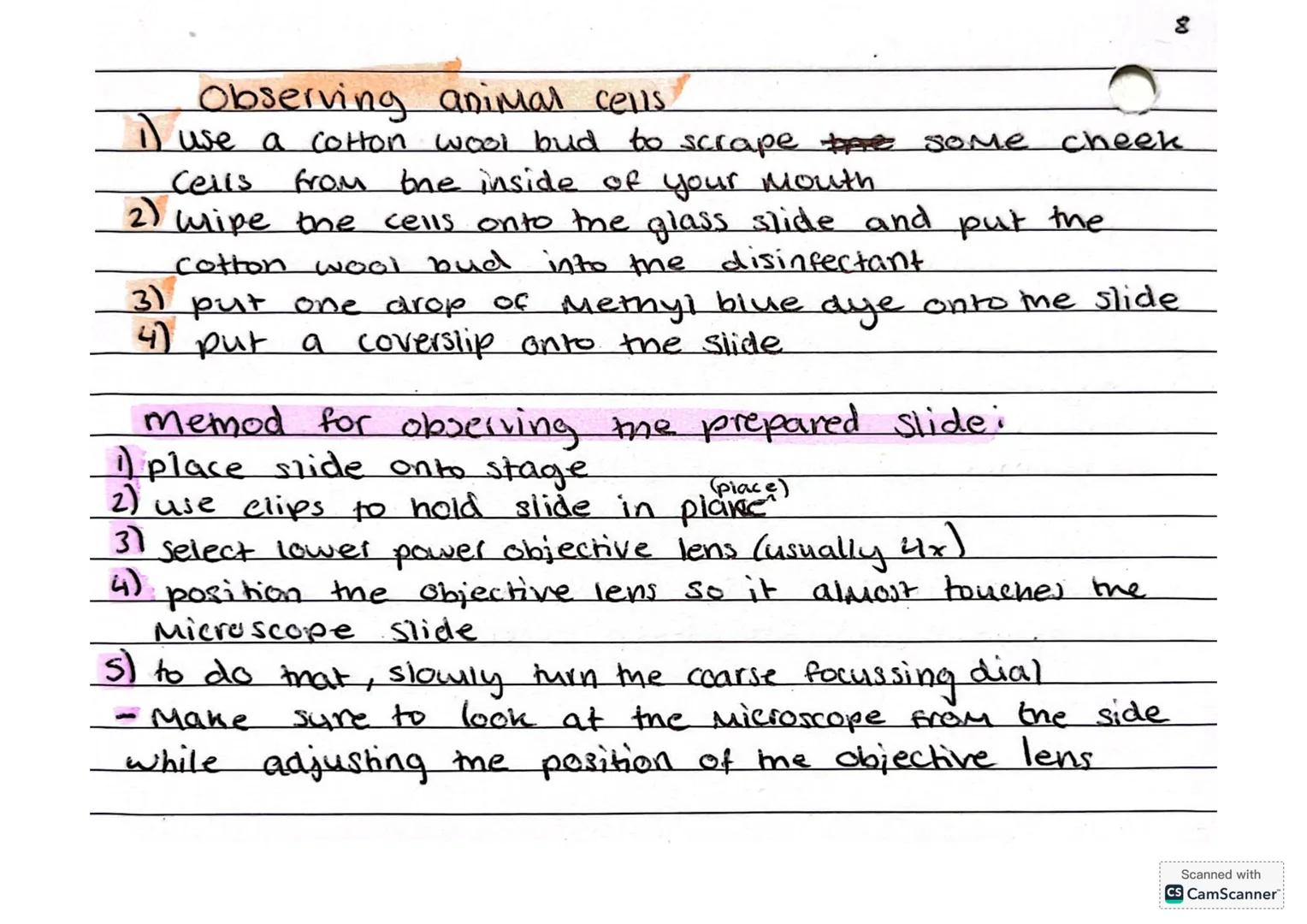

Observing Animal Cells

Getting animal cells is as simple as gently scraping the inside of your cheek with a cotton bud - don't worry, it doesn't hurt! Wipe the cells onto a slide, add a drop of methylene blue dye, and pop on a coverslip.

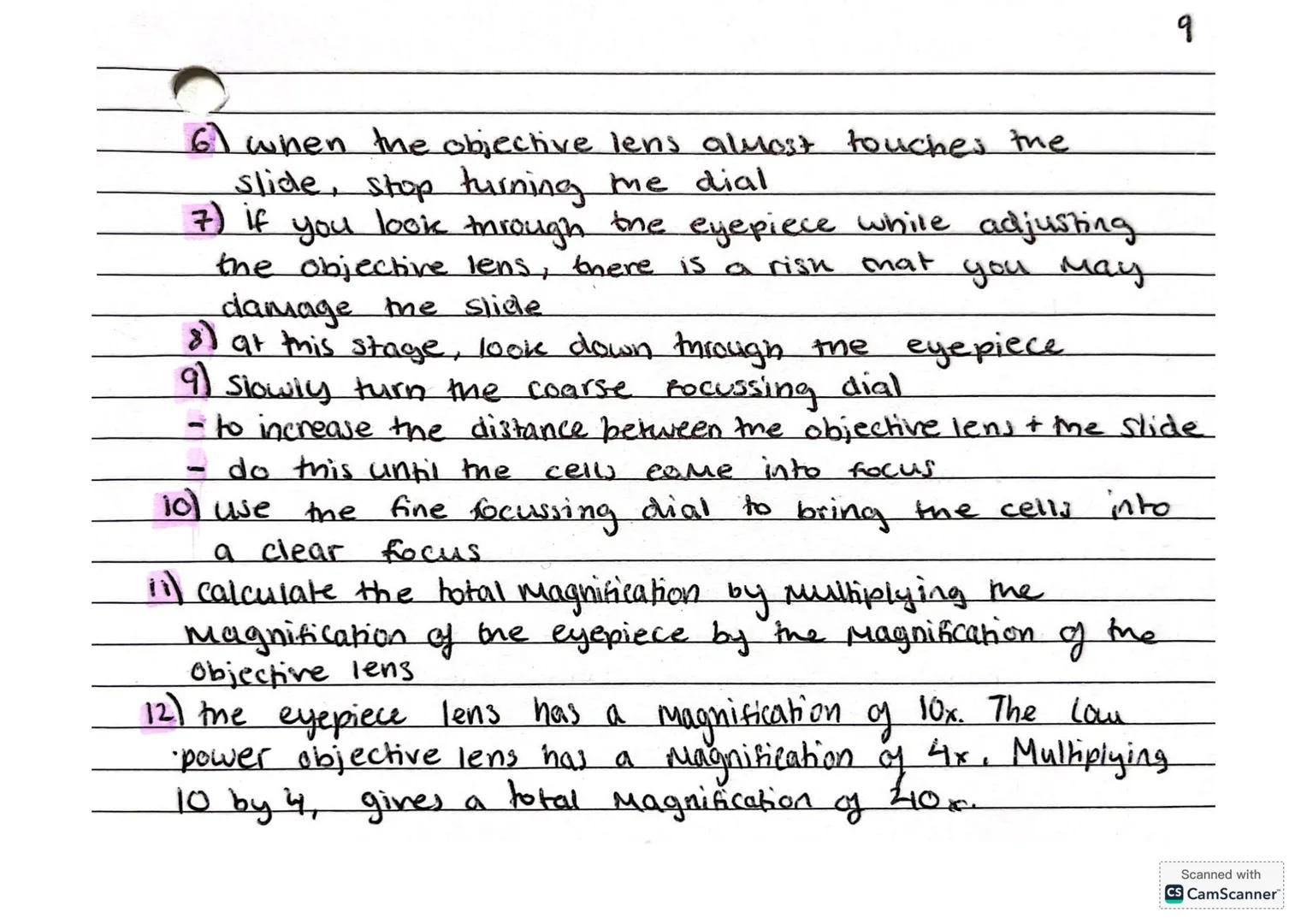

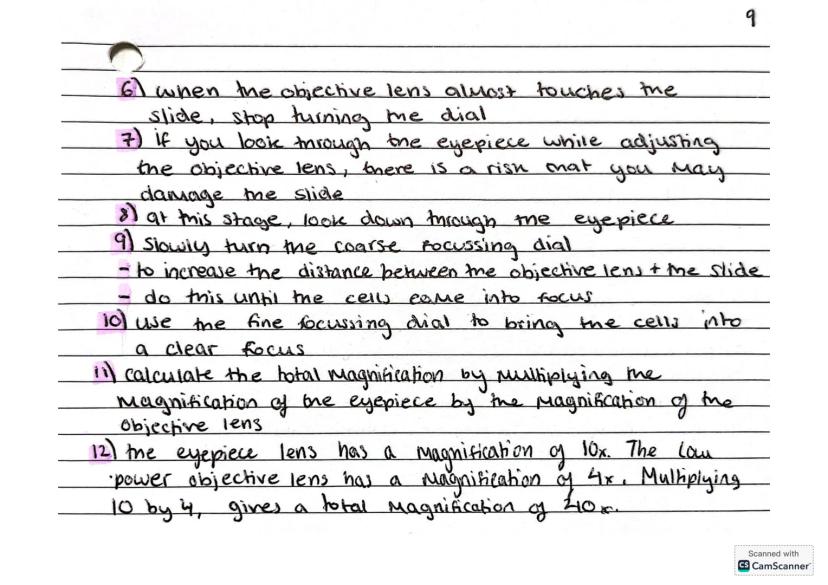

When you're ready to observe, start with the lowest power objective lens (usually 4x) and position it almost touching the slide. The key trick is to look from the side while adjusting the coarse focusing dial - never look through the eyepiece at this stage or you might damage your slide.

Once you're set up, look through the eyepiece and slowly turn the coarse focus to increase the distance between the lens and slide until the cells come into focus.

Safety Note: Always dispose of cotton buds in disinfectant to prevent contamination!

Getting the Perfect Focus

Once your cells start appearing, use the fine focusing dial to get that crisp, clear image you're after. Total magnification is simple maths: multiply your eyepiece magnification (usually 10x) by your objective lens magnification.

So with a 10x eyepiece and 4x objective lens, you get 40x total magnification. Want to see more detail? Switch to a higher power objective lens like 10x, giving you 100x total magnification.

Remember to readjust the fine focus each time you change objective lenses - the higher the magnification, the more precise your focusing needs to be.

Remember: Higher magnification means a smaller field of view, so you'll see less area but in much greater detail!

Making Scientific Drawings

Creating accurate scientific drawings is an essential skill that's easier than you think. Use a pencil to draw clear, simple lines showing the cell structures you can actually see - don't draw what you think should be there!

Adding a magnification scale makes your drawing properly scientific. Place a ruler over the stage, measure the field of view in millimetres, and show this measurement as a scale bar on your drawing.

Always include the total magnification (like 100x) and label your structures clearly. Remember, you're limited by what a light microscope can show, so don't expect to see every tiny detail.

Drawing Tip: Keep it simple and accurate rather than trying to make it look fancy - scientific drawings should be clear and informative!
