Gas exchange in mammals, fish and insects

937

10 May 2023

2 pages

How Gas Exchange Works in Mammals, Fish, and Insects: Easy Guide with Diagrams

user profile picture

Hannah

@hannah_studys1012

Gas exchange in insects, mammals, and fish involves specialized structures... Show more

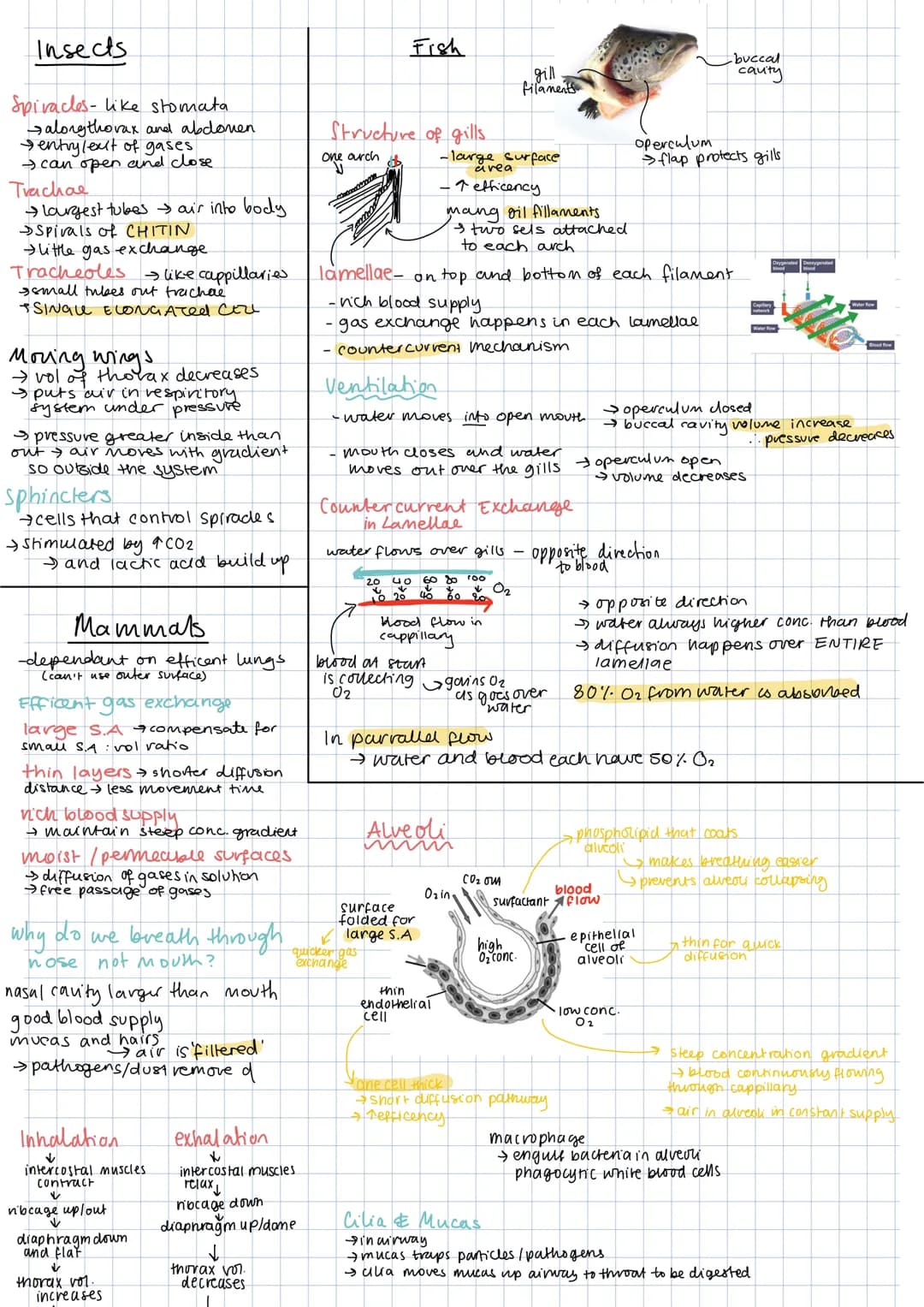

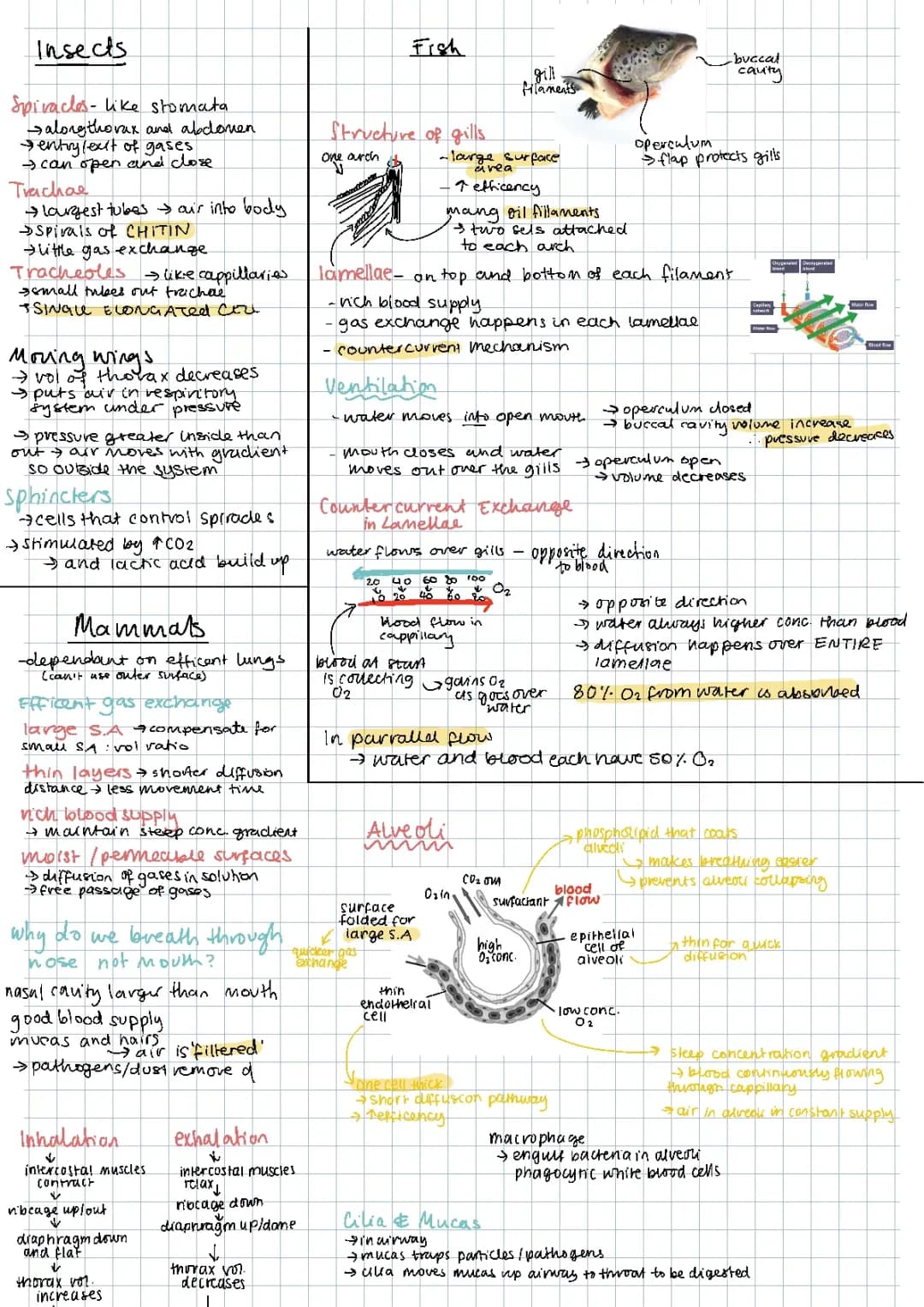

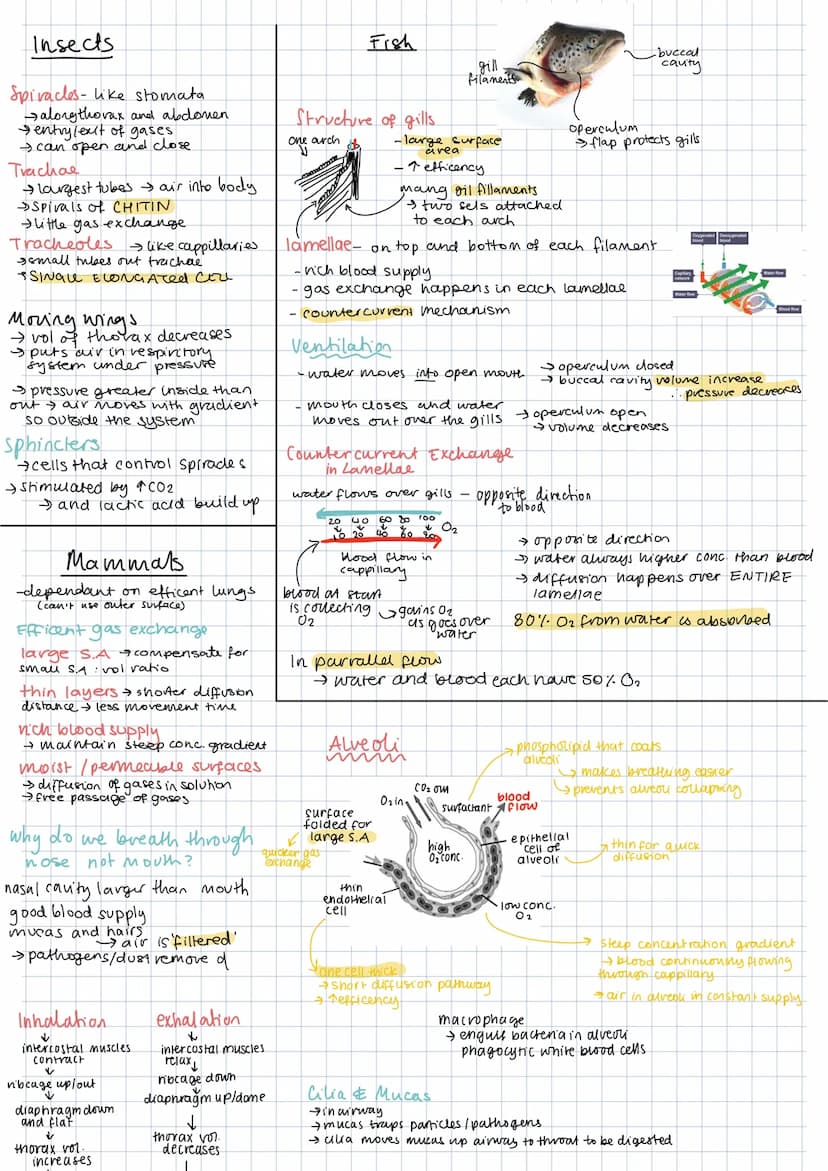

Insects
Spiracles- like stomata
along thorax and abdomen.
Sentry/exit of gases
→ can open and close.
Trachae
largest tubes → air into body
S

Fish Gill Structure and Function

Fish have evolved highly efficient gills for gas exchange in aquatic environments. The key features are:

Gill Structure:

  • Multiple gill arches, each with numerous filaments
  • Lamellae on both sides of each filament increase surface area
  • Rich blood supply in capillaries within lamellae

Ventilation Mechanism:

  1. Water enters through the open mouth
  2. Mouth closes, forcing water over the gills
  3. Operculum (gill cover) opens to release water

Definition: The operculum is a flap that protects the gills and helps regulate water flow during respiration.

Countercurrent Exchange:

  • Water and blood flow in opposite directions within the lamellae
  • This maintains a constant concentration gradient along the entire length
  • Allows for highly efficient oxygen extraction (up to 80% of dissolved oxygen)

Highlight: Countercurrent exchange is more efficient than parallel flow, where water and blood would each equilibrate at 50% oxygen concentration.

Adaptations for Efficient Gas Exchange:

  • Large surface area of lamellae
  • Thin epithelial cells for short diffusion distance
  • Continuous blood flow maintains steep concentration gradients

Example: In a typical fish gill, water with 100% oxygen saturation enters, while blood with 20% saturation flows in the opposite direction. This allows the blood to reach up to 80-90% saturation as it leaves the gill.

Buccal Pump Mechanism:

  • Operculum closes, increasing buccal cavity volume
  • Operculum opens, decreasing volume and pushing water over gills

This efficient system allows fish to extract sufficient oxygen from water, which contains much less oxygen than air, supporting their active aquatic lifestyle.

Insects
Spiracles- like stomata
along thorax and abdomen.
Sentry/exit of gases
→ can open and close.
Trachae
largest tubes → air into body
S

Gas Exchange in Insects

Insects have a unique respiratory system adapted for efficient gas exchange in terrestrial environments. The key components are:

Spiracles: These openings along the thorax and abdomen control gas entry and exit. They can open and close, similar to plant stomata.

Vocabulary: Spiracles are small openings on an insect's exoskeleton that allow air to enter and exit the respiratory system.

Tracheae: Large tubes that carry air into the insect's body. They have spiral reinforcements of chitin but contribute little to actual gas exchange.

Tracheoles: Smaller tubes branching from the tracheae, analogous to capillaries in vertebrates. These thin-walled structures are where most gas exchange occurs.

Highlight: The tracheal system allows for direct gas exchange with tissues, eliminating the need for blood to transport oxygen.

Ventilation Mechanism: Insects use muscular contractions to move air through their respiratory system:

  1. Wing movements decrease thoracic volume, creating pressure.
  2. This pressure differential drives air movement through the system.
  3. Sphincter cells controlling spiracles are stimulated by CO₂ and lactic acid buildup.

Example: When an insect flies, the wing muscles' movement helps pump air through the tracheal system, enhancing gas exchange during periods of high metabolic demand.

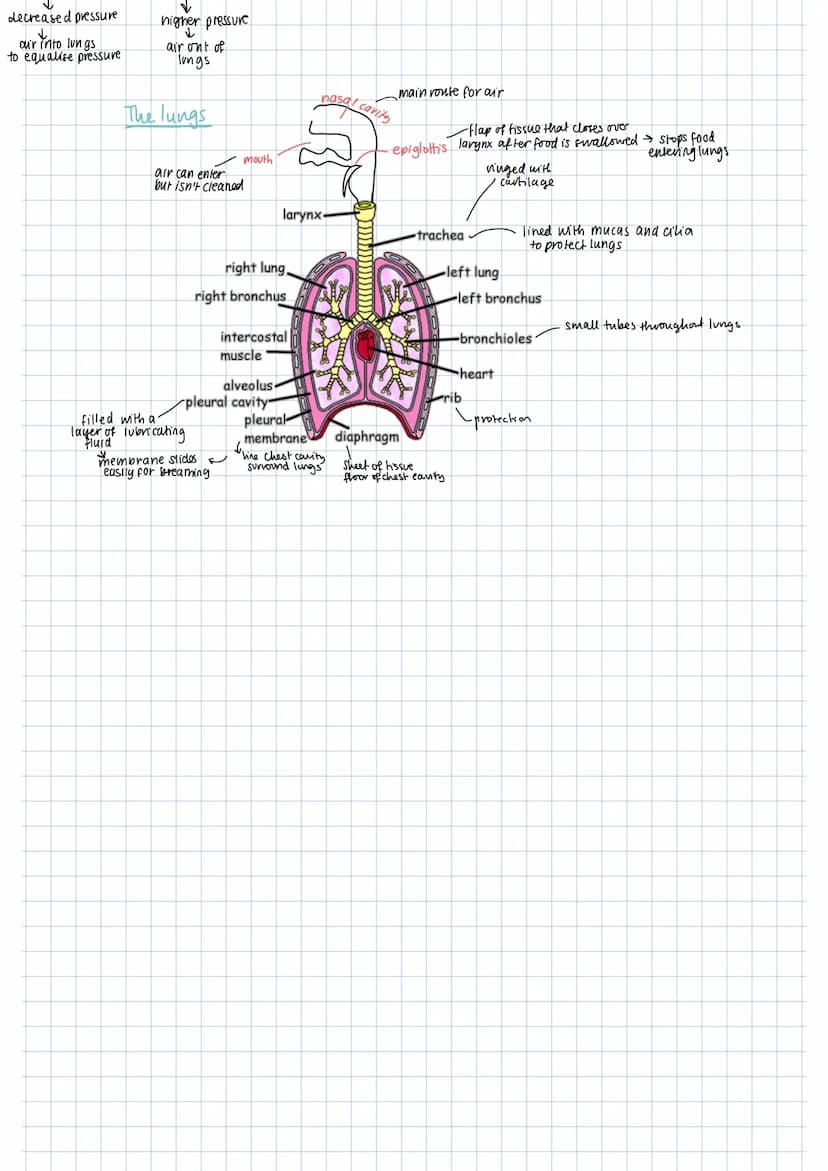

Mammalian Respiratory System

Mammals rely on efficient lungs for gas exchange, as their body surface is inadequate for this purpose. Key features include:

Nasal Cavity: The primary air entry point, offering several advantages over mouth breathing:

  • Larger surface area
  • Good blood supply
  • Mucus and hairs for filtering air

Definition: The nasal cavity is the air-filled space above and behind the nose, serving as the first line of defense in the respiratory system.

Breathing Mechanism:

Inhalation:

  • Intercostal muscles contract
  • Ribcage moves up and out
  • Diaphragm flattens and moves down
  • Thoracic volume increases, drawing air in

Exhalation:

  • Intercostal muscles relax
  • Ribcage moves down
  • Diaphragm moves up and domes
  • Thoracic volume decreases, pushing air out

Alveoli: Microscopic air sacs where gas exchange occurs, featuring:

  • Thin walls for short diffusion distance
  • Large surface area to volume ratio
  • Rich blood supply maintaining concentration gradients
  • Moist, permeable surfaces

Vocabulary: Surfactant is a phospholipid coating that prevents alveoli from collapsing and makes breathing easier.

Protective Mechanisms:

  • Cilia and mucus in airways trap and remove particles and pathogens
  • Macrophages in alveoli engulf bacteria
