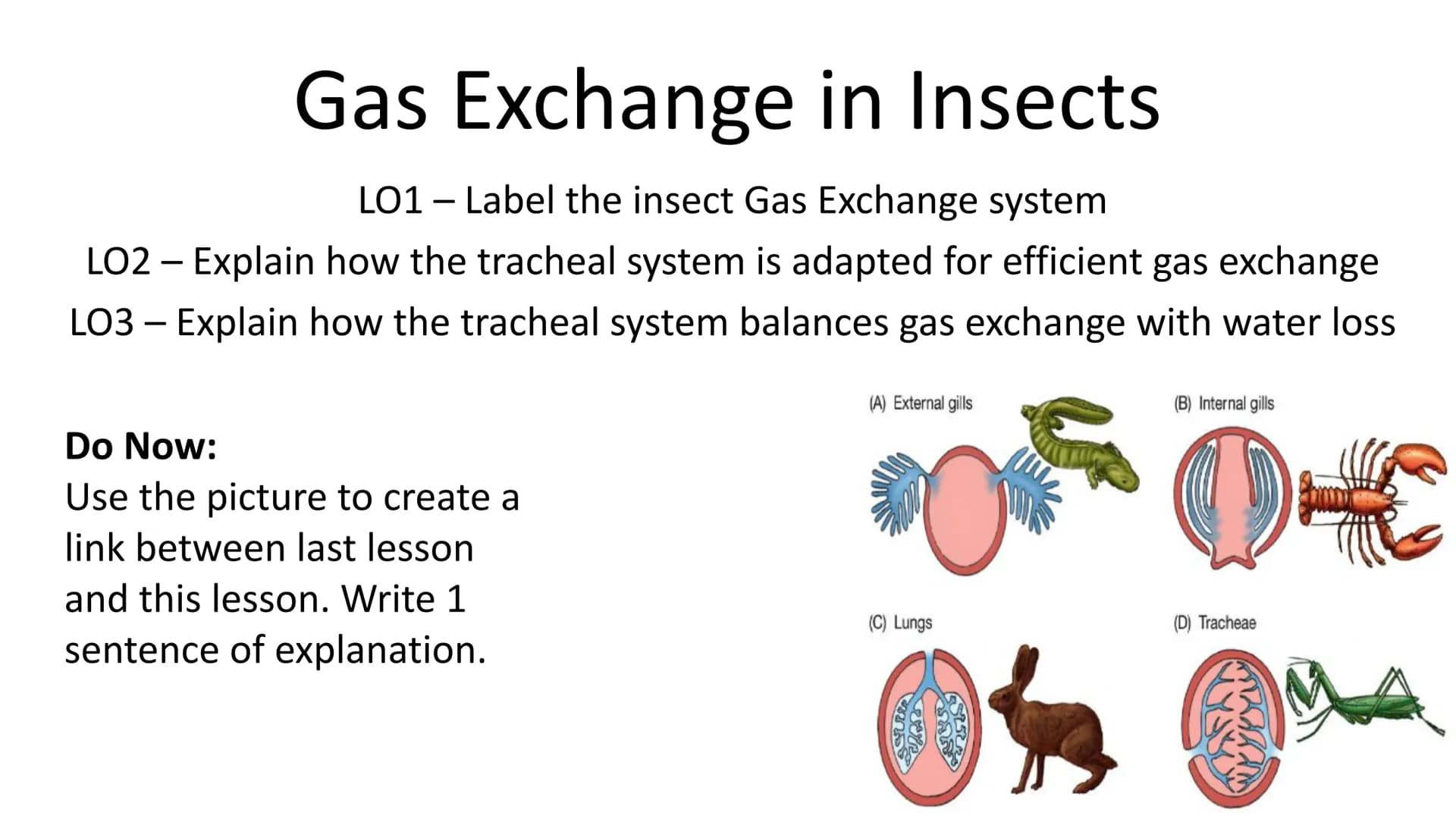

Understanding Insect Gas Exchange Systems

The insect gas exchange tracheal system is a remarkable respiratory network that allows insects to efficiently obtain oxygen and remove carbon dioxide. Unlike mammals that use lungs, insects have evolved a sophisticated system of internal tubes that deliver oxygen directly to their cells.

Definition: The tracheal system is a network of branching tubes that transport gases throughout an insect's body, allowing for direct gas exchange between the atmosphere and body tissues.

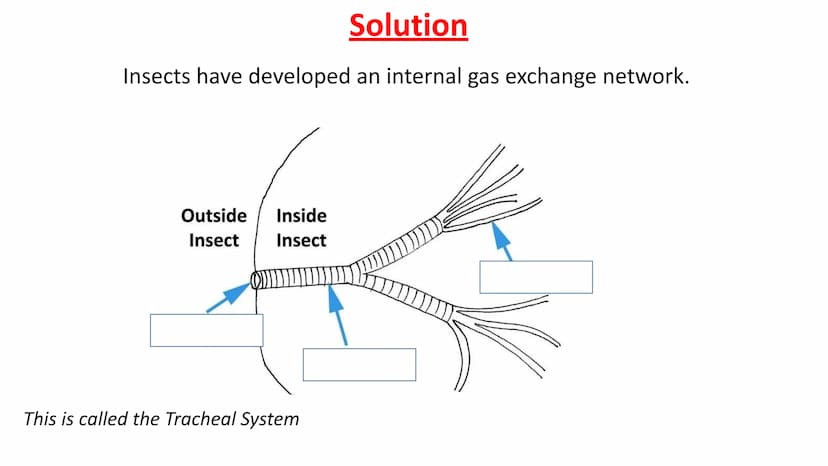

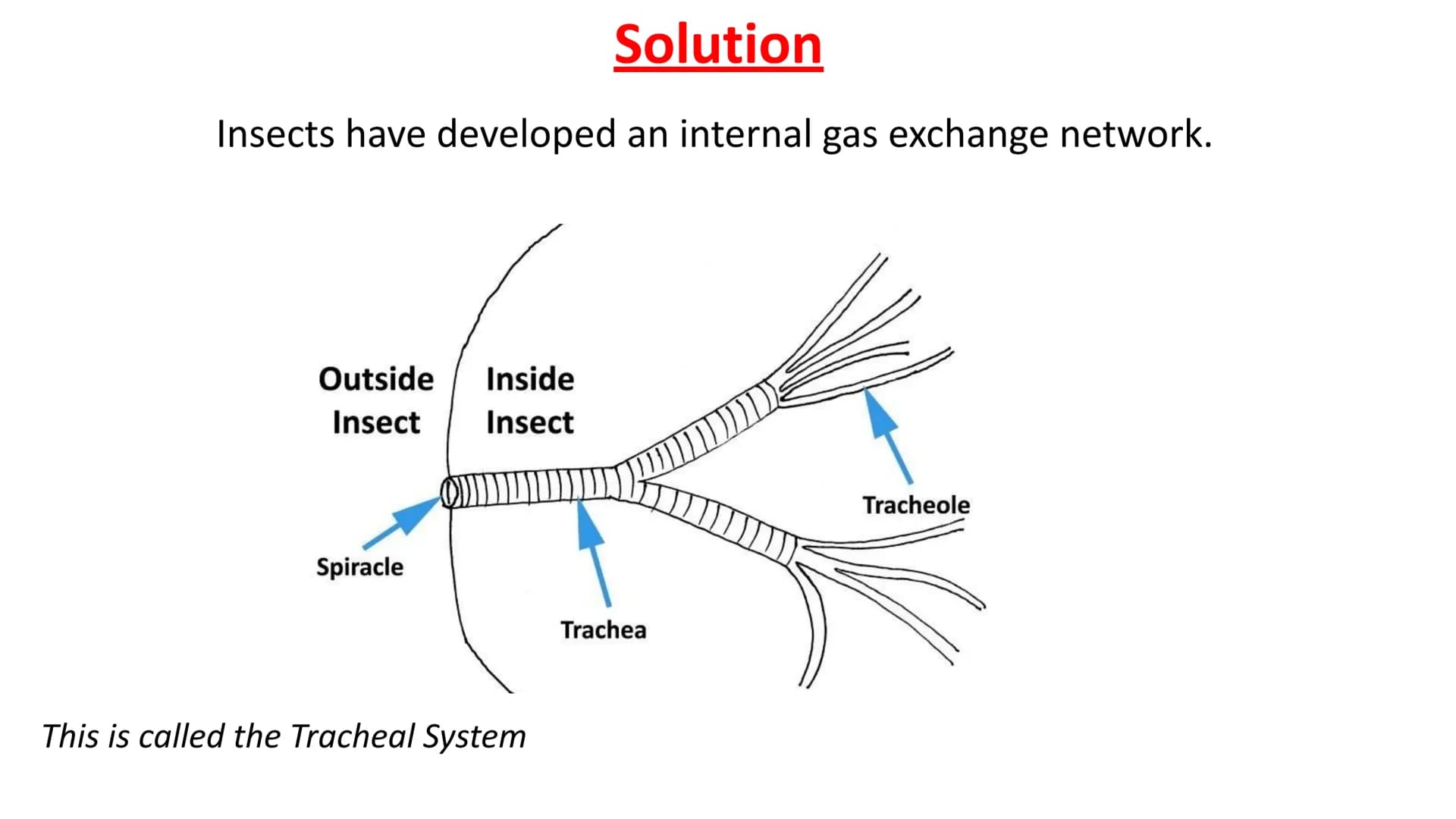

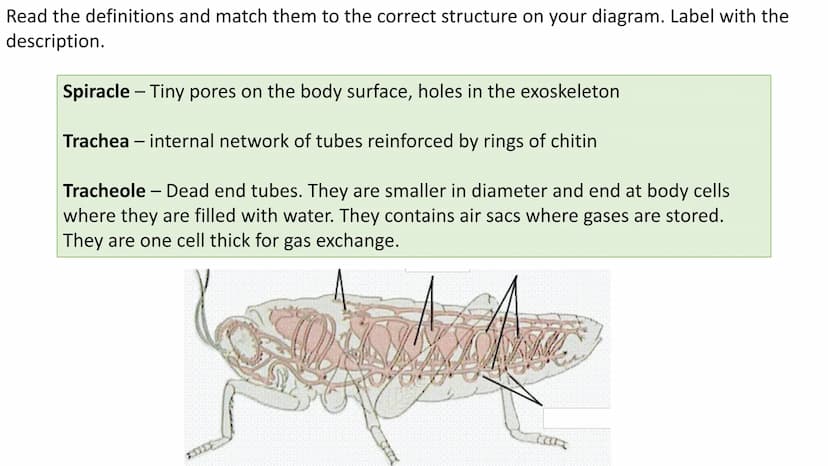

The basic structure consists of external openings called spiracles that connect to increasingly smaller branching tubes. These tubes, known as tracheae and tracheoles, penetrate deep into the insect's tissues. This direct delivery system is highly efficient since oxygen doesn't need to be transported by blood - it reaches cells directly through the air-filled tubes.

The adaptation of tracheal system for efficient gas exchange involves several key features. The tracheal tubes are reinforced with rings of chitin to prevent collapse while remaining flexible. As the tubes branch into smaller tracheoles, their walls become extremely thin - just one cell thick - allowing gases to diffuse easily. The extensive branching creates a massive surface area for gas exchange, maximizing efficiency.

Balancing Gas Exchange and Water Conservation in Insects

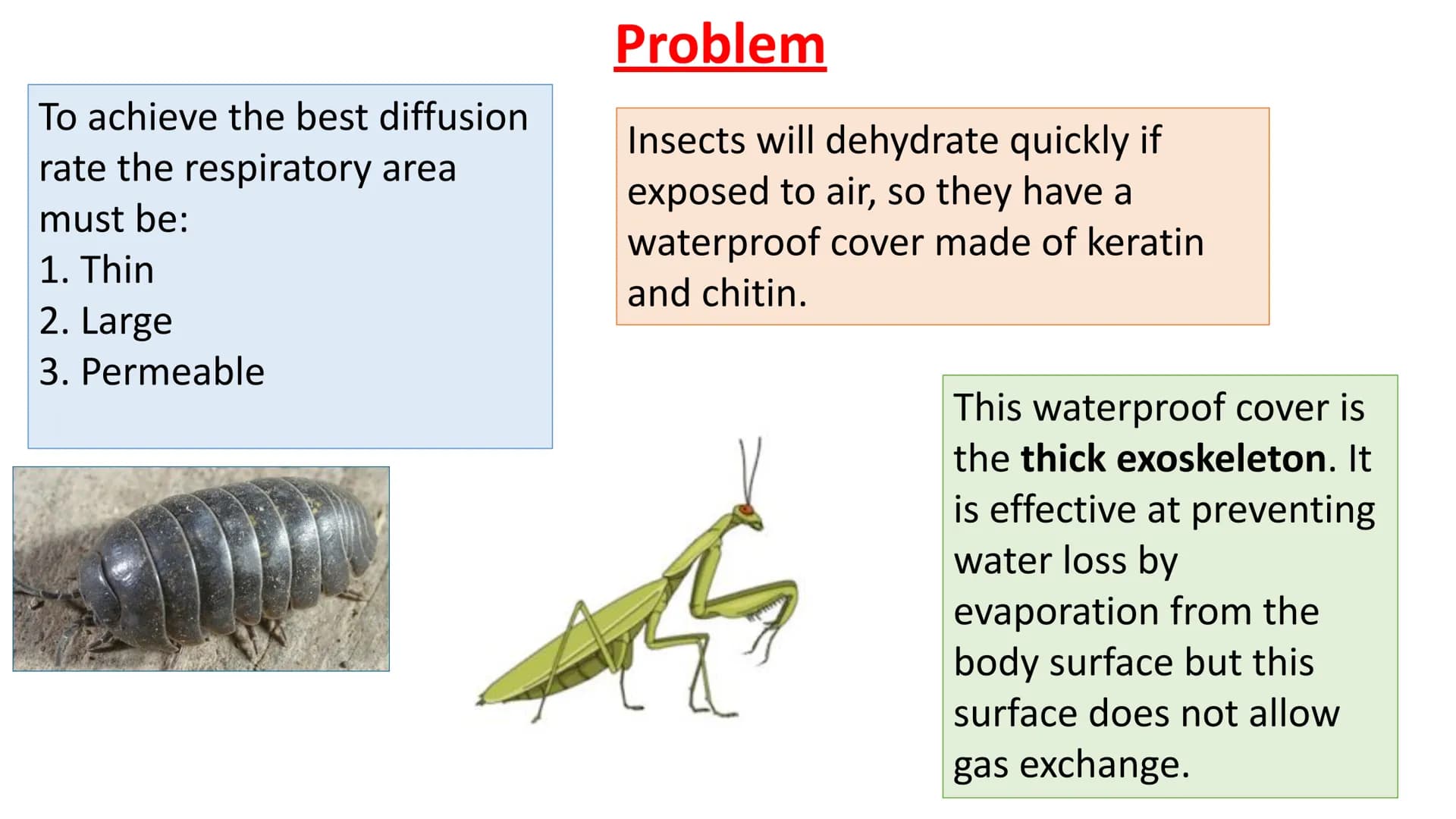

One of the biggest challenges insects face is preventing water loss in insect gas exchange while maintaining adequate oxygen supply. Their exoskeleton, made of keratin and chitin, provides excellent protection against dehydration but creates a barrier for gas exchange.

Highlight: Insects solve this problem through specialized spiracles - controllable openings in their exoskeleton that can be opened or closed to regulate both gas exchange and water loss.

The internal location of the tracheal system helps conserve water while allowing efficient gas exchange. When tracheoles reach body tissues, they become filled with fluid, creating a water-air interface where gas exchange occurs. This arrangement allows for efficient oxygen delivery while minimizing water loss.

The system demonstrates remarkable efficiency through its structural adaptations. The chitin-reinforced tubes maintain their shape during movement, while the microscopic tracheoles provide an enormous surface area for gas exchange right where it's needed - at the cellular level.

The Tracheal Network: A Closer Look

The tracheal system's organization shows how evolution has solved the challenge of delivering oxygen to all parts of an insect's body. Starting at the spiracles, the main tracheal trunks branch repeatedly into smaller tubes, much like a tree's branches becoming progressively finer.

Example: Imagine a tree's branching structure turned inside out - that's similar to how the tracheal system branches throughout an insect's body, with spiracles being like the tree's trunk and tracheoles like the finest twigs.

The tracheoles, being the smallest branches of this system, are so fine they can reach individual cells. These endpoints are where the actual gas exchange occurs, with oxygen diffusing from the air-filled tubes into the cells, and carbon dioxide moving in the opposite direction.

Functional Adaptations of the Tracheal System

The efficiency of insect respiration relies on several specialized adaptations. The spiracles can actively control air flow and water loss through muscular control, similar to how we can control our breathing.

Vocabulary: Tracheoles are the finest branches of the tracheal system, measuring only a few micrometers in diameter and ending in fluid-filled tips where gas exchange occurs.

The system also includes air sacs that can expand and contract, helping to ventilate the tracheal tubes. This active ventilation supplements the passive diffusion of gases and helps insects meet high oxygen demands during activities like flight.

The entire system represents a remarkable balance between meeting respiratory needs and preventing water loss, allowing insects to thrive in diverse environments from deserts to rainforests.

Understanding Insect Gas Exchange: The Tracheal System

The insect gas exchange tracheal system is a remarkable respiratory network that allows insects to efficiently obtain oxygen and remove carbon dioxide. This internal system consists of interconnected tubes that branch throughout the insect's body, creating a direct pathway for gas exchange with cells.

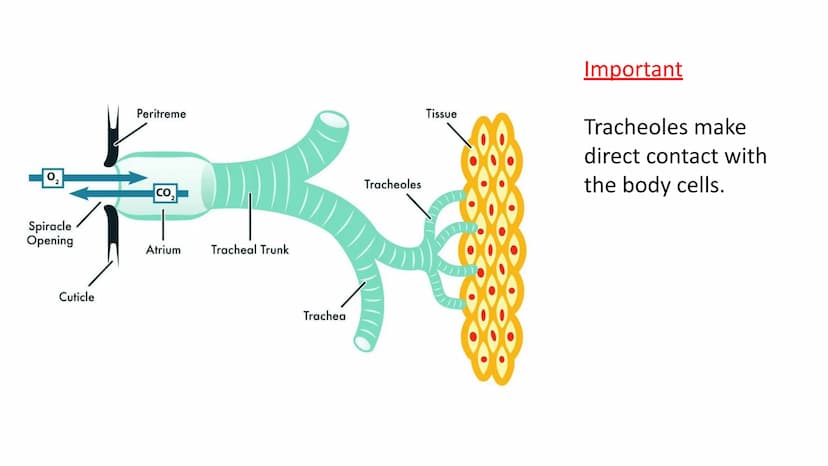

The main components of this system include spiracles, which are external openings in the insect's exoskeleton, tracheal trunks that serve as main airways, and microscopic tracheoles that make direct contact with body cells. This intricate network ensures efficient oxygen delivery to all tissues without requiring a circulatory system for gas transport.

Definition: The tracheal system is a network of air-filled tubes that allows direct gas exchange between the atmosphere and insect body cells through a series of branching passages.

The adaptation of tracheal system for efficient gas exchange is evident in its structural organization. The system branches progressively from larger tracheal tubes to extremely fine tracheoles, similar to how a tree branches from trunk to twigs. This branching pattern maximizes the surface area available for gas exchange while minimizing the distance gases must travel.

Structural Adaptations and Water Conservation

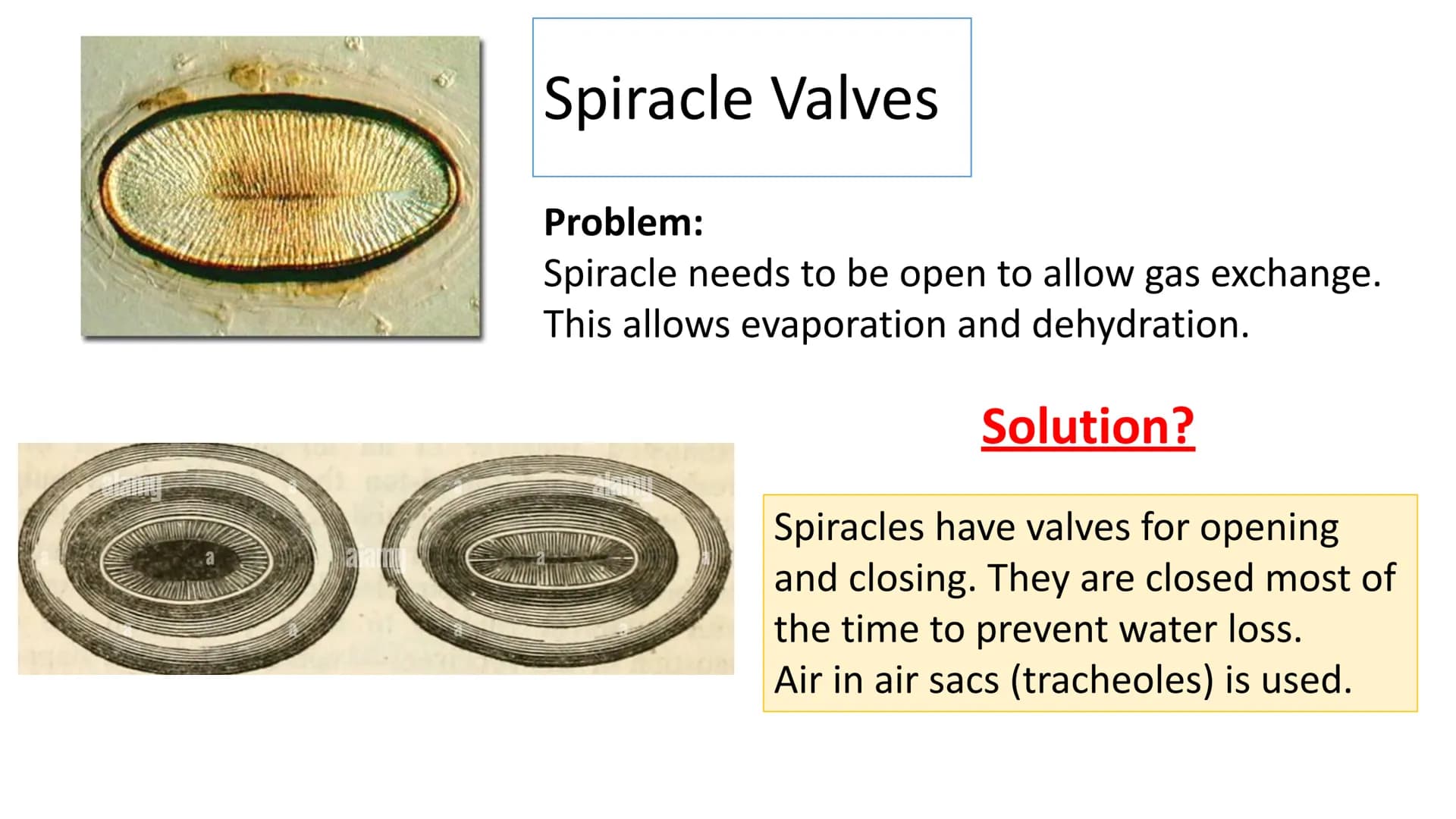

A critical challenge in insect respiration is preventing water loss in insect gas exchange while maintaining adequate oxygen supply. Insects have evolved sophisticated spiracle valves that can open and close to regulate gas exchange and water loss.

These valves remain closed most of the time, opening only when oxygen levels in the tracheal system become low. This adaptation allows insects to retain moisture while still meeting their respiratory needs. The presence of air sacs within the tracheoles provides a reservoir of oxygen that can be used when spiracles are closed.

Highlight: Spiracle valves serve as crucial gatekeepers, balancing the need for gas exchange with water conservation in insects.

The efficiency of this system depends on maintaining short diffusion pathways between the air in the tracheoles and the body cells. This requirement actually limits the maximum size insects can achieve, as larger bodies would require longer diffusion distances that would make the system less effective.

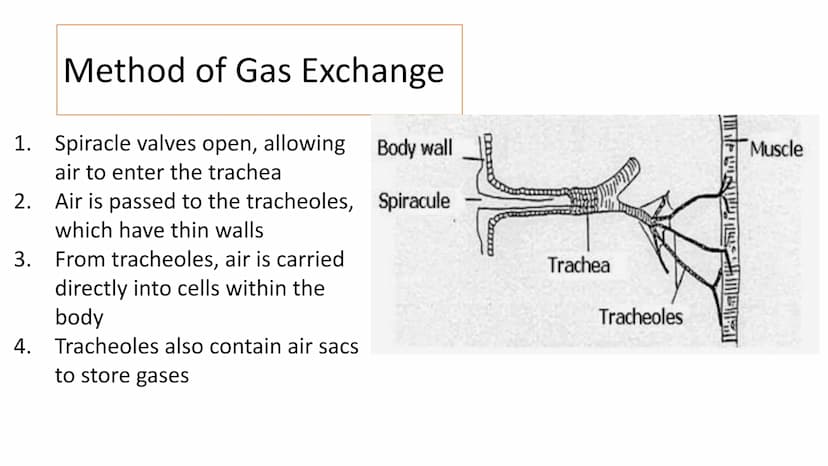

Gas Exchange Mechanism and Process

The process of gas exchange in insects occurs through several coordinated steps. When spiracle valves open, air enters through the spiracles and moves through the tracheal tubes. The air then passes into the tracheoles, which have extremely thin walls to facilitate rapid diffusion of gases.

The direct contact between tracheoles and body cells ensures efficient gas exchange without intermediate transport systems. This direct delivery system maintains a strong diffusion gradient, driving oxygen into cells and carbon dioxide out of them.

Example: Think of the tracheal system as a building's ventilation system, where main ducts (trachea) branch into smaller ducts (tracheoles) to deliver air directly to each room (cell).

The presence of air sacs within the system serves multiple purposes, including gas storage and enhancing ventilation through body movements. When insects move, their muscles compress and expand these air sacs, helping to circulate gases through the system.

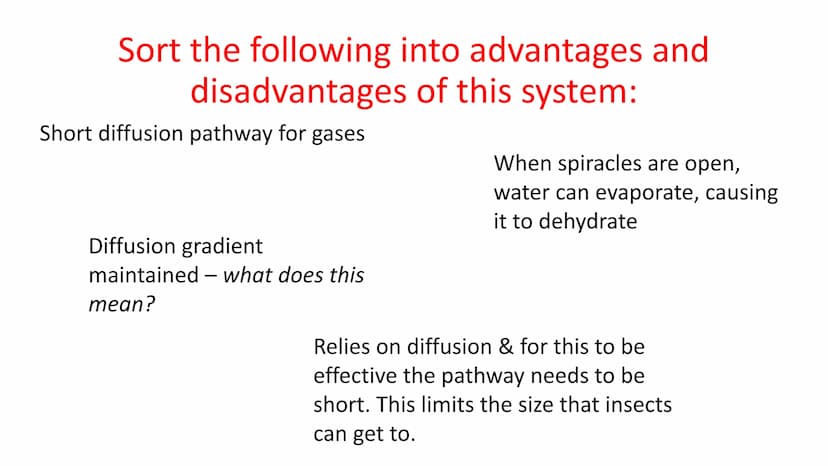

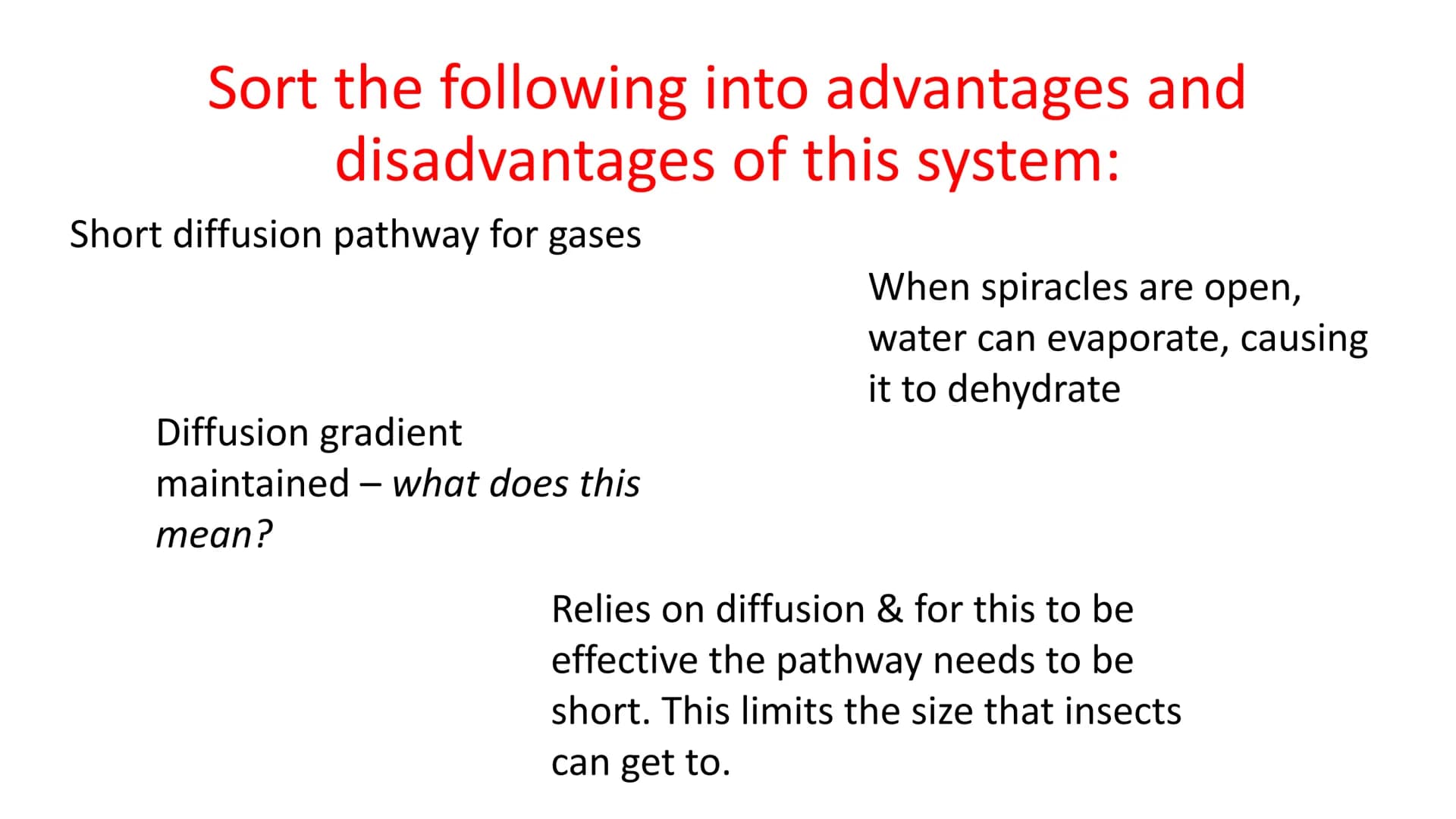

Advantages and Limitations of the Tracheal System

The tracheal system offers several significant advantages for insect respiration. The short diffusion pathway between air and cells ensures rapid gas exchange, while the maintained diffusion gradient supports continuous oxygen delivery to tissues.

However, this system also has limitations. The requirement for short diffusion distances constrains insect size, as larger bodies would require longer pathways that would reduce efficiency. Additionally, the need to open spiracles for gas exchange creates vulnerability to water loss through evaporation.

Vocabulary: Diffusion gradient - The difference in concentration of gases between two areas that drives the movement of oxygen and carbon dioxide through the tracheal system.

The balance between efficient gas exchange and water conservation represents a fundamental challenge in insect physiology. The evolution of controlled spiracle opening and closing, along with the development of air sacs, demonstrates how insects have adapted to meet this challenge while maintaining effective respiration.

Understanding Oxygen and Carbon Dioxide Movement in Insect Respiratory Systems

The insect gas exchange tracheal system operates through a sophisticated network of concentration gradients that enable efficient gas exchange. This system demonstrates a remarkable adaptation of tracheal system for efficient gas exchange that allows insects to thrive in various environments.

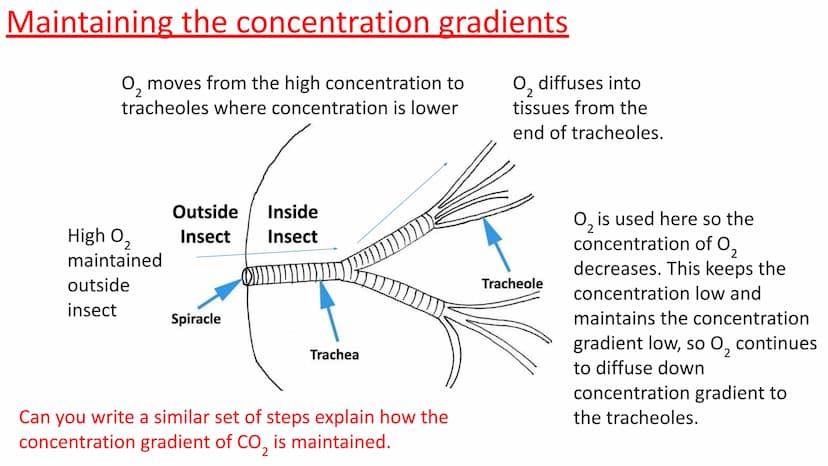

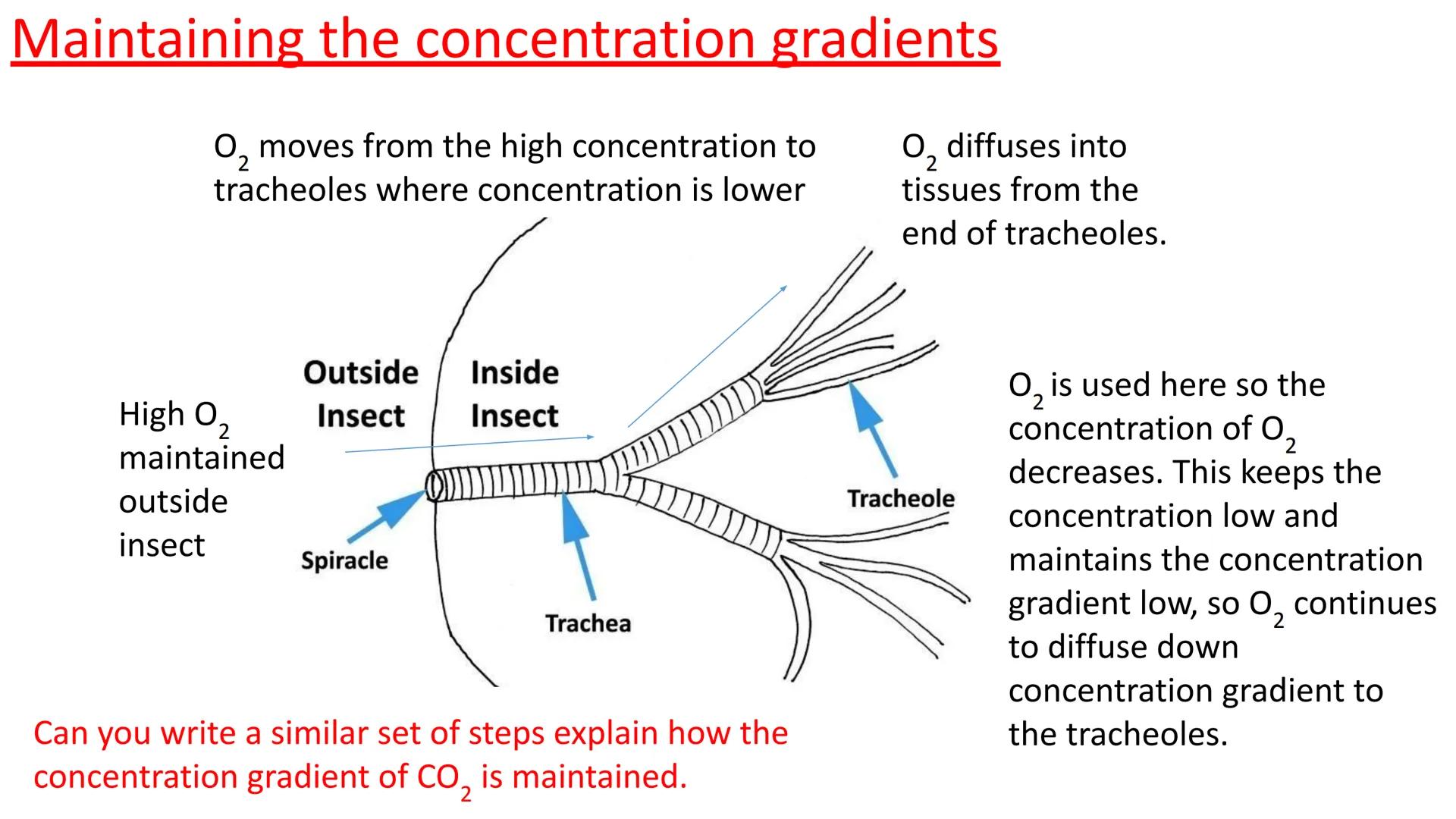

Oxygen movement follows a precise pathway in the insect respiratory system. Starting from the outside environment where oxygen concentration is highest, the gas enters through specialized openings called spiracles. These spiracles connect to larger tubes called tracheae, which branch into increasingly smaller tubes called tracheoles. This branching network ensures oxygen reaches every cell in the insect's body efficiently.

The maintenance of concentration gradients is crucial for continuous gas exchange. As oxygen moves through the tracheal system, it follows a concentration gradient from high to low. When oxygen reaches the tissue cells through tracheoles, it's immediately used for cellular respiration, which maintains a consistently low oxygen concentration at the cellular level. This ongoing consumption creates a steady concentration gradient that keeps oxygen flowing into the tissues.

Definition: Concentration gradient refers to the difference in the concentration of a substance between two areas, causing molecules to move from areas of high concentration to areas of low concentration.

Carbon Dioxide Exchange and Water Conservation in Insect Respiration

Carbon dioxide exchange follows an opposite pattern to oxygen, demonstrating another aspect of preventing water loss in insect gas exchange. As cells produce carbon dioxide during cellular respiration, its concentration becomes highest inside the tissues. This creates a concentration gradient that drives carbon dioxide out through the tracheal system and eventually to the external environment.

The insect respiratory system has evolved sophisticated mechanisms to prevent water loss while maintaining efficient gas exchange. Spiracles can be opened and closed as needed, allowing insects to regulate both gas exchange and water retention. This control mechanism is particularly important in dry environments where water conservation is crucial.

The entire process represents a delicate balance between maintaining efficient gas exchange and preventing excessive water loss. During periods of high activity, when more oxygen is needed, spiracles open wider and for longer periods. During rest, they may remain closed longer to conserve water while still allowing sufficient gas exchange for basic metabolic needs.

Highlight: The ability to control spiracle opening is a crucial adaptation that allows insects to balance their respiratory needs with water conservation, especially in arid environments.
