Understanding cell structure and microscopy techniques is fundamental to modern biology studies.

Prokaryotic and eukaryotic cells represent the two main cell types found in living organisms. Prokaryotic cells, like bacteria, are simpler and lack membrane-bound organelles, while eukaryotic cells are more complex with specialized compartments. Key differences include the presence of a true nucleus in eukaryotes, along with organelles like mitochondria, endoplasmic reticulum, and Golgi apparatus. Plant cells, which are eukaryotic, also contain additional structures like cell walls, chloroplasts, and large vacuoles that distinguish them from animal cells.

The development of microscopy has revolutionized our understanding of cellular structures. Early light microscopes allowed scientists to first observe cells, but modern electron microscopes have revealed unprecedented detail of subcellular components. The electron microscope has significantly enhanced our knowledge by providing much higher magnification and resolution than traditional light microscopes. This has enabled scientists to study intricate cellular structures like ribosomes, cell membranes, and other organelles in remarkable detail. Through required practical work in GCSE Biology, students learn to prepare and examine specimens using both light and electron microscopes, developing essential skills in scientific observation and analysis. These techniques have been crucial in advancing our understanding of cell biology and continue to play a vital role in biological research and medical diagnostics. The progression from basic light microscopy to advanced electron microscopy demonstrates how technological advances have enhanced our ability to study and comprehend cellular structures and functions, making it a cornerstone topic in modern biology education.

14/05/2023

4225

Biology
B1- Cells and microscopy
Explain how the subcellular structures of eukaryotic and prokaryotic cells are related to their functions,

View

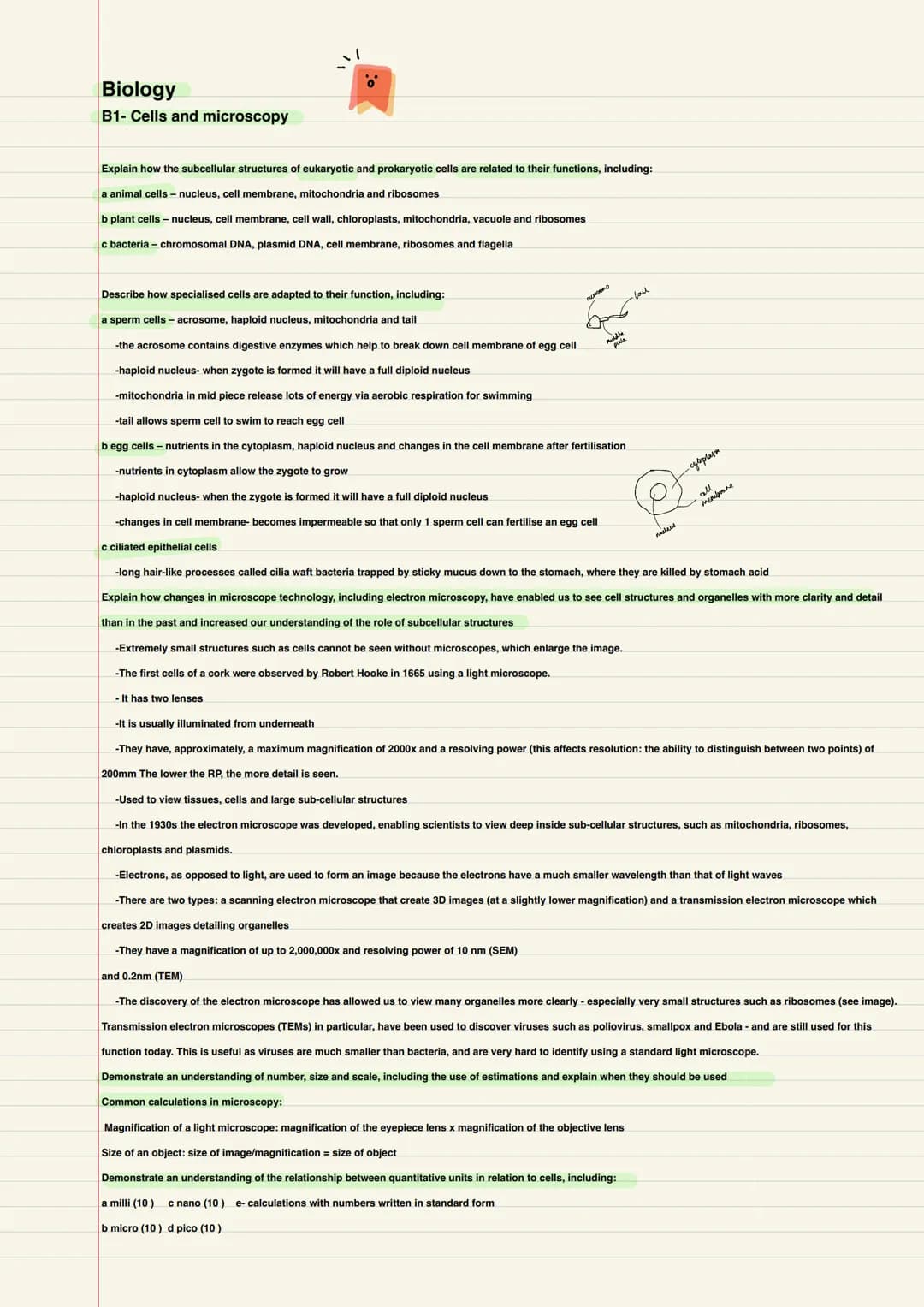

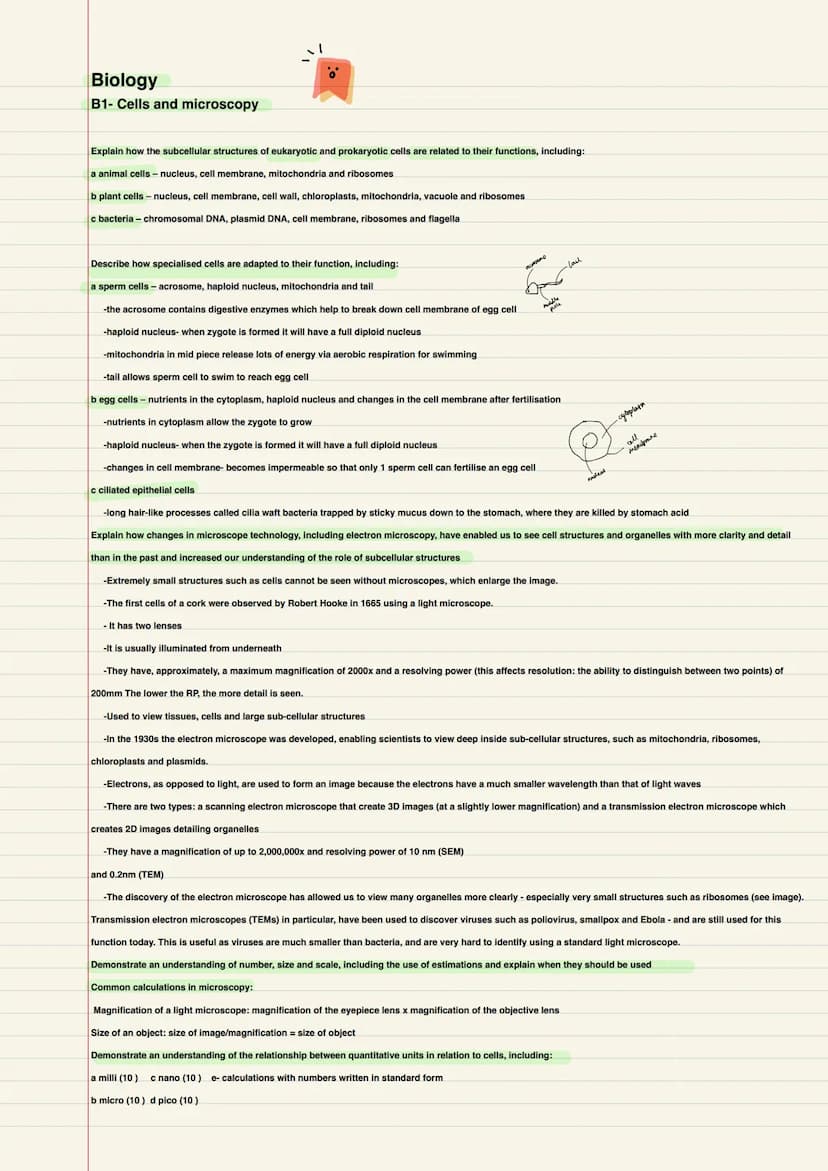

Understanding Cell Structure and Microscopy in GCSE Biology

The fundamental building blocks of life - cells - require sophisticated tools and techniques to study their intricate structures. Eukaryotic and prokaryotic cells represent the two main cell types, each with distinct characteristics and components that serve specific functions.

Eukaryotic cells, found in plants and animals, contain membrane-bound organelles including the nucleus, mitochondria, and ribosomes. Plant cells additionally feature cell walls, chloroplasts, and vacuoles. These structures work together to maintain cellular function - the nucleus houses genetic material, mitochondria generate energy through respiration, and in plant cells, chloroplasts conduct photosynthesis.

Definition: Eukaryotic cells are complex cells containing membrane-bound organelles, while prokaryotic cells like bacteria are simpler and lack these distinct internal compartments.

The development of microscopy has revolutionized our understanding of cellular structures. While early light microscopes allowed scientists like Robert Hooke to first observe cells in 1665, modern electron microscopes provide unprecedented detail of subcellular structures. The electron microscope's superior magnification and resolution capabilities have enabled researchers to examine structures as small as ribosomes and viruses.

Highlight: Electron microscopes can achieve magnifications up to 2,000,000x compared to light microscopes' maximum of about 2000x, revealing previously invisible cellular details.

Biology
B1- Cells and microscopy
Explain how the subcellular structures of eukaryotic and prokaryotic cells are related to their functions,

View

Specialized Cells and Their Adaptations

Cells undergo specialization to perform specific functions within organisms. Understanding these adaptations is crucial for GCSE Biology Paper 1 topics. Key examples include:

Sperm cells feature distinct adaptations for fertilization:

  • An acrosome containing enzymes to penetrate the egg cell
  • A haploid nucleus carrying genetic material
  • Numerous mitochondria providing energy for movement
  • A tail enabling swimming to reach the egg

Example: The egg cell contains stored nutrients in its cytoplasm to support early development after fertilization, while its membrane becomes impermeable after fertilization to prevent multiple sperm entry.

Ciliated epithelial cells demonstrate specialized structures for their protective role in the respiratory system. Their hair-like cilia work together to move trapped particles and bacteria away from the lungs, showcasing how cellular specialization contributes to organ system function.

Vocabulary: Cilia are microscopic hair-like projections that move in coordinated waves to transport particles along cell surfaces.

Biology
B1- Cells and microscopy
Explain how the subcellular structures of eukaryotic and prokaryotic cells are related to their functions,

View

Microscopy Techniques and Calculations

Modern microscopy techniques have transformed our ability to study cellular structures. The development of microscopy techniques has progressed from basic light microscopes to sophisticated electron microscopes, each offering distinct advantages for biological research.

Understanding microscope calculations is essential for practical work: Total magnification = Eyepiece lens magnification × Objective lens magnification Actual size = Image size ÷ Magnification

Definition: Resolution refers to the ability to distinguish between two separate points - electron microscopes offer superior resolution compared to light microscopes.

Scientists use different units when working with microscopic structures:

  • Millimeters (mm): 10⁻³ meters
  • Micrometers (μm): 10⁻⁶ meters
  • Nanometers (nm): 10⁻⁹ meters

Example: A typical animal cell measures 10-30 micrometers in diameter, while bacterial cells are typically 1-5 micrometers.

Biology
B1- Cells and microscopy
Explain how the subcellular structures of eukaryotic and prokaryotic cells are related to their functions,

View

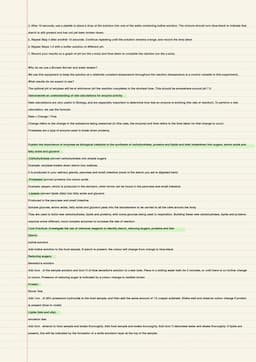

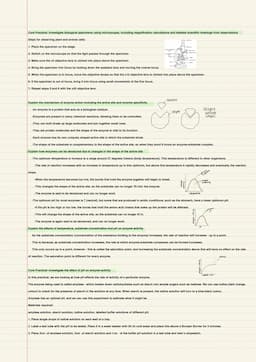

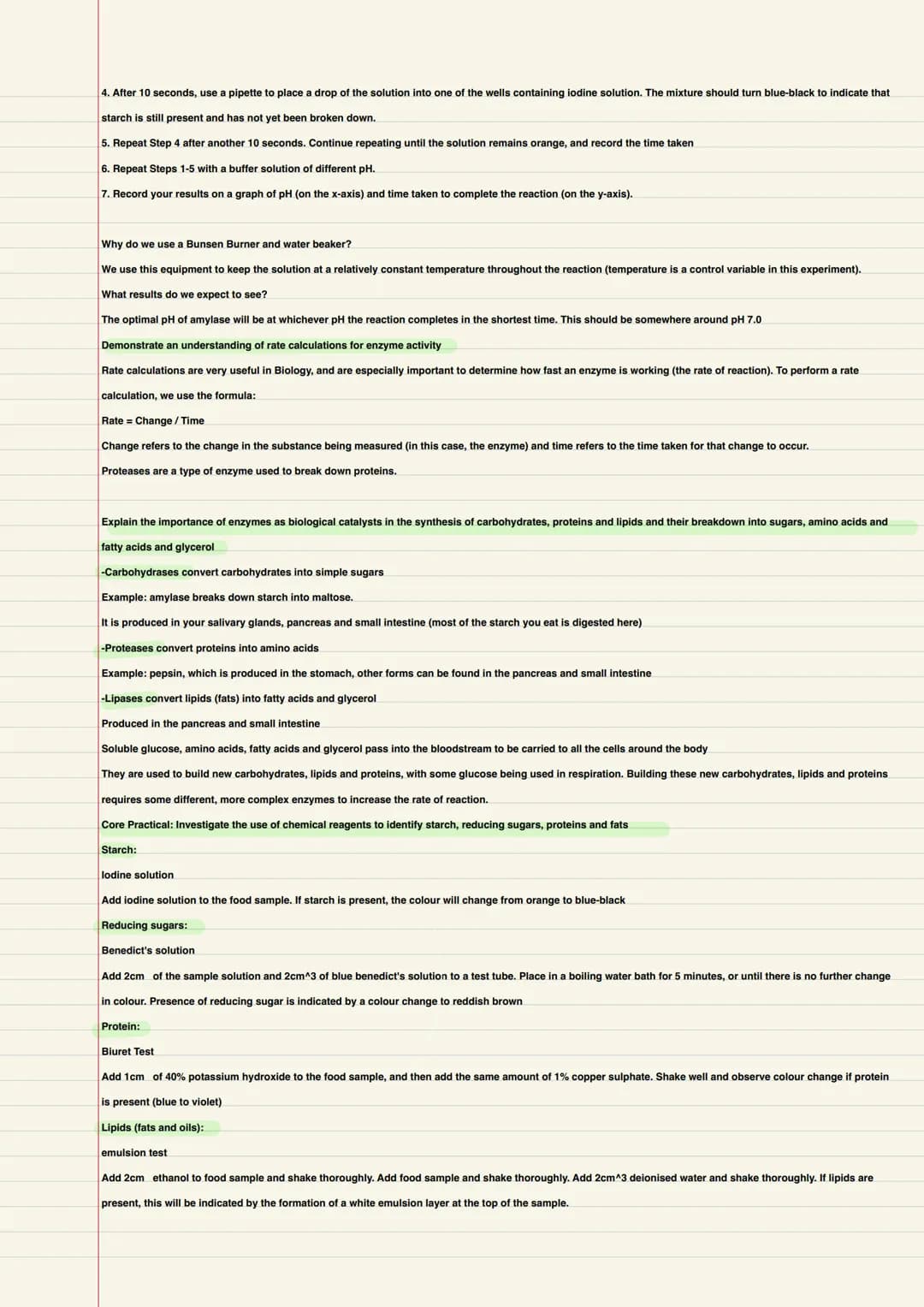

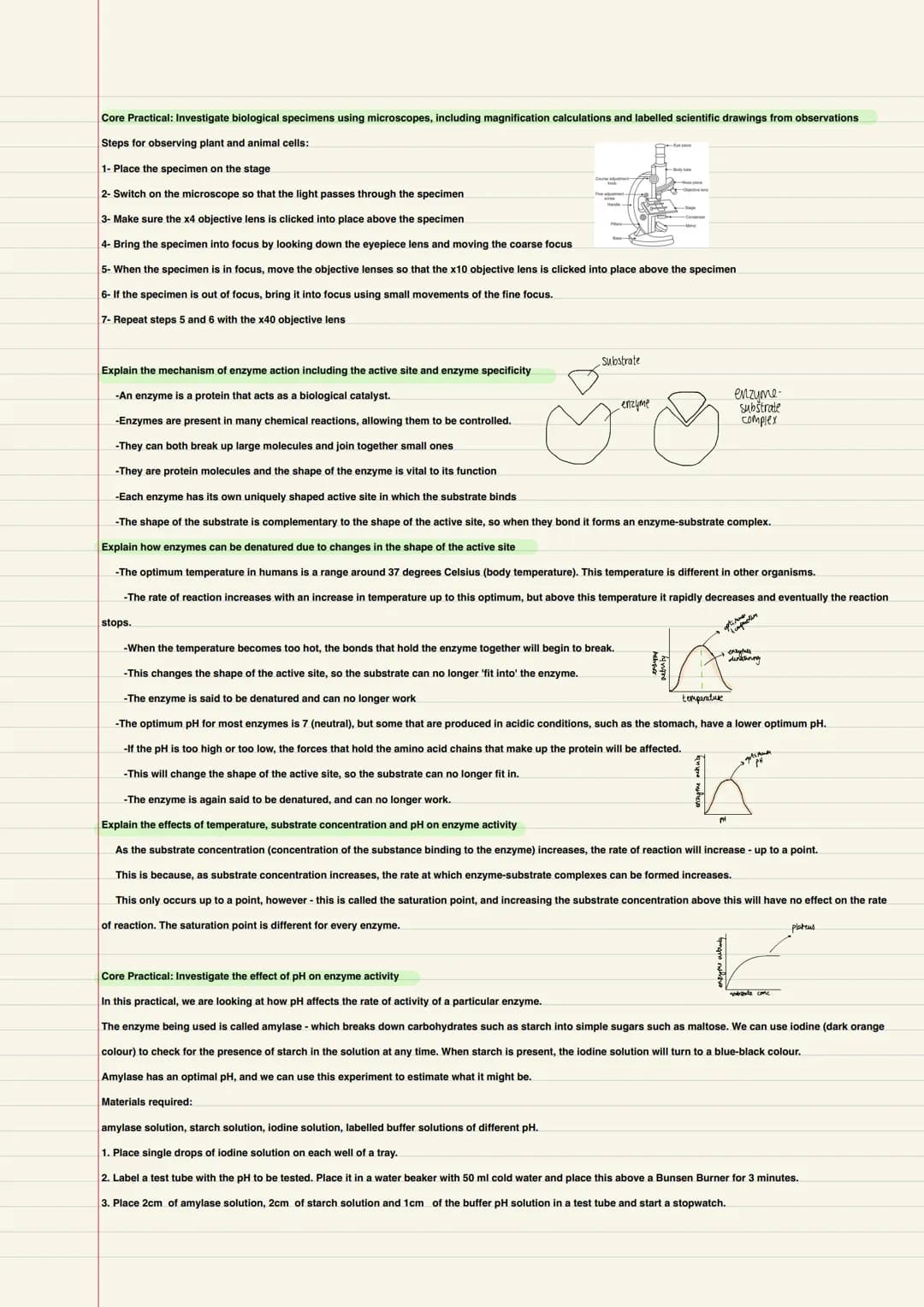

Enzyme Function and Investigation

Enzymes play crucial roles in biological processes as catalysts. These protein molecules have specific active sites that bind to particular substrates, demonstrating the "lock and key" mechanism of enzyme action. This specificity is essential for GCSE Biology revision.

Environmental factors significantly affect enzyme activity:

  • Temperature: Optimal activity occurs around 37°C for human enzymes
  • pH: Most enzymes function best at neutral pH (7)
  • Substrate concentration: Affects reaction rate until enzyme saturation

Highlight: Denaturation occurs when extreme conditions alter the enzyme's shape, preventing substrate binding and stopping catalytic activity.

Practical investigations of enzyme activity, such as studying amylase breaking down starch, help demonstrate these principles. The GCSE Biology Required practical involving pH effects on enzymes provides hands-on experience with these concepts.

Biology
B1- Cells and microscopy
Explain how the subcellular structures of eukaryotic and prokaryotic cells are related to their functions,

View

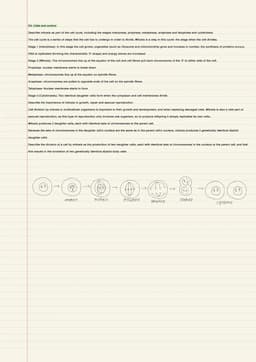

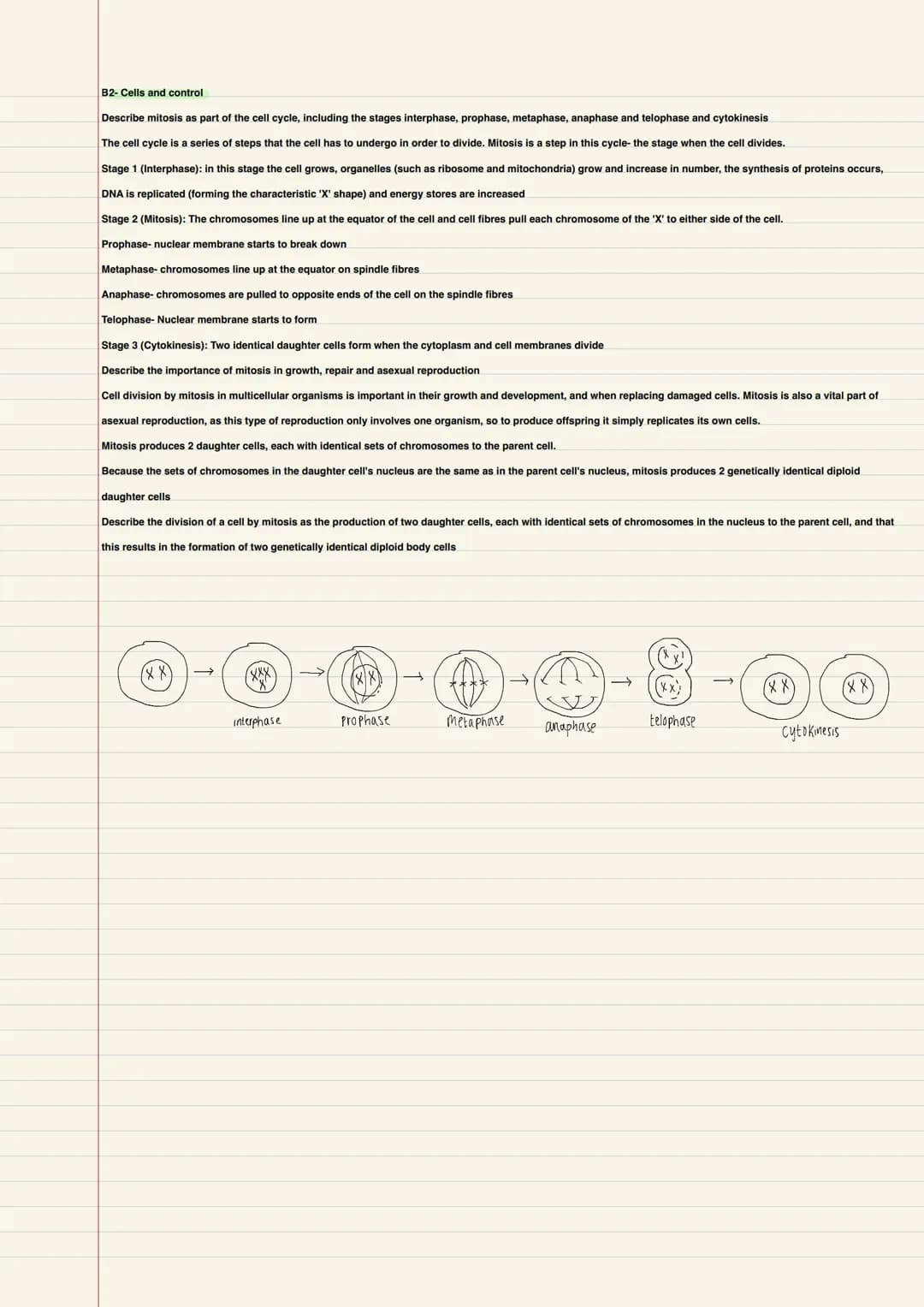

Understanding Cell Division and Growth in Biology

Cell division and growth are fundamental processes that occur in all living organisms. Edexcel GCSE Biology Paper 1 topics cover these essential concepts in detail, particularly focusing on mitosis and cell differentiation.

The cell cycle consists of distinct phases that enable cells to grow and divide. During interphase, cells increase in size, replicate DNA, and prepare for division. Mitosis follows, comprising four main stages: prophase, metaphase, anaphase, and telophase. In prophase, the nuclear membrane breaks down and chromosomes condense. During metaphase, chromosomes align at the cell's equator. Anaphase involves chromosome separation, while telophase sees the formation of new nuclear membranes. Finally, cytokinesis completes the process by splitting the cytoplasm.

Definition: Mitosis is the process of cell division that produces two identical daughter cells, each containing the same number and type of chromosomes as the parent cell.

Cell differentiation plays a crucial role in organism development. In animals, cells specialize early and generally maintain their specialized state. However, some cells like stem cells retain the ability to differentiate throughout life. Plant cells demonstrate greater flexibility, with many retaining differentiation capabilities and responding to environmental cues through processes like elongation.

Highlight: Understanding cell division and differentiation is essential for comprehending both normal growth and abnormal processes like cancer development.

Biology
B1- Cells and microscopy
Explain how the subcellular structures of eukaryotic and prokaryotic cells are related to their functions,

View

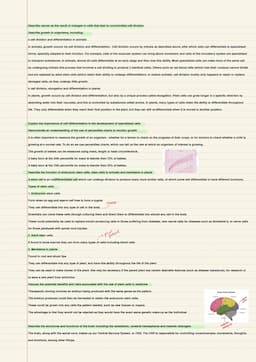

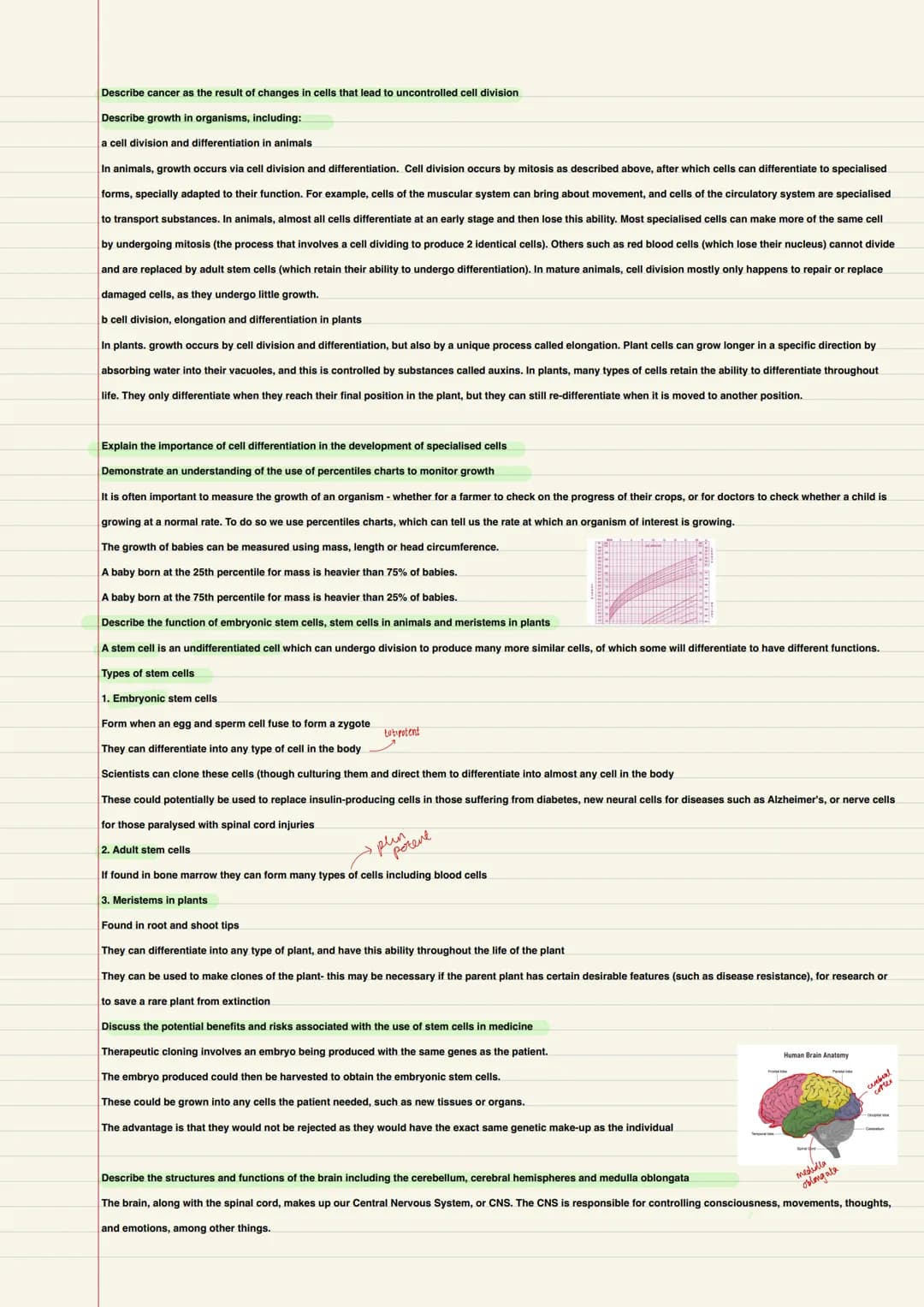

Cancer and Stem Cells in Modern Medicine

Cancer develops when normal cell division control mechanisms fail, leading to uncontrolled growth. This topic is crucial for Edexcel Combined Science Biology Paper 1 topics and demonstrates the importance of understanding cellular processes.

Stem cells represent a fascinating area of modern medicine, with three main types: embryonic stem cells, adult stem cells, and plant meristems. Embryonic stem cells are particularly valuable as they can differentiate into any cell type. Adult stem cells, found in locations like bone marrow, have more limited differentiation potential but still serve vital functions in tissue repair.

Example: Therapeutic cloning involves creating embryos with identical genes to a patient, potentially providing rejection-free tissue transplants.

Plant meristems, found in root and shoot tips, enable continuous growth and development throughout a plant's life. These specialized regions contain cells that maintain their ability to divide and differentiate, contributing to both primary and secondary growth.

Vocabulary: Totipotent cells can develop into any cell type, while pluripotent cells have more limited differentiation potential.

Biology
B1- Cells and microscopy
Explain how the subcellular structures of eukaryotic and prokaryotic cells are related to their functions,

View

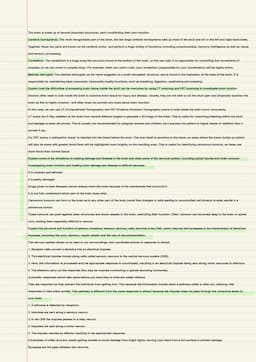

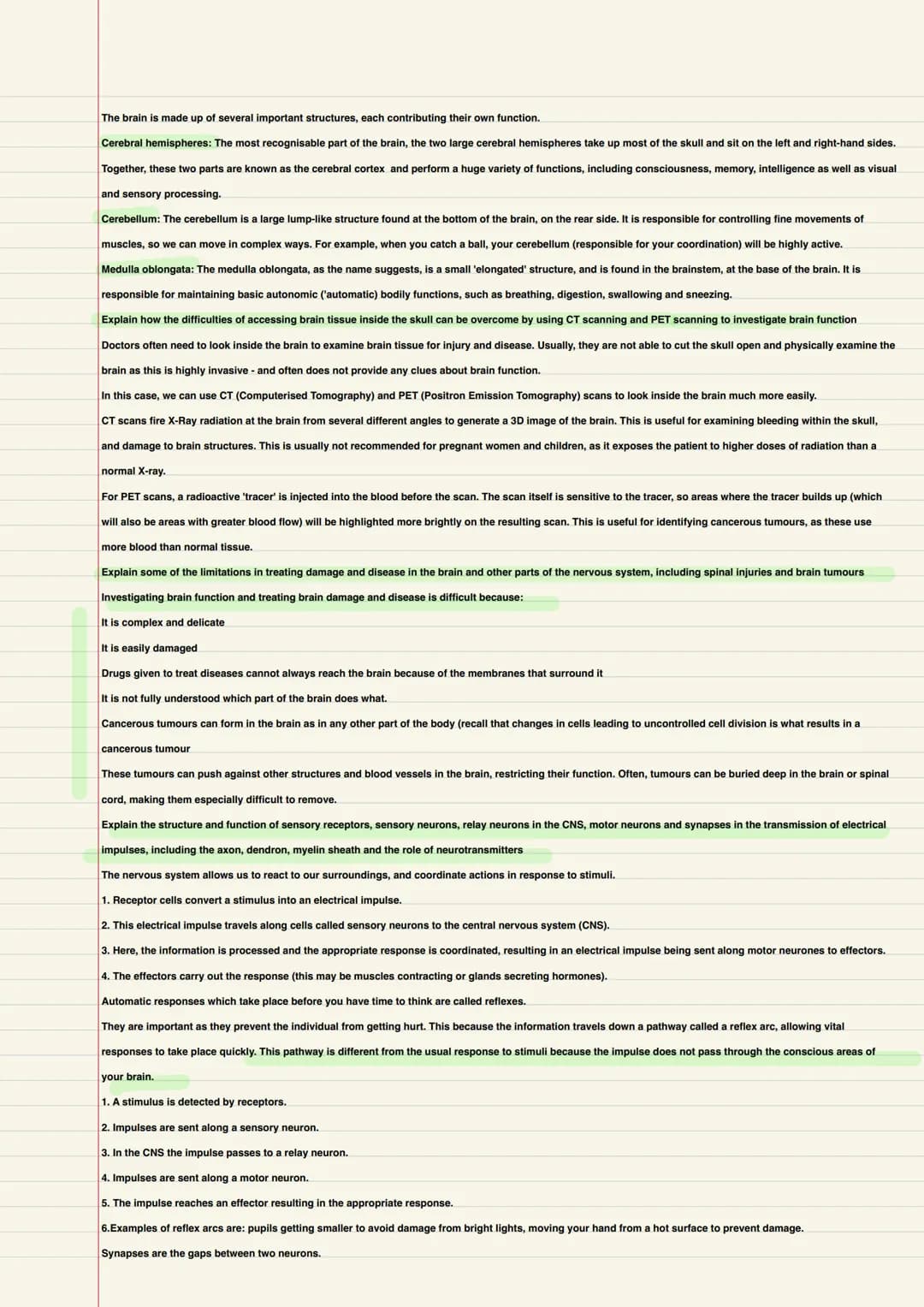

Brain Structure and Function

The human brain's complexity makes it one of the most fascinating organs to study. How has microscopy techniques developed over time gcse has helped advance our understanding of brain structure and function significantly.

The brain consists of several specialized regions. The cerebral hemispheres control conscious thought, memory, and sensory processing. The cerebellum coordinates movement and balance, while the medulla oblongata regulates automatic functions like breathing and heart rate.

Definition: The Central Nervous System (CNS) comprises the brain and spinal cord, controlling all body functions through complex neural networks.

Modern imaging techniques like CT and PET scans have revolutionized brain study. CT scans use X-rays to create detailed structural images, while PET scans track metabolic activity using radioactive tracers. These technologies help diagnose conditions and guide treatment plans, though limitations exist in treating brain injuries and diseases.

Biology
B1- Cells and microscopy
Explain how the subcellular structures of eukaryotic and prokaryotic cells are related to their functions,

View

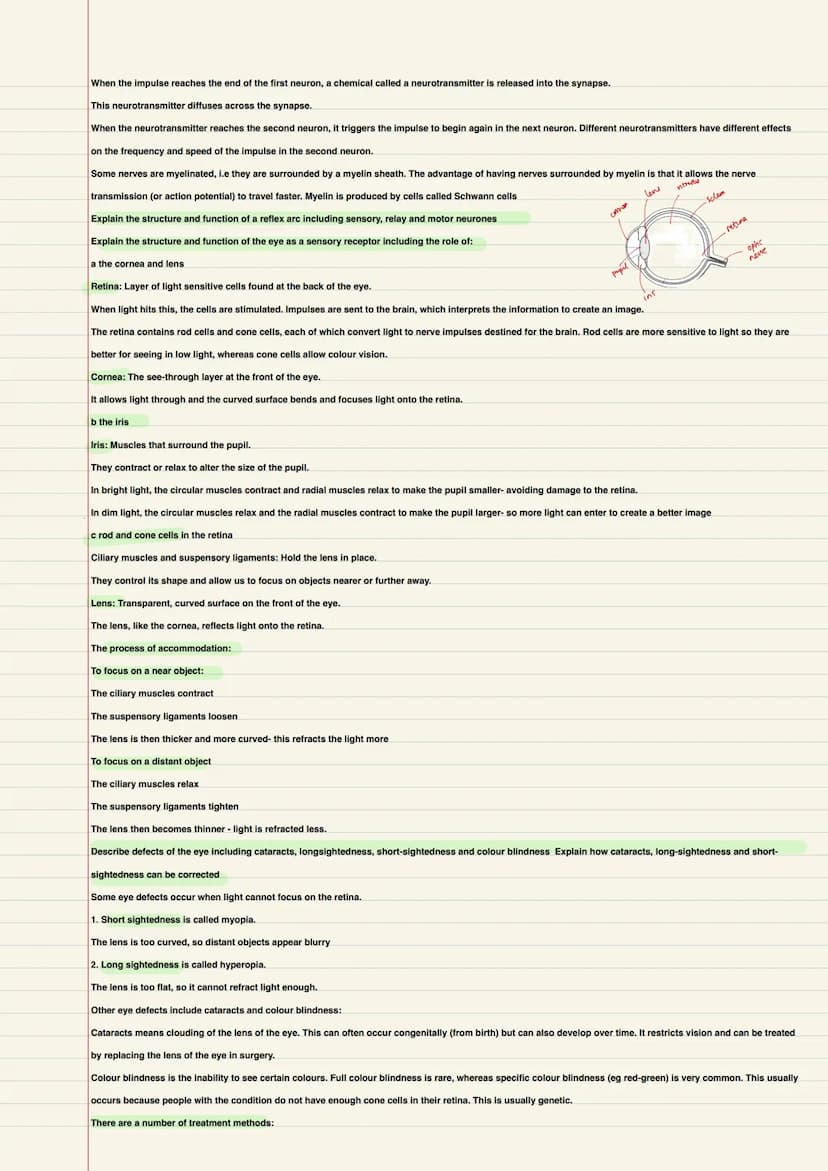

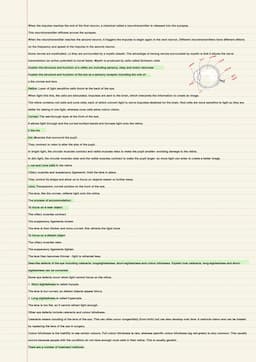

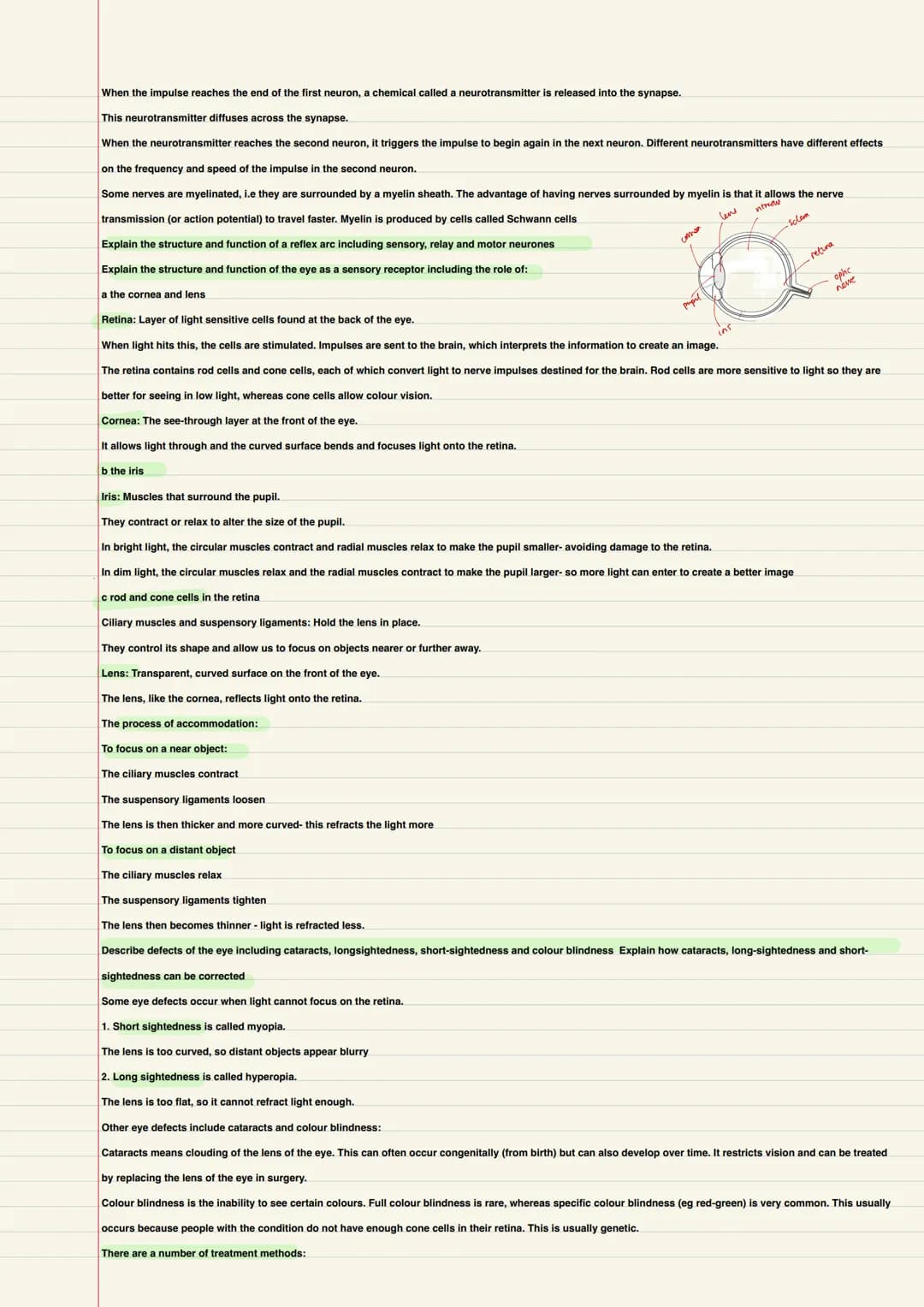

Sensory Systems and Vision

The eye exemplifies the complexity of sensory organs, demonstrating how Animal cell under electron microscope studies have enhanced our understanding of cellular specialization. The eye's structure includes several specialized components working together to enable vision.

Light enters through the cornea and lens, focusing onto the retina's photoreceptor cells. Rod cells function in low light conditions, while cone cells enable color vision. The iris controls light entry by adjusting pupil size, while ciliary muscles modify lens shape for focusing.

Example: Common vision problems include myopia (short-sightedness) and hyperopia (long-sightedness), which can be corrected with appropriate lenses or surgery.

The nervous system processes visual information through complex neural pathways. Sensory receptors convert light stimuli into electrical impulses, which travel through neurons to the brain for interpretation. This process involves specialized cells, neurotransmitters, and synaptic connections, demonstrating the intricate relationship between structure and function in biological systems.

Biology
B1- Cells and microscopy
Explain how the subcellular structures of eukaryotic and prokaryotic cells are related to their functions,

View

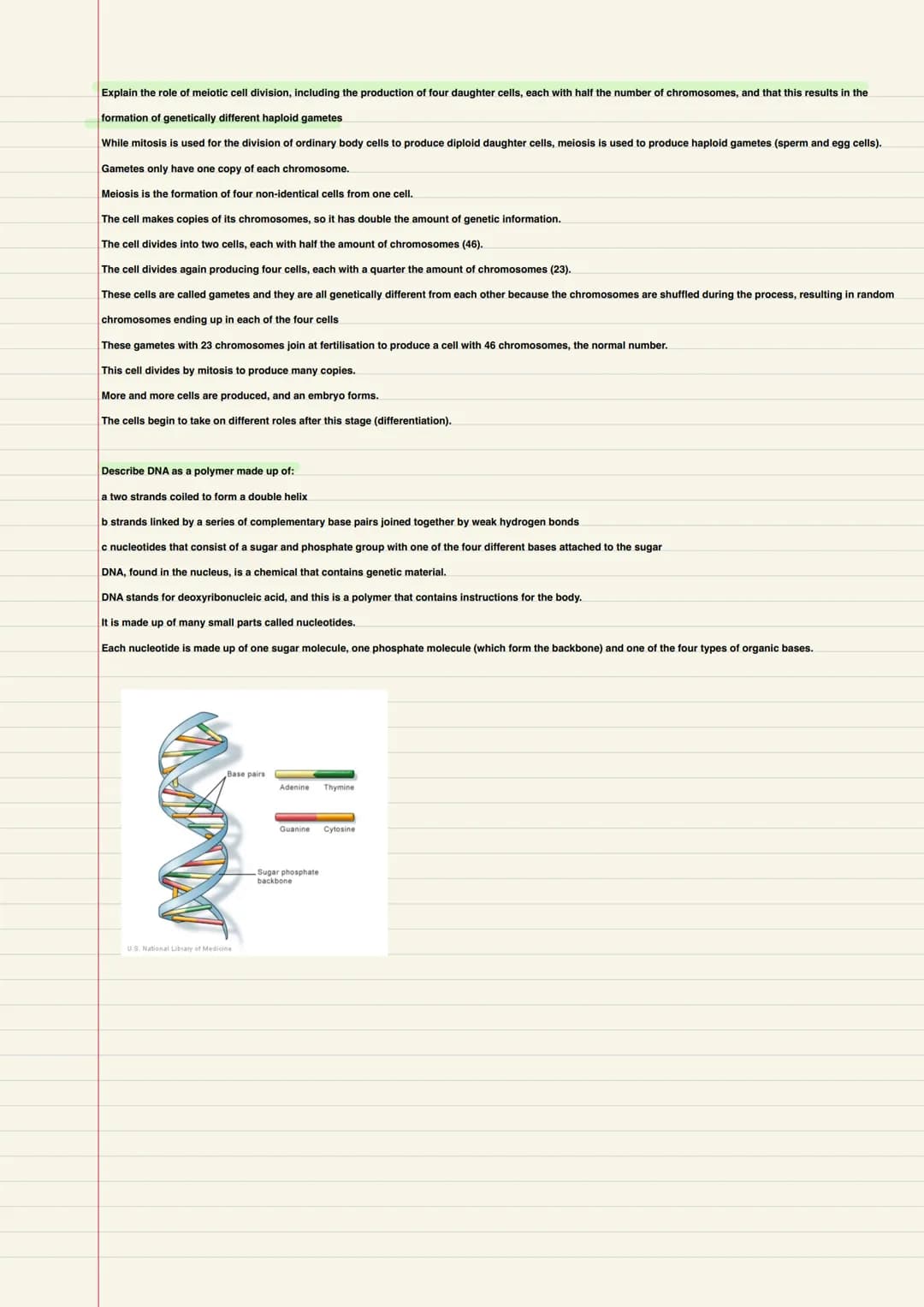

Understanding Meiosis and DNA Structure in GCSE Biology

Meiotic cell division plays a crucial role in sexual reproduction, producing genetically diverse gametes essential for life. During this process, a single parent cell undergoes two sequential divisions to form four unique daughter cells, each containing half the original chromosome number. This reduction in chromosome number is fundamental for maintaining species' chromosome count across generations.

The intricate process begins when the parent cell duplicates its chromosomes, temporarily doubling its genetic material. In humans, this means starting with 46 chromosomes and making copies to reach 92 chromosomes briefly. The first division separates these duplicated chromosomes into two cells, each receiving 46 chromosomes. The second division further splits these cells, resulting in four gametes, each containing 23 chromosomes. This difference between prokaryotic and eukaryotic cell division processes showcases the complexity of eukaryotic cell reproduction.

Definition: Gametes are specialized reproductive cells (sperm in males and eggs in females) containing half the normal number of chromosomes, making them haploid cells.

DNA's structure is equally fascinating, existing as a complex polymer arranged in the famous double helix configuration. This molecule forms the blueprint for all living organisms, with its structure perfectly suited to storing and transmitting genetic information. The DNA molecule consists of two strands coiled around each other, connected by complementary base pairs joined through hydrogen bonds.

Vocabulary: Nucleotides are the building blocks of DNA, consisting of three parts: a sugar molecule (deoxyribose), a phosphate group, and one of four nitrogen-containing bases (Adenine, Thymine, Guanine, or Cytosine).

Biology
B1- Cells and microscopy
Explain how the subcellular structures of eukaryotic and prokaryotic cells are related to their functions,

View

Microscopy and Cell Structure Analysis in GCSE Biology

Modern understanding of cellular structures has been revolutionized through advanced microscopy techniques. The development from basic light microscopes to sophisticated electron microscopes has dramatically enhanced our ability to study cellular components in unprecedented detail. This progression has been particularly important for understanding the differences between prokaryotic and eukaryotic cells.

When examining specimens under an electron microscope, scientists can observe subcellular structures with remarkable clarity. The plant cell under electron microscope reveals intricate details of organelles such as chloroplasts, mitochondria, and the cell wall structure. Similarly, animal cell under electron microscope imaging shows detailed views of cellular components impossible to see with traditional light microscopy.

Highlight: Electron microscopy has increased our understanding of subcellular structures by providing magnification up to 500,000 times, compared to light microscopes which typically achieve only 1000 times magnification.

The GCSE Biology Microscopy Required practical demonstrates how different microscopy techniques contribute to our understanding of cell structure and function. Students learn to prepare slides, calculate magnification, and understand the limitations and advantages of different microscope types. This practical knowledge is essential for comprehending how scientific understanding has evolved through technological advancement.

Example: When comparing cells and microscopes BBC Bitesize resources, students can observe how an animal cell under microscope appears differently from a plant cell under microscope, helping to identify key structural differences between these cell types.
