This document covers key concepts in cell biology and microscopy for OCR Gateway Combined Science. It explains the differences between eukaryotic and prokaryotic cells, their structures, and the types of microscopes used to study them.

Overall Summary:

The document provides an in-depth overview of cell biology and microscopy, focusing on:

  • Differences between eukaryotic and prokaryotic cells
  • Structures and functions of eukaryotic cells (animal and plant)
  • Structure of prokaryotic cells (bacterial)
  • Types of microscopes and their capabilities
  • Comparison of light and electron microscopes

Key points include:

  • Eukaryotic cells are complex and found in animals and plants
  • Prokaryotic cells are simpler and found in bacteria
  • Cell structures such as nucleus, cytoplasm, and mitochondria are explained
  • Microscopes are used to magnify and increase resolution of cell images
  • Electron microscopes offer higher magnification and resolution than light microscopes

29/12/2022

805

Biology
cells and microscopy
Y
Eukaryotes (e.g. animals and plants) made of complex
cells called eukaryotic cells..
Prokaryotes (e.g. bacter

View

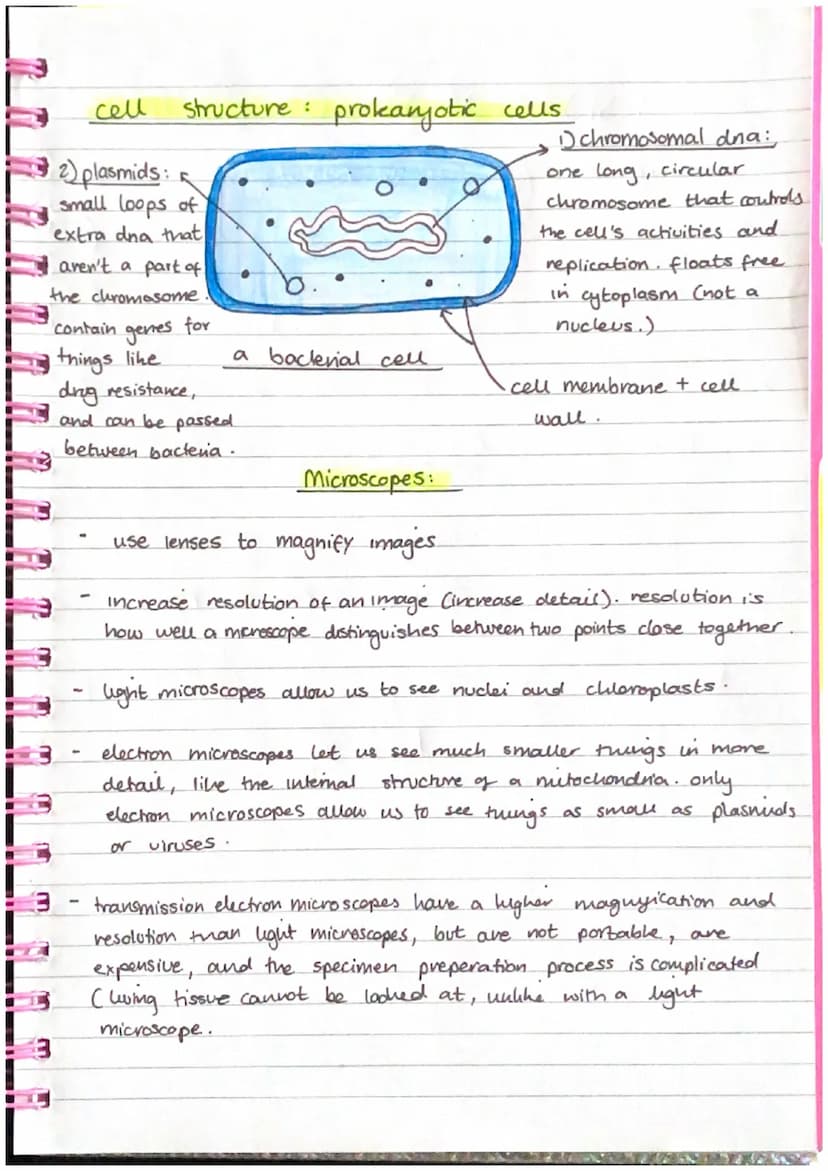

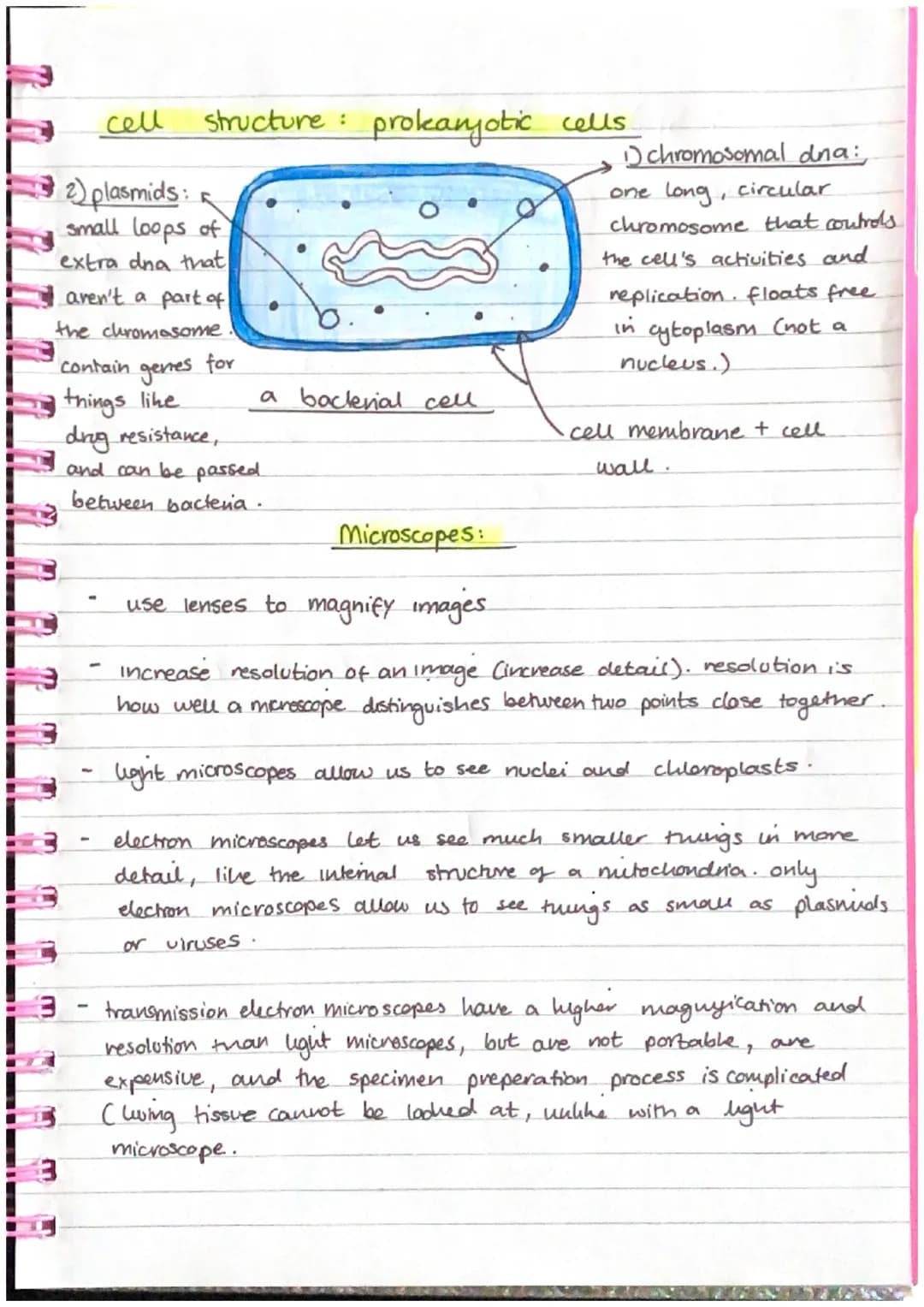

Page 2: Prokaryotic Cell Structure and Microscopy

This page delves into the structure of prokaryotic cells, specifically bacterial cells, and introduces the concept of microscopy in cell biology.

Prokaryotic Cell Structure

Definition: Prokaryotic cells are simpler than eukaryotic cells and are typically found in bacteria.

Key components of prokaryotic cells include:

  1. Chromosomal DNA: A single, long, circular chromosome that controls the cell's activities and replication. It floats freely in the cytoplasm, not enclosed in a nucleus.
  2. Plasmids: Small loops of extra DNA that contain genes for things like drug resistance and can be passed between bacteria.
  3. Cell membrane and cell wall: Provide structure and protection for the cell.

Highlight: The difference between prokaryotic and eukaryotic cell structure is significant. Prokaryotic cells lack a true nucleus and many organelles found in eukaryotic cells.

Microscopy

The page then transitions to discussing microscopes and their importance in cell biology.

Definition: Microscopes use lenses to magnify images and increase the resolution of an image, allowing scientists to see more detail.

Key points about microscopes:

  • Light microscopes allow visualization of nuclei and chloroplasts.
  • Electron microscopes provide much higher magnification and resolution, enabling scientists to see smaller structures like the internal structure of mitochondria, plasmids, or viruses.

Vocabulary: Resolution in microscopy refers to how well a microscope can distinguish between two points that are close together.

Example: While a light microscope might allow you to see the overall shape of a mitochondrion, an electron microscope would let you see its internal cristae structures.

The page concludes by comparing transmission electron microscopes to light microscopes:

  • Transmission electron microscopes offer higher magnification and resolution.
  • However, they are not portable, are expensive, and require complex specimen preparation.
  • Unlike light microscopes, electron microscopes cannot be used to observe living tissue.

Highlight: The maximum resolution of an electron microscope is significantly higher than that of a light microscope, allowing for the observation of much smaller structures.

This information is crucial for students studying OCR Gateway Combined Science topics related to cell biology and microscopy, providing a comprehensive overview of cell structures and the tools used to study them.

Biology
cells and microscopy
Y
Eukaryotes (e.g. animals and plants) made of complex
cells called eukaryotic cells..
Prokaryotes (e.g. bacter

View

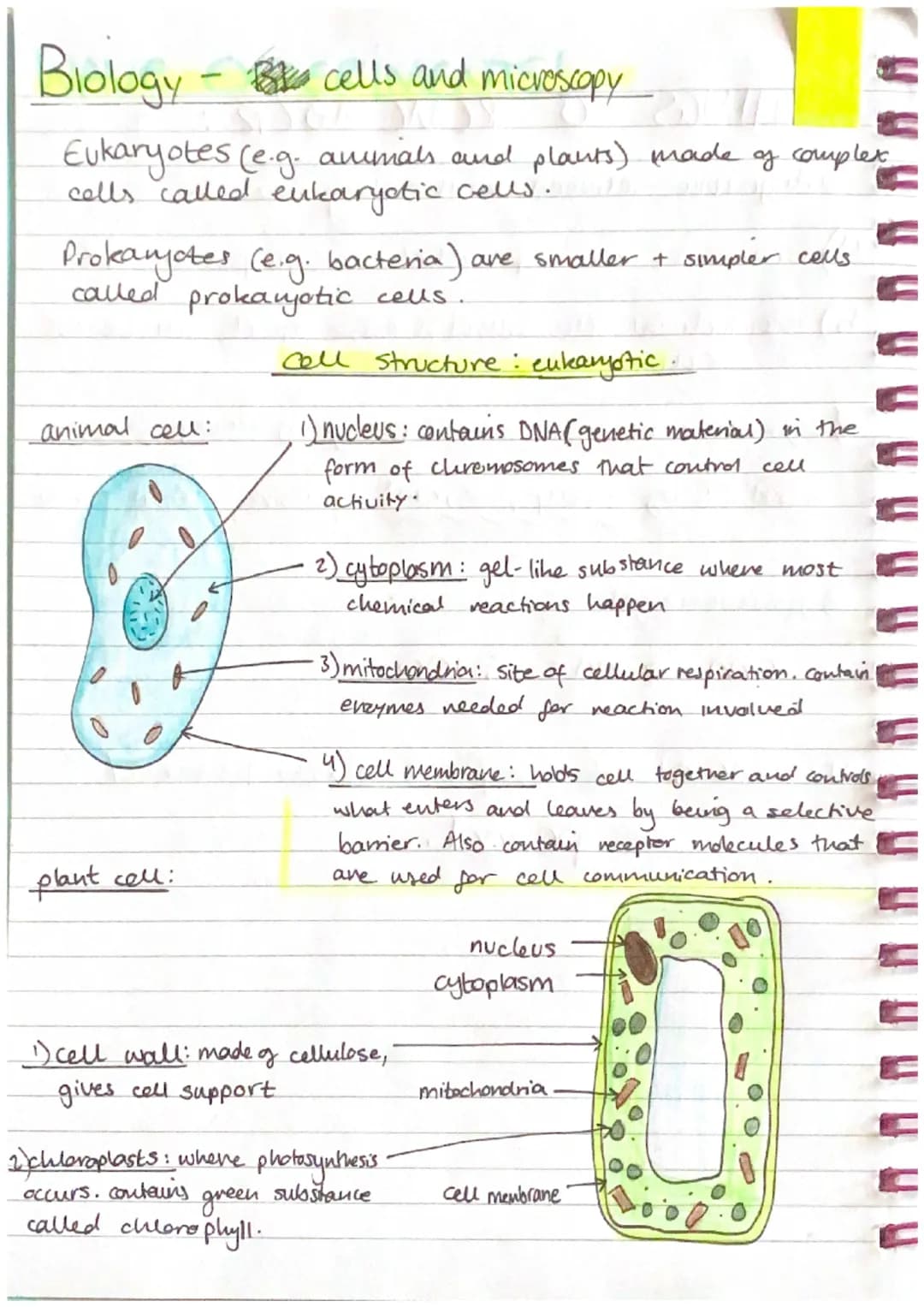

Page 1: Eukaryotic Cell Structure

This page focuses on the structure of eukaryotic cells, which are found in complex organisms like animals and plants. It provides a detailed comparison between animal and plant cells.

Definition: Eukaryotes are organisms made of complex cells called eukaryotic cells, while prokaryotes (e.g., bacteria) are made of smaller, simpler cells called prokaryotic cells.

The page outlines the key components of eukaryotic cells:

  1. Nucleus: Contains DNA in the form of chromosomes that control cell activity.
  2. Cytoplasm: A gel-like substance where most chemical reactions occur.
  3. Mitochondria: The site of cellular respiration, containing enzymes needed for the process.
  4. Cell membrane: Controls what enters and leaves the cell, acting as a selective barrier.

Highlight: The cell membrane also contains receptor molecules used for cell communication.

Plant cells have additional structures:

  1. Cell wall: Made of cellulose, providing support to the cell.
  2. Chloroplasts: Where photosynthesis occurs, containing the green pigment chlorophyll.

Vocabulary: Eukaryotic cell diagram gcse typically includes labels for the nucleus, cytoplasm, mitochondria, and cell membrane, with plant cells also showing the cell wall and chloroplasts.

The page includes detailed diagrams of both animal and plant cells, clearly illustrating the differences between them.

Example: In the animal cell diagram, you can see the nucleus centrally located, surrounded by cytoplasm containing mitochondria, all enclosed by the cell membrane. The plant cell diagram shows these same structures plus the rigid cell wall and chloroplasts.
