Understanding Cells and Membrane Transportation

S
sophie evans@sophieevans_aidy

Cells are the building blocks of all living things, and...

1
of 10
1.1 Cells And Movement Across Membranes – page 1

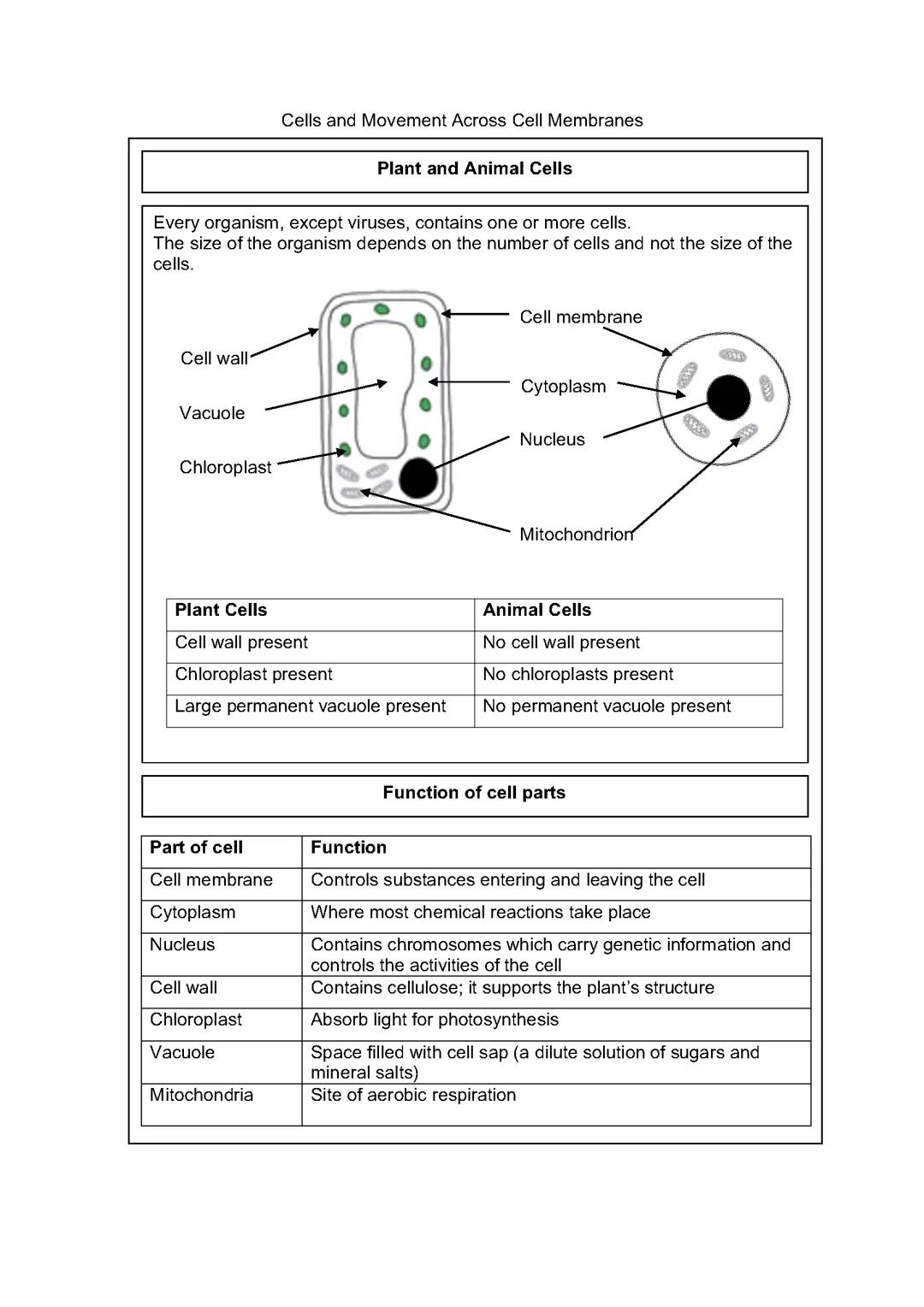

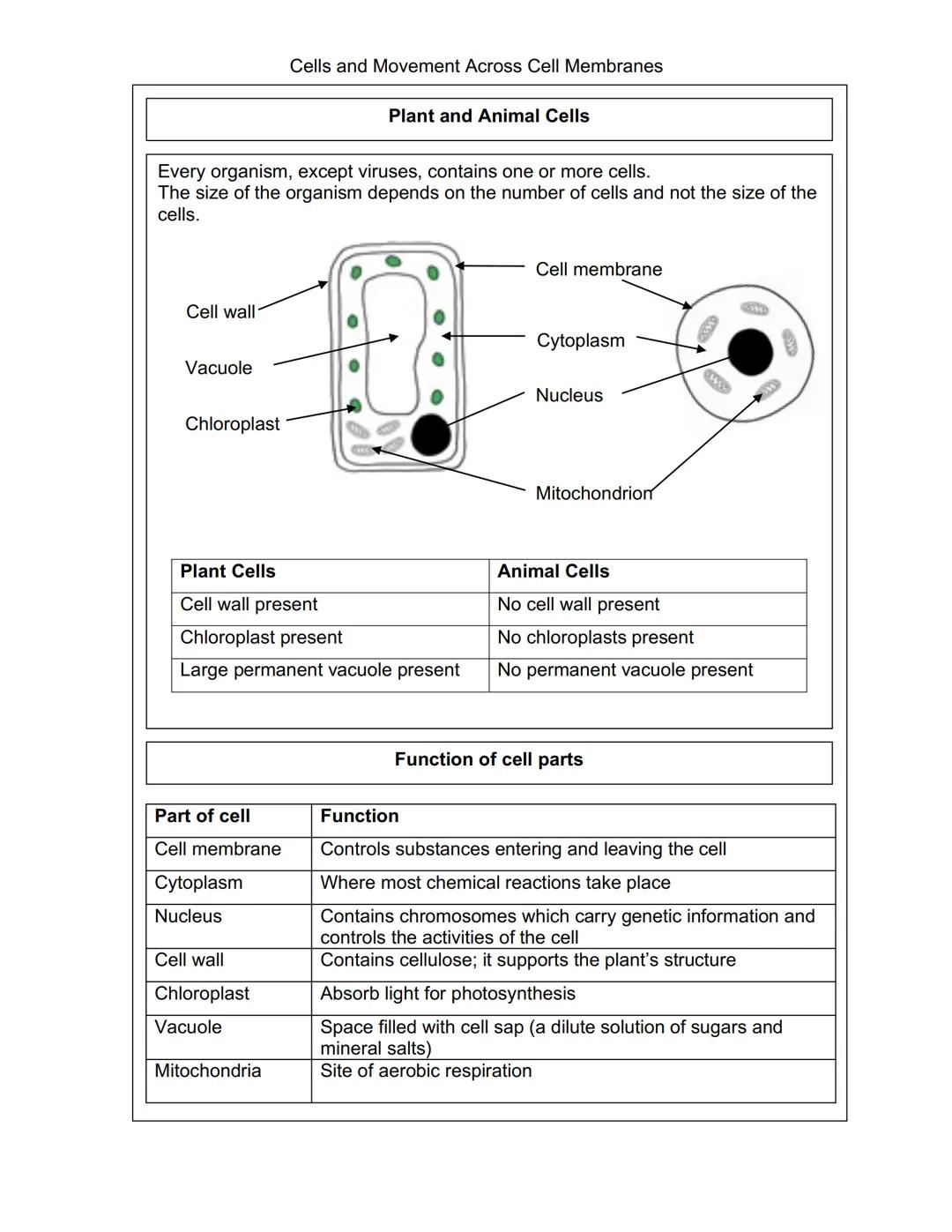

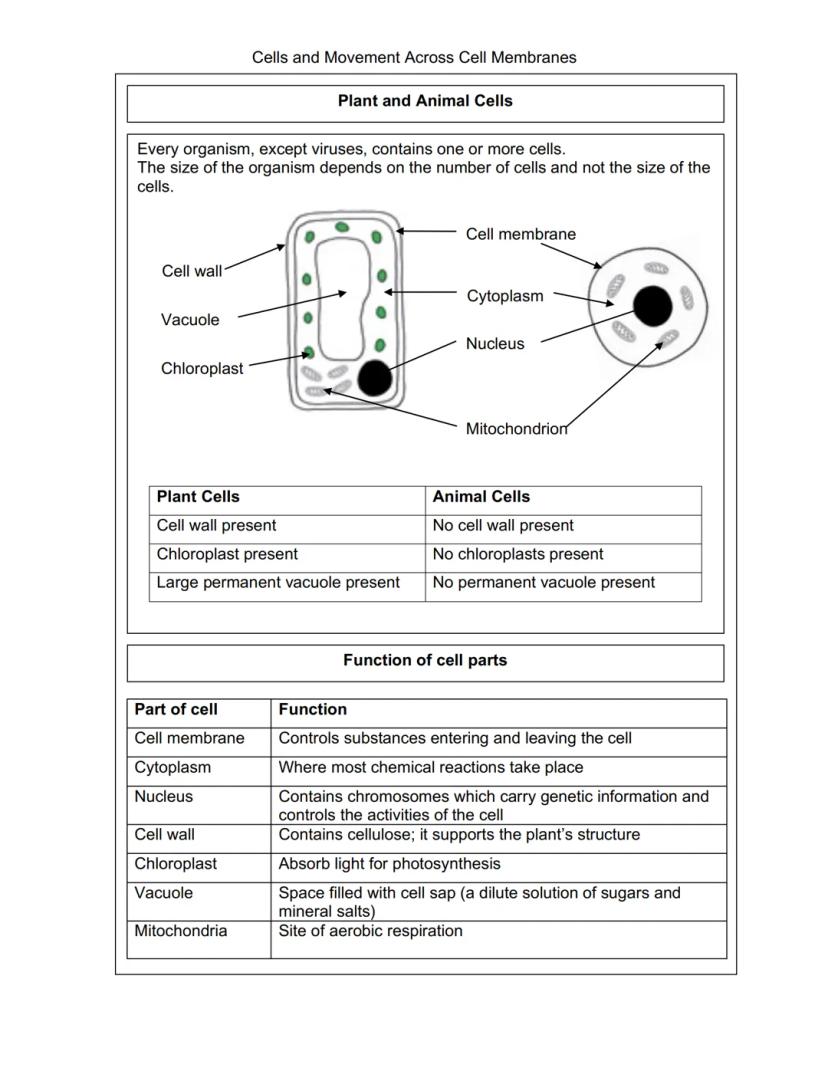

Plant and Animal Cells

Your body contains roughly 35 trillion cells, but they're not all the same! Plant cells and animal cells have key differences that you need to know for your exams.

Plant cells have three special features that animal cells don't: a cell wall made of cellulose for support, chloroplasts for photosynthesis, and a large permanent vacuole filled with cell sap. Both types of cells share some common parts though.

The cell membrane acts like a bouncer, controlling what enters and leaves the cell. The nucleus is the control centre containing chromosomes with genetic information. Cytoplasm is where most chemical reactions happen, whilst mitochondria are the powerhouses where aerobic respiration occurs.

Key Tip: Remember that the size of an organism depends on the number of cells, not their size - so elephants don't have bigger cells than mice, just more of them!

2
of 10
1.1 Cells And Movement Across Membranes – page 2

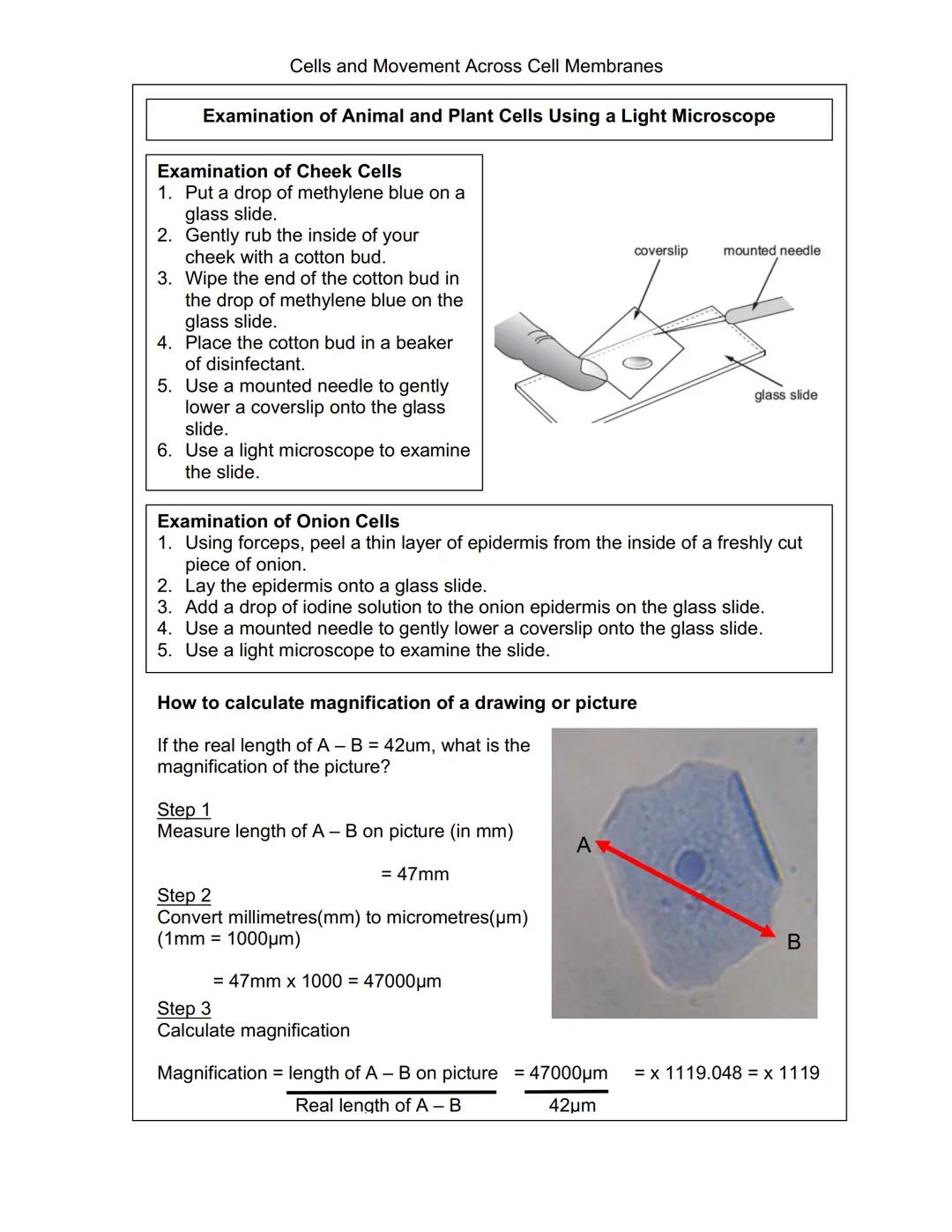

Examining Cells Under a Microscope

You'll need to know how to prepare cheek cells and onion cells for microscopy - these are common practical exam questions!

For cheek cells, use methylene blue stain on a glass slide, gently rub your cheek with a cotton bud, then wipe it in the stain. Cover with a coverslip and examine under the light microscope. For onion cells, peel a thin layer of epidermis, add iodine solution, and follow the same coverslip procedure.

Calculating magnification is straightforward once you know the formula. Measure the image length, convert millimetres to micrometres (multiply by 1000), then divide by the real length. For example: if your drawing is 47mm and the real length is 42μm, the magnification is 47,000 ÷ 42 = ×1119.

Exam Hack: Always show your working for magnification calculations - even if your final answer is wrong, you can still pick up marks for the method!

3
of 10
1.1 Cells And Movement Across Membranes – page 3

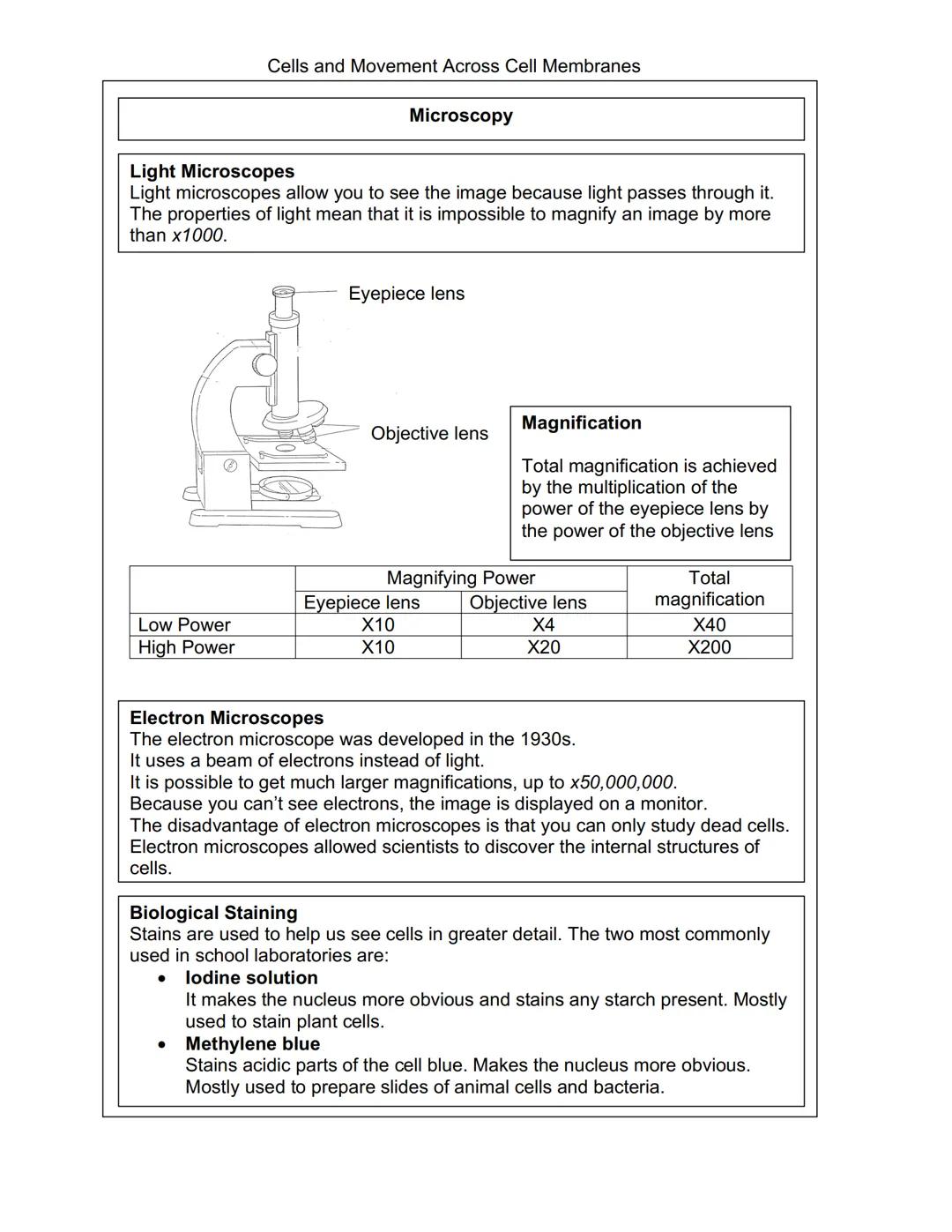

Microscopy and Staining

Light microscopes work by passing light through specimens, but they can only magnify up to ×1000. You calculate total magnification by multiplying the eyepiece lens power by the objective lens power - so ×10 eyepiece with ×20 objective gives ×200 total.

Electron microscopes are much more powerful, reaching magnifications up to ×50,000,000! They use electron beams instead of light and display images on monitors. The downside? They can only examine dead cells, whereas light microscopes can observe living cells.

Biological staining makes cell structures more visible. Iodine solution highlights the nucleus and stains starch in plant cells, whilst methylene blue stains acidic cell parts and makes nuclei stand out in animal cells and bacteria.

Remember: Electron microscopes gave scientists their first detailed look at internal cell structures - they revolutionised our understanding of cells in the 1930s!

4
of 10
1.1 Cells And Movement Across Membranes – page 4

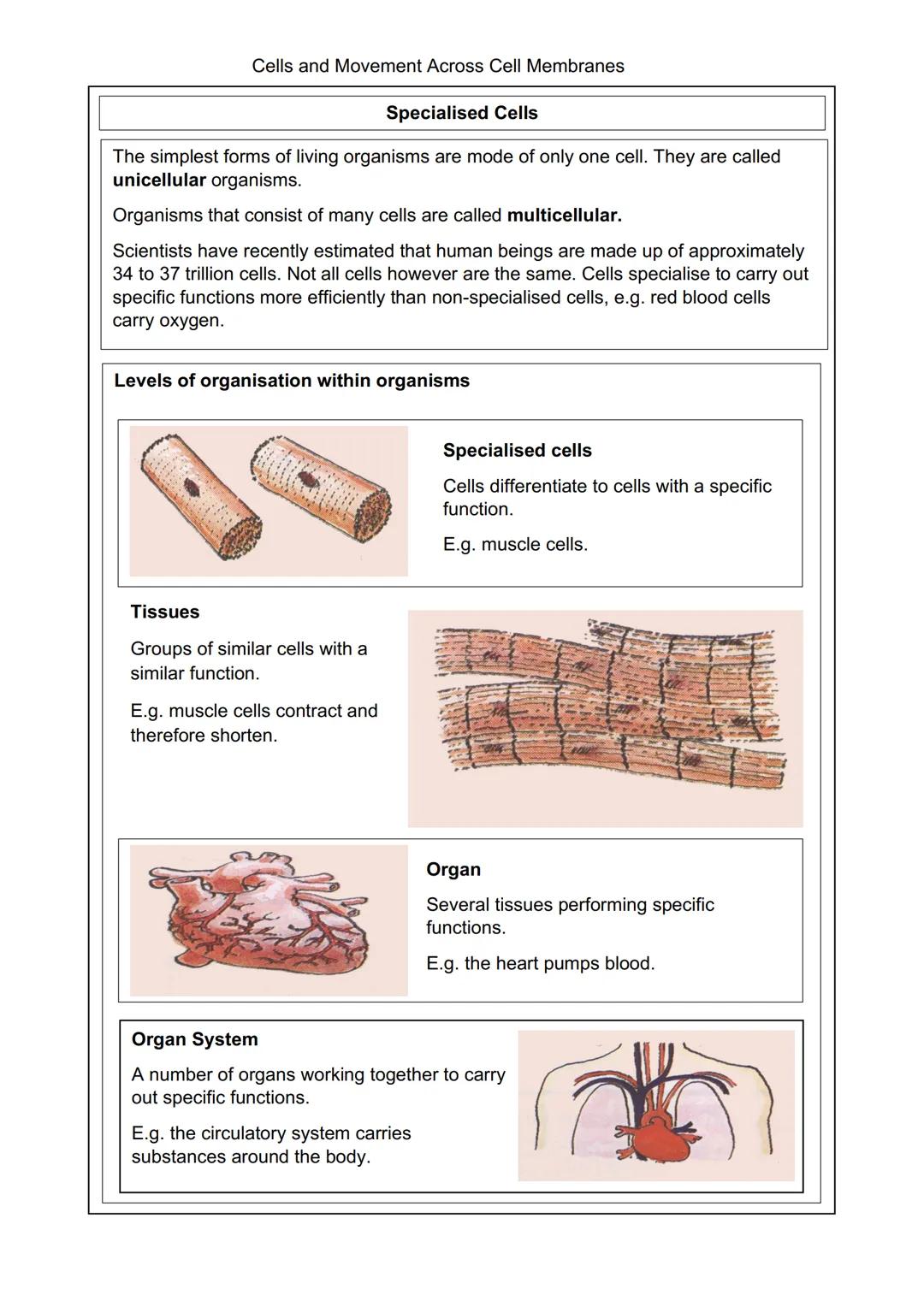

Specialised Cells and Organisation

Not all cells are identical - they specialise to do specific jobs more efficiently. Think of red blood cells carrying oxygen or muscle cells contracting to create movement.

Living things are organised in levels of complexity. Specialised cells group together to form tissues (like muscle tissue), tissues combine to make organs (like the heart), and organs work together in organ systems (like the circulatory system).

Humans are multicellular organisms made of trillions of cells, whilst some life forms are unicellular - consisting of just one cell that does everything needed for survival.

Think About It: Your body is like a massive factory where different specialised cells have specific jobs, all working together to keep you alive and functioning!

5
of 10
1.1 Cells And Movement Across Membranes – page 5

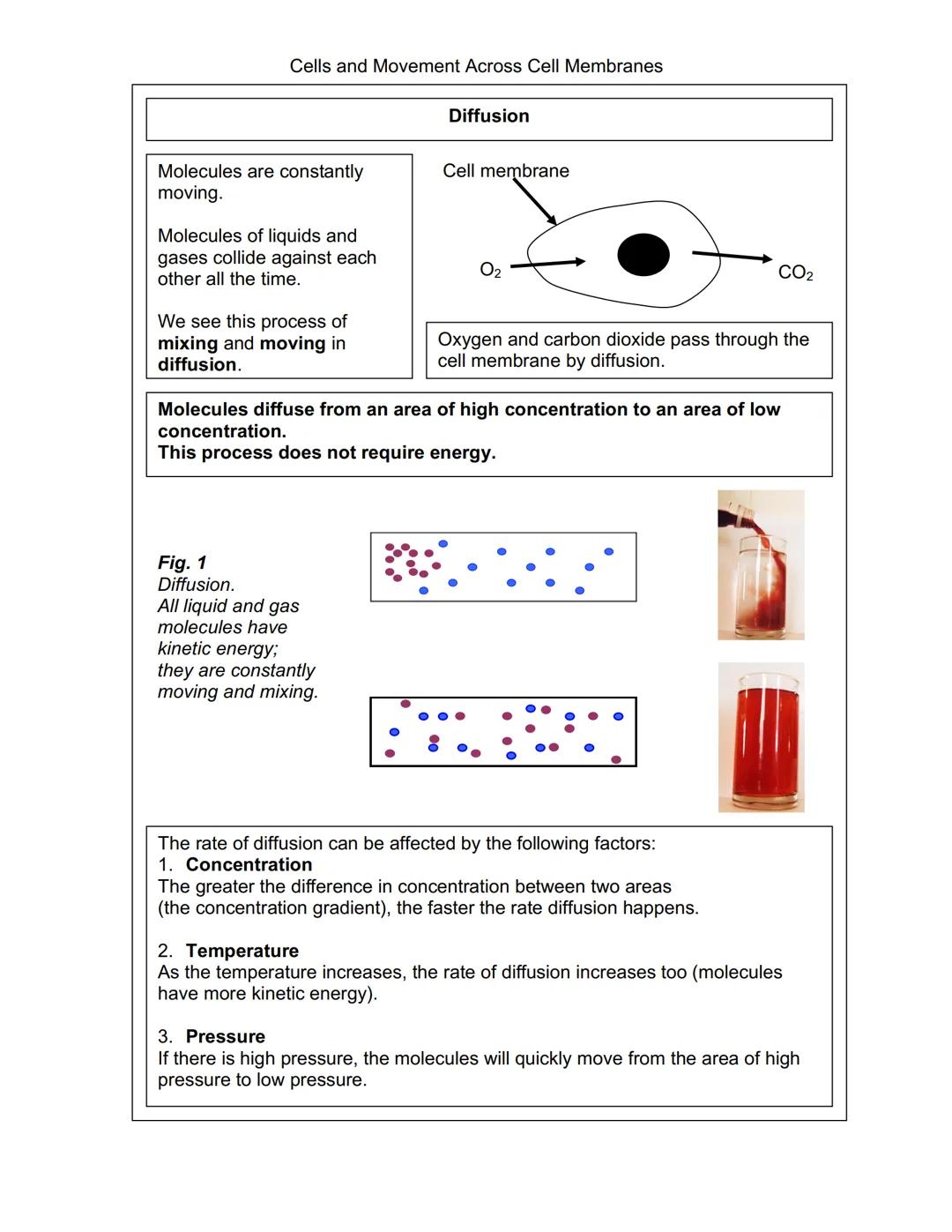

Diffusion

Diffusion is the movement of molecules from areas of high concentration to low concentration - no energy required! Molecules in liquids and gases constantly move and collide, causing this natural mixing process.

Oxygen and carbon dioxide pass through cell membranes by diffusion. This is crucial for respiration - oxygen diffuses into cells whilst carbon dioxide diffuses out as waste.

Three factors affect diffusion rate: concentration gradient (bigger differences = faster diffusion), temperature (higher temperature = more kinetic energy = faster movement), and pressure (molecules move quickly from high to low pressure areas).

Real Life Connection: When you spray perfume, diffusion spreads the scent molecules throughout the room - that's why you can smell it from across the room after a few minutes!

6
of 10
1.1 Cells And Movement Across Membranes – page 6

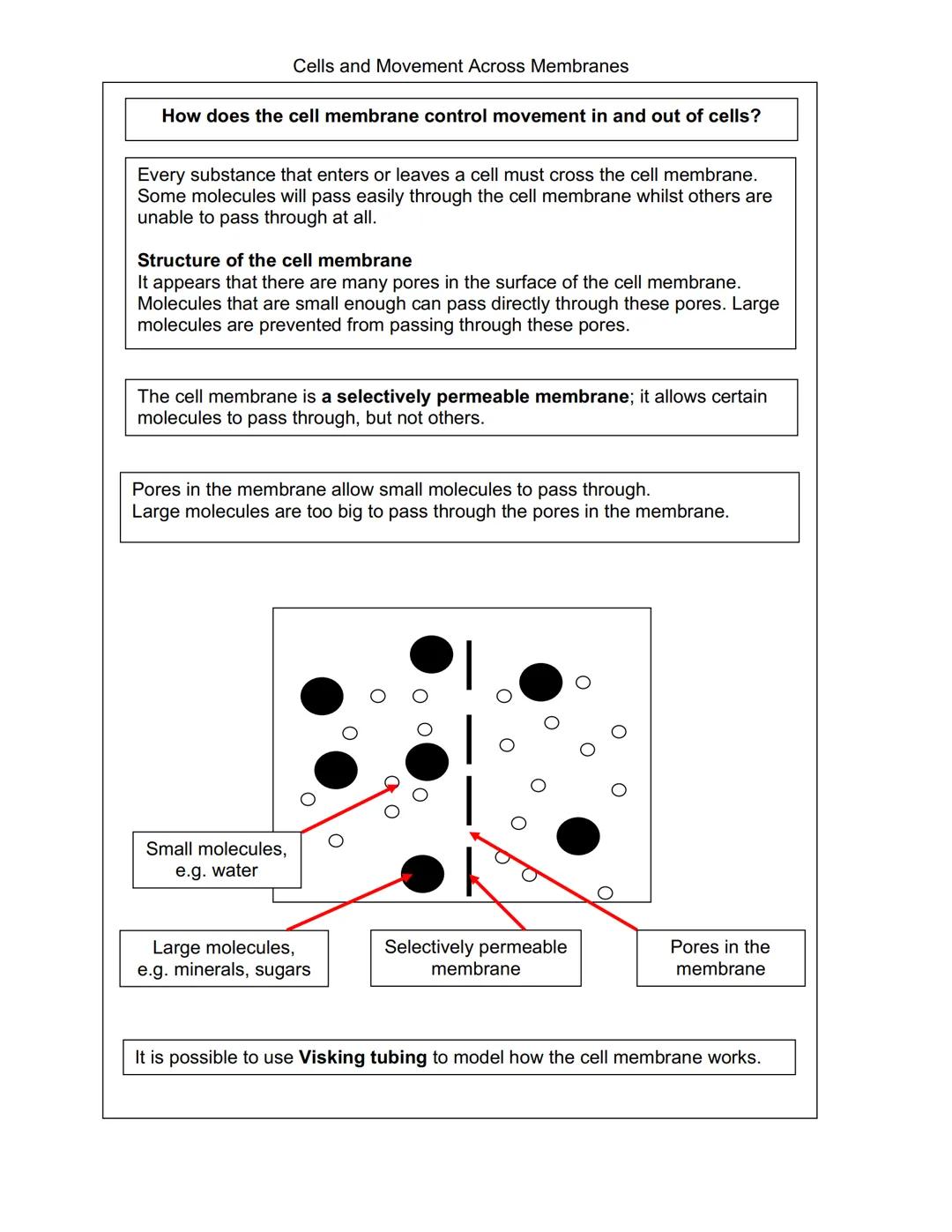

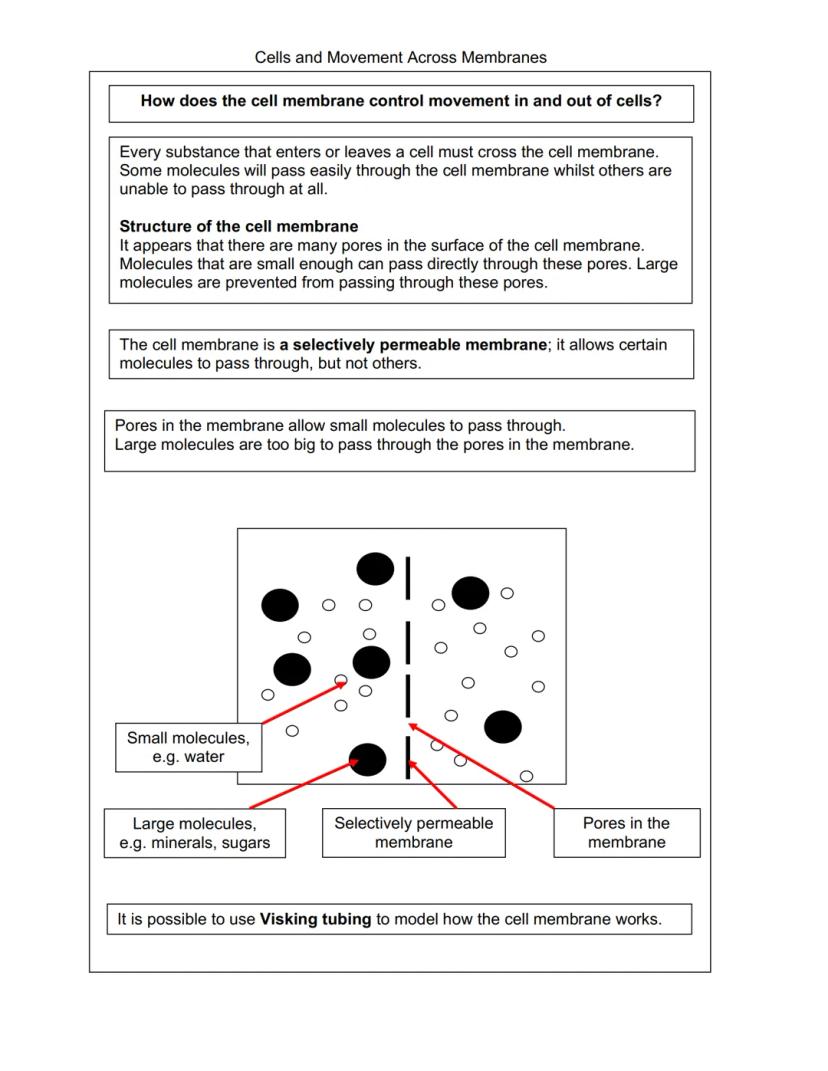

Cell Membrane Structure and Permeability

The cell membrane controls everything entering and leaving cells - it's like a selective security checkpoint. Its structure contains tiny pores that allow small molecules through whilst blocking larger ones.

This makes the cell membrane selectively permeable - it's picky about what gets through! Small molecules like water can pass through the pores easily, but large molecules like sugars and minerals are too big to fit.

You can model this using Visking tubing, which works similarly to real cell membranes. It's also selectively permeable with pores that let small molecules pass but block larger ones.

Visual Memory: Picture the cell membrane as a net - small fish (molecules) swim through the gaps, but big fish get caught and can't pass through!

7
of 10
1.1 Cells And Movement Across Membranes – page 7

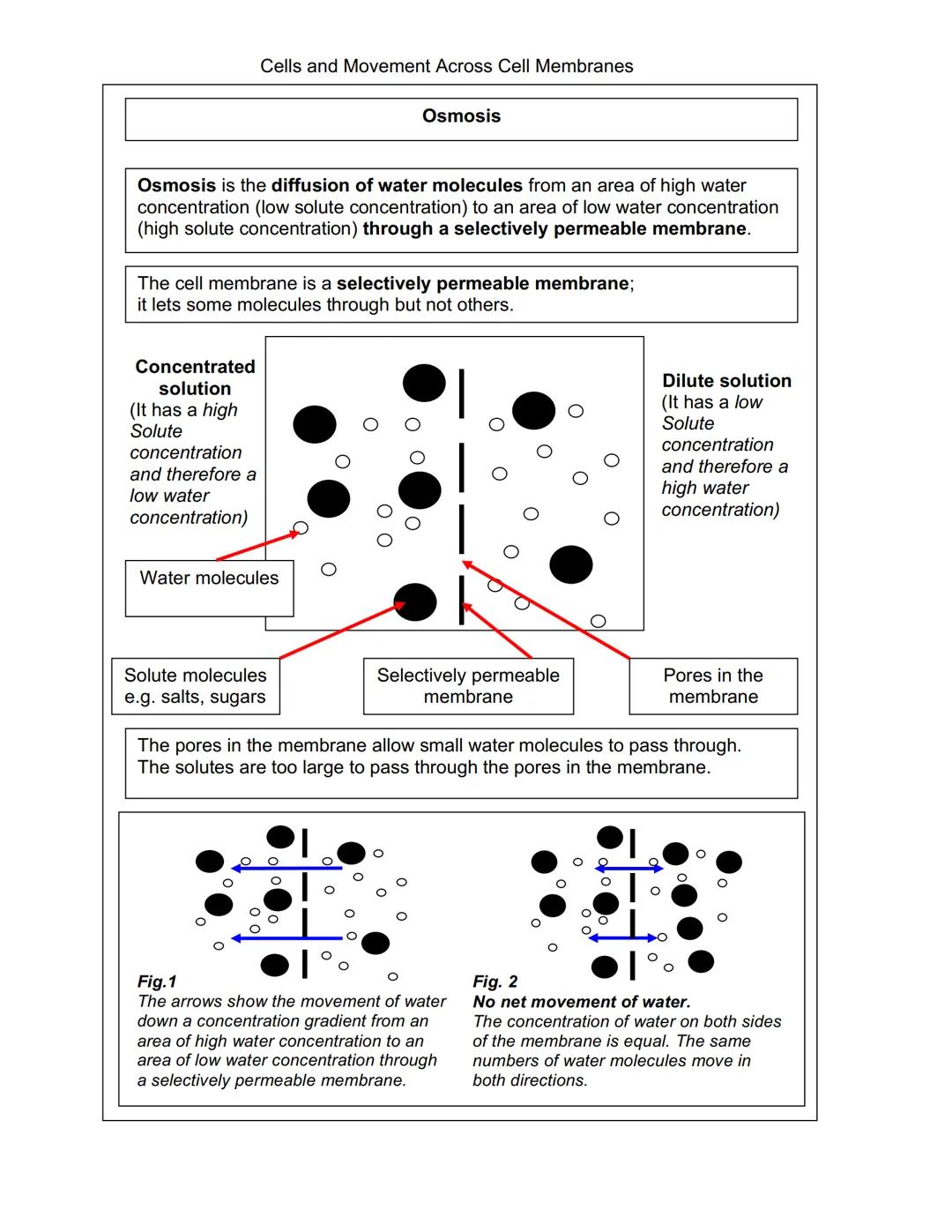

Understanding Osmosis

Osmosis is a special type of diffusion - specifically, it's water molecules moving from high water concentration to low water concentration through a selectively permeable membrane.

Here's the key concept: concentrated solutions have low water concentration (lots of solute, little water), whilst dilute solutions have high water concentration (little solute, lots of water). Water always moves down its concentration gradient.

The process reaches equilibrium when water concentration becomes equal on both sides of the membrane. At this point, there's no net movement - equal amounts of water move in both directions.

Memory Trick: Think "Osmosis = Only water" - it's the diffusion of water molecules only, not other substances!

8
of 10
1.1 Cells And Movement Across Membranes – page 8

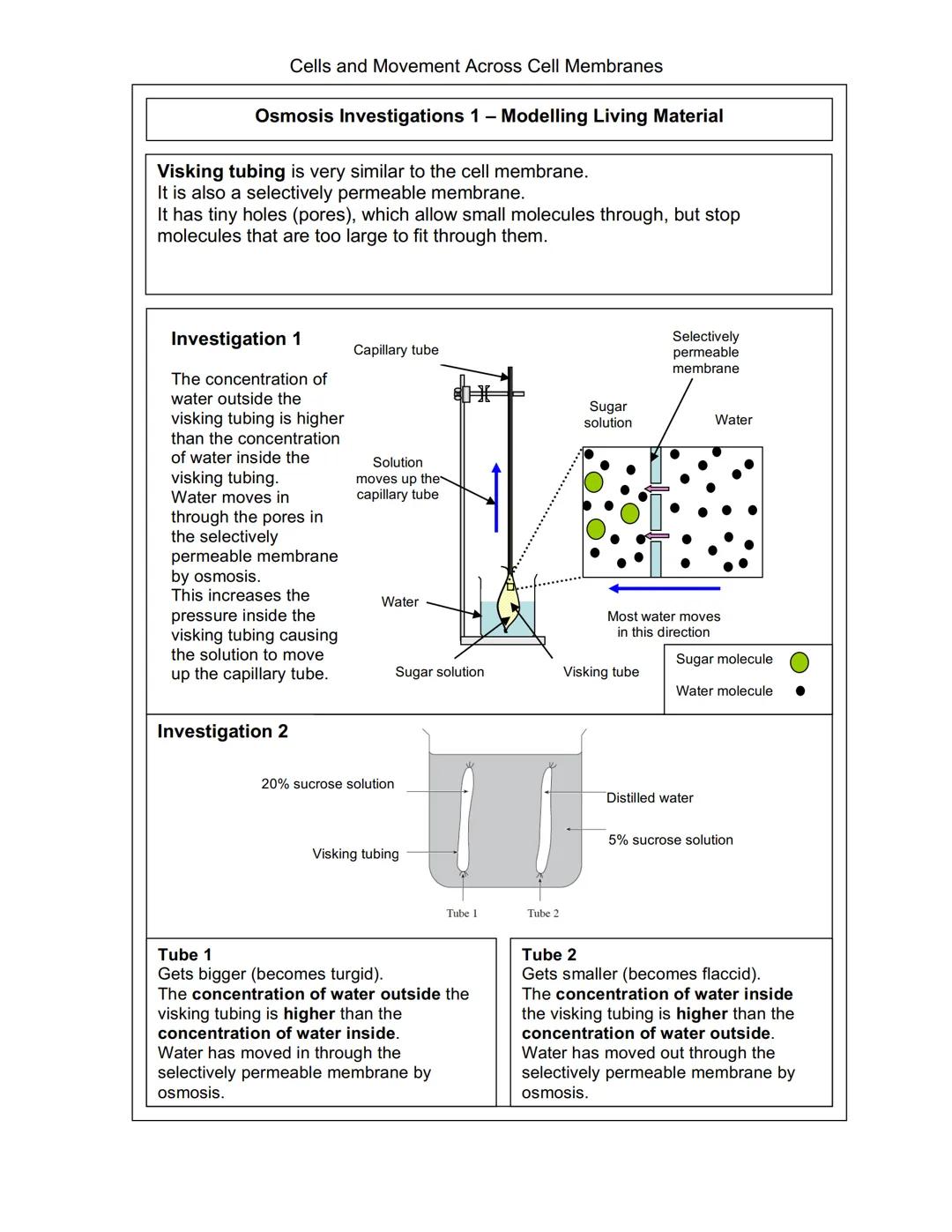

Osmosis Investigations with Visking Tubing

Visking tubing experiments help you understand osmosis in action. When you fill tubing with concentrated sugar solution and place it in water, the water moves in by osmosis, creating pressure that pushes liquid up a capillary tube.

In comparative experiments, tubing in distilled water becomes turgid (swells up) because water moves in. Tubing in concentrated solutions becomes flaccid (shrinks) because water moves out to the more concentrated external solution.

These investigations demonstrate that water always moves from areas of high water concentration to areas of low water concentration through selectively permeable membranes.

Practical Tip: Visking tubing behaves just like real cell membranes, making it perfect for modelling osmosis in living organisms!

9
of 10
1.1 Cells And Movement Across Membranes – page 9

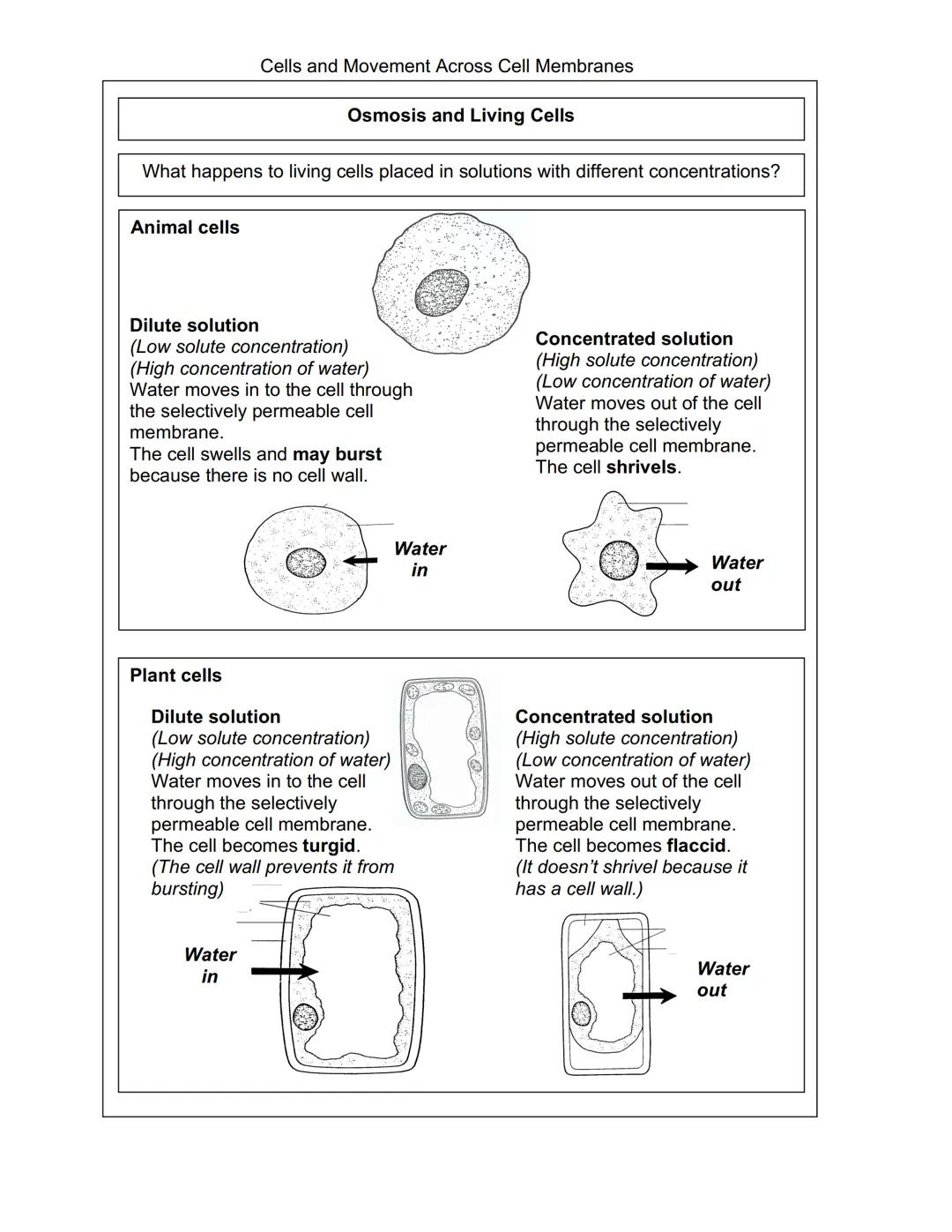

Osmosis in Living Cells

Animal cells and plant cells respond differently to osmosis because plant cells have protective cell walls. This difference is crucial for understanding how organisms survive in different environments.

In dilute solutions, animal cells swell and may burst because they lack cell walls for protection. Plant cells become turgid (firm and swollen) but don't burst because their cell walls provide structural support.

In concentrated solutions, animal cells shrivel as water leaves. Plant cells become flaccid (limp and soft) but maintain their shape thanks to the cell wall framework.

Plant Power: The cell wall is like armour protecting plant cells from bursting - that's why plants can survive in pure water whilst animal cells would explode!

10
of 10
1.1 Cells And Movement Across Membranes – page 10

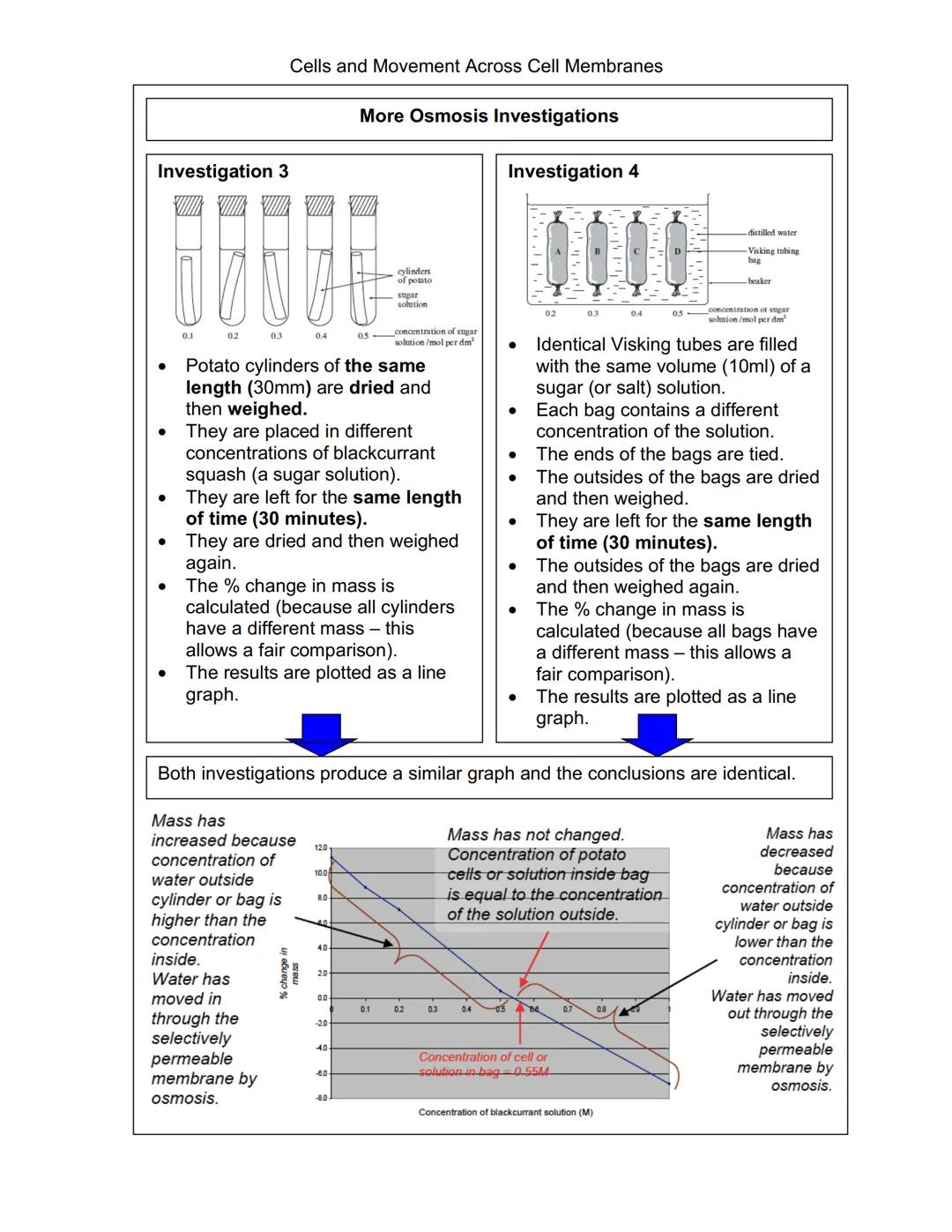

Advanced Osmosis Experiments

Two key experiments test osmosis using potato cylinders and Visking tubing bags in different sugar solution concentrations. Both produce similar results and demonstrate the same principles.

The experiments measure percentage change in mass to ensure fair comparisons between samples of different sizes. Results show mass increases in dilute solutions (water moves in), stays constant at equal concentrations, and decreases in concentrated solutions (water moves out).

Plotting results on a line graph reveals the concentration where no mass change occurs - this indicates where the internal concentration equals the external solution concentration. For potato cells, this typically occurs around 0.55M sugar solution.

Graph Skills: The point where the line crosses zero change shows you the internal concentration of the cells - a really useful piece of information for understanding cell biology!
