Electric circuits might seem complex, but they're actually quite straightforward...
Physics64 views·Updated 21 Jul 2026·5 pagesUnderstanding Electricity in Physics
Amy Wan@amymel0n
1 / 5
1
of 5

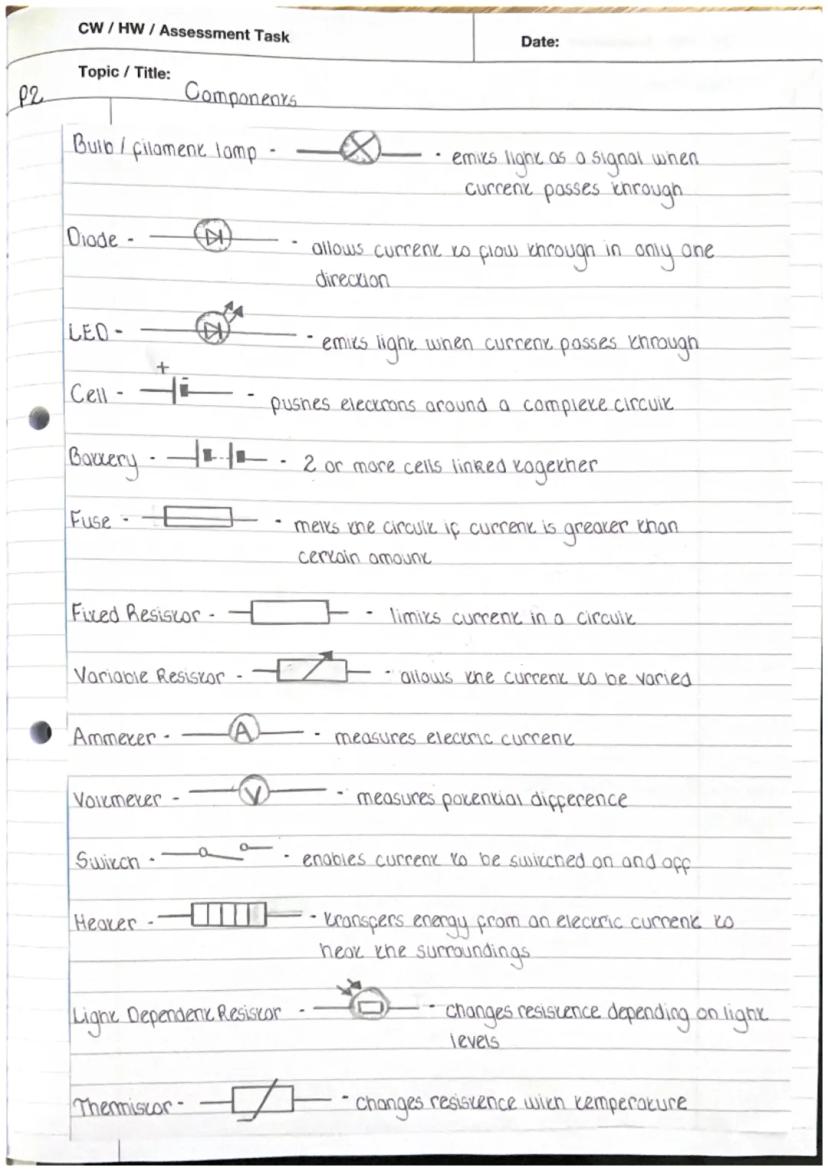

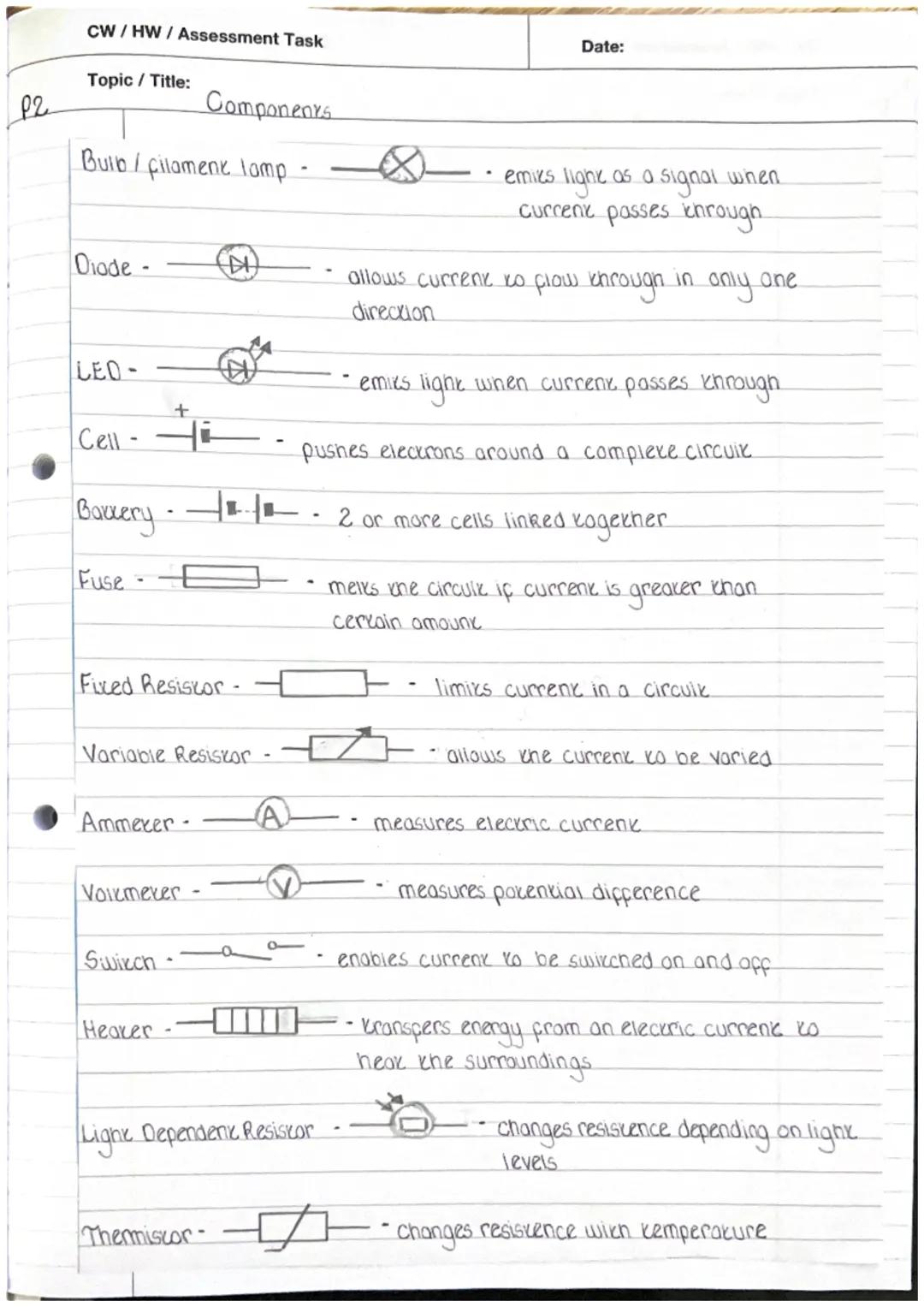

Circuit Components You Need to Know
Understanding circuit symbols is like learning the alphabet of electronics - once you know them, you can read any circuit diagram. The most essential components include cells (which push electrons around circuits) and batteries (multiple cells working together).
Resistors are crucial for controlling current flow. Fixed resistors limit current by a set amount, while variable resistors let you adjust the current - think of a dimmer switch for lights. Some resistors even respond to their environment: light dependent resistors (LDRs) change resistance based on brightness, and thermistors change with temperature.
Safety components like fuses protect circuits by melting if too much current flows through. Meanwhile, measuring devices like ammeters (for current) and voltmeters (for potential difference) help you understand what's happening in your circuit.
Quick Tip: Remember that LEDs and regular bulbs both emit light, but LEDs are much more efficient and last longer!
2
of 5

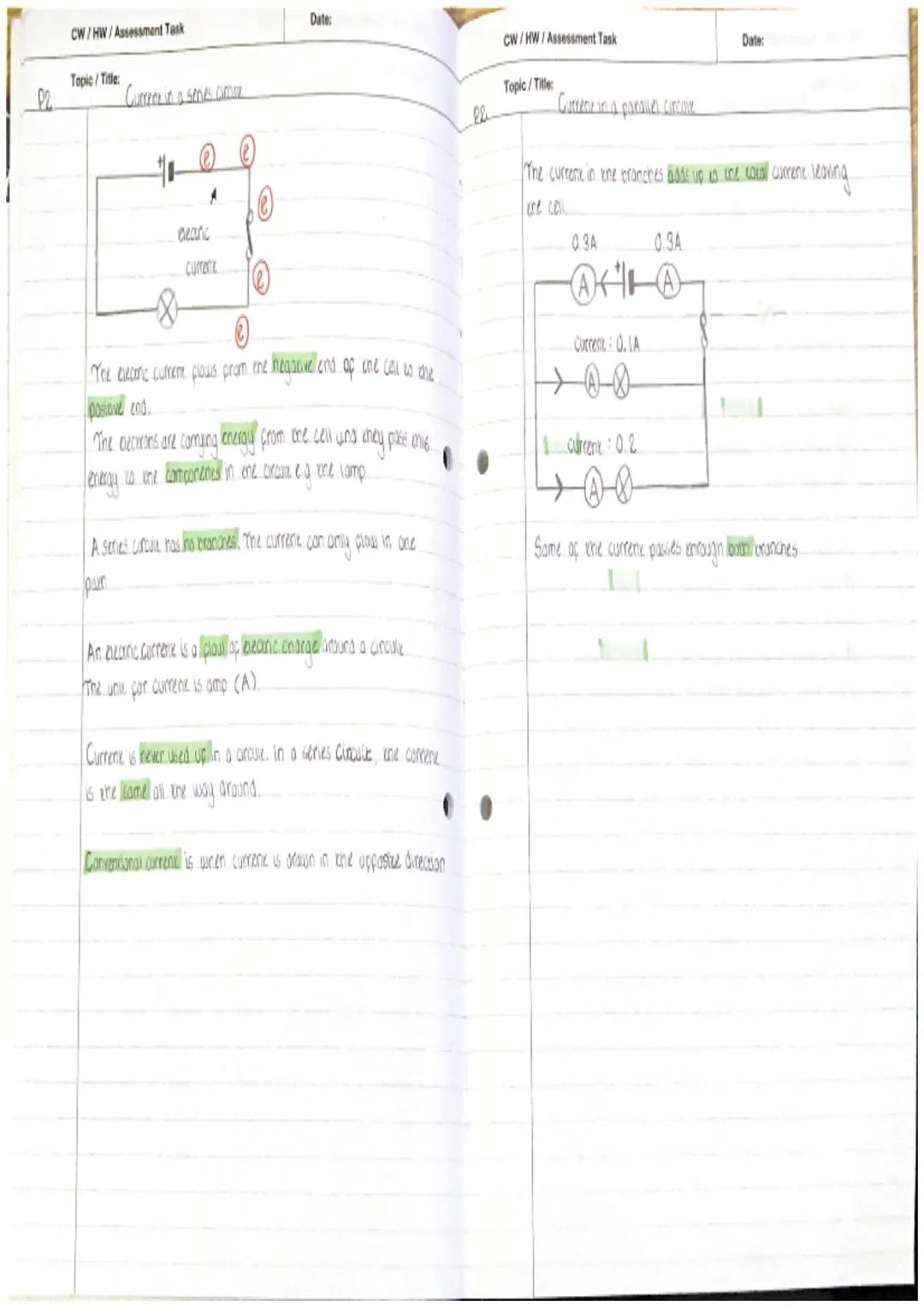

Current in Series and Parallel Circuits
Electric current flows like a river of electrons carrying energy around a circuit, measured in amperes (A). The key rule to remember: current is never "used up" - it's the same all the way around a series circuit.
In a series circuit, there's only one path for current to take. This means if one component breaks, the whole circuit stops working (like old Christmas lights). The current has the same value everywhere in the loop.
Parallel circuits work differently - they have multiple branches for current to flow through. The total current splits up between the branches, then rejoins before returning to the cell. If you measure 0.3A leaving the cell, and one branch carries 0.1A while another carries 0.2A, they add up perfectly .
Remember: In series circuits, current stays constant. In parallel circuits, current divides between branches but the total always adds up!
3
of 5

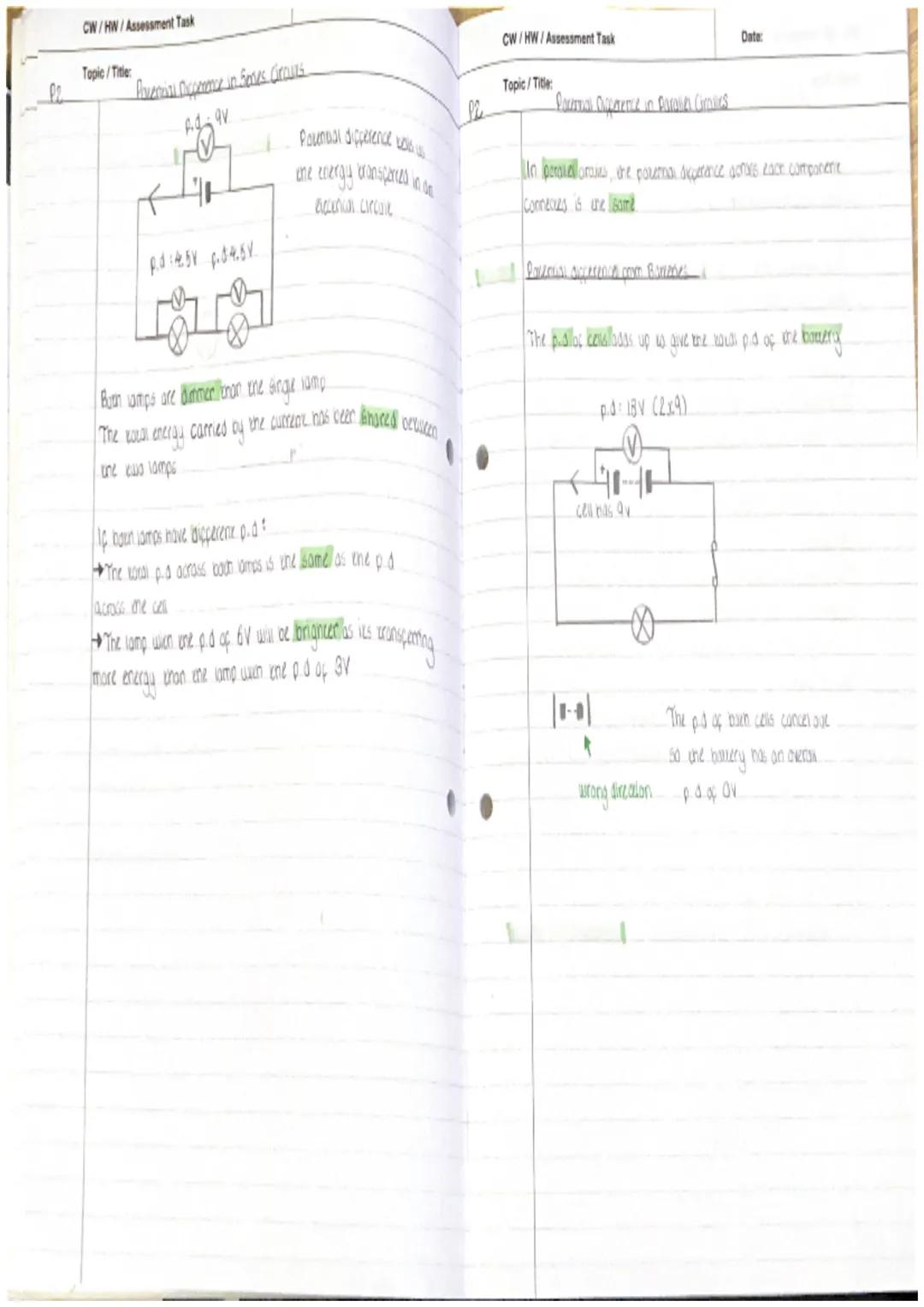

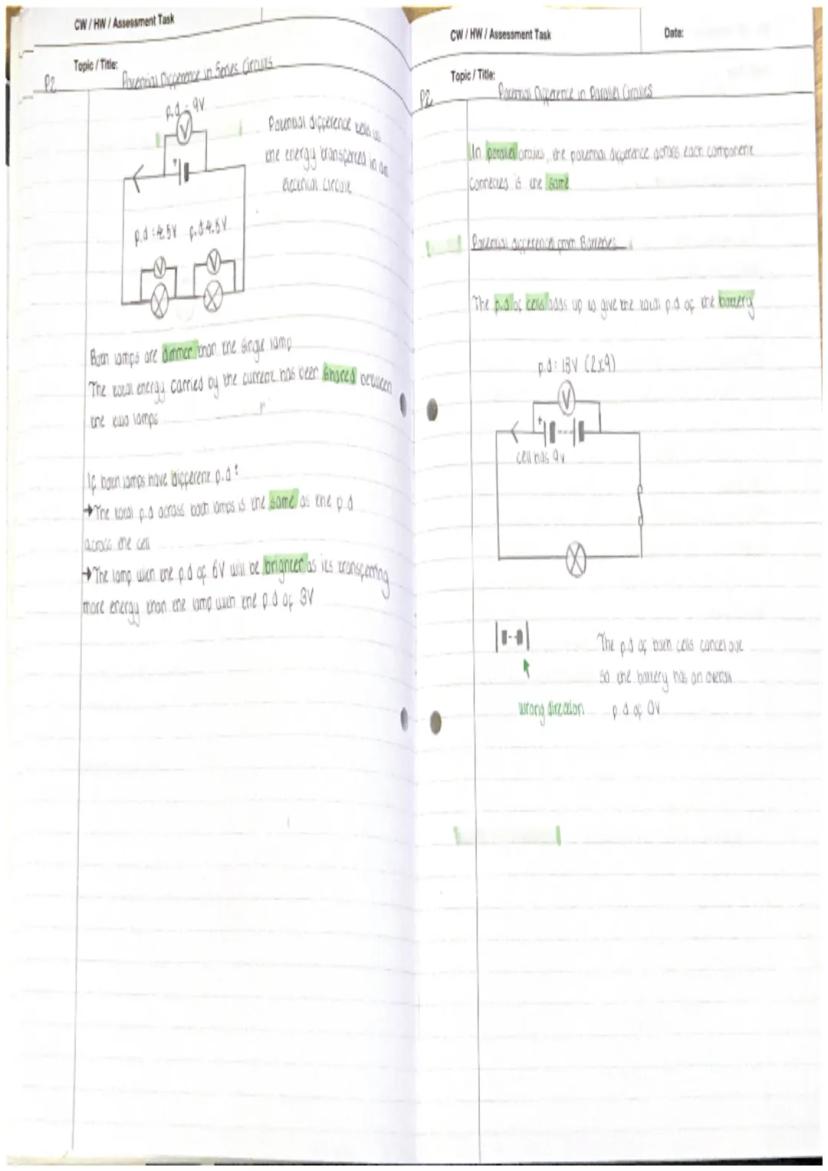

Potential Difference in Circuits
Potential difference (or voltage) is the electrical "push" that drives current through components - think of it as electrical pressure. In series circuits, this voltage gets shared between all components, like splitting a pizza between friends.
When you connect identical bulbs in series, each gets an equal share of the total potential difference. This is why bulbs in series are dimmer than when connected alone - they're each getting less voltage to work with.
Parallel circuits behave completely differently. Here, each branch gets the full voltage from the cell, which is why bulbs in parallel shine brighter than those in series. The potential difference across each parallel branch equals the cell's total voltage.
Key Point: Series circuits share voltage between components, while parallel circuits give full voltage to each branch - that's why your house uses parallel wiring!
4
of 5

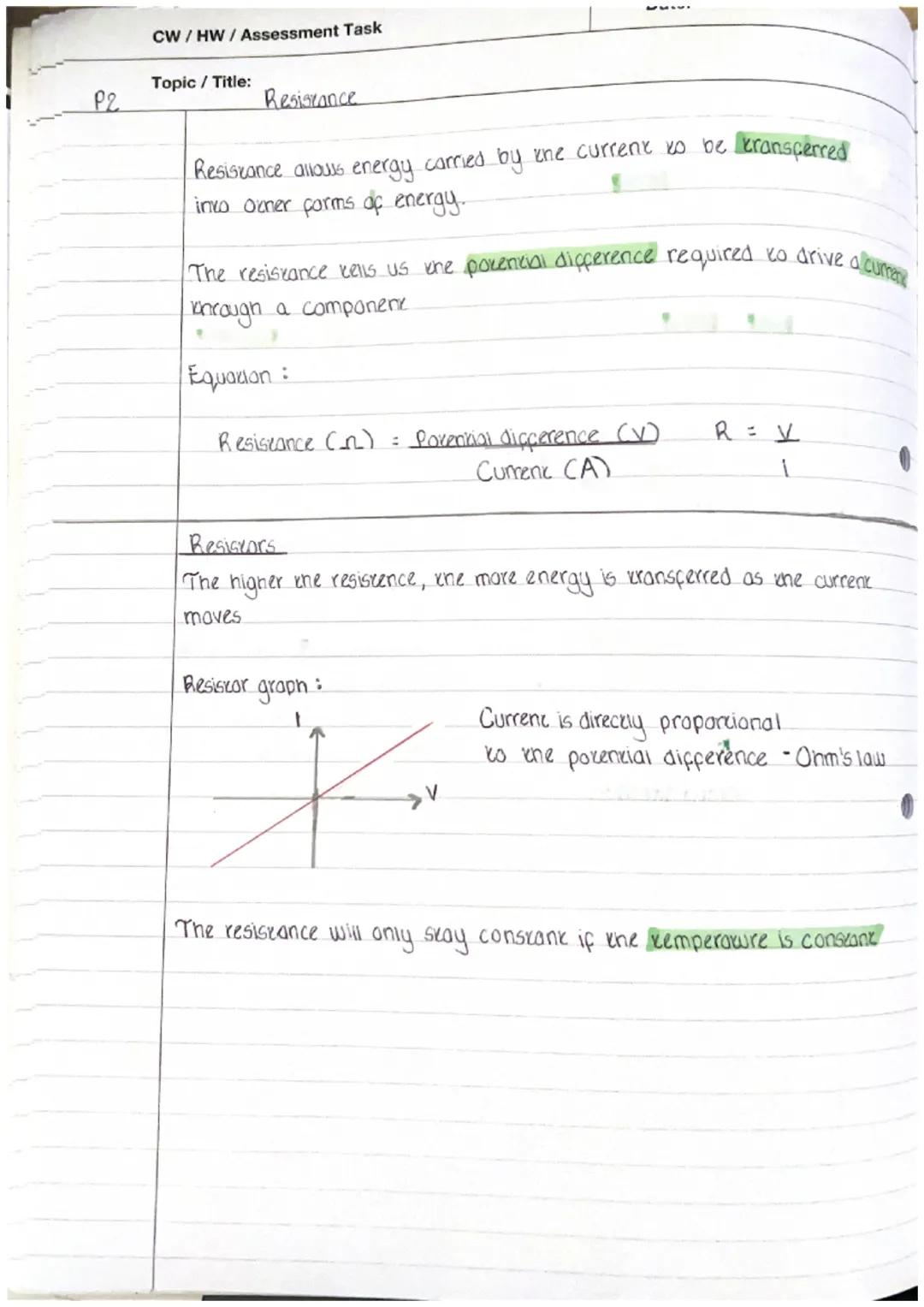

Understanding Resistance
Resistance determines how much a component opposes the flow of current, measured in ohms (Ω). Think of it like a narrow pipe restricting water flow - higher resistance means less current can pass through.
The relationship between voltage, current, and resistance follows Ohm's Law: Resistance = Voltage ÷ Current . This equation is your best friend for circuit calculations and will appear constantly in your exams.
For fixed resistors, the resistance stays constant as long as temperature doesn't change. This creates a straight line on a current-voltage graph, showing that current increases proportionally with voltage.
Exam Tip: Master the resistance equation R = V/I - you'll use it in almost every circuit calculation question!
5
of 5

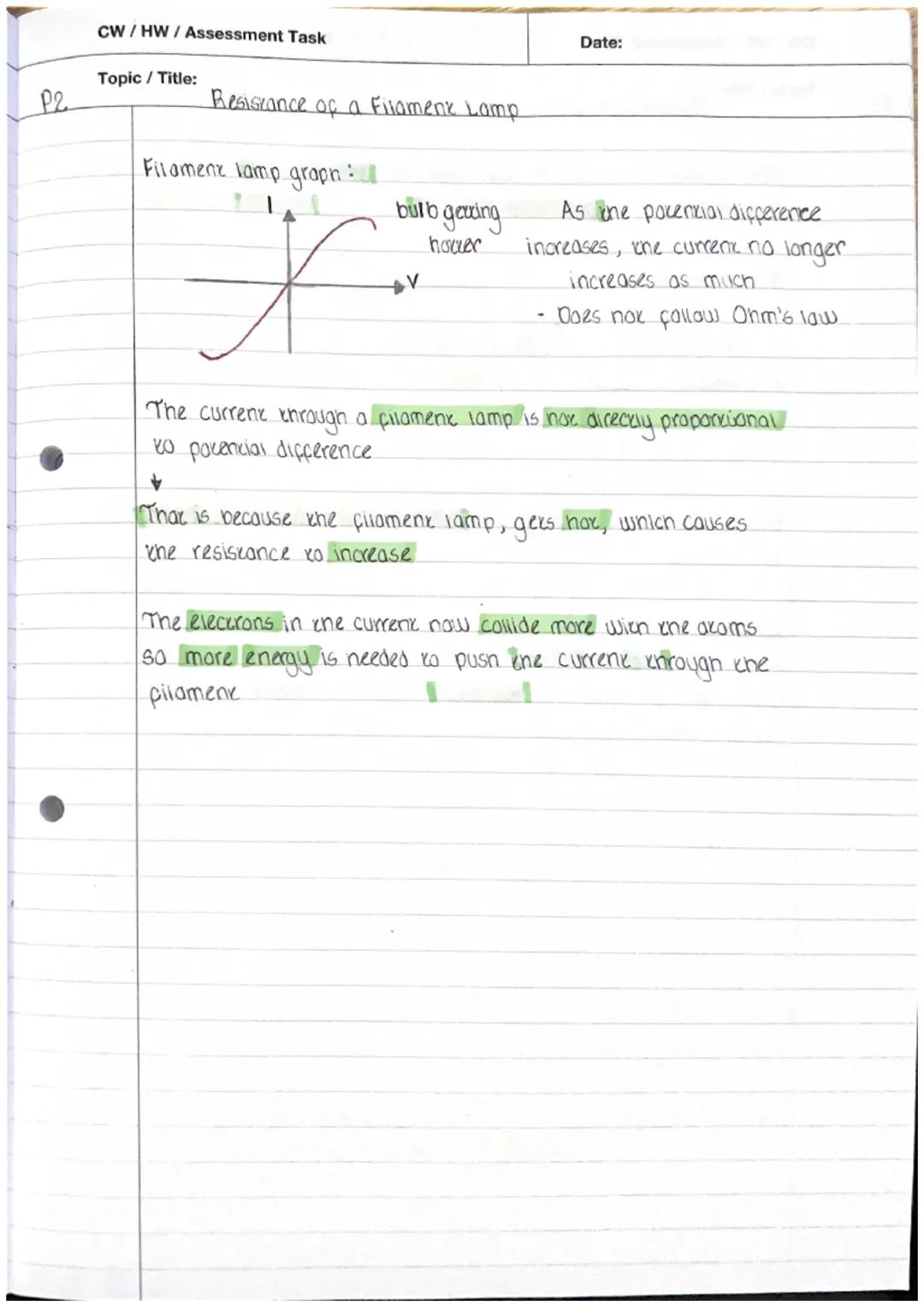

Filament Lamp Resistance
Filament lamps break the rules you've just learned about resistors, and that's what makes them interesting! Unlike fixed resistors, their resistance changes as they heat up.
When you increase the potential difference across a filament bulb, it gets hotter and brighter. However, this heat causes the resistance to increase, which means less current flows than you'd expect from Ohm's Law.
The reason is simple: as the filament heats up, electrons collide more frequently with the hot metal atoms. These extra collisions make it harder for current to flow, effectively increasing the resistance. This is why a filament lamp's current-voltage graph curves rather than forming a straight line.
Physics Insight: This heating effect is actually useful - it's how the bulb produces light, converting electrical energy into heat and light energy!
