Ever wondered how a simple spanner can help you loosen...
Physics190 views·Updated 27 Aug 2026·2 pagesUnderstanding Moments: Formula, Examples, and Applications
I
Inyiego Coheh@yumify
1
of 2

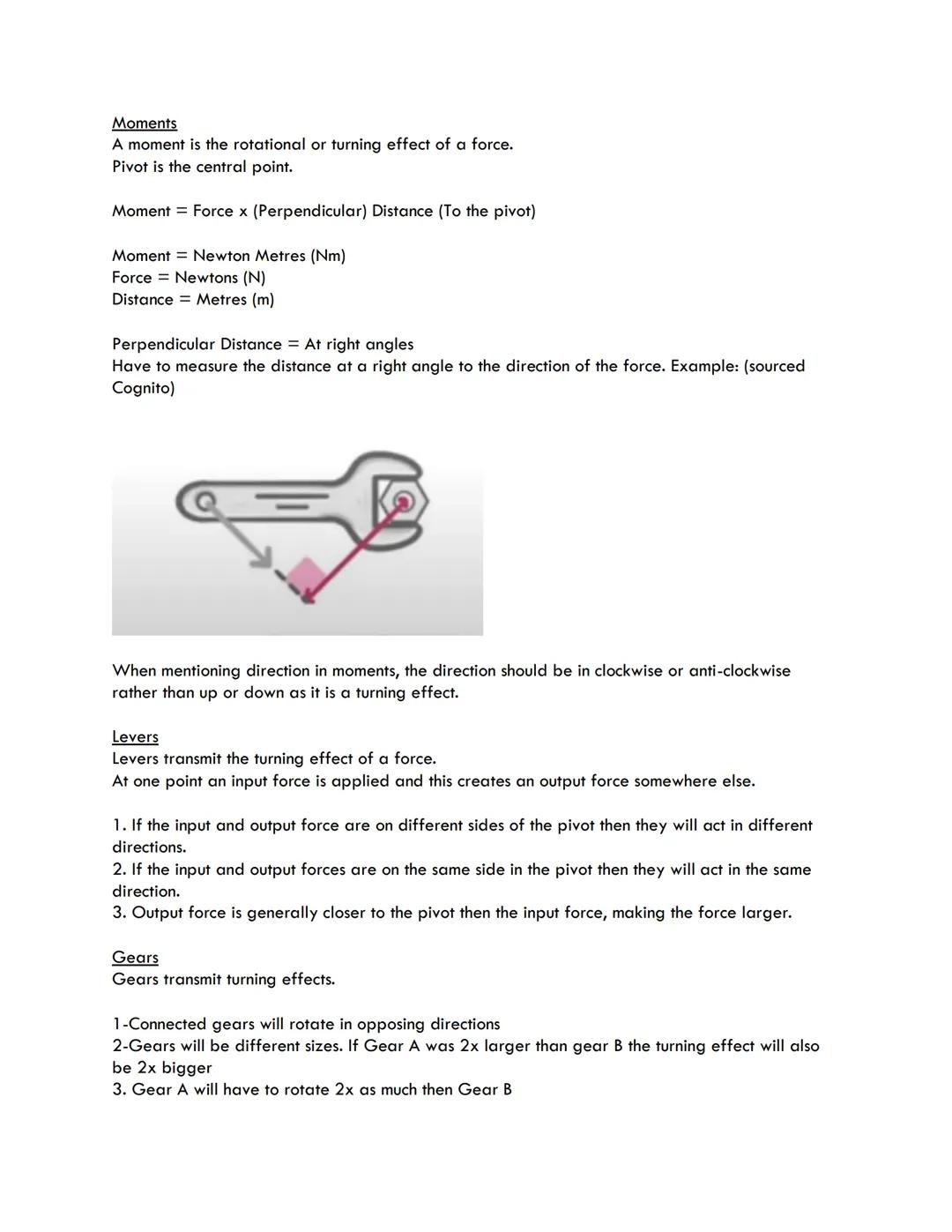

Understanding Moments and Forces
Moments are basically the turning or twisting effect that happens when you apply a force. Think about using a spanner - the longer the handle, the easier it is to turn a bolt.
The formula is dead simple: Moment = Force × Perpendicular Distance. You measure moments in Newton metres (Nm), force in Newtons (N), and distance in metres . The key word here is "perpendicular" - you must measure the distance at right angles to the direction of your force.
When describing moments, always use clockwise or anti-clockwise directions rather than up or down. After all, we're talking about turning effects, not straight-line movement.
Quick Tip: If you're struggling to loosen something, use a longer tool - it increases the perpendicular distance and gives you more turning power!
2
of 2
Levers and Gears in Action
Levers are brilliant for transmitting turning effects from one place to another. You apply an input force at one point, and it creates an output force somewhere else - like using a crowbar or bottle opener.
Here's what you need to remember: if the input and output forces are on different sides of the pivot, they act in opposite directions. If they're on the same side, they act in the same direction. Usually, the output force is closer to the pivot than the input force, which actually makes the force bigger.

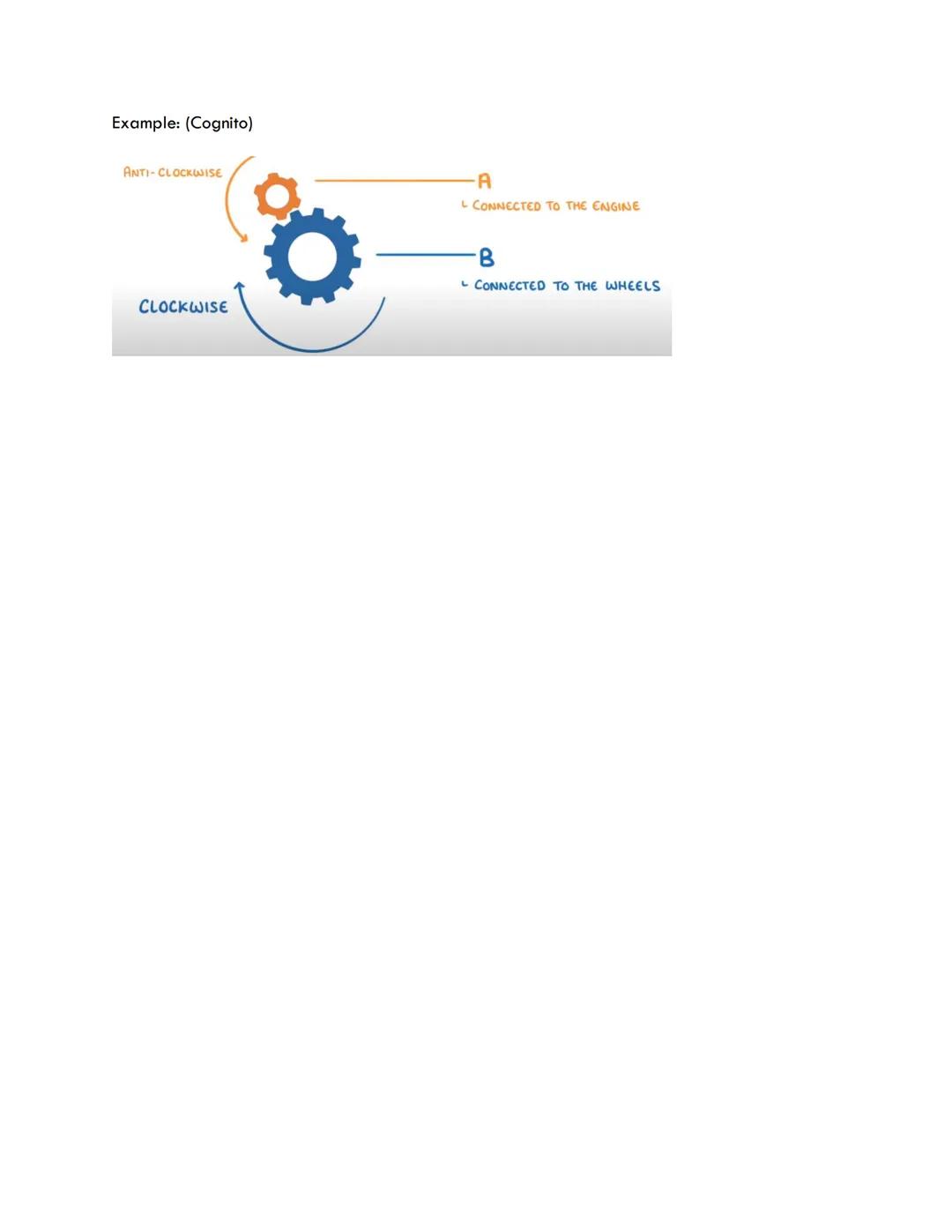

Gears work similarly but with rotation. Connected gears always rotate in opposing directions. If one gear is twice the size of another, it produces twice the turning effect but rotates half as much. This is exactly how car engines transfer power to the wheels efficiently.
Real-world connection: Next time you ride a bike, notice how the large gear connected to the pedals works with the smaller gear on the wheel - you're experiencing physics in action!
