Fun with Programming: Sequencing, Selection, and Iteration for Kids

View

Fun with Programming: Sequencing, Selection, and Iteration for Kids
user profile picture

Nikolay

@nikolay

·

148 Followers

Follow

Subject Expert

Programming Constructs and Computational Methods in Computer Science - A comprehensive guide exploring fundamental programming constructs including sequence, selection, and iteration, along with advanced computational problem-solving techniques.

Key points:

  • Detailed explanation of basic programming constructs examples and their implementation
  • Coverage of variable scope and modularity in programming
  • Exploration of computational methods and problem-solving approaches
  • Discussion of IDE tools and debugging techniques
  • Analysis of various problem-solving strategies including backtracking and heuristics

02/07/2022

192

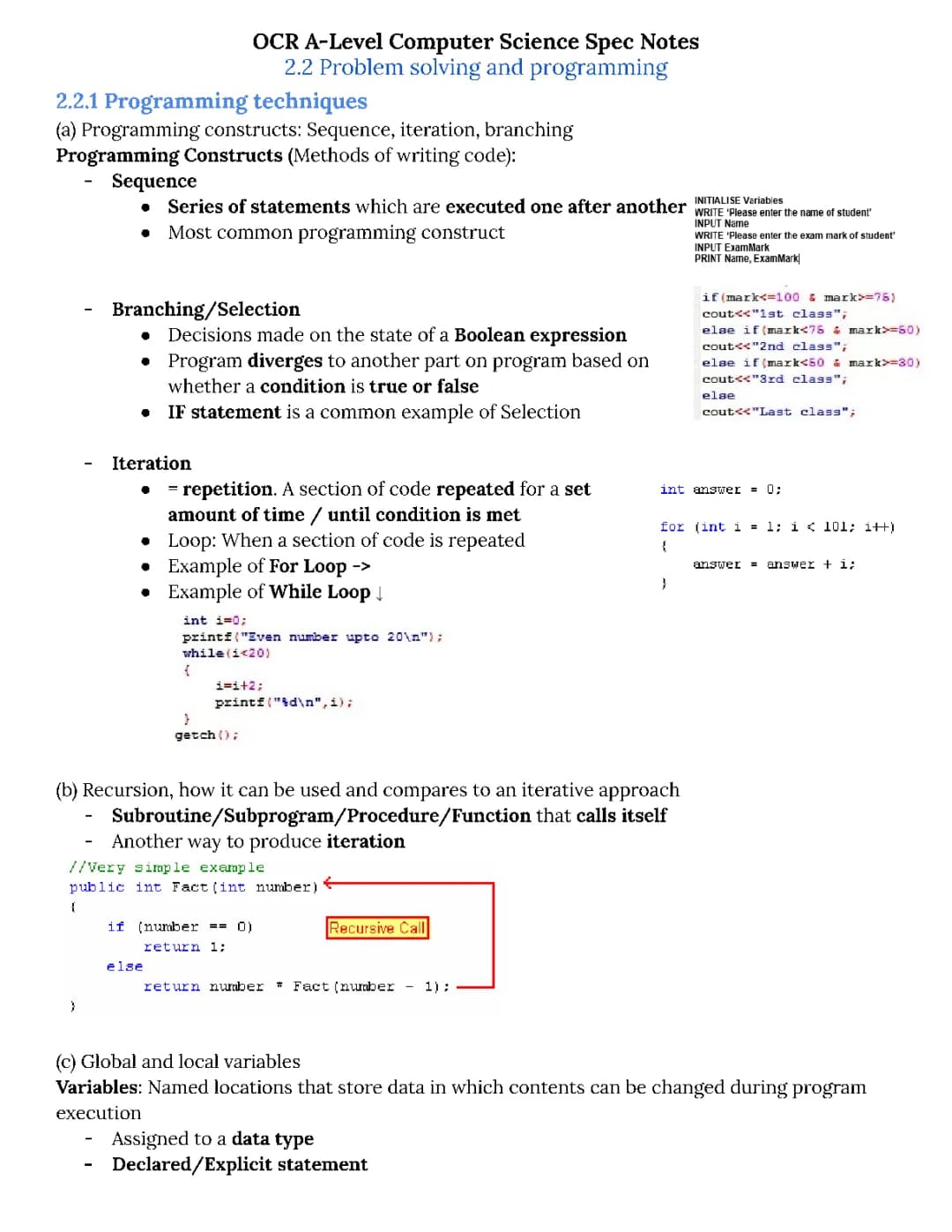

2.2.1 Programming techniques
(a) Programming constructs: Sequence, iteration, branching
Programming Constructs (Methods of writing code):
Se

View

Global and Local Variables in Modular Programming

Understanding the difference between global and local variables is crucial in modular programming. This knowledge impacts program structure, maintainability, and efficiency.

Global variables are defined outside subprograms and can be accessed throughout the entire program. While they offer wide accessibility, they come with several drawbacks:

  1. They can be difficult to integrate between modules.
  2. They increase program complexity.
  3. They can cause naming conflicts with other variables.
  4. They are generally considered poor programming practice due to their vulnerability to unintended alterations.

Highlight: Good programming practice generally discourages the use of global variables due to their potential for causing unintended side effects and making code harder to maintain.

Local variables, on the other hand, are declared within a subroutine and are only accessible within that specific subroutine. They offer several advantages:

  1. They make functions and procedures more reusable.
  2. They can be used as parameters.
  3. They are destroyed when the subroutine exits, freeing up memory.
  4. They allow the same variable names to be used in different modules without interference.

Example: In Python, you can define local variables within a function:

def calculate_area(radius):
    pi = 3.14159  # Local variable
    area = pi * radius ** 2
    return area

Vocabulary: Scope refers to the region of a program where a variable is accessible. Global variables have a global scope, while local variables have a local scope.

It's important to note that local variables override global variables if they have the same name within a subroutine. This concept is known as variable shadowing.

Highlight: The use of local variables promotes better modularity and reduces the risk of unintended side effects in your code.

2.2.1 Programming techniques
(a) Programming constructs: Sequence, iteration, branching
Programming Constructs (Methods of writing code):
Se

View

Modularity, Functions, and Procedures in Programming

Modularity is a key concept in programming that involves dividing a program into separate tasks or modules. This approach offers numerous benefits for software development and maintenance.

Definition: Modularity in programming refers to the practice of dividing a program into separate, manageable tasks or modules, each responsible for a specific functionality.

Benefits of modularity include:

  1. Easier maintenance and updates
  2. Ability to replace specific parts of the system without affecting others
  3. Efficient distribution of tasks among programmers based on their strengths
  4. Reduction in overall code production

Functions are a crucial element of modular programming:

  • They are subroutines or subprograms that typically return a value
  • Perform specific calculations and return a single data type
  • Use local variables
  • The returned value replaces the function call in the main program

Example: A Python function to calculate the area of a circle:

def calculate_circle_area(radius):
    pi = 3.14159
    return pi * radius ** 2

Procedures are similar to functions but with some key differences:

  • They perform specific operations but don't return a value
  • Use local variables
  • Can accept parameter values
  • Can be called by the main program or another procedure

Highlight: The main difference between functions and procedures is that functions return a value, while procedures do not.

Parameters play a crucial role in both functions and procedures:

  • They provide information or data to a subroutine when it's called
  • May be given identifiers or names
  • Can be passed by value or by reference

Vocabulary:

  • Passing by value: A copy of the actual value is passed to the subroutine
  • Passing by reference: The address or pointer to the value is passed to the subroutine

Understanding the differences between these methods of passing parameters is crucial for efficient programming and avoiding unintended side effects in your code.

2.2.1 Programming techniques
(a) Programming constructs: Sequence, iteration, branching
Programming Constructs (Methods of writing code):
Se

View

Integrated Development Environments (IDEs) for Program Development and Debugging

An Integrated Development Environment (IDE) is a comprehensive software suite that provides developers with essential tools for writing, developing, and debugging programs. Understanding how to effectively use an IDE is crucial for efficient software development.

Definition: An IDE (Integrated Development Environment) is a software application that provides comprehensive facilities to computer programmers for software development.

Key features of a typical IDE include:

  1. Debugging tools: These are essential for identifying and fixing errors in code.

    Example: Breakpoints allow developers to pause program execution at specific lines to inspect the state of variables and program flow.

  2. Translator diagnostics: These tools help identify syntax errors and often suggest solutions.

    Highlight: While error messages can be helpful, they may sometimes be incorrect or misinterpreted, requiring careful analysis by the programmer.

  3. Variable watch: This feature allows monitoring of variables or objects during program execution.

    Vocabulary: A watch window displays the current values of selected variables as the program runs.

  4. Stepping: This functionality enables the programmer to execute the program one line at a time.

    Example: Step-by-step execution allows developers to observe the path of execution and changes to variable values in real-time.

  5. Code editor: Most IDEs include a sophisticated text editor specifically designed for writing and editing code.

    Highlight: Features like syntax highlighting and auto-completion significantly enhance coding efficiency.

  6. Compiler/Interpreter: IDEs often include built-in compilers or interpreters for the programming languages they support.

  7. Version control integration: Many modern IDEs offer integration with version control systems like Git.

Quote: "An IDE can make you a much more productive programmer." - This sentiment is widely shared among professional developers who rely on IDEs for their daily work.

Using an IDE effectively can significantly improve a programmer's productivity and code quality. It provides a centralized platform for writing, testing, and debugging code, streamlining the development process.

Highlight: Learning to use an IDE proficiently is an essential skill for any aspiring programmer or computer science student.

By leveraging the powerful features of an IDE, developers can focus more on problem-solving and algorithm design, rather than getting bogged down in the minutiae of syntax and debugging.

2.2.1 Programming techniques
(a) Programming constructs: Sequence, iteration, branching
Programming Constructs (Methods of writing code):
Se

View

Computational Methods and Problem Recognition

This section examines how computational methods can be applied to solve complex problems effectively.

Definition: Computability refers to a problem's solvability regardless of machine capabilities.

Example: Problem decomposition example:

  • Breaking down a large calculation into smaller, manageable steps
  • Dividing a complex algorithm into simpler sub-algorithms
  • Separating data processing into distinct phases

Highlight: Effective problem-solving requires identifying clear inputs, processes, and outputs while incorporating logical reasoning.

2.2.1 Programming techniques
(a) Programming constructs: Sequence, iteration, branching
Programming Constructs (Methods of writing code):
Se

View

Programming Constructs and Techniques

Programming constructs are essential methods for writing code, consisting of three main types: sequence, branching (selection), and iteration. These form the foundation of program logic and control flow.

Definition: Programming constructs are fundamental building blocks used to create structured and logical code in computer programming.

Sequence is the most common programming construct, involving a series of statements executed one after another.

Example: A typical sequence might include initializing variables, prompting for user input, and displaying results.

Branching or selection involves making decisions based on Boolean expressions, allowing the program to diverge to different parts based on conditions.

Highlight: The IF statement is a common example of selection in programming.

Iteration refers to repetition in programming, where a section of code is repeated for a set amount of time or until a condition is met.

Vocabulary: A loop is a programming structure that implements iteration.

Recursion is another powerful technique where a subroutine calls itself. It can be used as an alternative to iteration in some cases.

Example: A recursive function to calculate factorials:

def fact(number):
    if number == 0:
        return 1
    return number * fact(number - 1)

Variables in programming are named locations that store data whose contents can be changed during program execution. They can be classified as global or local.

Definition: Global variables are defined outside subprograms and can be accessed throughout the program, while local variables are declared within a subroutine and are only accessible within that subroutine.
