This comprehensive guide covers various separation techniques used in chemistry, focusing on simple distillation process guide, filtration technique for separating mixtures, and how to perform chromatography step by step. It provides detailed explanations and visual aids for each method, making it an excellent resource for young students learning about mixture separation.

Key points:

  • Covers chromatography, simple distillation, fractional distillation, and filtration
  • Includes step-by-step instructions for each technique
  • Provides visual diagrams to aid understanding
  • Explains the principles behind each separation method
  • Offers practical examples and applications

10/01/2023

195

Separating Techniques Diagrams Solvent Periline Pure water vapour Salty water Chromatography 100 C Heat in or plani dve CHROMATOGRAM Cooling

View

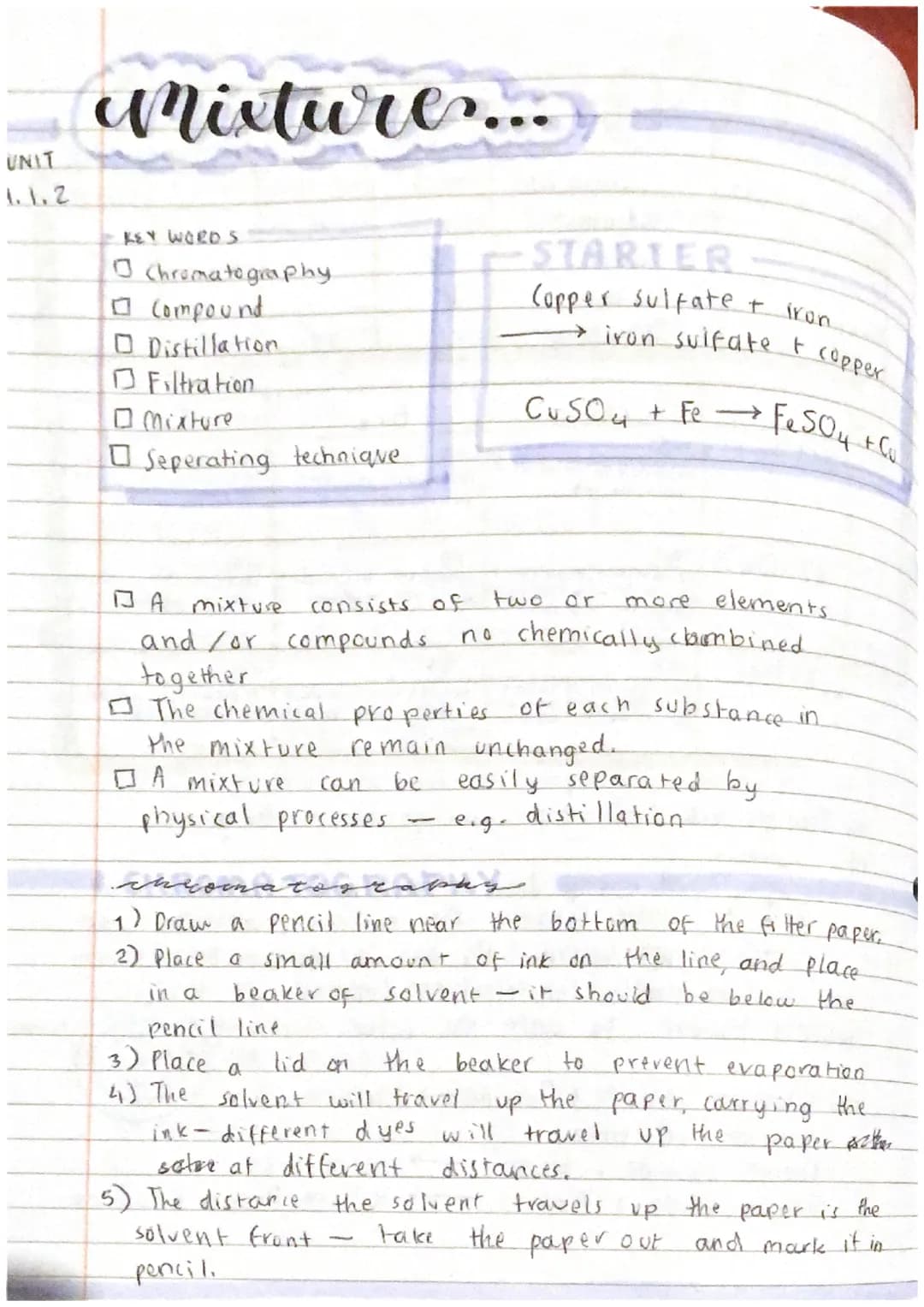

Key Concepts in Mixture Separation

This page introduces fundamental concepts related to mixtures and separation techniques. It defines key terms and provides an overview of chromatography, an important method of separating mixtures.

A mixture consists of two or more elements and/or compounds combined, with their chemical properties remaining unchanged. Separation techniques are physical processes used to isolate components of a mixture. The page also outlines the step-by-step procedure for performing paper chromatography.

Definition: A compound is two or more elements chemically combined.

Highlight: The chemical properties of each substance in a mixture remain unchanged, allowing for separation through physical processes.

Example: Copper sulfate reacting with iron (CuSO4 + Fe → FeSO4 + Cu) is an example of a chemical reaction, not a mixture separation.

The chromatography procedure step-by-step is outlined as follows:

  1. Draw a pencil line near the bottom of the filter paper.
  2. Place a small amount of ink on the line and set it in a beaker with solvent below the pencil line.
  3. Cover the beaker to prevent evaporation.
  4. Allow the solvent to travel up the paper, carrying the ink components.
  5. Mark the solvent front and remove the paper when finished.

Vocabulary: Solvent front - The distance the solvent travels up the paper in chromatography.

Separating Techniques Diagrams Solvent Periline Pure water vapour Salty water Chromatography 100 C Heat in or plani dve CHROMATOGRAM Cooling

View

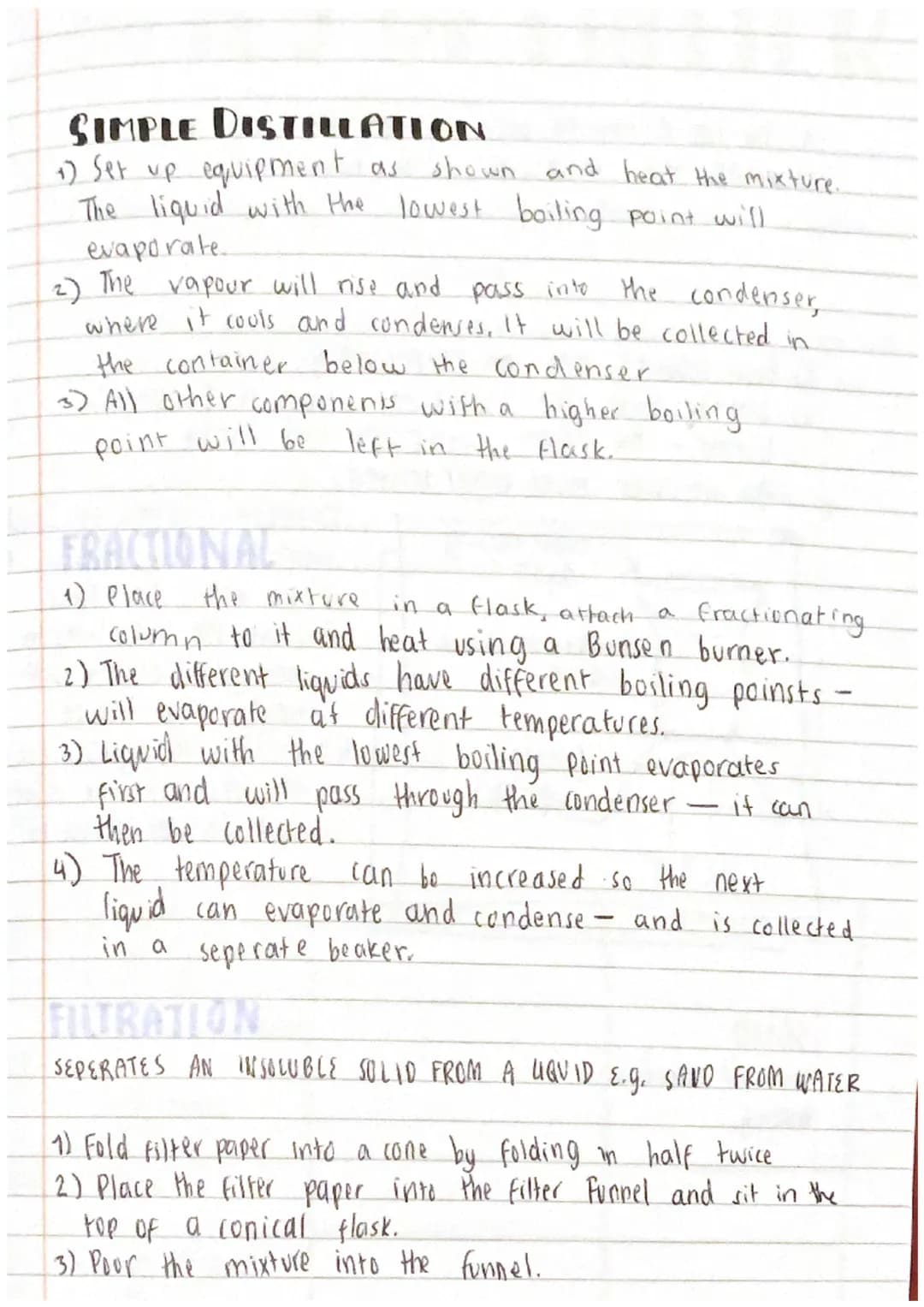

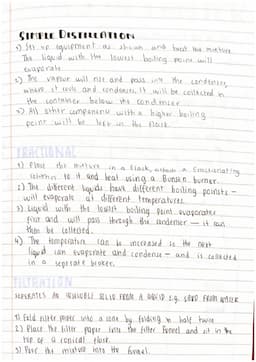

Simple Distillation and Fractional Distillation

This page provides detailed explanations of simple distillation and fractional distillation processes, along with step-by-step procedures for each technique.

Simple distillation procedure step-by-step:

  1. Set up the equipment as shown in the diagram.
  2. Heat the mixture. The liquid with the lowest boiling point will evaporate first.
  3. The vapor rises and passes into the condenser, where it cools and condenses.
  4. Collect the condensed liquid in a container below the condenser.
  5. Components with higher boiling points remain in the flask.

Fractional distillation procedure:

  1. Place the mixture in a flask and attach a fractionating column.
  2. Heat the mixture using a Bunsen burner.
  3. Different liquids evaporate at different temperatures due to varying boiling points.
  4. The liquid with the lowest boiling point evaporates first, passes through the condenser, and is collected.
  5. Increase the temperature to evaporate and collect subsequent liquids in separate beakers.

Highlight: The key difference between simple and fractional distillation is the presence of a fractionating column in the latter, which allows for more efficient separation of liquids with similar boiling points.

Vocabulary: Fractionating column - A vertical tube filled with glass beads or wire mesh that increases the efficiency of separation in fractional distillation.

Separating Techniques Diagrams Solvent Periline Pure water vapour Salty water Chromatography 100 C Heat in or plani dve CHROMATOGRAM Cooling

View

Filtration and Crystallization Techniques

This page covers two additional separation techniques: filtration and crystallization. These methods are crucial for separating solids from liquids and obtaining pure crystals from solutions.

Filtration technique for separating mixtures:

  1. Fold filter paper into a cone by folding it in half twice.
  2. Place the filter paper into a filter funnel and position it on top of a conical flask.
  3. Pour the mixture into the funnel.
  4. The liquid passes through the filter paper, leaving the insoluble solid behind.

Example: Filtration can be used to separate sand from water, as sand is insoluble in water.

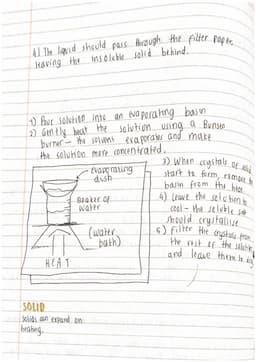

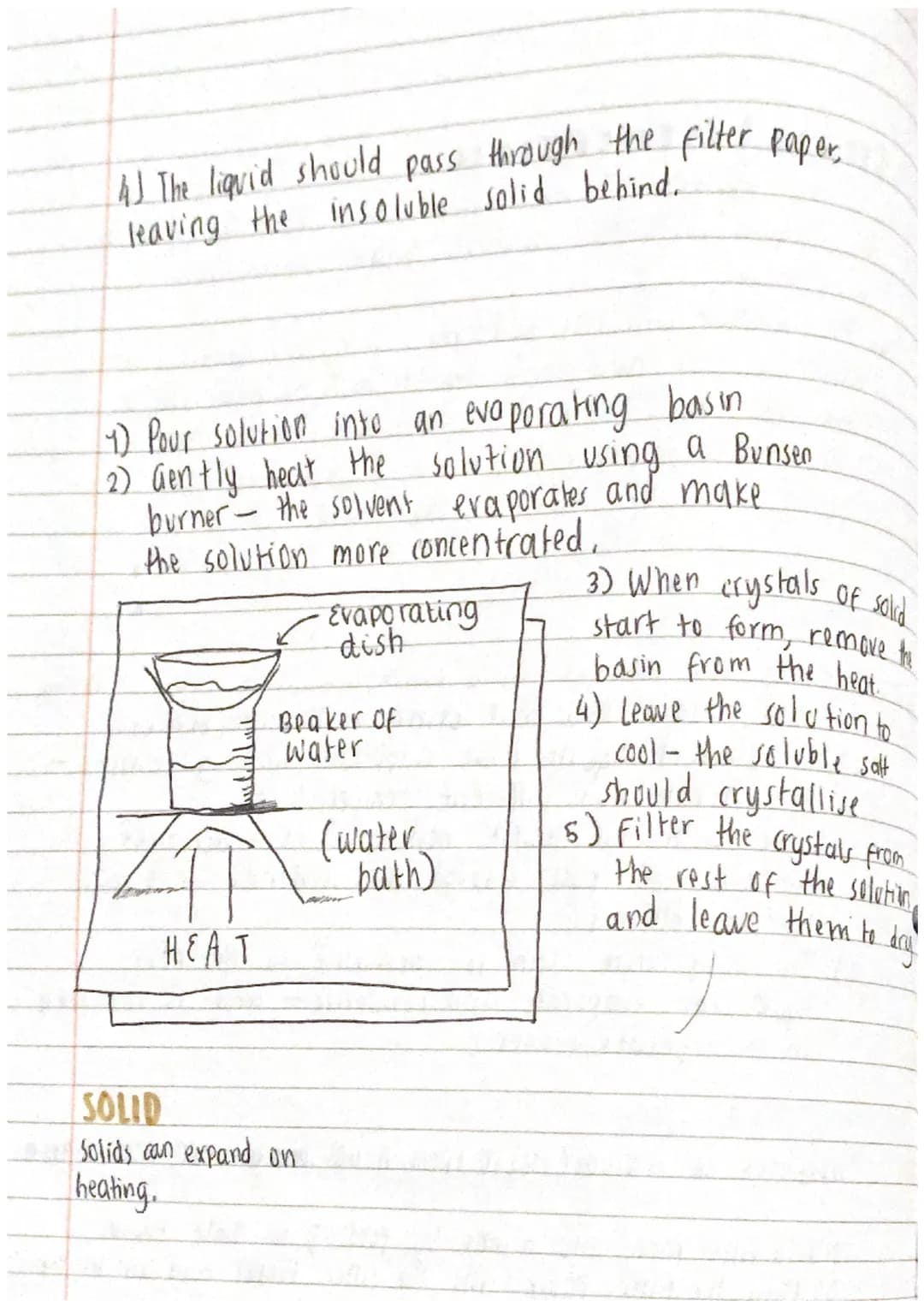

Crystallization procedure:

  1. Pour the solution into an evaporating basin.
  2. Gently heat the solution using a Bunsen burner to evaporate the solvent and concentrate the solution.
  3. Remove the basin from heat when crystals start to form.
  4. Allow the solution to cool, allowing the soluble salt to crystallize.
  5. Filter the crystals from the remaining solution and let them dry.

Highlight: When heating solids, it's important to note that they can expand. Using a water bath can provide more controlled heating for sensitive procedures.

Vocabulary: Evaporation - The process of a liquid turning into a vapor, used here to concentrate solutions for crystallization.

These separation techniques are essential tools for chemists and students alike, allowing for the purification of substances and the isolation of desired components from mixtures.

Separating Techniques Diagrams Solvent Periline Pure water vapour Salty water Chromatography 100 C Heat in or plani dve CHROMATOGRAM Cooling

View

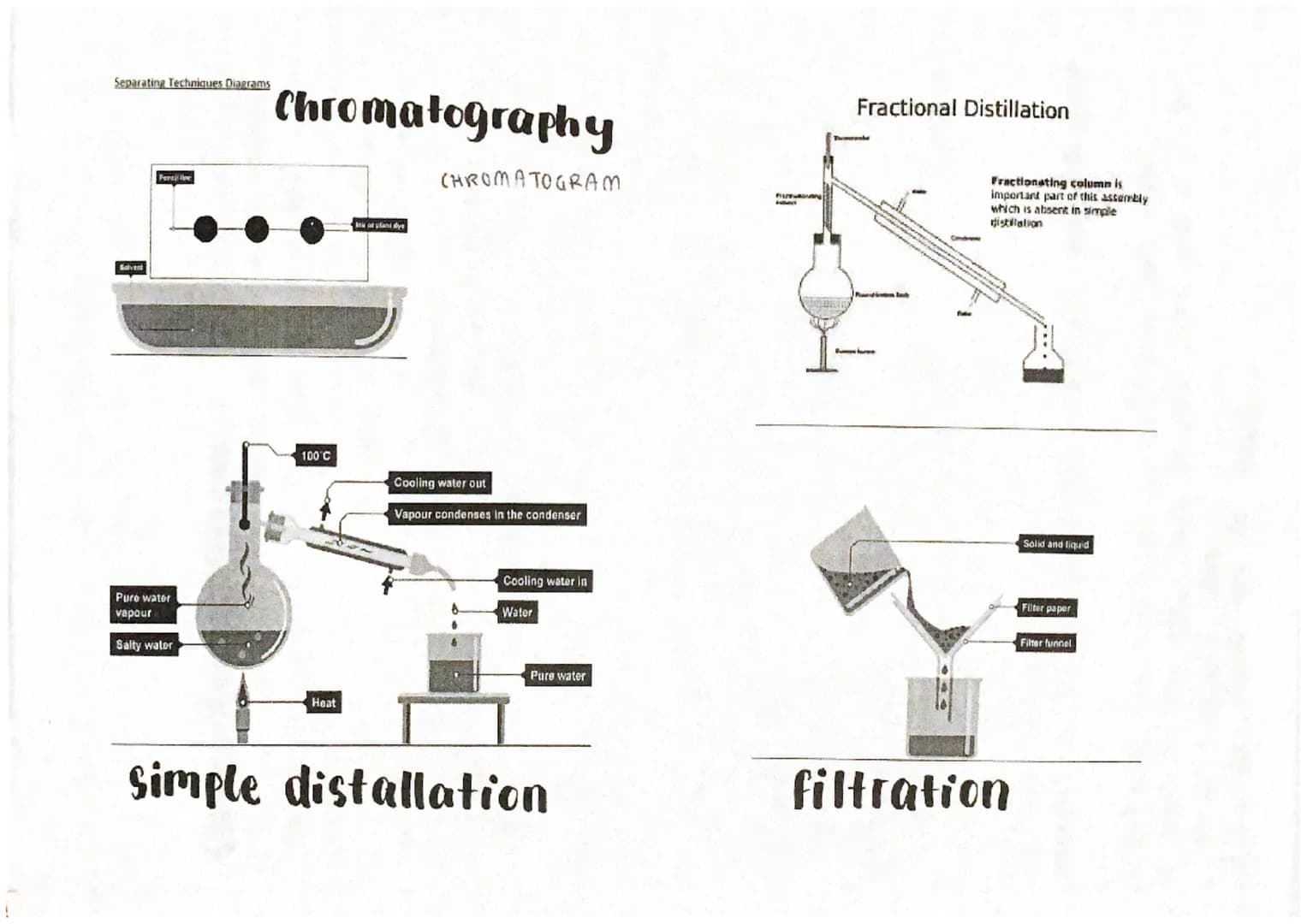

Separating Techniques Diagrams

This page provides visual representations of various separation techniques, including chromatography, simple distillation, fractional distillation, and filtration. These diagrams serve as a quick reference guide for students learning about different methods of separating mixtures.

The chromatography diagram shows the separation of ink components on filter paper. The simple distillation diagram illustrates the process of separating a liquid mixture based on boiling point differences. The fractional distillation diagram highlights the key difference from simple distillation - the presence of a fractionating column. Lastly, the filtration diagram demonstrates the separation of a solid from a liquid using filter paper and a funnel.

Highlight: The fractional distillation setup includes a fractionating column, which is absent in simple distillation. This additional component allows for more efficient separation of liquids with similar boiling points.

Vocabulary: Chromatography - A technique used to separate mixtures by distributing components between two phases, one stationary and one mobile.

Example: In simple distillation, salty water can be separated into pure water vapor and salt. The water vapor is condensed back into liquid form, effectively purifying it from the salt.
