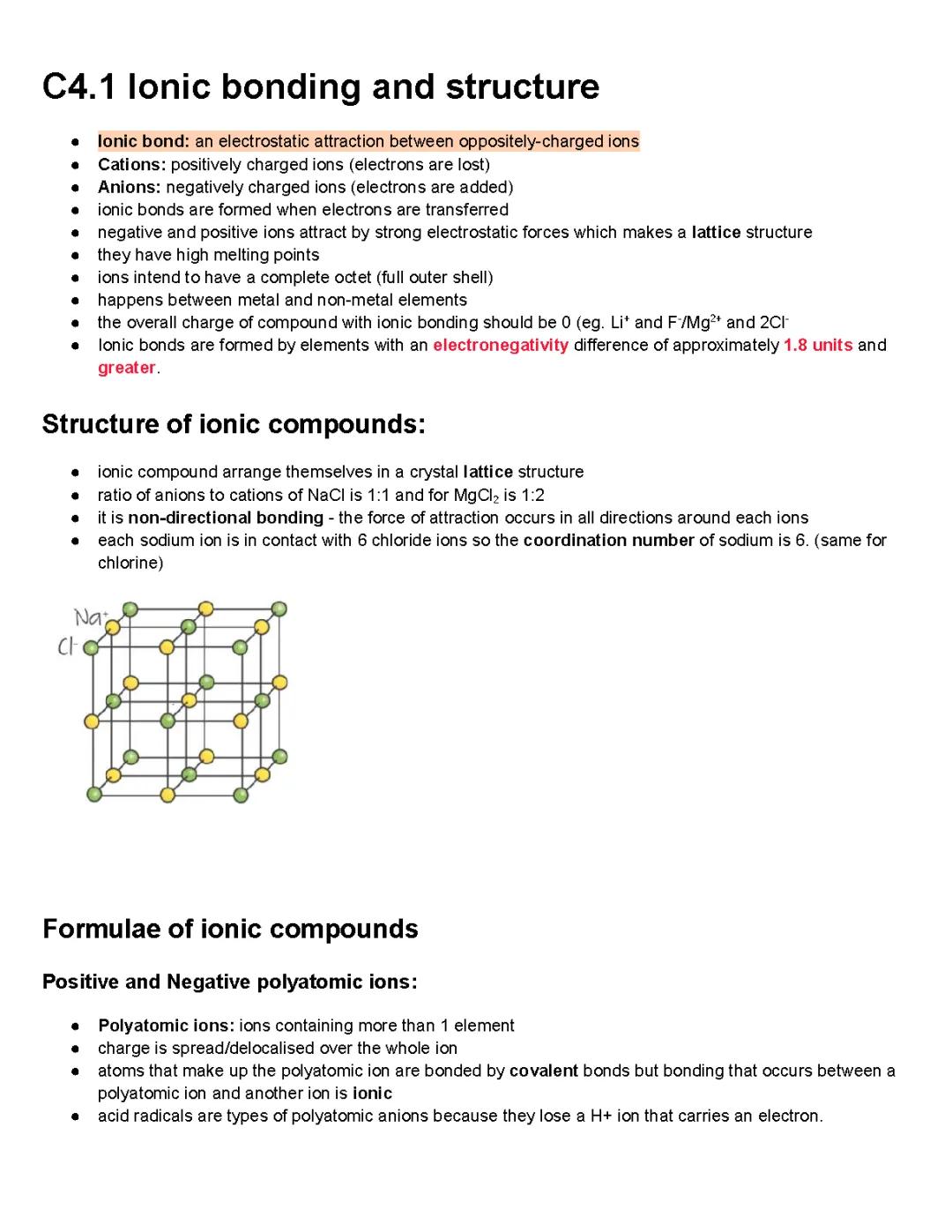

C4.1 lonic bonding and structure
Ionic bond: an electrostatic attraction between oppositely-charged ions
● Cations: positively charged ions

Ionic Bonding Basics

Ionic bonds form when electrons transfer completely from metals to non-metals, creating oppositely charged ions that attract each other. Think of it like a game of electron musical chairs - metals lose electrons to become cations (positive), whilst non-metals gain electrons to become anions (negative).

These charged particles arrange themselves in a crystal lattice structure held together by strong electrostatic forces. The key rule? The overall charge must always equal zero, so you need the right ratio of positive and negative ions.

Polyatomic ions are special groups of atoms that stick together and carry a charge, like sulfate (SO₄²⁻) or ammonium (NH₄⁺). Within these groups, atoms bond covalently, but they bond ionically with other ions.

Key Insight: Ionic bonds typically form when the electronegativity difference between atoms is 1.8 units or greater.

C4.1 lonic bonding and structure
Ionic bond: an electrostatic attraction between oppositely-charged ions
● Cations: positively charged ions

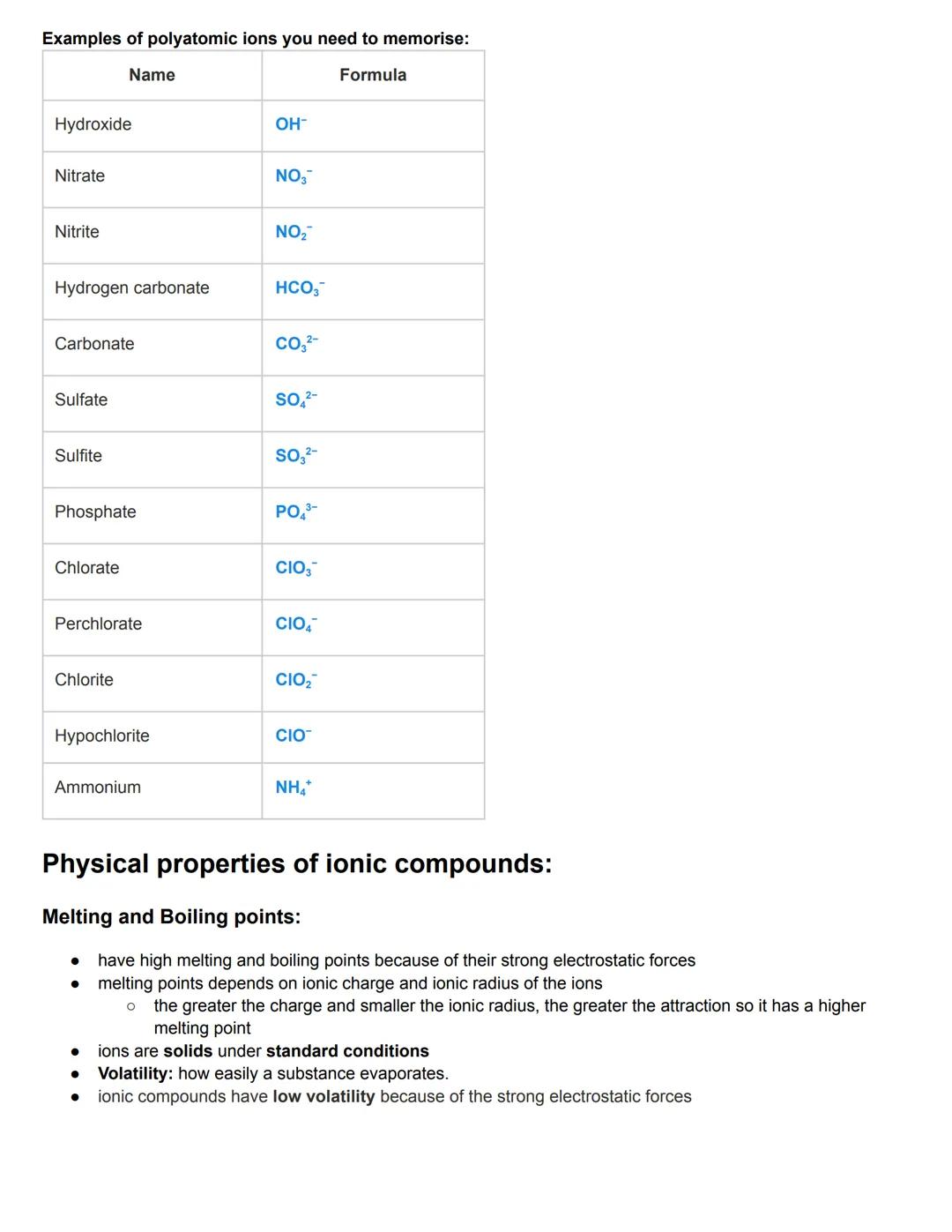

Essential Polyatomic Ions

You'll need to memorise these polyatomic ions for your exams - they're the building blocks of many compounds you'll encounter:

Common anions: Hydroxide (OH⁻), Nitrate (NO₃⁻), Carbonate (CO₃²⁻), Sulfate (SO₄²⁻), and Phosphate (PO₄³⁻). Notice how many carry multiple negative charges!

The only common cation: Ammonium (NH₄⁺) - remember this one stands out as positively charged.

Physical properties of ionic compounds are predictable once you understand their structure. They have high melting and boiling points because those electrostatic forces are incredibly strong - it takes loads of energy to break them apart.

Exam Tip: The smaller the ions and the higher their charges, the stronger the attraction and the higher the melting point.

C4.1 lonic bonding and structure
Ionic bond: an electrostatic attraction between oppositely-charged ions
● Cations: positively charged ions

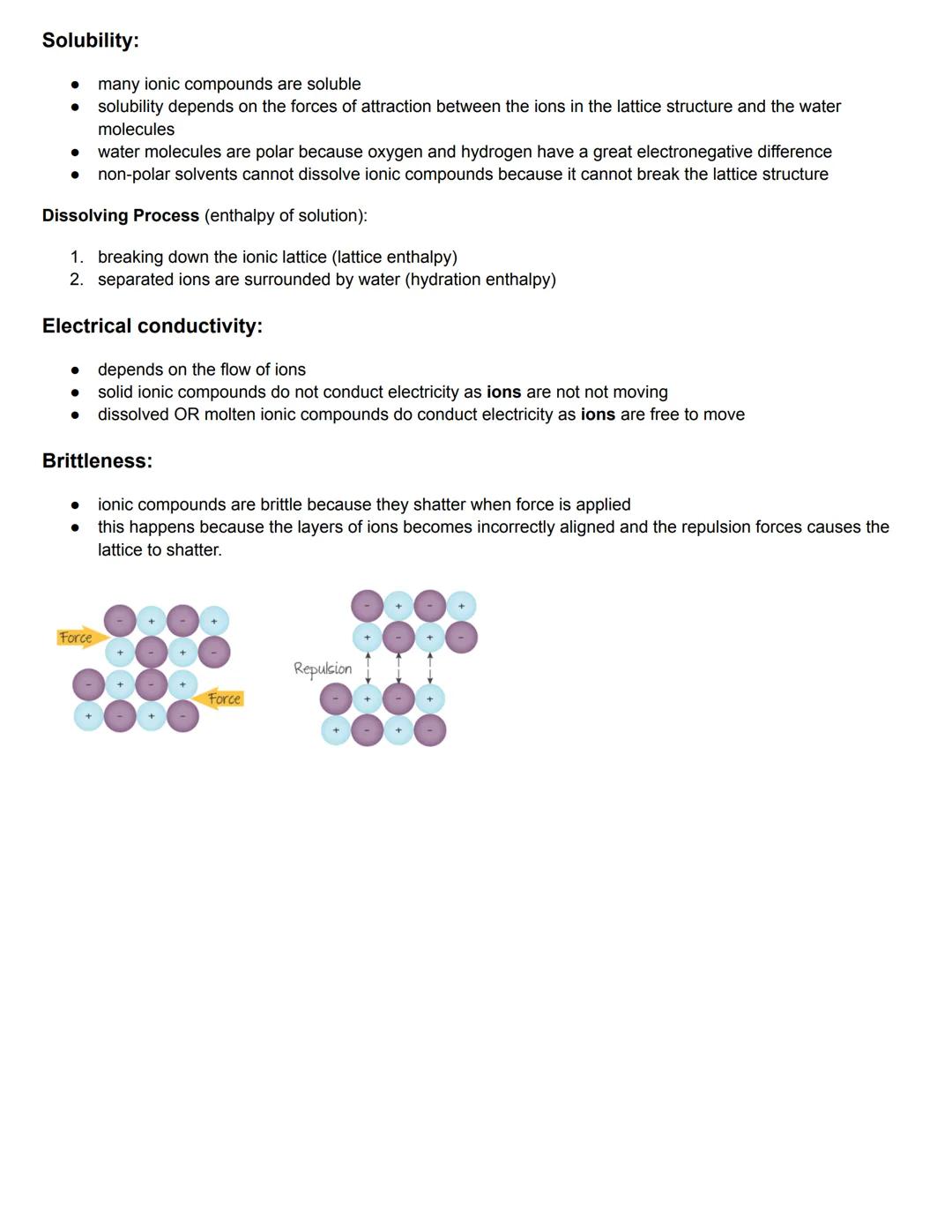

How Ionic Compounds Behave

Solubility in water happens because water molecules are polar - they can surround and separate the ions from their lattice structure. Non-polar solvents like oil can't do this, which explains why ionic compounds won't dissolve in them.

Electrical conductivity depends entirely on ion movement. Solid ionic compounds can't conduct electricity because the ions are locked in place. But melt them or dissolve them in water? Now the ions can move freely and conduct electricity brilliantly.

Brittleness might seem surprising for such strongly bonded compounds. When you apply force, the layers of ions shift and like charges end up next to each other - they repel and the crystal shatters.

Real-world Connection: This is why you can't hammer salt into a thin sheet like you can with metals!

C4.1 lonic bonding and structure
Ionic bond: an electrostatic attraction between oppositely-charged ions
● Cations: positively charged ions

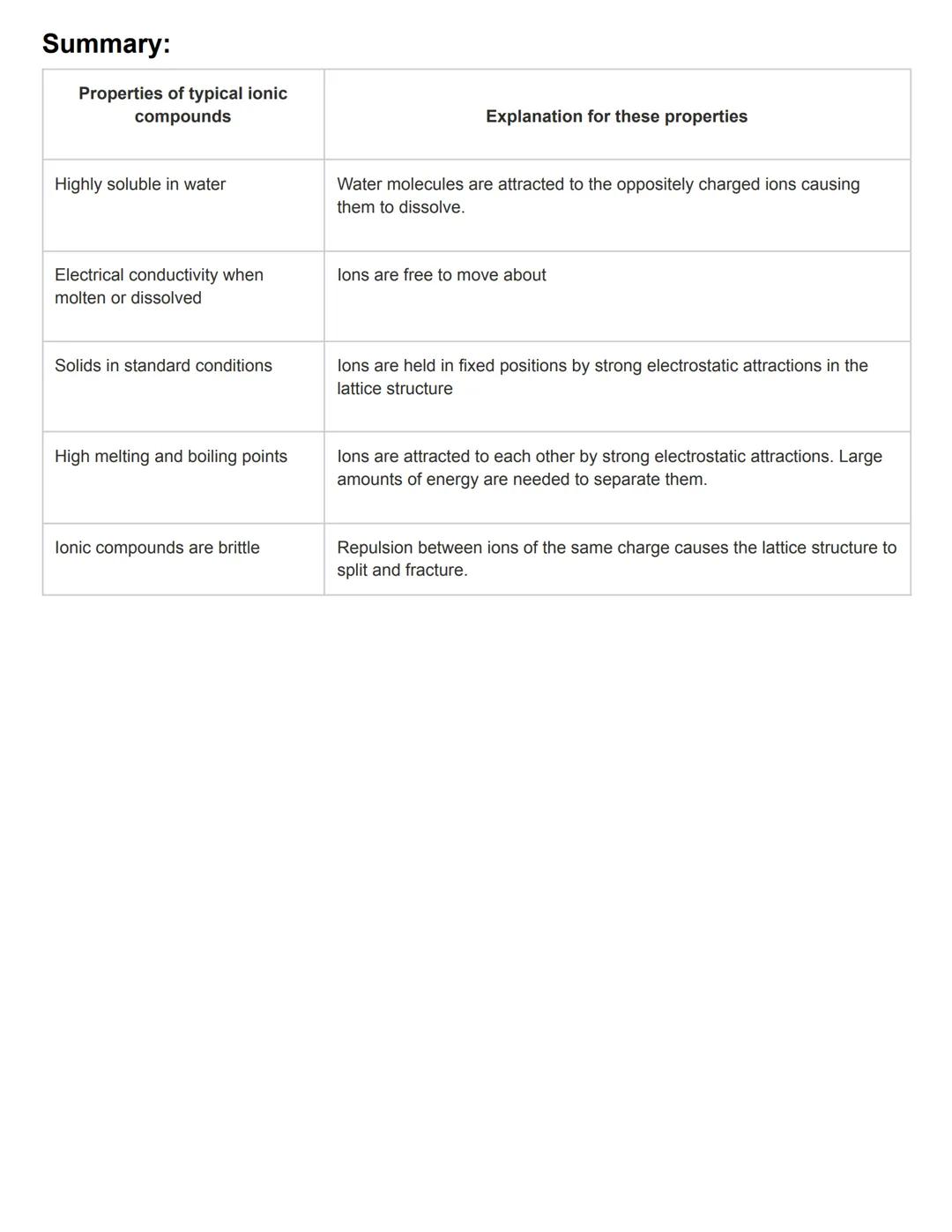

Ionic Properties Summary

This page gives you a handy reference for ionic compound properties and their explanations - perfect for revision or quick checks during problem-solving.

The key pattern? Every property links back to the electrostatic attractions between ions. High melting points, brittleness, conductivity when molten - it all makes sense when you think about those charged particles and how they interact.

Water solubility happens because polar water molecules can overcome the lattice forces. The ions become surrounded by water molecules in a process involving lattice enthalpy (breaking the crystal) and hydration enthalpy (surrounding with water).

Study Strategy: Use this summary table to test yourself - cover the explanations and see if you can work them out from the properties!

C4.1 lonic bonding and structure
Ionic bond: an electrostatic attraction between oppositely-charged ions
● Cations: positively charged ions

Covalent Bonding Fundamentals

Covalent bonds work completely differently from ionic bonds - instead of transferring electrons, atoms share them. It's like two people sharing a pizza rather than one person giving their slice to the other!

Single, double, and triple bonds involve sharing one, two, or three electron pairs respectively. The more pairs shared, the stronger and shorter the bond becomes. Triple bonds are like super-strong, short connections between atoms.

Lewis structures help you visualise these bonds using dots, crosses, and lines. Remember the octet rule - most atoms want eight electrons in their outer shell (except hydrogen, which only wants two).

Bond strength (measured as bond enthalpy) decreases as atomic radius increases. Longer bonds are weaker because the electrostatic attraction between atoms gets weaker over greater distances.

Memory Trick: Think "triple bonds are tough" - they're the strongest and shortest!

C4.1 lonic bonding and structure
Ionic bond: an electrostatic attraction between oppositely-charged ions
● Cations: positively charged ions

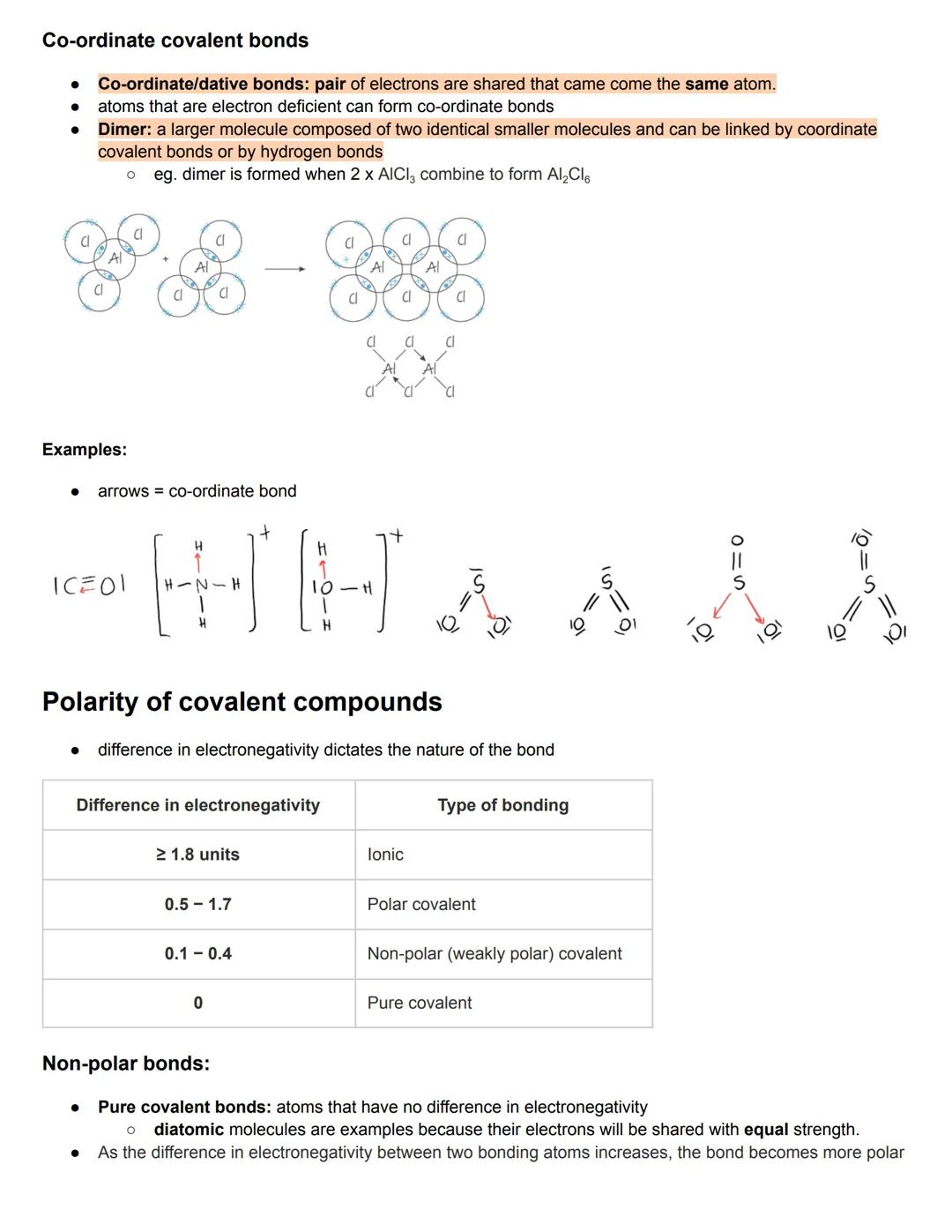

Special Covalent Bonds and Polarity

Co-ordinate (dative) bonds are fascinating - both shared electrons come from the same atom! This happens when one atom has spare electrons and another needs them. You'll see these in complex ions and molecules like Al₂Cl₆.

Bond polarity depends on electronegativity differences. When atoms have different "pulling power" for electrons, you get polar bonds with partial charges δ+andδδ+ and δ-.

The spectrum goes: pure covalent (0 difference) → weakly polar (0.1-0.4) → polar covalent (0.5-1.7) → ionic (≥1.8). Hydrogen halides show this perfectly - H-F is very polar whilst H-I is much less so.

Diatomic molecules like Cl₂ or O₂ have pure covalent bonds because identical atoms share electrons equally.

Quick Check: If you can't remember electronegativity values, just think about how much atoms "want" electrons - fluorine is the greediest!

C4.1 lonic bonding and structure
Ionic bond: an electrostatic attraction between oppositely-charged ions
● Cations: positively charged ions

Understanding Bond Polarity

Polar covalent bonds create bond dipoles - imagine a tiny magnet within the molecule with positive and negative ends. The more electronegative atom gets a partial negative charge (δ-) whilst the less electronegative gets partial positive (δ+).

This unequal electron sharing is crucial for understanding molecular behaviour. It explains why some molecules dissolve in water, how they interact with each other, and their physical properties.

The summary diagram shows the progression from ionic through polar covalent to non-polar covalent bonding. Notice how it's all about that electronegativity difference - the driving force behind chemical bonding.

Hydrogen halides demonstrate how polarity changes down a group. H-F is highly polar, but by the time you reach H-I, the difference in electronegativity is much smaller.

Visual Learning: The δ+ and δ- symbols are your friends - they immediately show you where electrons prefer to hang out!

C4.1 lonic bonding and structure
Ionic bond: an electrostatic attraction between oppositely-charged ions
● Cations: positively charged ions

Molecular Structure Rules

The octet rule is your starting point for understanding molecular structures, but don't forget the exceptions! Hydrogen only needs two electrons, whilst some atoms like boron are stable with fewer than eight.

Expanded octets happen with larger atoms (period 3 and beyond) that have d-orbitals available. Sulfur compounds often show this - they can accommodate up to twelve electrons in their valence shell.

Incomplete octets occur with electron-deficient molecules like BF₃. Boron only has three valence electrons and can't reach eight by sharing, but it's still stable because it forms the maximum bonds possible.

Lewis structure methodology follows a systematic approach: count total valence electrons, determine what each atom needs, calculate bonding electrons, then draw the structure starting with single bonds.

Pro Tip: When drawing Lewis structures for ions, don't forget to add electrons for negative charges and subtract for positive charges!

C4.1 lonic bonding and structure
Ionic bond: an electrostatic attraction between oppositely-charged ions
● Cations: positively charged ions

Advanced Molecular Concepts

Resonance structures show that some molecules can't be represented by just one Lewis structure. The electrons are delocalised across the molecule, making it more stable than any single structure suggests.

Think of resonance like describing a person - one photo doesn't capture everything, so you need multiple pictures. Carbonate ion, ozone, and benzene are classic examples where electrons spread out over the whole structure.

VSEPR theory (Valence Shell Electron Pair Repulsion) predicts molecular shapes based on a simple idea: electron pairs repel each other and spread out as far as possible. It's like people in a lift - everyone tries to maximise their personal space!

Lone pairs repel more strongly than bonding pairs, which affects molecular geometry. This is why electron domain geometry (counting all electron pairs) differs from molecular geometry (the actual shape you see).

Remember: VSEPR is about electron domains, not bonds - a double bond counts as one domain!

C4.1 lonic bonding and structure
Ionic bond: an electrostatic attraction between oppositely-charged ions
● Cations: positively charged ions

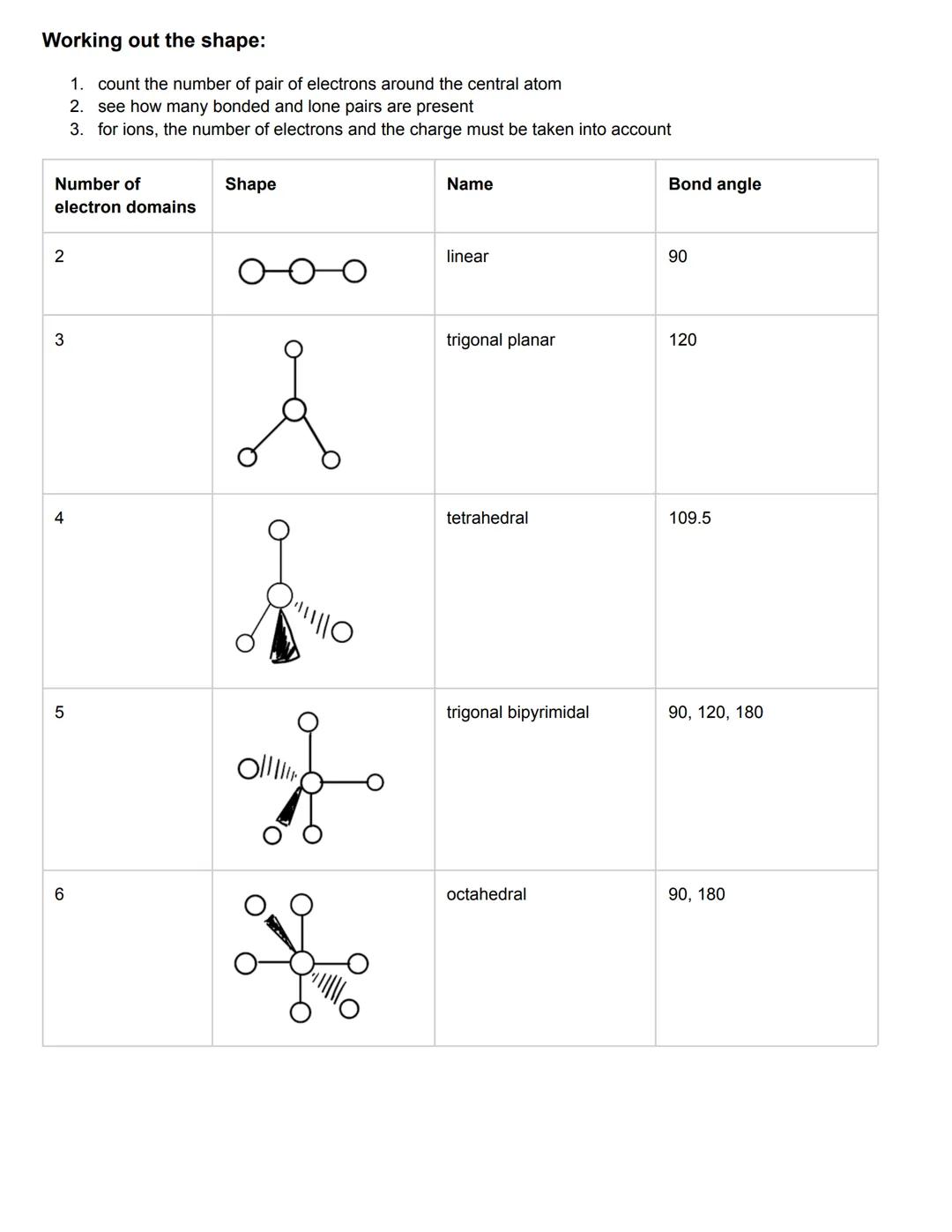

Predicting Molecular Shapes

VSEPR predictions follow a systematic approach: count electron domains, identify bonding vs lone pairs, then determine the shape. The geometry depends on total electron domains around the central atom.

Key shapes include linear (2 domains, 180°), trigonal planar (3 domains, 120°), tetrahedral (4 domains, 109.5°), trigonal bipyramidal (5 domains), and octahedral (6 domains).

Bond angles change when lone pairs are present because they push bonding pairs closer together. Water's bent shape (104.5°) instead of tetrahedral (109.5°) demonstrates this perfectly.

For ions, remember to account for the charge when counting electrons. This affects both the total number of electron domains and the overall molecular geometry.

Exam Success: Master the basic shapes first, then learn how lone pairs modify the bond angles - this covers most exam questions!
