Understanding Luminous Objects, Reflection, and Refraction

Light is a fundamental concept in physics, playing a crucial role in how we perceive the world around us. This summary explores key aspects of light, including luminous objects, reflection, refraction, and their applications.

• Light travels in straight lines and interacts with various objects and surfaces
• Understanding luminous and non-luminous objects is essential in physics
• Reflection and refraction are key phenomena that explain how light behaves
• Optical fibers and color transmission have important practical applications

18/06/2023

369

Боже >luminous energy to > поп object luminous - aid of i light can't luminous objects. light anotner leaves able то coit L can > transparen

View

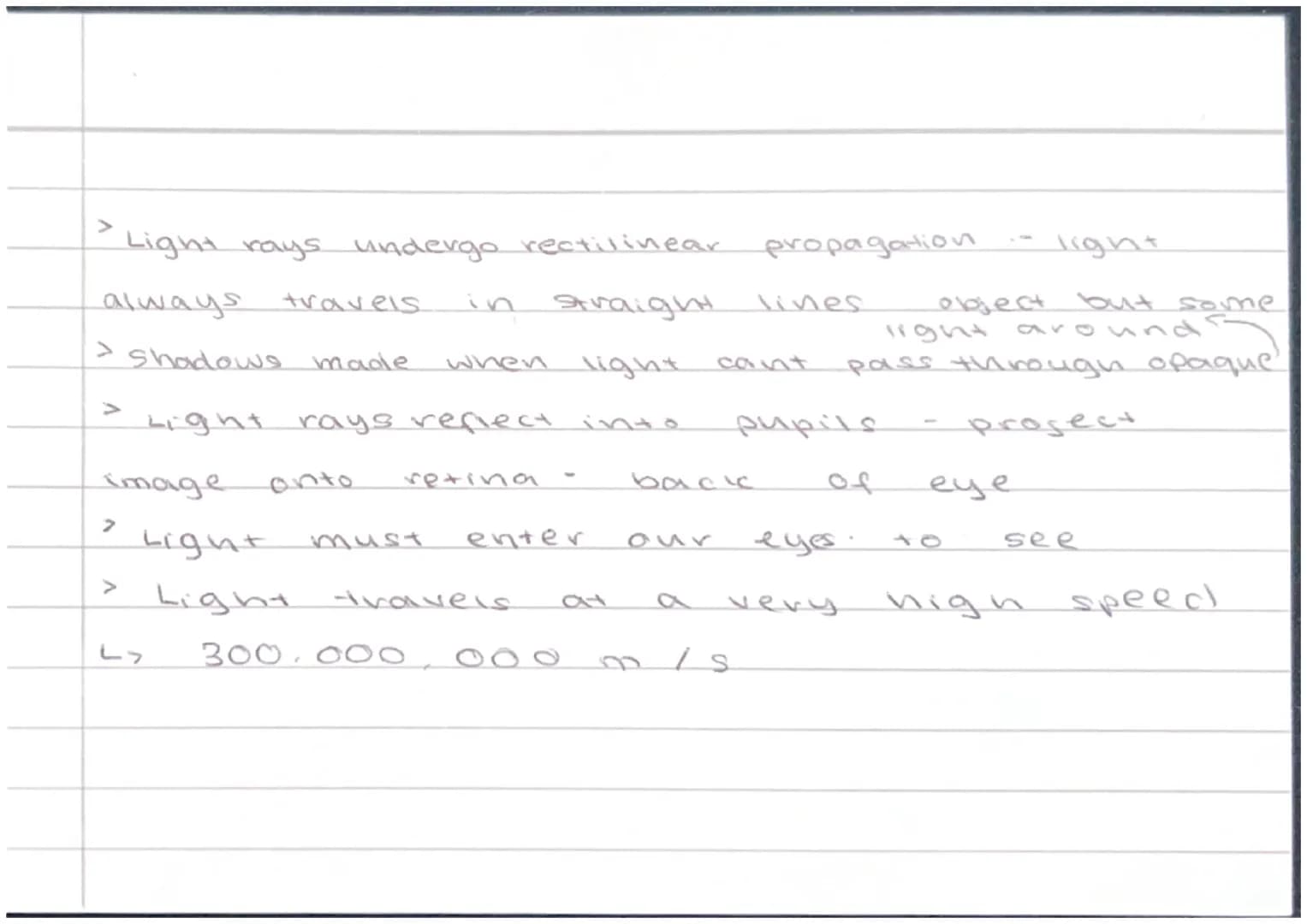

Light Propagation and Vision

Light plays a crucial role in our ability to see and perceive the world around us.

Highlight: Light always travels in straight lines, a phenomenon known as rectilinear propagation.

This property of light explains the formation of shadows and how we see objects:

  1. Shadows are created when light is blocked by opaque objects.
  2. Light rays reflect off objects and enter our eyes through the pupils.
  3. The light then travels to the retina, allowing us to see.

Example: Light travels at an incredibly high speed of approximately 300,000 kilometers per second in a vacuum.

Understanding how light travels and interacts with objects is fundamental to explaining various optical phenomena, such as the formation of images in mirrors and the human eye's ability to perceive the world.

Боже >luminous energy to > поп object luminous - aid of i light can't luminous objects. light anotner leaves able то coit L can > transparen

View

Colors and Reflection

Colors are an integral part of our visual experience and are closely related to how light interacts with different surfaces.

Definition: Dispersion is the phenomenon where white light splits into its component colors, forming a spectrum.

This effect is responsible for the formation of rainbows when sunlight passes through raindrops. The colors of the spectrum, from least to most refracted, are:

  1. Red
  2. Orange
  3. Yellow
  4. Green
  5. Blue
  6. Indigo
  7. Violet

Vocabulary: Primary colors of light are red, green, and blue, while secondary colors are formed by combining primary colors.

Different surfaces reflect and absorb light differently:

  • Red surfaces reflect red light and absorb other colors.
  • Smooth surfaces, like mirrors, produce specular reflection, reflecting light directly.
  • Rough surfaces cause diffuse reflection, scattering light in various directions.

Understanding color and reflection is essential for explaining various optical phenomena and has practical applications in fields such as art, design, and technology.

Боже >luminous energy to > поп object luminous - aid of i light can't luminous objects. light anotner leaves able то coit L can > transparen

View

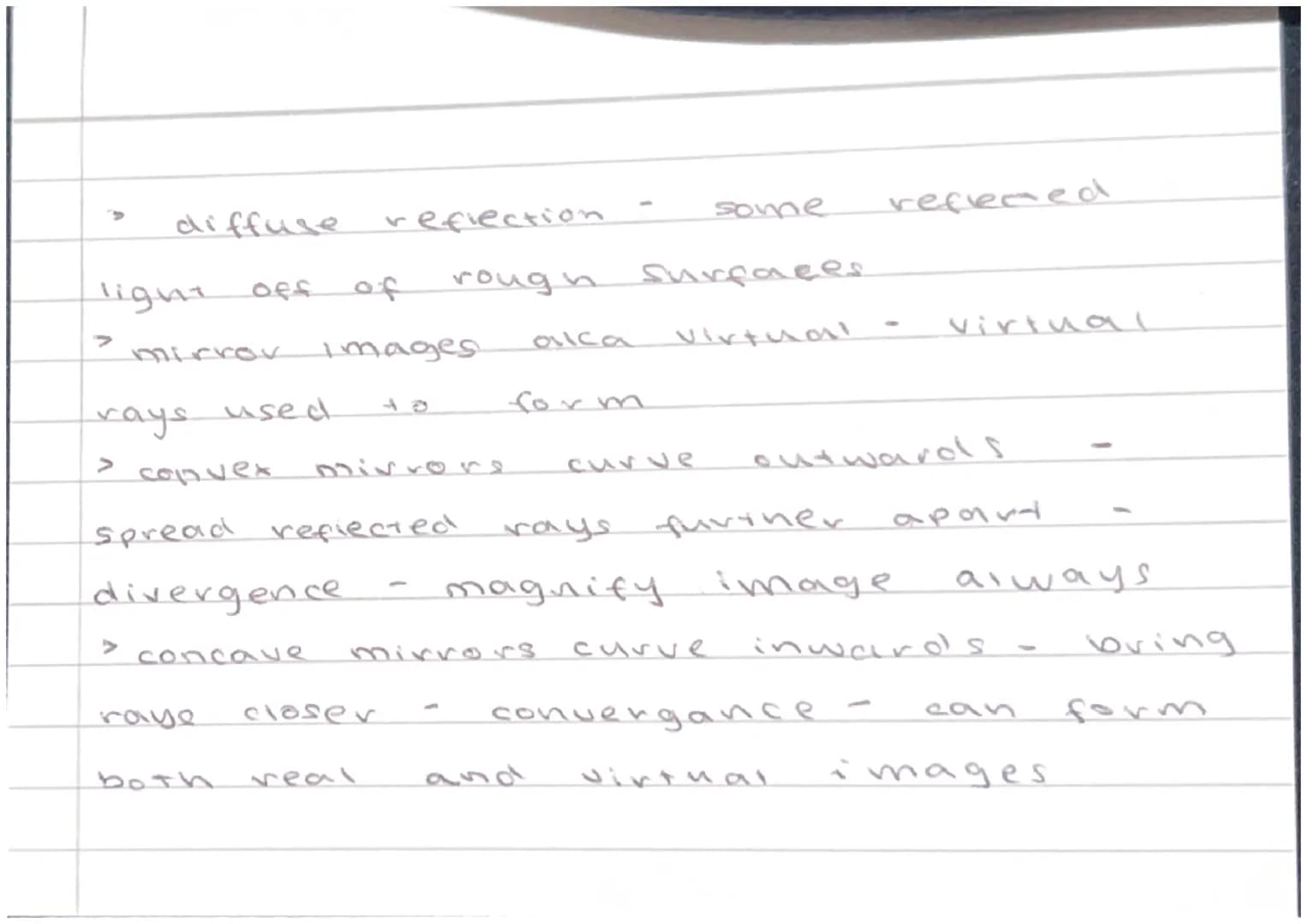

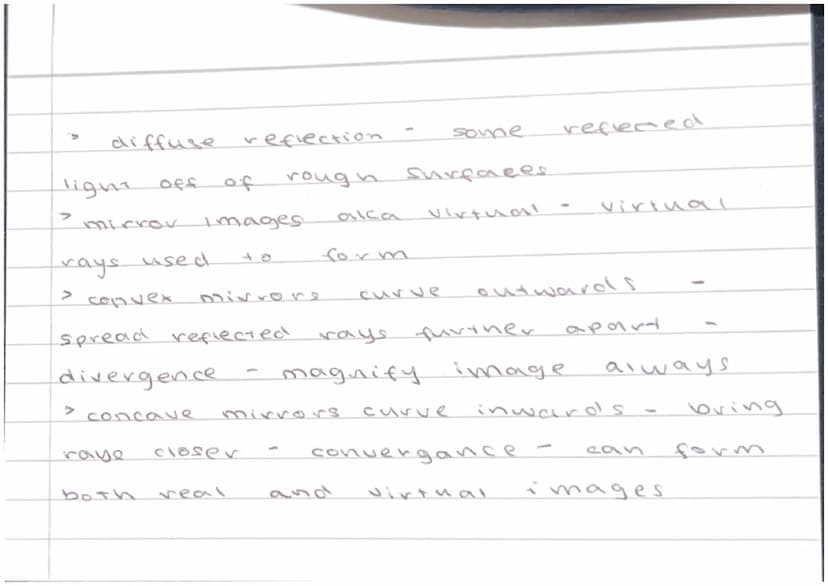

Mirrors and Image Formation

Mirrors play a significant role in optics, creating various types of images depending on their shape and properties.

There are two main types of curved mirrors:

  1. Convex mirrors: Curve outwards and form virtual images
  2. Concave mirrors: Curve inwards and can form both real and virtual images

Vocabulary: Divergence occurs when light rays spread out, while convergence happens when light rays come together.

Image characteristics in mirrors:

  • Virtual images always appear to be behind the mirror and cannot be projected onto a screen.
  • Real images can be projected onto a screen and form in front of the mirror.

Example: Convex mirrors are often used as security mirrors in stores because they provide a wider field of view.

Understanding how different types of mirrors form images is crucial for various applications, from everyday use in bathrooms and vehicles to specialized scientific instruments.

Боже >luminous energy to > поп object luminous - aid of i light can't luminous objects. light anotner leaves able то coit L can > transparen

View

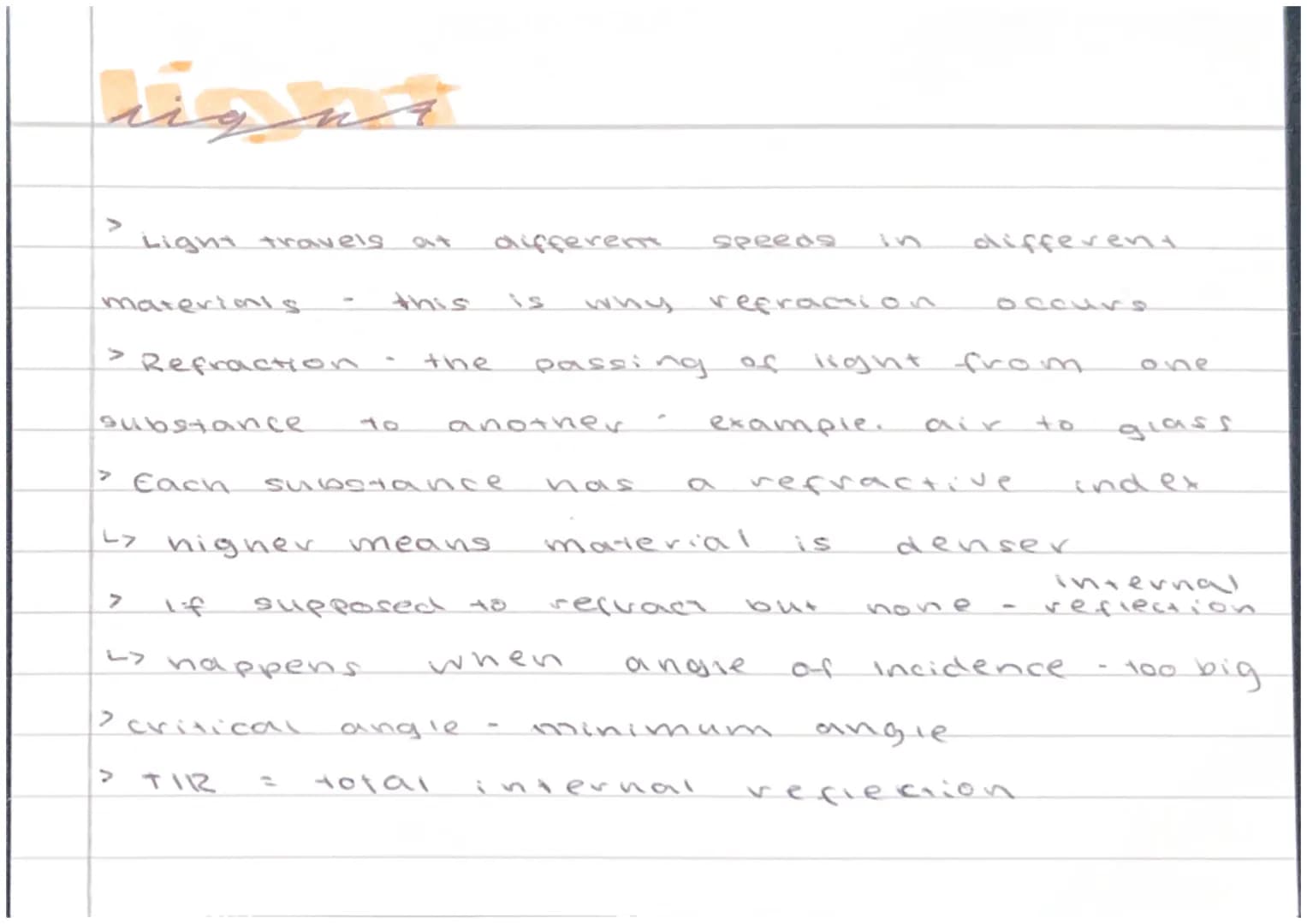

Refraction and Total Internal Reflection

When light passes from one medium to another, it can change direction due to a phenomenon called refraction.

Definition: Refraction is the bending of light as it passes from one medium to another with a different optical density.

Key concepts related to refraction:

  1. Refractive index: A measure of how much a material slows down light
  2. Critical angle: The angle of incidence at which light is refracted along the boundary between two media

Highlight: Total internal reflection (TIR) occurs when the angle of incidence is greater than the critical angle.

The critical angle formula is essential for understanding when TIR occurs:

sin(critical angle) = n2 / n1, where n1 is the refractive index of the denser medium and n2 is the refractive index of the less dense medium.

Example: The critical angle of water is approximately 48.6°, while the critical angle of glass is around 42°.

Understanding refraction and total internal reflection is crucial for explaining various optical phenomena and has practical applications in fields such as fiber optics and lens design.

Боже >luminous energy to > поп object luminous - aid of i light can't luminous objects. light anotner leaves able то coit L can > transparen

View

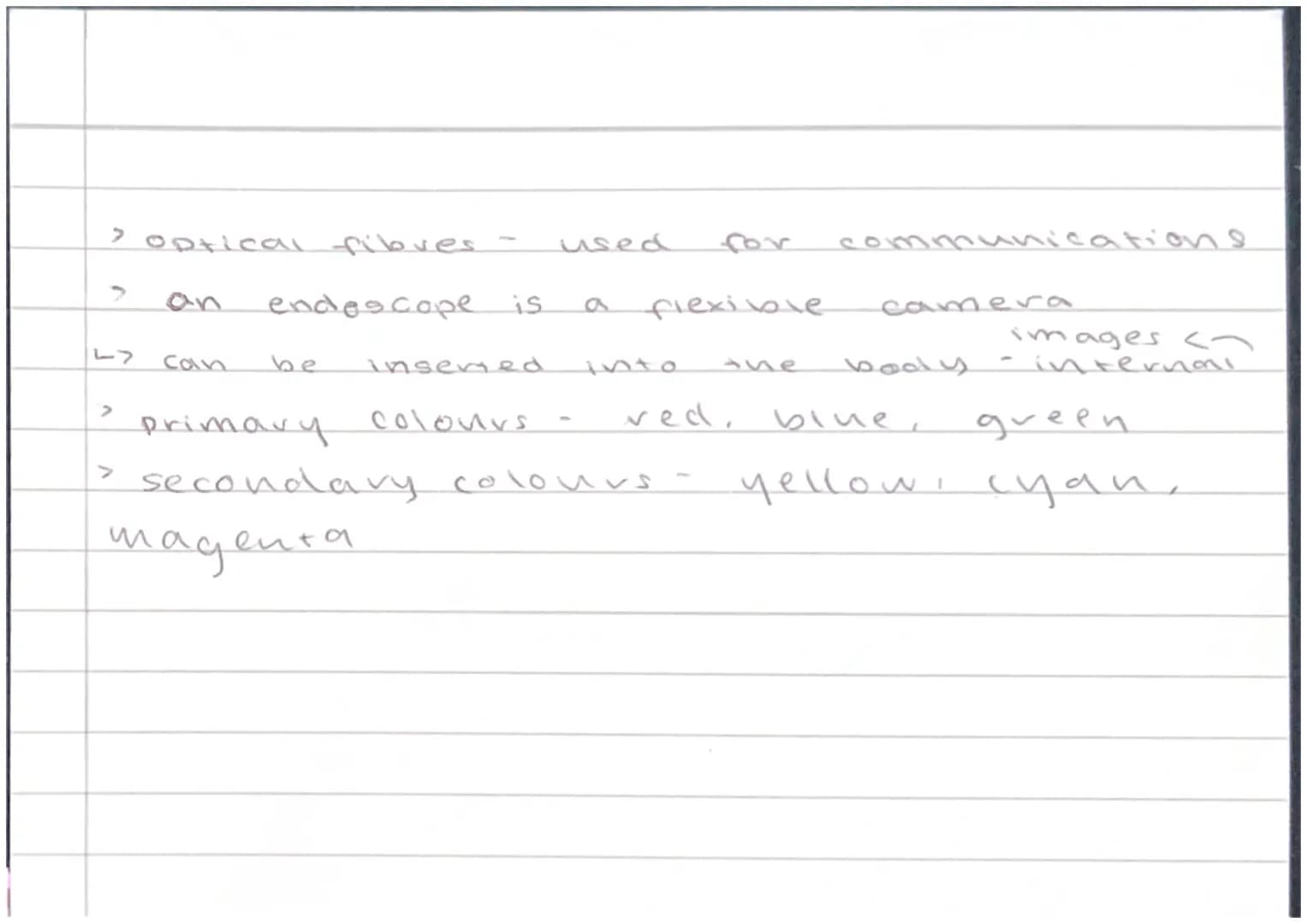

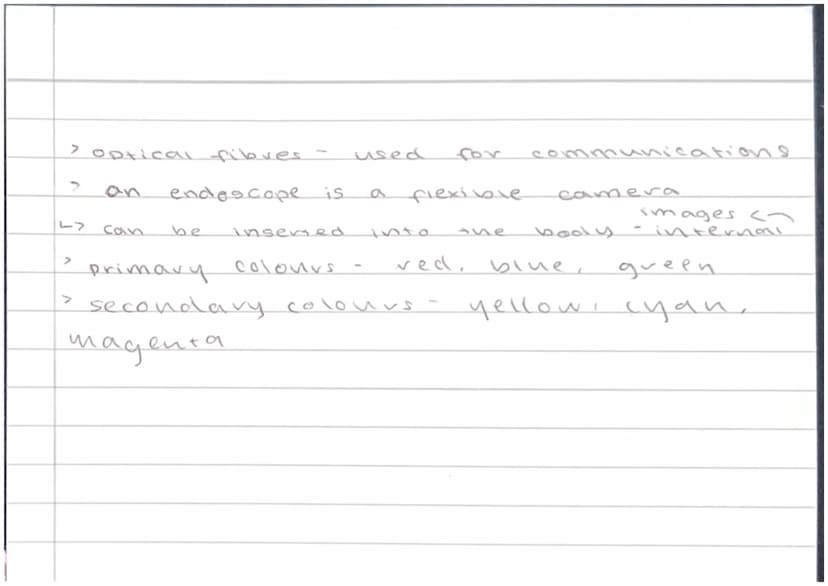

Optical Fibers and Color Transmission

Optical fibers are a practical application of total internal reflection, with numerous uses in modern technology.

Definition: An optical fibre in Physics is a thin, flexible strand of very pure glass or plastic that can transmit light signals over long distances.

Key features of optical fibers:

  1. Use total internal reflection to transmit light with minimal loss
  2. Can carry multiple signals simultaneously using different colors of light
  3. Provide high-speed data transmission for communications

Example: Some uses of optical fibre Physics include:

  • High-speed internet connections
  • Medical imaging (endoscopes)
  • Telecommunications
  • Sensors and scientific instruments

Vocabulary: A fiber optic cable consists of multiple optical fibers bundled together for protection and increased data capacity.

Understanding the principles of optical fibers and color transmission is essential for modern communications technology and various scientific and medical applications.

Боже >luminous energy to > поп object luminous - aid of i light can't luminous objects. light anotner leaves able то coit L can > transparen

View

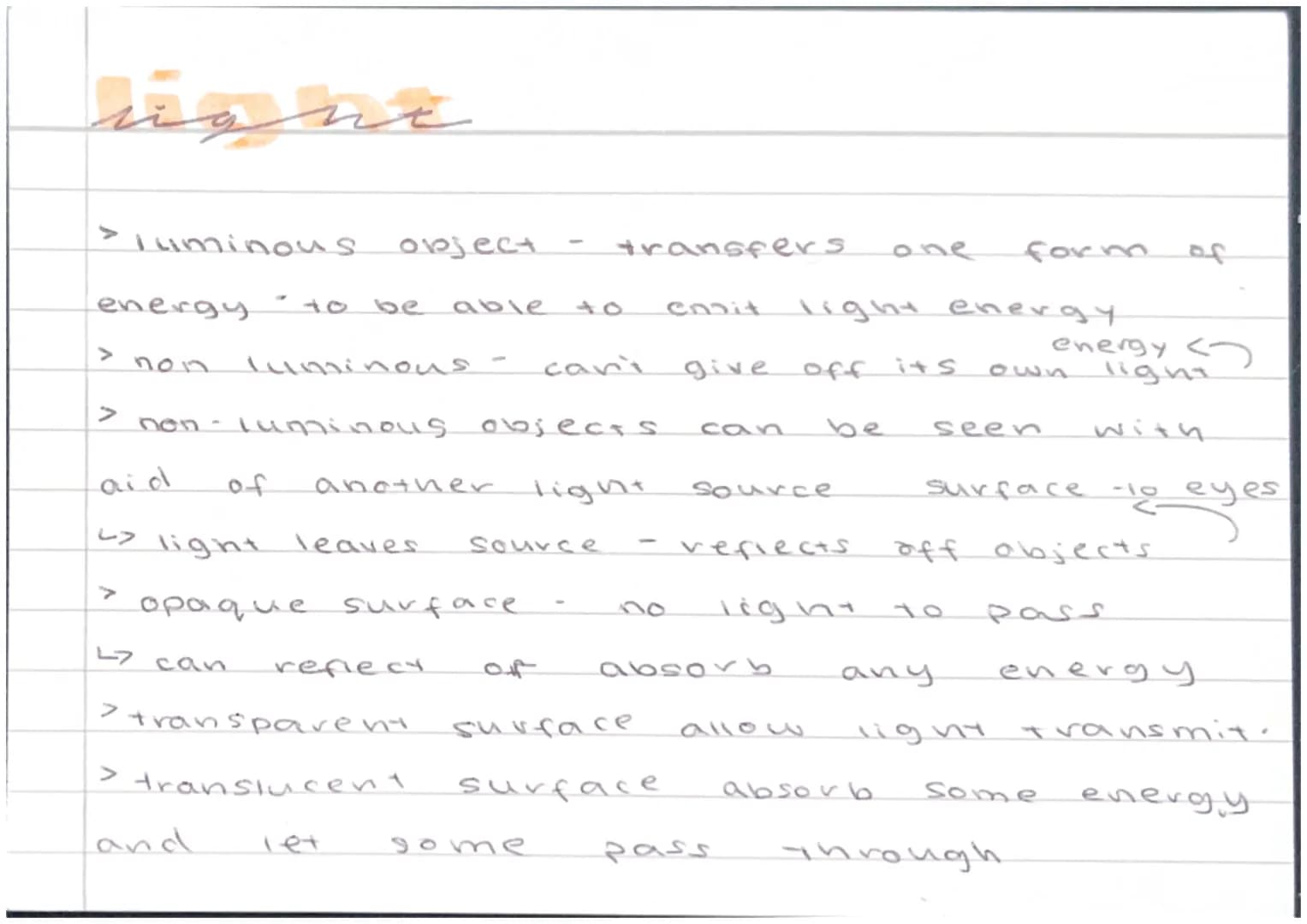

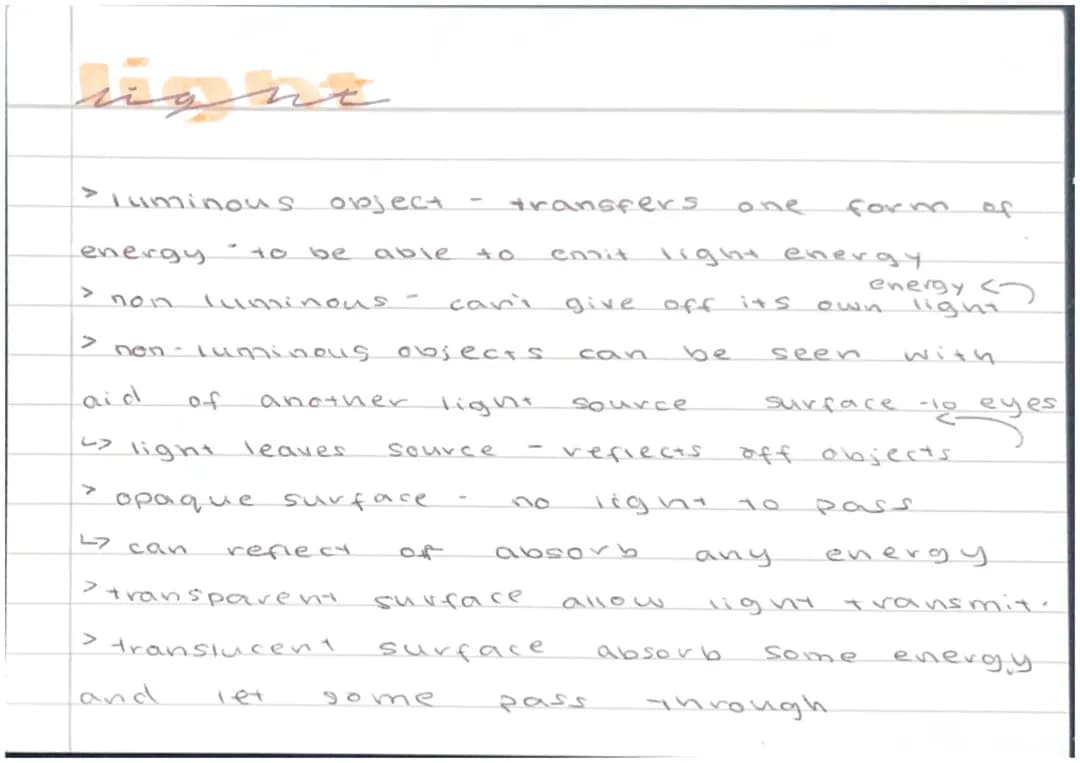

Luminous and Non-Luminous Objects

Light is a form of energy that allows us to see the world around us. Objects can be classified based on their interaction with light.

Luminous objects are those that emit their own light, while non-luminous objects rely on reflected light to be seen.

Definition: Luminous objects in physics are sources that produce and emit their own light, such as the sun, stars, and light bulbs.

Example: Some examples of luminous objects include the sun, stars, fireflies, and light bulbs.

Highlight: Non-luminous objects do not produce their own light but can be seen when light reflects off their surfaces.

Surfaces can be categorized based on how they interact with light:

  1. Transparent: Allow light to pass through
  2. Translucent: Allow some light to pass through
  3. Opaque: Block light completely

Vocabulary: Absorption occurs when a surface takes in light energy, while reflection happens when light bounces off a surface.
