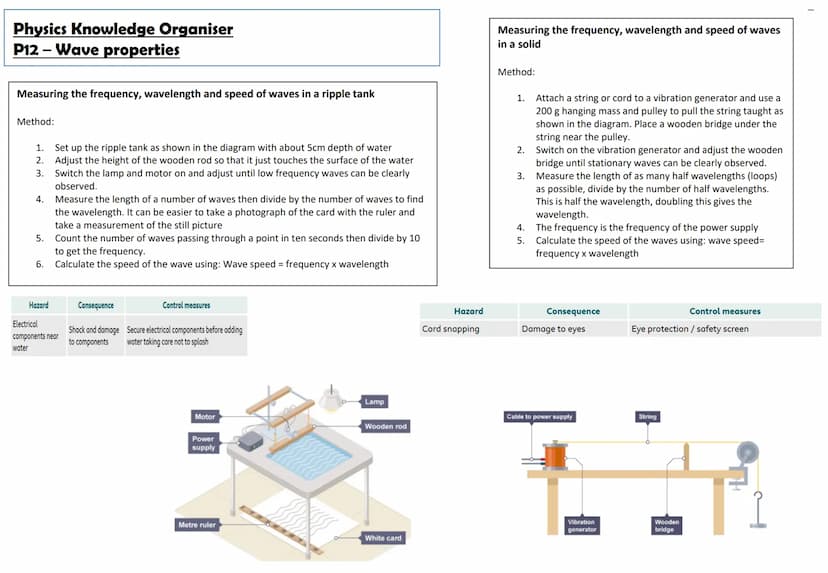

Measuring Wave Properties

This page focuses on practical methods for measuring wave properties in Physics, specifically using a ripple tank and a solid medium setup. These experiments are crucial for understanding how mechanical waves work in different materials.

Ripple Tank Experiment:

1. Set up a ripple tank with 5cm water depth
2. Adjust a wooden rod to touch the water surface
3. Generate low-frequency waves
4. Measure wavelength by observing multiple waves
5. Count waves passing a point to determine frequency
6. Calculate wave speed using v = fλ

Highlight: Taking a photograph of the waves with a ruler in frame can make wavelength measurements easier and more accurate.

Solid Medium Experiment:

• Uses a vibration generator, string, pulley, and hanging mass
• Allows for measurement of wave properties in a solid material

Example: This setup mimics waves traveling through solid structures, demonstrating how mechanical waves work in different mediums.

The page includes safety considerations for working with electrical equipment near water, emphasizing the importance of secure setups to prevent accidents.

Vocabulary:

• Ripple tank: A shallow tank of water used to demonstrate wave properties
• Vibration generator: A device that produces controlled oscillations in a medium

These experiments provide hands-on experience with wave properties explained for GCSE Physics, allowing students to visualize and measure key wave characteristics in different media.

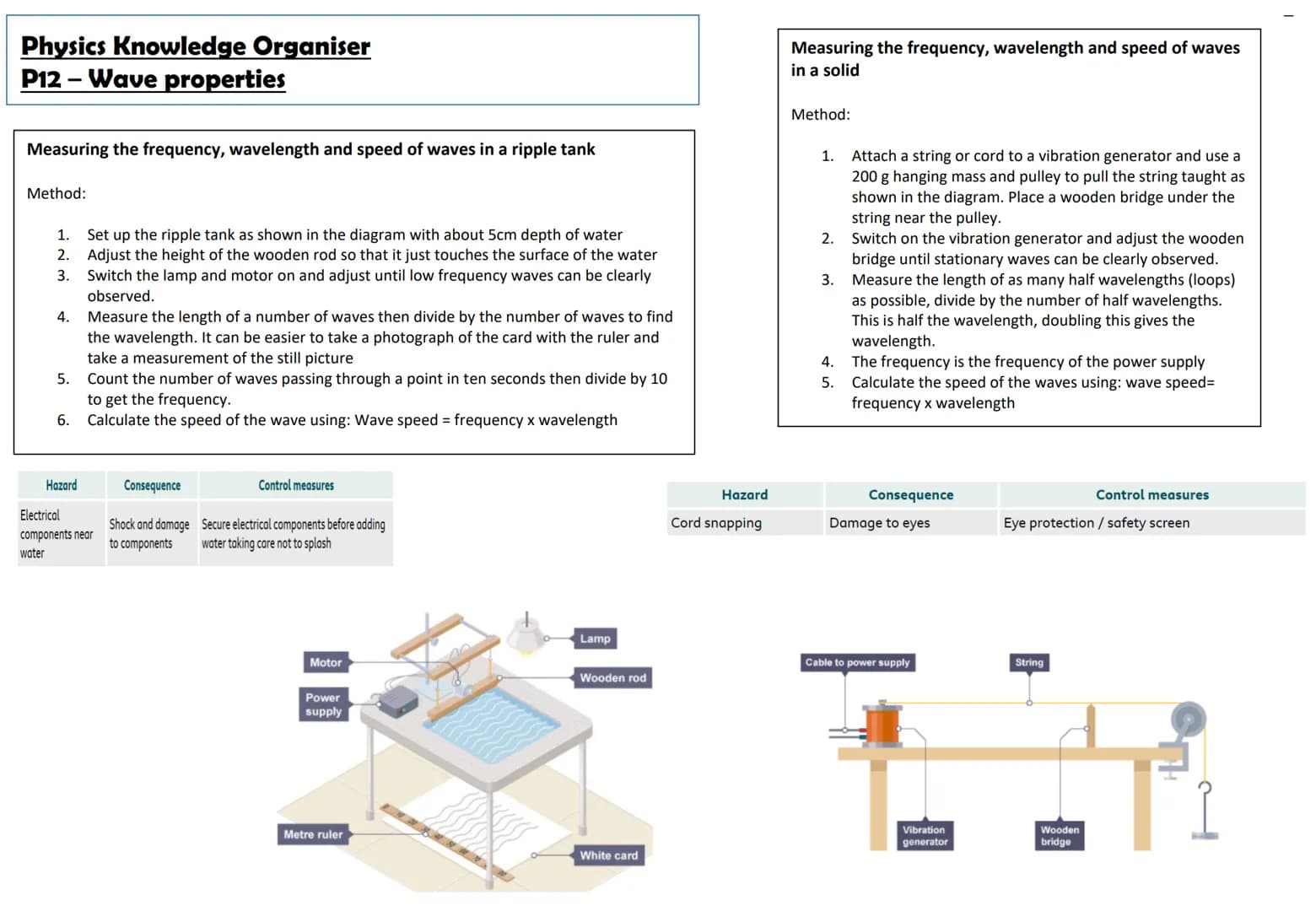

Wave Properties and Measurements

This page continues the discussion on wave properties in Physics, focusing on practical methods for measuring wave characteristics in different media. It builds upon the concepts introduced in the previous pages, providing students with hands-on approaches to understanding how mechanical waves work.

The page details two experimental setups:

1. Ripple Tank Experiment:

   • Uses a shallow tank of water to generate and observe water waves
   • Includes a motor, lamp, and wooden rod for wave generation and observation
   • Allows for measurement of wavelength, frequency, and wave speed

2. Solid Medium Experiment:

   • Utilizes a vibration generator, string, pulley, and hanging mass
   • Demonstrates wave propagation in a solid material

Highlight: These experiments provide practical applications of the wave equation v = fλ, allowing students to measure and calculate wave properties directly.

The page emphasizes safety considerations, particularly when working with electrical equipment near water. This reinforces the importance of laboratory safety in physics experiments.

Example: In the ripple tank experiment, students can visualize how changing the frequency of the wave generator affects the wavelength and speed of the waves, providing a tangible demonstration of wave properties.

Vocabulary:

• Vibration generator: A device used to produce controlled oscillations in experimental setups
• Ripple tank: A shallow water-filled tank used for demonstrating and studying wave properties

These experimental setups are crucial for answering GCSE Physics waves questions and provide a foundation for understanding more complex wave phenomena in advanced studies.

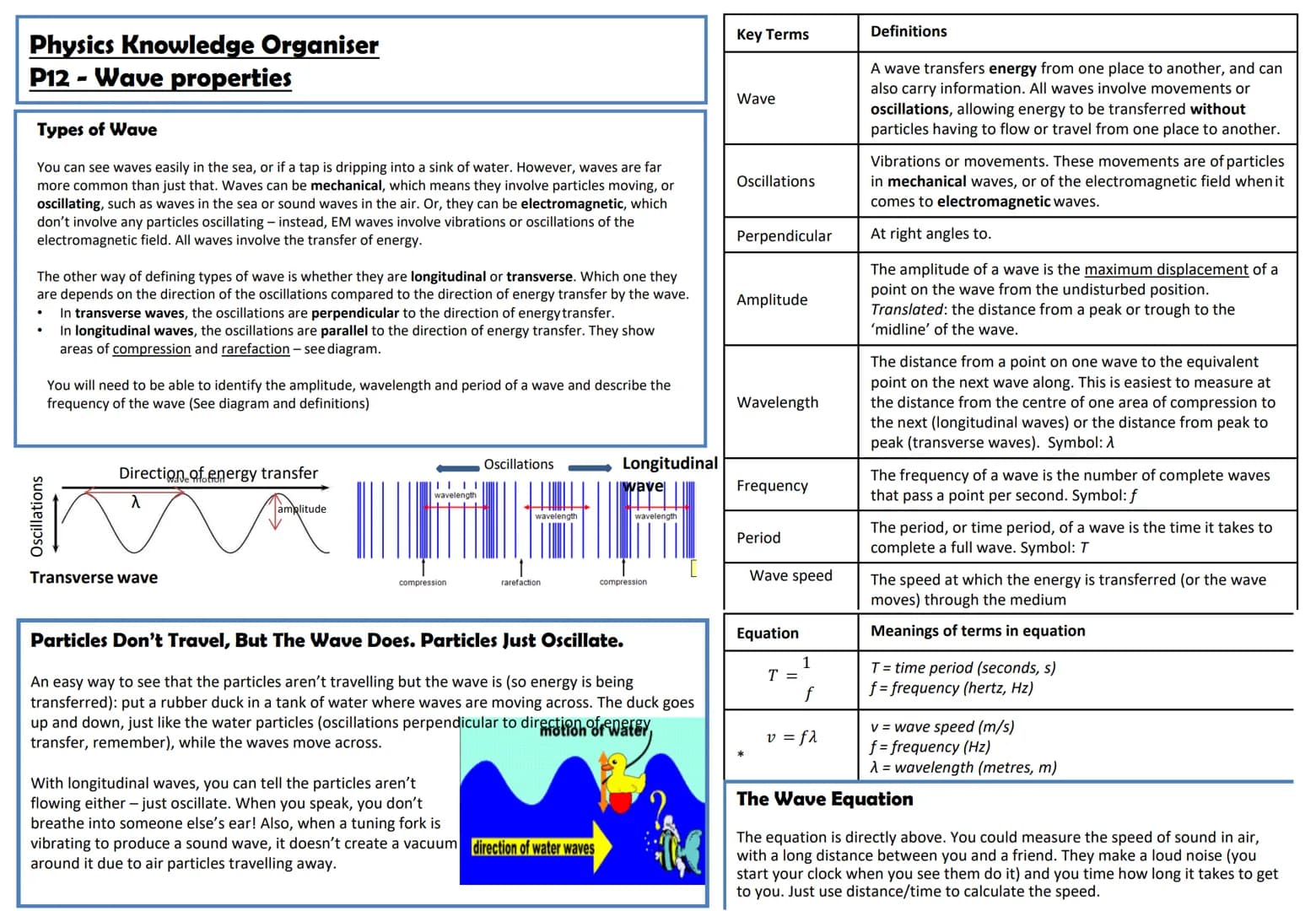

Types of Waves in Physics

This page introduces the fundamental concepts of wave properties in Physics. It explains that waves are ubiquitous phenomena that can be classified into two main categories:

1. Mechanical waves: These involve the oscillation of particles, such as water waves or sound waves.
2. Electromagnetic waves: These do not require particles but involve oscillations of the electromagnetic field.

The page also distinguishes between transverse and longitudinal waves based on the direction of oscillations relative to energy transfer.

Definition: A wave transfers energy from one place to another without the transfer of matter. All waves involve oscillations that allow energy transfer without particle flow.

Highlight: In transverse waves, oscillations are perpendicular to the direction of energy transfer, while in longitudinal waves, they are parallel.

The page includes diagrams illustrating the key components of waves, such as amplitude, wavelength, and period. It emphasizes that while waves transfer energy, the particles themselves only oscillate in place.

Example: A rubber duck floating on water waves demonstrates how particles oscillate up and down while the wave itself moves horizontally across the water's surface.

Vocabulary:

• Oscillations: Vibrations or movements of particles or electromagnetic fields
• Amplitude: Maximum displacement from the wave's undisturbed position
• Wavelength: Distance between equivalent points on adjacent waves
• Frequency: Number of complete waves passing a point per second
• Period: Time taken to complete one full wave cycle

The page concludes with the wave equation, v = fλ, which relates wave speed, frequency, and wavelength.
