How Light Travels: Straight Lines, Reflection & Refraction for Kids

A

Aminah Bilal

@aminahbilal_yngt

Light and Optics: Understanding How Light Travels and Interacts with... Show more

INCIDENT RAY
NORMAL

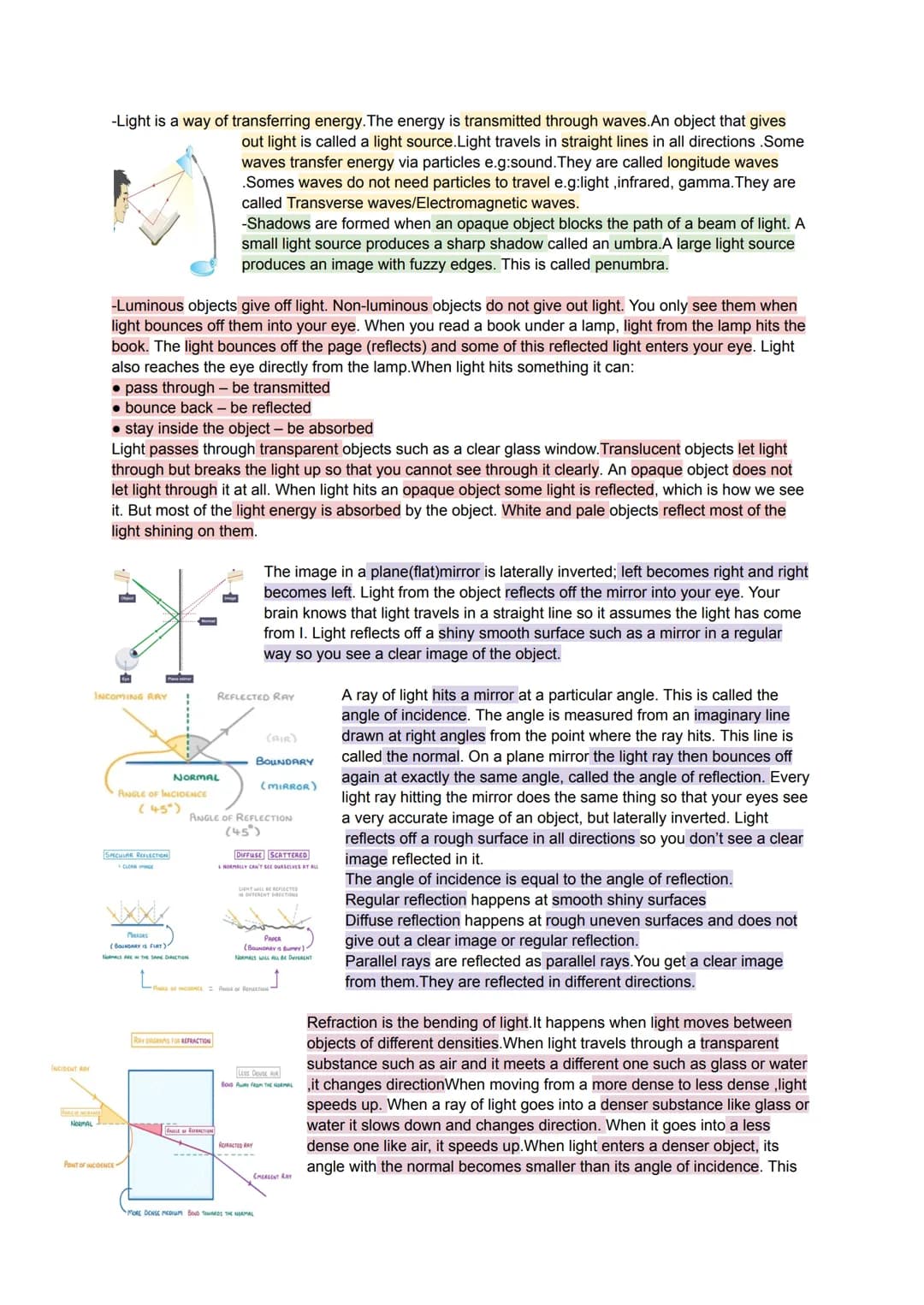

-Light is a way of transferring energy. The energy is transmitted through waves. An object that gives
out light is calle

Reflection and Mirrors

This section delves into the principles of reflection and how light interacts with mirrors and other reflective surfaces.

Reflection occurs when light bounces off a surface. The behavior of reflected light follows specific rules:

  1. The angle of incidence is equal to the angle of reflection.
  2. The incident ray, reflected ray, and normal all lie in the same plane.

Vocabulary: The angle of incidence is the angle between the incoming light ray and the normal, while the angle of reflection is the angle between the reflected ray and the normal.

Types of reflection:

  1. Specular reflection: Occurs on smooth, shiny surfaces like mirrors, producing clear images
  2. Diffuse reflection: Happens on rough, uneven surfaces, scattering light in various directions

Example: A plane flatflat mirror produces a laterally inverted image, where left becomes right and vice versa. This is because your brain assumes light travels in straight lines and interprets the reflected light as coming from behind the mirror.

Ray diagrams are used to illustrate the path of light during reflection:

  • Incident ray: The incoming light ray
  • Point of incidence: Where the light ray hits the surface
  • Normal: The perpendicular line at the point of incidence
  • Reflected ray: The light ray bouncing off the surface

Highlight: In a plane mirror, parallel rays are reflected as parallel rays, producing a clear image. On rough surfaces, light rays are reflected in different directions, resulting in diffuse reflection.

INCIDENT RAY
NORMAL
-Light is a way of transferring energy. The energy is transmitted through waves. An object that gives
out light is calle

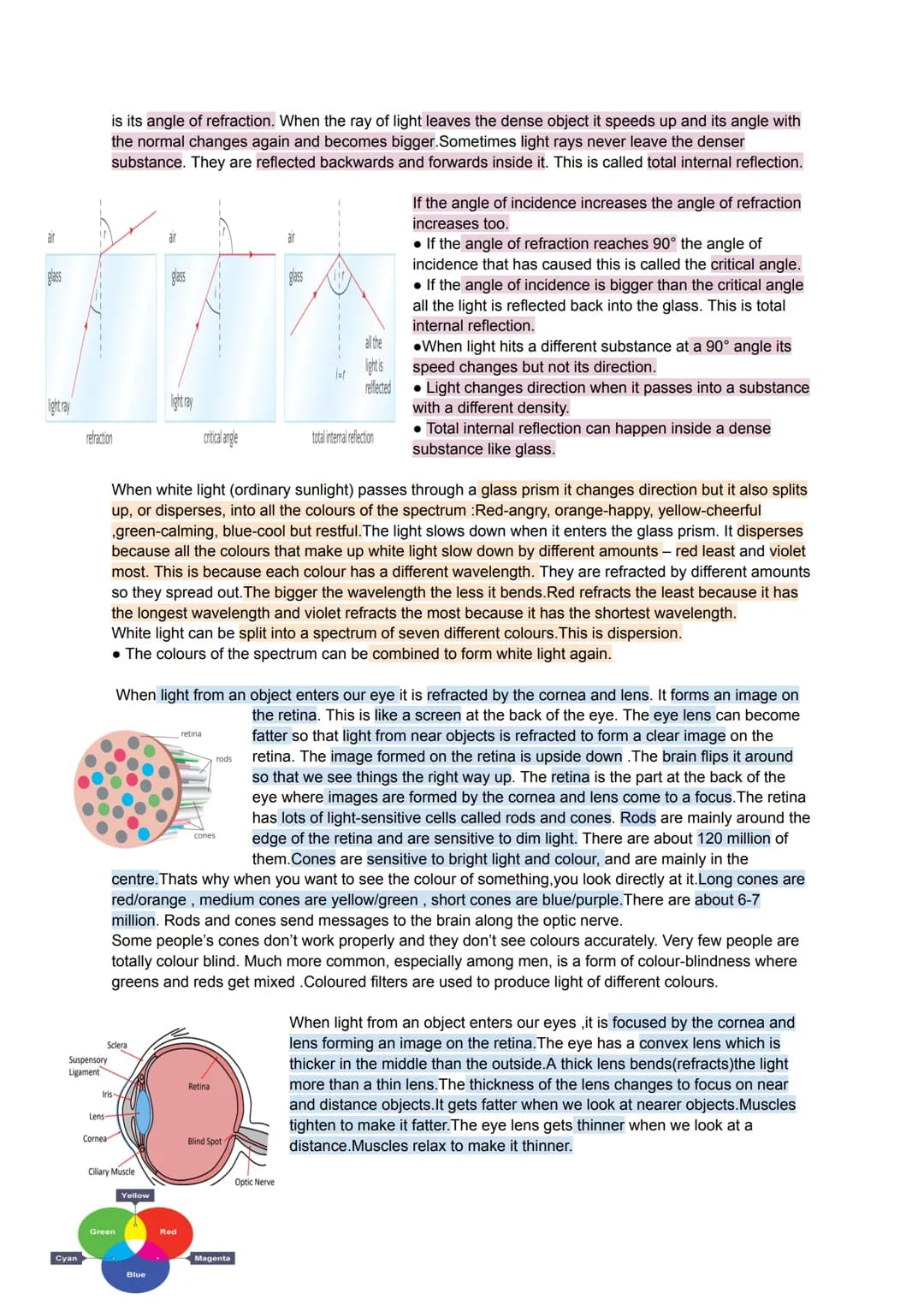

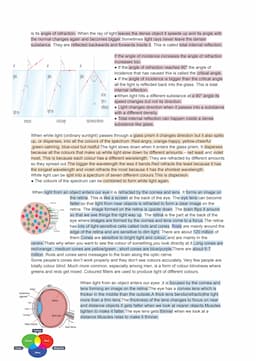

Refraction and Dispersion

This section explores how light behaves when passing through different mediums and the phenomenon of dispersion.

Refraction is the bending of light that occurs when it passes between mediums of different densities. Key points about refraction include:

  1. Light changes speed when moving between mediums of different densities.
  2. When light enters a denser medium, it slows down and bends towards the normal.
  3. When light enters a less dense medium, it speeds up and bends away from the normal.

Definition: The angle of refraction is the angle between the refracted ray and the normal in the second medium.

Ray diagrams for refraction show:

  • Incident ray in the first medium e.g.,aire.g., air
  • Normal at the boundary between mediums
  • Refracted ray in the second medium e.g.,glassorwatere.g., glass or water
  • Emergent ray when light exits the second medium

Highlight: Sometimes, light rays never leave the denser substance and are reflected internally. This phenomenon is called total internal reflection.

Dispersion occurs when white light passes through a prism:

  1. White light separates into its component colors thespectrumthe spectrum.
  2. Each color has a different wavelength and is refracted by a different amount.
  3. Red light has the longest wavelength and is refracted the least, while violet has the shortest wavelength and is refracted the most.

Example: The colors of the spectrum can be remembered using the mnemonic "ROY G. BIV" Red,Orange,Yellow,Green,Blue,Indigo,VioletRed, Orange, Yellow, Green, Blue, Indigo, Violet.

Vocabulary: The critical angle is the angle of incidence at which light is refracted along the surface between two mediums, beyond which total internal reflection occurs.

Understanding these principles of light, reflection, and refraction is crucial for various applications in optics, photography, and everyday life.

INCIDENT RAY
NORMAL
-Light is a way of transferring energy. The energy is transmitted through waves. An object that gives
out light is calle

Light and Its Properties

Light is a form of energy that travels in straight lines through waves. This section explores the nature of light and its basic properties.

  • Light sources are objects that emit light, such as the sun or a lamp.
  • Light travels in straight lines in all directions from its source.
  • Waves can be categorized into two types: Longitudinal waves e.g.,sounde.g., sound that transfer energy through particles Transverse waves or electromagnetic waves e.g.,light,infrared,gammae.g., light, infrared, gamma that don't require particles to travel

Vocabulary: Luminous objects give off light, while non-luminous objects only reflect light from other sources.

When light interacts with objects, it can:

  1. Be transmitted passthroughpass through
  2. Be reflected bouncebackbounce back
  3. Be absorbed stayinsidetheobjectstay inside the object

Example: When reading a book under a lamp, light from the lamp hits the book, reflects off the page, and enters your eye. Some light also reaches your eye directly from the lamp.

Objects can be classified based on how they interact with light:

  • Transparent: Allow light to pass through clearly e.g.,clearglasswindowe.g., clear glass window
  • Translucent: Let light through but scatter it, making objects appear blurry
  • Opaque: Do not allow light to pass through

Highlight: White and pale objects reflect most of the light shining on them, while darker objects absorb more light.

Shadows are formed when an opaque object blocks the path of light:

  • A small light source produces a sharp shadow called an umbra
  • A large light source creates a fuzzy-edged shadow known as a penumbra

Definition: The normal is an imaginary line drawn perpendicular to the surface at the point where a light ray hits it.
