Understanding Forces, Motion, and Work in Physics

A comprehensive exploration of fundamental physics concepts, focusing on forces, motion, and work calculations that are essential for understanding mechanical systems.

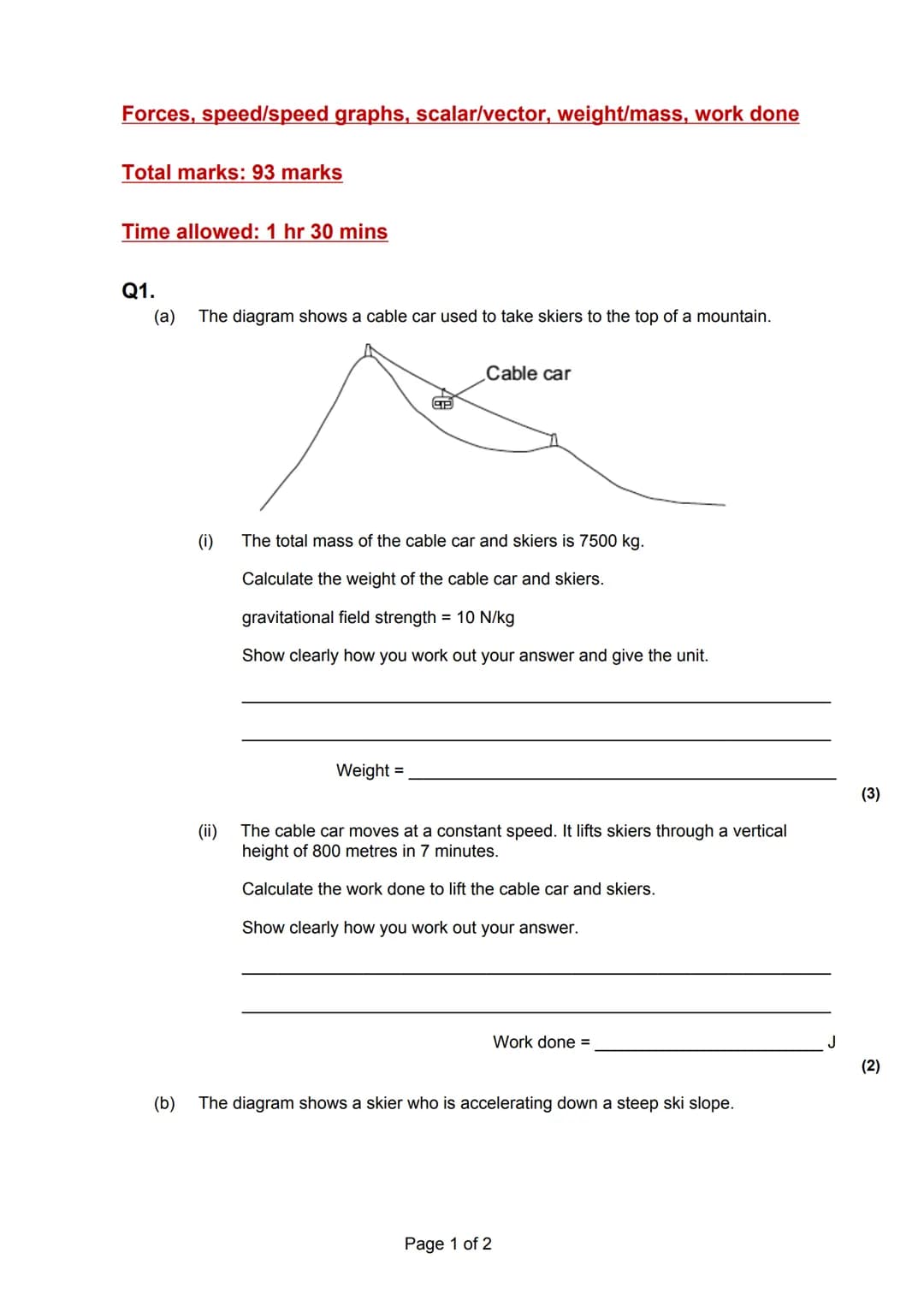

In physics, understanding how forces interact with objects is crucial for analyzing real-world scenarios. When examining systems like cable cars, we must consider multiple forces acting simultaneously. The Weight of an object, calculated as mass multiplied by gravitational field strength $10 N/kg$, represents the force of gravity pulling downward. For instance, a cable car system with a mass of 7500 kg would have a weight of 75,000 N.

Definition: Work done is the energy transferred when a force moves an object through a distance. It is calculated using the formula: work done = force x distance units

When calculating Work done in systems like cable cars or elevators, we multiply the force $weight$ by the vertical distance traveled. This gives us the energy required to lift the object against gravity. For example, if a cable car system weighs 75,000 N and rises 800 meters, the work done would be 60,000,000 Joules.

Understanding the difference between Scalar and vector quantities is fundamental in physics. While scalar quantities like speed only have magnitude, vector quantities like velocity include both magnitude and direction. This distinction becomes particularly important when analyzing motion and forces in multiple dimensions.

Motion Analysis Through Graphs

Distance-time graphs and Velocity-time graphs are powerful tools for understanding motion. These visual representations help us analyze how objects move and change speed over time.

Highlight: The gradient of a Distance-time graph Physics represents the speed of the object at any given point. A steeper gradient indicates higher speed.

When studying motion, it's essential to differentiate between various types of graphs. Distance-time graph ks3 worksheet exercises typically focus on interpreting straight lines $constant speed$ and curved lines $changing speed$. Students learn to determine speed from the gradient of a distance/time graph by calculating the slope between two points.

Acceleration time graphs show how the rate of change of velocity varies over time. A positive gradient indicates increasing speed, while a negative gradient shows deceleration. This concept is particularly important when analyzing real-world scenarios like vehicles starting and stopping.

Vector and Scalar Quantities in Detail

Understanding Scalar and vector quantities explained gcse is crucial for advanced physics concepts. The main Difference between scalar and vector quantities explained lies in their mathematical properties and physical representation.

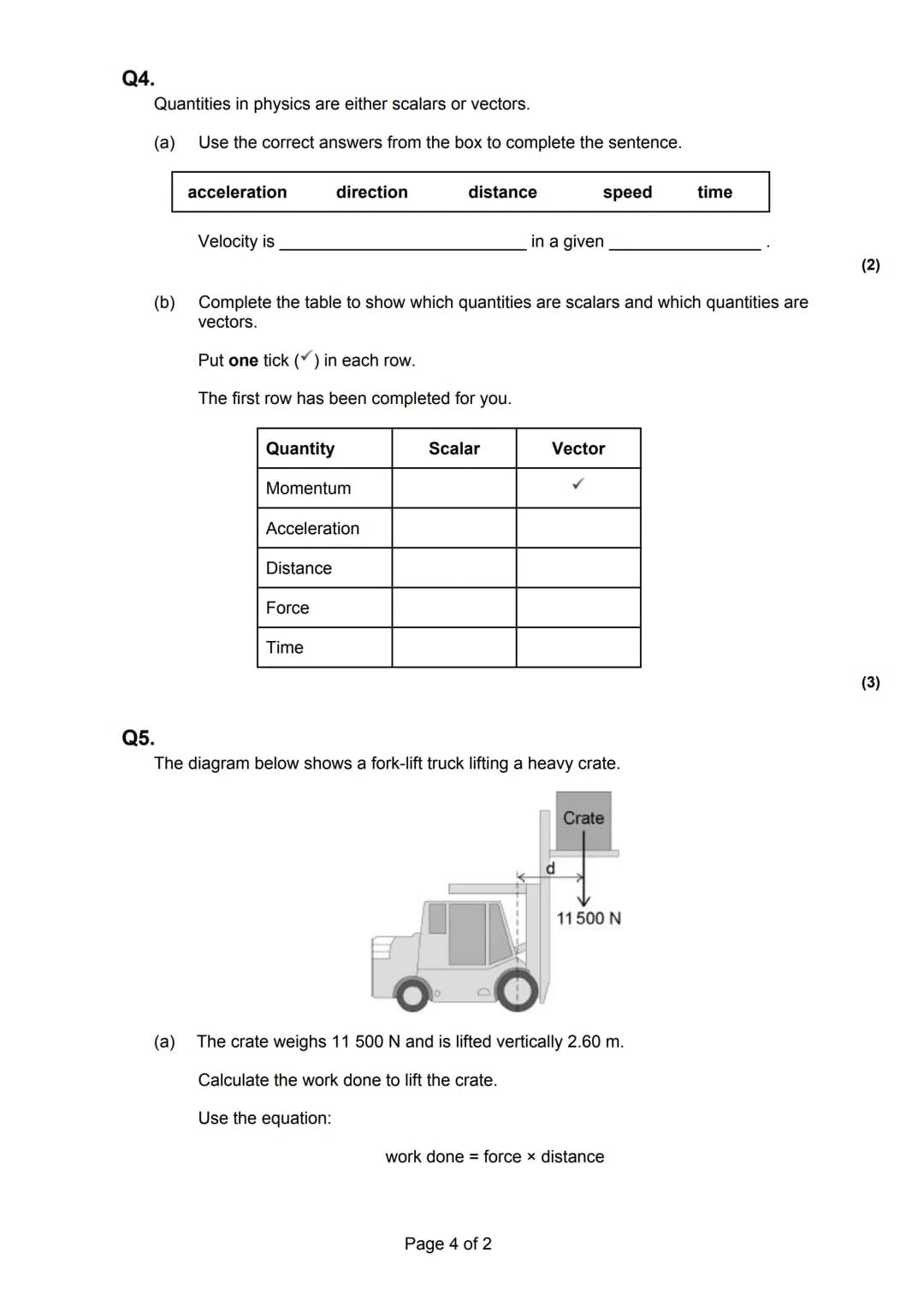

Example: Among the 50 examples of scalar and vector quantities, common scalar quantities include temperature, mass, and time, while vector quantities include force, velocity, and displacement.

The Scalar and vector quantity difference becomes particularly evident when solving problems involving motion and forces. While scalar quantities can be added directly, vector quantities must consider direction. This is why What is vector quantity in physics is such an important concept to master.

When asking "Is speed a vector quantity," students must understand that speed is scalar $magnitude only$, while velocity is vector $magnitude and direction$. This distinction is crucial for solving complex physics problems accurately.

Work and Energy Calculations

Understanding Work done calculations in physics ex gcse requires mastering the relationship between force, distance, and energy transfer. The basic principle follows the Work done formula: work = force × distance.

Vocabulary: The Work done unit is the Joule $J$, which equals one Newton-meter $N⋅m$

Students practicing Work done calculations in physics ex answers should focus on identifying the correct force and distance values. For example, when calculating How to calculate work done with mass and distance, first convert mass to weight using gravitational field strength.

How to calculate work done in physics problems often involve real-world applications like lifting objects or moving them horizontally. The key is understanding that work done represents energy transfer and follows conservation principles as explained in Work done BBC Bitesize KS3 resources.

Understanding Motion, Forces, and Work in Physics

A thorough understanding of motion requires distinguishing between velocity and speed. While speed only tells us how fast something is moving, velocity includes both speed and direction, making it a vector quantity. This fundamental difference is crucial in physics and real-world applications.

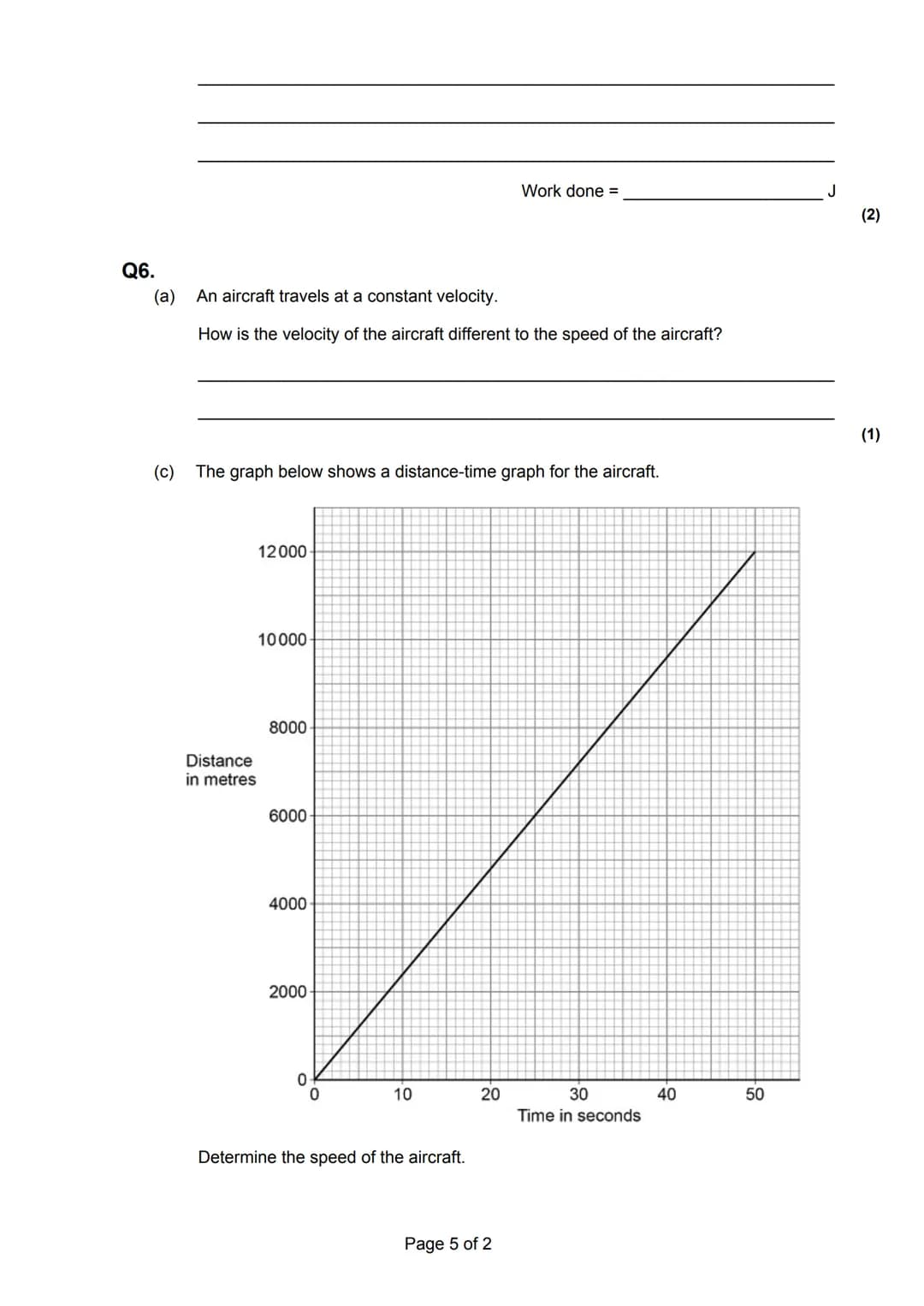

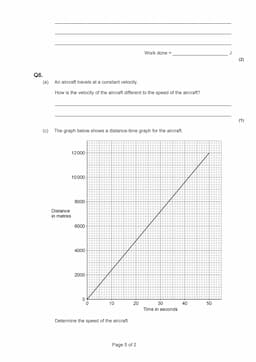

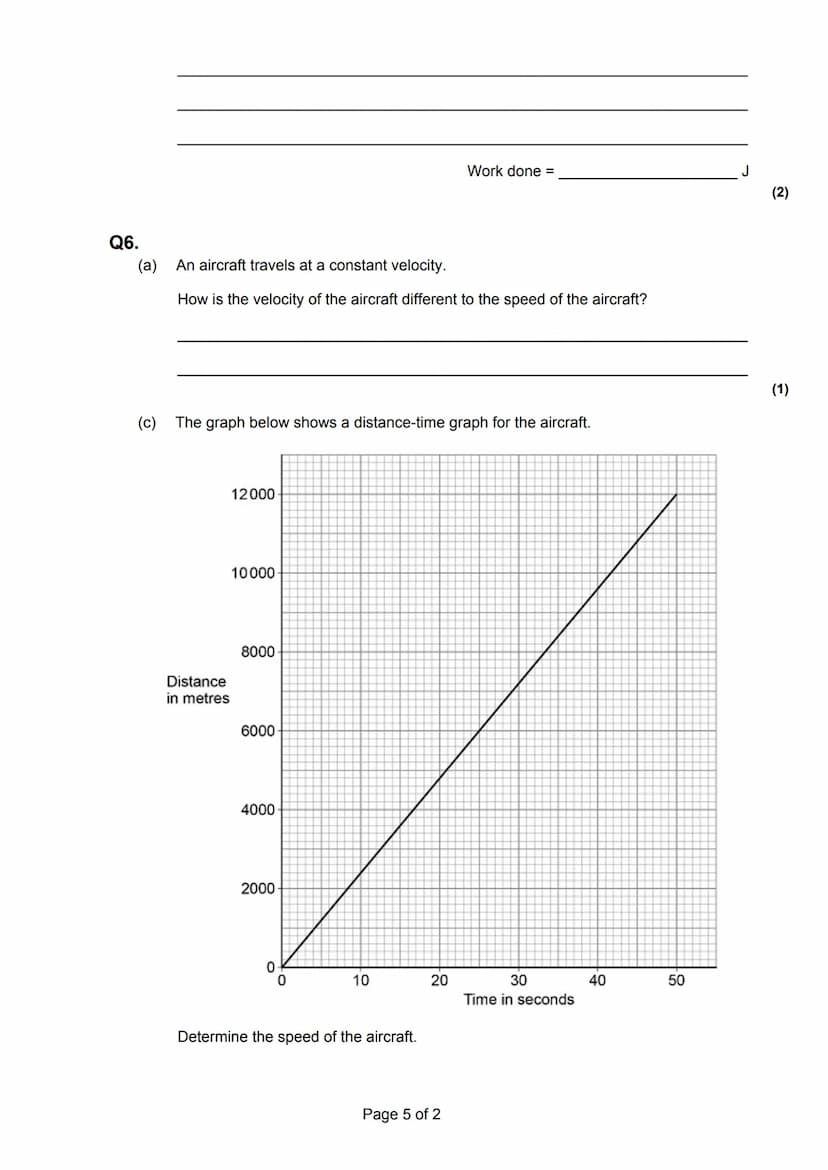

When analyzing motion, Distance-time graphs provide valuable visual representations of an object's movement. Looking at the example of an aircraft traveling at constant velocity, we can determine its speed by calculating the gradient of the line on the graph. For instance, if an aircraft covers 12,000 meters in 50 seconds, we can find its speed using the formula: speed = distance ÷ time.

Definition: Work done in physics is the product of force and distance moved in the direction of the force, expressed mathematically as work done = force × distance. The SI unit for work done is the Joule $J$.

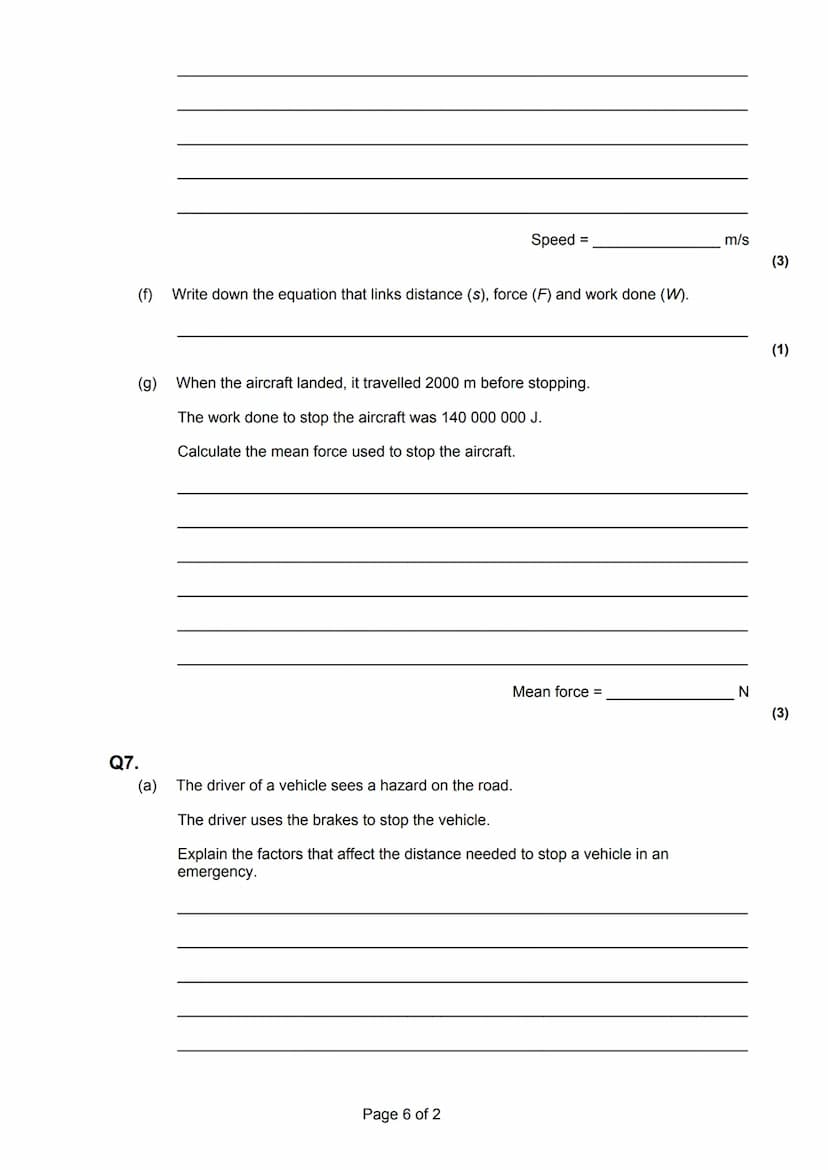

Understanding work done is essential in real-world scenarios. For example, when an aircraft lands and needs to stop, the braking system performs work against the motion. If we know the work done $140,000,000 J$ and the distance traveled $2000 m$, we can calculate the mean force using the work done equation rearranged as: Force = Work done ÷ distance.

Forces and Motion in Vehicle Braking

Emergency stopping distances depend on multiple interrelated factors. The total stopping distance combines thinking distance and braking distance. Key factors include:

• Vehicle speed $higher speeds require greater stopping distances$
• Road conditions $wet or icy surfaces increase stopping distance$
• Tire condition and brake efficiency
• Driver reaction time
• Vehicle mass

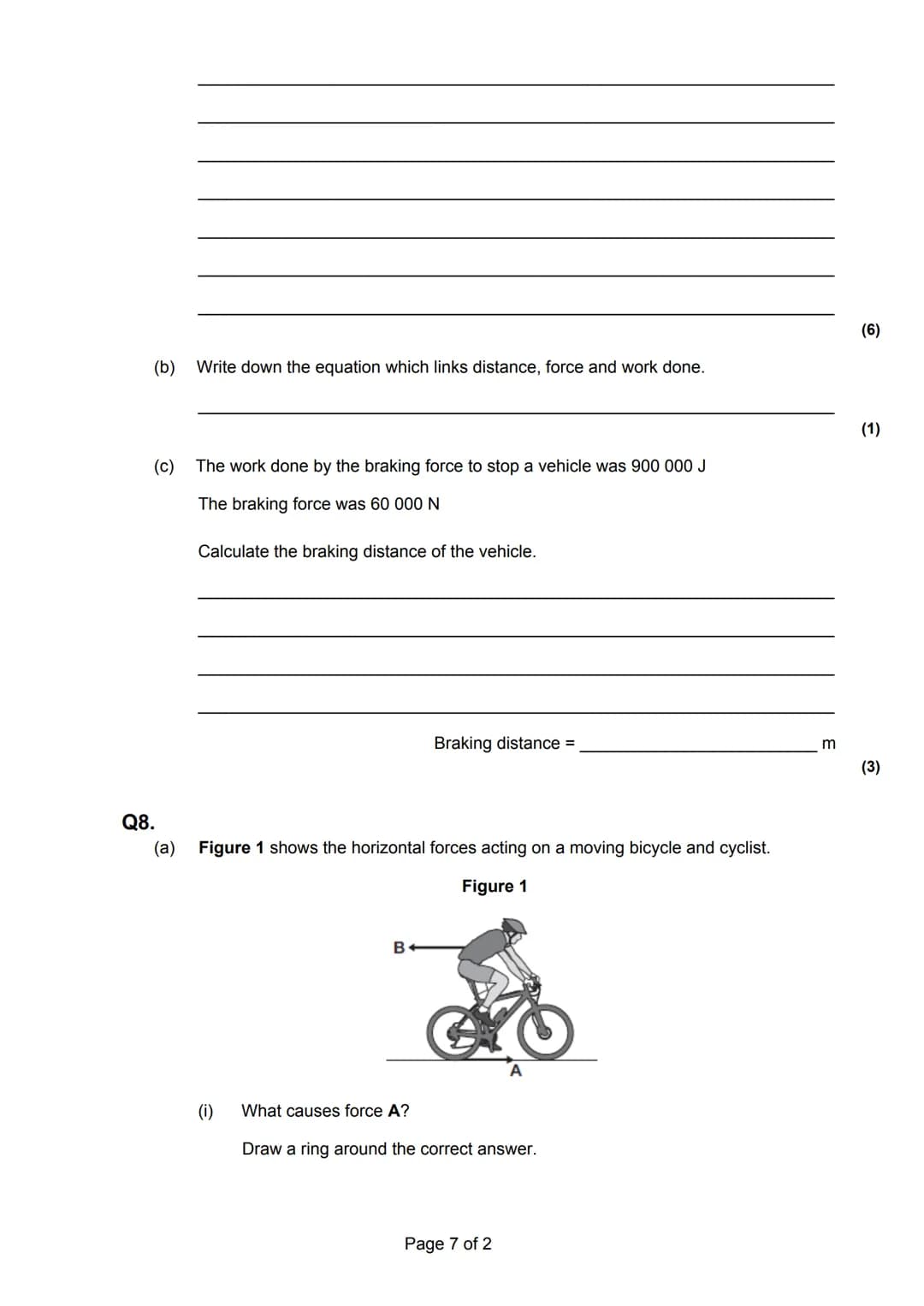

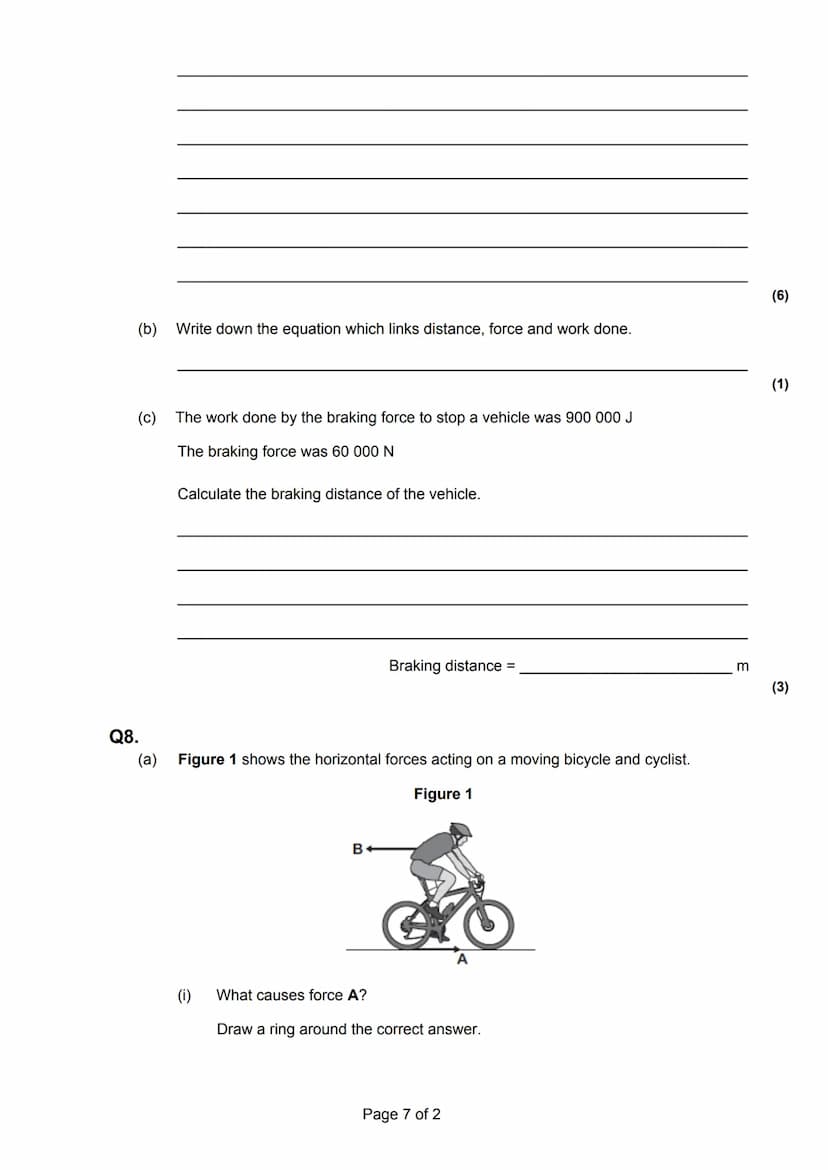

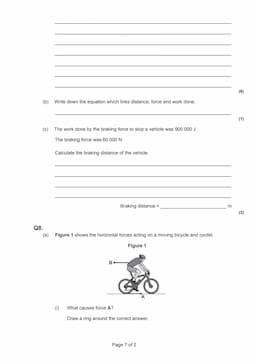

Example: If a vehicle's braking force is 60,000 N and the work done is 900,000 J, we can calculate the braking distance using: Distance = Work done ÷ Force = 900,000 ÷ 60,000 = 15 meters

When analyzing forces on moving objects like bicycles, we must consider both opposing and driving forces. The primary opposing force is air resistance $Force A$, which increases with speed, while friction $Force B$ acts between the tires and road surface.

Velocity Changes and Force Interactions

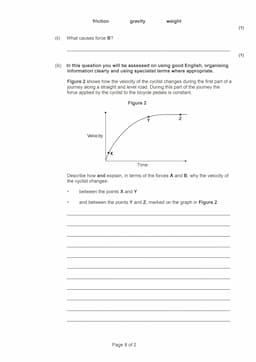

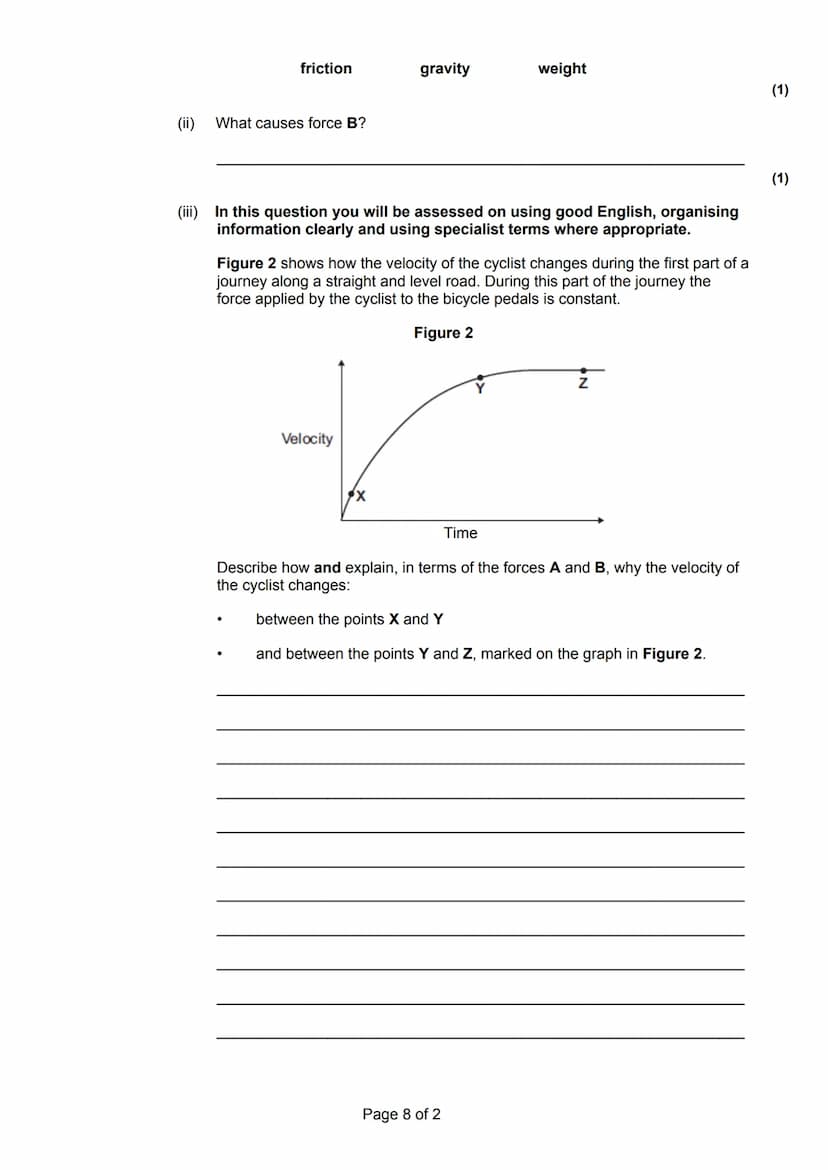

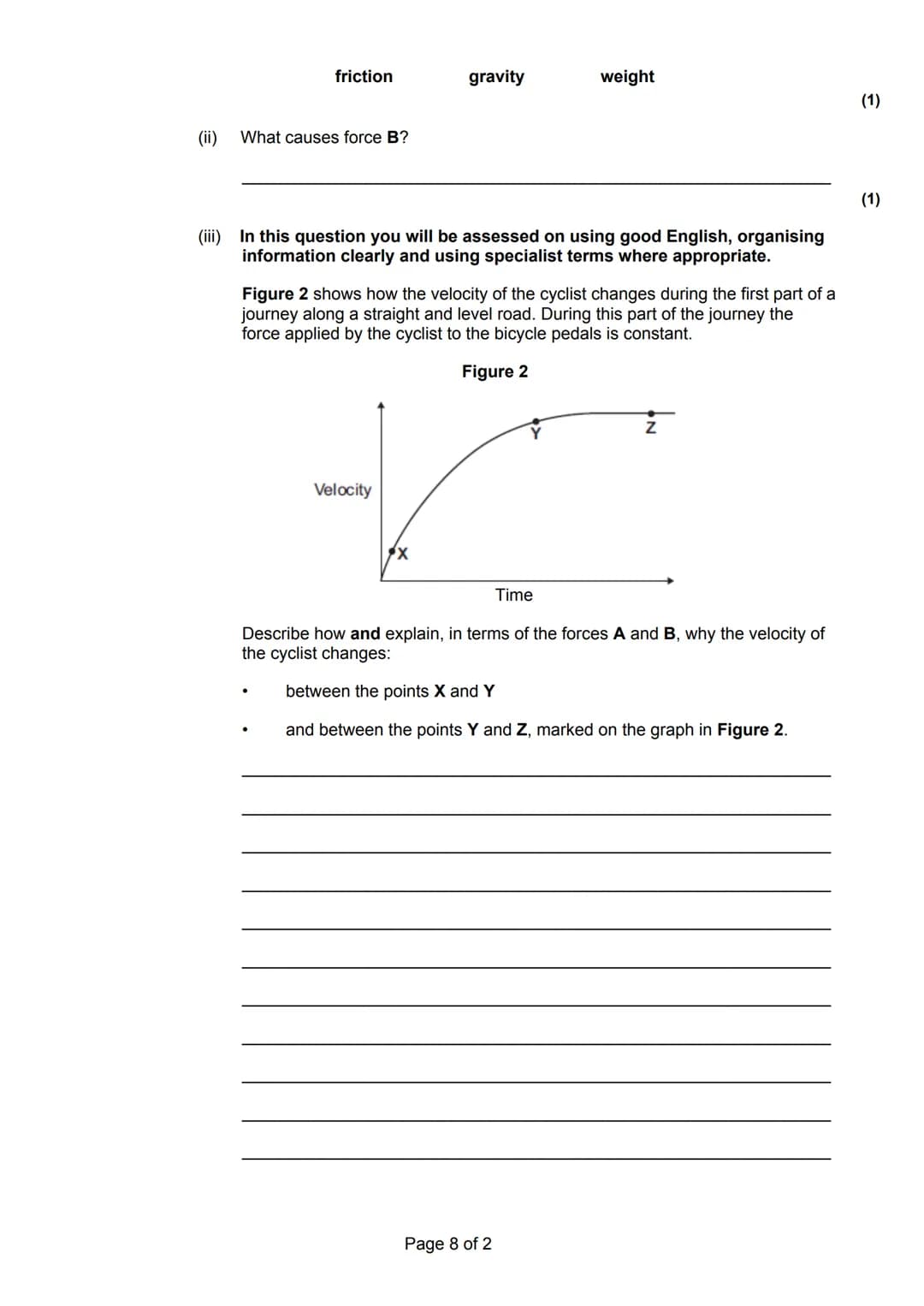

Velocity-time graphs show how an object's velocity changes over time. For a cyclist traveling on a level road:

Between points X and Y:

• The velocity increases as the driving force from pedaling exceeds air resistance
• Acceleration occurs until forces balance

Between points Y and Z:

• Constant velocity is maintained
• Driving force equals the sum of opposing forces

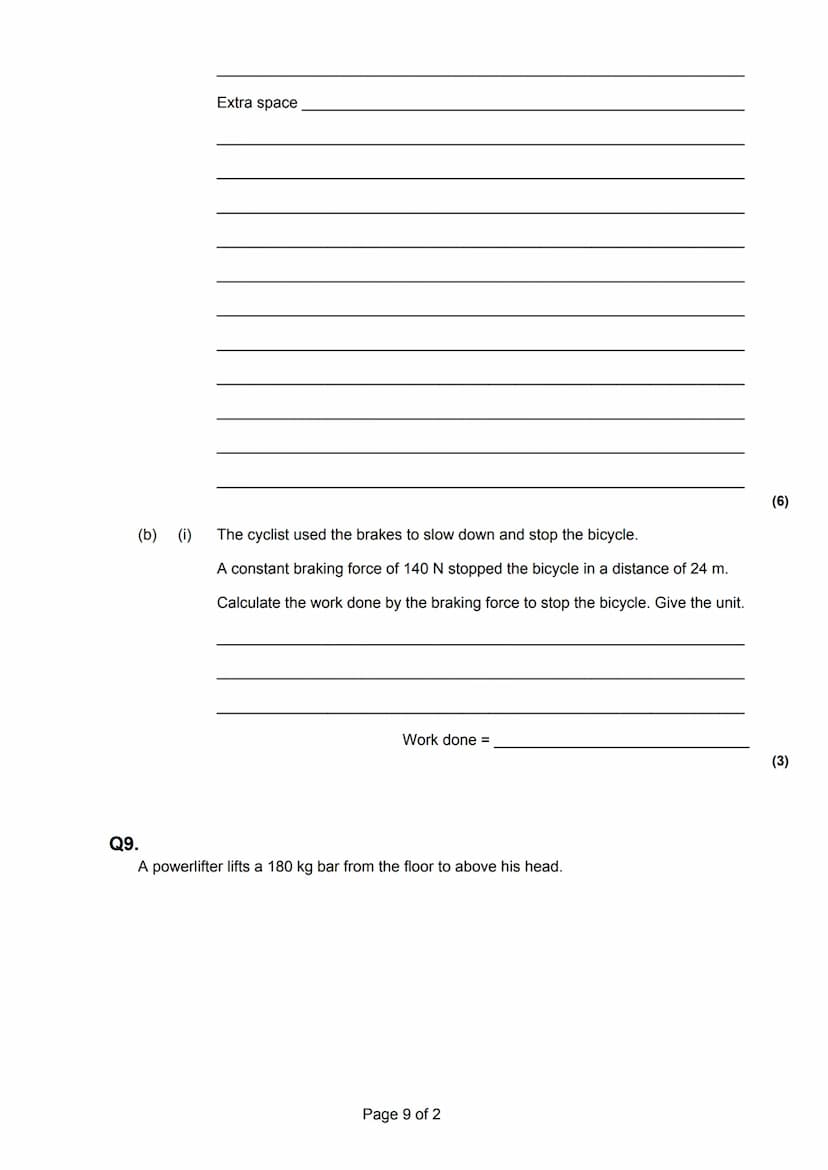

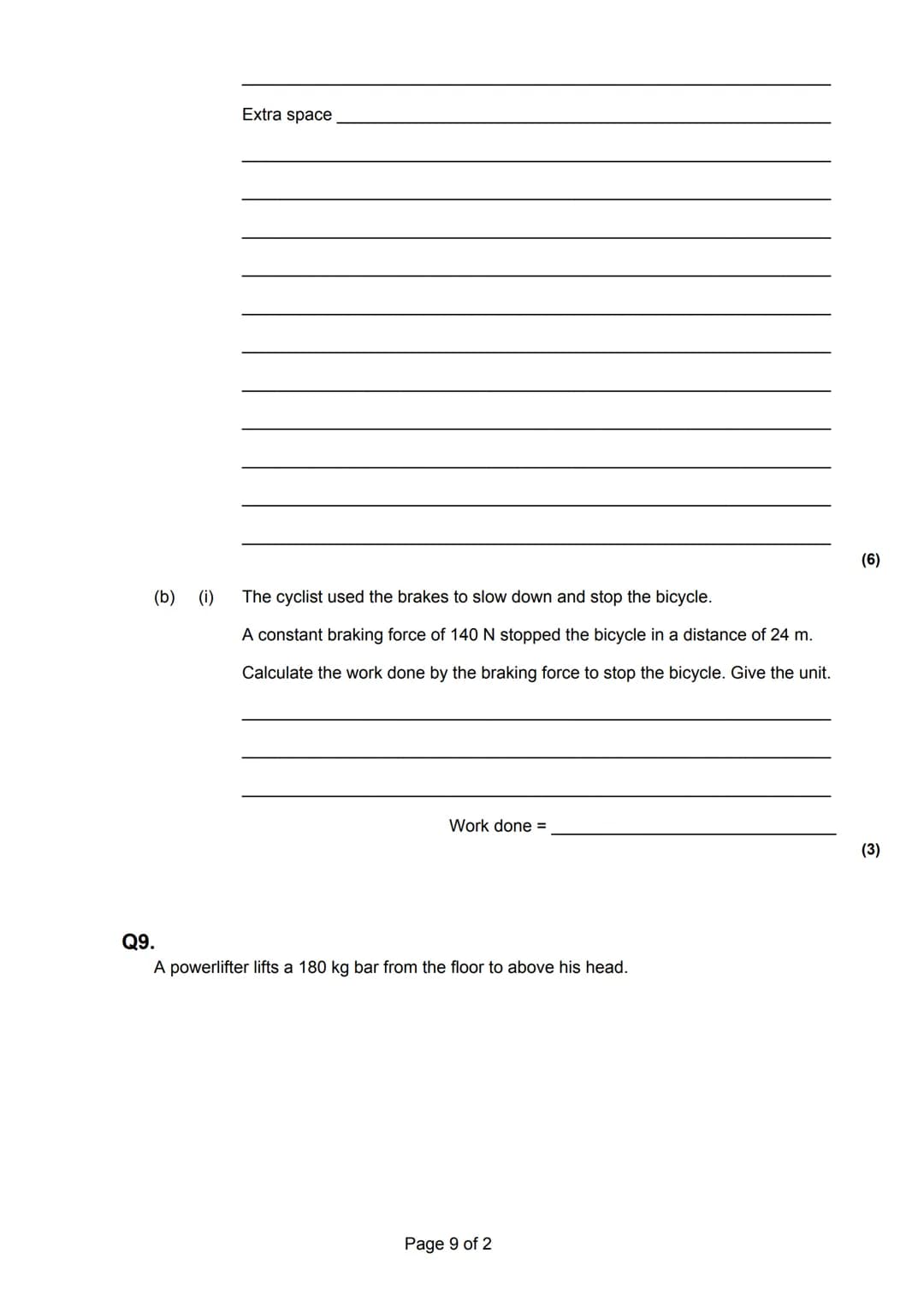

Highlight: When a cyclist applies brakes, the work done by the braking force can be calculated using Work done = force × distance. For example, with a braking force of 140 N over 24 m, the work done would be 3,360 Joules.

Work and Energy in Real-World Applications

In weightlifting scenarios, work is done against gravity when lifting objects. For a powerlifter lifting a 180 kg bar:

• The force required must exceed the weight force $mass × gravitational field strength$
• Work done depends on vertical displacement
• Energy is transferred from chemical energy in muscles to gravitational potential energy

Vocabulary: The work done unit is the Joule $J$, which equals one Newton-meter $N⋅m$. This unit represents the energy transferred when a force of 1 Newton moves an object through a distance of 1 meter.

Understanding these concepts helps analyze real-world situations from vehicle safety to athletic performance, demonstrating the practical applications of physics principles in everyday life.

Understanding Work Done and Force in Physics

Work Done is a fundamental concept in physics that describes the energy transferred when a force moves an object through a distance. When calculating work done = force x distance units, it's crucial to understand both components clearly.

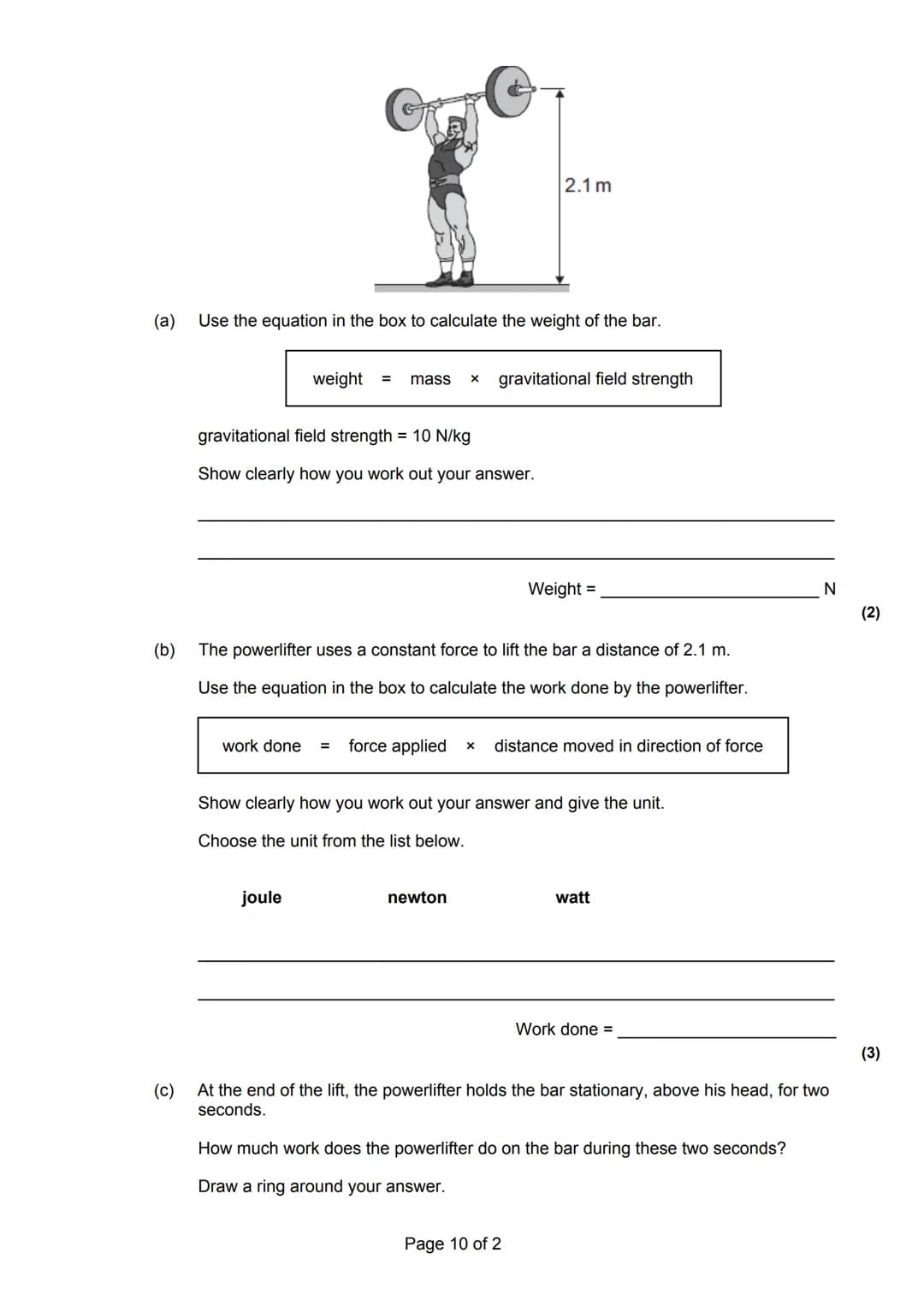

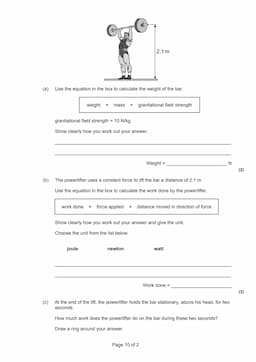

A practical example involves powerlifting, where athletes lift heavy weights vertically. To calculate the work done in such scenarios, we multiply the force applied by the distance moved in the direction of that force. For instance, if a powerlifter moves a barbell weighing 500N through a vertical distance of 2.1 meters, the work done would be 1050 joules $500N × 2.1m$.

Definition: Work done is the energy transferred when a force moves an object through a distance. The formula is Work Done = Force × Distance, measured in joules $J$.

Understanding how to calculate work done in physics requires knowledge of weight calculations too. Weight is determined by multiplying mass by gravitational field strength $typically 10 N/kg on Earth$. This becomes particularly important when solving problems involving lifting objects against gravity.

Example: For a 50kg barbell:

• Weight = mass × gravitational field strength
• Weight = 50 kg × 10 N/kg = 500 N

An important concept to grasp when studying work done calculations in physics is that work is only done when there is movement in the direction of the applied force. If an object is held stationary, even though a force is being applied, no work is done because there is no displacement.

Highlight: When an object is held stationary, even if a force is being applied, the work done equals zero because there is no displacement.

Forces and Motion: Understanding Graphs and Quantities

Understanding scalar and vector quantities is essential for mastering physics concepts. Scalar and vector quantities explained gcse material typically emphasizes that scalars have magnitude only, while vectors have both magnitude and direction.

Vector quantity in physics includes forces, displacement, and velocity, while examples of scalar quantities include distance, speed, and mass. The difference between scalar and vector quantities explained shows that vectors require both a size and direction to be fully described, whereas scalars only need a size.

Vocabulary:

• Scalar quantities: Physical quantities with only magnitude $size$
• Vector quantities: Physical quantities with both magnitude and direction

When analyzing motion, velocity-time graphs and distance-time graphs provide visual representations of movement. The gradient of a distance-time graph physics plot represents speed, making it possible to determine speed from the gradient of a distance/time graph.

Example: In a distance-time graph, a steeper line indicates faster speed, while a horizontal line shows the object is stationary. The gradient at any point gives the instantaneous speed.

Distance-time graphs bbc bitesize ks3 resources often demonstrate how these graphs can be used to analyze different types of motion, including constant speed, acceleration, and stationary periods. Understanding these graphs is crucial for developing a comprehensive grasp of motion analysis in physics.
