Fun with Hooke's Law and Springy Science: Force-Extension Graphs and More
Reuben Cowell
@reubencowell
1 / 5
Elastic and Inelastic Deformation
Objects can undergo either elastic or inelastic deformation when subjected to forces.
Definition: Elastic deformation occurs when an object returns to its original shape after the applied force is removed.
Definition: Inelastic deformation occurs when an object does not fully return to its original shape after the applied force is removed.
Examples of elastic objects:
- Springs
- Elastic bands
Examples of inelastic objects:
- Plastic
- Clay
Highlight: The elastic and inelastic deformation in physics concept is crucial for understanding material properties and behavior under stress.
Work Done on a Spring
When a spring is stretched or compressed, work is done, and energy is transferred to its elastic potential energy store. The work done on a spring can be calculated using the equation:
Formula: Ee = ½ × k × x²
Where:
- Ee is the elastic potential energy
- k is the spring constant
- x is the extension
Highlight: This formula only applies to objects that haven't exceeded their limit of proportionality.

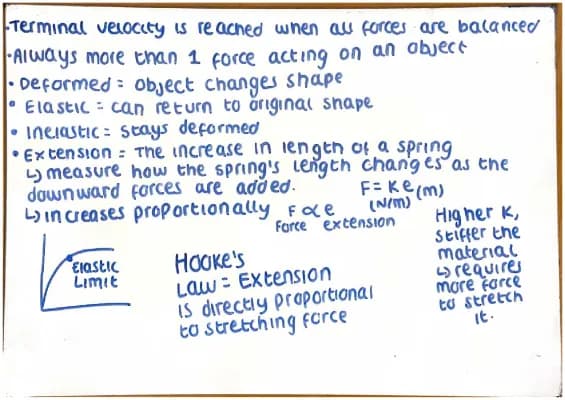

Hooke's Law and Extension
Hooke's law is a fundamental principle in physics that describes the relationship between force and extension in elastic objects.
Definition: Hooke's law states that the extension of an elastic object is directly proportional to the force applied, up to the limit of proportionality.
The limit of proportionality is the point beyond which an elastic object may extend but won't return to its original shape when the force is removed. This value varies by material.
Force-Extension Graphs
Force-extension graphs visually represent Hooke's law. These graphs typically show:
- A linear region where force and extension are directly proportional
- A non-linear region beyond the limit of proportionality (marked as point P)
Example: In a force-extension graph for a spring, the initial straight line represents the elastic region, while the curved portion indicates the plastic region.
Calculating Spring Constant
The spring constant (k) can be determined from force-extension graphs by finding the gradient:
Formula: k = gradient = ΔF / Δe
Where:
- ΔF is the change in force
- Δe is the change in extension
Highlight: A steeper gradient indicates a larger spring constant, meaning the spring is stiffer.
Using Hooke's Law
Hooke's Law is expressed by the equation:
Formula: F = k × e
Where:
- F is the force (in Newtons, N)
- k is the spring constant
- e is the extension (in meters, m)
Vocabulary: Extension is calculated by subtracting the original length from the final length of the object.
Solving Hooke's Law Problems
To solve problems using Hooke's Law:
- List known quantities
- Write down and rearrange the relevant equation
- Calculate extension
- Convert units if necessary
- Substitute values into the equation
Highlight: Pay attention to units when solving Hooke's Law problems. The standard units are meters for length and Newtons per meter for spring constant.
Example: When calculating the spring constant using force extension graphs, ensure that you convert centimeters to meters by dividing by 100.
This comprehensive guide provides a solid foundation for understanding Hooke's law force extension relationship and related concepts in physics, suitable for GCSE and KS3 level students.
Answering Hooke's Law Questions
This page provides a step-by-step guide on how to approach and solve problems related to Hooke's Law.
Steps to answer a Hooke's Law question:
- List known quantities
- Write down and rearrange the relevant equation
- Calculate extension
- Convert units if necessary
- Substitute values into the equation
Highlight: Pay close attention to units when solving Hooke's Law problems. Most springs are measured in centimeters, but Hooke's Law uses meters, so conversion may be necessary.
Example: The page includes a visual representation of a spring, highlighting the original length, final length, and the force (weight) applied, to help students understand how to apply Hooke's Law in practical scenarios.

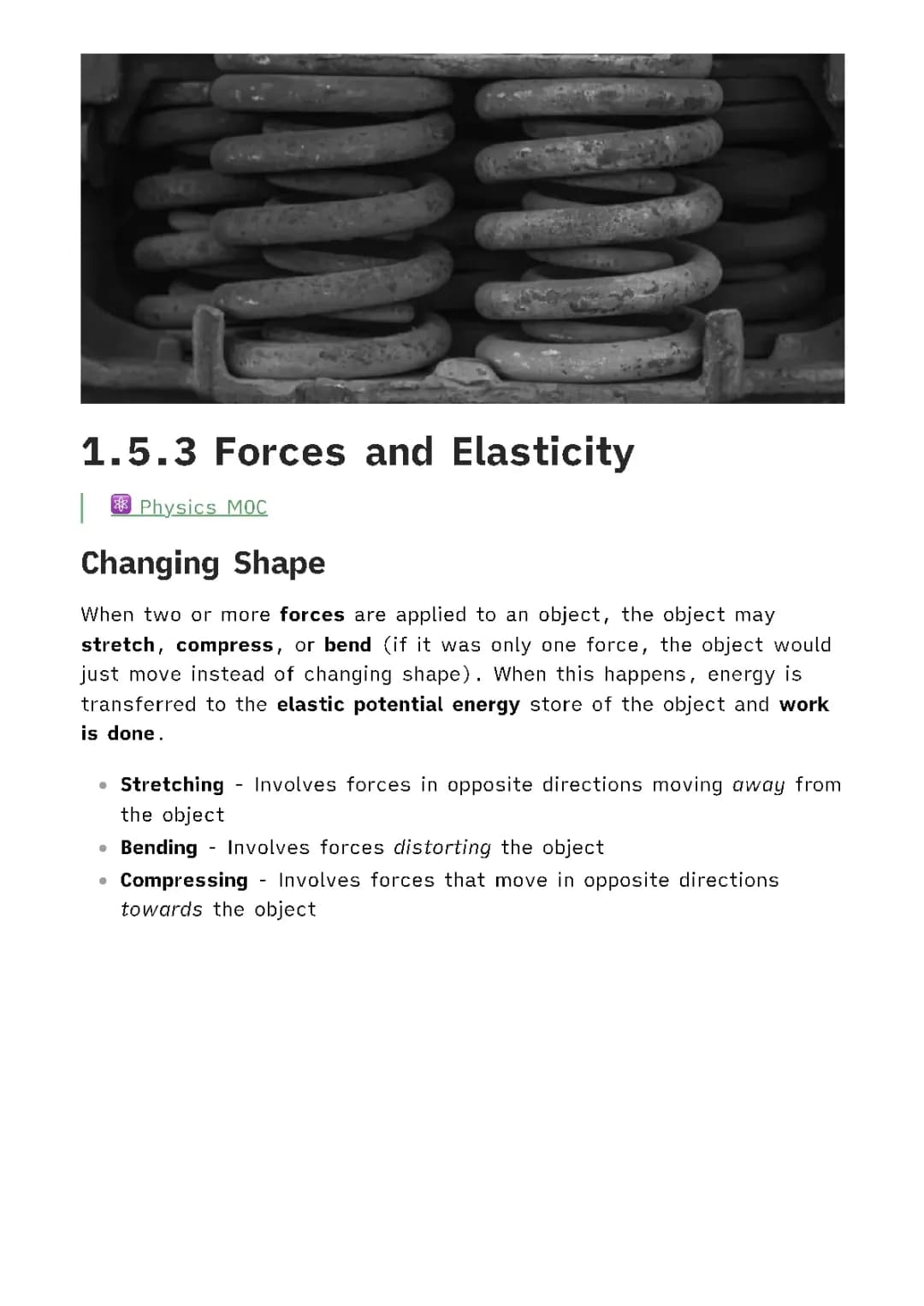

Changing Shape and Deformation
When multiple forces act on an object, it may undergo deformation through stretching, compressing, or bending. This process transfers energy to the object's elastic potential energy store.
Definition: Deformation refers to a change in an object's shape due to applied forces.
The three main types of deformation are:
- Stretching: Forces acting in opposite directions away from the object
- Compressing: Forces acting in opposite directions towards the object
- Bending: Forces distorting the object's shape
Highlight: Deformation only occurs when two or more forces are applied. A single force would simply cause the object to move.
