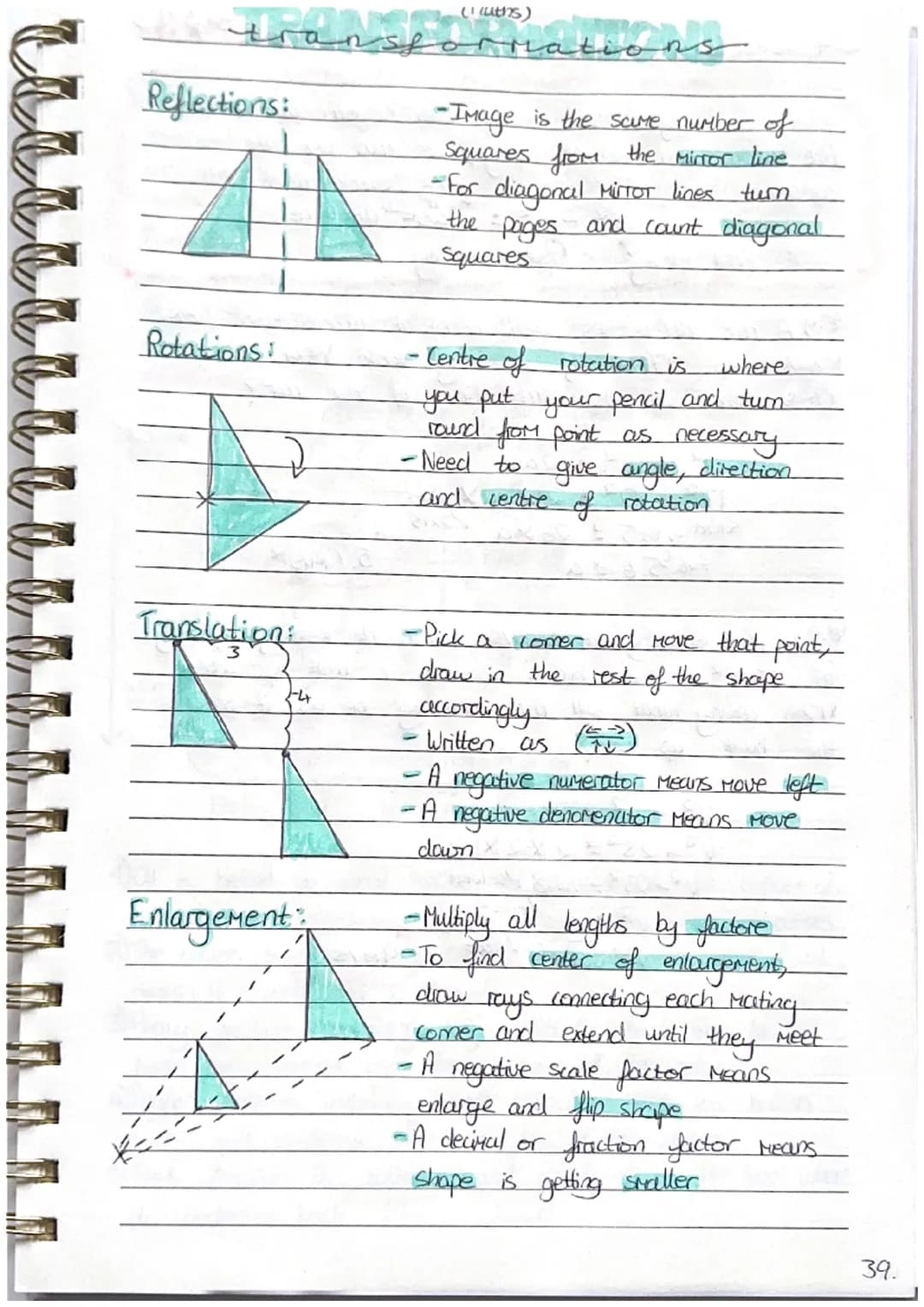

Geometric Transformations Overview
This page provides a comprehensive guide to four fundamental geometric transformations: reflections, rotations, translations, and enlargements. Each transformation is explained with key points to help students understand and apply these concepts in mathematics.
Reflections
Reflections are described with two main points:
- The image is positioned the same number of squares from the mirror line as the original shape.
- For diagonal mirror lines, the page should be turned to count diagonal squares accurately.
Highlight: When dealing with diagonal mirror lines in reflections, turning the page can help in accurately counting diagonal squares.
Rotations
The explanation for rotations includes three key elements:
- The center of rotation is where you place your pencil to turn the shape around.
- You need to specify the angle, direction, and center of rotation.
- The process involves picking a corner and moving that point, then drawing in the rest of the shape accordingly.
Vocabulary: The center of rotation is the fixed point around which a shape is rotated.
Translations
Translations are described using coordinate notation:
- They are written in the form x,y.
- A negative numerator means move left.
- A negative denominator means move down.
Example: A translation of −2,3 would move a shape 2 units left and 3 units up.
Enlargements
The section on enlargements covers several important aspects:
- All lengths are multiplied by the scale factor.
- To find the center of enlargement, draw rays connecting each matching corner and extend until they meet.
- A negative scale factor means enlarge and flip the shape.
- A decimal or fraction factor means the shape is getting smaller.
Definition: An enlargement is a transformation that changes the size of a shape without altering its angles.
This page serves as a quick reference guide for students learning about how to draw reflections in transformations step by step and other geometric transformations. It provides essential information on how to describe a reflection in Math, how to describe a rotation transformation, and enlargement in geometry transformations examples.
