Tangent to a Circle and Finding Line Intersections

A comprehensive guide to geometric concepts focusing on finding intersection of straight line graphs, equation of a tangent to a circle, and calculating perpendicular bisectors in geometry.

  • Explores fundamental concepts of straight line equations including gradients, y-intercepts, and parallel/perpendicular relationships
  • Details circle geometry including tangents, intersections, and center calculations
  • Covers advanced applications like finding circle equations from three points
  • Demonstrates practical problem-solving using simultaneous equations and geometric principles
  • Includes essential formulas for distance calculations and circle equations
...

29/04/2023

103

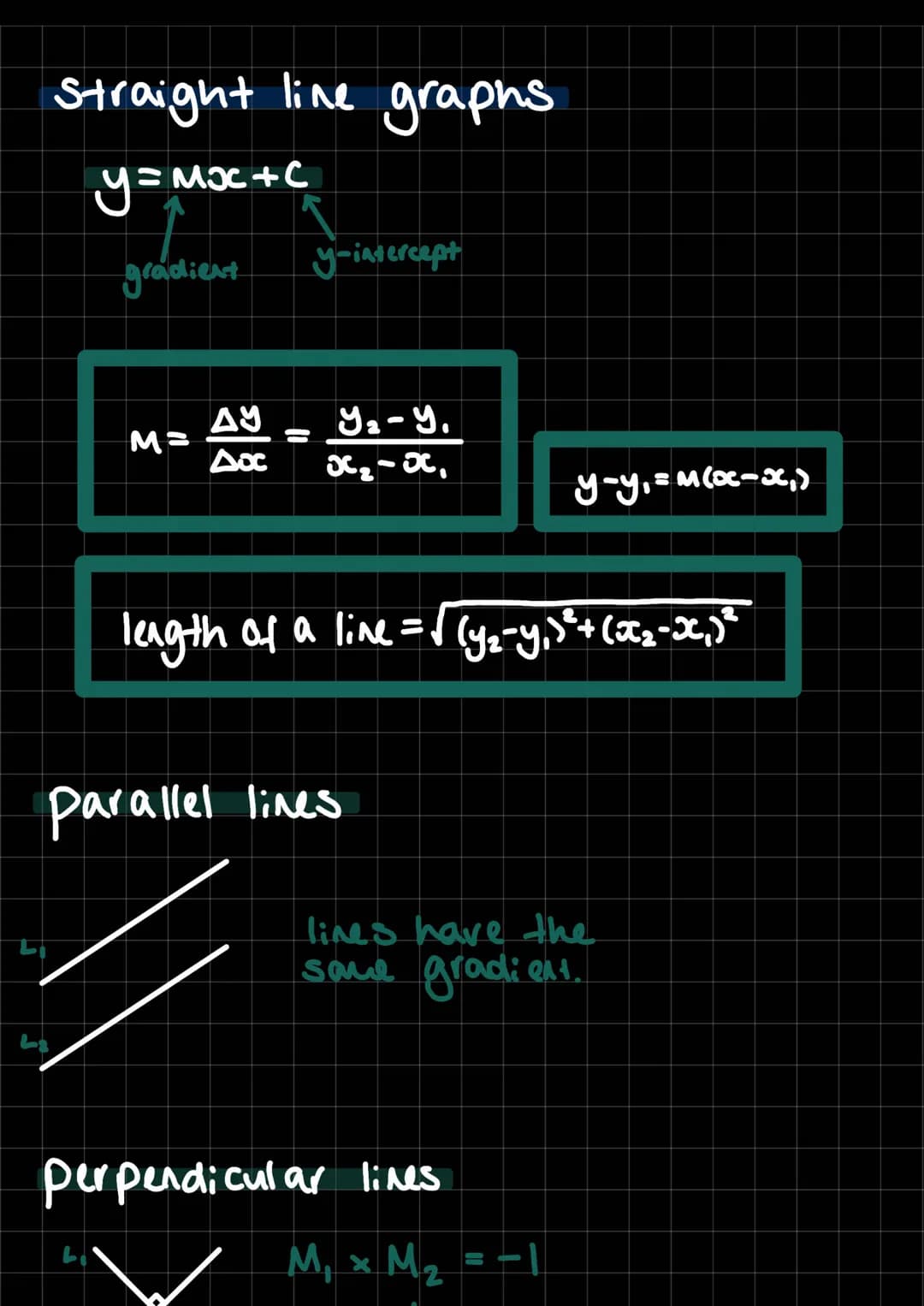

straight line graphs y=MxC+c gradient M= y-intercept АУ y₂-y. Ax x₂-x, 8 length of a line = √ (y₂-y,)²+(₂-x,)² parallel lines У-у,=M(0-х,).

View

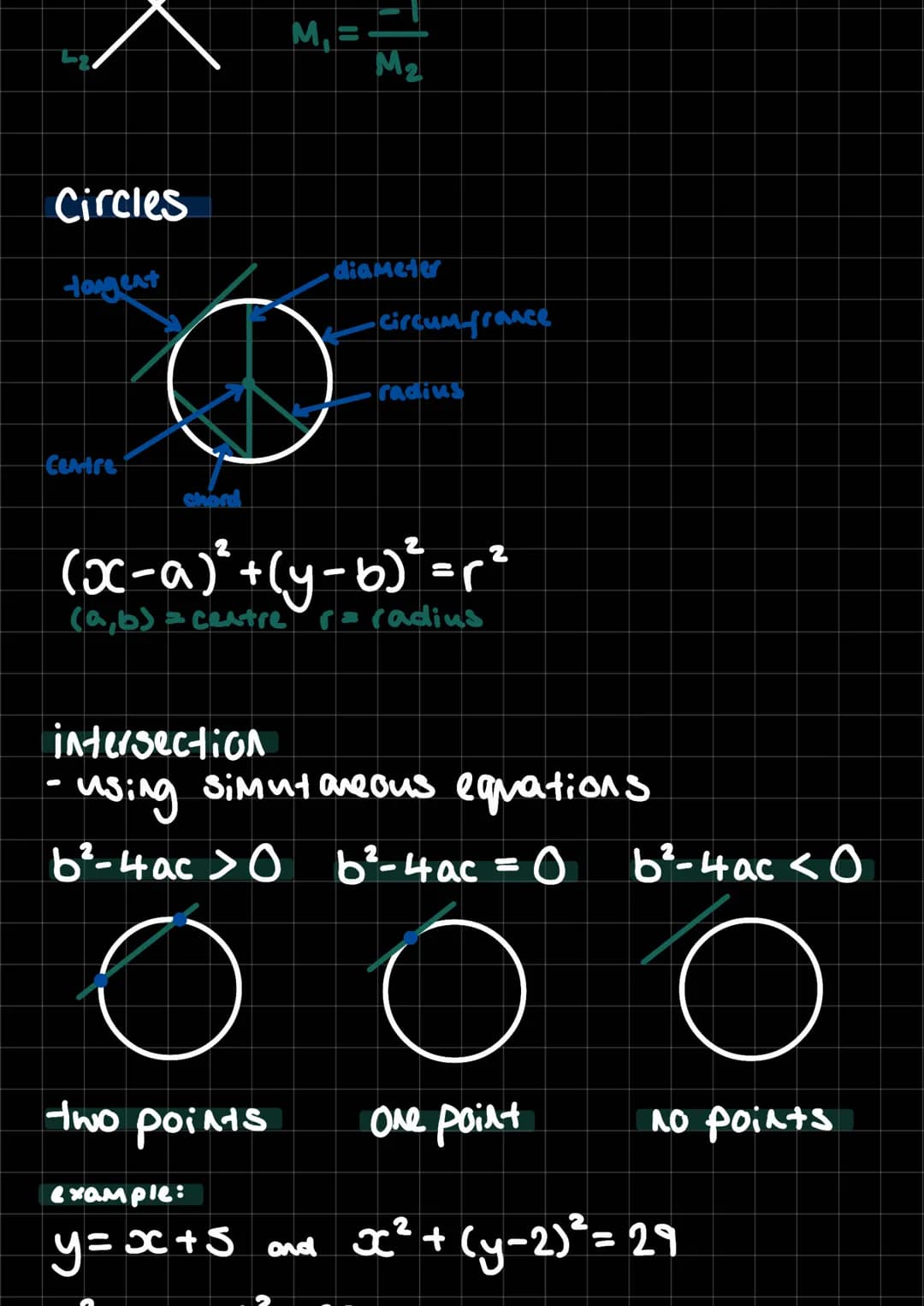

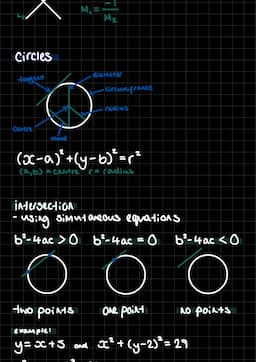

Circle Properties and Equations

This section covers the fundamental properties of circles and their mathematical representations. The standard form equation (x-a)² + (y-b)² = r² is explored in detail.

Definition: A tangent is a line that touches the circle at exactly one point.

Vocabulary: The center coordinates are represented as (a,b), while r denotes the radius.

Example: When determining intersections between a line and circle, the discriminant (b²-4ac) indicates:

  • b²-4ac > 0: Two intersection points
  • b²-4ac = 0: One point (tangent)
  • b²-4ac < 0: No intersection
straight line graphs y=MxC+c gradient M= y-intercept АУ y₂-y. Ax x₂-x, 8 length of a line = √ (y₂-y,)²+(₂-x,)² parallel lines У-у,=M(0-х,).

View

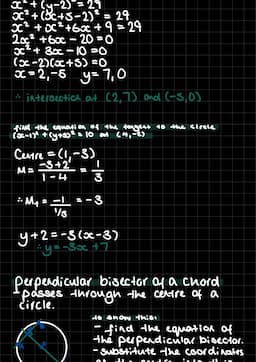

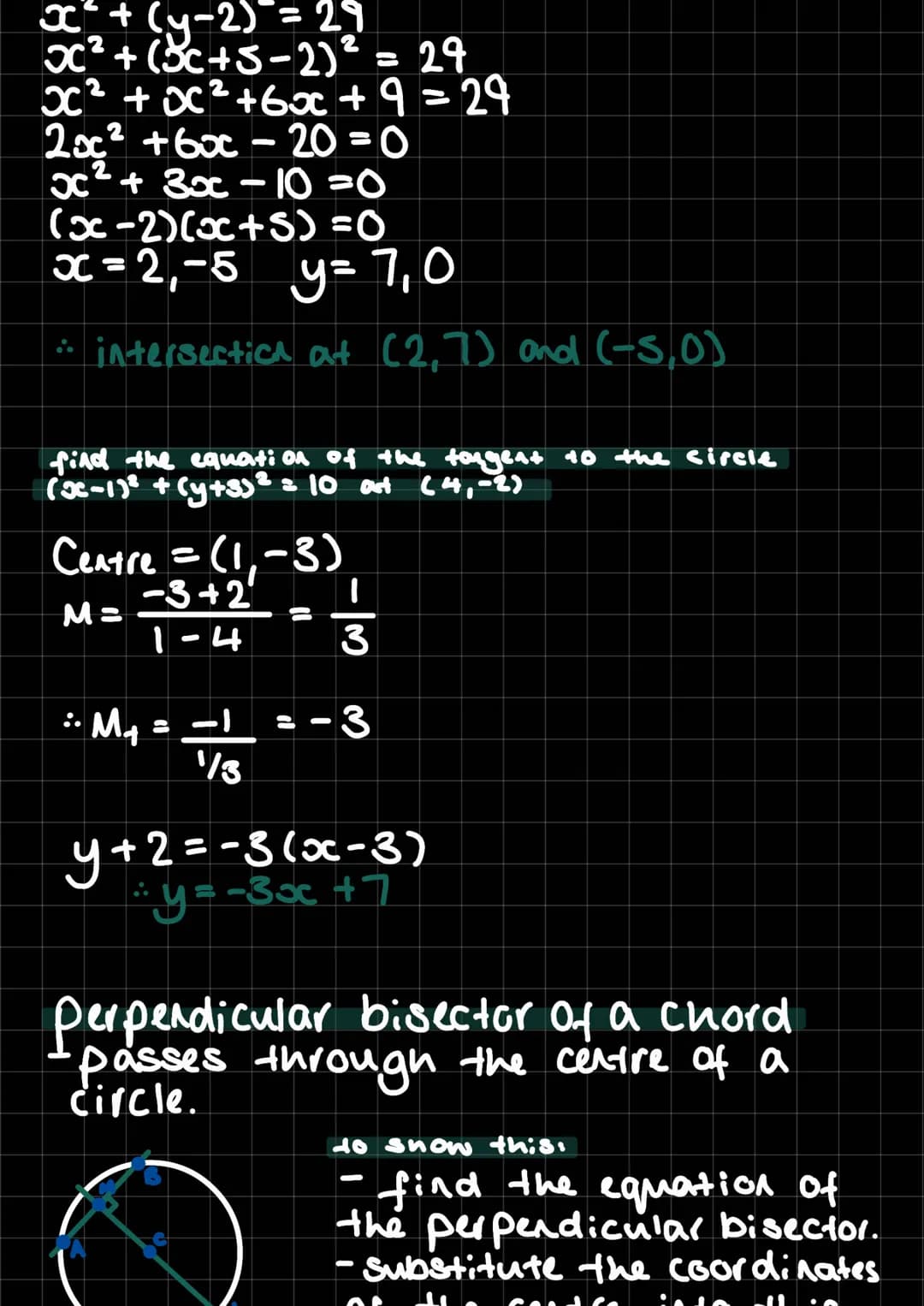

Advanced Circle Applications

This section demonstrates practical applications of circle equations and intersection calculations. It includes detailed examples of finding intersection points and tangent equations.

Example: For the equation x² + (y-2)² = 29:

  1. Solve for intersection points using substitution
  2. Results in coordinates (2,7) and (-3,0)

Highlight: The perpendicular bisector of any chord always passes through the circle's center.

straight line graphs y=MxC+c gradient M= y-intercept АУ y₂-y. Ax x₂-x, 8 length of a line = √ (y₂-y,)²+(₂-x,)² parallel lines У-у,=M(0-х,).

View

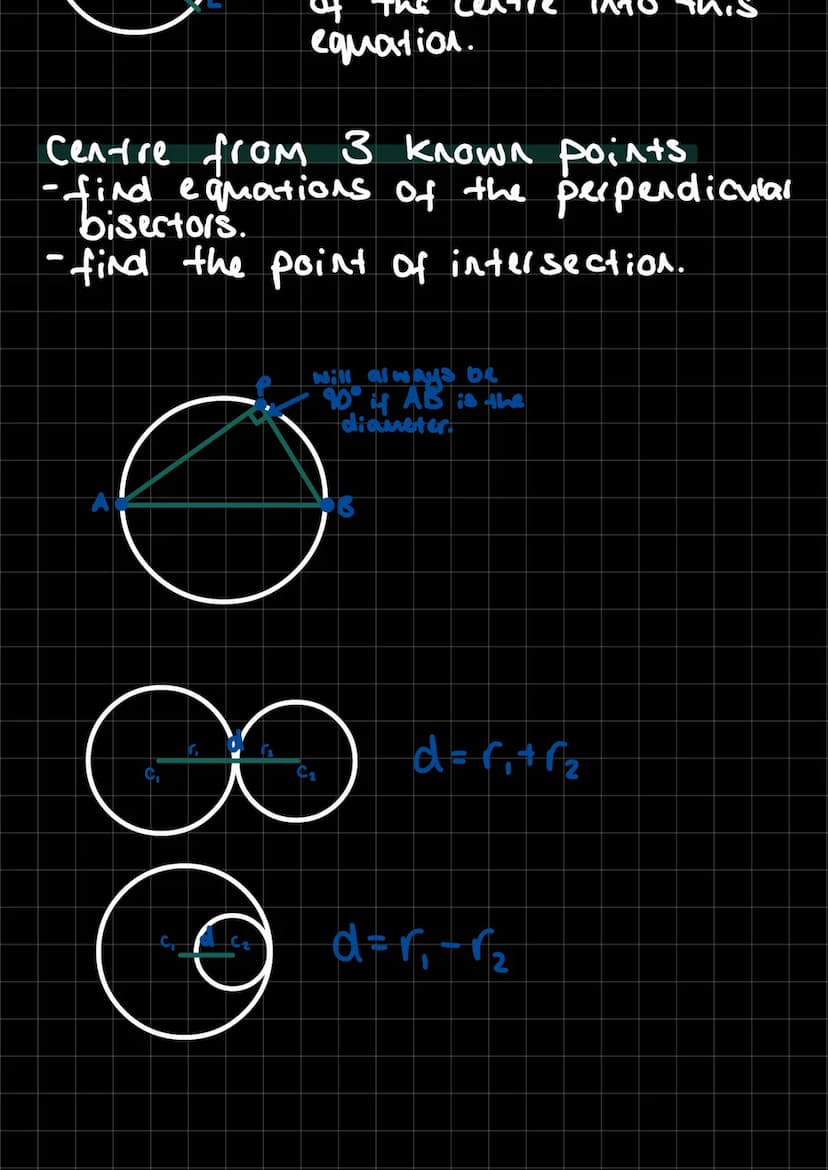

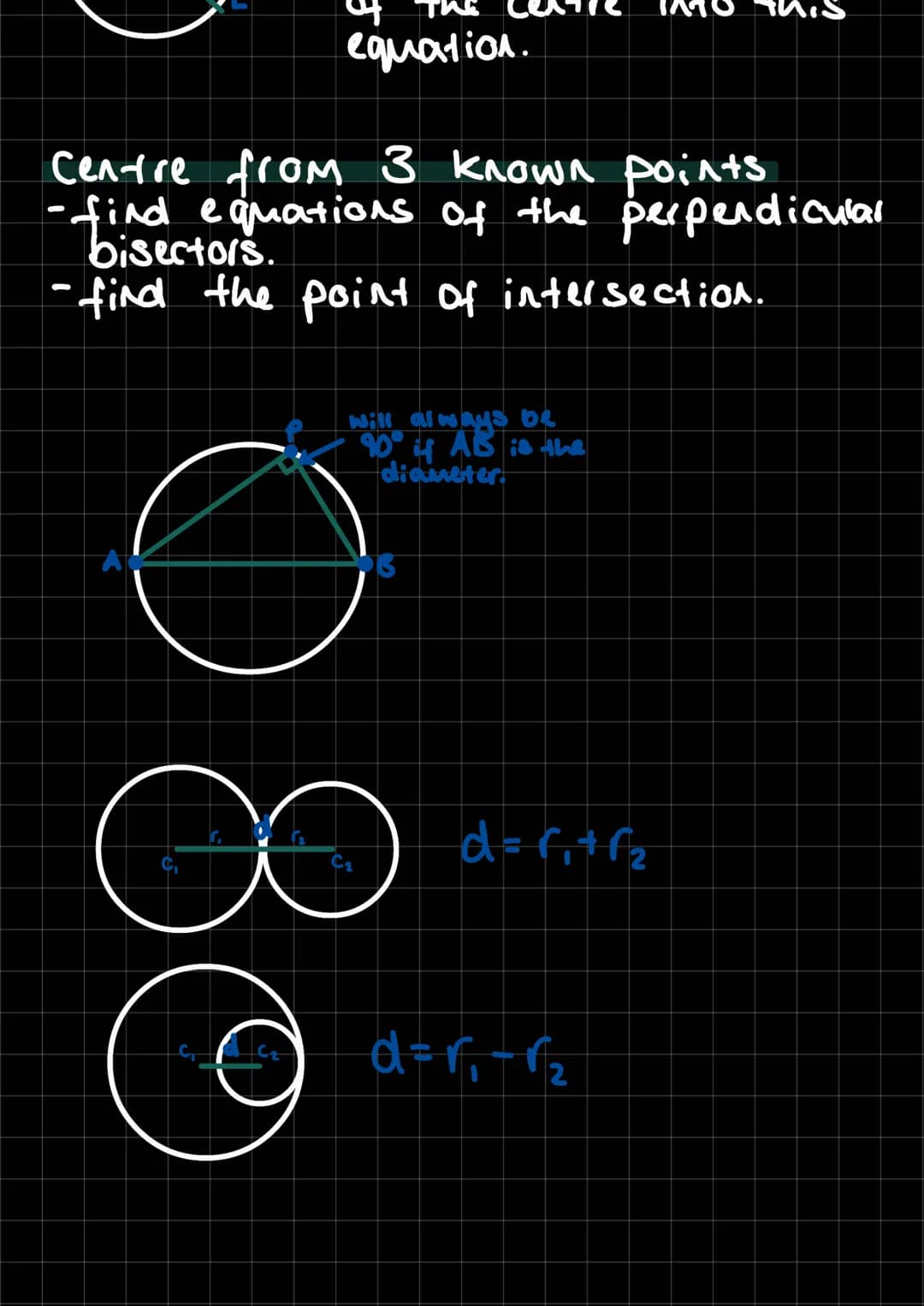

Circle Center Determination

This section explains methods for finding a circle's center using known points and perpendicular bisectors.

Definition: The perpendicular bisector method involves:

  1. Finding equations of perpendicular bisectors
  2. Calculating their intersection point
  3. This intersection determines the circle's center

Vocabulary: A diameter is any line segment passing through the center connecting two points on the circle.

straight line graphs y=MxC+c gradient M= y-intercept АУ y₂-y. Ax x₂-x, 8 length of a line = √ (y₂-y,)²+(₂-x,)² parallel lines У-у,=M(0-х,).

View

Geometric Relationships and Applications

The final section synthesizes previous concepts to solve complex geometric problems involving circles and lines.

Highlight: The diameter (d) equals twice the radius (r), expressed as d = 2r.

Example: When finding a circle's equation from three points:

  1. Calculate perpendicular bisectors
  2. Find their intersection (center)
  3. Calculate radius using distance formula

Similar content

Know Circles questions thumbnail

12

365

12/13

Circles questions

Edexcel A-Level Maths Circles Questions

Know Higher Maths Straight Line thumbnail

4

116

S5

Higher Maths Straight Line

Worked straight line problems with strategies

Know Coordinate Geometry and Inequalities Test thumbnail

7

248

12/13

Coordinate Geometry and Inequalities Test

Edexcel A-Level Maths Coordinate geometry and inequalities test

Know Higher Maths notes thumbnail

18

659

S5/S6

Higher Maths notes

These notes include; Straight Line, Sets and Functions, Graphs, Differentiation, Tangent to a curve, Stationary points

Can't find what you're looking for? Explore other subjects.

Knowunity is the #1 education app in five European countries

Knowunity has been named a featured story on Apple and has regularly topped the app store charts in the education category in Germany, Italy, Poland, Switzerland, and the United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the #1 education app in five European countries

4.9+

Average app rating

20 M

Pupils love Knowunity

#1

In education app charts in 17 countries

950 K+

Students have uploaded notes

Still not convinced? See what other students are saying...

iOS User

I love this app so much, I also use it daily. I recommend Knowunity to everyone!!! I went from a D to an A with it :D

Philip, iOS User

The app is very simple and well designed. So far I have always found everything I was looking for :D

Lena, iOS user

I love this app ❤️ I actually use it every time I study.

Subjects

Maths

Pure maths

Coordinate geometry



Maths

•

103

•

29 Apr 2023

•

5 pages

Tangent to a Circle and Finding Line Intersections

user profile picture

Ceri Thomas

@cerithomas

A comprehensive guide to geometric concepts focusing on finding intersection of straight line graphs, equation of a tangent to a circle, and calculating perpendicular bisectors in geometry.

  • Explores fundamental concepts of straight line equations including gradients, y-intercepts,... Show more
straight line graphs y=MxC+c gradient M= y-intercept АУ y₂-y. Ax x₂-x, 8 length of a line = √ (y₂-y,)²+(₂-x,)² parallel lines У-у,=M(0-х,).

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Circle Properties and Equations

This section covers the fundamental properties of circles and their mathematical representations. The standard form equation (x-a)² + (y-b)² = r² is explored in detail.

Definition: A tangent is a line that touches the circle at exactly one point.

Vocabulary: The center coordinates are represented as (a,b), while r denotes the radius.

Example: When determining intersections between a line and circle, the discriminant (b²-4ac) indicates:

  • b²-4ac > 0: Two intersection points
  • b²-4ac = 0: One point (tangent)
  • b²-4ac < 0: No intersection
straight line graphs y=MxC+c gradient M= y-intercept АУ y₂-y. Ax x₂-x, 8 length of a line = √ (y₂-y,)²+(₂-x,)² parallel lines У-у,=M(0-х,).

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Advanced Circle Applications

This section demonstrates practical applications of circle equations and intersection calculations. It includes detailed examples of finding intersection points and tangent equations.

Example: For the equation x² + (y-2)² = 29:

  1. Solve for intersection points using substitution
  2. Results in coordinates (2,7) and (-3,0)

Highlight: The perpendicular bisector of any chord always passes through the circle's center.

straight line graphs y=MxC+c gradient M= y-intercept АУ y₂-y. Ax x₂-x, 8 length of a line = √ (y₂-y,)²+(₂-x,)² parallel lines У-у,=M(0-х,).

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Circle Center Determination

This section explains methods for finding a circle's center using known points and perpendicular bisectors.

Definition: The perpendicular bisector method involves:

  1. Finding equations of perpendicular bisectors
  2. Calculating their intersection point
  3. This intersection determines the circle's center

Vocabulary: A diameter is any line segment passing through the center connecting two points on the circle.

straight line graphs y=MxC+c gradient M= y-intercept АУ y₂-y. Ax x₂-x, 8 length of a line = √ (y₂-y,)²+(₂-x,)² parallel lines У-у,=M(0-х,).

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Geometric Relationships and Applications

The final section synthesizes previous concepts to solve complex geometric problems involving circles and lines.

Highlight: The diameter (d) equals twice the radius (r), expressed as d = 2r.

Example: When finding a circle's equation from three points:

  1. Calculate perpendicular bisectors
  2. Find their intersection (center)
  3. Calculate radius using distance formula
straight line graphs y=MxC+c gradient M= y-intercept АУ y₂-y. Ax x₂-x, 8 length of a line = √ (y₂-y,)²+(₂-x,)² parallel lines У-у,=M(0-х,).

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

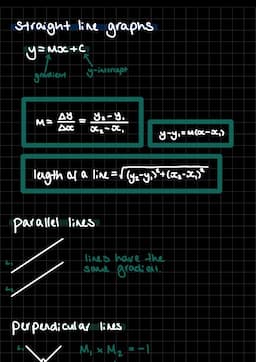

Straight Line Graphs Fundamentals

This section introduces the core concepts of straight line equations and their relationships. The fundamental equation y = mx + c forms the basis for understanding line gradients and intersections.

Definition: The gradient (m) represents the slope of a line, calculated using the formula m = (y₂-y₁)/(x₂-x₁).

Vocabulary: Y-intercept (c) is the point where a line crosses the y-axis.

Example: The length of a line segment can be calculated using the formula: length = √((y₂-y₁)² + (x₂-x₁)²)

Highlight: For perpendicular lines, the product of their gradients (m₁ × m₂) equals -1.
