Understanding River Systems and Drainage Basins

A drainage basin represents a complex system where water flows from high to low elevations through interconnected waterways. The journey begins at the source, typically in elevated regions, where the river first emerges. As the river flows downstream, smaller tributaries join at points called confluences, eventually reaching the mouth where it meets the sea. The watershed marks the outer boundary of this entire system.

In the upper course of a river, distinctive features emerge due to powerful erosional processes. Here, the landscape is characterized by V-shaped valleys with steep sides, where the river channel remains narrow and shallow. The water flow is typically turbulent, with river processes dominated by vertical erosion. This section often features dramatic landforms like rapids and waterfalls, shaped by the river's intense erosive power.

The middle course of a river presents different characteristics as the valley widens and develops a flatter floor. The river itself becomes wider and deeper, with increased velocity due to reduced friction. This section represents a transition zone where both erosional and depositional processes occur, leading to the formation of distinctive features like meanders.

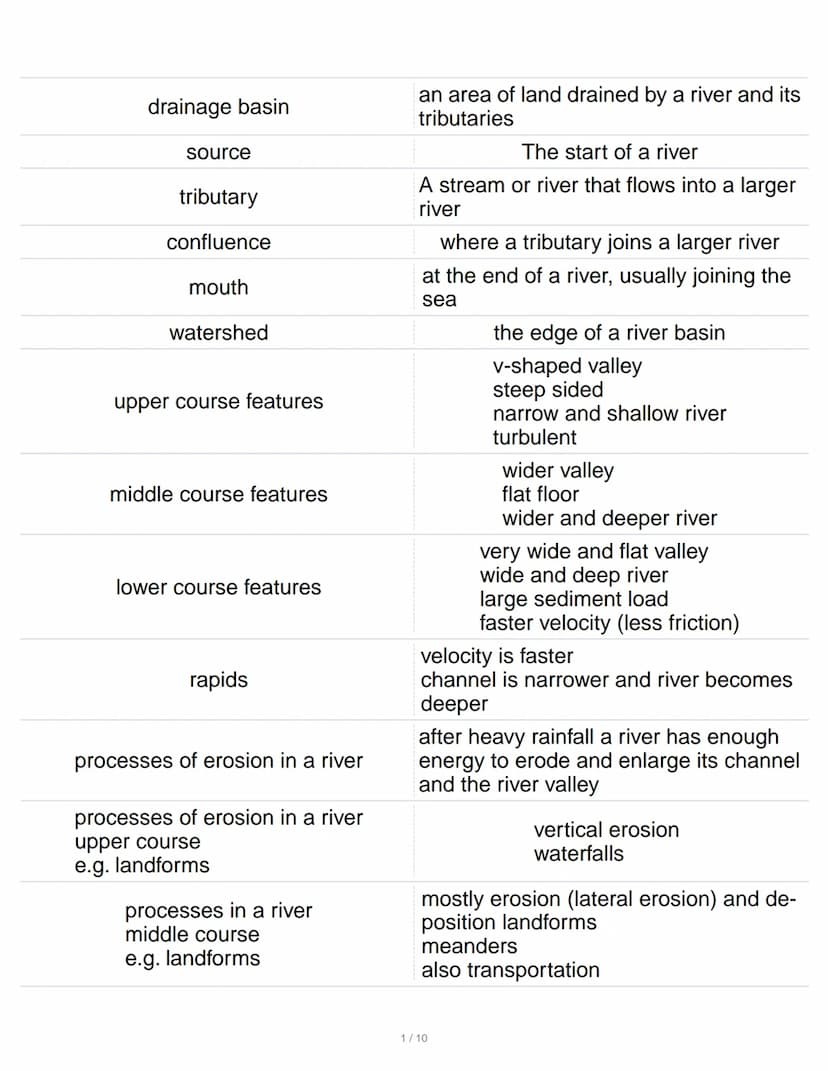

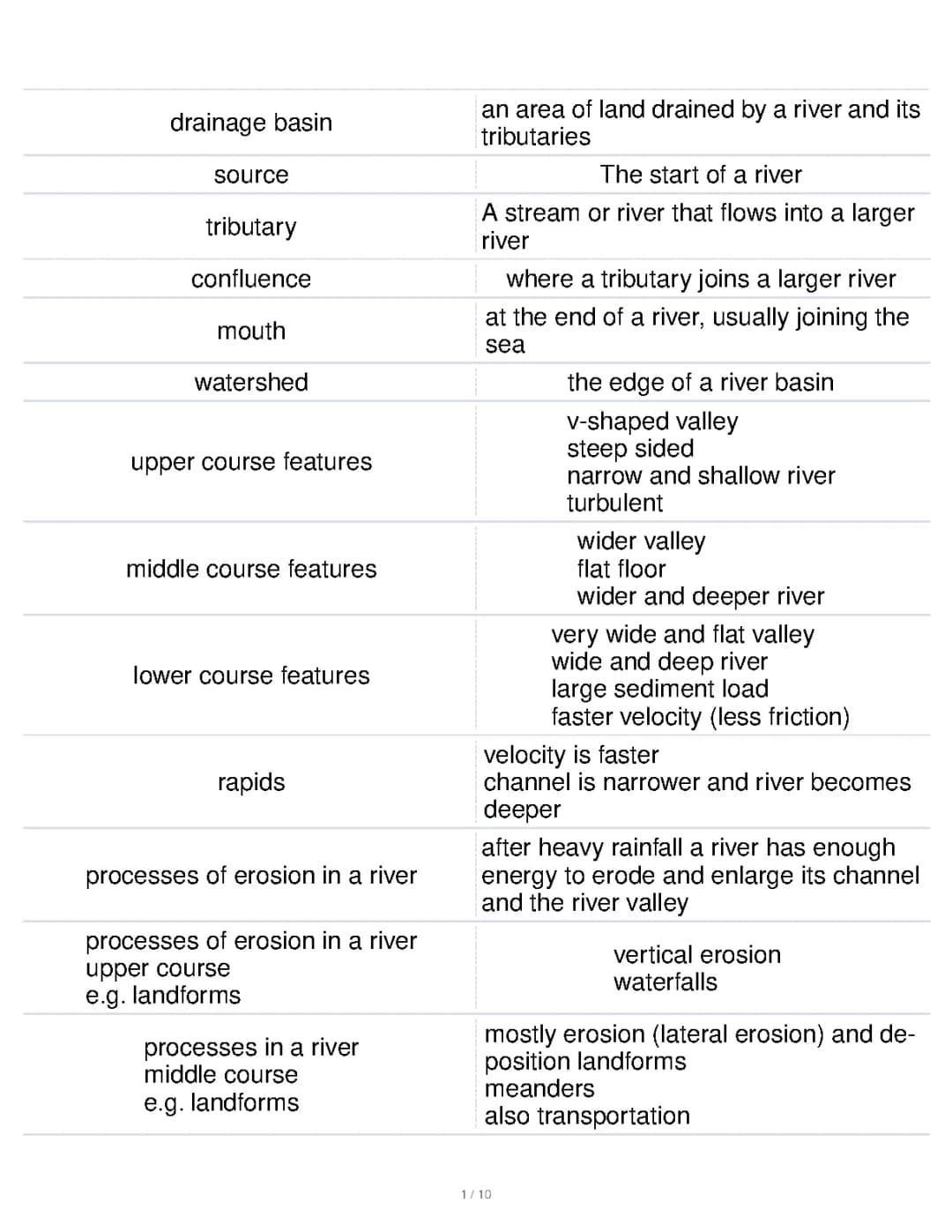

Definition: The drainage basin system consists of five key components: source (river origin), tributaries (smaller joining streams), confluence (meeting points), mouth (river end), and watershed (basin boundary).

River Erosion and Transportation Processes

Understanding the 4 types of river erosion is crucial for comprehending how rivers shape landscapes. These processes include hydraulic action (water force impact), abrasion (sediment scraping), attrition (particle collision), and solution (rock dissolution). These river erosion processes work together to modify river channels and create various landforms.

The 4 processes of fluvial transportation determine how rivers move sediment downstream. These include:

• Suspension: Fine particles carried within the water
• Saltation: Medium-sized particles bouncing along the riverbed
• Traction: Large particles rolling along the bottom
• Solution: Dissolved materials carried in the water

River load and transportation capacity depend significantly on water velocity. During high flow, rivers appear muddy due to increased sediment load, while low flow periods result in clearer water with minimal sediment transport.

Vocabulary: Saltation definition Geography: The bouncing movement of sand-sized particles along a river bed, occurring when particles are too heavy to remain suspended but can be lifted briefly by the flow.

River Landforms and Features

The upper middle lower course river features geography showcase how rivers change from source to mouth. In the upper course, erosion dominates, creating dramatic features like waterfalls and gorges. The middle course exhibits a balance between erosion and deposition, while the lower course primarily features depositional landforms.

Five features of lower course of a river typically include:

1. Wide, flat floodplains
2. Meandering channels
3. Ox-bow lakes
4. Levees
5. Deltas or estuaries

These features develop through complex interactions between transportation and deposition in rivers. The river's ability to transport and deposit material varies with its energy and velocity, creating distinctive landforms at each stage.

Example: The River Tees in Northeast England demonstrates classic river features, including High Force waterfall in its upper course and extensive meanders near Darlington in its middle course.

River Flooding and Human Impact

River flooding occurs when channel capacity is exceeded, causing water to overtop banks and inundate surrounding floodplains. Both physical and human factors contribute to flood risk, making it essential to understand these interactions for effective flood management.

Physical factors increasing flood risk include:

• Intense rainfall or prolonged precipitation
• Impermeable geology
• Steep relief in catchment areas

Human factors that amplify flood risk involve:

• Urbanization creating impermeable surfaces
• Deforestation reducing natural water storage
• Agricultural practices affecting soil structure

Highlight: Urban development on floodplains significantly increases flood risk by reducing natural drainage and accelerating water transfer to river channels through artificial drainage systems.

Understanding River Processes and Flood Risk Factors

River processes and flood risks are influenced by both natural and human factors. When examining flood risk, understanding how water moves through a drainage basin is crucial. The 4 types of river erosion and various transportation methods play a significant role in how water accumulates and flows during storm events.

A hydrograph helps visualize river discharge patterns after storms. The discharge, measured in cumecs (cubic meters per second), shows how quickly water moves through the system. Key factors affecting the hydrograph include basin characteristics, rock type, and land use patterns. In river transportation, the speed and volume of water movement are critical factors.

Definition: Lag time is the duration between peak rainfall and peak discharge, indicating how quickly water transfers into river channels.

Physical factors like impermeable rocks and steep slopes promote rapid water transfer, while permeable rocks and gentle gradients slow it down. Human activities significantly impact flood risk - deforestation removes natural water storage, while urbanization creates impermeable surfaces that accelerate runoff.

Hard Engineering Approaches to Flood Management

Hard engineering involves constructed solutions to control flooding. These methods include dams, reservoirs, channel straightening, and flood relief channels. While expensive, they offer direct protection for valuable property and infrastructure.

Example: The Jubilee River near Maidenhead cost £110 million but protects over 3,000 properties from flooding while creating recreational opportunities.

Dams and reservoirs regulate river flow and serve multiple purposes beyond flood prevention, including hydroelectric power generation and water supply. Channel straightening increases flow efficiency but can increase flood risk downstream. Embankments raise river capacity but may require regular maintenance.

Highlight: Hard engineering solutions are typically expensive but provide immediate and measurable flood protection for urban areas.

Soft Engineering Solutions for Flood Management

Soft engineering works with natural processes to manage flood risk. River landforms and natural features are preserved or enhanced rather than modified. These approaches include afforestation, wetland restoration, and floodplain zoning.

Trees and vegetation slow water transfer through interception and absorption. Wetlands act as natural storage areas during high flow periods. Floodplain zoning restricts development in flood-prone areas, reducing potential damage.

Vocabulary: Afforestation - the process of planting trees to create new woodland areas, which helps slow water movement and reduce flood risk.

River restoration returns modified channels to their natural state, incorporating features like meanders and wetlands that naturally slow water flow. These solutions are typically more sustainable and environmentally friendly than hard engineering approaches.

Flood Warning Systems and Community Preparation

Modern flood management includes sophisticated warning systems and community preparation strategies. Satellite monitoring and computer modeling help predict flood events, while tiered warning levels guide public response.

Definition: Flood watch indicates potential flooding of low-lying areas, while severe flood warnings signal extreme danger to life and property.

Communities are encouraged to develop flood preparation plans, including moving valuable items to upper floors, installing flood gates, and preparing evacuation routes. The Boscastle case study demonstrates how both physical and human factors can combine to create severe flood events, emphasizing the importance of comprehensive management strategies.

Authorities coordinate emergency responses through multiple stages, from initial warnings to evacuation and recovery. This systematic approach helps minimize risk to life and property during flood events.

Understanding Boscastle River Management: A Comprehensive Guide

The management of River processes in Boscastle demonstrates sophisticated flood prevention strategies implemented after significant flooding events. The comprehensive approach combines natural and engineered solutions to protect the village while preserving its historic character.

The northern section of Boscastle underwent substantial modifications to enhance flood resilience. The extended car park design incorporates crucial flood management features. Large trees that previously posed risks during flooding were strategically replaced with hedgerow plants, significantly reducing the chance of debris blockage during high water events. This demonstrates how River landforms can be modified to improve flood protection while maintaining environmental considerations.

A major component of the flood management strategy involves increasing the river's capacity to handle excess water. Engineers implemented several key features: a stone embankment alongside the old car park to increase water capacity, and a culvert system on the River Jordan that serves as an overflow mechanism. This underground bypass system redirects excess water around the village before rejoining the Valency downstream, exemplifying modern River transportation solutions.

Definition: A culvert is an engineered structure that allows water to flow under a road, railroad, trail, or similar obstruction, typically from one side to the other side.

The original channel of the River Valency underwent significant modifications, including widening and deepening to increase its capacity. The banks were reinforced using local stone, demonstrating how River erosion processes can be managed while maintaining aesthetic harmony with the surrounding landscape. A critical improvement involved replacing the old stone bridge, which had narrow arches that contributed to debris accumulation during floods, with a wider metal bridge designed to prevent bottlenecking.

Challenges and Limitations in River Management Systems

Despite extensive improvements, some natural constraints continue to affect Boscastle's flood management system. The harbor mouth presents an ongoing challenge due to its narrow width and curved approach to the sea, creating a natural bottleneck that cannot be easily modified. This demonstrates how River landforms sometimes pose persistent management challenges despite human intervention.

The harbor walls, while contributing to the bottleneck effect, serve an essential dual purpose in protecting the village from sea-based threats and high tides. This illustrates the complex balance between flood management and coastal protection, highlighting how River processes must be managed within existing geographical constraints.

Highlight: The integration of multiple flood management strategies demonstrates how modern engineering solutions can work within natural and historical constraints to improve flood resilience.

The implementation of these management strategies shows how understanding 4 types of river erosion and River transportation patterns can inform effective flood prevention measures. The comprehensive approach taken in Boscastle serves as a model for other communities facing similar challenges, demonstrating how careful planning and engineering can enhance flood resilience while preserving community character.

These modifications represent a balanced approach to flood management, considering both immediate safety needs and long-term sustainability. The strategy demonstrates how understanding Transportation and deposition in rivers can inform practical solutions while working within natural and historical constraints.
