Understanding Engineering Materials: A Comprehensive Guide

Year 9 engineering materials study notes form the foundation for understanding various materials used in engineering applications. This comprehensive guide explores the classification, properties, and applications of different engineering materials.

Engineering materials can be broadly categorized into metals (ferrous and non-ferrous), polymers, composites, and smart materials. Each category serves specific purposes in engineering applications based on their unique properties and characteristics.

Definition: Engineering materials are substances used in the construction or manufacturing of products, chosen for their specific physical and chemical properties that make them suitable for particular applications.

The selection of appropriate materials is crucial in engineering design, as it directly impacts the performance, durability, and cost-effectiveness of the final product. Understanding material properties helps engineers make informed decisions in their design process.

Metals and Their Classifications

Properties and uses of ferrous and non-ferrous metals are fundamental concepts in materials engineering. Ferrous metals contain iron as their primary component, while non-ferrous metals do not contain iron as their main element.

Vocabulary: Ferrous metals contain iron as their primary component, while non-ferrous metals are metals or alloys that do not contain iron as their main element.

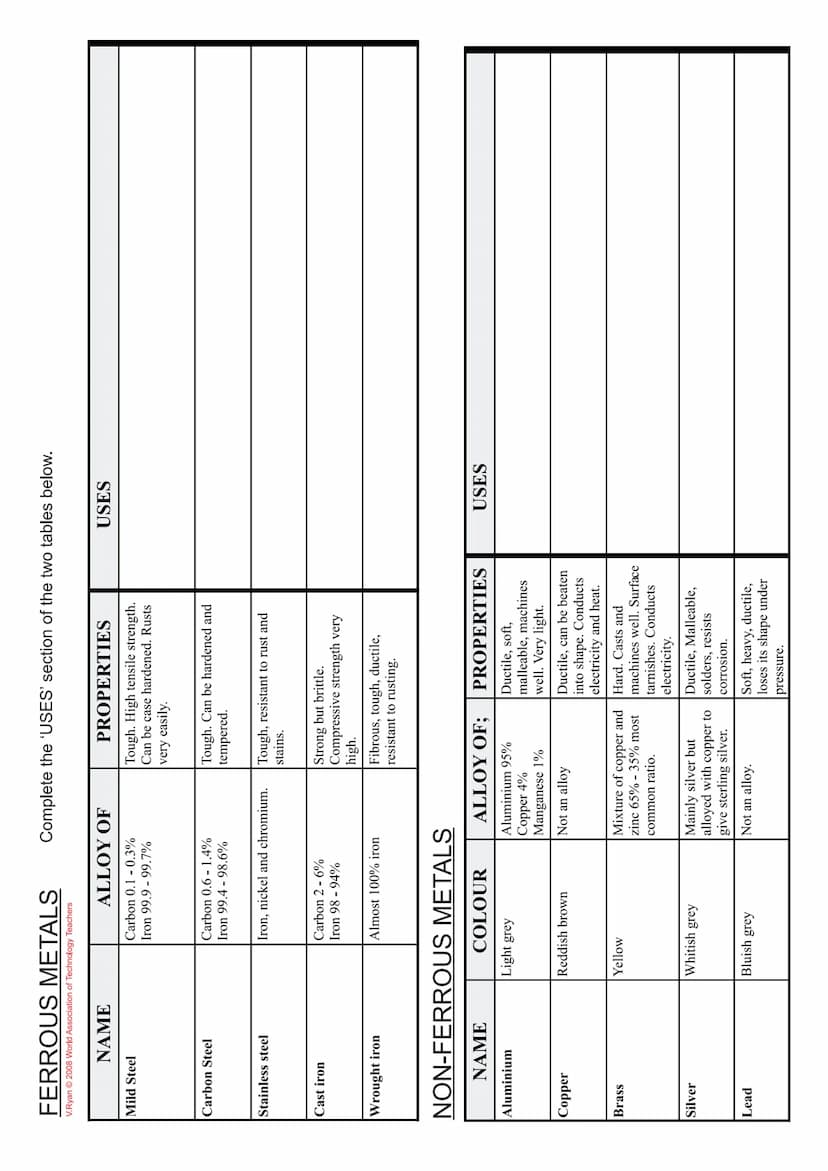

Common ferrous metals include:

• Mild Steel (0.1-0.3% carbon)
• High Carbon Steel (0.6-1.4% carbon)
• Stainless Steel (iron, chromium, nickel alloy)
• Cast Iron (2-6% carbon)

Non-ferrous metals include:

• Aluminum
• Copper
• Brass
• Silver
• Lead

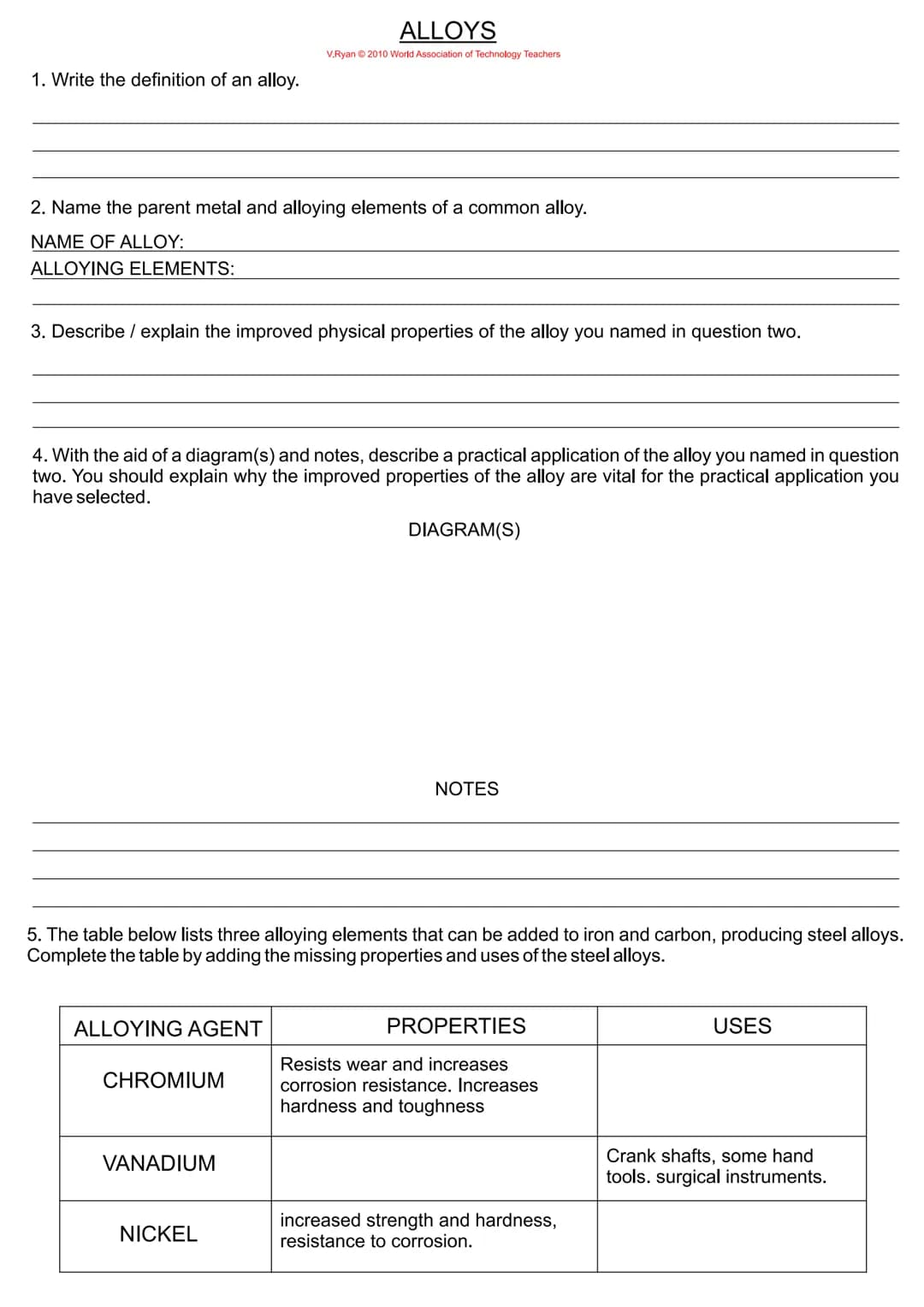

Understanding Alloys and Their Applications

Alloy composition and applications in engineering represent a crucial area of materials science. Alloys are mixtures of two or more metals, or metals combined with non-metallic elements, created to enhance specific properties.

Example: Stainless steel is an alloy containing iron, chromium, and nickel, which provides superior corrosion resistance and strength compared to regular steel.

Different alloying elements contribute unique properties:

• Chromium: Increases hardness and corrosion resistance
• Vanadium: Improves strength and wear resistance
• Nickel: Enhances toughness and corrosion resistance

These properties make alloys suitable for specific applications in engineering, from surgical instruments to heavy machinery components.

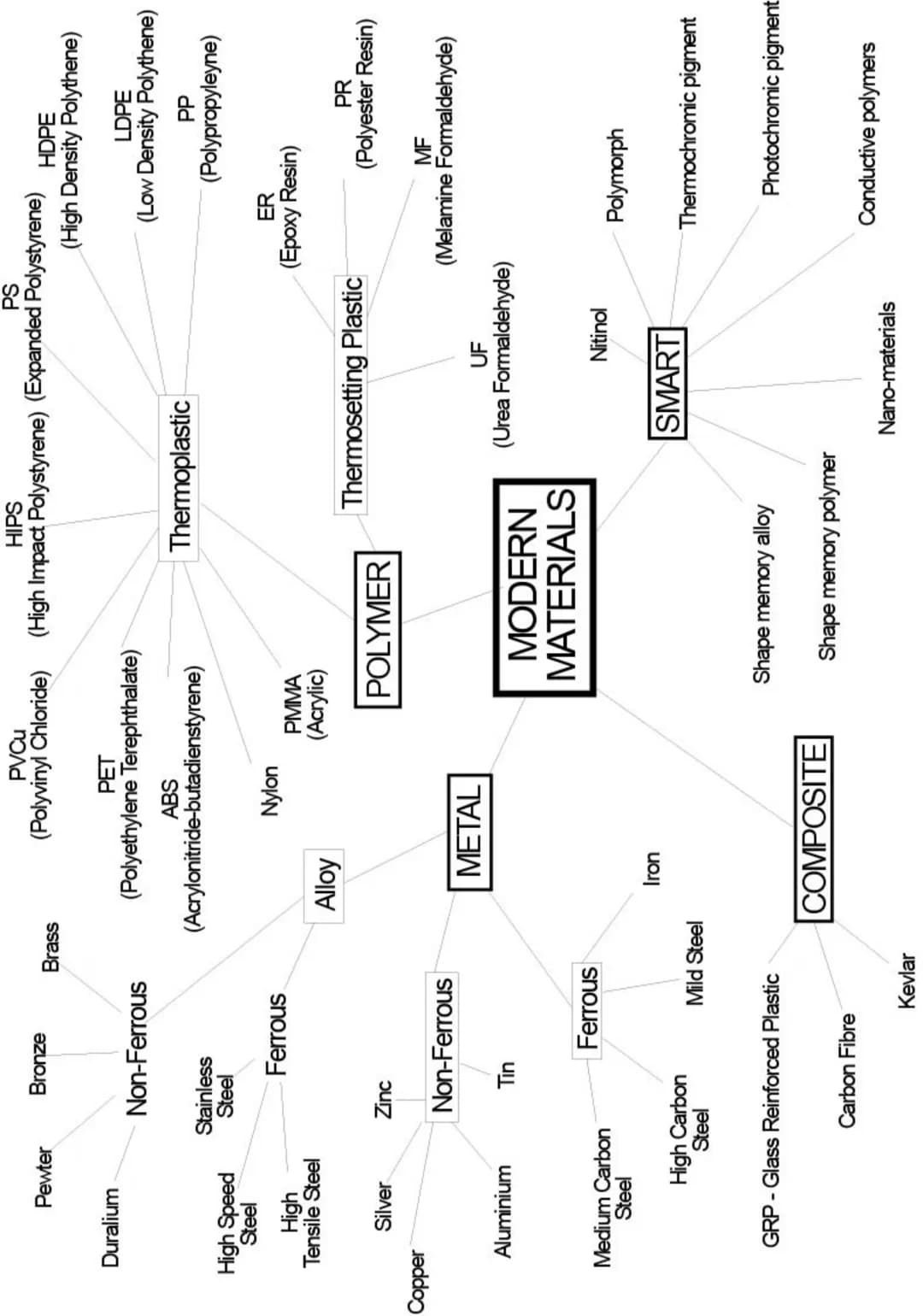

Modern Engineering Materials

The evolution of engineering materials has led to the development of advanced materials including polymers, composites, and smart materials. These materials offer unique properties that traditional materials cannot provide.

Highlight: Smart materials like shape memory alloys and polymers can change their properties in response to external stimuli such as temperature or electrical current.

Modern engineering materials include:

• Thermoplastics (PVC, ABS, HDPE)
• Thermosetting plastics (Epoxy Resin, Polyester Resin)
• Composites (Carbon Fiber, GRP, Kevlar)
• Smart Materials (Nitinol, Photochromic materials)

These materials continue to revolutionize engineering applications, enabling innovative solutions to complex design challenges.

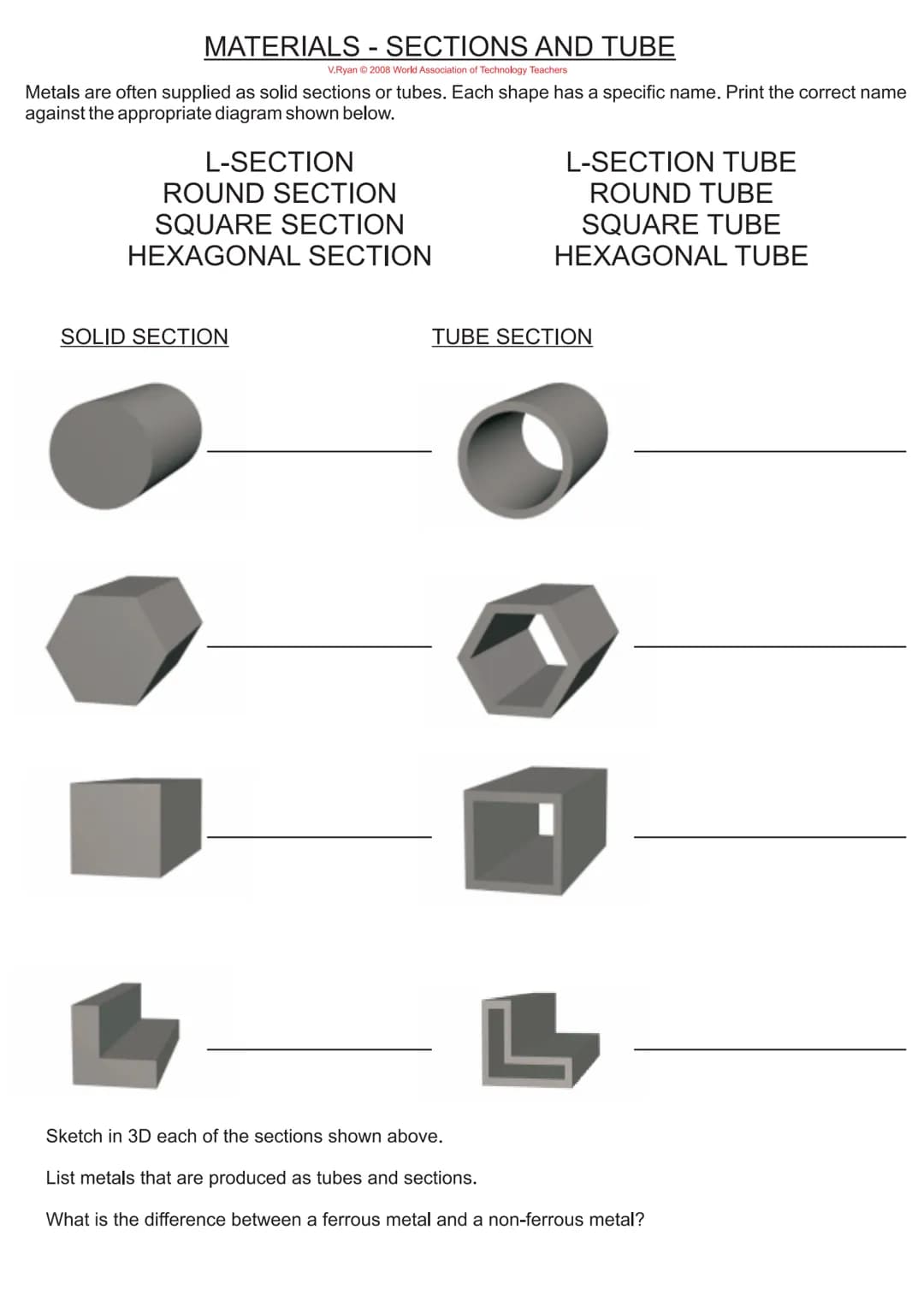

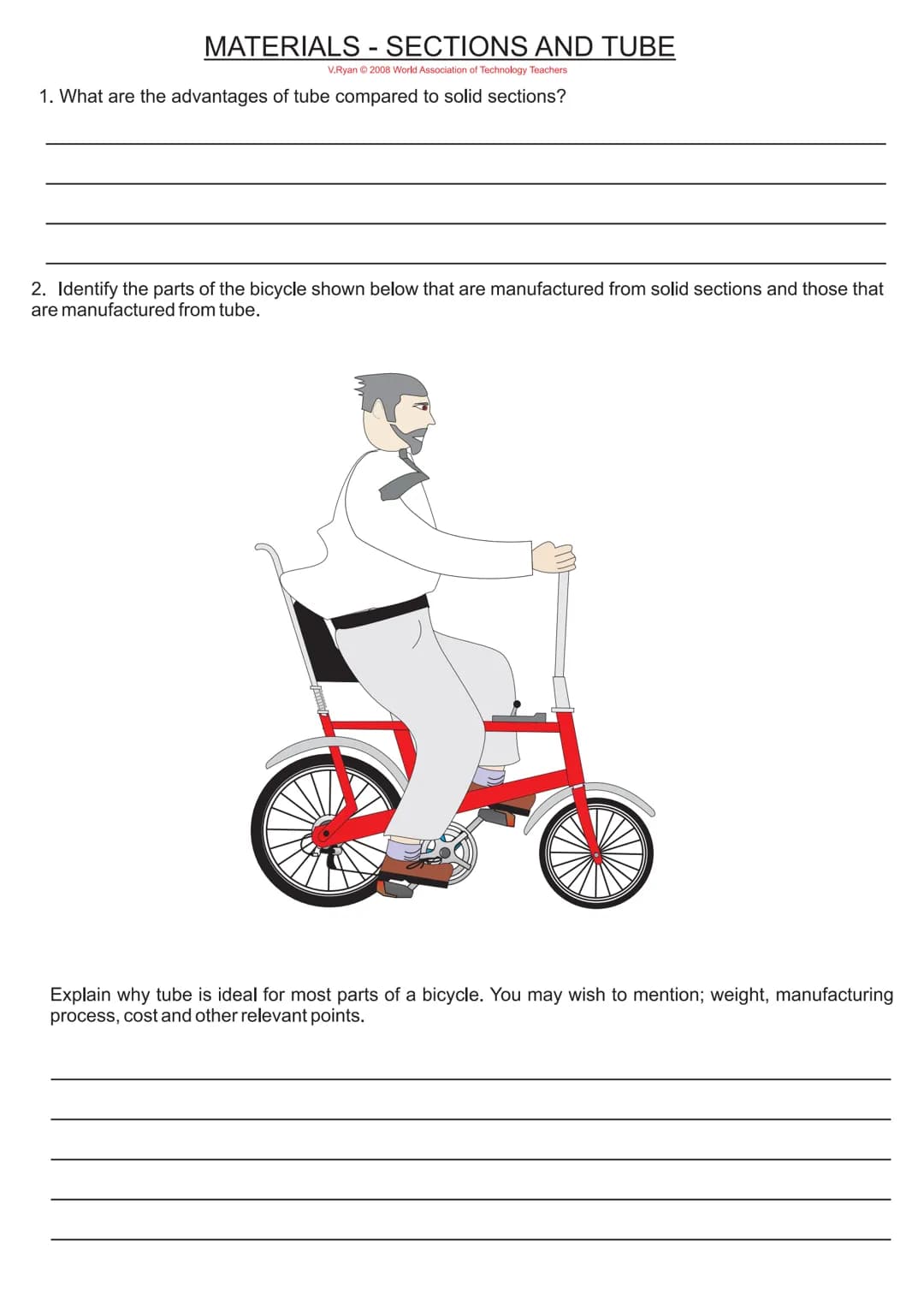

Understanding Metal Sections and Tubes in Engineering

Metal sections and tubes are fundamental components in engineering and construction. These standardized shapes serve specific purposes and come in various configurations that engineers must understand to select the appropriate material for their projects.

Definition: Metal sections are standardized shapes of metal that can be either solid or hollow (tubes), each designed for specific engineering applications and structural requirements.

Different metal sections include L-sections, round sections, square sections, and hexagonal sections, each available in both solid and tubular forms. Properties and uses of ferrous and non-ferrous metals determine which type of section is most appropriate for a given application. For instance, steel L-sections are commonly used in construction due to their strength and ability to join perpendicular elements, while aluminum tubes might be preferred in aerospace applications where weight reduction is crucial.

The distinction between solid sections and tubes is particularly important in engineering design. Tubes offer several advantages over solid sections, including:

• Superior strength-to-weight ratio
• Better torsional resistance
• More efficient material usage
• Improved cost-effectiveness
• Enhanced aesthetic possibilities

Example: In bicycle frame design, tubes are predominantly used because they provide maximum strength while minimizing weight. The frame's main tubes (top tube, down tube, and seat tube) utilize round or oval tubing to achieve optimal performance characteristics while reducing material costs.

Thermoset and Thermoplastic Polymers: Properties and Applications

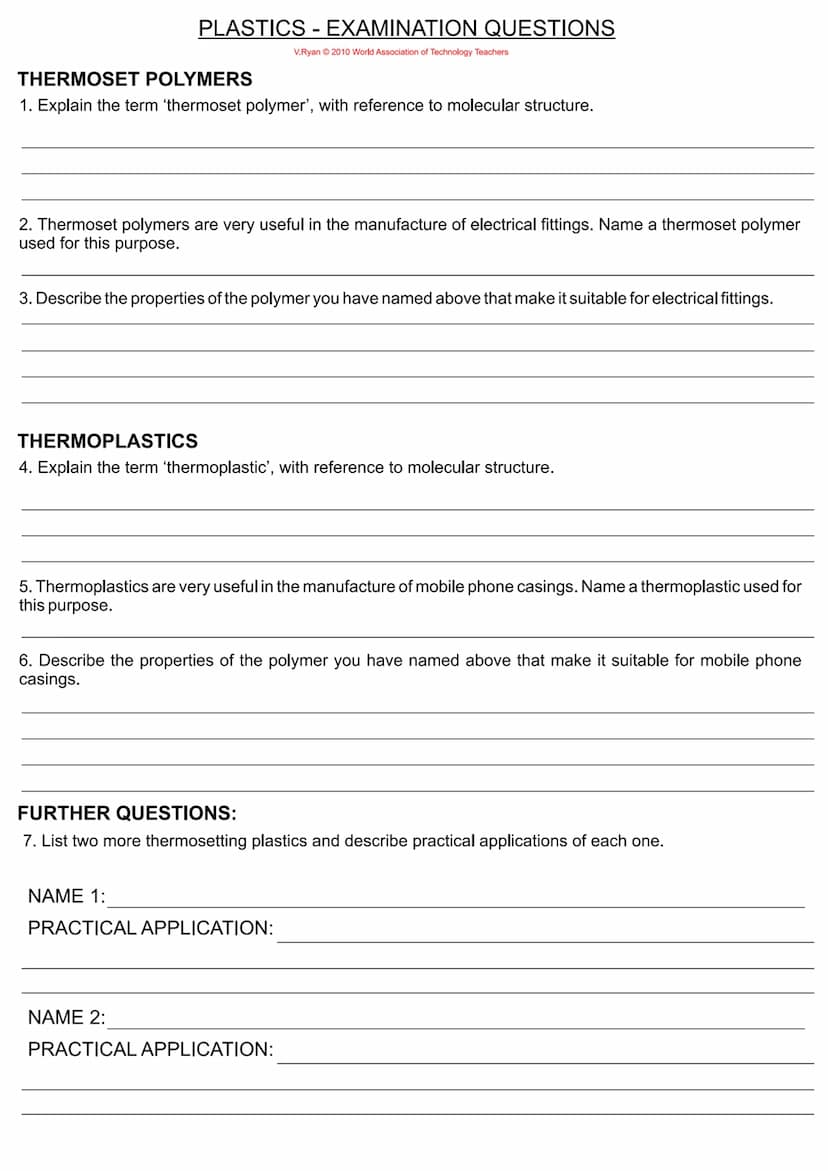

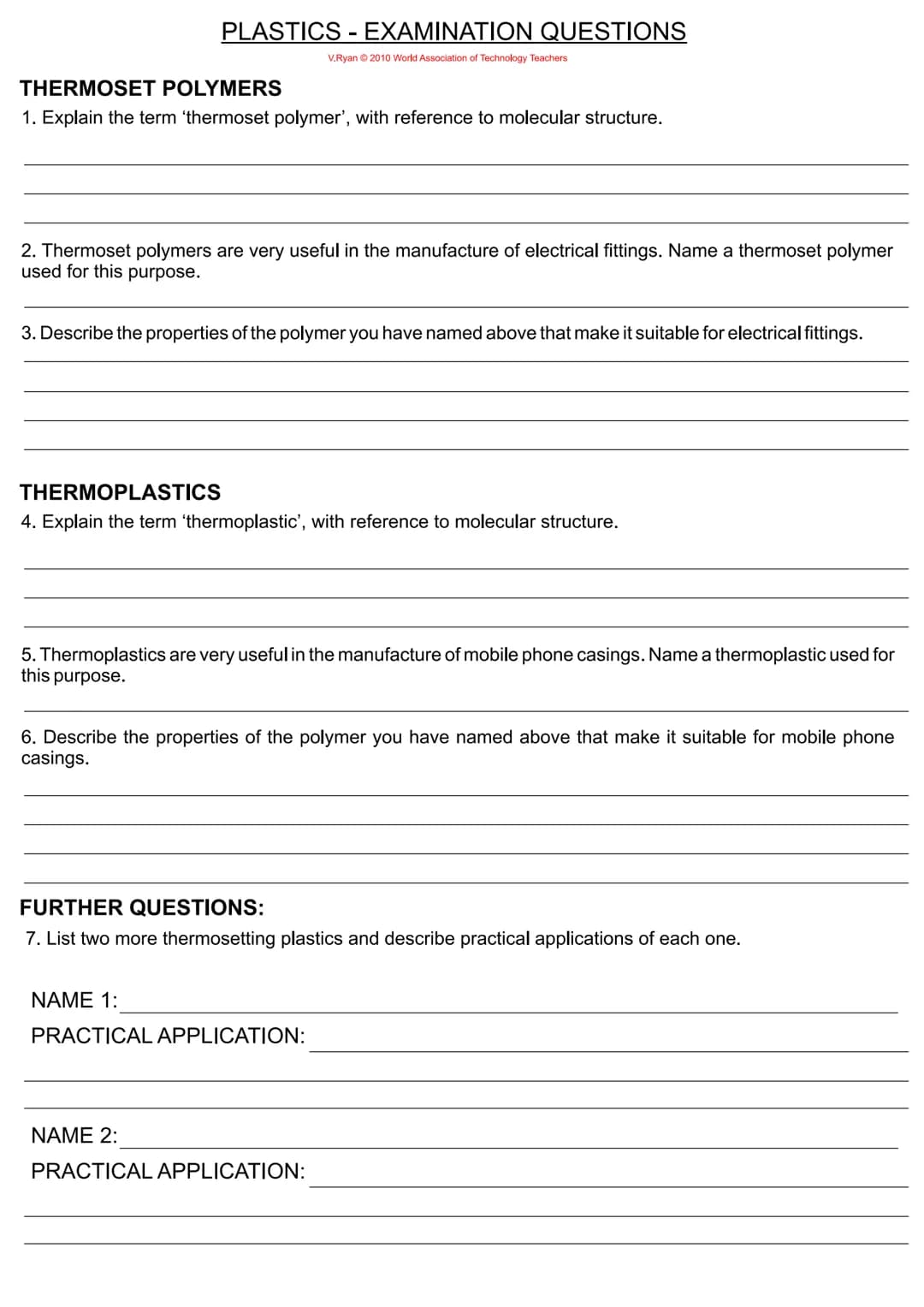

Understanding polymer types is crucial for materials selection in engineering applications. Year 9 engineering materials study notes often emphasize the fundamental differences between thermoset and thermoplastic polymers.

Vocabulary: Thermoset polymers are materials that undergo a permanent chemical change when heated, forming irreversible cross-links between polymer chains. Thermoplastics, conversely, can be repeatedly melted and reformed.

Thermoset polymers excel in electrical applications due to their:

• High heat resistance
• Excellent electrical insulation properties
• Chemical resistance
• Dimensional stability
• Hardness and durability

Thermoplastics find widespread use in consumer electronics, particularly in mobile phone casings, because they offer:

• Impact resistance
• Design flexibility
• Cost-effective manufacturing
• Recyclability
• Aesthetic versatility

Highlight: The molecular structure of polymers directly influences their properties. Thermoplastics consist of long chain molecules that can slide past each other when heated, while thermosets form a rigid, cross-linked network structure.

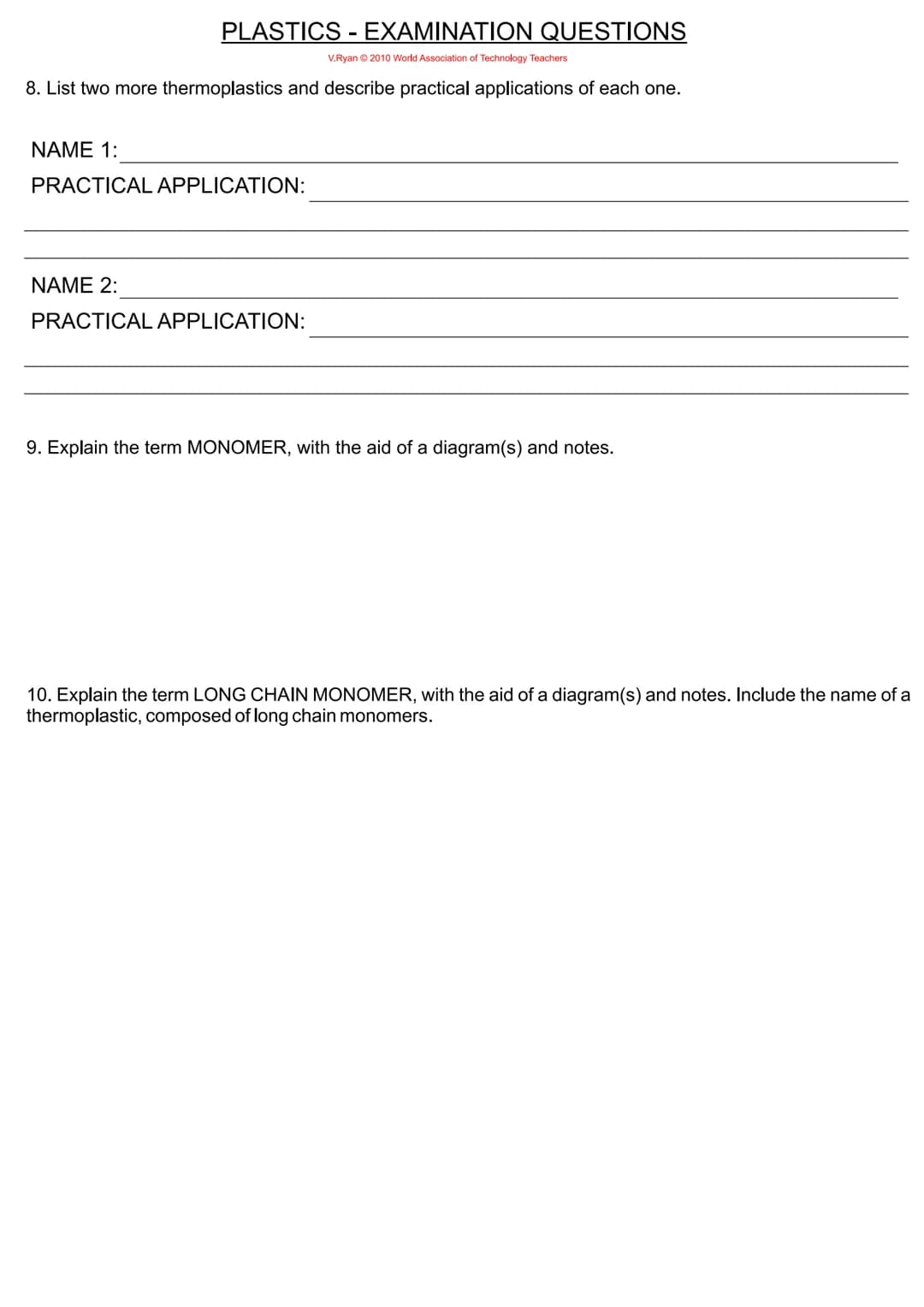

Understanding Polymer Structure and Composition

The fundamental building blocks of plastics are monomers, which combine to form polymers through various chemical processes. Alloy composition and applications in engineering principles can be applied to understand how different polymer structures affect material properties.

Definition: A monomer is a single molecular unit that can bond with other identical molecules to form a polymer chain. The arrangement and bonding of these monomers determine the plastic's final properties.

Long chain monomers are particularly important in thermoplastic materials. These extended molecular structures provide:

• Enhanced flexibility
• Improved impact resistance
• Better processing characteristics
• Unique mechanical properties
• Greater molecular weight

Example: Polyethylene, a common thermoplastic, consists of long chains of ethylene monomers. The length and arrangement of these chains directly influence properties like density, melting point, and strength.

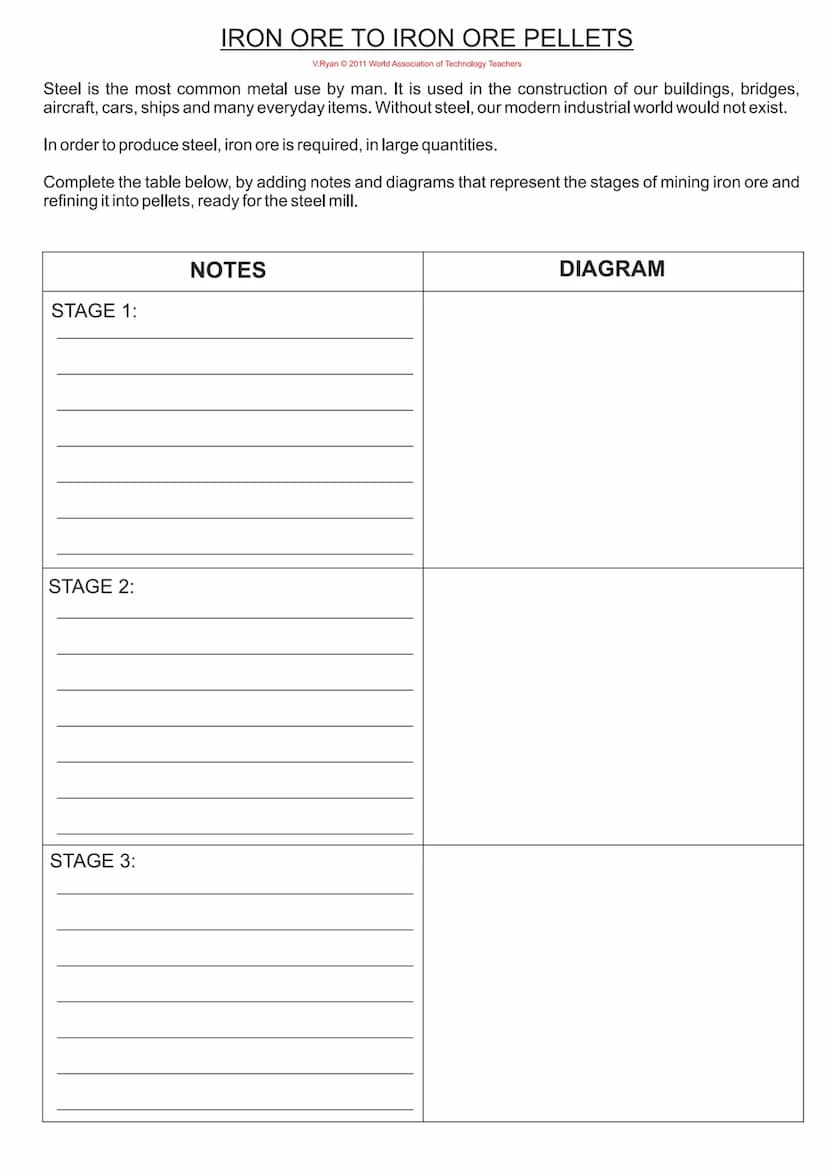

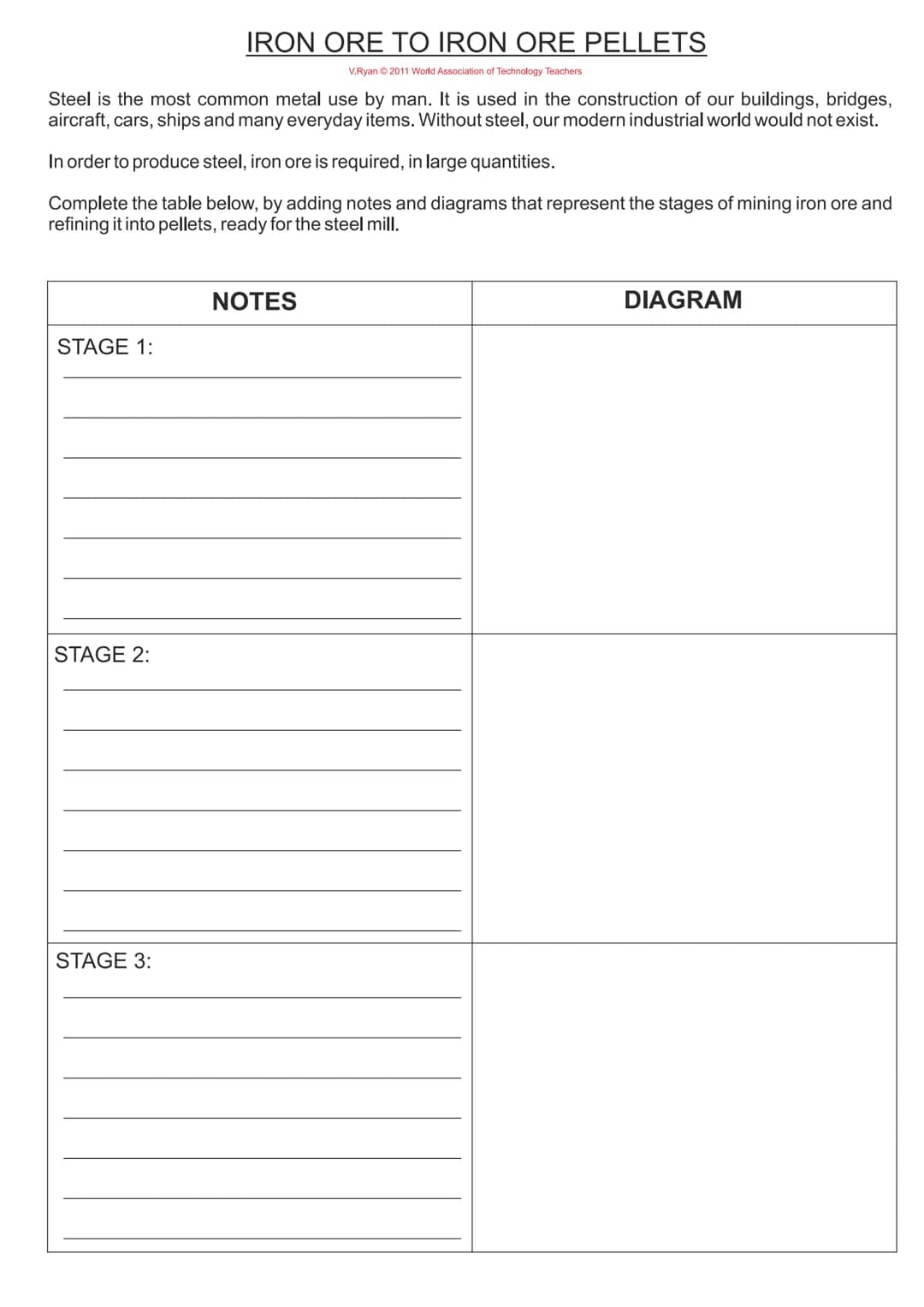

Iron Ore Processing and Steel Production

The journey from iron ore to steel involves several crucial processing steps that transform raw mineral deposits into usable metal. This process forms the backbone of modern industrial manufacturing and construction.

Highlight: Steel production begins with iron ore mining and processing, which involves extracting, crushing, and refining iron-rich minerals into pellets suitable for steelmaking.

The process involves three main stages:

1. Mining and Extraction: Open-pit or underground mining techniques extract iron ore from deposits
2. Crushing and Concentration: Raw ore is crushed and processed to increase iron content
3. Pelletization: Concentrated ore is formed into pellets for efficient transport and use in steel mills

Example: Modern steel production requires high-quality iron ore pellets with 65-70% iron content. These pellets provide optimal efficiency in blast furnaces and reduce energy consumption during steelmaking.

The quality of processed iron ore directly impacts steel properties, making careful control of the refining process essential for producing high-grade steel products used in construction, automotive manufacturing, and other industrial applications.

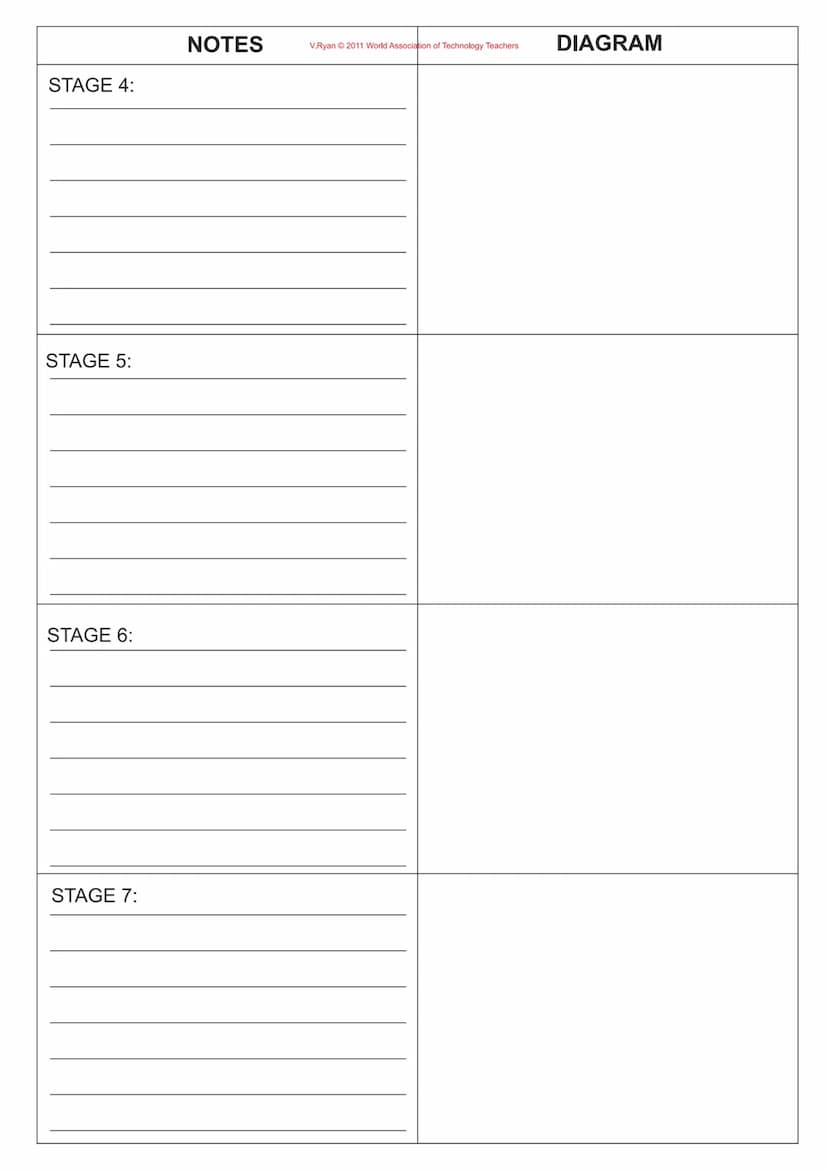

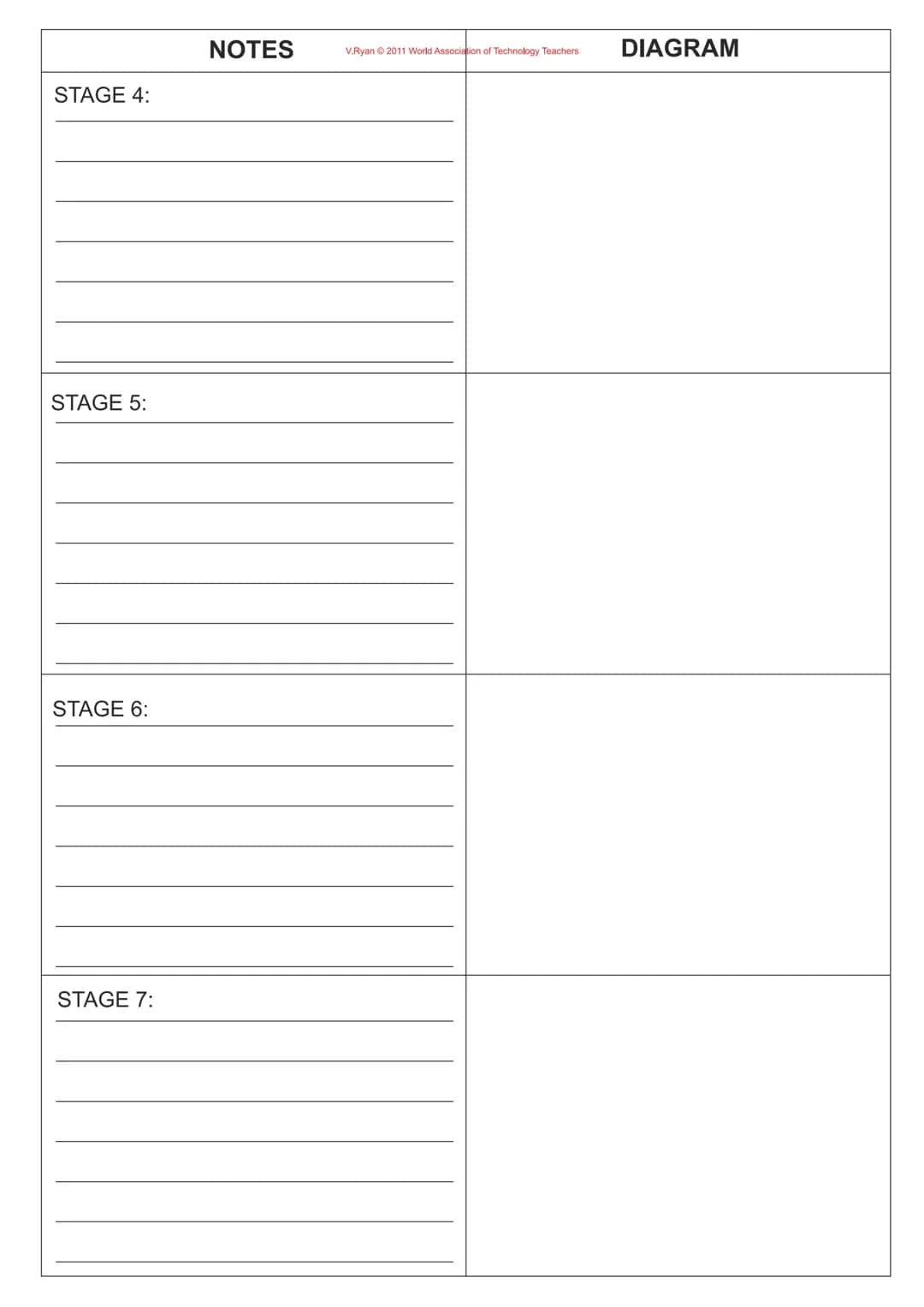

Engineering Materials: Manufacturing Process Stages

Manufacturing processes follow distinct stages that transform raw materials into finished products. Understanding these stages is crucial for Properties and uses of ferrous and non-ferrous metals in engineering applications.

Stage 4 marks the beginning of material transformation, where raw materials undergo initial processing. During this phase, metals are typically heated to specific temperatures to alter their molecular structure and enhance workability. This process is particularly important for Alloy composition and applications in engineering, as different alloys require precise temperature control to achieve desired properties.

Definition: Material transformation is the process of changing the physical or chemical properties of materials through controlled manufacturing processes to achieve specific characteristics needed for engineering applications.

In Stage 5, materials enter the forming phase where they are shaped into preliminary forms through various techniques such as casting, forging, or rolling. This stage is critical for determining the basic structure that will influence the final product's properties. Engineers must carefully consider factors like material flow, pressure distribution, and cooling rates to ensure optimal results.

Stages 6 and 7 focus on refinement and finishing operations. These stages involve precise machining, surface treatments, and quality control measures to ensure the final product meets specifications. For Year 9 engineering materials study notes, it's essential to understand how these finishing processes affect material properties and performance.

Highlight: Each manufacturing stage builds upon the previous one, creating a systematic approach to transforming raw materials into finished engineering products with specific properties and characteristics.

Material Properties and Manufacturing Considerations

The success of manufacturing processes depends heavily on understanding material properties and how they change during each stage. Engineers must consider factors like thermal conductivity, malleability, and tensile strength when designing manufacturing sequences.

Different materials require different approaches during manufacturing. For example, ferrous metals often need careful temperature control to prevent unwanted phase transformations, while non-ferrous metals might require specific atmospheric conditions to prevent oxidation.

Example: When manufacturing aluminum components, the material must be protected from oxidation during heating stages, often using inert gas environments or protective coatings to maintain surface quality.

The manufacturing process directly influences the final product's performance characteristics. Engineers must balance various factors including cost, time, material properties, and available manufacturing technologies to achieve optimal results. This understanding is fundamental for students studying materials science and manufacturing processes.

Vocabulary: Phase transformation - A change in the crystalline structure of a material that occurs due to temperature changes or mechanical processing, affecting its properties and behavior.
