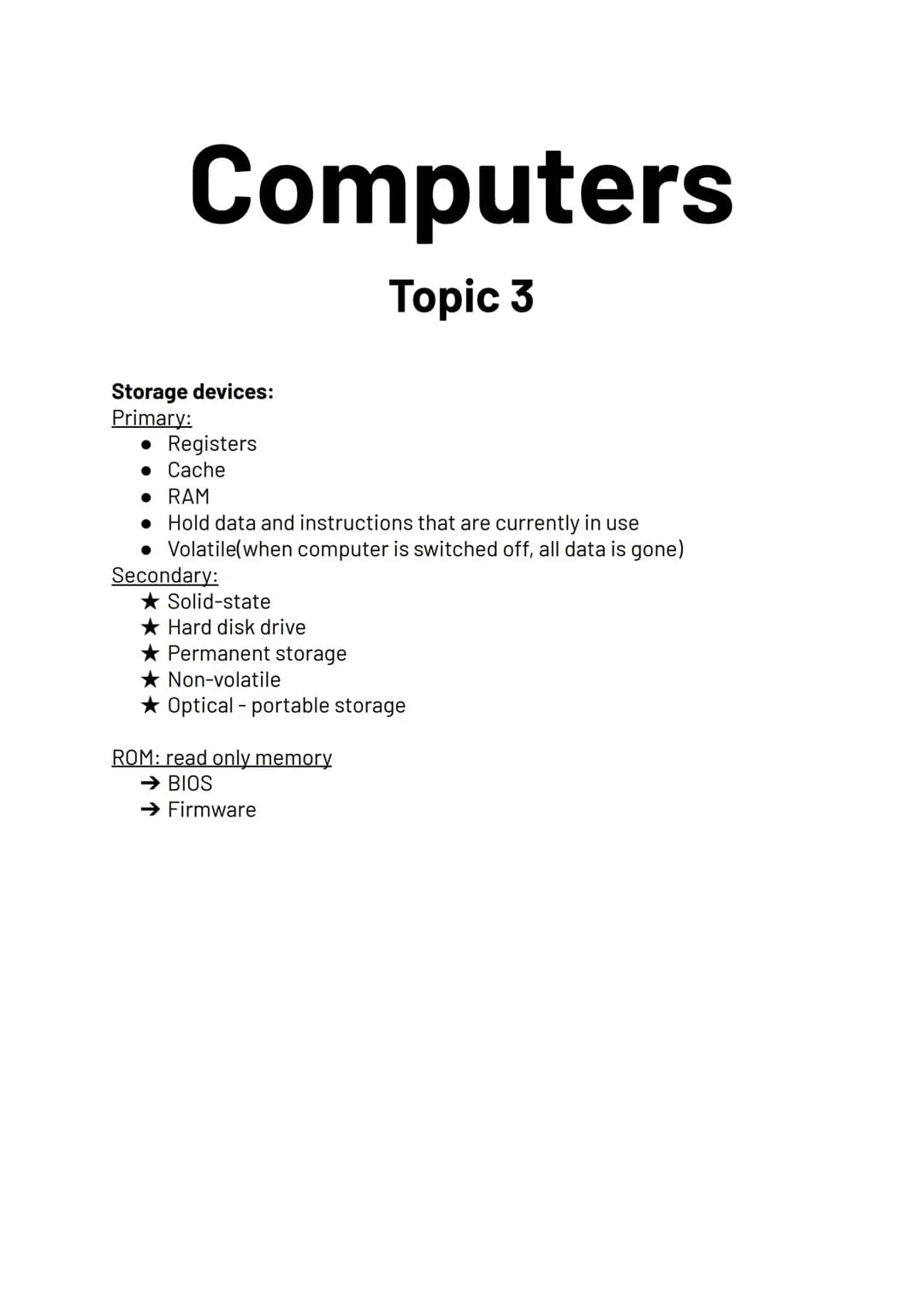

Understanding Computer Storage Devices: Primary and Secondary Storage

Computer storage devices are essential components that hold data and instructions in different ways. Primary storage includes volatile memory like registers, cache, and RAM that temporarily store active data. When powered off, this data disappears. Secondary storage provides permanent, non-volatile storage through various technologies including types of storage devices for computers like solid-state drives (SSDs), hard disk drives (HDDs), and optical media.

The fundamental distinction between primary and secondary storage lies in their roles and characteristics. Primary storage works directly with the CPU, providing quick access to current programs and data. Secondary storage serves as long-term data storage, maintaining information even when powered down. This creates a hierarchical storage system that balances speed, capacity, and cost.

ROM (Read-Only Memory) occupies a unique position in computer storage. It contains permanent instructions like BIOS and firmware that the computer needs to start up and operate basic functions. Unlike other primary storage, ROM is non-volatile and retains its contents without power.

Definition: Primary storage refers to memory that directly interacts with the CPU for immediate data access, while secondary storage provides long-term data retention even when powered off.

Comparison of SSD and HDD Storage Devices: Performance and Characteristics

When examining secondary storage options, the comparison of SSD and HDD storage devices reveals significant differences in performance and reliability. SSDs offer superior read-write speeds of 550-7200 MB/s compared to HDDs' 100-200 MB/s. SSDs achieve this through electronic switches and flash memory cells, while HDDs rely on mechanical parts and magnetic platters.

Durability and portability also differ substantially between these technologies. SSDs demonstrate excellent durability due to their lack of moving parts, making them resistant to drops, vibrations, and temperature changes. Their compact size and lighter weight enhance portability. HDDs, while more fragile due to their mechanical nature, typically offer more storage capacity per dollar.

Cost considerations play a crucial role in storage selection. A 4TB SSD might cost £300-£700, while a comparable HDD ranges from £65-£100. This price difference reflects the advanced technology in SSDs but also makes HDDs an economical choice for large-scale storage needs.

Highlight: SSDs excel in speed and durability but come at a higher cost, while HDDs offer better value for large storage capacity requirements.

Understanding Optical Magnetic and Solid-State Storage: Working Principles

Each storage technology employs unique methods for data storage and retrieval. Solid-state drives use microscopic electronic switches organized in cells containing logic gates. Electrons flowing through these gates alter cell charges to represent data. This technology powers devices like USB memory sticks, smartphones, and modern laptops.

Magnetic storage relies on electromagnetic principles, using spinning platters with magnetizable surfaces. The read-write head alters magnetic patterns to store data as binary states (magnetized for 1, demagnetized for 0). This proven technology remains prevalent in traditional hard drives and backup systems.

Optical storage uses laser technology to read and write data. The laser creates microscopic pits in the disc's surface, which reflect light differently than the unchanged areas (lands). This principle enables various optical formats from CDs to Blu-ray discs, offering portable and affordable storage solutions.

Example: A Blu-ray disc can store 25-112GB of data, while a standard DVD holds 4.5-9GB, demonstrating the evolution of optical storage capacity.

Essential Computer Hardware Components and Their Functions

Computer hardware components work together as an integrated system, each serving specific functions. The motherboard acts as the central communication hub, connecting all components and enabling data flow. The CPU executes program instructions through fetch-decode-execute cycles, while the GPU handles specialized graphics processing tasks.

Storage devices form a crucial part of this ecosystem. Hard disk drives provide cost-effective bulk storage, while solid-state drives offer faster data access and improved reliability. RAM serves as temporary working memory, and cache memory helps prevent processing bottlenecks by storing frequently accessed data.

The power supply unit and case provide essential support functions. The PSU converts electrical power to appropriate voltages, while the case protects components and manages airflow. Understanding these components helps in building and maintaining efficient computer systems.

Vocabulary: Cache memory - High-speed memory that stores frequently accessed data to improve processing efficiency.

Understanding Computer Memory and Storage Components

Main memory serves as the direct access point for the CPU, encompassing ROM, RAM, and cache memory. Each component plays a vital role in computer operations and data management.

Random Access Memory (RAM) functions as temporary working memory, loading currently active programs and operating system components. While RAM offers quick access with 2-3GB typical capacity, it's volatile - meaning data disappears when power is cut. This makes RAM ideal for running applications but unsuitable for long-term storage.

Read-Only Memory (ROM) contains essential firmware like the Basic Input/Output System (BIOS) that initializes hardware during startup. Unlike RAM, ROM is non-volatile and retains data without power, though it has limited capacity measured in kilobytes. The BIOS specifically tests computer components at startup before transferring control to the operating system.

Definition: Cache memory is a small, extremely fast memory that stores frequently accessed data. Located physically closer to the CPU than RAM, it's checked first during the fetch cycle but is also volatile.

Data Storage Units and Computer Types

Understanding digital storage begins with bits - the smallest unit of data represented as 0 or 1. Bits combine to form larger units: 4 bits make a nibble, while 8 bits create a byte. This forms the foundation of all computer storage measurements.

Storage capacities follow a hierarchical structure: kilobyte (1024 bytes), megabyte (1024 kilobytes), gigabyte (1024 megabytes), terabyte (1024 gigabytes), and petabyte (1024 terabytes). It's worth noting the distinction between decimal-based units (kilobyte = 1000 bytes) and binary-based units (kibibyte = 1024 bytes).

Vocabulary: Storage capacity measurements:

• Bit: Smallest unit (0 or 1)
• Byte: 8 bits
• Kilobyte: 1024 bytes
• Megabyte: 1024 kilobytes
• Gigabyte: 1024 megabytes

Computers fall into two main categories: general-purpose and embedded systems. General-purpose computers like desktops and laptops can perform diverse tasks but consume more power and cost more. Embedded computers, built into devices like washing machines, are task-specific, energy-efficient, and more economical.

CPU Operation and Processing Cycle

The CPU operates through a continuous fetch-decode-execute cycle, forming the foundation of computer processing. This systematic process ensures efficient handling of instructions and data.

During the fetch stage, the program counter increments by one, and the memory address register (MAR) receives the next instruction's address. This address travels via the address bus to RAM, with the resulting data moving through the data bus to the memory data register (MDR).

The decode stage involves the control unit breaking down instructions into opcode (the instruction itself) and operand (the instruction's target). Finally, in the execute stage, the control unit processes the instruction, with the arithmetic logic unit (ALU) handling calculations and storing results in the accumulator when needed.

Example: CPU Processing Cycle:

1. Fetch: Retrieves instruction from memory
2. Decode: Breaks down instruction into components
3. Execute: Performs the specified operation

CPU Performance and System Architecture

The performance of a CPU depends on three critical factors known as the "three C's": Cores, Cache, and Clock speed. Multiple cores enable parallel instruction execution, while cache provides quick access to frequently used data. Clock speed, measured in Hertz, determines how many instructions can be processed per second.

Computer architecture follows either Von Neumann or Harvard design principles. Von Neumann architecture uses shared memory space for both instructions and data, while Harvard architecture maintains separate spaces for each. This fundamental difference affects how computers process and store information.

Highlight: Essential utility software includes:

• Encryption software for data security
• File repair tools
• Backup solutions
• Data compression utilities
• Disk defragmentation tools
• Anti-malware protection

These utilities enhance system performance and security while maintaining data integrity through various methods like lossy and lossless compression techniques.

Understanding Programming Language Levels and Code Translation

Programming languages come in different levels of abstraction, each serving specific purposes in software development. Let's explore the key differences between high-level and low-level programming languages and understand how code translation works.

Low-level programming languages operate close to the computer hardware, providing direct control over the system's resources. Assembly language, the primary low-level language, uses mnemonics that correspond directly to machine code instructions. When programmers write in assembly, each instruction translates to exactly one machine code instruction through an assembler. This direct hardware interaction makes low-level programming ideal for embedded systems and device drivers where precise hardware control is crucial.

Definition: Assembly language is a low-level programming language that uses mnemonics to represent machine code instructions, providing direct hardware control.

High-level programming languages like Python, C++, and Java offer a more user-friendly approach to programming. These languages use English-like commands and abstract away hardware details, making them easier to learn and use. When programmers write in high-level languages, a single instruction can translate into multiple machine code instructions. This abstraction allows for more portable code that can run on different processor types, though it may sacrifice some execution speed and memory efficiency.

Highlight: While low-level languages offer better performance and memory efficiency, high-level languages provide easier code writing and maintenance with broader compatibility across different systems.

Code Translation and Programming Language Processors

The process of converting human-readable source code into machine-executable instructions requires specialized software called translators. These essential tools bridge the gap between programming languages and machine code, enabling computers to execute our programs.

Translators come in three main forms: compilers, interpreters, and assemblers. Compilers take the entire source code written in high-level languages and convert it into object code all at once, creating an executable file. Interpreters, on the other hand, translate and execute code line by line, offering more flexibility but potentially slower execution. Assemblers specifically handle the translation of assembly language into machine code.

Example: When you write a Python program, the Python interpreter translates and executes your code line by line, while a C++ compiler converts your entire program into machine code before execution.

The choice between different translators depends on various factors including the programming language, performance requirements, and development needs. Compiled programs typically run faster but require a separate compilation step, while interpreted languages offer immediate execution and easier debugging at the cost of runtime performance.

Vocabulary: Object code refers to the machine-readable code produced by a translator, which can be directly executed by the computer's processor.
