How to Calculate Relative Atomic Mass and Differences Between Ionic and Covalent Bonds - Easy Steps and Examples
1 / 4

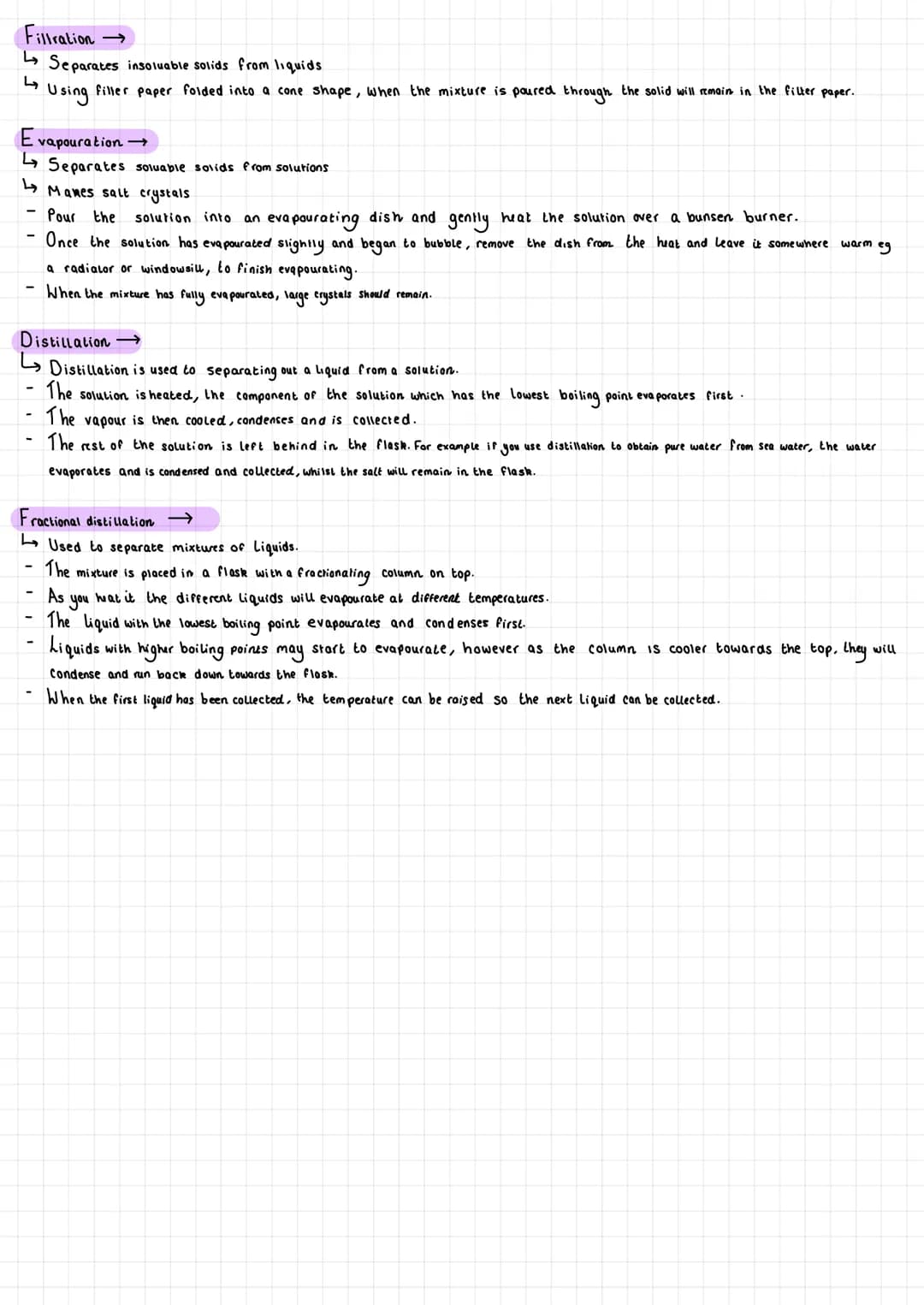

Separation Techniques
This page delves deeper into various separation techniques used in chemistry:
-
Filtration: Separates insoluble solids from liquids using filter paper.
-
Evaporation: Separates soluble solids from solutions by heating and evaporating the liquid.
-
Simple distillation: Used to separate a liquid from a solution.
Highlight: In simple distillation, the solution is heated, and the component with the lowest boiling point evaporates first, is cooled, and then collected.
- Fractional distillation: Used to separate mixtures of liquids with different boiling points.
Example: In fractional distillation of crude oil, different components are separated based on their boiling points, with lighter fractions like gasoline collected first, followed by heavier fractions like diesel and lubricating oils.
The page provides detailed distillation procedure step-by-step instructions for both simple and fractional distillation, making it an excellent resource for students learning about simple distillation separation technique steps.

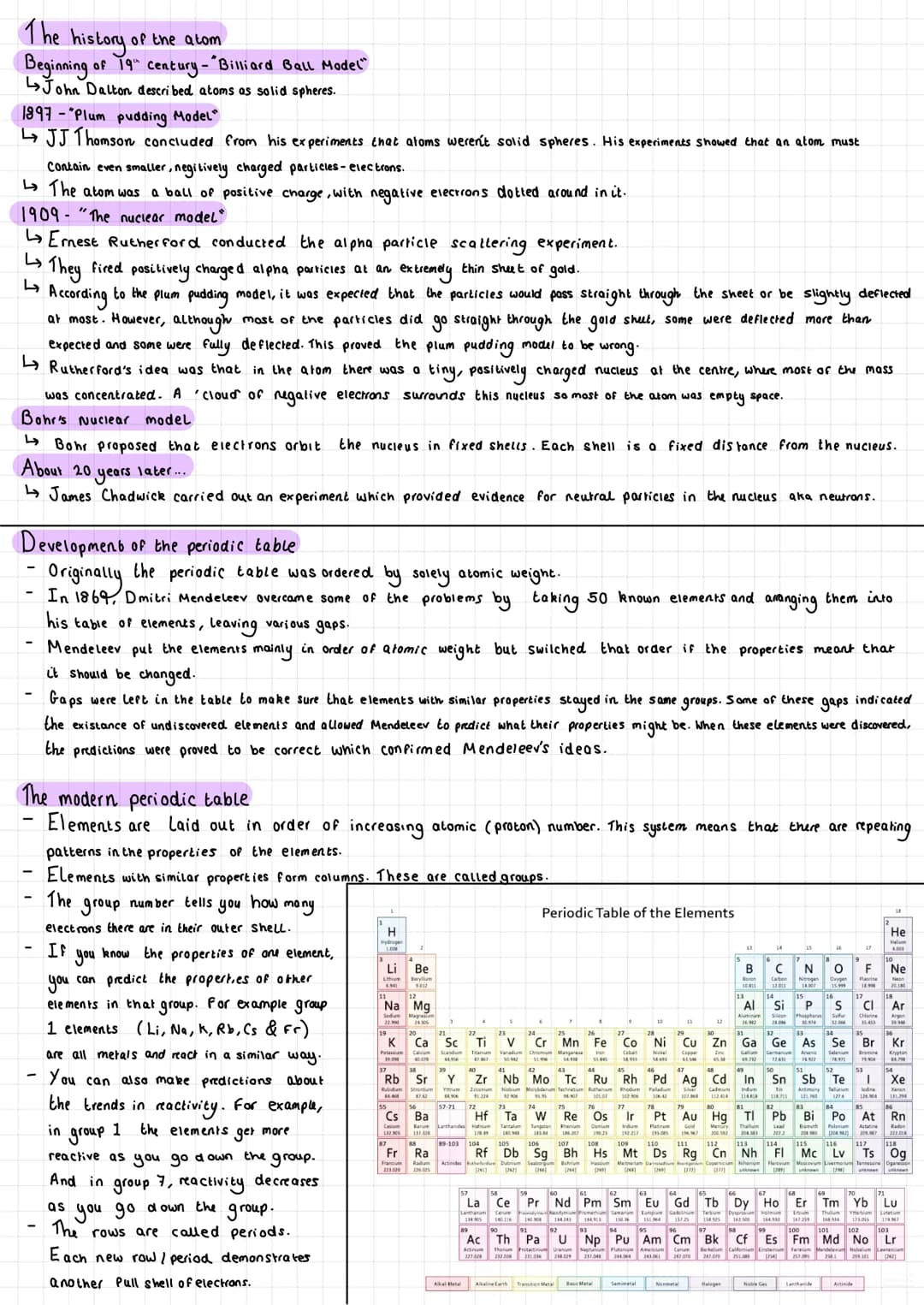

History of Atomic Models
This page traces the evolution of atomic models throughout history:
-
Early 19th century: John Dalton's "Billiard Ball Model" - atoms as solid spheres
-
1897: J.J. Thomson's "Plum Pudding Model" - atoms as positively charged balls with embedded negative electrons
-
1909: Ernest Rutherford's "Nuclear Model" - atoms with a small, dense, positively charged nucleus surrounded by electrons
-
Niels Bohr's Nuclear Model - electrons orbiting the nucleus in fixed shells
Highlight: Rutherford's alpha particle scattering experiment provided crucial evidence for the nuclear model of the atom.
Example: In Rutherford's experiment, most alpha particles passed through a thin gold foil, but some were deflected at large angles, indicating a small, dense nucleus.
The page also mentions James Chadwick's discovery of neutrons about 20 years after Rutherford's model.
Development of the Periodic Table
This final page discusses the evolution of the periodic table:
- Initially, elements were ordered solely by atomic weight
- In 1869, Dmitri Mendeleev introduced a new approach to organizing elements
Highlight: Mendeleev's periodic table overcame some of the problems associated with earlier arrangements of elements.
The page emphasizes the importance of Mendeleev's work in the development of the modern periodic table, which is a crucial tool for understanding elemental properties and chemical behavior.
This section provides a historical context for the organization of elements, helping students appreciate the scientific process that led to our current understanding of atomic structure and elemental relationships.

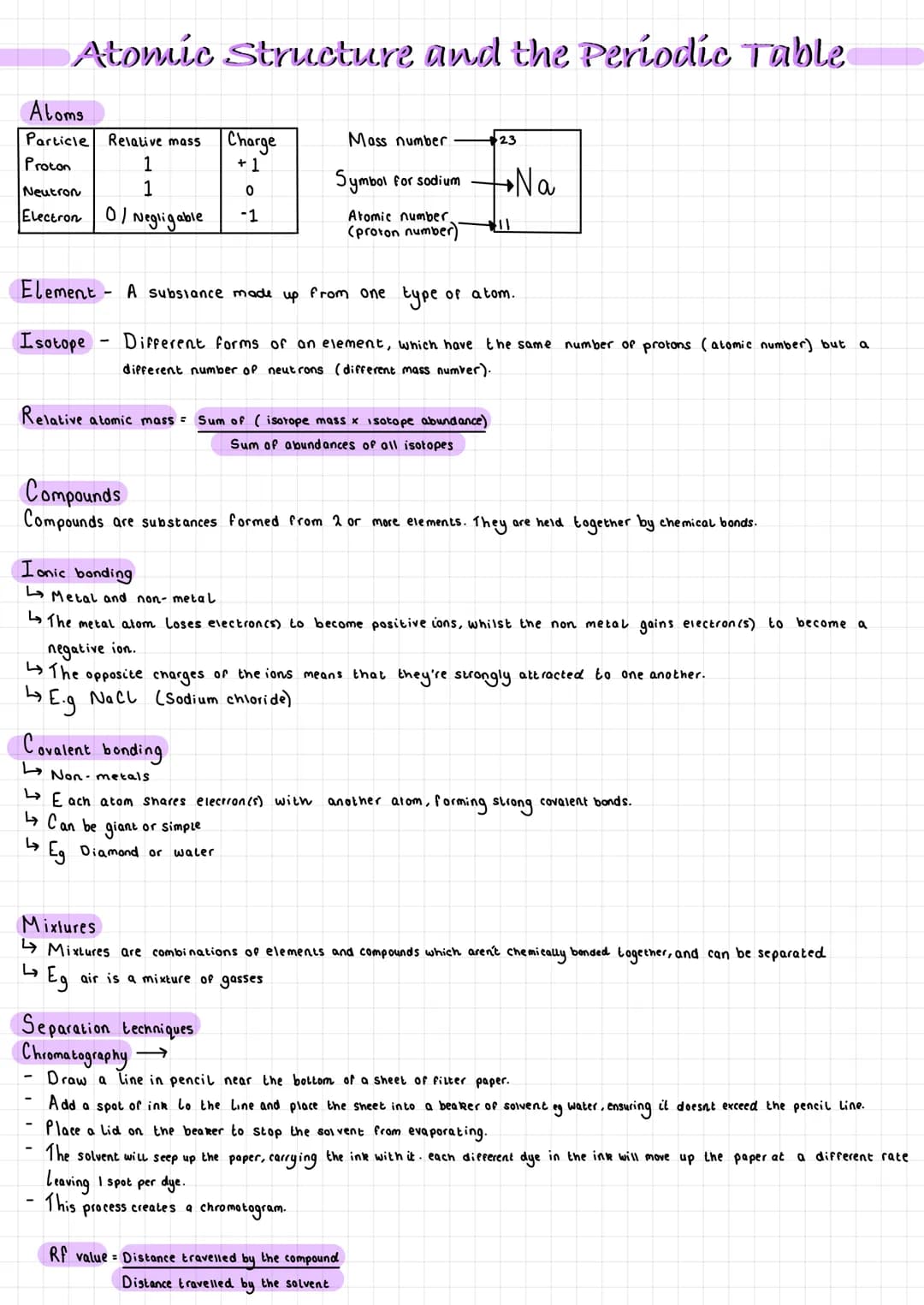

Atomic Structure and the Periodic Table
This page introduces key concepts in atomic structure and the periodic table, including:
- Subatomic particles (protons, neutrons, electrons) and their properties
- Atomic structure notation
- Definition of elements, isotopes, and compounds
- Types of chemical bonding (ionic and covalent)
- Mixtures and separation techniques
Vocabulary: An element is a substance made up of one type of atom.
Definition: Isotopes are different forms of an element with the same number of protons but different numbers of neutrons.
Example: Sodium (Na) has an atomic number of 11 and a mass number of 23.
The page also covers how to calculate relative atomic mass of isotopes using the following formula:
Relative atomic mass = Sum of (isotope mass x isotope abundance) / Sum of abundances of all isotopes
Highlight: Chemical compounds are formed from two or more elements held together by chemical bonds.
The page concludes with an overview of separation techniques, focusing on chromatography:
- Draw a pencil line on filter paper
- Add a spot of ink to the line
- Place the paper in a beaker with solvent
- Allow the solvent to travel up the paper, separating the ink components
Vocabulary: The Rf value is calculated as the distance traveled by the compound divided by the distance traveled by the solvent.
