Sliding Filament Theory: How Actin and Myosin Make Muscles Move
O
Olivia
@oliviag
1 / 4

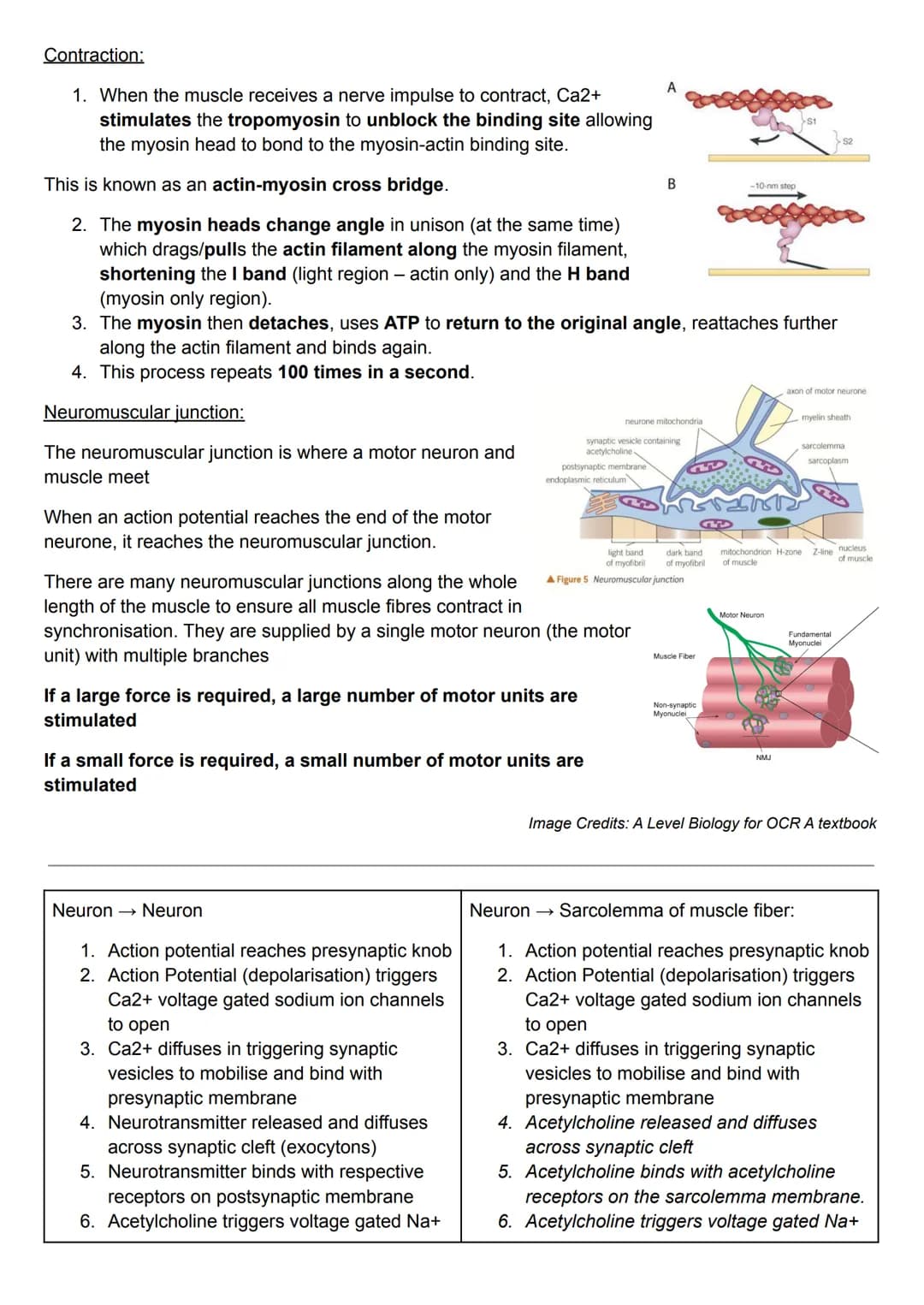

Muscle Contraction Process and Neuromuscular Junction
The sliding filament theory of muscle contraction involves several key steps:
- A nerve impulse triggers calcium ion release, causing tropomyosin to unblock the actin-myosin binding site.
- Myosin heads form cross-bridges with actin, changing angle simultaneously to pull actin filaments along myosin filaments.
- Myosin detaches, uses ATP to reset its position, and reattaches further along the actin filament.
- This process repeats rapidly, up to 100 times per second.
Example: This rapid cycle of attachment, movement, and detachment is similar to a ratchet mechanism, allowing for smooth and continuous muscle contraction.
The neuromuscular junction plays a crucial role in muscle contraction. It's the site where motor neurons communicate with muscle fibers. When an action potential reaches the junction, it triggers a series of events:
- Calcium ions enter the neuron's presynaptic knob.
- Synaptic vesicles release acetylcholine into the synaptic cleft.
- Acetylcholine binds to receptors on the muscle fiber's membrane.
- This binding opens sodium channels, depolarizing the muscle fiber.
Highlight: The neuromuscular junction's role in muscle contraction is essential for coordinating the activation of multiple muscle fibers simultaneously, ensuring efficient and powerful muscle contractions.
Multiple neuromuscular junctions along a muscle ensure synchronized contraction of all fibers. The number of motor units stimulated determines the force of contraction, allowing for precise control of muscle movement.

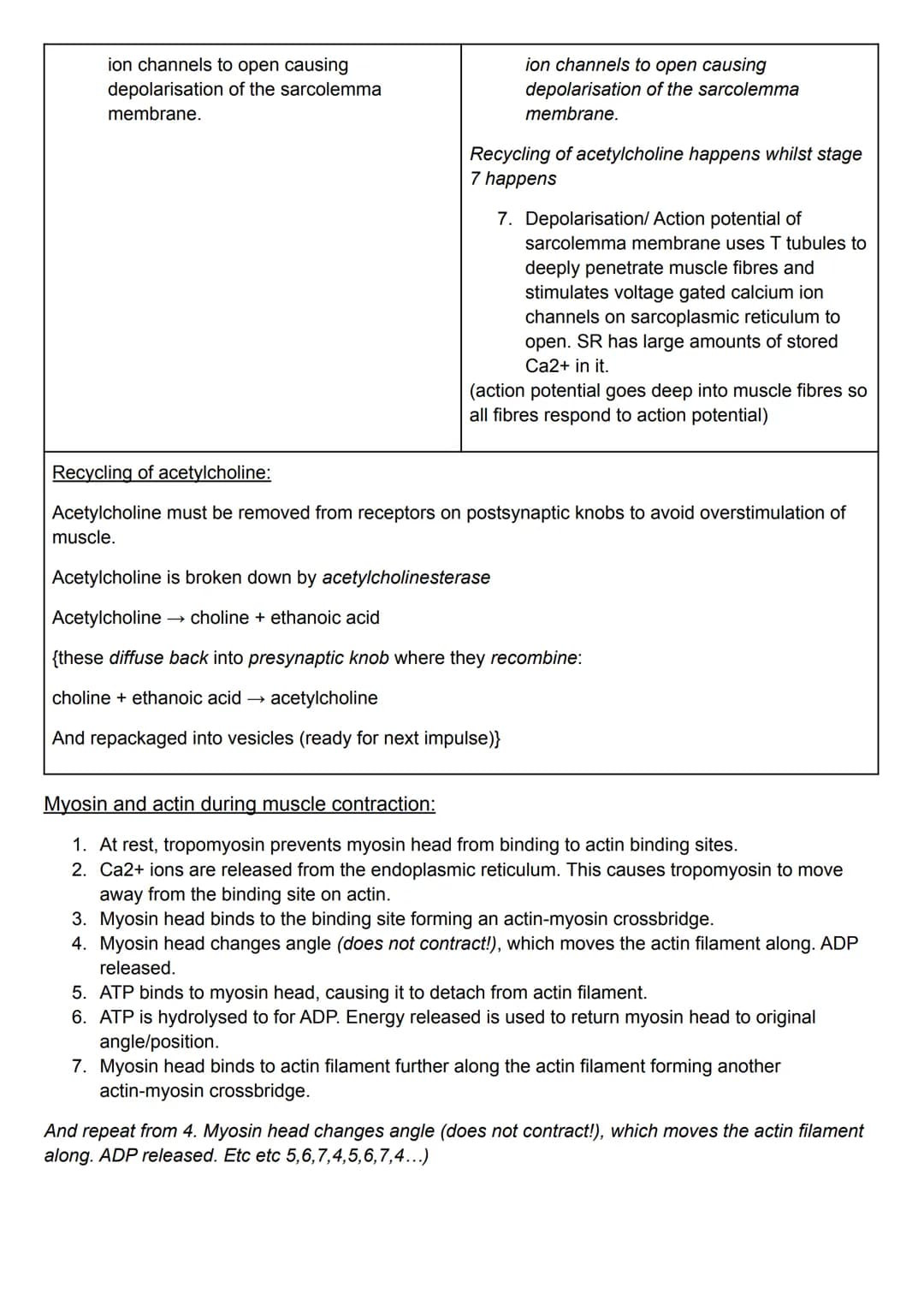

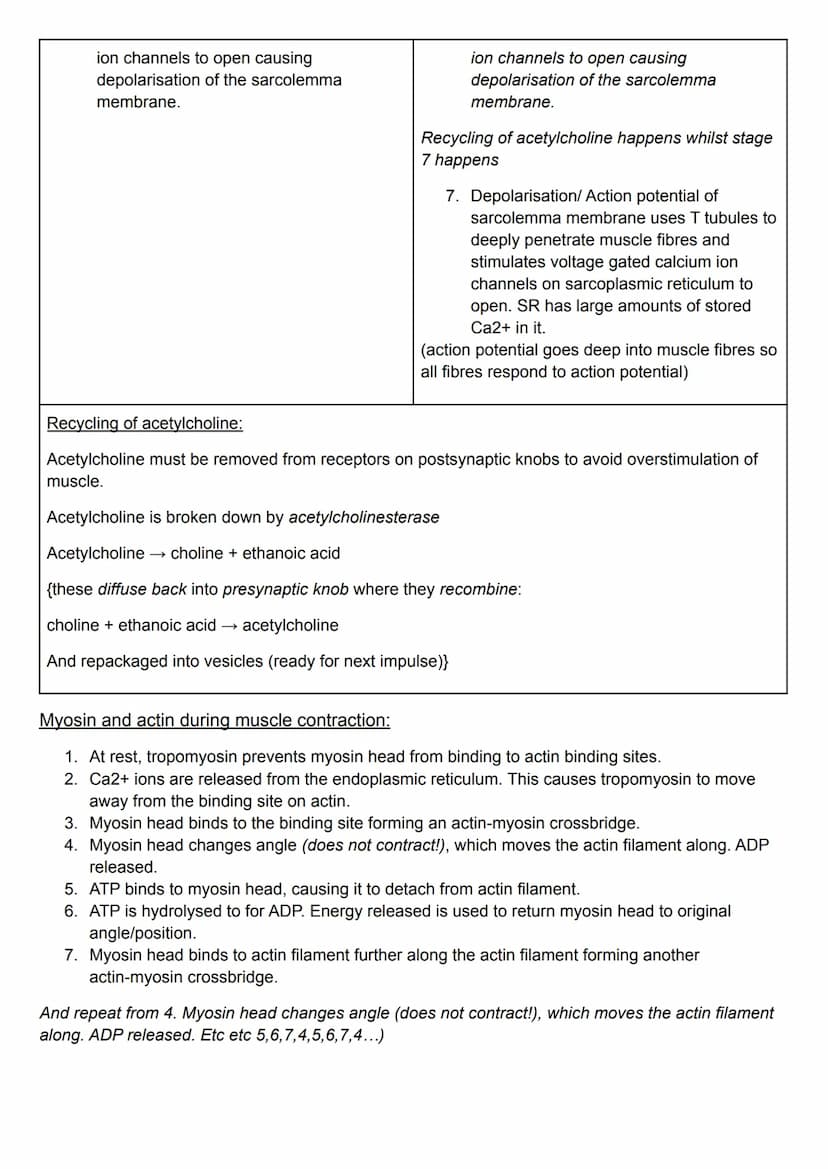

Neuromuscular Junction Signaling and Acetylcholine Recycling
The signaling process at the neuromuscular junction continues from the previous page:
- The opening of sodium channels causes depolarization of the sarcolemma membrane.
- This depolarization travels deep into muscle fibers via T-tubules, stimulating calcium release from the sarcoplasmic reticulum.
Vocabulary: T-tubules are extensions of the sarcolemma that penetrate deep into muscle fibers, allowing for rapid signal transmission throughout the muscle.
The release of calcium ions from the sarcoplasmic reticulum is a critical step in the sliding filament theory, as it allows for the activation of the contractile proteins.
Acetylcholine recycling is an important process that occurs simultaneously with muscle activation:
- Acetylcholine must be removed from receptors to prevent overstimulation.
- The enzyme acetylcholinesterase breaks down acetylcholine into choline and ethanoic acid.
- These components diffuse back into the presynaptic knob for reuse.
Definition: Acetylcholinesterase is an enzyme that rapidly breaks down acetylcholine, ensuring precise control of muscle activation and preventing continuous stimulation.
This recycling process is crucial for maintaining the efficiency of neuromuscular signaling and allowing for rapid, repeated muscle contractions.
Highlight: Understanding the detailed steps of neuromuscular junction signaling and acetylcholine recycling is essential for comprehending the complete mechanism of sarcomere contraction and myosin-actin interaction.

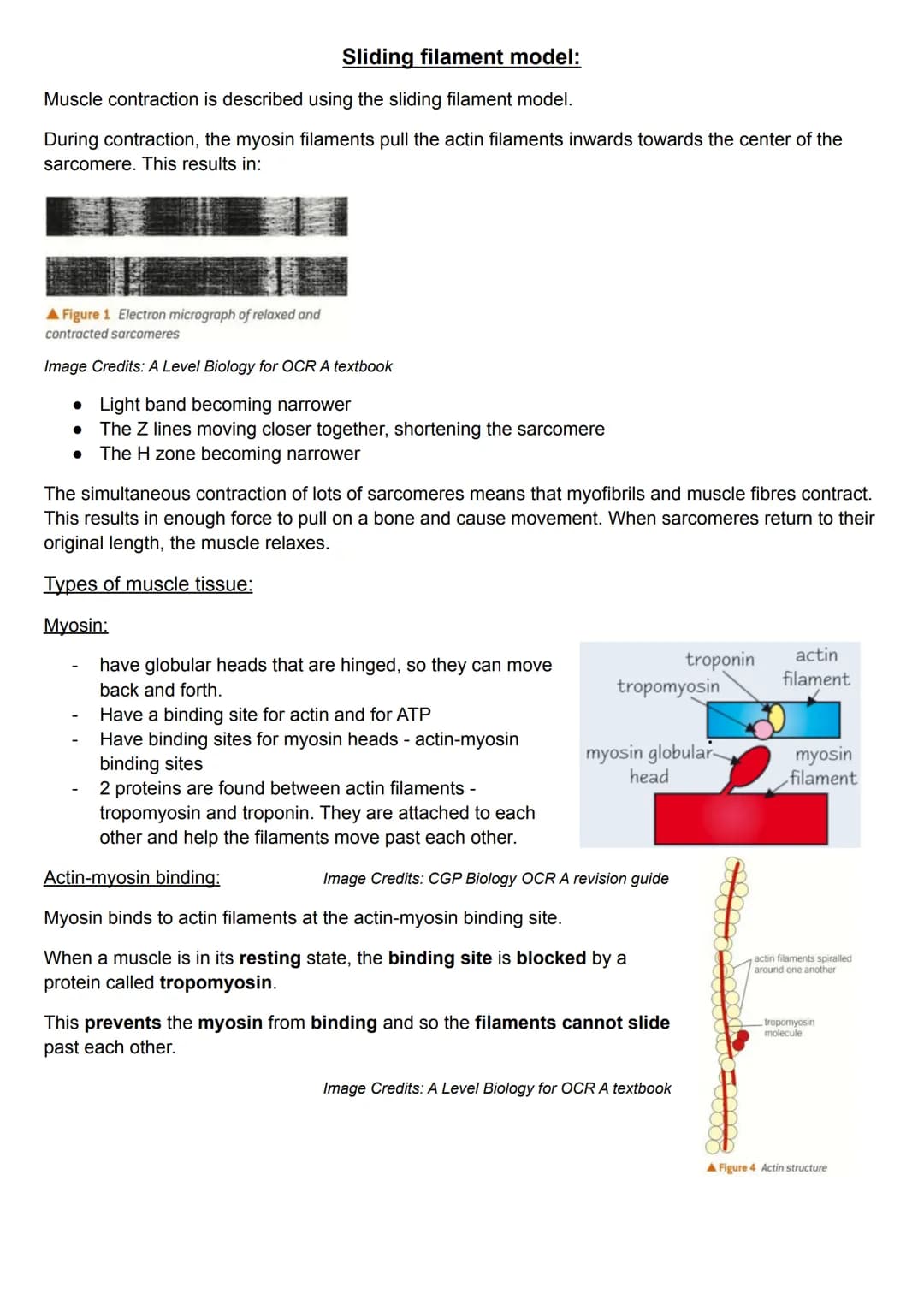

Sliding Filament Model and Muscle Tissue Types
The sliding filament theory is the fundamental model explaining muscle contraction. During this process, myosin filaments pull actin filaments towards the sarcomere's center, causing the light band to narrow, Z lines to move closer, and the H zone to shrink. This simultaneous contraction of numerous sarcomeres results in the contraction of myofibrils and muscle fibers, generating enough force to move bones.
Definition: The sarcomere is the basic functional unit of skeletal muscle, containing the contractile proteins actin and myosin.
The key proteins involved in muscle contraction are myosin and actin. Myosin has globular heads with binding sites for actin and ATP, while actin filaments have binding sites for myosin heads. Two additional proteins, tropomyosin and troponin, are found between actin filaments and play a crucial role in facilitating filament movement.
Vocabulary: Tropomyosin is a protein that, along with troponin, regulates muscle contraction by controlling the interaction between actin and myosin.
In the resting state of a muscle, tropomyosin blocks the binding site on actin, preventing myosin from attaching and thus inhibiting contraction. This mechanism is essential for understanding the steps of the sliding filament theory.
Highlight: The actin-myosin binding is a critical component of the sliding filament theory of muscle contraction, as it allows for the generation of force and movement within muscle fibers.
