Types of Muscles and Their Functions: Easy Diagrams and Answers

Open

4

0

O

Olivia

13/07/2022

Biology

Muscles

Subjects

/

Biology

/

Responding to change (a2 only)

/

Muscle contraction

Types of Muscles and Their Functions: Easy Diagrams and Answers

Types of Muscles and Their Structure - A comprehensive guide exploring the three main types of muscles in human body, their structure, function, and characteristics, with special focus on skeletal muscle tissue and sarcomere organization.

• The human body contains three distinct types of muscles: skeletal muscle, cardiac muscle, and smooth muscle, each with unique structural and functional properties.

• Skeletal muscle structure is characterized by striated patterns and conscious control, making up the majority of body muscle tissue.

• Sarcomeres, the fundamental units of muscle contraction, consist of precisely arranged actin and myosin filaments.

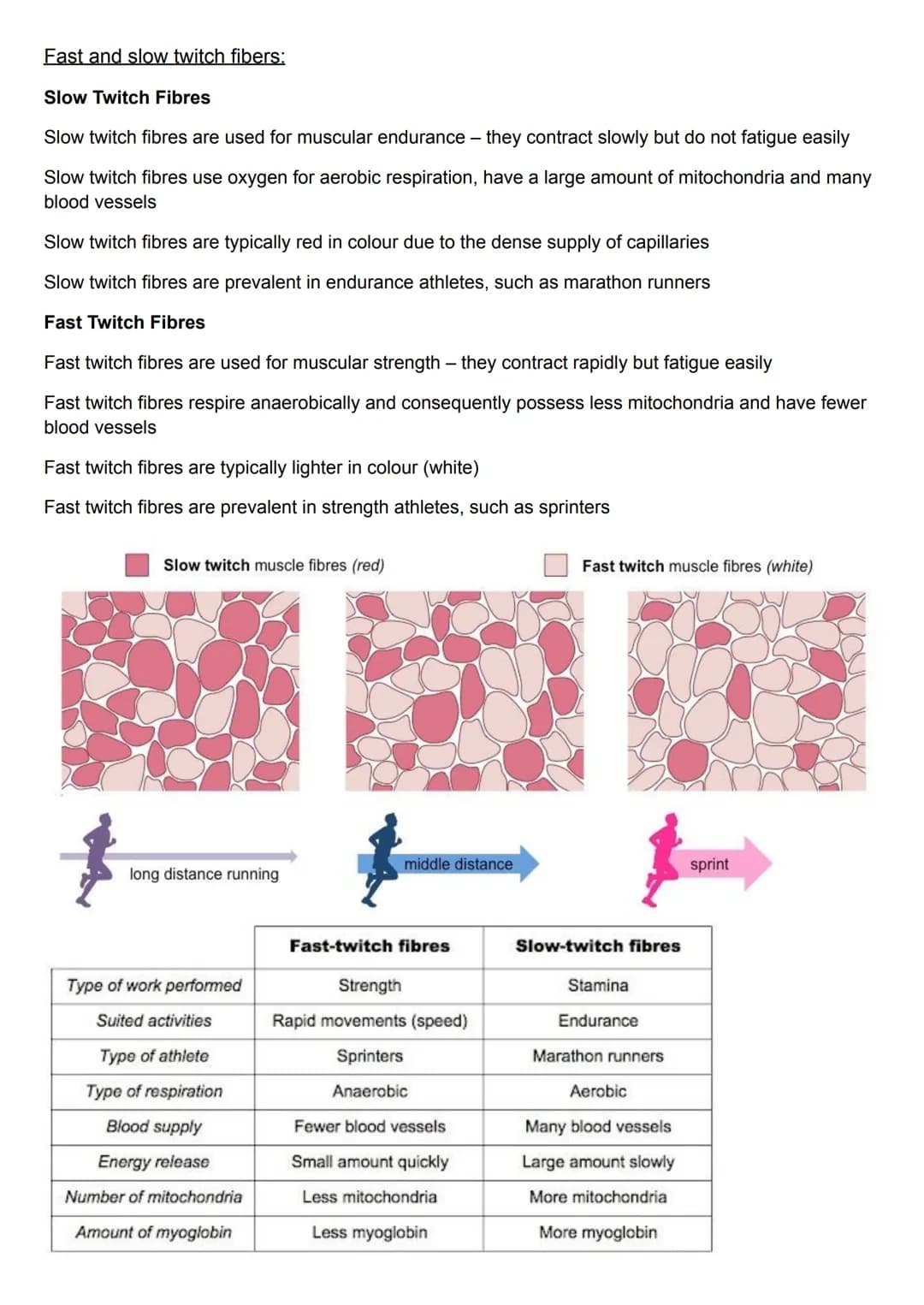

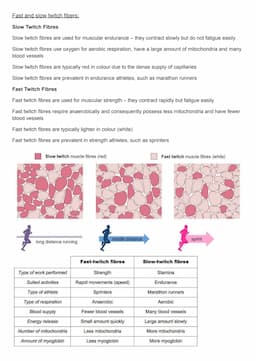

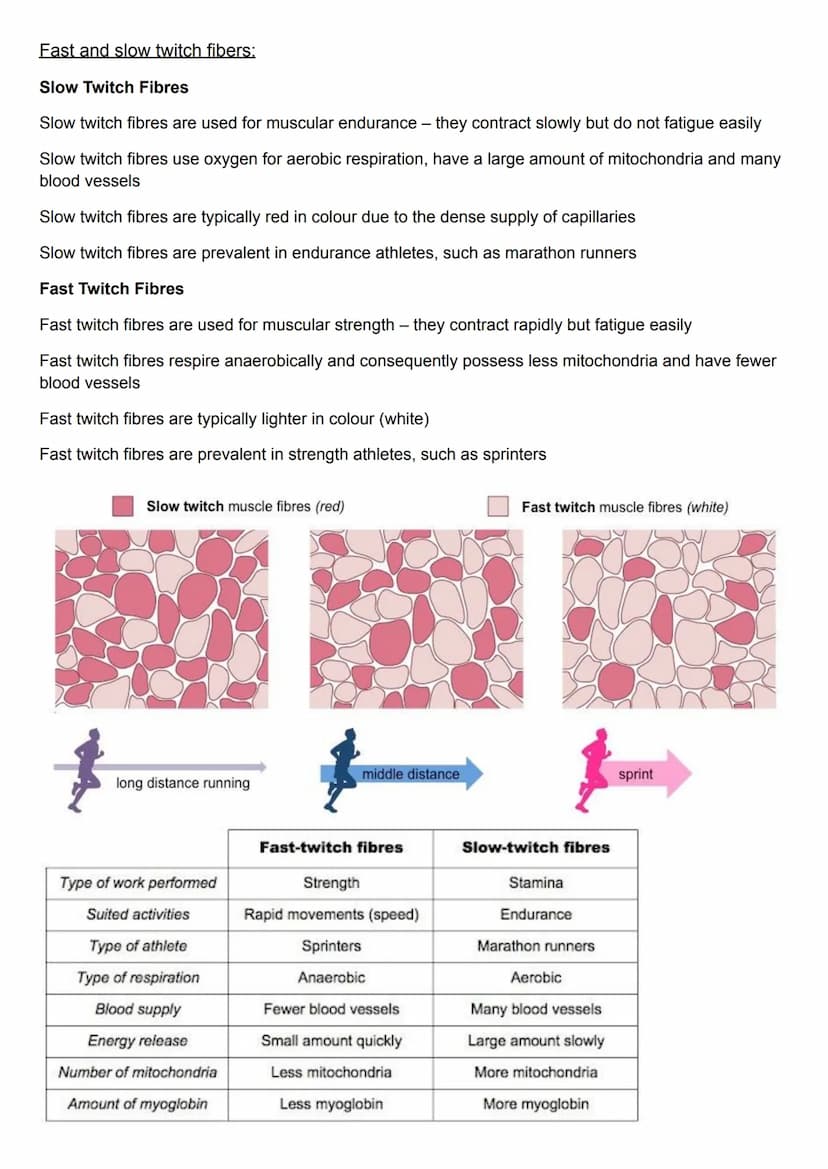

• Muscle fibers are classified into fast-twitch and slow-twitch varieties, each serving different physiological purposes.

...

13/07/2022

445

Types of muscle: Skeletal Muscle - makes up the majority of bulk body muscle tissue. These are the cells responsible for movement e.g biceps

View

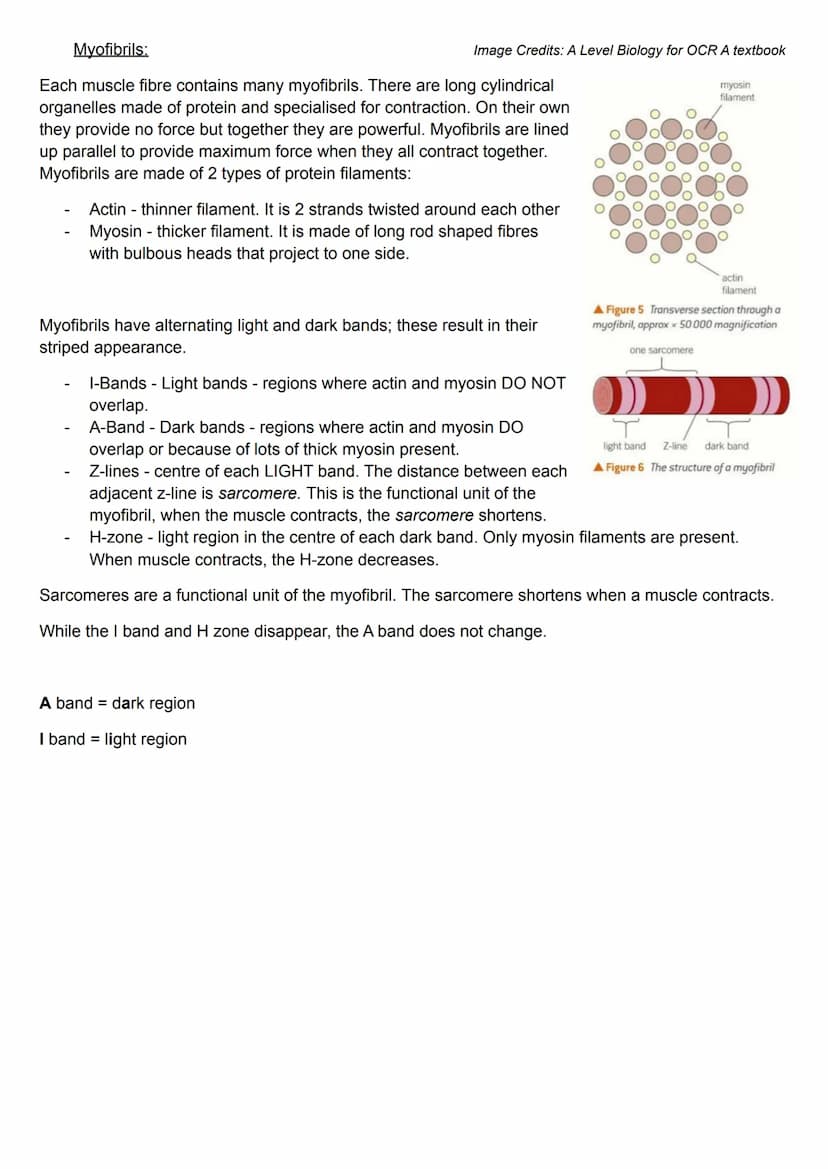

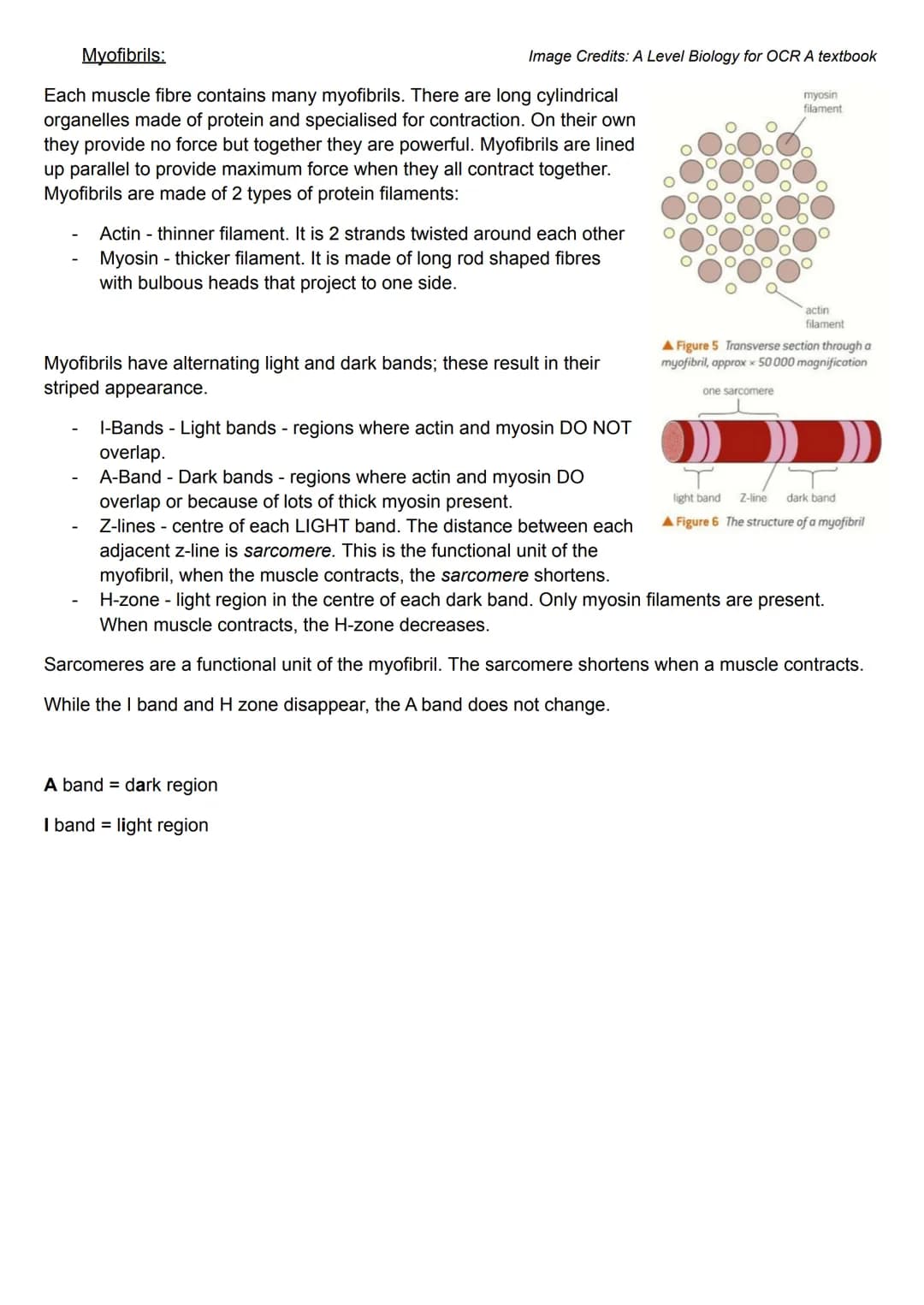

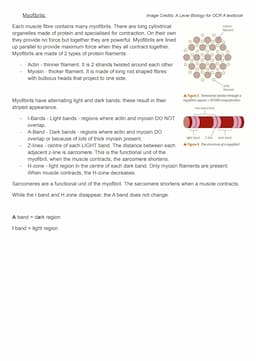

Myofibrils and Protein Filaments

Myofibrils are the key components of skeletal muscle tissue that enable contraction. They are composed of two types of protein filaments:

  1. Actin - thin filaments made of two twisted strands
  2. Myosin - thick filaments with rod-shaped fibers and bulbous heads

The arrangement of these filaments gives skeletal muscles their characteristic striated appearance:

Highlight: The alternating light and dark bands in myofibrils create the striped look of skeletal muscles.

Sarcomere Structure

The sarcomere is the functional unit of a myofibril and is crucial for understanding muscle contraction.

  • A-bands: Dark regions where actin and myosin overlap
  • I-bands: Light regions where only actin is present
  • Z-lines: The boundaries of each sarcomere
  • H-zone: A light region in the center of the A-band containing only myosin

Definition: Sarcomere - The distance between two adjacent Z-lines, representing the basic functional unit of a muscle fiber.

During muscle contraction, the sarcomere shortens, causing the I-bands and H-zone to decrease in size while the A-band remains constant.

Types of muscle: Skeletal Muscle - makes up the majority of bulk body muscle tissue. These are the cells responsible for movement e.g biceps

View

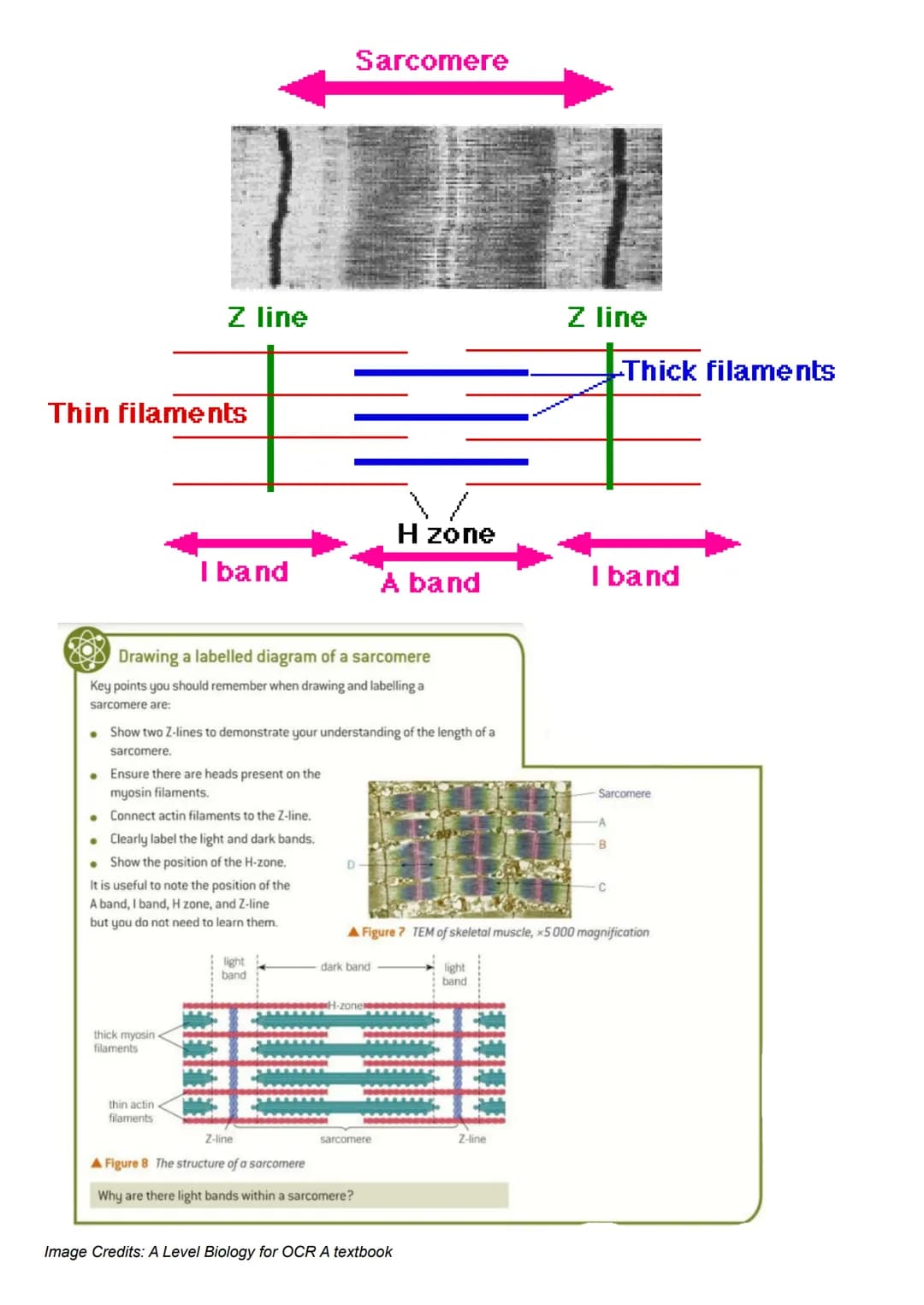

Sarcomere Diagram and Structure

Creating an accurate sarcomere diagram is essential for understanding muscle structure and function. Key elements to include are:

  1. Two Z-lines to show the full length of a sarcomere
  2. Thick myosin filaments with visible heads
  3. Thin actin filaments connected to the Z-lines
  4. Clearly labeled light and dark bands
  5. The position of the H-zone

Highlight: The arrangement of actin and myosin filaments within the sarcomere is crucial for muscle contraction.

Light and Dark Bands

The alternating light and dark bands within a sarcomere are due to the overlap of actin and myosin filaments:

  • Light bands I−bandsI-bands contain only actin filaments
  • Dark bands A−bandsA-bands contain both actin and myosin, or dense myosin filaments

Example: Under a microscope, skeletal muscle tissue appears striped due to these alternating bands.

Understanding the detailed structure of sarcomeres is vital for comprehending how skeletal muscles contract and generate force.

Types of muscle: Skeletal Muscle - makes up the majority of bulk body muscle tissue. These are the cells responsible for movement e.g biceps

View

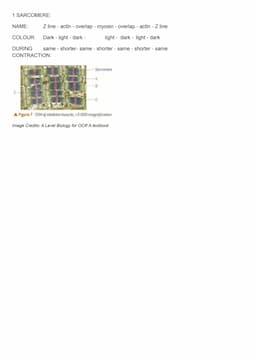

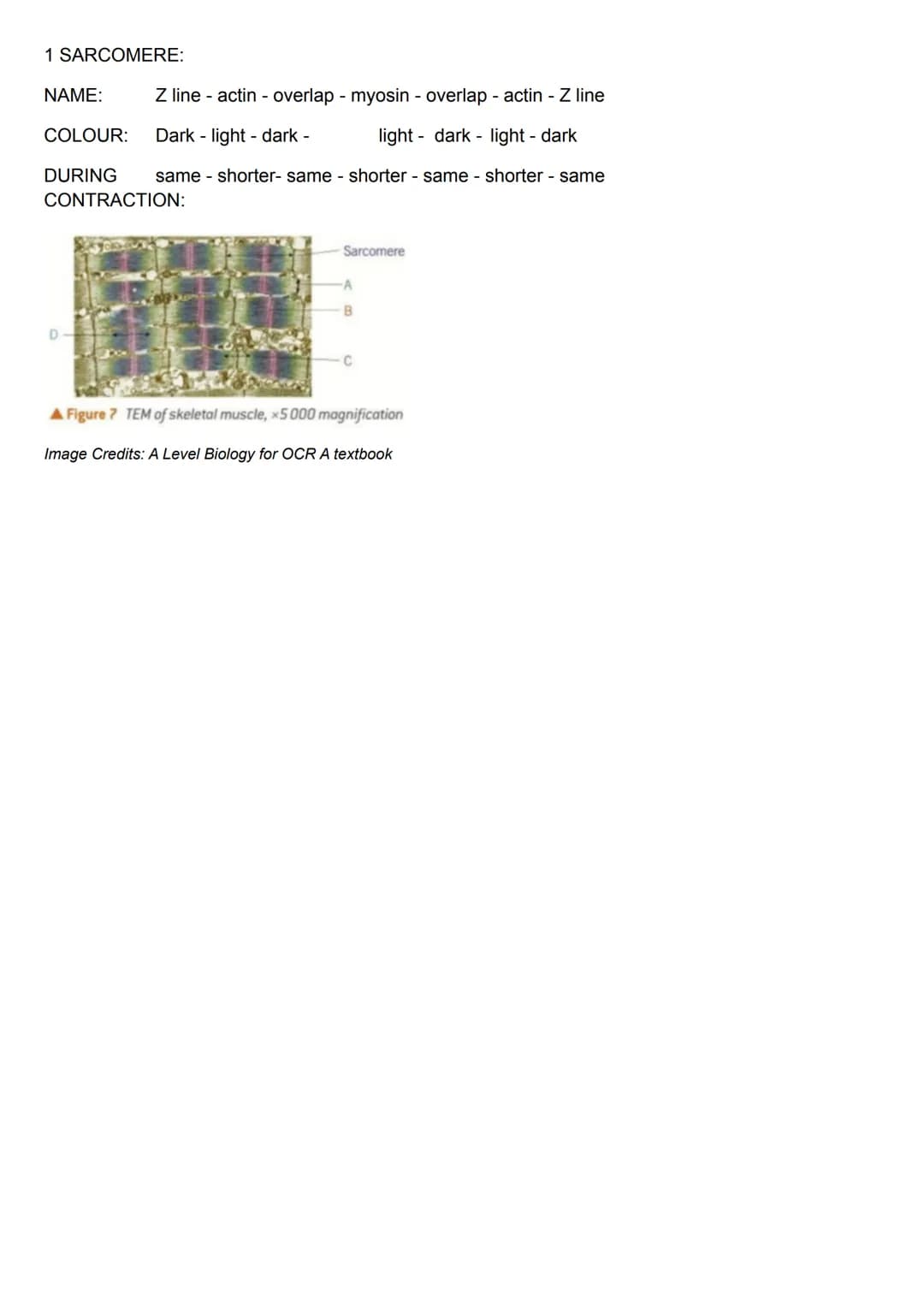

Sarcomere Composition

A single sarcomere, the fundamental unit of skeletal muscle tissue, is composed of the following elements:

Z line - actin - overlap region - myosin - overlap region - actin - Z line

This arrangement creates a distinct pattern of light and dark bands:

  • Dark bands: Areas where actin and myosin overlap or where myosin is densely packed
  • Light bands: Regions containing only actin filaments

Definition: Overlap region - The area within a sarcomere where actin and myosin filaments interact, crucial for muscle contraction.

Understanding this structure is essential for grasping how muscles generate force and movement. The sliding filament theory of muscle contraction is based on the interaction between these actin and myosin filaments within the sarcomere.

Highlight: The precise arrangement of proteins within the sarcomere allows for the efficient conversion of chemical energy into mechanical force during muscle contraction.

This detailed knowledge of sarcomere structure is fundamental to understanding the mechanisms of muscle function and movement in the human body.

Types of muscle: Skeletal Muscle - makes up the majority of bulk body muscle tissue. These are the cells responsible for movement e.g biceps

View

Sarcomere Patterns and Contraction

This section explains the organization and changes in sarcomere structure during muscle contraction.

Definition: The repeating pattern of light and dark bands in a sarcomere creates the striated appearance of skeletal muscle.

Highlight: During contraction, the sarcomere length changes while maintaining its basic structural organization.

Types of muscle: Skeletal Muscle - makes up the majority of bulk body muscle tissue. These are the cells responsible for movement e.g biceps

View

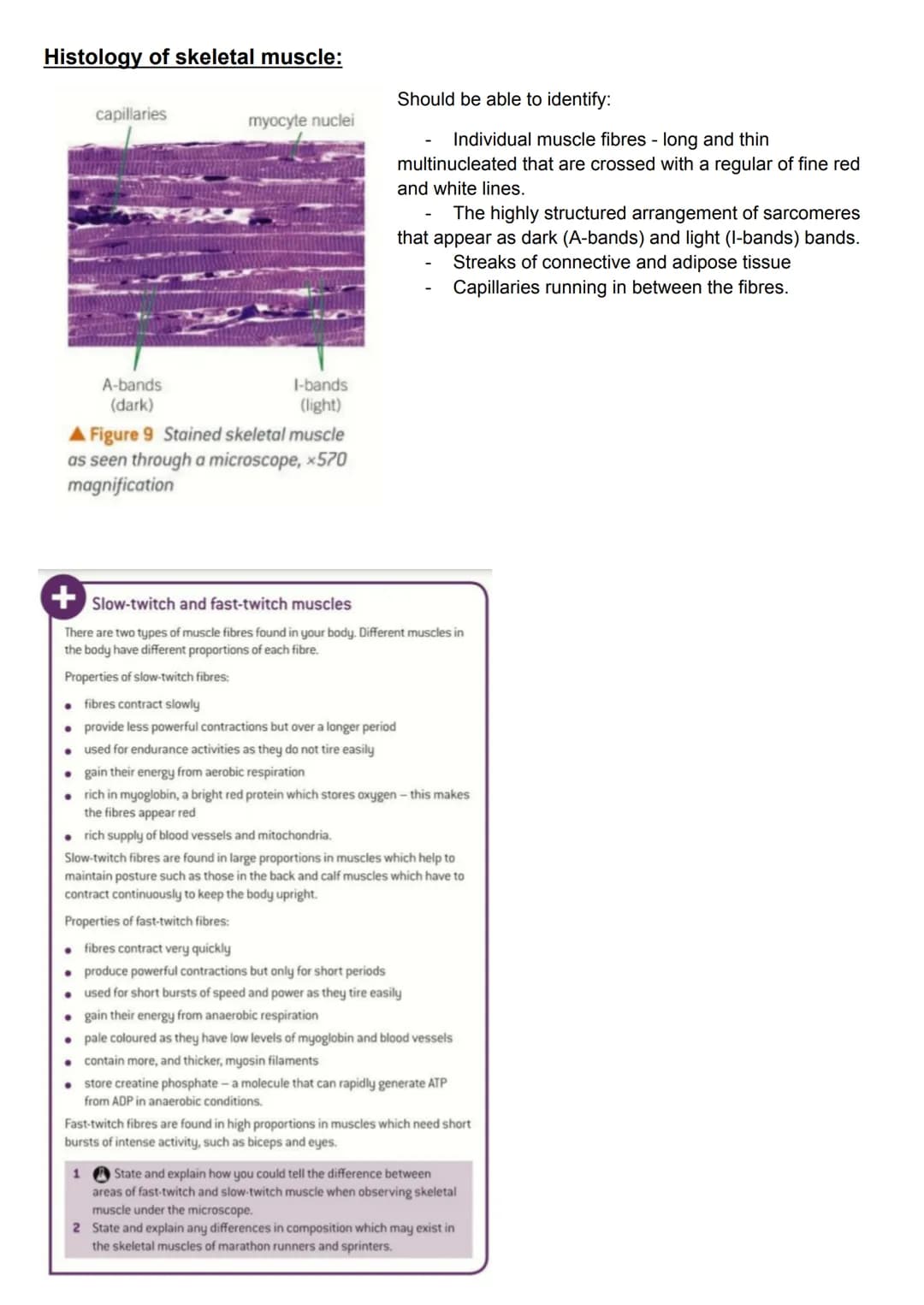

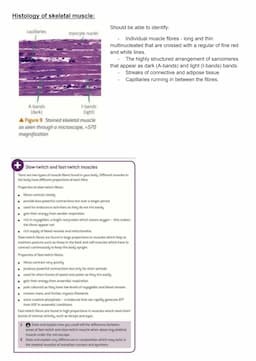

Histological Features of Skeletal Muscle

The page covers the microscopic appearance and identification of skeletal muscle tissue features.

Vocabulary: Myocyte nuclei are the multiple nuclei found within muscle fibers.

Example: Capillaries running between muscle fibers provide essential oxygen and nutrients.

Highlight: The regular pattern of dark and light bands is visible under microscopic examination.

Similar content

Know Unit 1 Essays - higher human biology thumbnail

19

600

S5/S6

Unit 1 Essays - higher human biology

- higher human biology

Know AQA A Level Biology Topic 6 thumbnail

16

560

13

AQA A Level Biology Topic 6

Notes for Topic 6 of AQA A level Biology

Can't find what you're looking for? Explore other subjects.

Knowunity is the #1 education app in five European countries

Knowunity has been named a featured story on Apple and has regularly topped the app store charts in the education category in Germany, Italy, Poland, Switzerland, and the United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the #1 education app in five European countries

4.9+

Average app rating

21 M

Pupils love Knowunity

#1

In education app charts in 17 countries

950 K+

Students have uploaded notes

Still not convinced? See what other students are saying...

iOS User

I love this app so much, I also use it daily. I recommend Knowunity to everyone!!! I went from a D to an A with it :D

Philip, iOS User

The app is very simple and well designed. So far I have always found everything I was looking for :D

Lena, iOS user

I love this app ❤️ I actually use it every time I study.

Biologie

Bestandteile des Zellskeletts



Biology

•

445

•

23 Jun 2025

•

6 pages

Types of Muscles and Their Functions: Easy Diagrams and Answers

O

Olivia

@oliviag

Types of Muscles and Their Structure - A comprehensive guide exploring the three main types of muscles in human body, their structure, function, and characteristics, with special focus on skeletal muscle tissue and sarcomere organization.

• The human body... Show more

Types of muscle: Skeletal Muscle - makes up the majority of bulk body muscle tissue. These are the cells responsible for movement e.g biceps

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Myofibrils and Protein Filaments

Myofibrils are the key components of skeletal muscle tissue that enable contraction. They are composed of two types of protein filaments:

  1. Actin - thin filaments made of two twisted strands
  2. Myosin - thick filaments with rod-shaped fibers and bulbous heads

The arrangement of these filaments gives skeletal muscles their characteristic striated appearance:

Highlight: The alternating light and dark bands in myofibrils create the striped look of skeletal muscles.

Sarcomere Structure

The sarcomere is the functional unit of a myofibril and is crucial for understanding muscle contraction.

  • A-bands: Dark regions where actin and myosin overlap
  • I-bands: Light regions where only actin is present
  • Z-lines: The boundaries of each sarcomere
  • H-zone: A light region in the center of the A-band containing only myosin

Definition: Sarcomere - The distance between two adjacent Z-lines, representing the basic functional unit of a muscle fiber.

During muscle contraction, the sarcomere shortens, causing the I-bands and H-zone to decrease in size while the A-band remains constant.

Types of muscle: Skeletal Muscle - makes up the majority of bulk body muscle tissue. These are the cells responsible for movement e.g biceps

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Sarcomere Diagram and Structure

Creating an accurate sarcomere diagram is essential for understanding muscle structure and function. Key elements to include are:

  1. Two Z-lines to show the full length of a sarcomere
  2. Thick myosin filaments with visible heads
  3. Thin actin filaments connected to the Z-lines
  4. Clearly labeled light and dark bands
  5. The position of the H-zone

Highlight: The arrangement of actin and myosin filaments within the sarcomere is crucial for muscle contraction.

Light and Dark Bands

The alternating light and dark bands within a sarcomere are due to the overlap of actin and myosin filaments:

  • Light bands I−bandsI-bands contain only actin filaments
  • Dark bands A−bandsA-bands contain both actin and myosin, or dense myosin filaments

Example: Under a microscope, skeletal muscle tissue appears striped due to these alternating bands.

Understanding the detailed structure of sarcomeres is vital for comprehending how skeletal muscles contract and generate force.

Types of muscle: Skeletal Muscle - makes up the majority of bulk body muscle tissue. These are the cells responsible for movement e.g biceps

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Sarcomere Composition

A single sarcomere, the fundamental unit of skeletal muscle tissue, is composed of the following elements:

Z line - actin - overlap region - myosin - overlap region - actin - Z line

This arrangement creates a distinct pattern of light and dark bands:

  • Dark bands: Areas where actin and myosin overlap or where myosin is densely packed
  • Light bands: Regions containing only actin filaments

Definition: Overlap region - The area within a sarcomere where actin and myosin filaments interact, crucial for muscle contraction.

Understanding this structure is essential for grasping how muscles generate force and movement. The sliding filament theory of muscle contraction is based on the interaction between these actin and myosin filaments within the sarcomere.

Highlight: The precise arrangement of proteins within the sarcomere allows for the efficient conversion of chemical energy into mechanical force during muscle contraction.

This detailed knowledge of sarcomere structure is fundamental to understanding the mechanisms of muscle function and movement in the human body.

Types of muscle: Skeletal Muscle - makes up the majority of bulk body muscle tissue. These are the cells responsible for movement e.g biceps

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Sarcomere Patterns and Contraction

This section explains the organization and changes in sarcomere structure during muscle contraction.

Definition: The repeating pattern of light and dark bands in a sarcomere creates the striated appearance of skeletal muscle.

Highlight: During contraction, the sarcomere length changes while maintaining its basic structural organization.

Types of muscle: Skeletal Muscle - makes up the majority of bulk body muscle tissue. These are the cells responsible for movement e.g biceps

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Histological Features of Skeletal Muscle

The page covers the microscopic appearance and identification of skeletal muscle tissue features.

Vocabulary: Myocyte nuclei are the multiple nuclei found within muscle fibers.

Example: Capillaries running between muscle fibers provide essential oxygen and nutrients.

Highlight: The regular pattern of dark and light bands is visible under microscopic examination.

Types of muscle: Skeletal Muscle - makes up the majority of bulk body muscle tissue. These are the cells responsible for movement e.g biceps

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

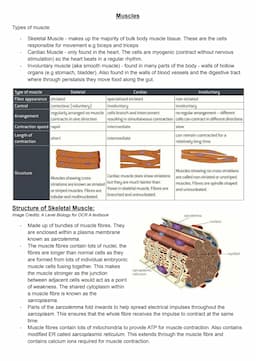

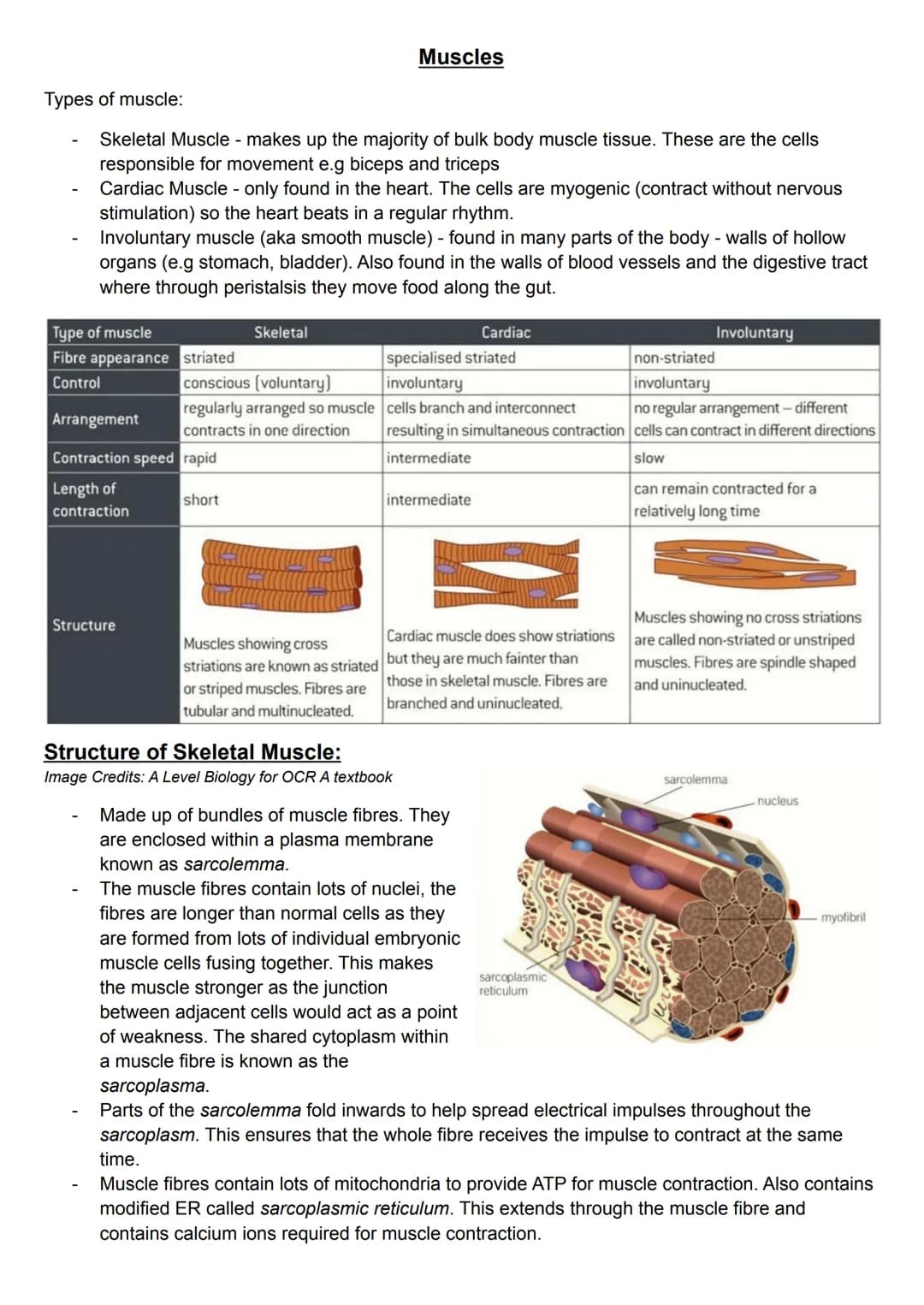

Types of Muscles

The human body contains three main types of muscles, each with unique characteristics and functions:

Skeletal Muscle Skeletal muscles are the most abundant type of muscle tissue in the body. They are responsible for voluntary movements and make up the bulk of our visible muscles.

Highlight: Skeletal muscles are striated, under conscious control, and contract rapidly.

Cardiac Muscle Cardiac muscle is found exclusively in the heart. It has a specialized structure that allows for coordinated contraction.

Vocabulary: Myogenic - Cardiac muscle cells can contract without nervous stimulation, allowing for regular heartbeats.

Smooth Muscle Smooth muscle, also known as involuntary muscle, is found in various organs throughout the body.

Example: Smooth muscle is present in the walls of the stomach, bladder, and blood vessels. It aids in processes like peristalsis in the digestive tract.

The structure of skeletal muscle is complex and highly organized:

  • Muscle fibers are enclosed in a membrane called the sarcolemma
  • Each fiber contains multiple nuclei and is filled with sarcoplasm
  • Myofibrils are long, cylindrical structures within the muscle fibers
  • Sarcoplasmic reticulum stores calcium ions necessary for muscle contraction

Definition: Sarcolemma - The plasma membrane that surrounds a muscle fiber.

We thought you’d never ask...

What is the Knowunity AI companion?

Our AI Companion is a student-focused AI tool that offers more than just answers. Built on millions of Knowunity resources, it provides relevant information, personalised study plans, quizzes, and content directly in the chat, adapting to your individual learning journey.

Where can I download the Knowunity app?

You can download the app from Google Play Store and Apple App Store.

Is Knowunity really free of charge?

That's right! Enjoy free access to study content, connect with fellow students, and get instant help – all at your fingertips.

Can't find what you're looking for? Explore other subjects.

Students love us — and so will you.

4.9/5

App Store

4.8/5

Google Play

The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.

Stefan S

iOS user

This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.

Samantha Klich

Android user

Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.

Anna

iOS user

Best app on earth! no words because it’s too good

Thomas R

iOS user

Just amazing. Let's me revise 10x better, this app is a quick 10/10. I highly recommend it to anyone. I can watch and search for notes. I can save them in the subject folder. I can revise it any time when I come back. If you haven't tried this app, you're really missing out.

Basil

Android user

This app has made me feel so much more confident in my exam prep, not only through boosting my own self confidence through the features that allow you to connect with others and feel less alone, but also through the way the app itself is centred around making you feel better. It is easy to navigate, fun to use, and helpful to anyone struggling in absolutely any way.

David K

iOS user

The app's just great! All I have to do is enter the topic in the search bar and I get the response real fast. I don't have to watch 10 YouTube videos to understand something, so I'm saving my time. Highly recommended!

Sudenaz Ocak

Android user

In school I was really bad at maths but thanks to the app, I am doing better now. I am so grateful that you made the app.

Greenlight Bonnie

Android user

very reliable app to help and grow your ideas of Maths, English and other related topics in your works. please use this app if your struggling in areas, this app is key for that. wish I'd of done a review before. and it's also free so don't worry about that.

Rohan U

Android user

I know a lot of apps use fake accounts to boost their reviews but this app deserves it all. Originally I was getting 4 in my English exams and this time I got a grade 7. I didn’t even know about this app three days until the exam and it has helped A LOT. Please actually trust me and use it as I’m sure you too will see developments.

Xander S

iOS user

THE QUIZES AND FLASHCARDS ARE SO USEFUL AND I LOVE THE SCHOOLGPT. IT ALSO IS LITREALLY LIKE CHATGPT BUT SMARTER!! HELPED ME WITH MY MASCARA PROBLEMS TOO!! AS WELL AS MY REAL SUBJECTS ! DUHHH 😍😁😲🤑💗✨🎀😮

Elisha

iOS user

This apps acc the goat. I find revision so boring but this app makes it so easy to organize it all and then you can ask the freeeee ai to test yourself so good and you can easily upload your own stuff. highly recommend as someone taking mocks now

Paul T

iOS user

The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.

Stefan S

iOS user

This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.

Samantha Klich

Android user

Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.

Anna

iOS user

Best app on earth! no words because it’s too good

Thomas R

iOS user

Just amazing. Let's me revise 10x better, this app is a quick 10/10. I highly recommend it to anyone. I can watch and search for notes. I can save them in the subject folder. I can revise it any time when I come back. If you haven't tried this app, you're really missing out.

Basil

Android user

This app has made me feel so much more confident in my exam prep, not only through boosting my own self confidence through the features that allow you to connect with others and feel less alone, but also through the way the app itself is centred around making you feel better. It is easy to navigate, fun to use, and helpful to anyone struggling in absolutely any way.

David K

iOS user

The app's just great! All I have to do is enter the topic in the search bar and I get the response real fast. I don't have to watch 10 YouTube videos to understand something, so I'm saving my time. Highly recommended!

Sudenaz Ocak

Android user

In school I was really bad at maths but thanks to the app, I am doing better now. I am so grateful that you made the app.

Greenlight Bonnie

Android user

very reliable app to help and grow your ideas of Maths, English and other related topics in your works. please use this app if your struggling in areas, this app is key for that. wish I'd of done a review before. and it's also free so don't worry about that.

Rohan U

Android user

I know a lot of apps use fake accounts to boost their reviews but this app deserves it all. Originally I was getting 4 in my English exams and this time I got a grade 7. I didn’t even know about this app three days until the exam and it has helped A LOT. Please actually trust me and use it as I’m sure you too will see developments.

Xander S

iOS user

THE QUIZES AND FLASHCARDS ARE SO USEFUL AND I LOVE THE SCHOOLGPT. IT ALSO IS LITREALLY LIKE CHATGPT BUT SMARTER!! HELPED ME WITH MY MASCARA PROBLEMS TOO!! AS WELL AS MY REAL SUBJECTS ! DUHHH 😍😁😲🤑💗✨🎀😮

Elisha

iOS user

This apps acc the goat. I find revision so boring but this app makes it so easy to organize it all and then you can ask the freeeee ai to test yourself so good and you can easily upload your own stuff. highly recommend as someone taking mocks now

Paul T

iOS user
