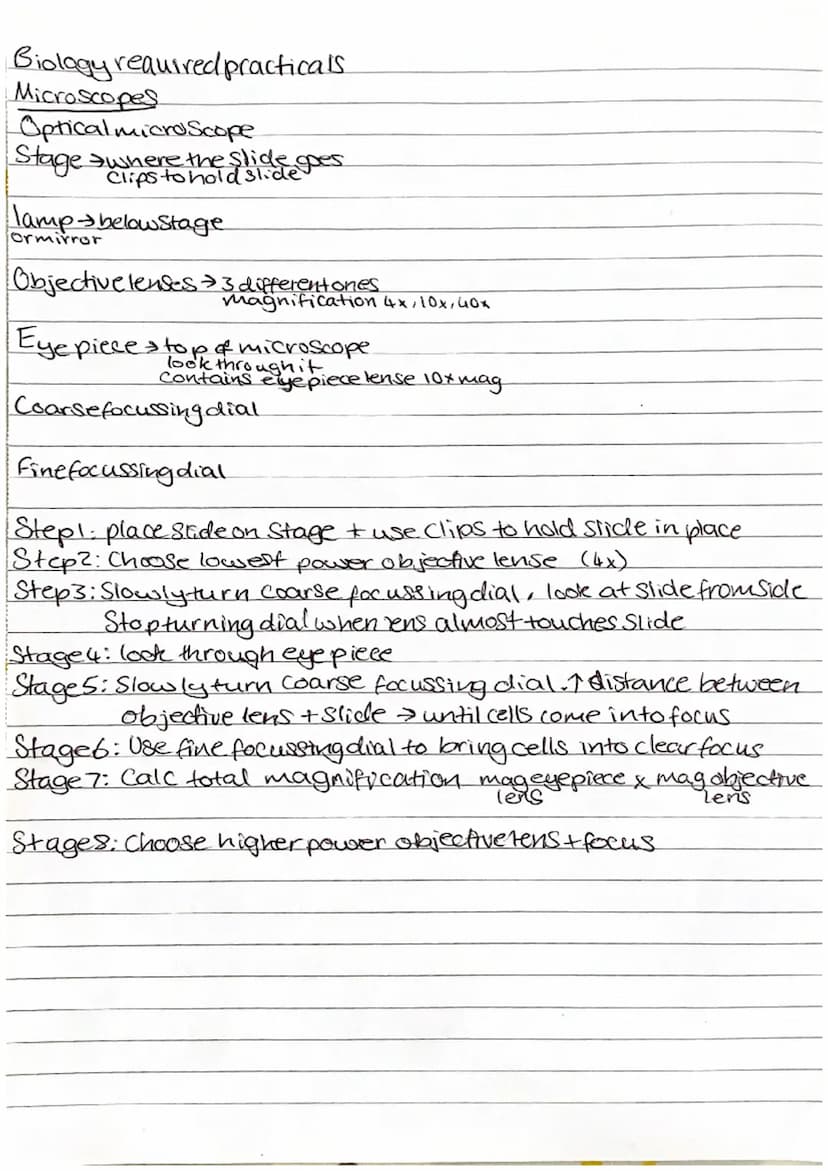

Page 1: Using an Optical Microscope
The first page outlines the fundamental components and operation of an optical microscope for biological specimen examination. The microscope features multiple objective lenses with different magnifications 4x,10x,40x, along with coarse and fine focusing mechanisms for precise image clarity.
Definition: Total magnification is calculated by multiplying eyepiece magnification 10x by the objective lens magnification.
Example: Using a 40x objective lens with a 10x eyepiece gives 400x total magnification.
Highlight: Always start with the lowest power objective lens 4x and gradually increase magnification after achieving initial focus.
The detailed procedure involves securing the slide with clips, selecting appropriate magnification, and using both coarse and fine focusing dials to achieve optimal image clarity.
