Fun Guide to Double Circulatory System and Blood Flow in the Heart!

The Circulatory System: A Comprehensive Guide for Students

The circulatory system is a complex network comprising the heart, blood, and blood vessels, functioning as a double circulatory system. This system efficiently transports oxygenated and deoxygenated blood through two separate loops, ensuring optimal oxygen delivery to body tissues and removal of waste products.

Key points:

  • The heart's structure and function in pumping blood
  • Blood flow through the heart and body in a specific sequence
  • Different types of blood vessels and their unique characteristics
  • Composition and functions of blood components
  • Alternatives to blood in medical emergencies
...

14/01/2023

2319

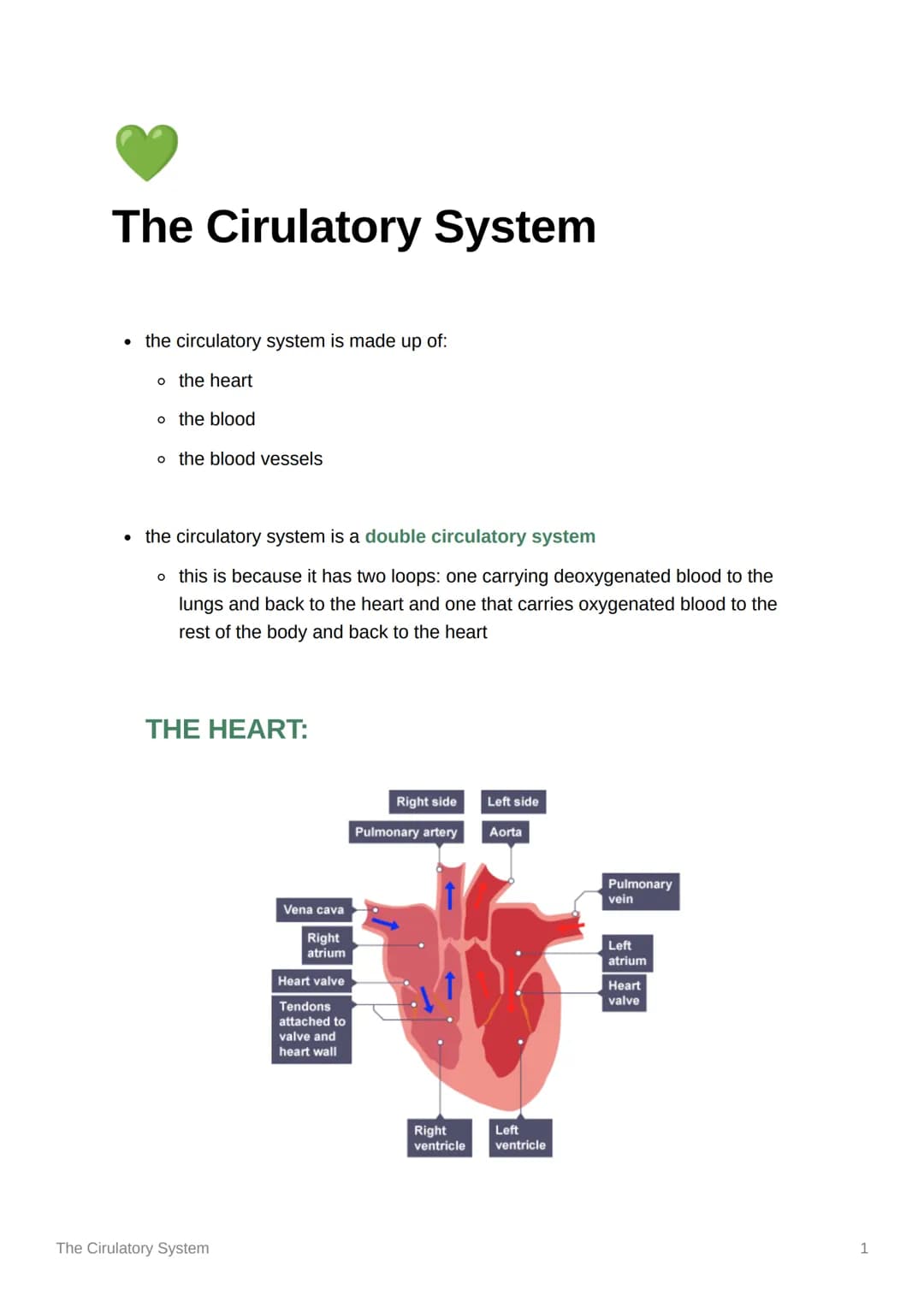

The Cirulatory System
• the circulatory system is made up of:
o the heart
o the blood
o the blood vessels
• the circulatory system is a doub

View

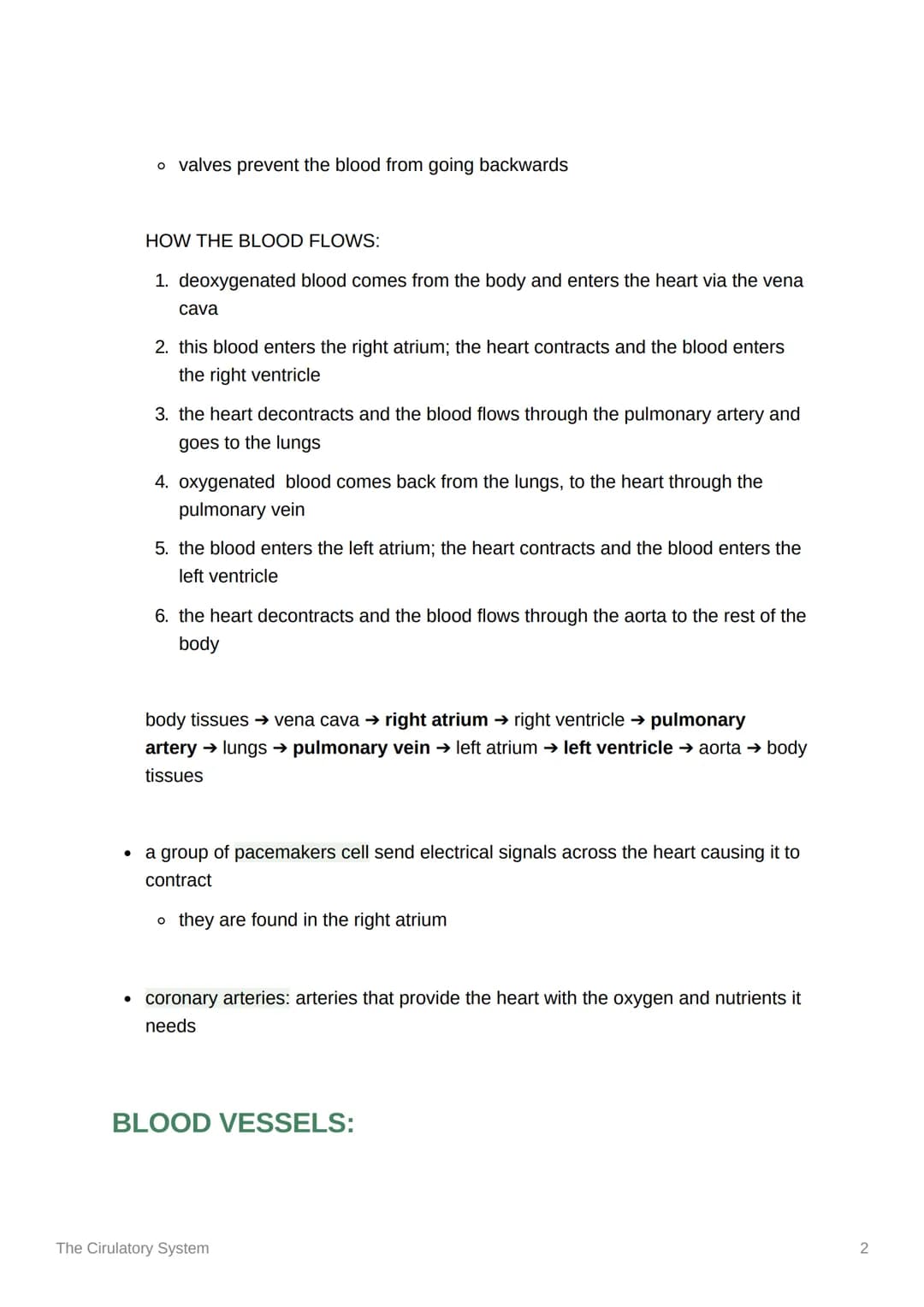

Blood Flow Through the Heart: A Step-by-Step Journey

The blood flow through the heart | step by step is a fascinating process that ensures oxygenated blood reaches all parts of the body while deoxygenated blood is sent to the lungs for reoxygenation. This process is central to the double circulation Class 10 curriculum.

Here's a detailed breakdown of the 12 steps of blood flow through the heart:

  1. Deoxygenated blood from the body enters the heart via the vena cava.
  2. This blood flows into the right atrium.
  3. The heart contracts, pushing blood into the right ventricle.
  4. The heart relaxes, and blood is pumped through the pulmonary artery to the lungs.
  5. In the lungs, the blood becomes oxygenated.
  6. Oxygenated blood returns to the heart through the pulmonary vein.
  7. The oxygenated blood enters the left atrium.
  8. The heart contracts again, pushing blood into the left ventricle.
  9. The heart relaxes, and blood is pumped through the aorta to the rest of the body.
  10. The blood circulates through body tissues, delivering oxygen and nutrients.
  11. The blood becomes deoxygenated as it picks up waste products.
  12. The deoxygenated blood returns to the heart via the vena cava, starting the cycle again.

Example: To remember the blood flow through the body step by step, think of it as a figure-eight loop: body tissues → vena cava → right atrium → right ventricle → pulmonary artery → lungs → pulmonary vein → left atrium → left ventricle → aorta → body tissues.

This cyclical process demonstrates the efficiency of the double circulatory system, highlighting its advantages in maintaining separate oxygenated and deoxygenated blood flows.

The Cirulatory System
• the circulatory system is made up of:
o the heart
o the blood
o the blood vessels
• the circulatory system is a doub

View

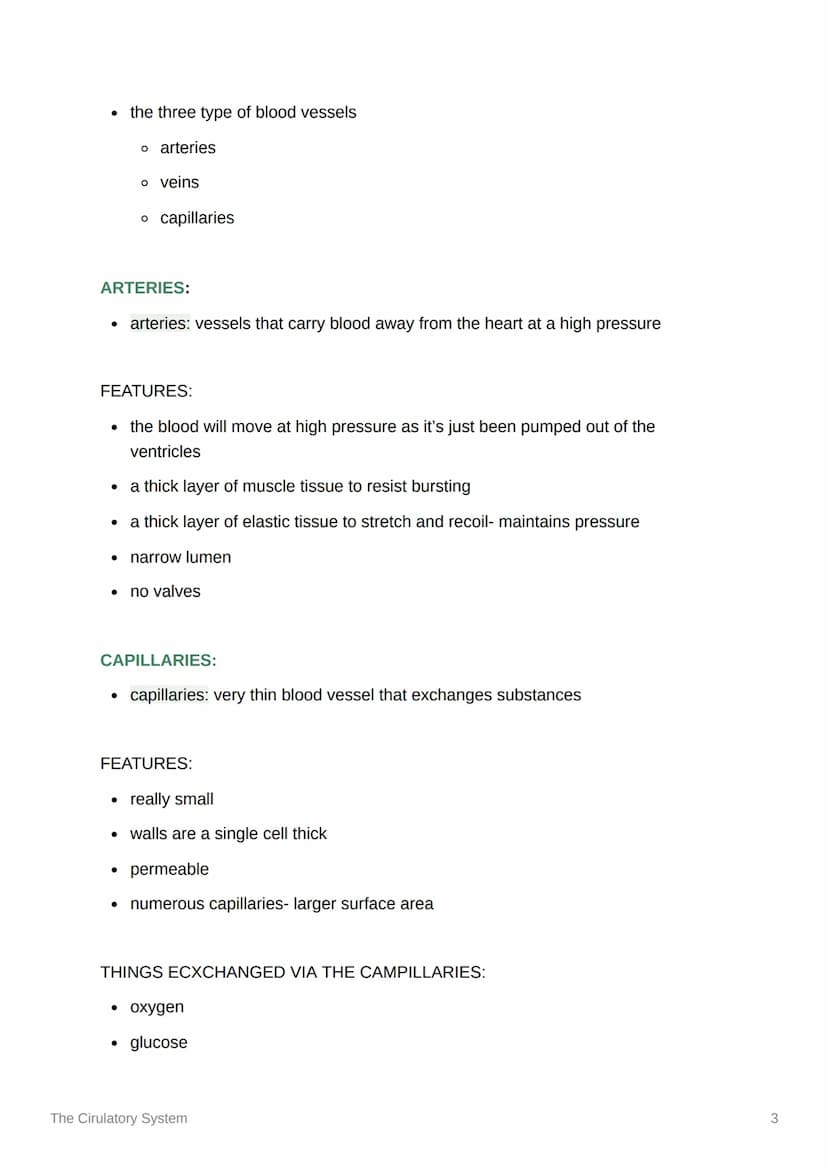

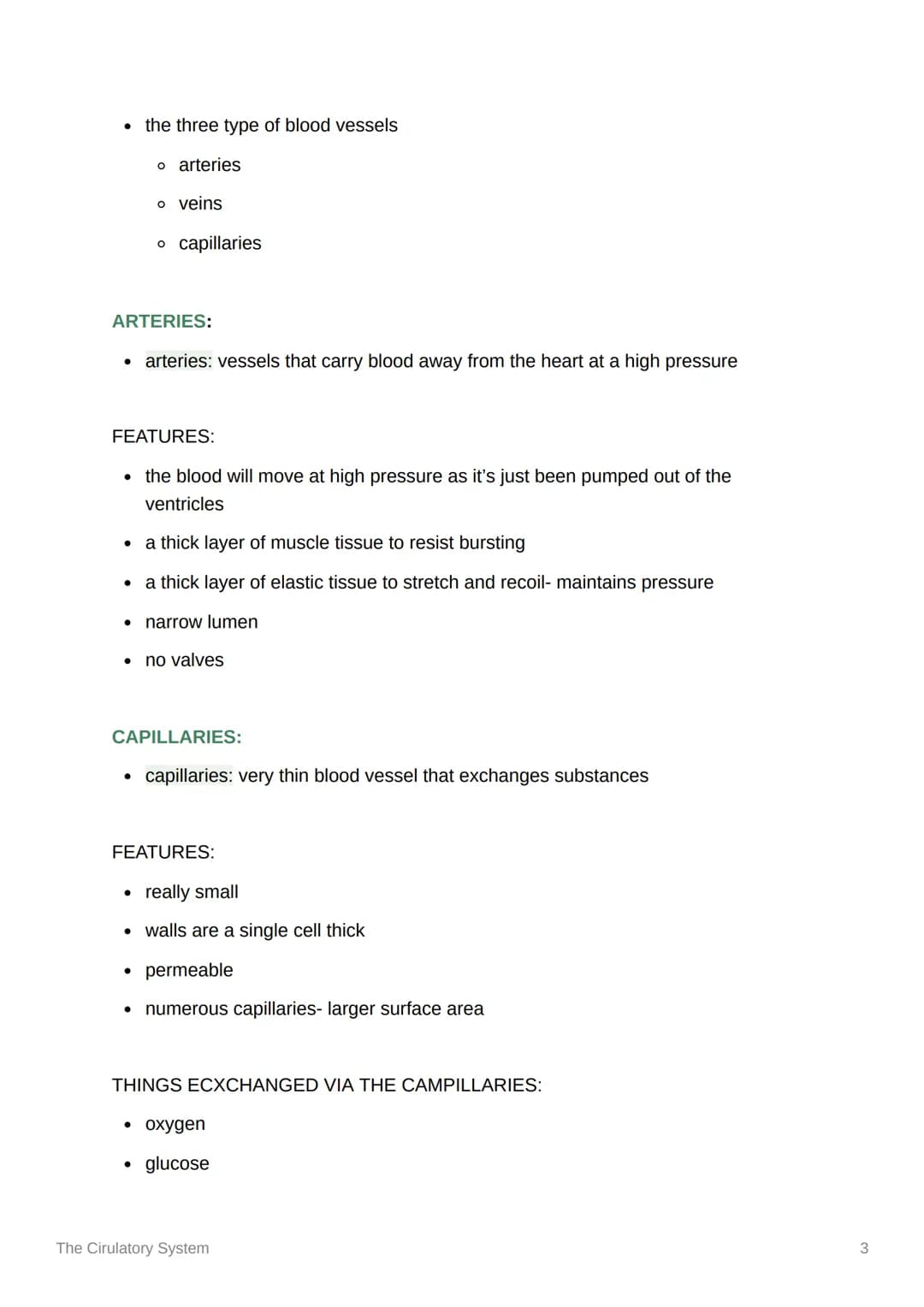

Blood Vessels: The Highways of the Circulatory System

The circulatory system relies on three main types of blood vessels to transport blood throughout the body: arteries, capillaries, and veins. Each type of vessel has unique characteristics that suit its specific function in the circulatory system.

Arteries: High-Pressure Conduits

Arteries are blood vessels that carry blood away from the heart at high pressure. Their structure is adapted to withstand this high pressure and maintain blood flow.

Definition: Arteries are thick-walled blood vessels that transport oxygenated blood exceptforthepulmonaryarteryexcept for the pulmonary artery from the heart to various parts of the body.

Key features of arteries include:

  • A thick layer of elastic tissue that can stretch and recoil, maintaining pressure
  • A narrow lumen innerspaceinner space to keep blood flowing quickly
  • A thick layer of muscle tissue to resist bursting under high pressure
  • No valves, as the high pressure keeps blood flowing in one direction

Capillaries: The Exchange Specialists

Capillaries are the smallest blood vessels in the body, serving as the site for exchange of substances between blood and body tissues.

Highlight: Capillaries are crucial for the circulatory system's function, as they allow for the exchange of oxygen, nutrients, and waste products between blood and surrounding tissues.

Characteristics of capillaries:

  • Extremely small diameter, often just wide enough for one red blood cell to pass through at a time
  • Walls are only one cell thick, allowing for easy diffusion of substances
  • Highly permeable, facilitating rapid exchange
  • Numerous, creating a large surface area for efficient exchange

Substances exchanged via capillaries include:

  • Oxygen
  • Glucose
  • Amino acids
  • Carbon dioxide
  • Urea

Veins: The Return Route

Veins are blood vessels that carry blood back to the heart at low pressure.

Vocabulary: Veins are blood vessels that transport deoxygenated blood exceptforthepulmonaryveinexcept for the pulmonary vein from various parts of the body back to the heart.

Key features of veins:

  • Large lumen, offering less resistance to blood flow
  • Thinner walls compared to arteries, as they don't need to withstand high pressure
  • Contain valves to prevent backflow of blood, especially important in veins of the legs where blood must flow against gravity

Understanding the difference between arteries, veins and capillaries class 10 is crucial for comprehending the overall function of the circulatory system.

The Cirulatory System
• the circulatory system is made up of:
o the heart
o the blood
o the blood vessels
• the circulatory system is a doub

View

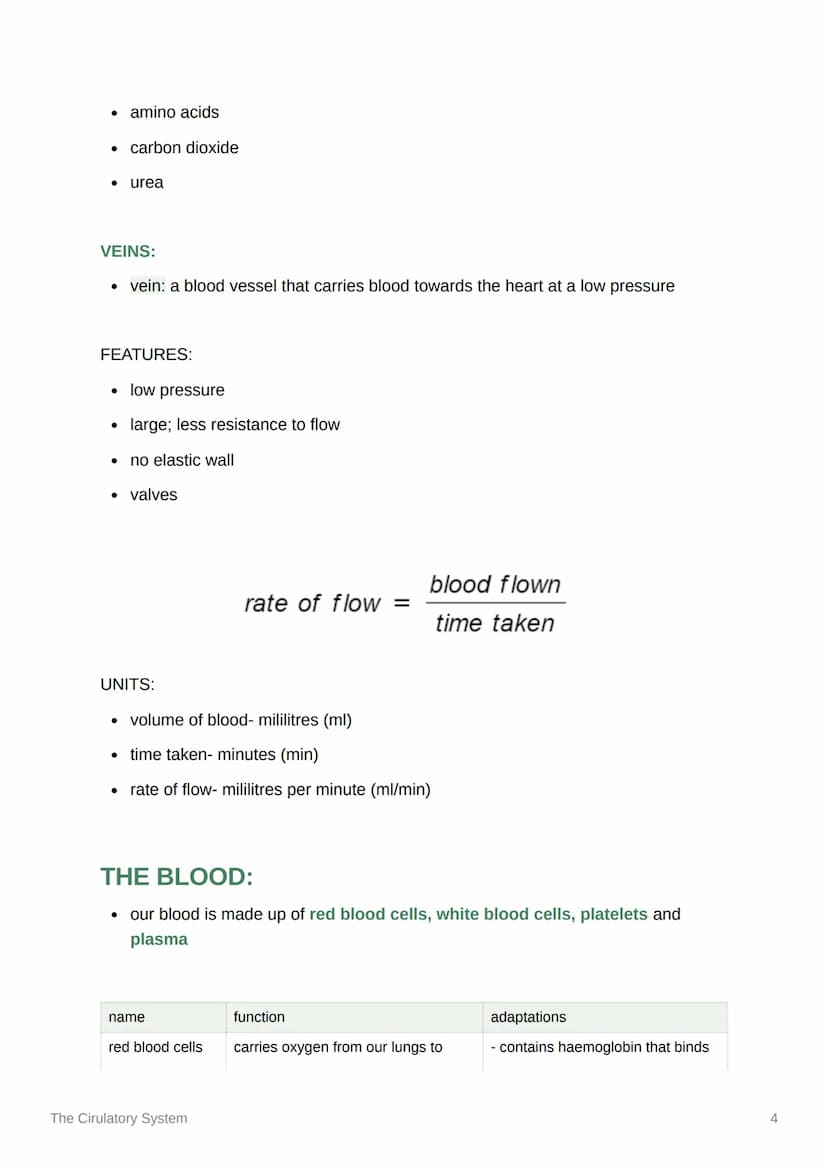

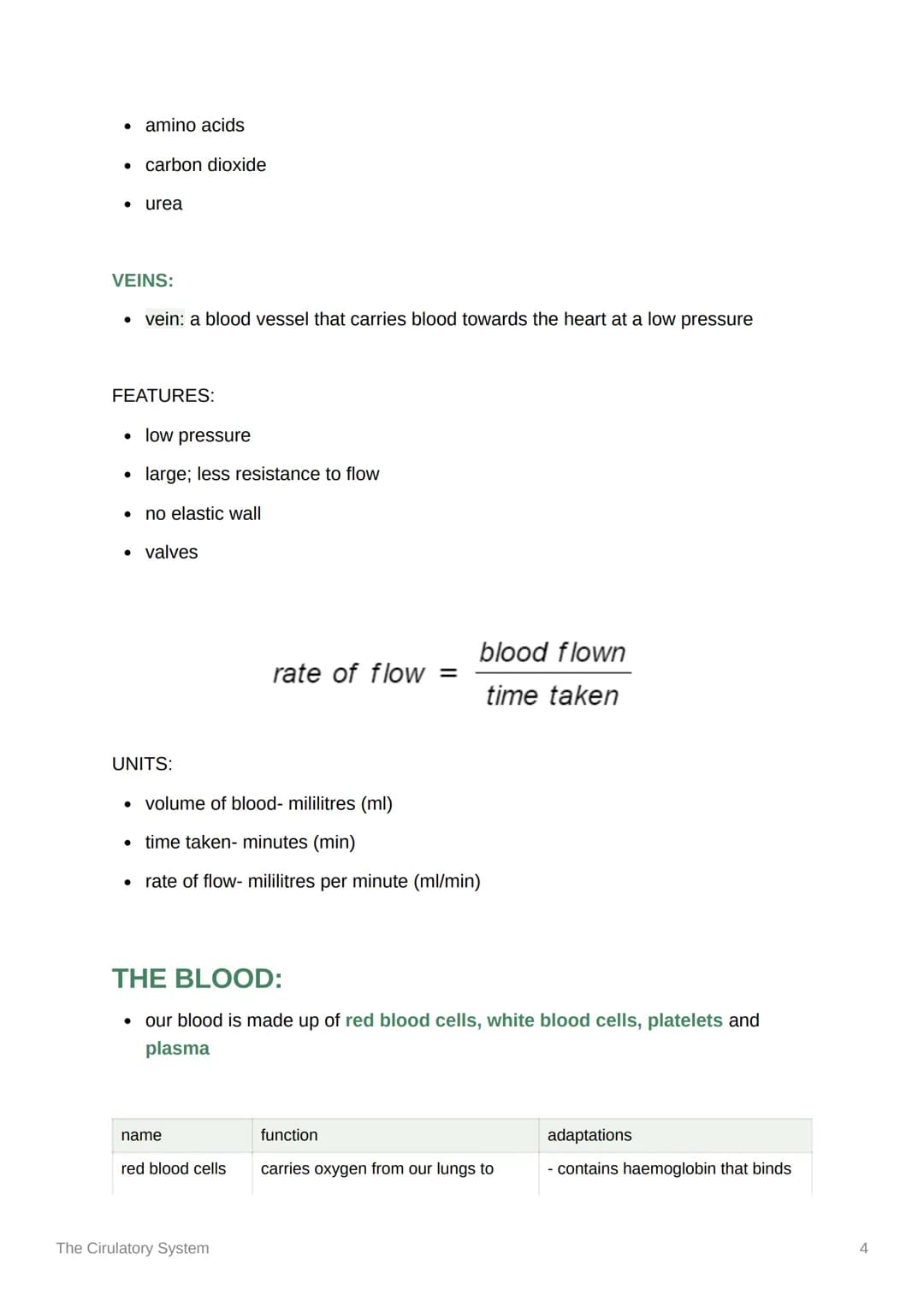

The Blood: Life's Essential Fluid

Blood is a complex fluid that plays a vital role in the circulatory system. It's composed of several components, each with specific functions:

  1. Red Blood Cells ErythrocytesErythrocytes: Function: Carry oxygen from the lungs to body tissues Adaptations: Contain hemoglobin for oxygen binding; biconcave shape and lack of nucleus for increased surface area
  2. White Blood Cells LeukocytesLeukocytes: Function: Fight against pathogens Adaptations: Capable of phagocytosis, antibody production, and antitoxin production
  3. Platelets ThrombocytesThrombocytes: Function: Create blood clots when blood vessels are damaged Adaptation: No nucleus, allowing for rapid response to vessel damage
  4. Plasma: Function: Carries all substances in blood, including glucose, amino acids, urea, carbon dioxide, and blood cells

Example: The rate of blood flow can be calculated using the formula: Rate of flow = Volume of blood ÷ Time taken, typically measured in milliliters per minute ml/minml/min.

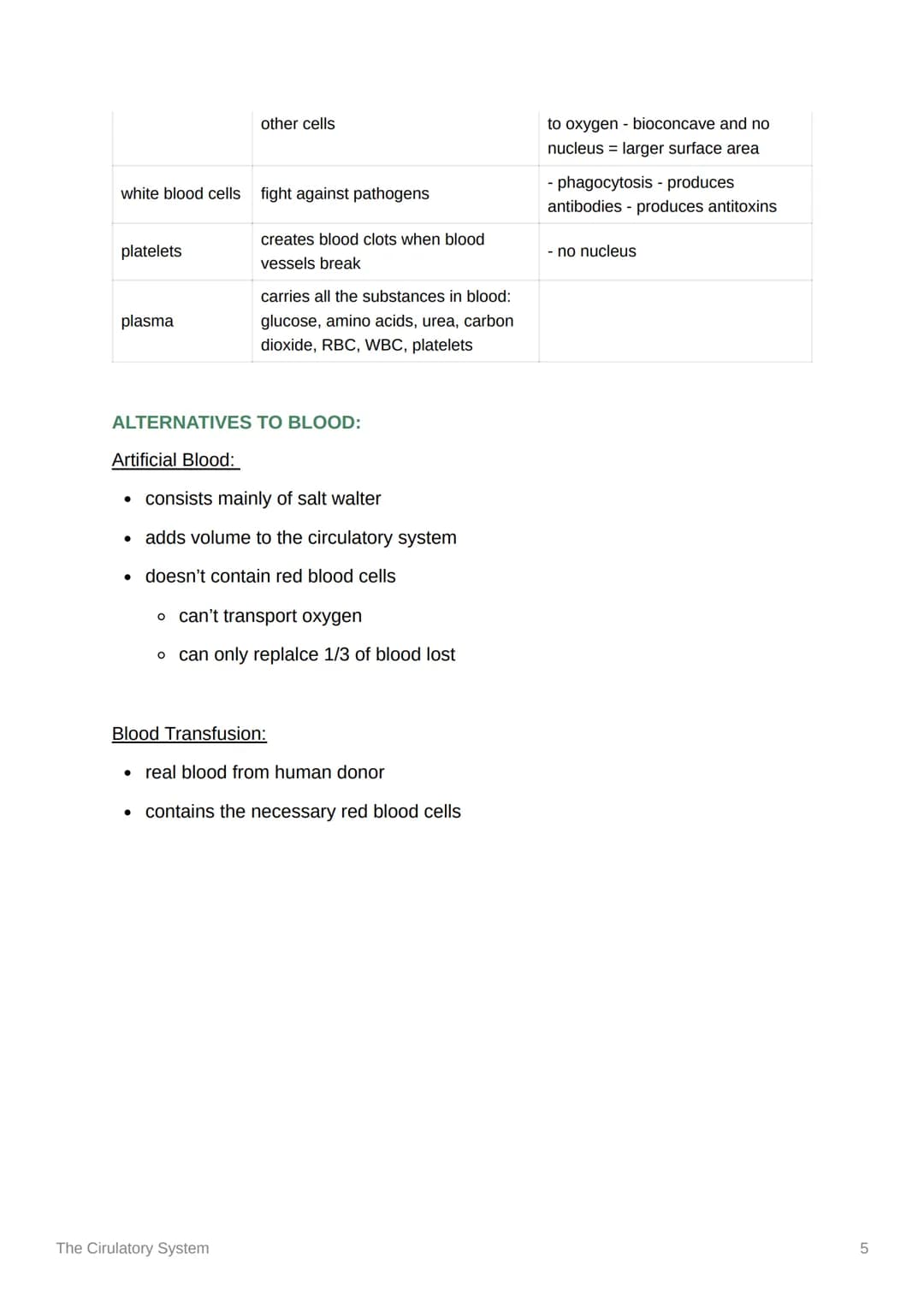

Alternatives to Blood

In medical emergencies, alternatives to blood may be used:

  1. Artificial Blood: Consists mainly of salt water Adds volume to the circulatory system Lacks red blood cells, so can't transport oxygen Can only replace about 1/3 of blood lost
  2. Blood Transfusion: Uses real blood from human donors Contains necessary red blood cells for oxygen transport

Understanding the composition and function of blood, as well as its alternatives, is crucial for appreciating the complexity and importance of the circulatory system in maintaining overall health and bodily functions.

The Cirulatory System
• the circulatory system is made up of:
o the heart
o the blood
o the blood vessels
• the circulatory system is a doub

View

The Heart: The Engine of the Circulatory System

The heart is the central organ of the circulatory system, responsible for pumping blood throughout the body. Its structure is perfectly adapted to its function in the double circulatory system.

Definition: The double circulatory system is a circulatory system where blood passes through the heart twice in one complete circuit - once for pulmonary circulation and once for systemic circulation.

The heart is divided into four chambers: two atria upperchambersupper chambers and two ventricles lowerchamberslower chambers. The right side of the heart deals with deoxygenated blood, while the left side handles oxygenated blood.

Highlight: Heart valves play a crucial role in preventing the backflow of blood, ensuring unidirectional blood flow through the heart.

A group of specialized cells called pacemaker cells, located in the right atrium, send electrical signals across the heart, causing it to contract rhythmically. This electrical system is vital for maintaining a steady heartbeat.

Vocabulary: Coronary arteries are special blood vessels that supply the heart muscle itself with oxygen and nutrients, essential for its continuous function.

Understanding the structure and function of the heart is fundamental to grasping the concept of the double circulatory system function in heart.
