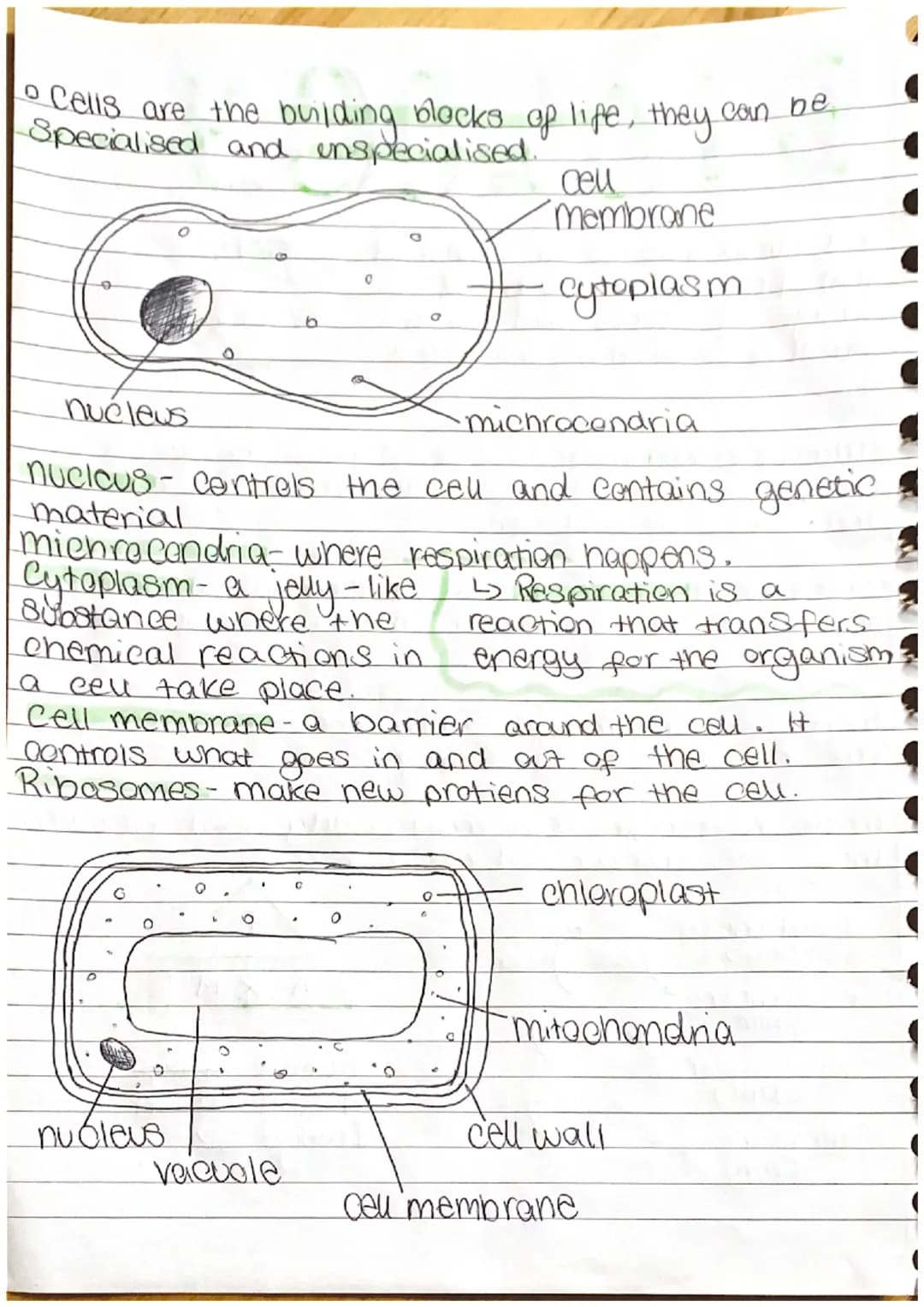

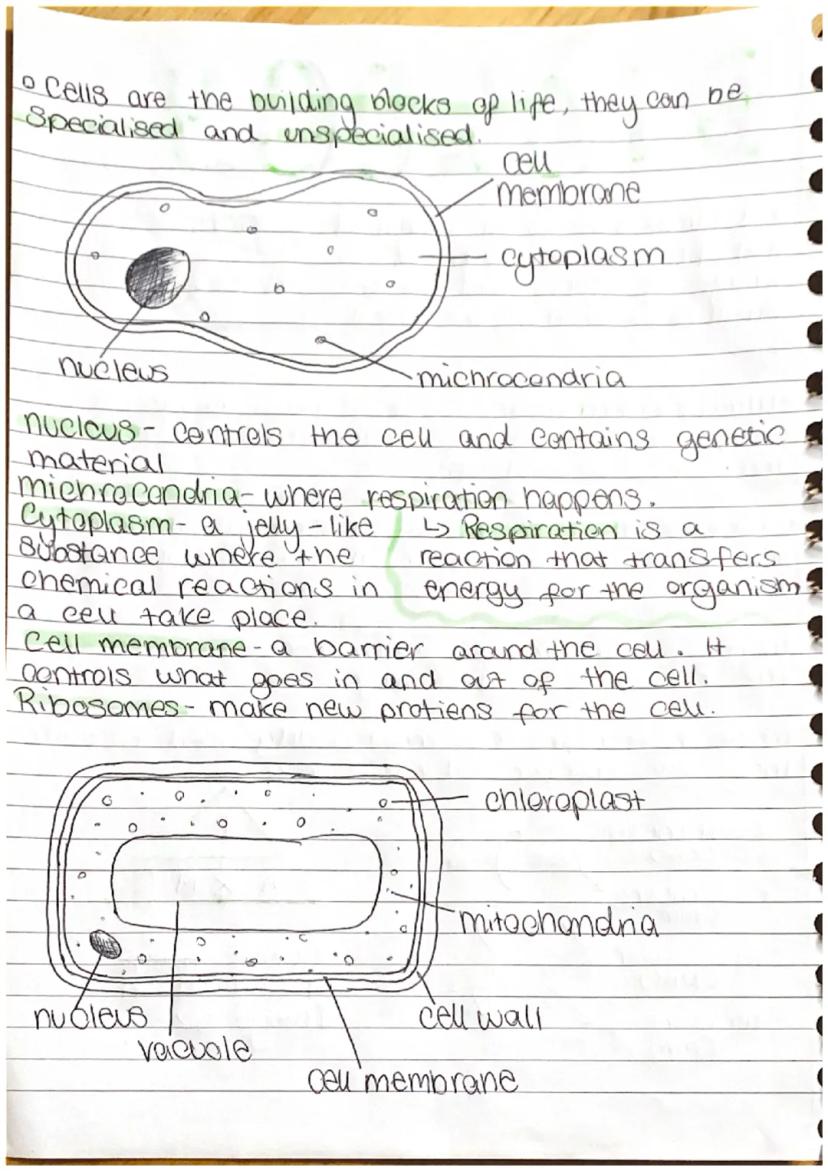

Cell Structure and Components

This page delves into the cell structure and function, focusing on the basic components found in most cells.

Cells are described as the building blocks of life, capable of being specialized or unspecialized. The text outlines key cellular components:

1. Nucleus: Controls the cell and contains genetic material
2. Mitochondria: Site of cellular respiration
3. Cytoplasm: Jelly-like substance where chemical reactions occur
4. Cell membrane: Barrier controlling substance entry and exit
5. Ribosomes: Responsible for protein synthesis

Vocabulary: Respiration is defined as a reaction that transfers energy for the organism.

The guide also introduces plant-specific cellular structures:

1. Cell wall: Provides strength and support, made of cellulose
2. Vacuole: Contains cell sap and maintains cell firmness
3. Chloroplasts: Site of photosynthesis, containing chlorophyll

Highlight: Chlorophyll in chloroplasts traps energy transferred from the sun, enabling photosynthesis.

This comprehensive overview of cell components provides a solid foundation for understanding cell structure and function.

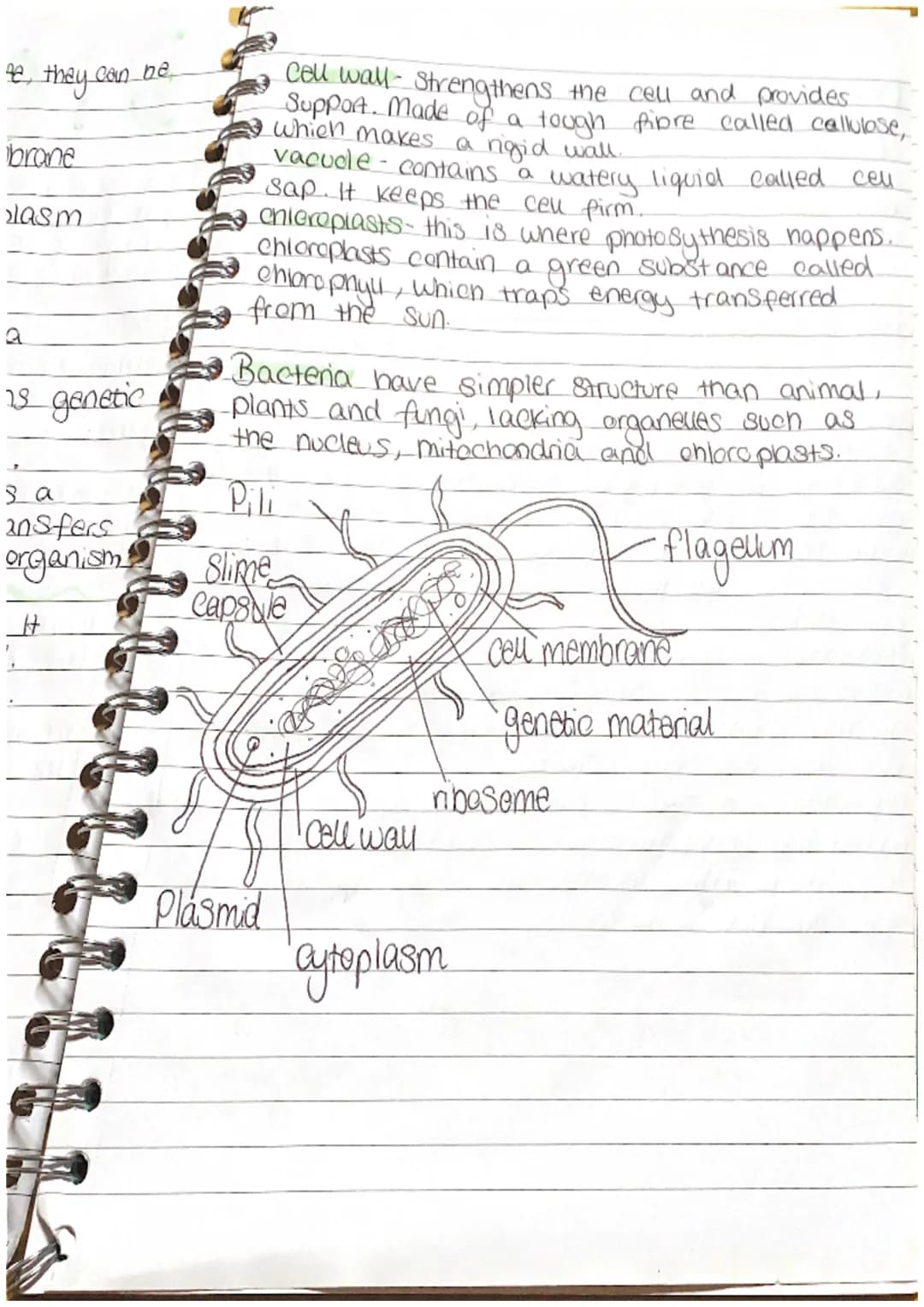

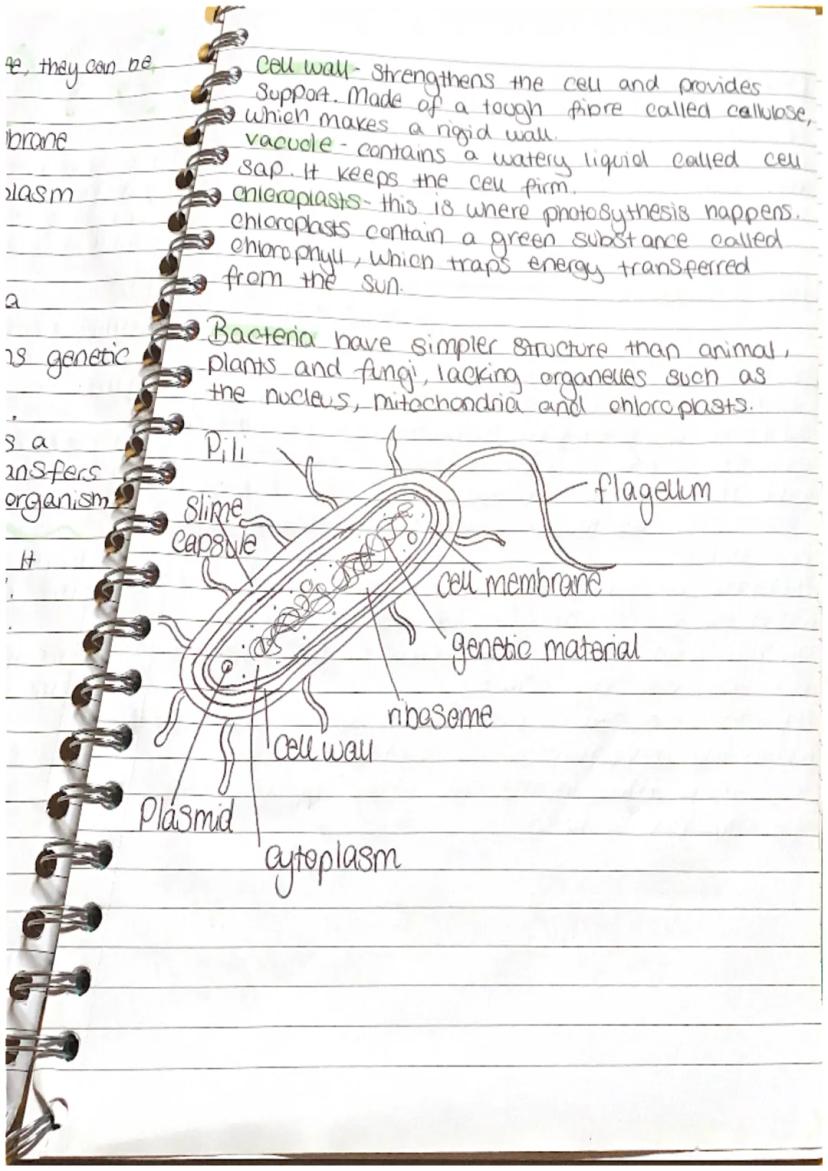

Bacterial Cell Structure and Comparison

This section focuses on bacterial cell structure, comparing it to the more complex structures of animal, plant, and fungal cells.

Highlight: Bacteria have a simpler structure than animal, plant, and fungal cells, lacking organelles such as the nucleus, mitochondria, and chloroplasts.

The guide provides a detailed diagram of a bacterial cell, labeling key components:

1. Pili
2. Flagellum
3. Slime capsule
4. Cell wall
5. Cell membrane
6. Genetic material
7. Ribosomes
8. Cytoplasm
9. Plasmid

This visual representation helps students understand the unique features of bacterial cells, which is crucial for comparing microscopes A level Biology and studying microbiology.

The comparison between bacterial cells and more complex eukaryotic cells enhances understanding of cellular diversity and evolution, a key topic in GCSE Biology microscopy exam questions and Microscopy A level Biology Questions.

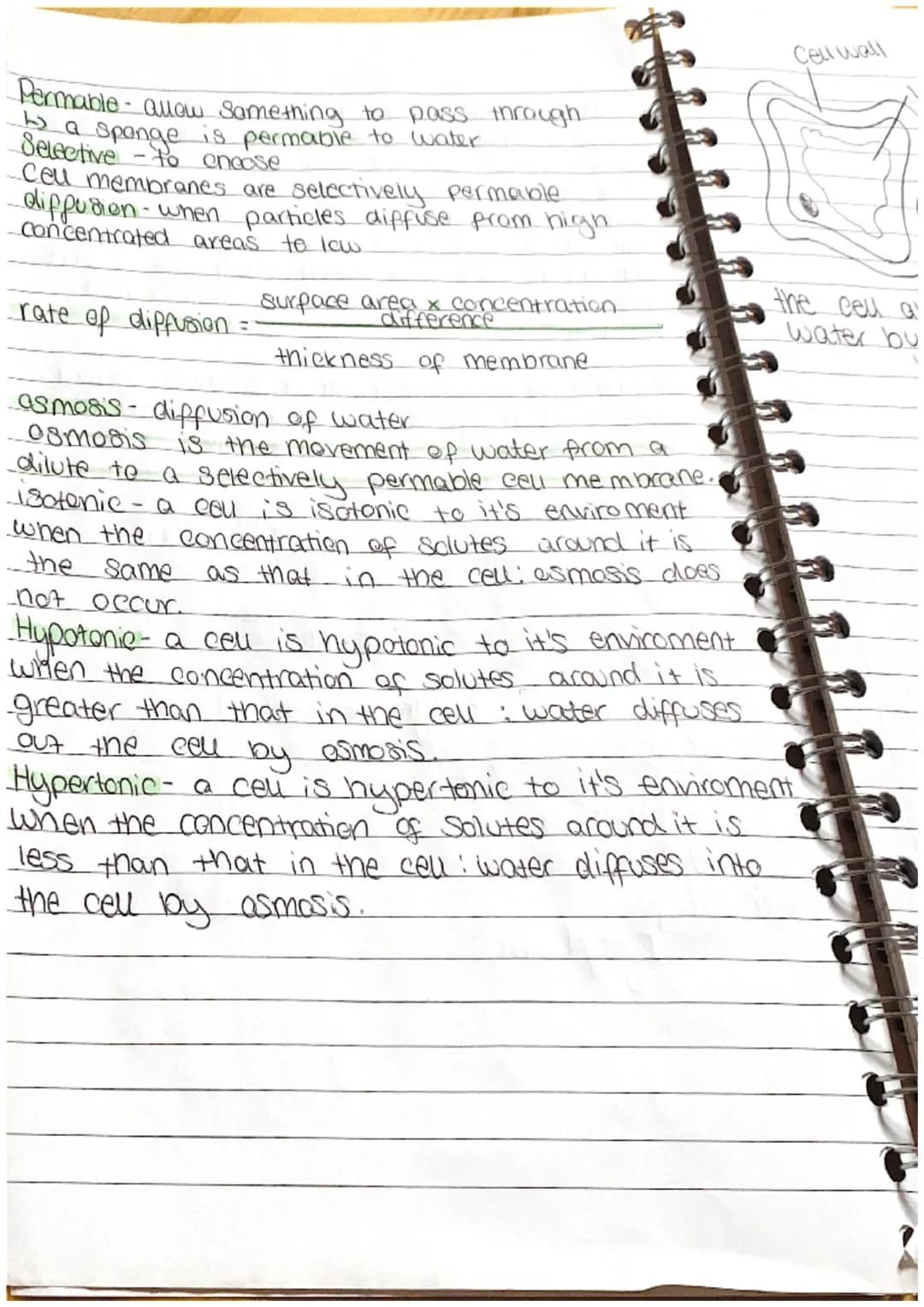

Cell Membrane Permeability and Diffusion

This page explores the concepts of membrane permeability, diffusion, and osmosis, which are crucial for understanding cell structure and function.

Definition: Permeable means allowing something to pass through, like a sponge is permeable to water.

Vocabulary: Cell membranes are selectively permeable, meaning they allow only certain substances to pass through.

The text explains diffusion as the movement of particles from areas of high concentration to low concentration. It provides a formula for the rate of diffusion:

Rate of diffusion = $Surface area × Concentration$ ÷ Thickness of membrane

Definition: Osmosis is defined as the diffusion of water across a selectively permeable membrane.

The guide introduces three important terms related to osmosis:

1. Isotonic: When the concentration of solutes around a cell is the same as inside the cell, no osmosis occurs.
2. Hypotonic: When the concentration of solutes around a cell is greater than inside the cell, water diffuses out of the cell.
3. Hypertonic: When the concentration of solutes around a cell is less than inside the cell, water diffuses into the cell.

These concepts are essential for understanding osmosis and diffusion in biology notes and are frequently tested in GCSE Biology microscopy exam questions.

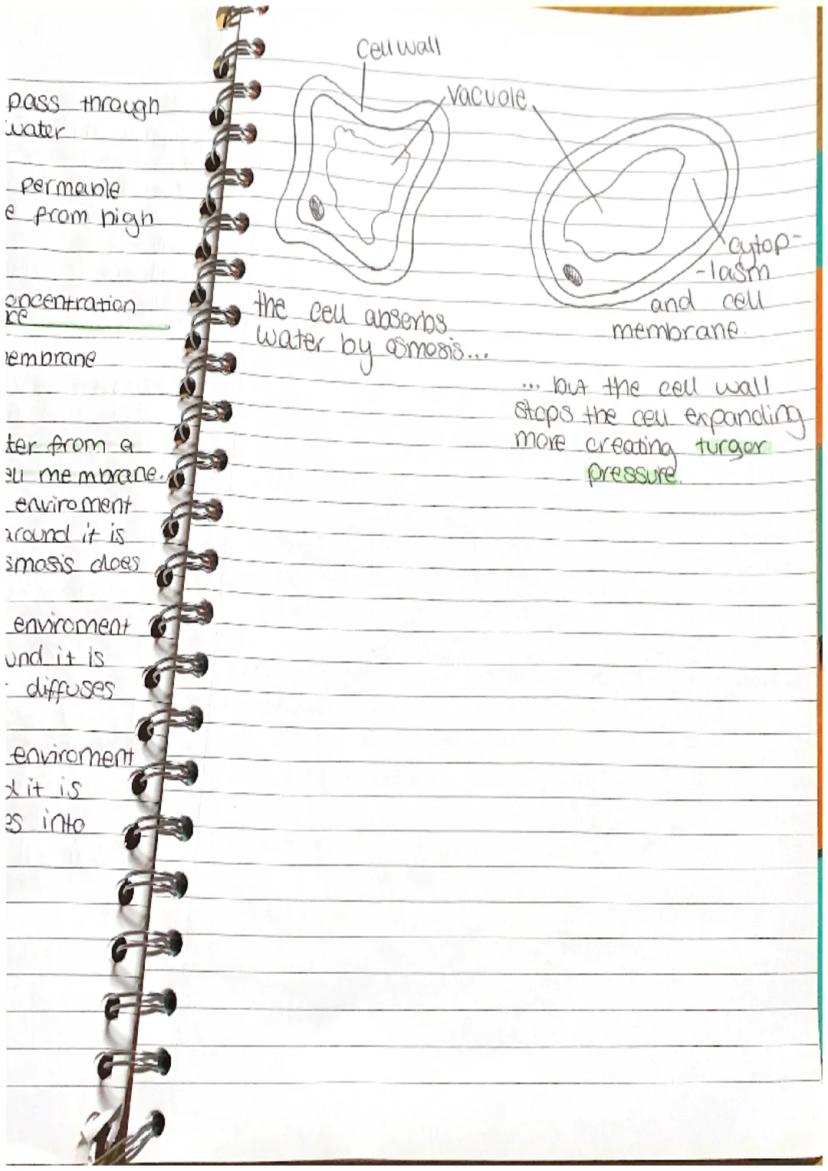

Osmosis in Plant Cells

This final section focuses on the effects of osmosis in plant cells, providing a visual representation of the process.

The diagram illustrates how a plant cell responds to water absorption through osmosis:

1. The cell absorbs water by osmosis.
2. The cytoplasm and cell membrane expand.
3. The cell wall prevents further expansion, creating turgor pressure.

Highlight: The rigid cell wall of plant cells plays a crucial role in maintaining cell shape and preventing bursting when water enters the cell through osmosis.

This process of turgor pressure is essential for plant structure and function, helping plants maintain their upright posture and rigidity.

Understanding osmosis in plant cells is crucial for topics such as cell structure and function Notes and Understanding osmosis and diffusion in biology class 12. It also helps in comprehending the difference between osmosis and diffusion in tabular form, as it showcases a specific application of osmosis in biological systems.

This visual explanation complements the theoretical knowledge provided earlier, offering a comprehensive understanding of osmosis and its effects on plant cells.

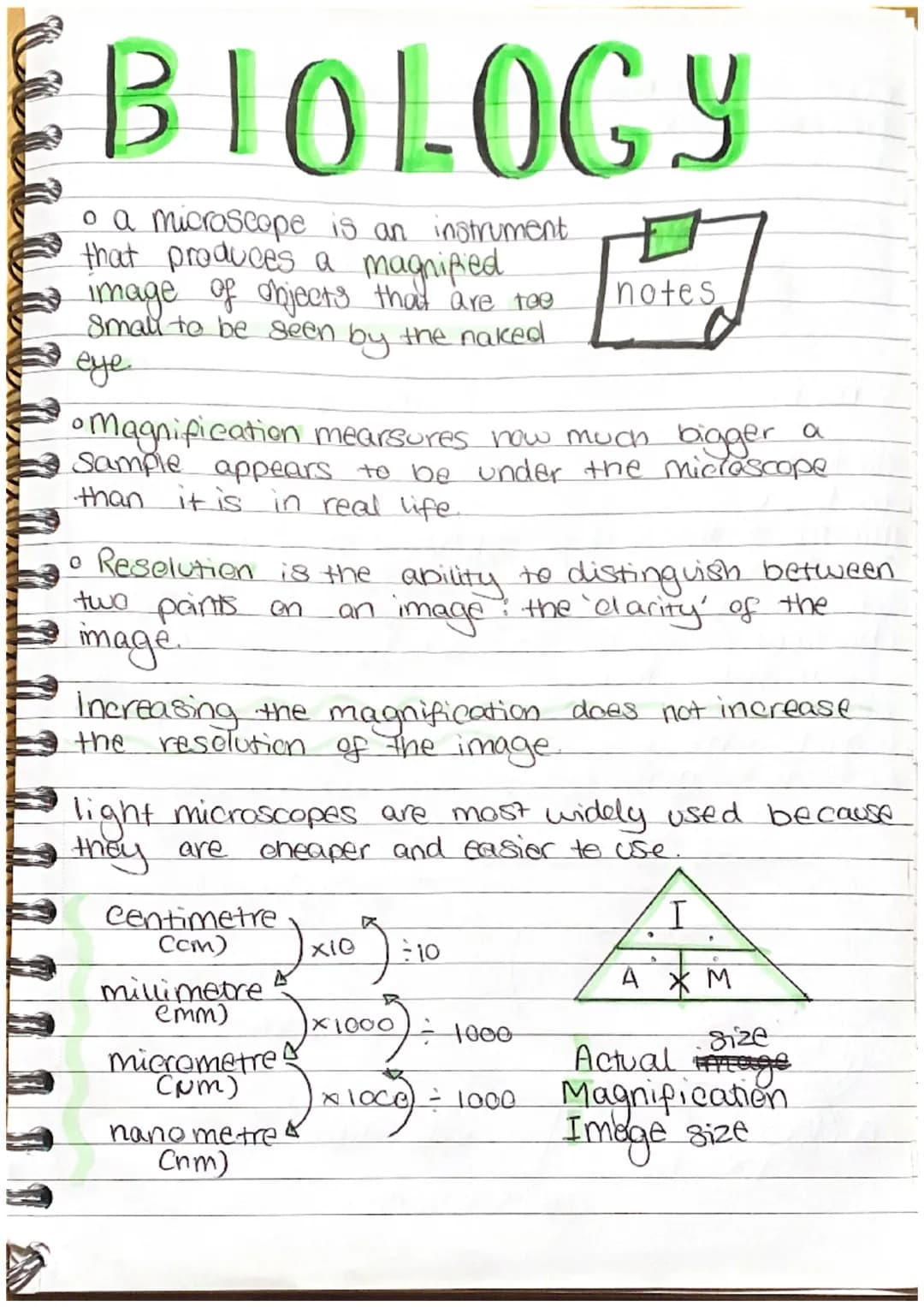

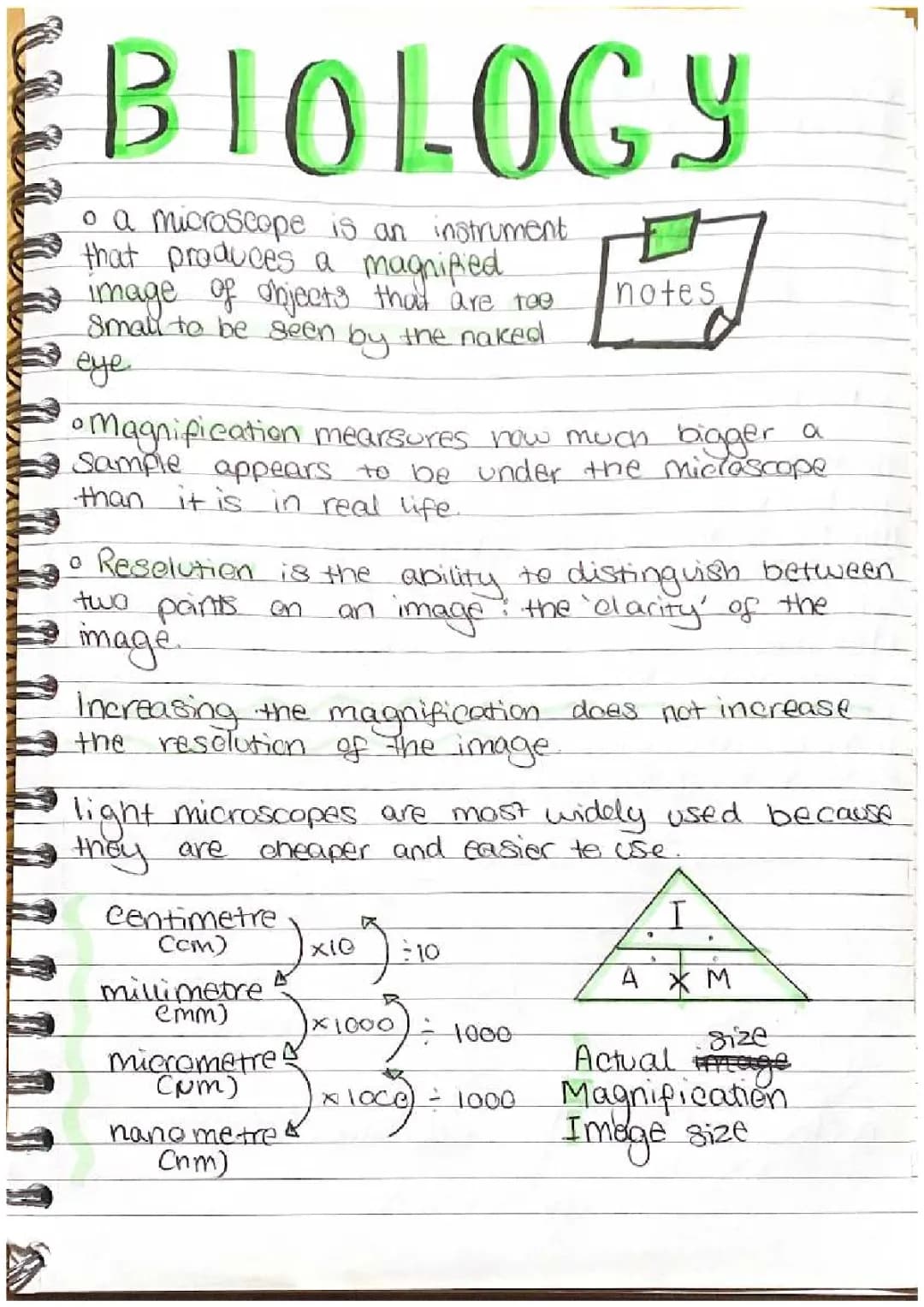

Introduction to Microscopy and Cell Biology

This section introduces fundamental concepts in microscopy and cell biology, essential for understanding cell structure and function.

Microscopes are instruments that produce magnified images of objects too small to be seen by the naked eye. The guide explains two key terms:

Definition: Magnification measures how much larger a sample appears under the microscope compared to its actual size.

Definition: Resolution is the ability to distinguish between two points on an image, determining the clarity of the image.

It's important to note that increasing magnification does not necessarily improve resolution.

The text also introduces different units of measurement used in microscopy:

Example: Centimeter $cm$, millimeter $mm$, micrometer $μm$, and nanometer $nm$ are used to describe object sizes at various scales.

Light microscopes are highlighted as the most commonly used due to their affordability and ease of use.

Highlight: The relationship between actual size, image size, and magnification is expressed as: Actual size = Image size ÷ Magnification

This formula is crucial for calculating the true dimensions of microscopic objects.
