Physics
The National Grid (Physics)
1,308
•
13 Jul 2025
•
The National Grid: High Voltage Transmission and Transformer Efficiency
The... Show more

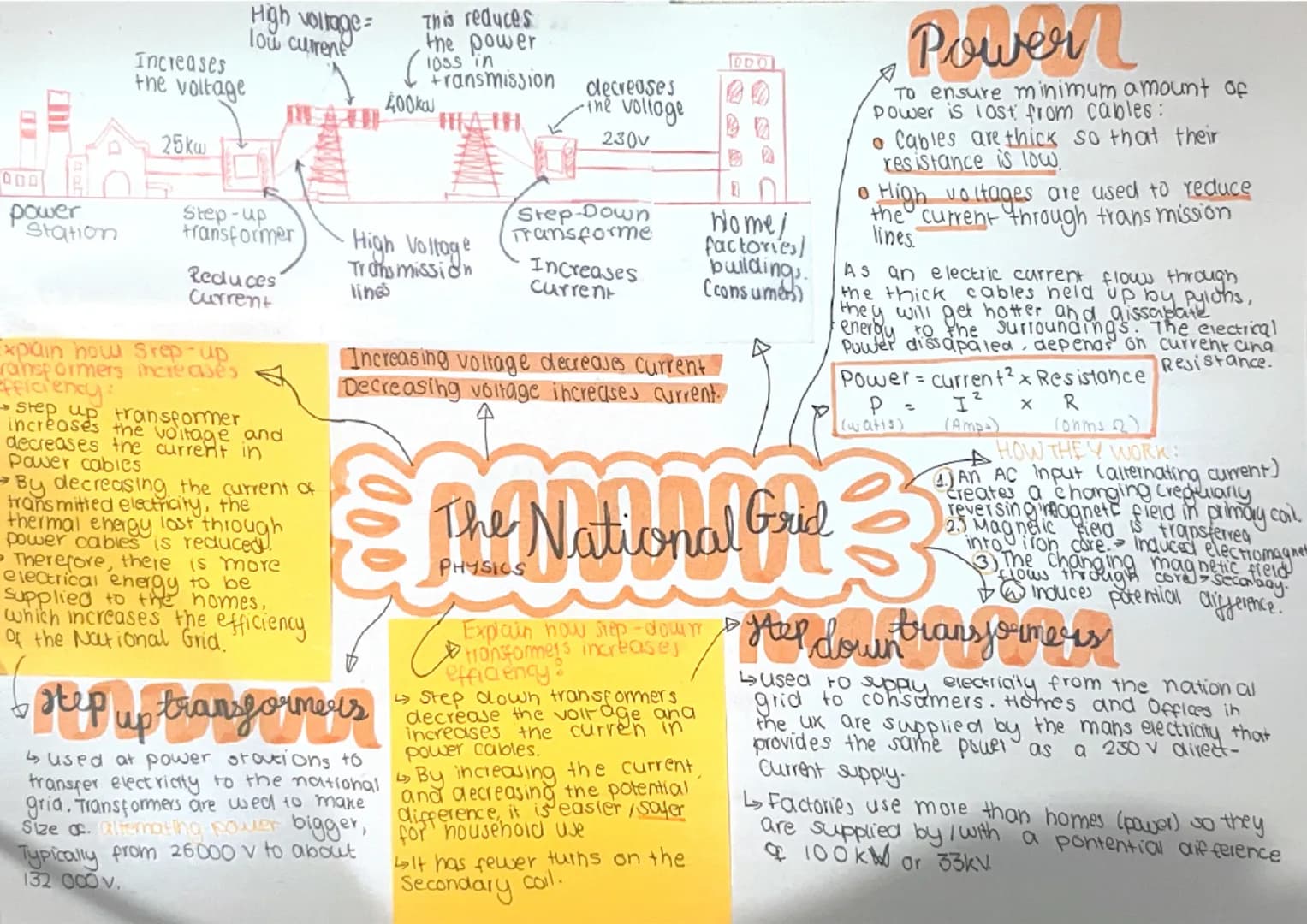

The National Grid employs a sophisticated system of transformers and high-voltage transmission lines to efficiently distribute electricity from power stations to consumers. This page explains the key components and principles of this system, focusing on the role of step-up and step-down transformers in managing voltage and current levels.
Highlight: The National Grid uses step-up transformers at power stations to increase voltage and decrease current, which improves transmission efficiency.
Step-Up Transformers at Power Stations
Step-up transformers play a crucial role in the initial stage of power transmission. They increase the voltage from about 25,000V to approximately 132,000V or even 400,000V for long-distance transmission.
Definition: A step-up transformer is a device that increases voltage while decreasing current in an electrical circuit.
The efficiency of step-up transformers is explained as follows:
Example: A step-up transformer might increase voltage from 25kV to 400kV while proportionally decreasing the current.
High Voltage Transmission Lines
After the voltage is stepped up, electricity is transmitted through high voltage transmission lines. These lines are designed to minimize power losses during long-distance transmission.
Vocabulary: High voltage transmission lines are thick cables supported by pylons that carry electricity at high voltages over long distances.
The efficiency of high voltage transmission is based on the following principles:
Highlight: Thick cables with low resistance are used to further minimize power losses in transmission lines.
Step-Down Transformers for Consumer Use
As electricity approaches consumer areas, step-down transformers are employed to reduce the voltage to safe levels for household and industrial use.
Definition: A step-down transformer decreases voltage while increasing current in an electrical circuit.
The efficiency and safety aspects of step-down transformers are:
Example: A step-down transformer might decrease voltage from 400kV to 230V for household use.
Transformer Operation
Both step-up and step-down transformers operate on the same principle:
The number of turns in the primary and secondary coils determines whether the transformer steps up or steps down the voltage.
Highlight: The National Grid's use of transformers and high voltage transmission lines ensures efficient and safe electricity distribution from power stations to consumers.
