Vector Diagrams and Moments

This page delves into vector diagrams in physics and introduces the concepts of moments, levers, and gears.

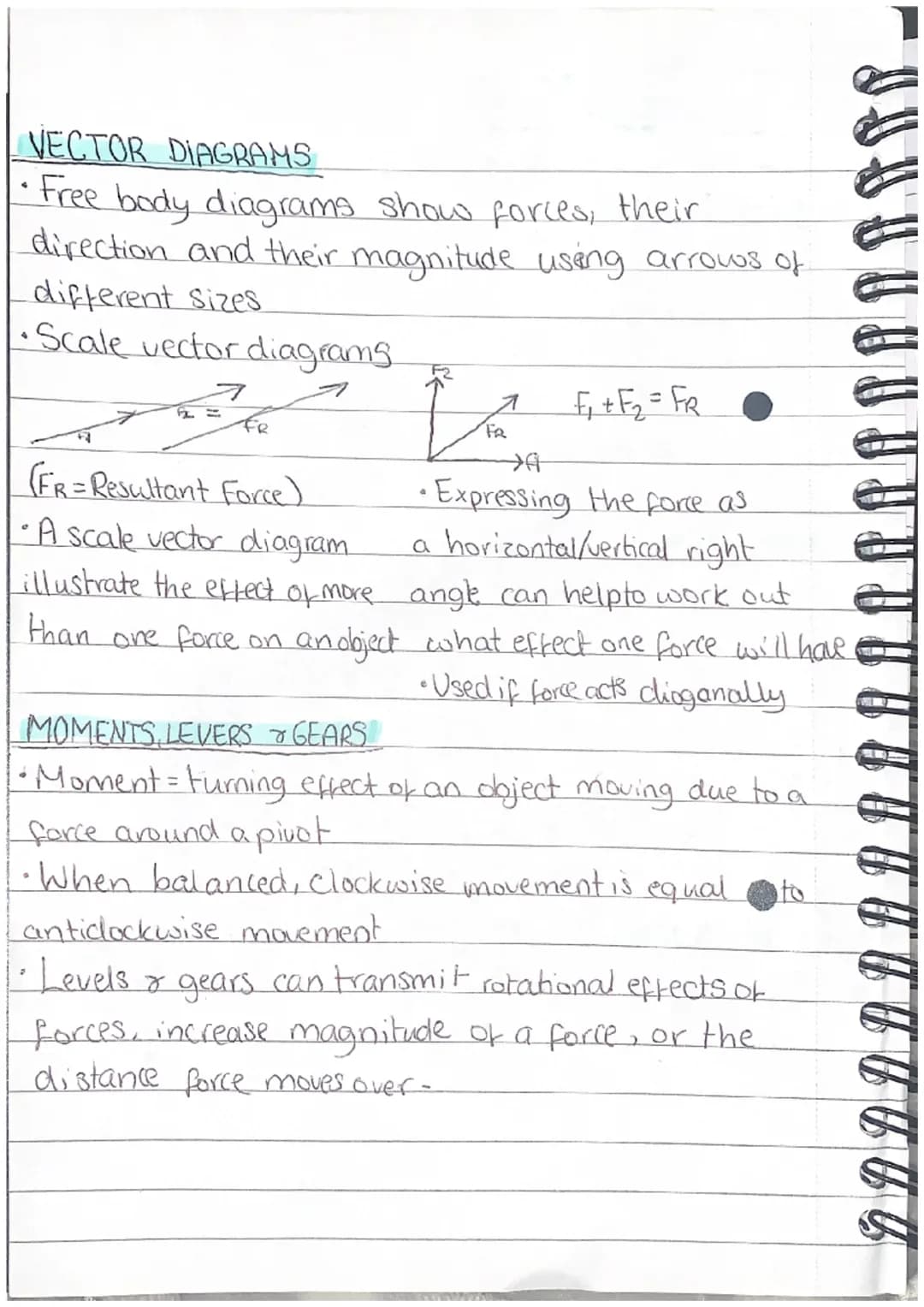

Vector diagrams, also known as free body diagrams, are essential tools in physics. They show forces, their direction, and their magnitude using arrows of different sizes. Scale vector diagrams are particularly useful when forces act diagonally.

Example: A scale vector diagram can illustrate the effect of more than one force on an object.

The page explains that expressing forces as horizontal and vertical components can help determine the effect of one force on another.

The concept of moments is introduced:

Definition: A moment is the turning effect of an object moving due to a force around a pivot.

An important principle of moments is highlighted:

Highlight: When balanced, clockwise movement is equal to anticlockwise movement.

The page also touches on levers and gears in GCSE Physics, explaining that they can transmit rotational effects of forces, increase the magnitude of a force, or increase the distance a force moves over.

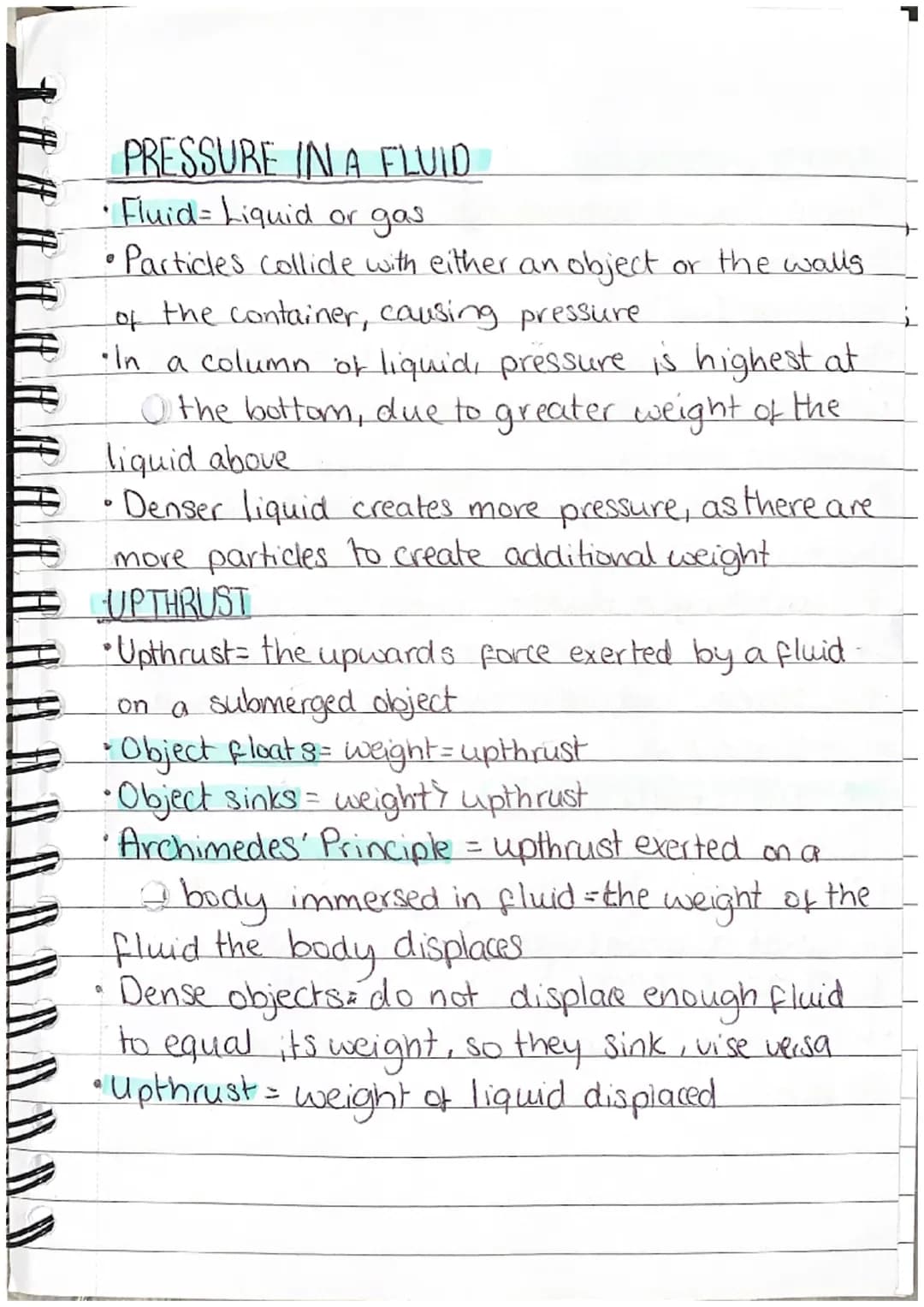

Pressure in Fluids and Upthrust

This page focuses on fluid pressure and upthrust concepts, which are crucial in understanding how objects behave in liquids and gases.

The page begins by defining a fluid as either a liquid or a gas. In fluids, pressure is caused by particles colliding with either an object or the walls of the container.

Highlight: In a column of liquid, pressure is highest at the bottom due to the greater weight of the liquid above.

The density of the liquid also affects pressure, as denser liquids have more particles creating additional weight.

The concept of upthrust is then introduced:

Definition: Upthrust is the upwards force exerted by a fluid on a submerged object.

The page explains the conditions for floating and sinking:

• An object floats when its weight equals the upthrust
• An object sinks when its weight is greater than the upthrust

Archimedes' Principle is also explained:

Definition: The upthrust exerted on a body immersed in fluid equals the weight of the fluid the body displaces.

This principle helps explain why dense objects sink while less dense objects float. Dense objects do not displace enough fluid to equal their weight, so they sink, and vice versa.

Speed, Velocity, Distance, and Displacement

This page covers the fundamental concepts of speed, velocity, distance, and displacement, which are essential for understanding motion in physics.

The page begins by differentiating between speed and velocity:

Definition: Speed is how fast an object is travelling $scalar$, while velocity is the speed of an object in a given direction $vector$.

It's noted that when travelling in a straight line with constant speed, an object will have a constant velocity. However, when travelling in a circle, velocity is constantly changing, resulting in acceleration.

Example: An object orbiting a planet has a constantly changing velocity, even if its speed remains constant.

The page also explains that when turning a corner, speed may stay the same, but velocity changes due to the change in direction.

Next, the concepts of distance and displacement are introduced:

Definition: Distance is how far an object moves $scalar$, while displacement is how far an object moved and in what direction $vector$.

The page briefly mentions the concept of resultant force, which occurs when more than one force acts on an object. This ties back to the earlier discussion on vector diagrams.

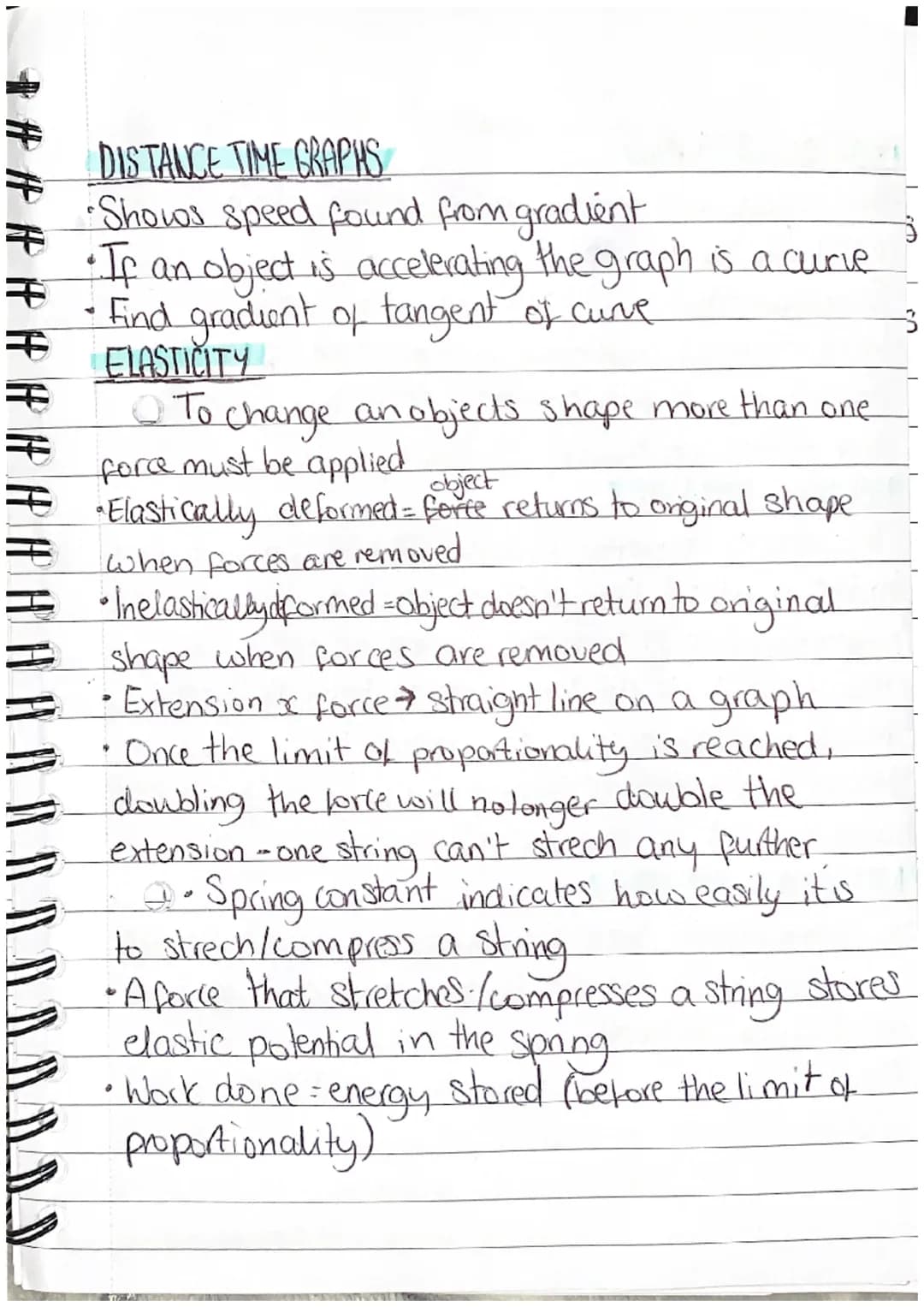

Distance-Time Graphs and Elasticity

This final page covers two important topics in physics: distance-time graphs and elasticity.

Distance-time graphs are powerful tools for analyzing motion. The page explains that:

Highlight: Speed can be found from the gradient of a distance-time graph.

If an object is accelerating, the graph will be a curve. In this case, the speed at any point can be found by calculating the gradient of the tangent to the curve at that point.

The second half of the page focuses on elasticity. It explains that to change an object's shape, more than one force must be applied.

Definition: An object is elastically deformed if it returns to its original shape when forces are removed. If it doesn't return to its original shape, it's inelastically deformed.

The relationship between extension and force is described:

Highlight: The extension of an object is proportional to the force applied, up to a certain point called the limit of proportionality.

The page introduces the concept of spring constant, which indicates how easily a spring can be stretched or compressed. It also explains that stretching or compressing a spring stores elastic potential energy.

Finally, the page notes that the work done $energy stored$ before the limit of proportionality is reached can be calculated, though the specific formula is not provided in this summary.

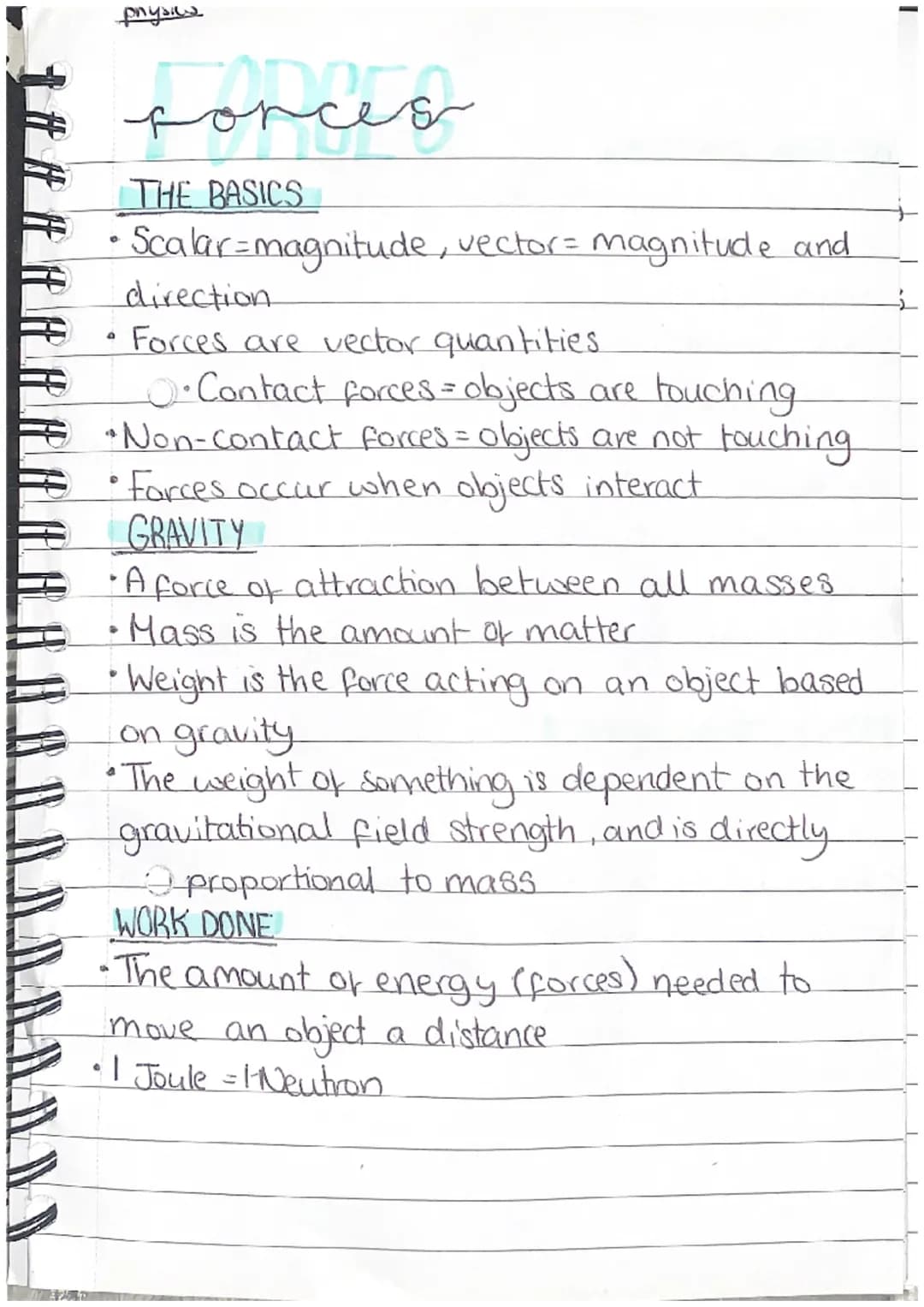

The Basics of Forces and Work

This page introduces fundamental concepts in physics, focusing on forces and work.

Forces are vector quantities, meaning they have both magnitude and direction. They can be categorized into contact forces $where objects are touching$ and non-contact forces $where objects are not touching$. Forces occur when objects interact with each other.

Gravity is a crucial force in physics. It is a force of attraction between all masses. The page explains the difference between mass and weight:

Definition: Mass is the amount of matter in an object, while weight is the force acting on an object due to gravity.

The weight of an object depends on the gravitational field strength and is directly proportional to its mass.

The concept of work done is also introduced:

Definition: Work done is the amount of energy $forces$ needed to move an object a distance.

The page notes that 1 Joule equals 1 Newton.

Finally, the difference between scalar and vector quantities is explained:

Vocabulary: Scalar quantities have only magnitude, while vector quantities have both magnitude and direction.
