Ohm's Law and Circuit Resistance

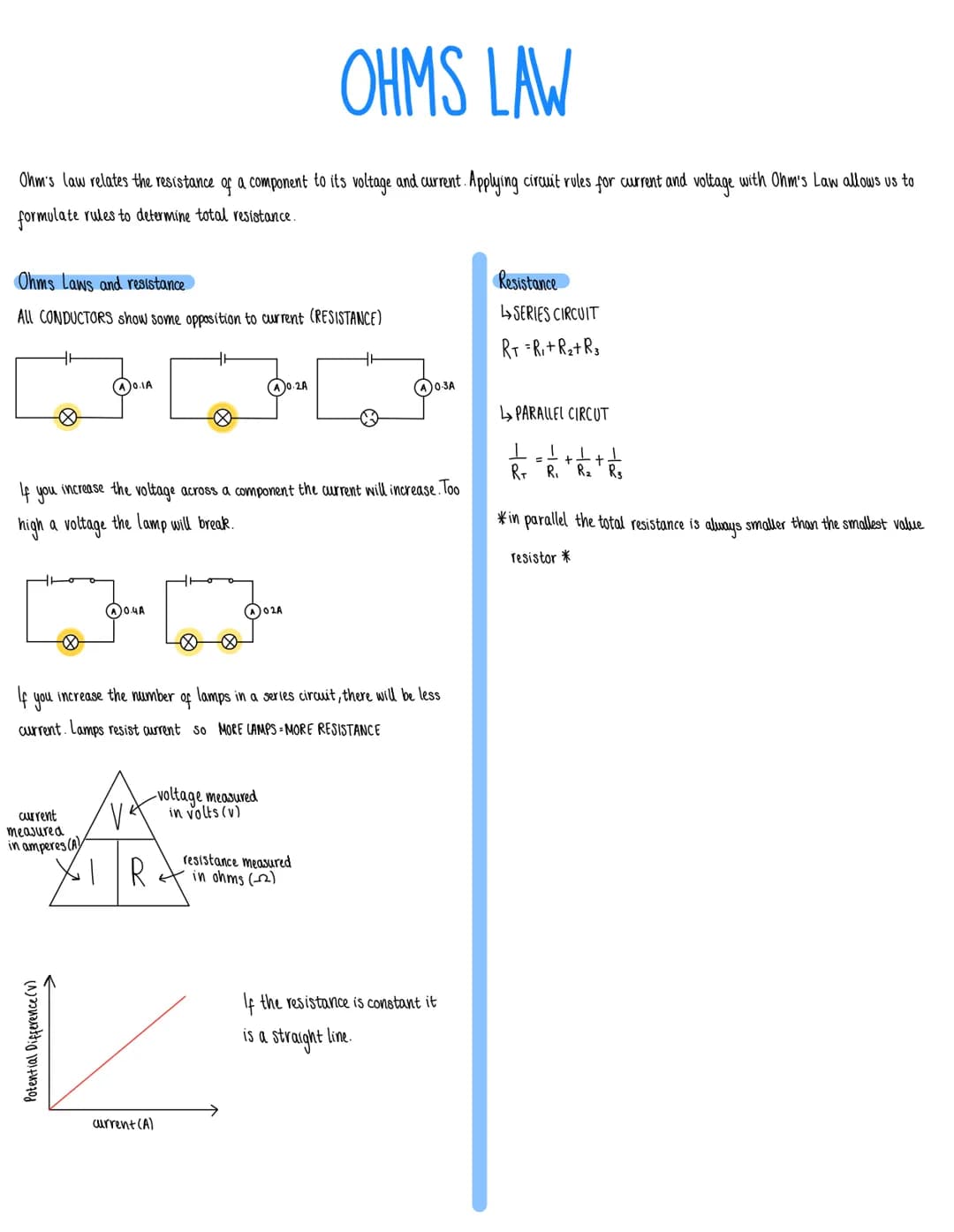

This page provides a comprehensive overview of Ohm's Law and its application in electrical circuits, focusing on the relationship between voltage, current, and resistance. The content explains how these components interact in series and parallel circuits and provides formulas for calculating total resistance in different circuit configurations.
Definition: Ohm's Law relates the resistance of a component to its voltage and current. This fundamental principle is crucial for understanding electrical circuit behavior.
The document begins by stating that all conductors exhibit some opposition to current, which is known as resistance. This concept is essential for understanding how electrical components function in circuits.
Vocabulary: Resistance is measured in ohms (ฮฉ), current in amperes (A), and voltage (potential difference) in volts (V).
The relationship between voltage and current is illustrated through several examples:
-
Increasing voltage across a component leads to increased current flow. However, it's noted that excessive voltage can damage components, such as causing a lamp to break.
-
In a series circuit, adding more components (e.g., lamps) increases the total resistance, resulting in decreased current flow.
Example: If you increase the number of lamps in a series circuit, there will be less current. Lamps resist current, so MORE LAMPS = MORE RESISTANCE.
The document also presents a graph showing the relationship between voltage and current. For a constant resistance, this relationship is represented by a straight line, illustrating the linear nature of Ohm's Law.
Highlight: If the resistance is constant, the voltage-current relationship is represented by a straight line on a graph.
Finally, the page provides formulas for calculating total resistance in different circuit configurations:
-
For a series circuit: RT = Rโ + Rโ + Rโ This formula shows that in a series circuit, the total resistance is the sum of individual resistances.
-
For a parallel circuit: 1/RT = 1/Rโ + 1/Rโ + 1/Rโ This formula demonstrates that in a parallel circuit, the reciprocal of the total resistance is equal to the sum of the reciprocals of individual resistances.
Highlight: In parallel circuits, the total resistance is always smaller than the smallest value resistor.
These formulas are crucial for understanding how resistance in series and parallel circuits behaves and for solving series-parallel circuit example problems.
We thought youโd never ask...
What is the Knowunity AI companion?
Our AI Companion is a student-focused AI tool that offers more than just answers. Built on millions of Knowunity resources, it provides relevant information, personalised study plans, quizzes, and content directly in the chat, adapting to your individual learning journey.
Where can I download the Knowunity app?
You can download the app from Google Play Store and Apple App Store.
Is Knowunity really free of charge?
That's right! Enjoy free access to study content, connect with fellow students, and get instant help โ all at your fingertips.
Can't find what you're looking for? Explore other subjects.
Students love us โ and so will you.
4.9/5
App Store
4.8/5
Google Play
The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.
Stefan S
iOS user
This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.
Samantha Klich
Android user
Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.
Anna
iOS user
Best app on earth! no words because itโs too good
Thomas R
iOS user
Just amazing. Let's me revise 10x better, this app is a quick 10/10. I highly recommend it to anyone. I can watch and search for notes. I can save them in the subject folder. I can revise it any time when I come back. If you haven't tried this app, you're really missing out.
Basil
Android user
This app has made me feel so much more confident in my exam prep, not only through boosting my own self confidence through the features that allow you to connect with others and feel less alone, but also through the way the app itself is centred around making you feel better. It is easy to navigate, fun to use, and helpful to anyone struggling in absolutely any way.
David K
iOS user
The app's just great! All I have to do is enter the topic in the search bar and I get the response real fast. I don't have to watch 10 YouTube videos to understand something, so I'm saving my time. Highly recommended!
Sudenaz Ocak
Android user
In school I was really bad at maths but thanks to the app, I am doing better now. I am so grateful that you made the app.
Greenlight Bonnie
Android user
very reliable app to help and grow your ideas of Maths, English and other related topics in your works. please use this app if your struggling in areas, this app is key for that. wish I'd of done a review before. and it's also free so don't worry about that.
Rohan U
Android user
I know a lot of apps use fake accounts to boost their reviews but this app deserves it all. Originally I was getting 4 in my English exams and this time I got a grade 7. I didnโt even know about this app three days until the exam and it has helped A LOT. Please actually trust me and use it as Iโm sure you too will see developments.
Xander S
iOS user
THE QUIZES AND FLASHCARDS ARE SO USEFUL AND I LOVE THE SCHOOLGPT. IT ALSO IS LITREALLY LIKE CHATGPT BUT SMARTER!! HELPED ME WITH MY MASCARA PROBLEMS TOO!! AS WELL AS MY REAL SUBJECTS ! DUHHH ๐๐๐ฒ๐ค๐โจ๐๐ฎ
Elisha
iOS user
This apps acc the goat. I find revision so boring but this app makes it so easy to organize it all and then you can ask the freeeee ai to test yourself so good and you can easily upload your own stuff. highly recommend as someone taking mocks now
Paul T
iOS user
The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.
Stefan S
iOS user
This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.
Samantha Klich
Android user
Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.
Anna
iOS user
Best app on earth! no words because itโs too good
Thomas R
iOS user
Just amazing. Let's me revise 10x better, this app is a quick 10/10. I highly recommend it to anyone. I can watch and search for notes. I can save them in the subject folder. I can revise it any time when I come back. If you haven't tried this app, you're really missing out.
Basil
Android user
This app has made me feel so much more confident in my exam prep, not only through boosting my own self confidence through the features that allow you to connect with others and feel less alone, but also through the way the app itself is centred around making you feel better. It is easy to navigate, fun to use, and helpful to anyone struggling in absolutely any way.
David K
iOS user
The app's just great! All I have to do is enter the topic in the search bar and I get the response real fast. I don't have to watch 10 YouTube videos to understand something, so I'm saving my time. Highly recommended!
Sudenaz Ocak
Android user
In school I was really bad at maths but thanks to the app, I am doing better now. I am so grateful that you made the app.
Greenlight Bonnie
Android user
very reliable app to help and grow your ideas of Maths, English and other related topics in your works. please use this app if your struggling in areas, this app is key for that. wish I'd of done a review before. and it's also free so don't worry about that.
Rohan U
Android user
I know a lot of apps use fake accounts to boost their reviews but this app deserves it all. Originally I was getting 4 in my English exams and this time I got a grade 7. I didnโt even know about this app three days until the exam and it has helped A LOT. Please actually trust me and use it as Iโm sure you too will see developments.
Xander S
iOS user
THE QUIZES AND FLASHCARDS ARE SO USEFUL AND I LOVE THE SCHOOLGPT. IT ALSO IS LITREALLY LIKE CHATGPT BUT SMARTER!! HELPED ME WITH MY MASCARA PROBLEMS TOO!! AS WELL AS MY REAL SUBJECTS ! DUHHH ๐๐๐ฒ๐ค๐โจ๐๐ฎ
Elisha
iOS user
This apps acc the goat. I find revision so boring but this app makes it so easy to organize it all and then you can ask the freeeee ai to test yourself so good and you can easily upload your own stuff. highly recommend as someone taking mocks now
Paul T
iOS user
Easy Guide: How to Calculate Resistance in Circuits - Ohm's Law, Series and Parallel Tips
I
iona
@iona_
This document provides an overview of Ohm's Law and its application in electrical circuits, focusing on the relationship between voltage, current, and resistance. It explains how these components interact in series and parallel circuits, and provides formulas for calculating total... Show more
Ohm's Law and Circuit Resistance

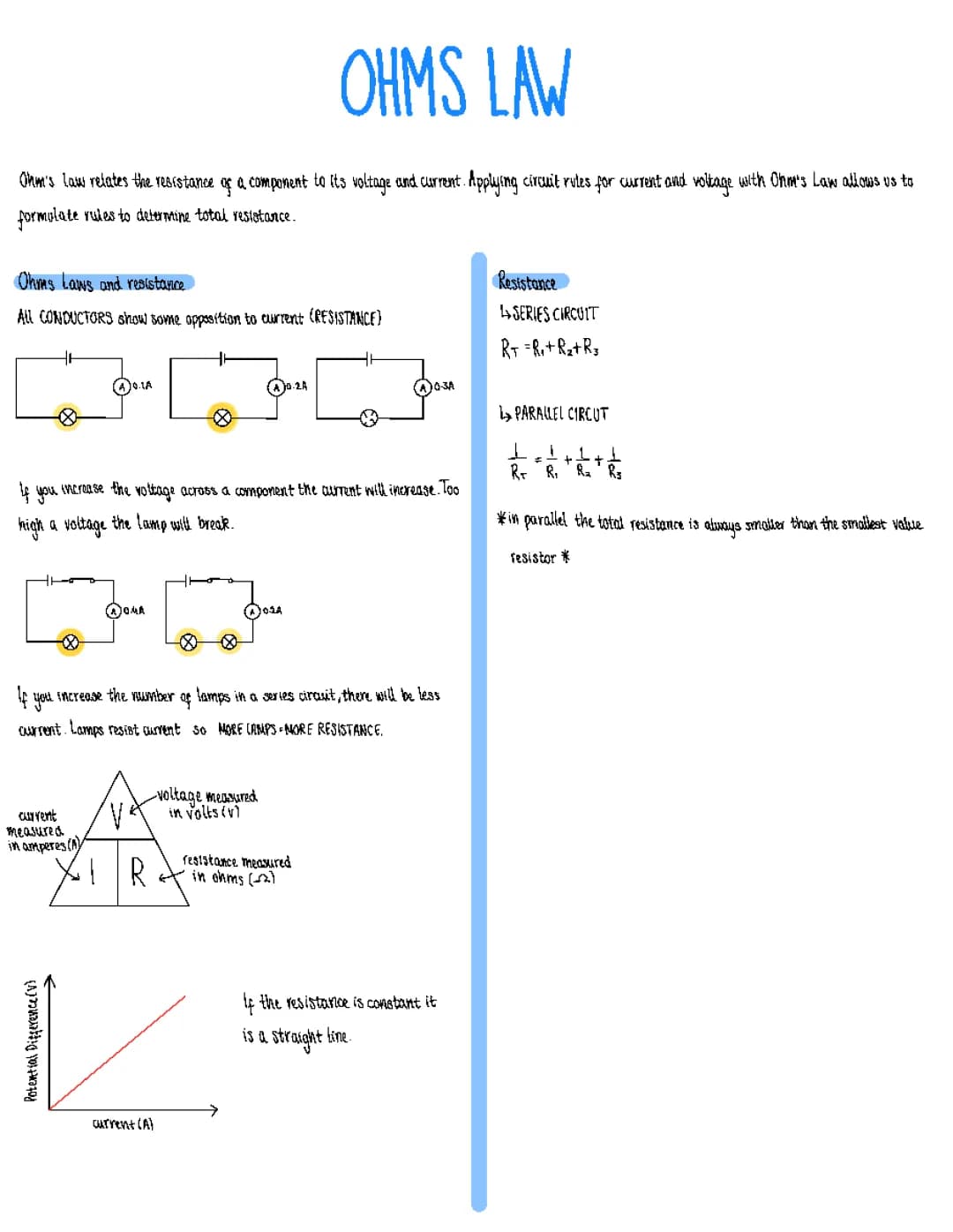

This page provides a comprehensive overview of Ohm's Law and its application in electrical circuits, focusing on the relationship between voltage, current, and resistance. The content explains how these components interact in series and parallel circuits and provides formulas for calculating total resistance in different circuit configurations.
