Ion Formation in Specific Groups

This page focuses on the formation of ions by elements in Groups 1, 2, 6, and 7 of the periodic table, which are the most likely to form ions due to their electron configurations.

Highlight: Elements in the same group have the same number of outer electrons, leading to similar ion formation patterns within each group.

Group 1 and 2 elements, which are metals, form positive ions (cations) by losing electrons:

1. Group 1 elements form 1+ ions by losing one electron.
2. Group 2 elements form 2+ ions by losing two electrons.

Group 6 and 7 elements, which are non-metals, form negative ions (anions) by gaining electrons:

1. Group 6 elements form 2- ions by gaining two electrons.
2. Group 7 elements form 1- ions by gaining one electron.

Example: A sodium atom (Na), being in Group 1, loses one electron to form a sodium ion $Na+$ with the same electronic structure as neon: Na → Na+ + e-

The page provides additional examples to illustrate this concept:

1. A magnesium atom (Mg), being in Group 2, loses two electrons to form a magnesium ion $Mg2+$ with the same electronic structure as neon: Mg → Mg2+ + 2e-
2. An oxygen atom (O), being in Group 6, gains two electrons to form an oxide ion $O2-$ with the same electronic structure as neon: O + 2e- → O2-

These examples demonstrate how elements in different groups form ions with specific charges to achieve stable electronic configurations similar to noble gases.

Dot and Cross Diagrams for Ionic Bonding

This page introduces dot and cross diagrams as a visual tool for understanding the formation of ionic bonds. These diagrams illustrate the arrangement of electrons in atoms and ions, helping to visualize the electron transfer process in ionic bonding.

Definition: Dot and cross diagrams represent electrons using dots and crosses, showing which electrons originally came from each atom involved in the bond.

The page provides two examples of dot and cross diagrams:

1. Sodium Chloride (NaCl): The diagram shows a sodium atom giving up its outer electron to become an Na+ ion, while the chlorine atom picks up this electron to become a Cl- (chloride) ion.

2. Magnesium Oxide (MgO): This example illustrates a magnesium atom giving up its two outer electrons to become an Mg2+ ion, while the oxygen atom picks up these two electrons to become an O2- (oxide) ion.

Highlight: Dot and cross diagrams are useful for showing how ionic compounds are formed, but they do not represent the actual structure, size, or arrangement of ions in the compound.

These diagrams effectively demonstrate the transfer of electrons between metal and non-metal atoms, leading to the formation of oppositely charged ions that are attracted to each other through ionic bonding.

Example: In the NaCl diagram, the single outer electron of sodium (represented by a dot) is shown transferring to the chlorine atom, completing its outer shell and forming the chloride ion.

While dot and cross diagrams are valuable for understanding the electron transfer process, it's important to note their limitations. They provide a simplified representation of ionic bonding and do not capture the three-dimensional structure or the relative sizes of the ions in the actual compound.

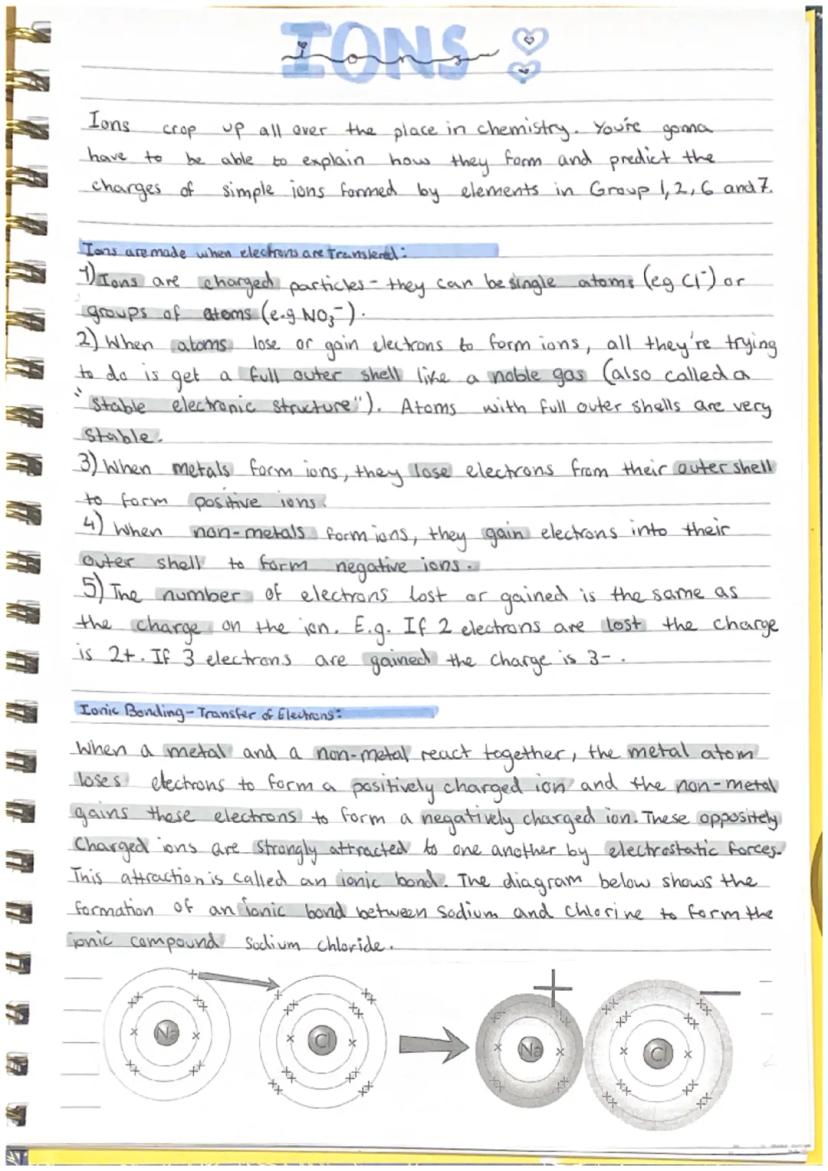

Understanding Ion Formation

Ions play a crucial role in chemistry, forming the basis for many chemical reactions and compounds. This page introduces the concept of ions and explains how they are formed through electron transfer.

Definition: Ions are charged particles that can be single atoms or groups of atoms.

The formation of ions is driven by the tendency of atoms to achieve a stable electronic structure, similar to that of noble gases. This process involves the transfer of electrons between atoms.

Highlight: When atoms lose or gain electrons to form ions, they aim to achieve a full outer shell, which is a very stable configuration.

The type of ion formed depends on whether the atom is a metal or a non-metal:

1. Metals typically lose electrons from their outer shell, forming positive ions (cations).
2. Non-metals generally gain electrons into their outer shell, forming negative ions (anions).

Example: If an atom loses 2 electrons, it forms an ion with a 2+ charge. Conversely, if an atom gains 3 electrons, it forms an ion with a 3- charge.

The page also introduces the concept of ionic bonding, which occurs when a metal and a non-metal react. In this process, the metal atom loses electrons to form a positively charged ion, while the non-metal atom gains these electrons to form a negatively charged ion. The resulting oppositely charged ions are strongly attracted to each other through electrostatic forces, forming an ionic bond.

Vocabulary: Electrostatic forces are the attractive forces between oppositely charged particles.

The formation of sodium chloride (NaCl) is presented as an example of ionic bonding, illustrating the transfer of electrons between sodium and chlorine atoms to form their respective ions.
