Static Electricity in Physics - A comprehensive guide covering fundamental principles, experiments, and practical applications of electrostatic charges in various contexts.

• Static electricity principles encompass the basic rules of charge interaction, including repulsion of like charges and attraction of unlike charges
• Practical applications include aircraft safety measures, spray painting techniques, and industrial smoke filtration through electrostatic precipitation
• Experimental demonstrations feature the Gold Leaf Electroscope and Van de Graff Generator, illustrating key concepts of charge transfer and induction
• Safety considerations highlight the importance of proper grounding and discharge procedures, especially in sensitive environments like aircraft refueling
• Industrial applications demonstrate how static electricity induced charges are utilized in modern manufacturing and environmental protection systems

...

03/11/2022

264

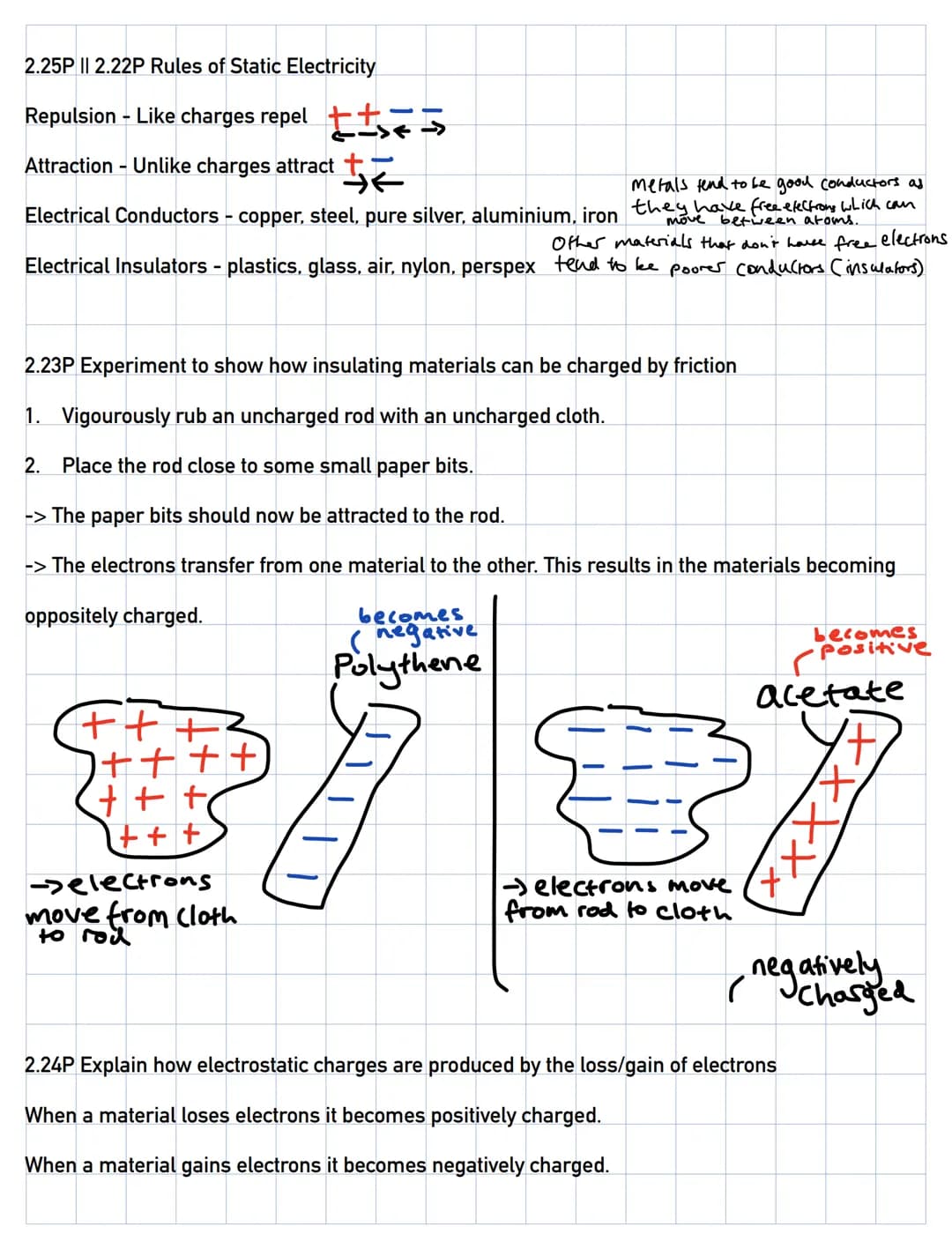

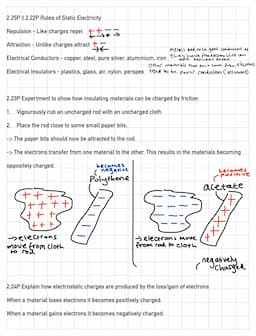

2.25P || 2.22P Rules of Static Electricity Repulsion - Like charges repel Attraction - Unlike charges attract ->F Electrical Conductors - co

View

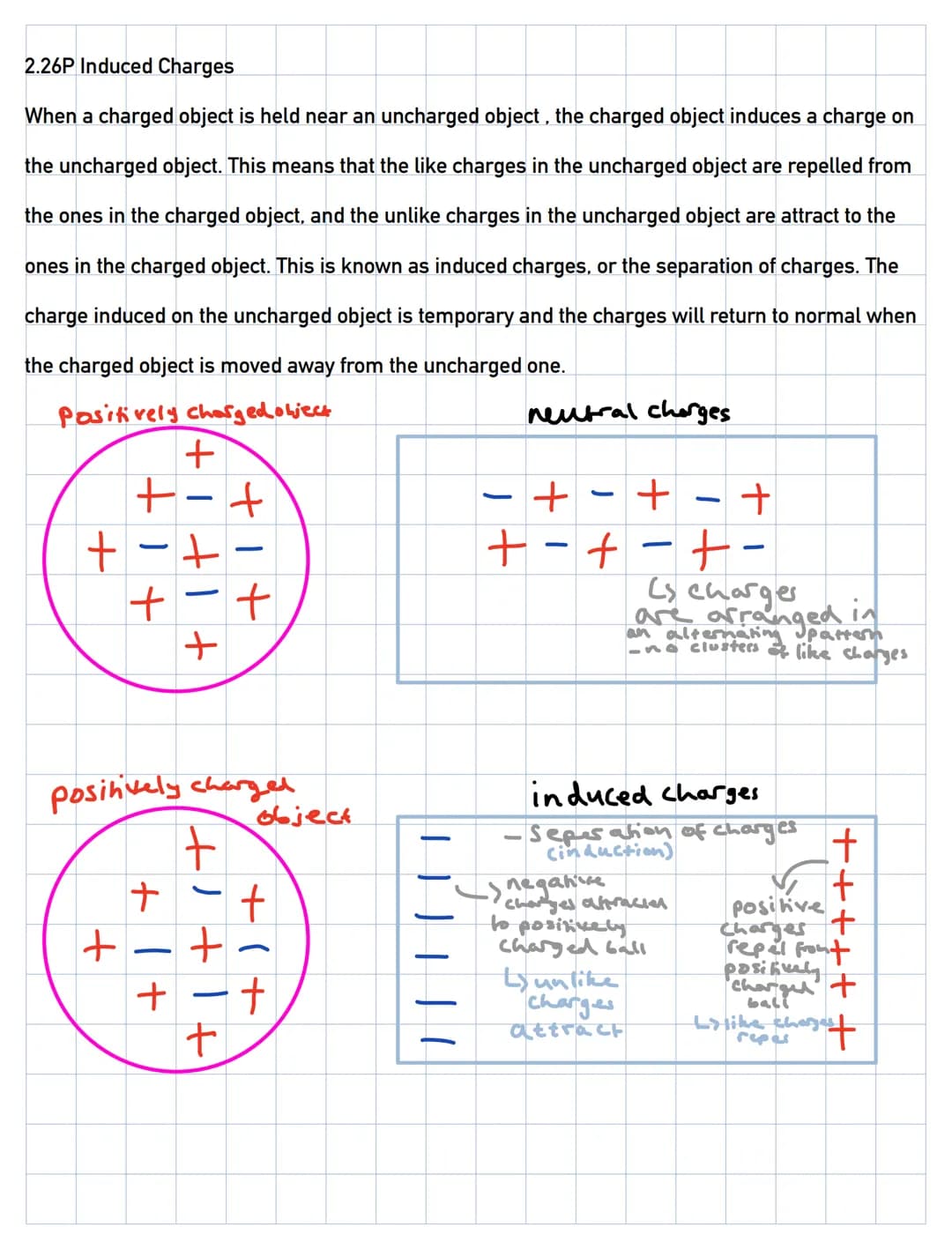

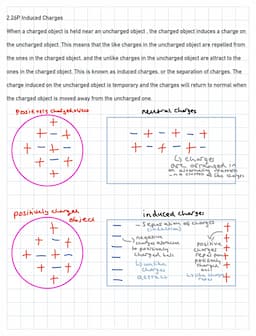

Induced Charges and Their Behavior

This section explores the concept of induced charges, which is crucial for understanding many static electricity phenomena in IGCSE Physics.

Definition: Induced charges occur when a charged object is held near an uncharged object, causing a temporary separation of charges in the uncharged object.

The process of induced charges involves:

  1. Like charges in the uncharged object are repelled from the charged object.
  2. Unlike charges in the uncharged object are attracted to the charged object.
  3. This results in a temporary separation of charges within the uncharged object.

Highlight: The induced charge is temporary and will dissipate when the charged object is removed.

Example: When a positively charged object is brought near a neutral object, the negative charges in the neutral object are attracted towards the positive object, while the positive charges are repelled away.

This phenomenon is important in understanding various static electricity experiments and applications that students may encounter in their IGCSE Physics static electricity questions and answers.

2.25P || 2.22P Rules of Static Electricity Repulsion - Like charges repel Attraction - Unlike charges attract ->F Electrical Conductors - co

View

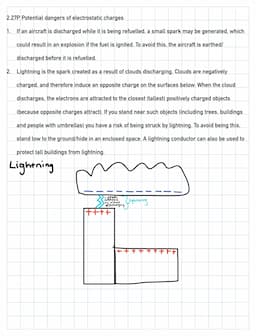

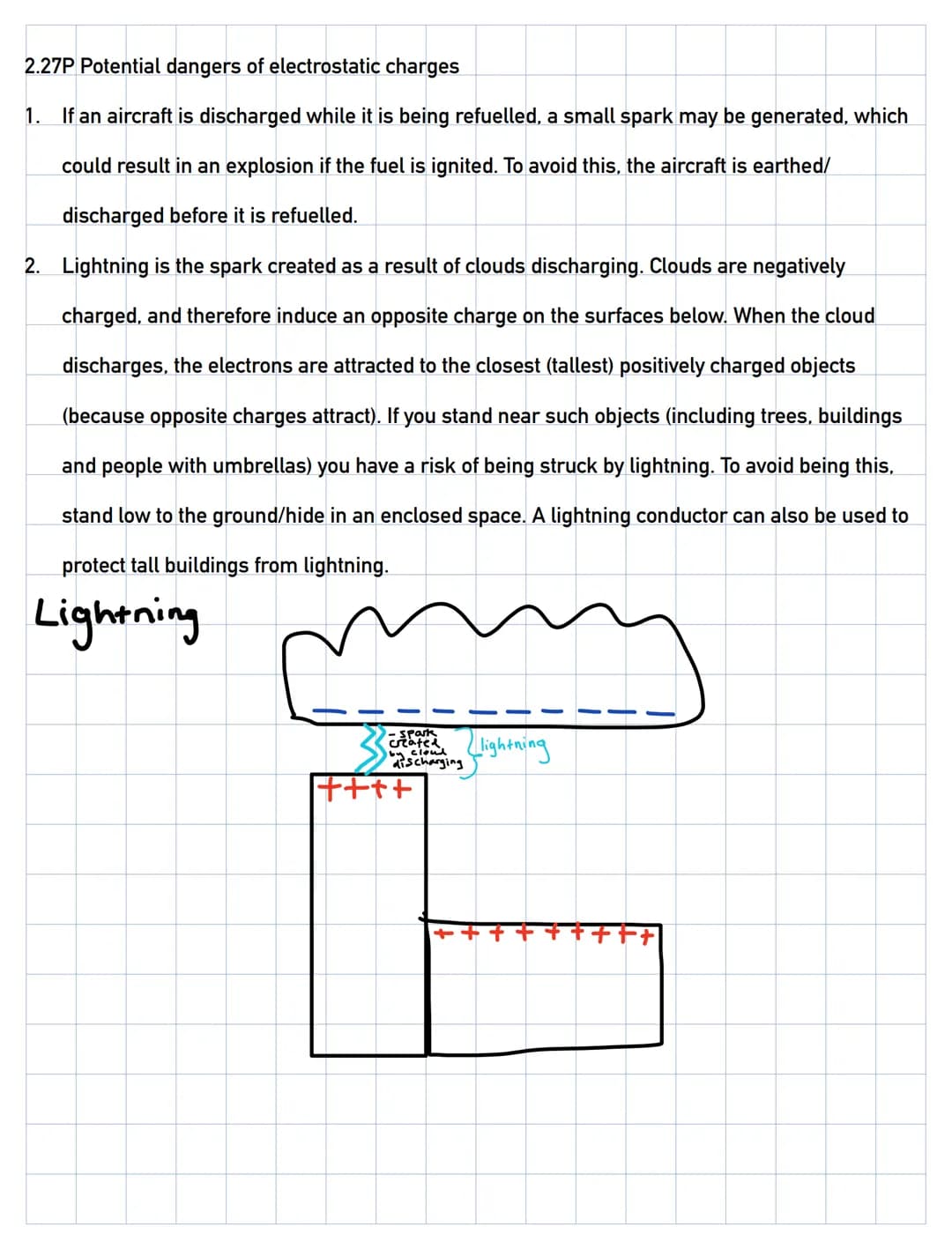

Potential Dangers of Electrostatic Charges

This section discusses the risks associated with static electricity, particularly in aviation and during thunderstorms.

  1. Aircraft Refueling:
    • Risk: A small spark generated during refueling could ignite fuel, causing an explosion.
    • Prevention: Aircraft are earthed or discharged before refueling.

Highlight: Understanding these dangers is crucial for safety in various industries and is often featured in IGCSE Physics electricity notes.

  1. Lightning:
    • Cause: Lightning is a spark created when negatively charged clouds discharge.
    • Process: Clouds induce an opposite charge on surfaces below, and electrons are attracted to the tallest positively charged objects.
    • Risk: Standing near tall objects increases the risk of lightning strikes.
    • Prevention: Stay low to the ground or in enclosed spaces during thunderstorms.

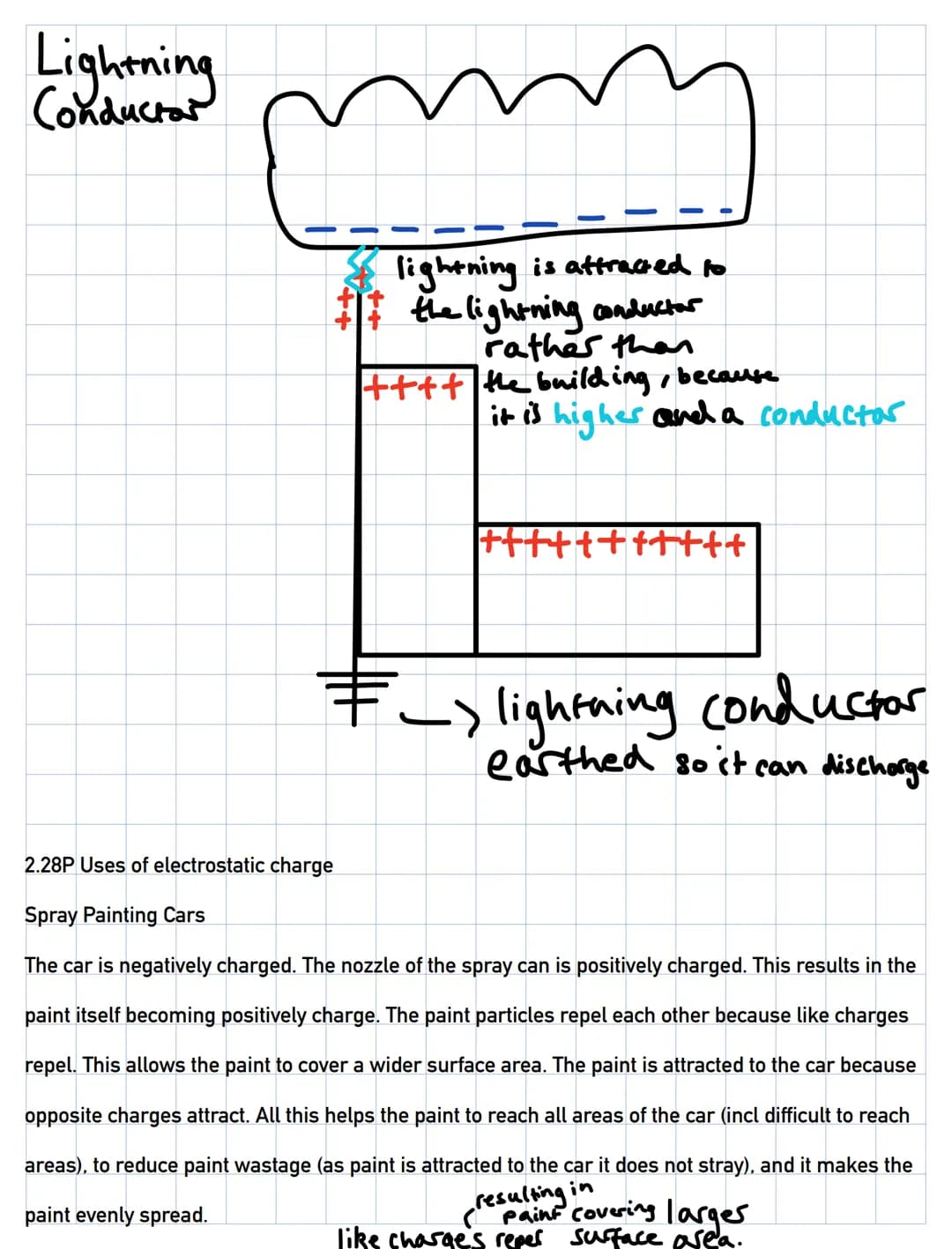

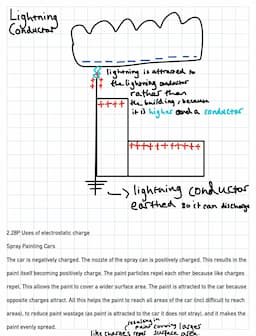

Example: Lightning conductors are used to protect tall buildings by providing a safe path for the electrical discharge.

These concepts are often explored in Static Electricity IGCSE past papers and are important for students to understand the practical implications of static electricity.

2.25P || 2.22P Rules of Static Electricity Repulsion - Like charges repel Attraction - Unlike charges attract ->F Electrical Conductors - co

View

Uses of Electrostatic Charges

This section explores practical applications of static electricity, focusing on spray painting cars.

Spray Painting Cars:

  1. The car is negatively charged.
  2. The nozzle of the spray can is positively charged.
  3. Paint particles become positively charged.

Benefits of this process:

  • Paint particles repel each other, covering a wider surface area.
  • Paint is attracted to the car, reducing wastage.
  • Even spread of paint, including difficult-to-reach areas.

Highlight: This application demonstrates how understanding static electricity principles can lead to improved industrial processes.

Example: The repulsion of like-charged paint particles helps create a fine mist, ensuring even coverage.

This practical use of static electricity is often included in IGCSE Physics static electricity notes and Static electricity questions and answers PDF resources, helping students connect theoretical knowledge with real-world applications.

2.25P || 2.22P Rules of Static Electricity Repulsion - Like charges repel Attraction - Unlike charges attract ->F Electrical Conductors - co

View

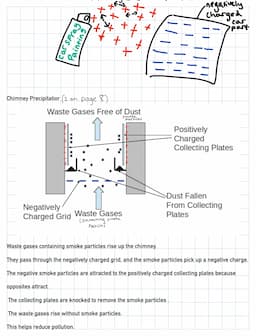

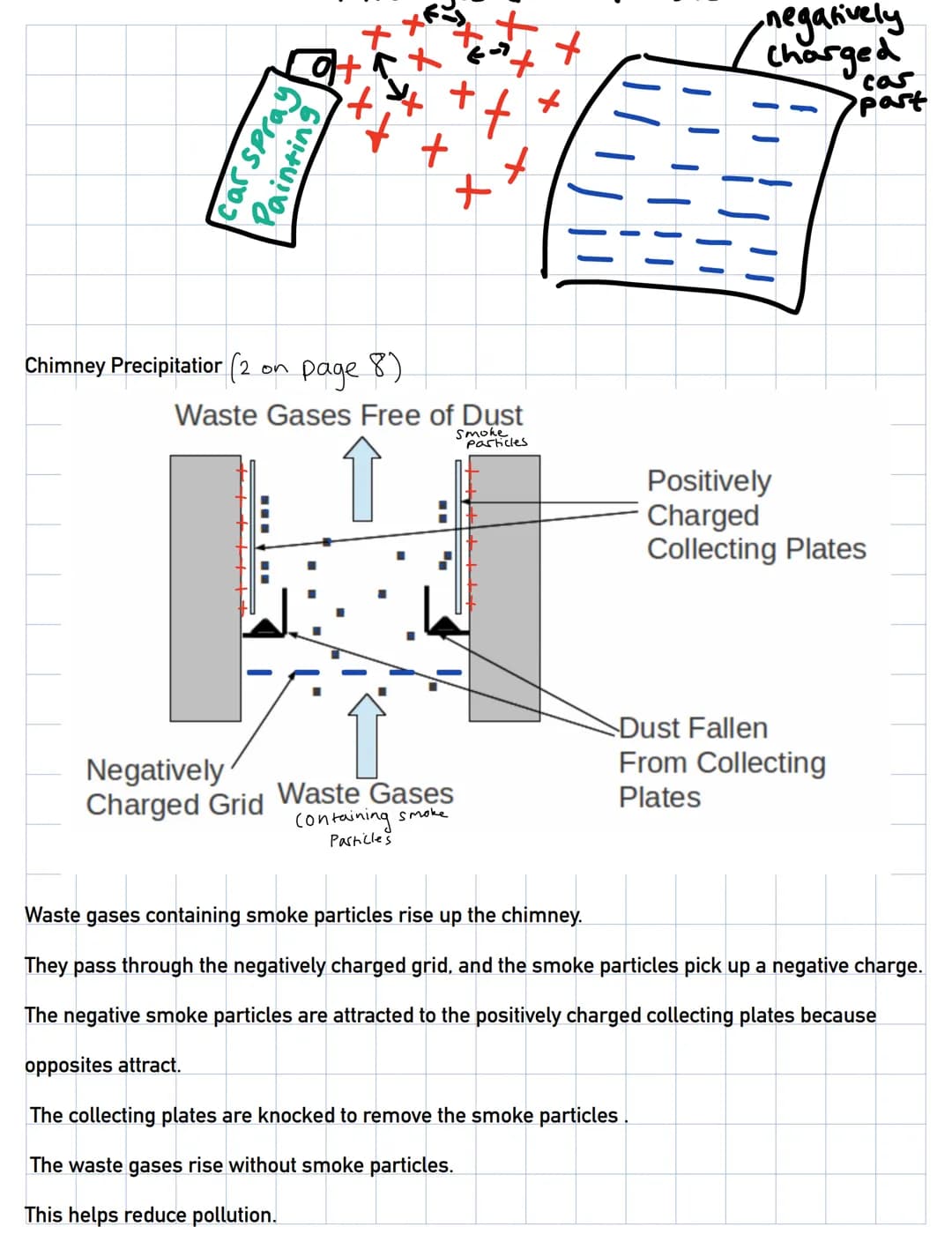

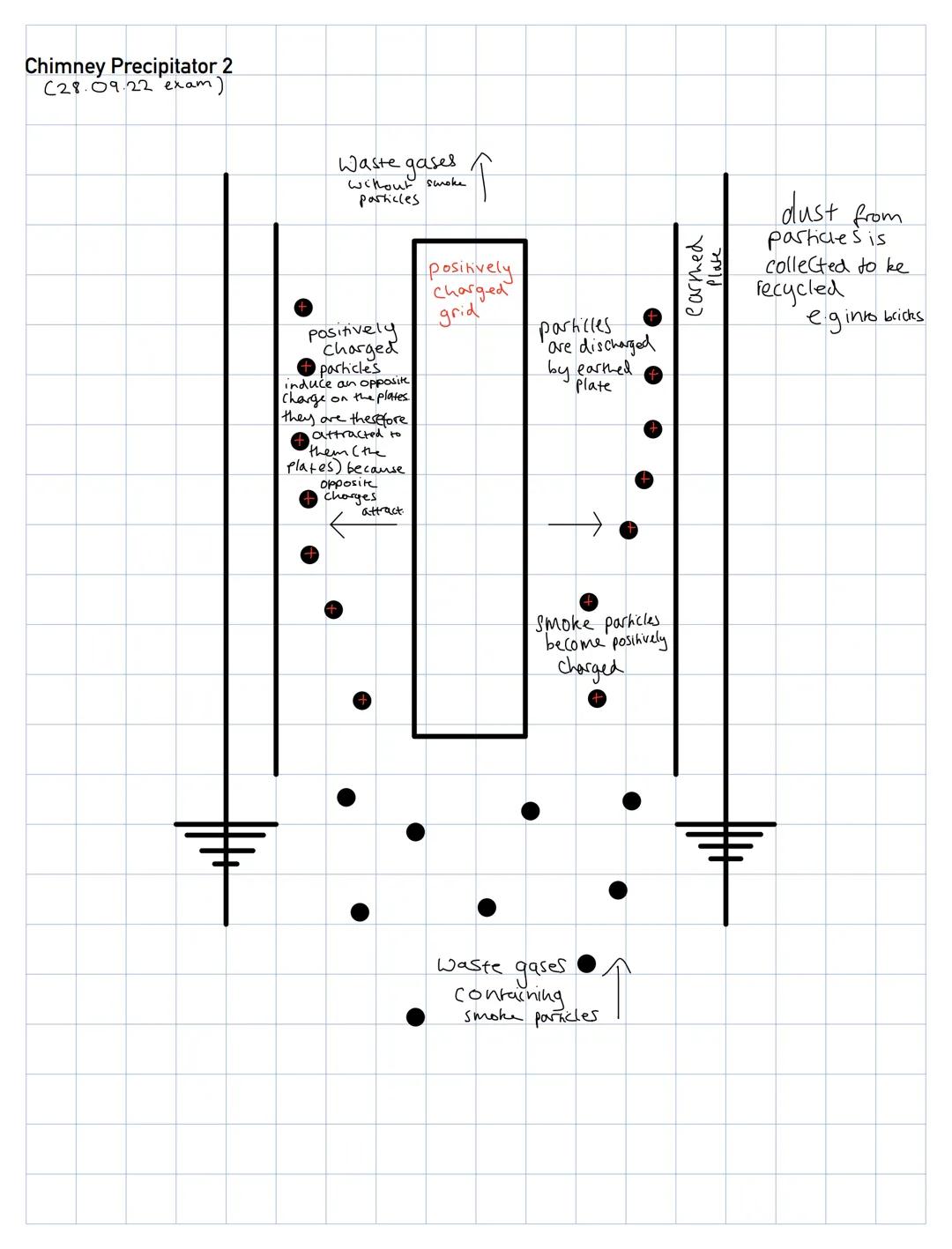

Chimney Precipitation: Environmental Application of Static Electricity

This section details the use of electrostatic charges in chimney precipitation, an important environmental application often featured in IGCSE Physics electricity notes pdf.

Process of Chimney Precipitation:

  1. Waste gases containing smoke particles rise up the chimney.
  2. Gases pass through a negatively charged grid, causing smoke particles to pick up a negative charge.
  3. Negatively charged smoke particles are attracted to positively charged collecting plates.
  4. Collecting plates are periodically knocked to remove accumulated smoke particles.
  5. Clean waste gases rise without smoke particles.

Highlight: This process significantly reduces air pollution from industrial chimneys.

Example: In a coal-fired power plant, electrostatic precipitators can remove up to 99% of ash particles from exhaust gases.

Benefits:

  • Reduces environmental pollution
  • Improves air quality in industrial areas
  • Allows for the collection and proper disposal of particulate matter

This application demonstrates the practical use of static electricity principles in solving environmental challenges, a topic often explored in Static electricity induced charges experiment reports and Static electricity experiments for high school.

2.25P || 2.22P Rules of Static Electricity Repulsion - Like charges repel Attraction - Unlike charges attract ->F Electrical Conductors - co

View

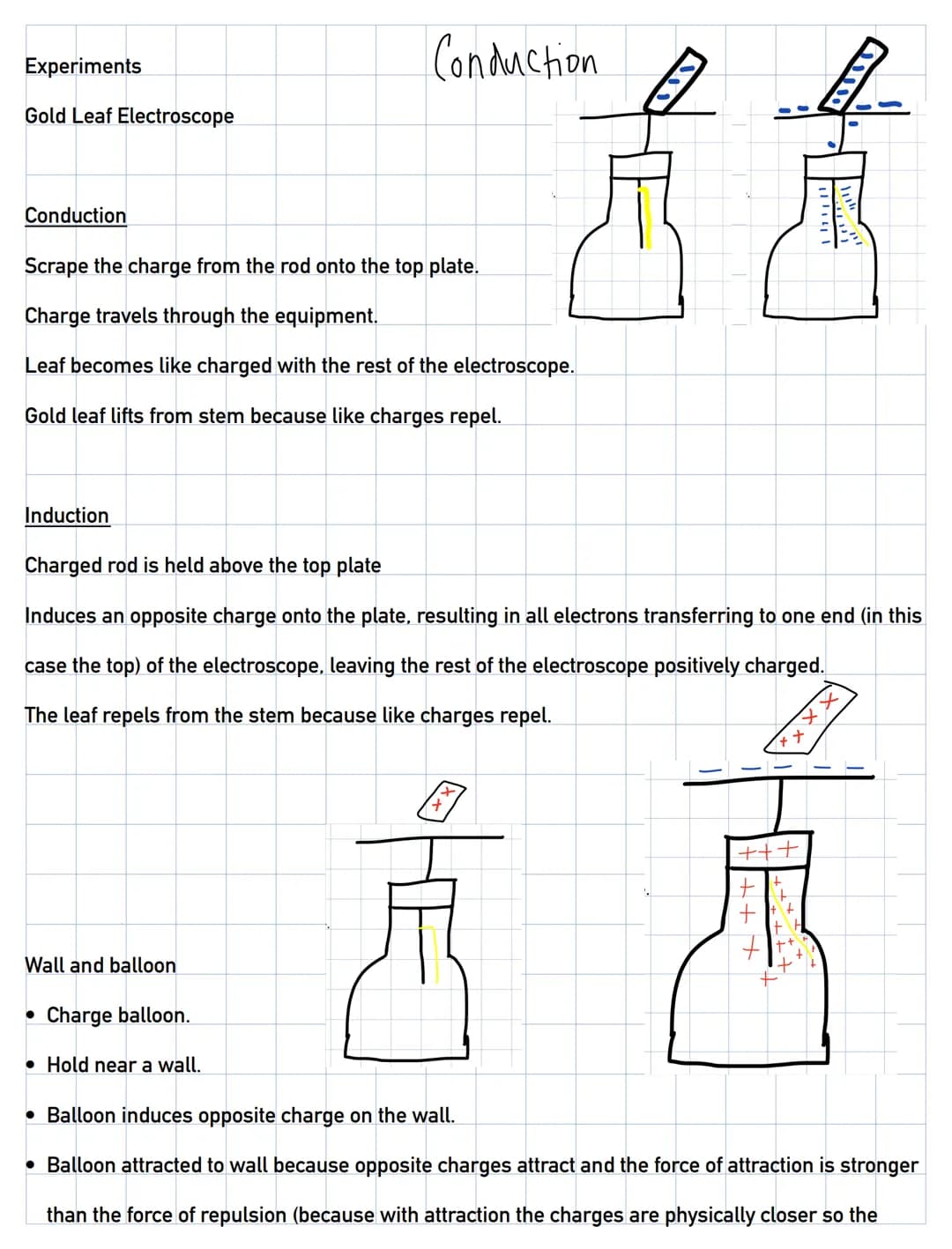

Experiments and Demonstrations in Static Electricity

This section covers key experiments used to demonstrate static electricity concepts, which are often included in Static electricity experiments pdf and IGCSE Physics static electricity past papers.

Gold Leaf Electroscope Experiment:

  1. Conduction Method:

    • Scrape charge from a charged rod onto the top plate of the electroscope.
    • Charge travels through the equipment.
    • Gold leaf becomes charged and lifts from the stem due to repulsion.

  2. Induction Method:

    • Hold a charged rod above the top plate without touching.
    • This induces an opposite charge on the plate.
    • Electrons transfer within the electroscope, causing the leaf to lift.

Highlight: The Gold Leaf Electroscope is a crucial tool for detecting and measuring static electric charges.

Wall and Balloon Experiment:

  • Demonstrates the principles of charge transfer and attraction between objects.

Example: A balloon rubbed on hair becomes negatively charged and can stick to a neutral wall due to induced positive charges on the wall's surface.

These experiments help students visualize and understand key concepts in static electricity, preparing them for questions they might encounter in Static Electricity Save My Exams IGCSE resources and exams.

2.25P || 2.22P Rules of Static Electricity Repulsion - Like charges repel Attraction - Unlike charges attract ->F Electrical Conductors - co

View

Additional Applications and Safety Considerations

This section expands on the applications and safety aspects of static electricity, often covered in IGCSE Physics static electricity notes and exam questions.

Applications of Electrostatic Charges:

  1. Photocopiers: Use static electricity to attract toner particles to paper.
  2. Air purifiers: Employ electrostatic precipitation to remove dust and allergens from air.
  3. Paint sprayers: Utilize charge differences for even coating in industrial painting.

Highlight: Understanding these applications helps students appreciate the practical relevance of static electricity in everyday technology.

Safety Considerations:

  1. Fuel handling: Static discharge can ignite flammable vapors during refueling.
  2. Electronics manufacturing: ESD (Electrostatic Discharge) protection is crucial to prevent damage to sensitive components.
  3. Hospital environments: Control of static electricity is important to protect sensitive medical equipment.

Example: In semiconductor manufacturing, workers wear special conductive clothing and use grounded workstations to prevent ESD damage to microchips.

Vocabulary: ESD (Electrostatic Discharge) - the sudden flow of electricity between two electrically charged objects caused by contact, an electrical short, or dielectric breakdown.

These topics are often explored in Static electricity induced charges experiment conclusion sections and Static electricity experiments for grade 7 curricula, providing a comprehensive understanding of the subject for IGCSE students.

2.25P || 2.22P Rules of Static Electricity Repulsion - Like charges repel Attraction - Unlike charges attract ->F Electrical Conductors - co

View

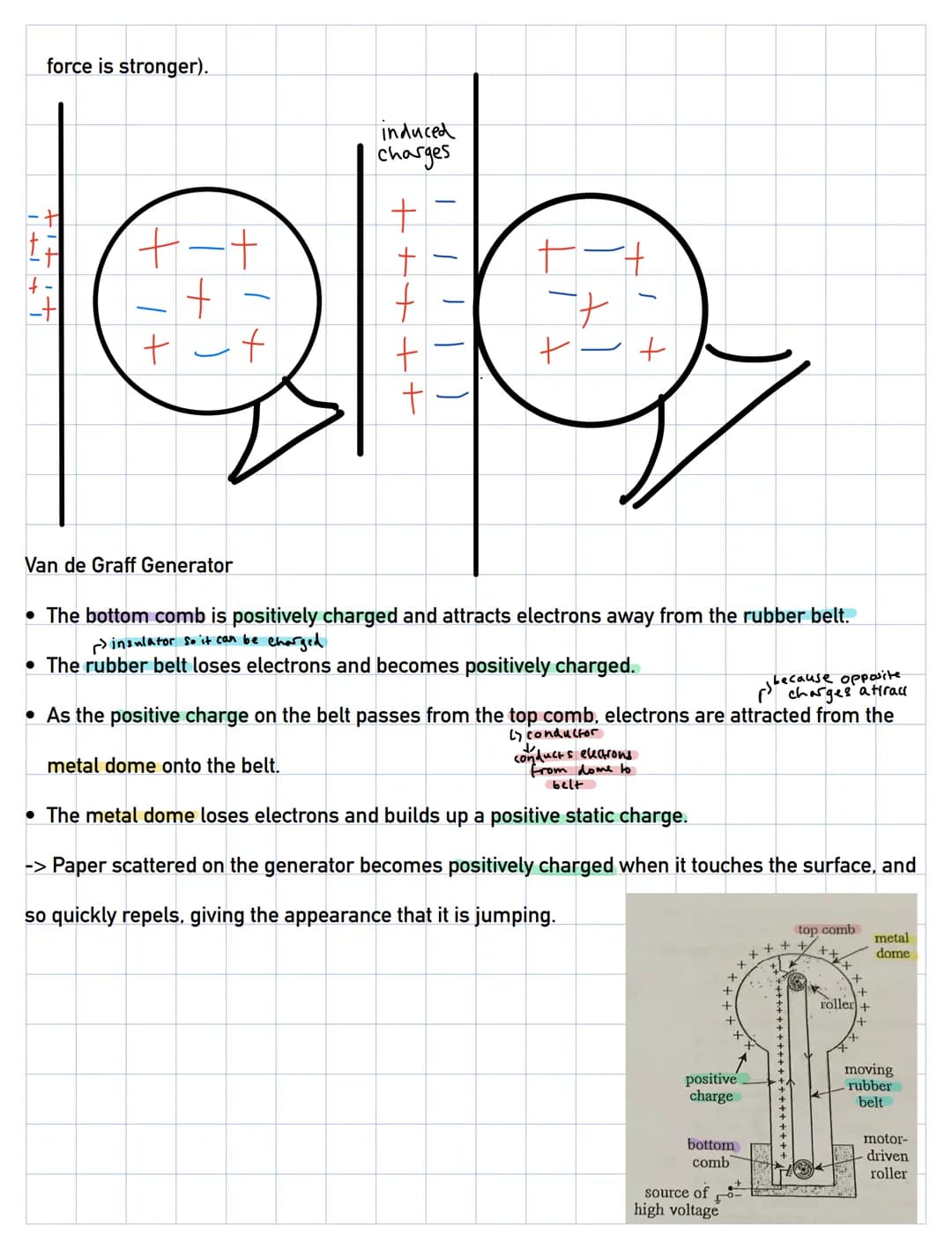

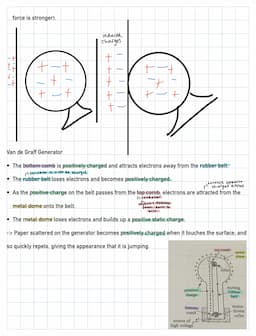

Van de Graff Generator Operation

This section explains the working principles of the Van de Graff Generator.

Definition: The Van de Graff Generator is a device that generates high-voltage static electricity through mechanical charge transfer.

Highlight: The generator uses a moving belt to transport charges and build up static electricity on its metal dome.
