Understanding Work, Energy, and Mechanical Systems

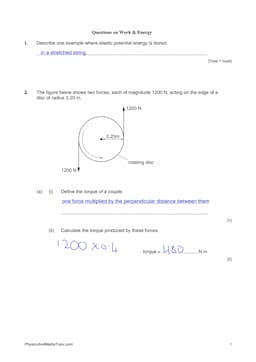

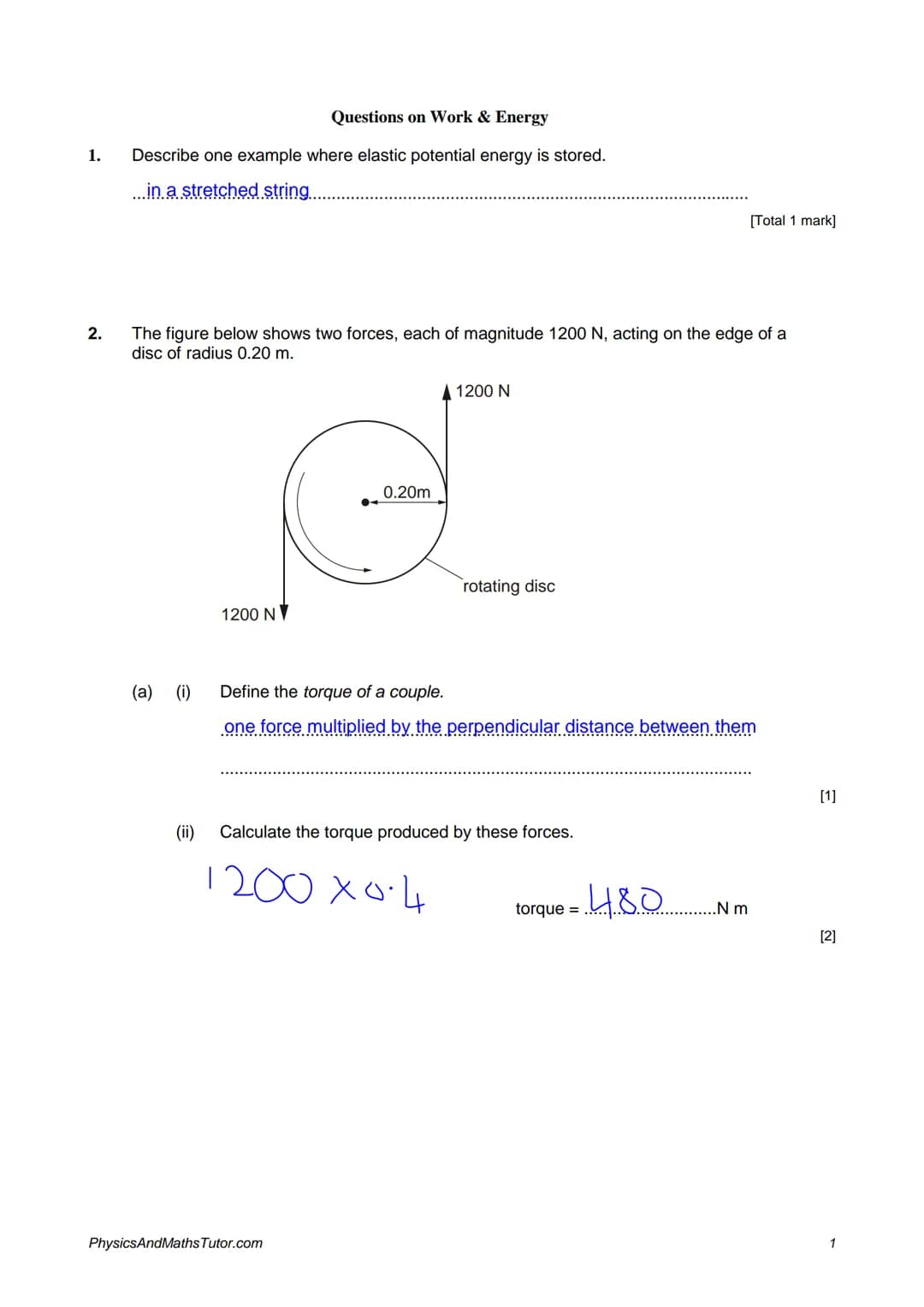

Calculate torque of a rotating disc example When analyzing rotating systems, understanding torque calculations is crucial for engineering and physics applications. Consider a disc with a radius of 0.20 meters experiencing two forces of 1200 N each. The torque produced by these forces creates a couple - a pair of equal and opposite forces acting at a distance from each other.

Definition: Torque is the rotational force calculated by multiplying one force by the perpendicular distance between the force pair.

When the disc rotates at 40 revolutions per second, the work done during one complete revolution reaches approximately 3000 Joules. This demonstrates how rotational motion converts force into mechanical work, a fundamental concept in engineering systems like motors and turbines.

Example: For a disc rotating at 40 revolutions per second with a torque of 4.80 Nm, the power required is calculated as: Power = Work/Time = 3000 J × 40 rev/s = 120,000 watts

Spring Systems and Elastic Potential Energy

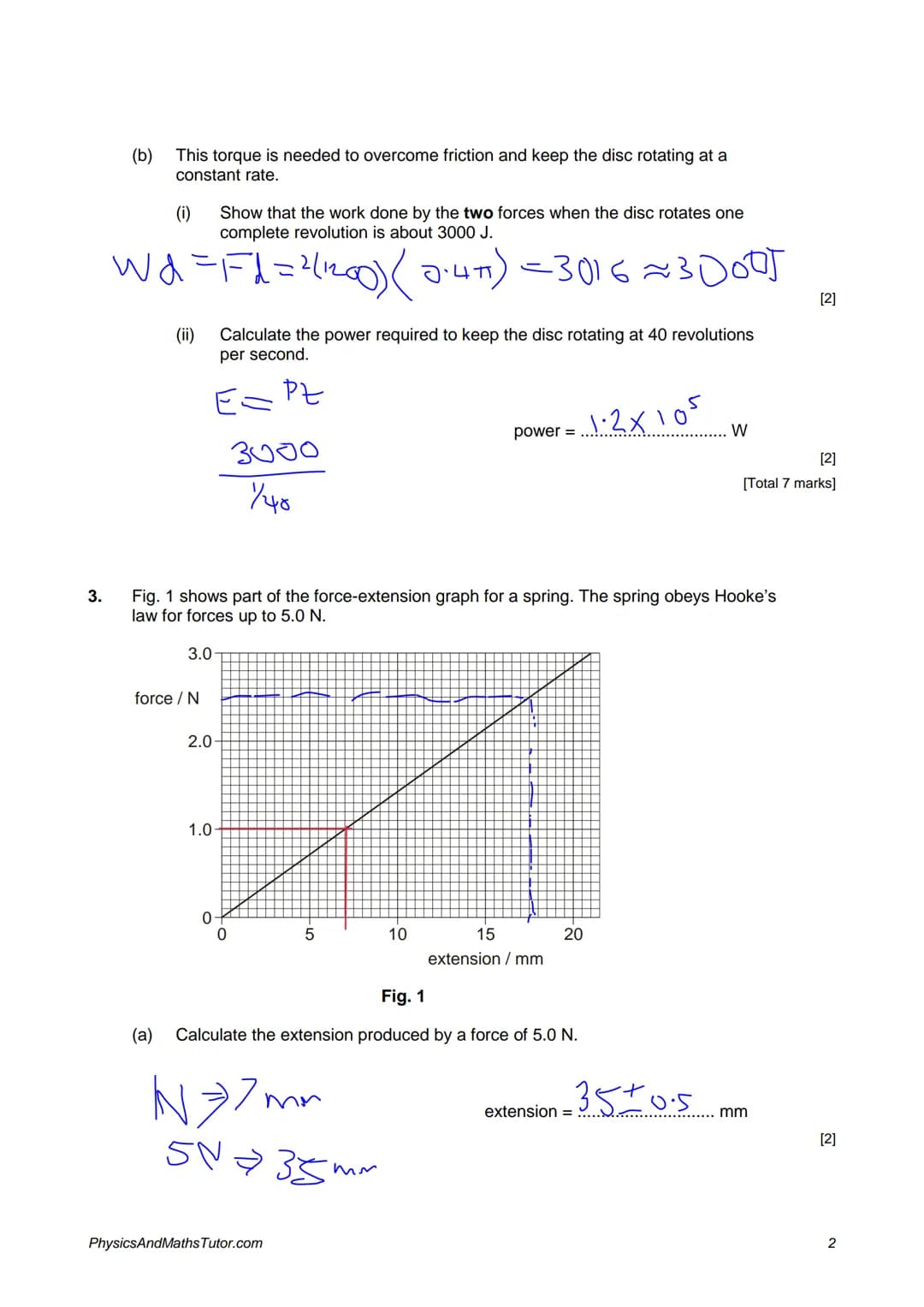

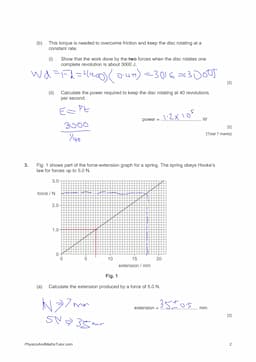

Extension calculation for springs obeying Hooke's law Springs following Hooke's law demonstrate linear force-extension relationships up to their elastic limit. For a spring subjected to forces up to 5.0 N, the extension can be calculated using the spring constant derived from the force-extension graph.

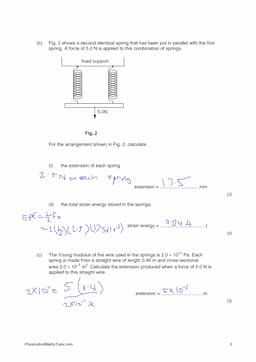

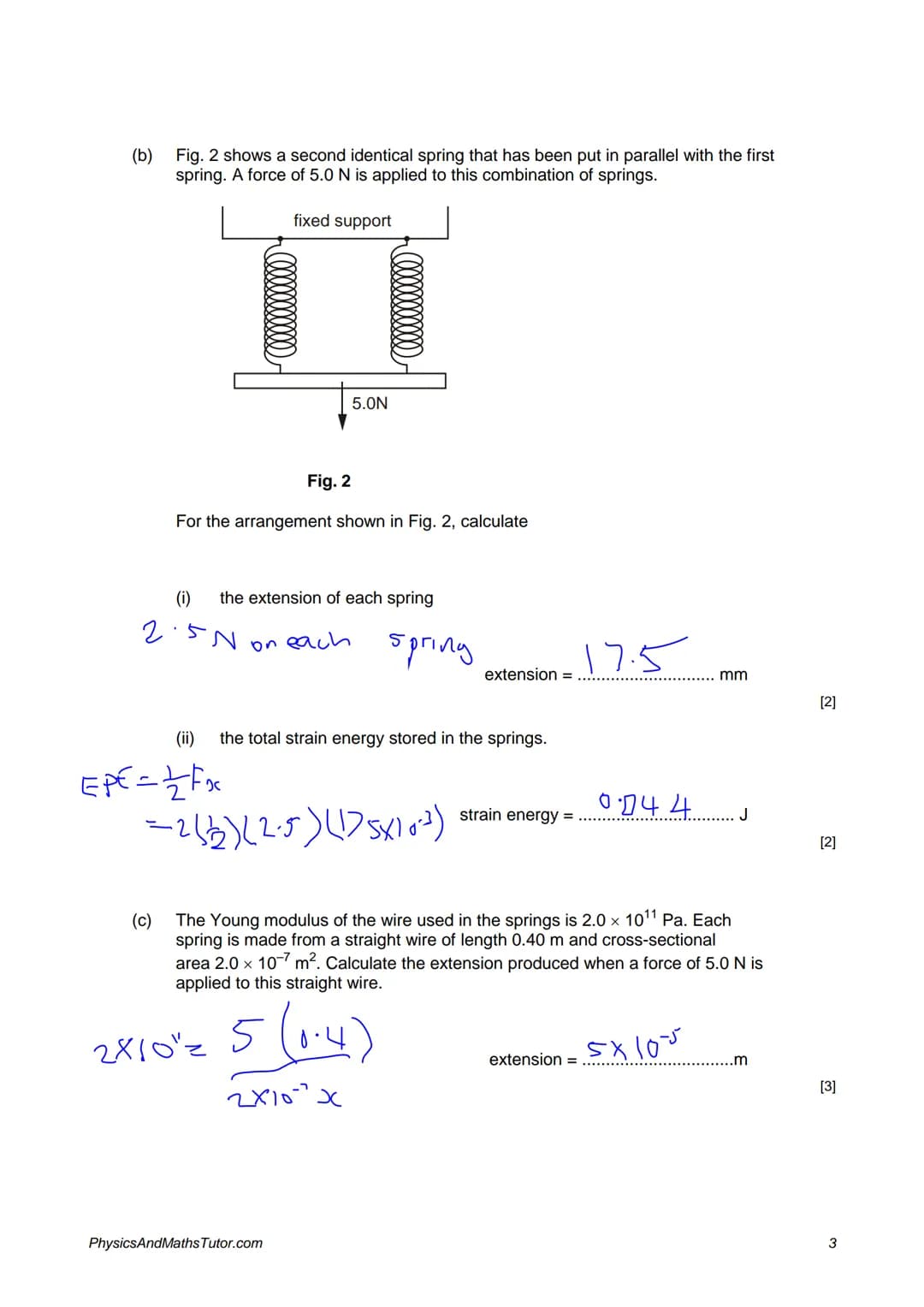

When two identical springs are arranged in parallel, the force divides equally between them. This configuration affects both the total extension and stored elastic potential energy of the system.

Highlight: In parallel spring arrangements, each spring experiences half the total force but produces the same extension, effectively doubling the system's stiffness.

The material properties, specifically Young's modulus, determine how a straight wire extends under force compared to when it's formed into a spring. A wire with Young's modulus of 2.0 × 10¹¹ Pa demonstrates different elastic behavior in these two configurations.

Energy Conservation in Mechanical Systems

The relationship between potential and kinetic energy demonstrates energy conservation in mechanical systems. When analyzing spring systems, the stored elastic potential energy depends on both the force applied and the resulting extension.

Vocabulary: Strain energy represents the potential energy stored in a deformed elastic object, such as a stretched spring or wire.

The strain energy stored in a spring differs significantly from that in a straight wire under the same force due to their different deformation mechanisms. Springs are designed to maximize extension and energy storage through their helical structure.

Conveyor Systems and Energy Transformations

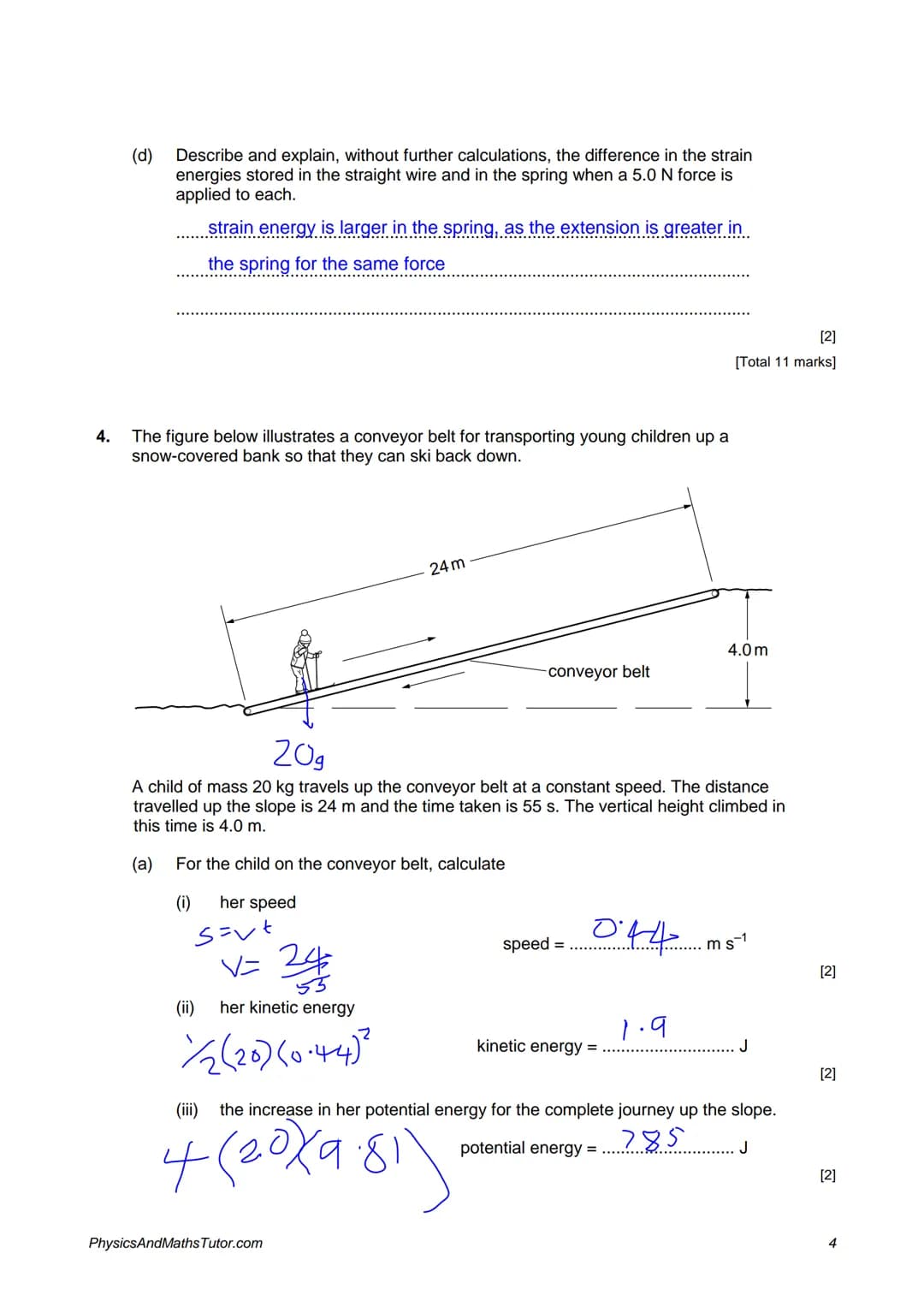

Potential and kinetic energy calculations for conveyor belt scenarios Conveyor systems demonstrate practical applications of work and energy principles. When a 20 kg mass moves up a slope via conveyor belt, both kinetic and potential energy calculations become relevant.

The system converts electrical energy to mechanical work, lifting the mass against gravity. The speed of travel (distance/time) determines the kinetic energy, while the change in height directly affects the gravitational potential energy.

Example: For a child ascending 4.0 meters vertically over 24 meters of slope in 55 seconds:

• Speed = 24m/55s = 0.44 m/s
• Kinetic Energy = ½mv² = ½(20)(0.44)² = 1.9 J
• Potential Energy Change = mgh = 20(9.81)(4.0) = 785 J

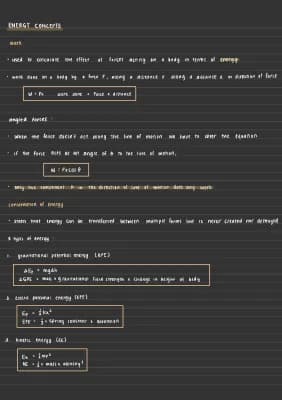

Understanding Energy Conservation and Applications in Mechanical Systems

Overall Summary This comprehensive guide explores practical applications of energy conservation principles across mechanical systems, including conveyor belts, musical instruments, and material properties. We'll examine calculations involving potential and kinetic energy, spring extensions, and mechanical power requirements.

Definition: Energy conservation states that energy cannot be created or destroyed, only transformed from one form to another within a closed system.

Conveyor Belt Power Requirements

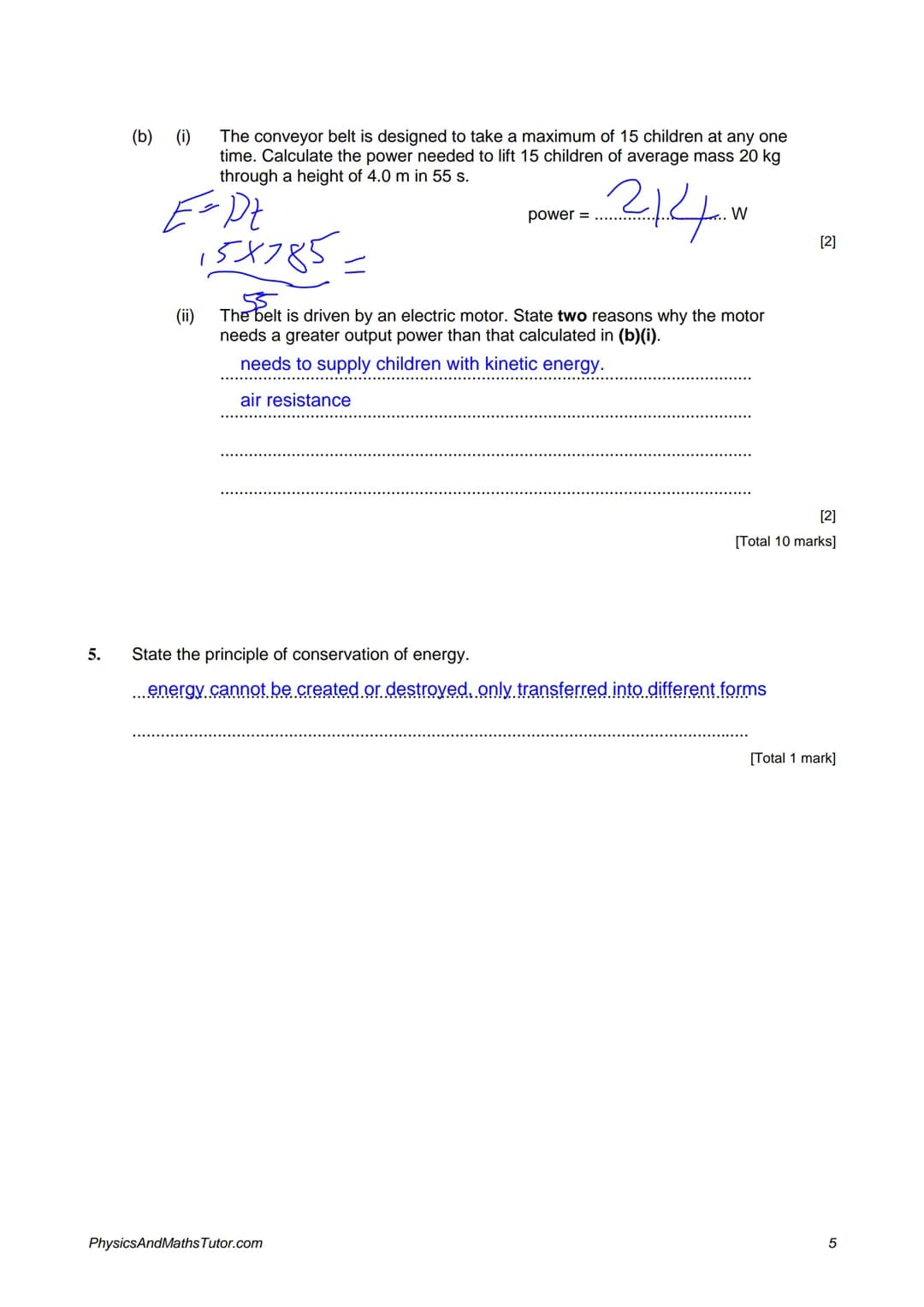

When designing mechanical systems like conveyor belts, calculating power requirements involves understanding both gravitational potential energy and kinetic energy. For a conveyor belt lifting multiple objects, we must consider:

1. The total mass being lifted
2. The vertical height change
3. The time duration of operation
4. Additional energy losses

Example: For a conveyor belt lifting 15 children (20 kg each) through 4.0 meters in 55 seconds:

• Total mass = 15 × 20 kg = 300 kg
• Gravitational potential energy = mgh = 300 × 9.81 × 4.0
• Minimum power required = Energy/time

Real-world applications require accounting for additional power needs due to:

• System friction
• Air resistance
• Kinetic energy requirements
• Mechanical efficiency losses

Wire Tension and Material Properties in Musical Instruments

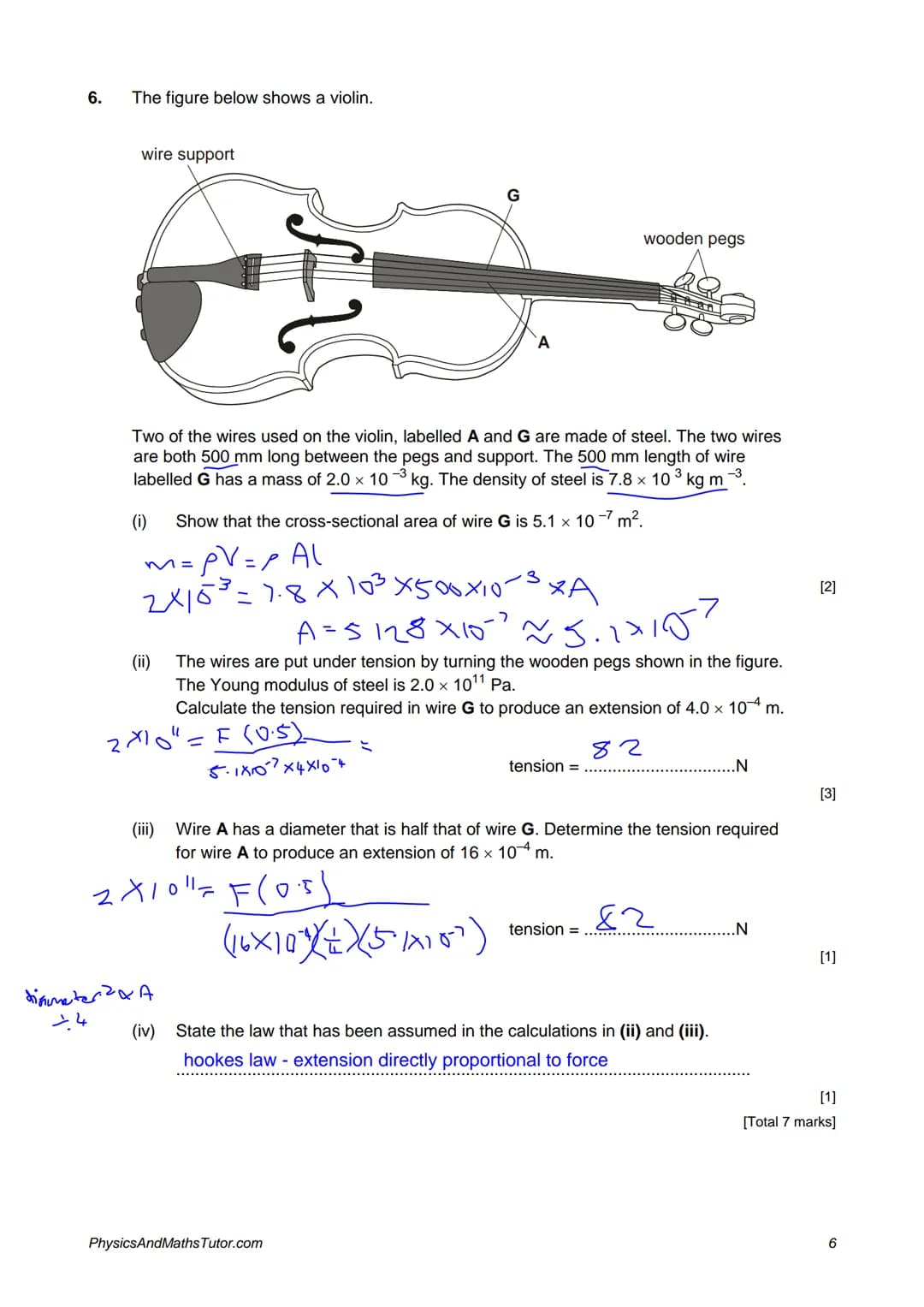

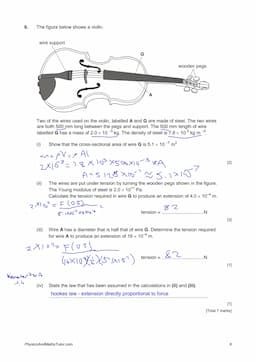

Understanding wire tension and material properties is crucial in musical instrument design, particularly for stringed instruments like violins. The relationship between tension, extension, and cross-sectional area follows specific physical laws.

Vocabulary: Young's modulus describes a material's stiffness by relating stress (force per unit area) to strain (proportional deformation).

Steel wires in instruments demonstrate Extension calculation for springs obeying Hooke's law. Key considerations include:

• Wire length and diameter
• Material density and Young's modulus
• Applied tension and resulting extension
• Cross-sectional area calculations

Highlight: For steel wires under tension, the extension is directly proportional to the applied force (Hooke's Law) within the elastic limit.

Experimental Analysis of Material Properties

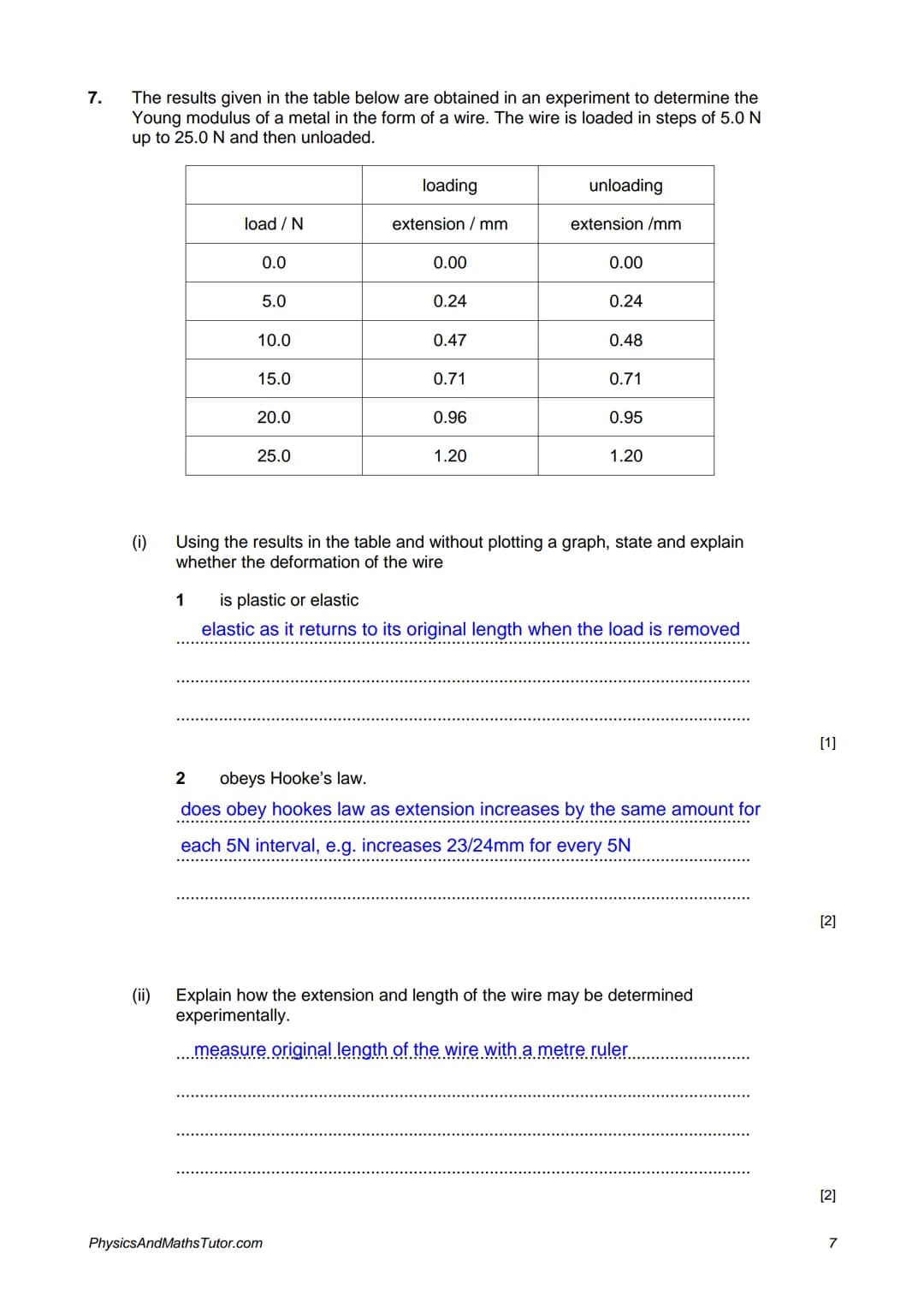

When conducting materials testing, systematic measurement and analysis are essential for determining properties like Young's modulus. The process involves:

1. Incremental loading and unloading cycles
2. Precise extension measurements
3. Data analysis for elastic behavior
4. Calculations using measured dimensions

Example: For a wire under test:

• Record initial length and cross-sectional area
• Apply measured loads incrementally
• Monitor extension values
• Calculate Young's modulus using stress-strain relationships

The experimental setup must ensure:

• Accurate length measurements
• Precise load application
• Controlled environmental conditions
• Reliable data recording

Energy Transformations in Mechanical Systems

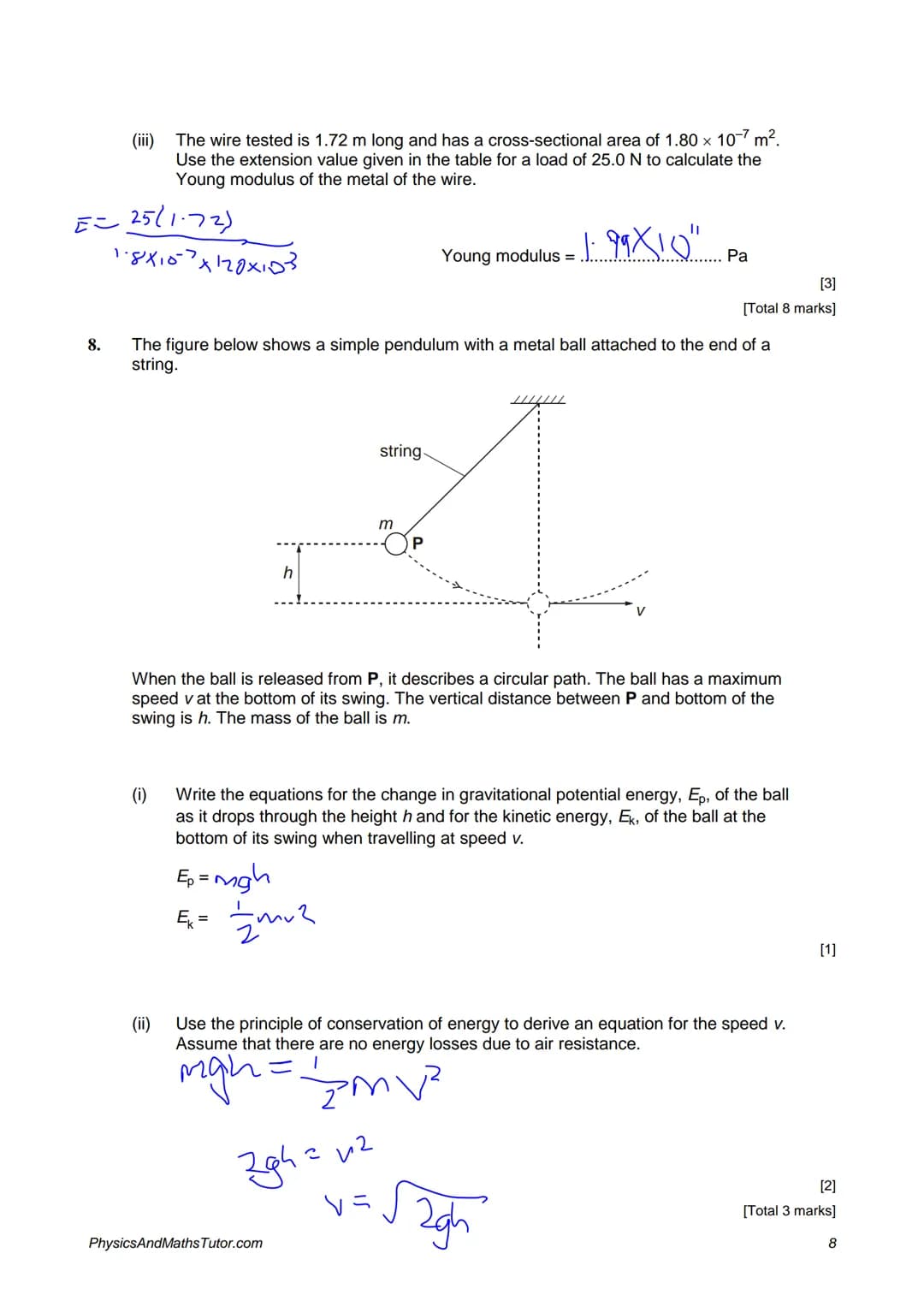

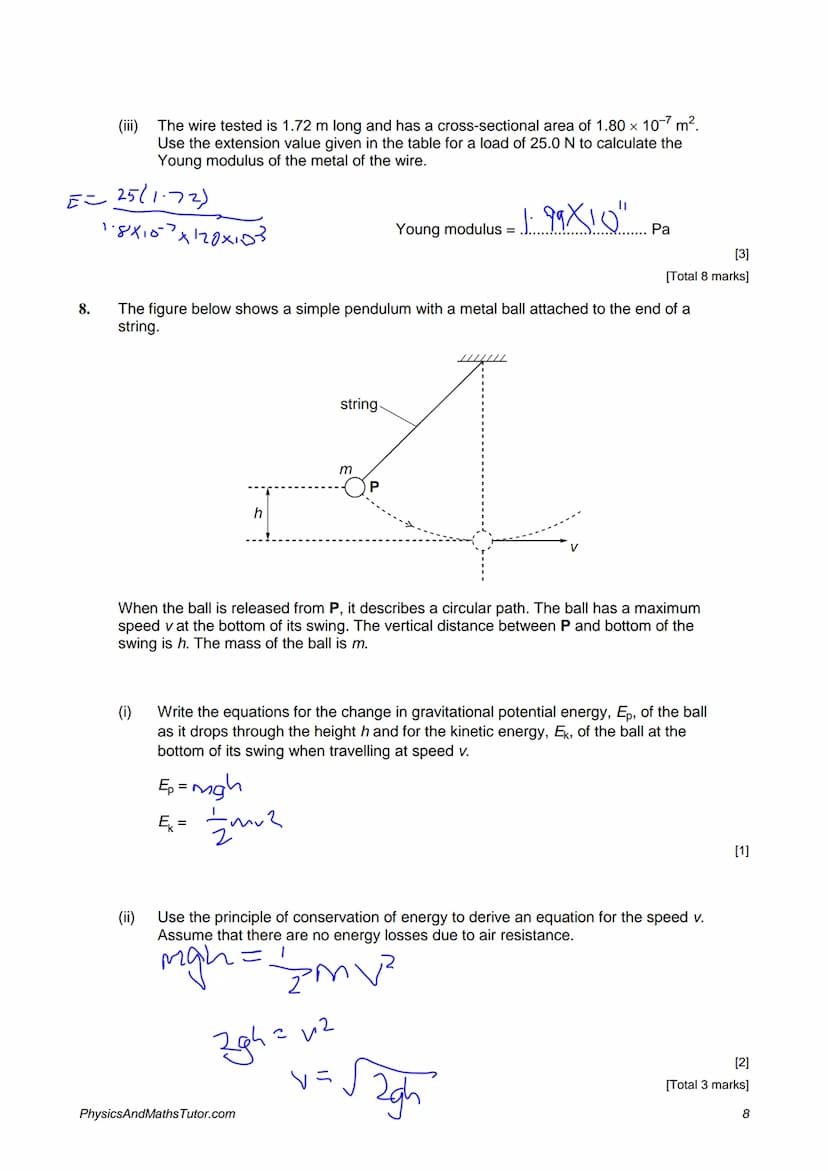

Understanding energy transformations is crucial for analyzing mechanical systems like pendulums and rainfall energy harvesting. These applications demonstrate conservation of energy principles through:

1. Gravitational potential energy calculations
2. Kinetic energy conversions
3. Energy efficiency considerations
4. Power generation capabilities

Definition: Mechanical energy transformations follow strict conservation laws while accounting for system losses and efficiency factors.

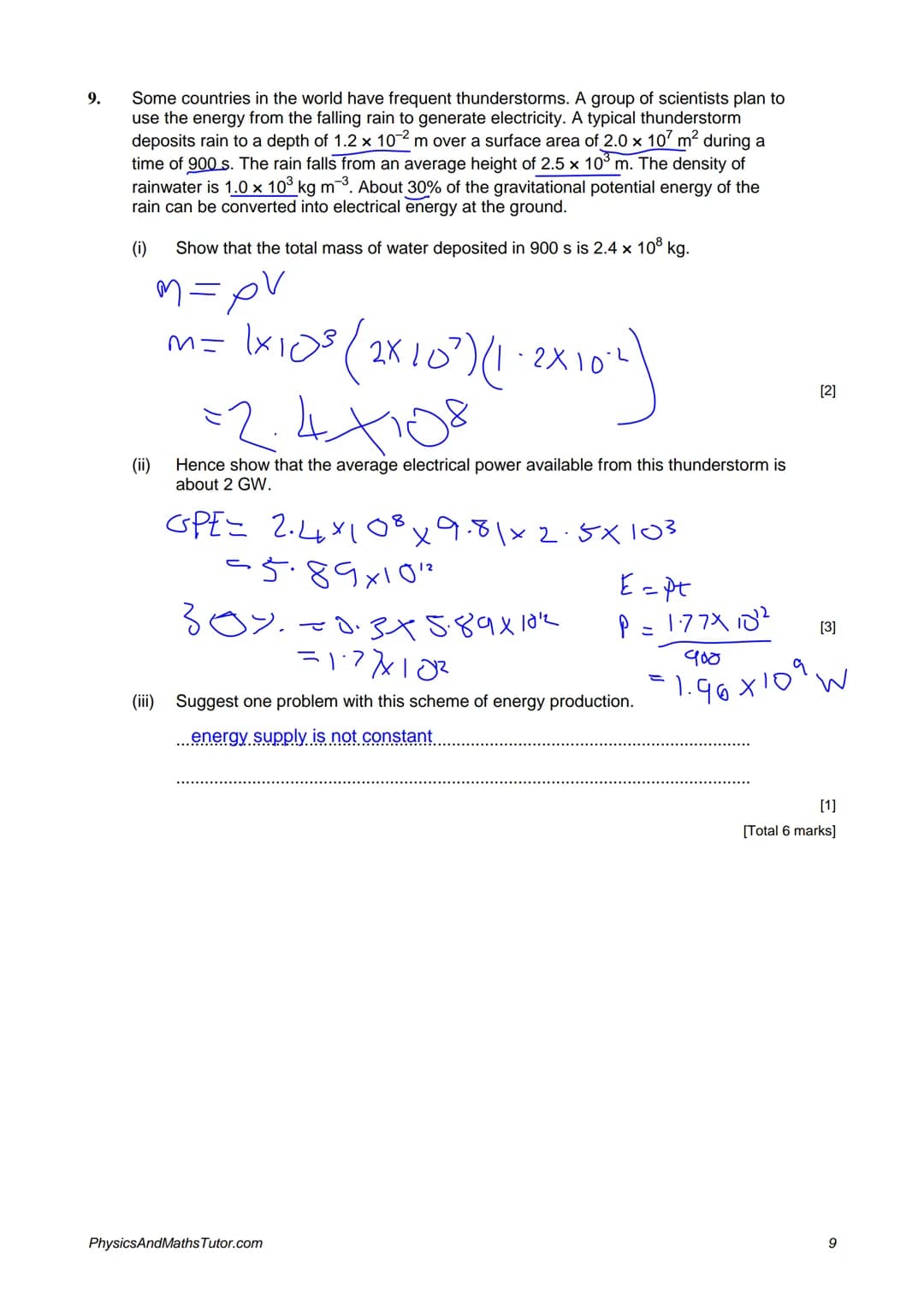

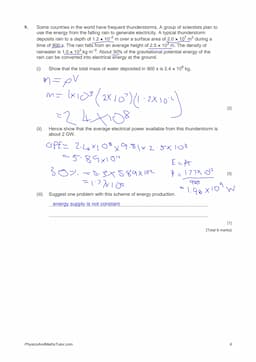

For practical applications like rainfall energy harvesting:

• Calculate total mass flow
• Determine potential energy available
• Account for conversion efficiency
• Consider practical implementation challenges

The real-world implementation must address:

• Intermittent energy availability
• System efficiency losses
• Environmental factors
• Infrastructure requirements

Understanding Spring Behavior and Hooke's Law Analysis

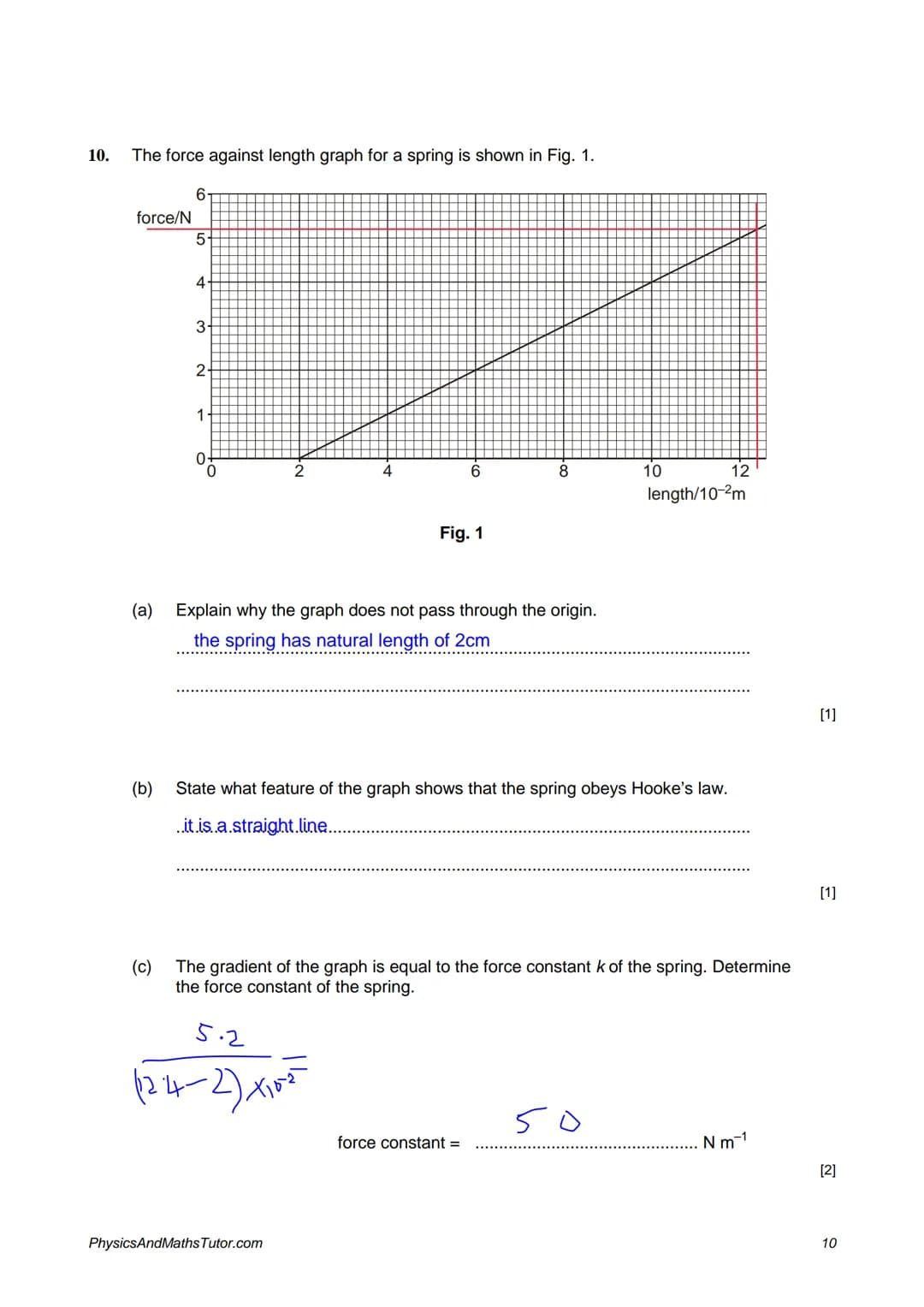

When analyzing spring behavior in physics, understanding the relationship between force and length is crucial. The force-length graph for a spring provides valuable insights into its mechanical properties and behavior under different loads. Let's explore a detailed analysis of spring characteristics through a practical example.

A spring's natural resting length plays a fundamental role in its behavior. In our example, the spring has an initial length of 2 centimeters before any force is applied. This explains why the force-length graph intersects the length axis at 2 cm rather than passing through the origin. This offset represents the spring's unstretched state.

The linear nature of the force-length relationship demonstrates that this spring follows Extension calculation for springs obeying Hooke's law. When a spring obeys Hooke's law, the force required to extend it is directly proportional to the extension from its natural length. This proportionality appears as a straight line on the graph, with the gradient representing the spring constant $k$.

Definition: Hooke's law states that the force (F) exerted by a spring is proportional to its extension $x$ from its natural length, expressed as F = kx, where k is the spring constant.

To calculate the spring constant, we analyze the graph's gradient. Using two points on the line, we can determine that when the length changes from 2 cm to 24 cm (a displacement of 22 cm or 0.22 meters), the force increases by 5.2 N. Therefore:

Example: Spring constant $k$ = Change in Force / Change in Length k = 5.2 N / 0.22 m = 23.6 N/m

This spring constant value tells us how stiff the spring is - higher values indicate a stiffer spring requiring more force to stretch it a given distance.

Applications of Spring Force Analysis in Engineering

Understanding spring behavior and force analysis has numerous practical applications in engineering and everyday devices. From mechanical systems to precision instruments, springs play a vital role in various technologies.

The analysis of spring characteristics is particularly important in designing suspension systems, mechanical switches, and precision measuring instruments. Engineers must carefully consider the spring constant and natural length when selecting springs for specific applications. For instance, in vehicle suspension systems, springs must be chosen with appropriate force constants to provide optimal comfort and handling.

When working with multiple springs in a system, understanding their individual force-length relationships becomes crucial. Engineers often need to calculate the combined effect of several springs working together, whether they're arranged in series or parallel. This requires a thorough understanding of both the individual spring constants and their natural lengths.

Highlight: The force constant $k$ of a spring is a crucial parameter that determines its performance in practical applications. A higher force constant means the spring is stiffer and requires more force to extend it.

The practical implications of spring analysis extend to various fields, including:

• Automotive suspension systems
• Precision measuring instruments
• Manufacturing equipment
• Consumer electronics
• Medical devices

Vocabulary: Spring constant $k$ - A measure of a spring's stiffness, expressed in Newtons per meter (N/m)
