Understanding Simple Harmonic Motion

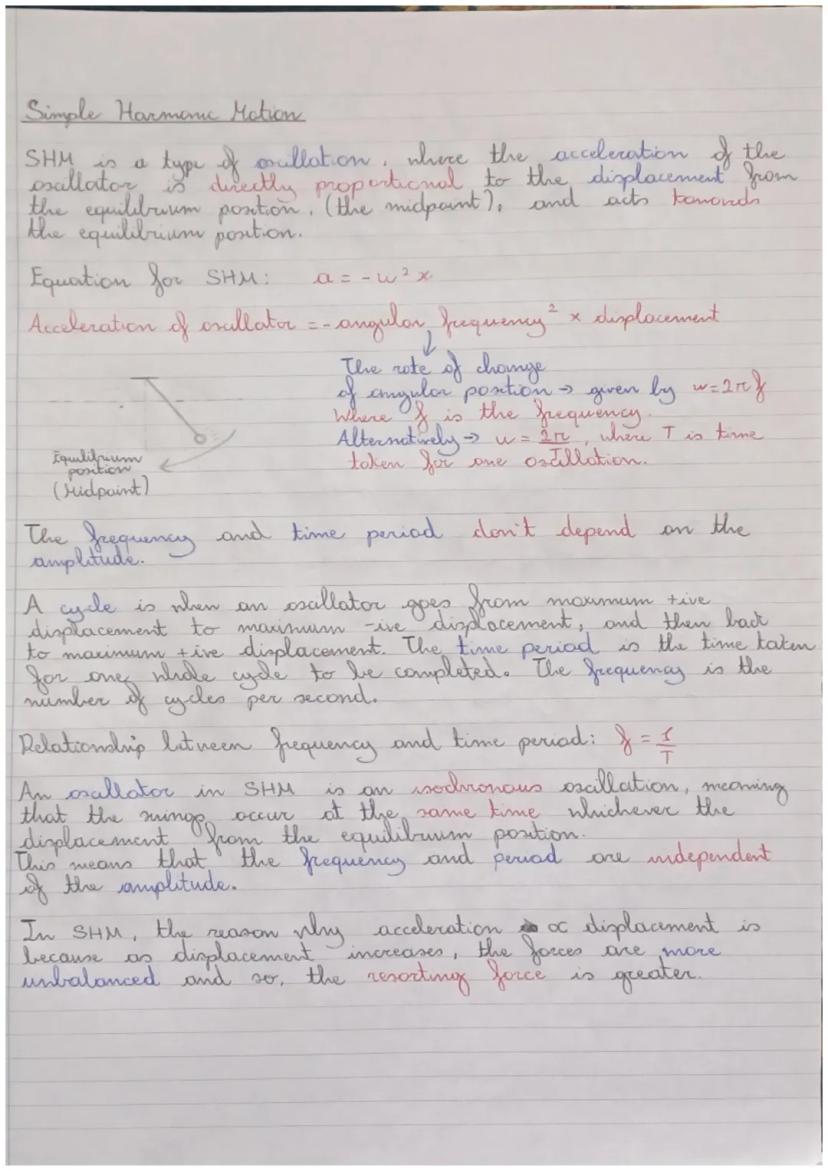

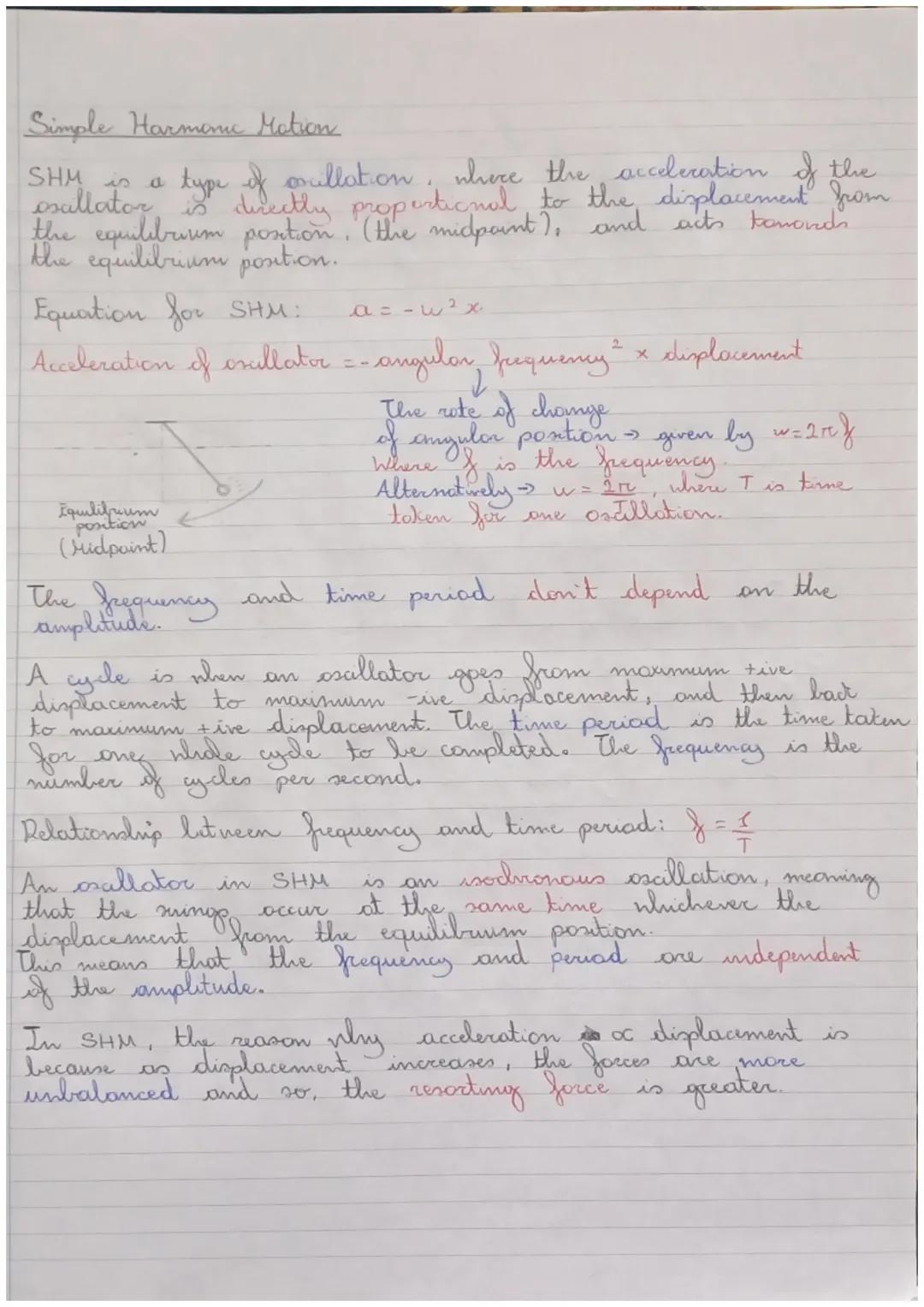

Ever wondered why a swing always takes the same time to go back and forth, regardless of how high you push it? That's simple harmonic motion in action - a type of oscillation where acceleration is directly proportional to displacement from the equilibrium position.

The key equation to remember is a = -ω²x, where the negative sign shows that acceleration always acts towards the equilibrium position (the midpoint). The angular frequency (ω) relates to normal frequency through ω = 2πf, where f is the number of complete cycles per second.

What makes SHM special is that it's isochronous - the frequency and time period don't depend on amplitude. Whether you displace an object a little or a lot, it still takes the same time to complete one full cycle. This happens because as displacement increases, the restoring force also increases proportionally.

Quick Tip: Remember that frequency $f$ and time period (T) are reciprocals: f = 1/T. If something oscillates twice per second, each cycle takes 0.5 seconds!

Energy Changes and SHM Equations

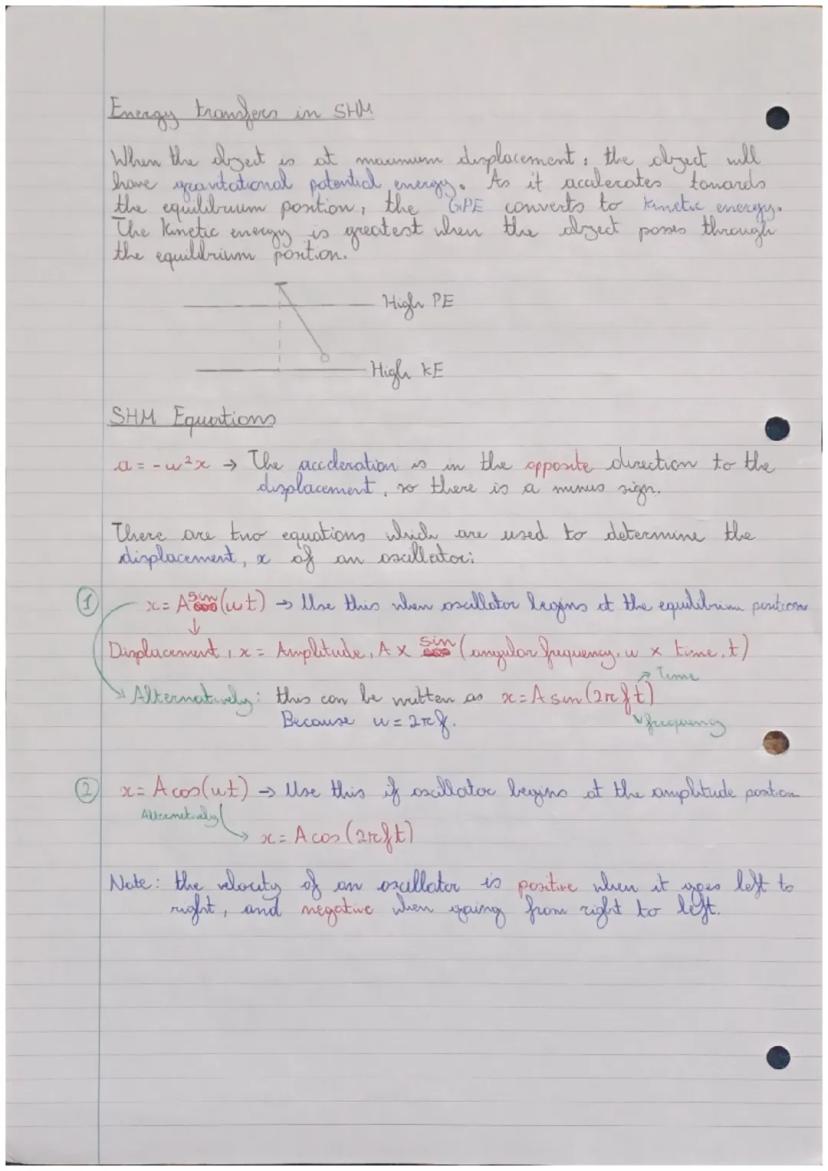

Energy in SHM constantly transforms between potential energy (PE) at maximum displacement and kinetic energy (KE) at the equilibrium position. Think of a pendulum - it's stationary at the top (high PE, zero KE) but moving fastest at the bottom (zero PE, maximum KE).

There are two crucial displacement equations depending on your starting point. Use x = A sin(ωt) when the oscillator begins at equilibrium position, and x = A cos(ωt) when it starts at maximum amplitude. Both can be written using normal frequency as x = A sin(2πft) or x = A cos(2πft).

The amplitude (A) represents the maximum displacement from equilibrium. Remember that velocity is positive when moving left to right, and negative when moving right to left - this sign convention helps track the oscillator's direction.

Memory Trick: "Sine starts at zero" - use sin when starting from equilibrium (zero displacement), and cos when starting from amplitude (maximum displacement).

Finding Velocity and Acceleration

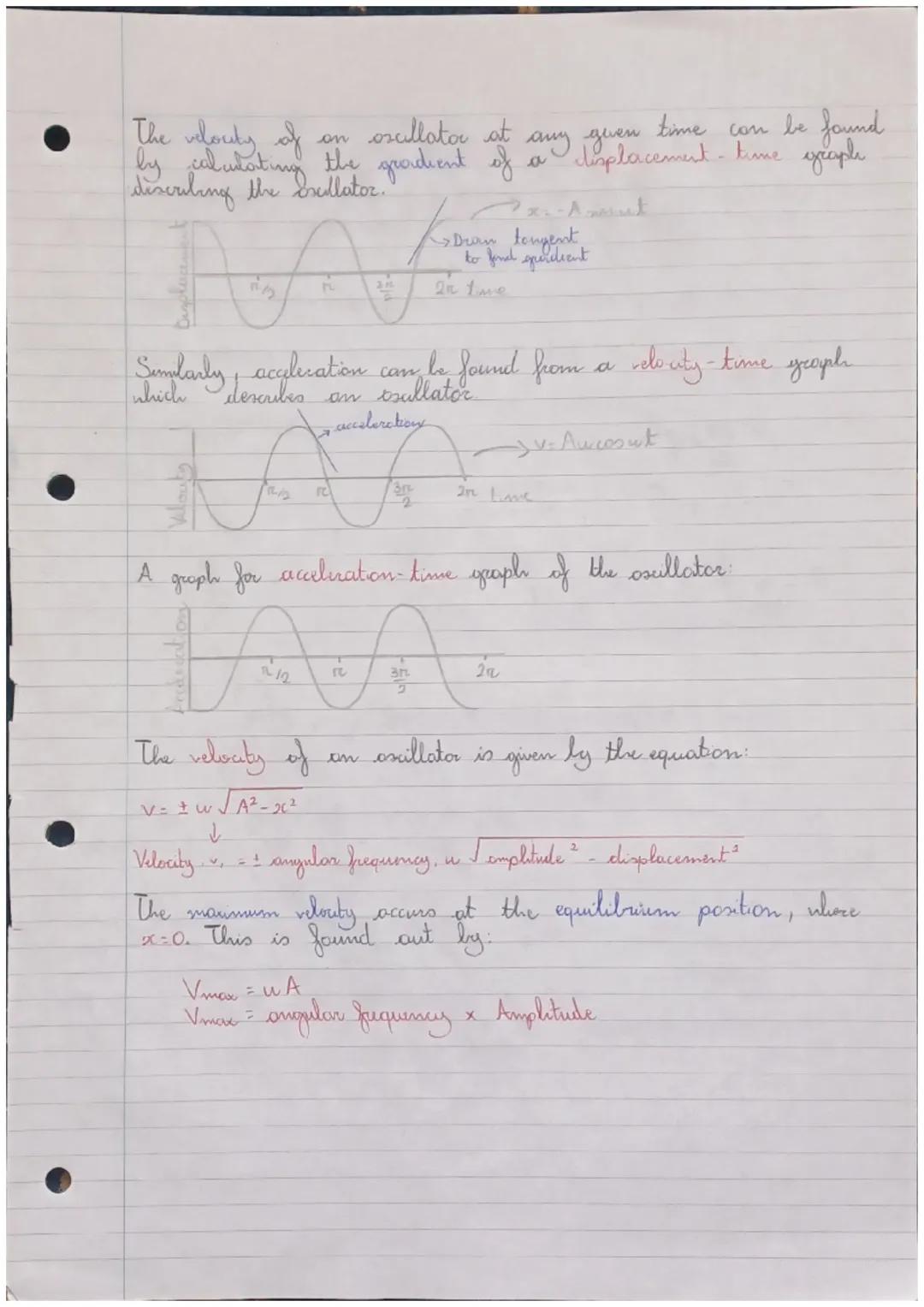

Understanding how to find velocity and acceleration from graphs is crucial for SHM problems. Velocity equals the gradient of a displacement-time graph, whilst acceleration equals the gradient of a velocity-time graph - just like in regular motion problems.

The velocity equation v = ±ω√$A² - x²$ tells you the speed at any position. Notice that maximum velocity occurs at equilibrium $x = 0$, giving you vₘₐₓ = ωA. This makes sense - objects move fastest when passing through the centre of their oscillation.

The graphs show how displacement, velocity, and acceleration relate to each other over time. When displacement is maximum, velocity is zero (turning points). When displacement is zero, velocity is maximum (passing through equilibrium).

Exam Tip: Practice sketching displacement, velocity, and acceleration graphs together. They're phase-shifted versions of each other - understanding one helps you draw the others!

Mass-Spring Systems

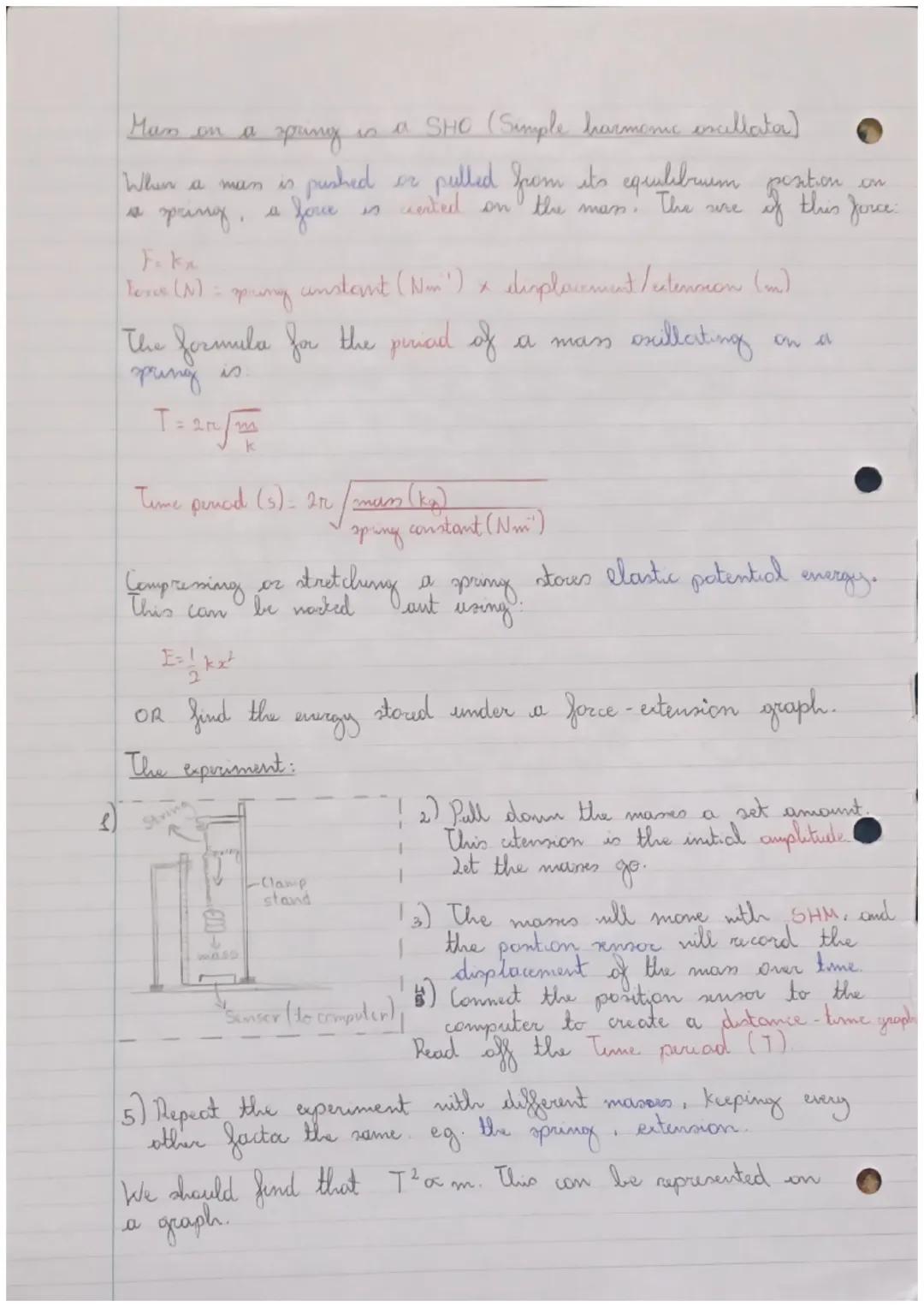

A mass on a spring perfectly demonstrates SHM principles. When displaced from equilibrium, the spring exerts a restoring force following Hooke's law: F = kx, where k is the spring constant measuring the spring's stiffness.

The time period formula T = 2π√(m/k) reveals something fascinating - heavier masses oscillate more slowly, whilst stiffer springs oscillate faster. Notice that amplitude doesn't appear in this equation, confirming that SHM is isochronous.

Elastic potential energy stored in a compressed or stretched spring equals E = ½kx². You can also find this energy by calculating the area under a force-extension graph - a useful alternative method for complex problems.

The experimental setup involves hanging masses from springs and measuring oscillation periods. Plotting T² against mass should give you a straight line, proving the theoretical relationship and allowing you to determine the spring constant.

Real-world Connection: Car suspension systems use mass-spring principles to provide smooth rides - engineers carefully choose spring constants and damping to optimise comfort and handling!

Simple Pendulums

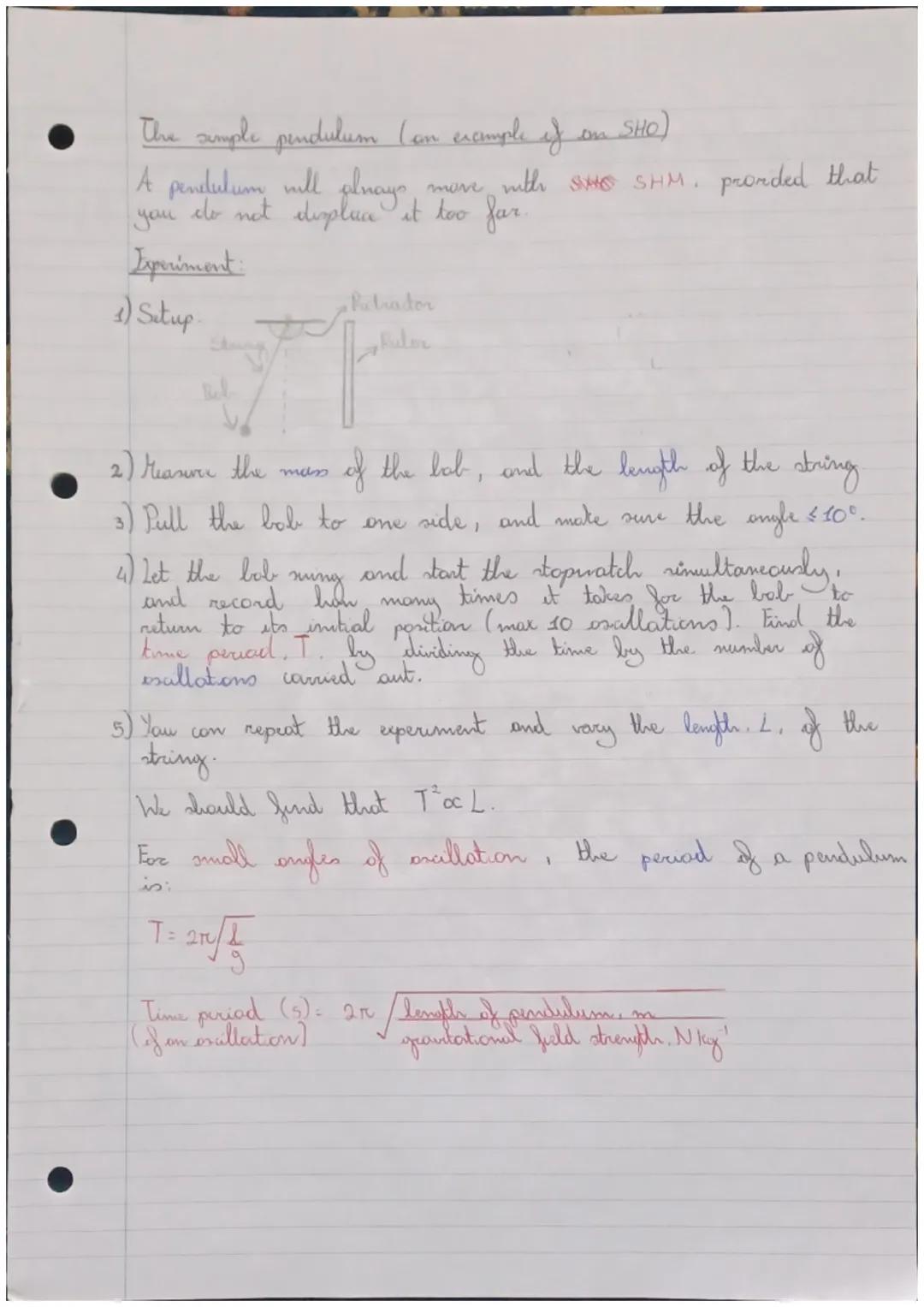

A simple pendulum provides another excellent example of SHM, but only for small angles (≤10°). Beyond this, the motion becomes more complex and the simple equations no longer apply accurately.

The period equation T = 2π√(L/g) shows that only length affects the pendulum's timing - not mass or amplitude (for small angles). Longer pendulums swing more slowly, whilst gravitational field strength affects the timing too.

During experiments, you'll measure multiple oscillations to improve accuracy, then divide total time by the number of swings to find the period. Plotting T² against length should give a straight line with gradient 4π²/g, allowing you to calculate gravitational field strength.

This relationship explains why pendulum clocks needed adjustment when moved to different altitudes or latitudes - slight changes in g affected their timekeeping accuracy.

Historical Note: Galileo discovered pendulum isochronism by timing swings against his pulse - this observation later led to the first accurate mechanical clocks!

Forces and Resonance

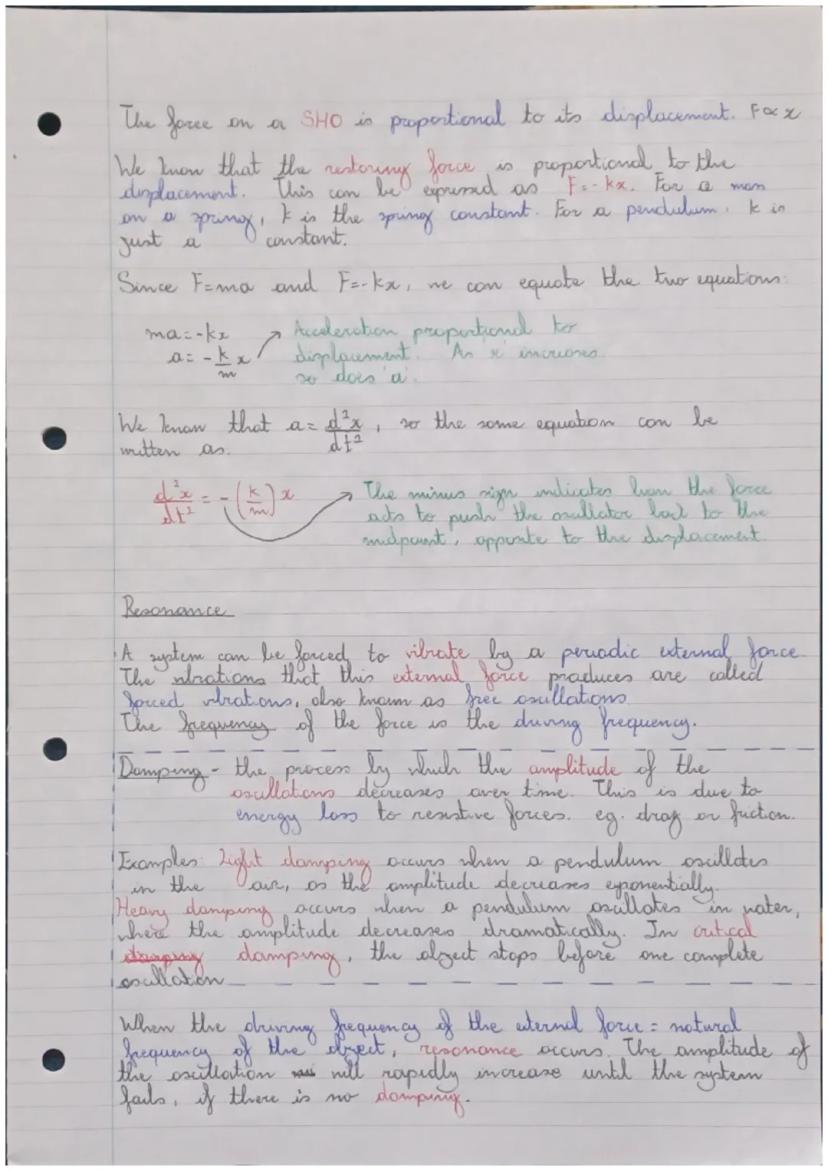

The fundamental principle behind all SHM is that restoring force is proportional to displacement: F ∝ x. For springs, this gives F = -kx, whilst pendulums have their own constant of proportionality.

Combining F = ma with F = -kx gives us a = -(k/m)x, showing mathematically why acceleration is proportional to displacement. This differential equation describes the motion of all simple harmonic oscillators.

Resonance occurs when an external driving frequency matches an object's natural frequency, causing dramatic amplitude increases. Without damping (energy loss through friction or air resistance), resonance can destroy structures - like the famous Tacoma Narrows Bridge collapse.

Damping reduces oscillation amplitude over time and comes in different forms: light damping allows many oscillations before stopping, heavy damping reduces amplitude quickly, and critical damping stops motion in the shortest time without overshooting.

Safety Alert: Engineers must consider resonance when designing buildings, bridges, and machinery - avoiding natural frequencies that match common vibrations like wind or traffic!

Types of Damping and Their Effects

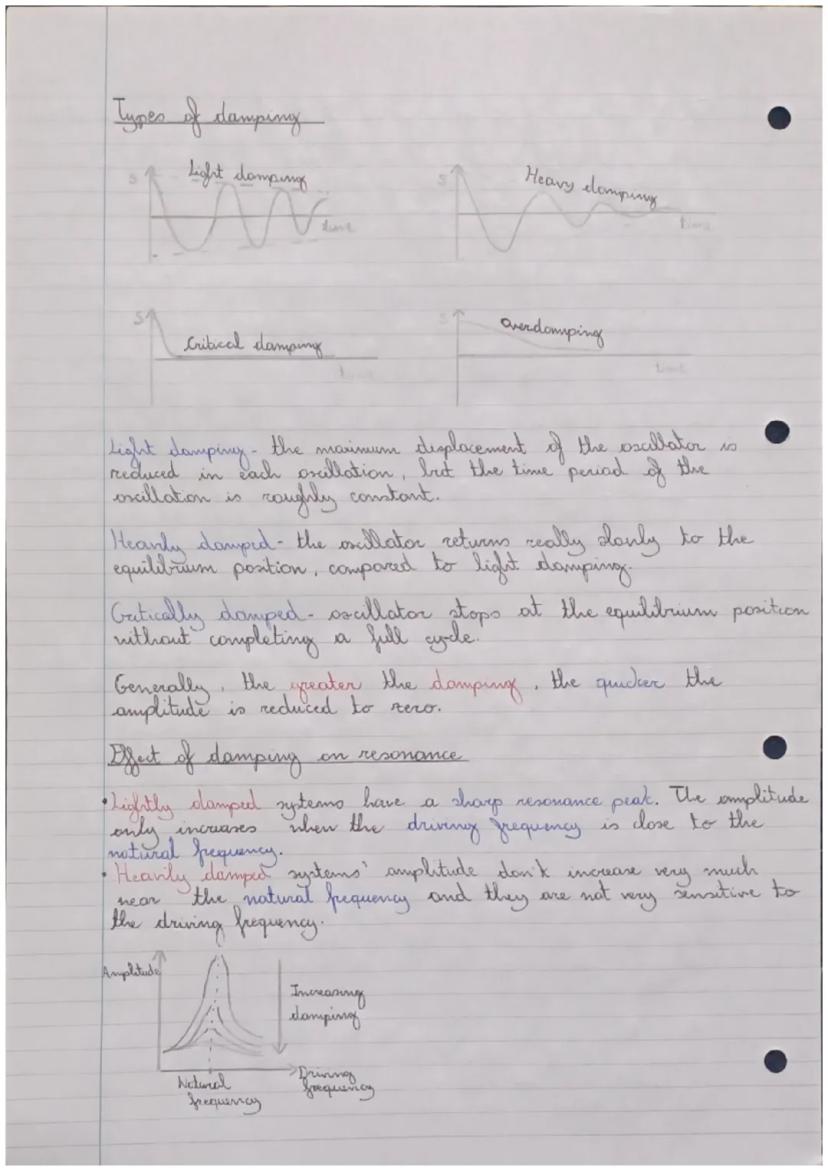

Understanding different damping types helps explain real-world oscillations. Light damping maintains roughly constant time periods whilst gradually reducing amplitude - like a pendulum swinging in air that slowly comes to rest.

Heavy damping causes much faster amplitude reduction, whilst critical damping represents the optimal balance - returning to equilibrium in minimum time without overshooting. Overdamping takes longer to reach equilibrium than critical damping.

The relationship between damping and resonance is crucial for engineering applications. Lightly damped systems show sharp resonance peaks - small frequency changes near the natural frequency cause large amplitude changes. Heavily damped systems have broader, lower peaks and are less sensitive to driving frequency.

Car shock absorbers use critical damping principles to control suspension oscillations, whilst musical instruments rely on light damping to maintain sustained notes. Understanding these principles helps engineers design everything from earthquake-resistant buildings to precision measuring instruments.

Design Principle: The ideal damping depends on application - clocks need light damping for sustained oscillation, whilst car suspensions need heavy damping for quick settling after bumps!
