Understanding Radiation and Quantum Phenomena in A-Level Physics

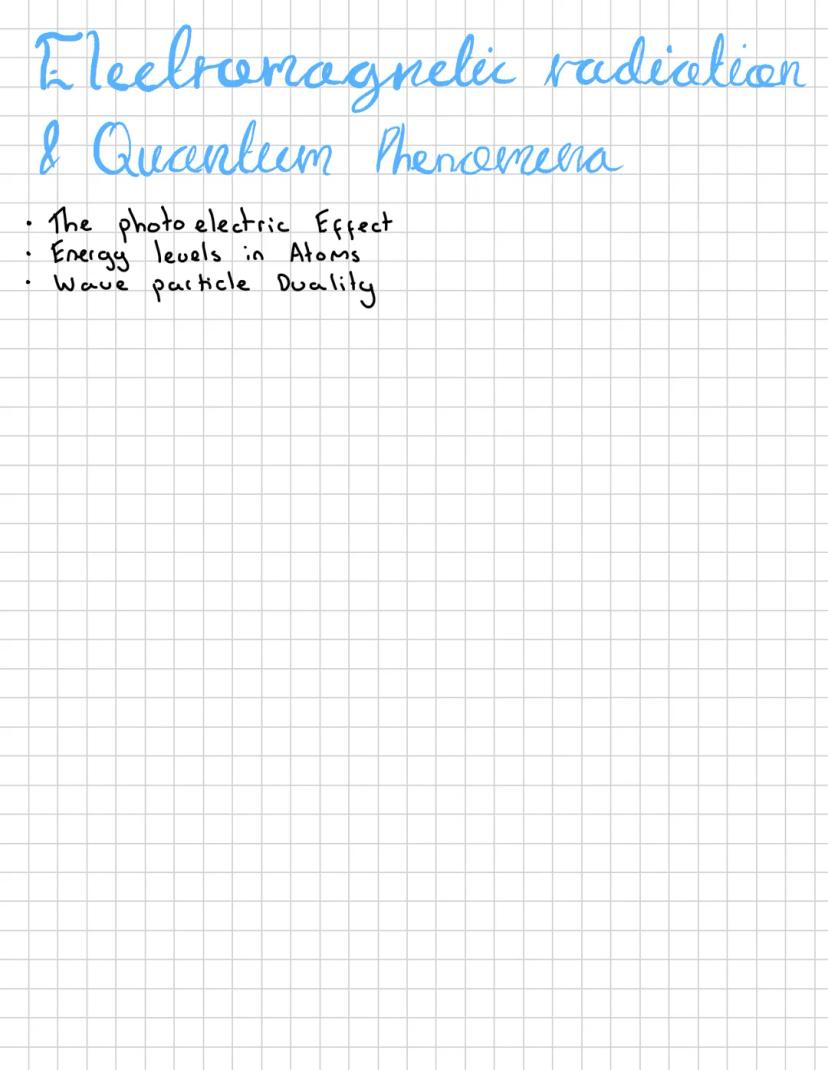

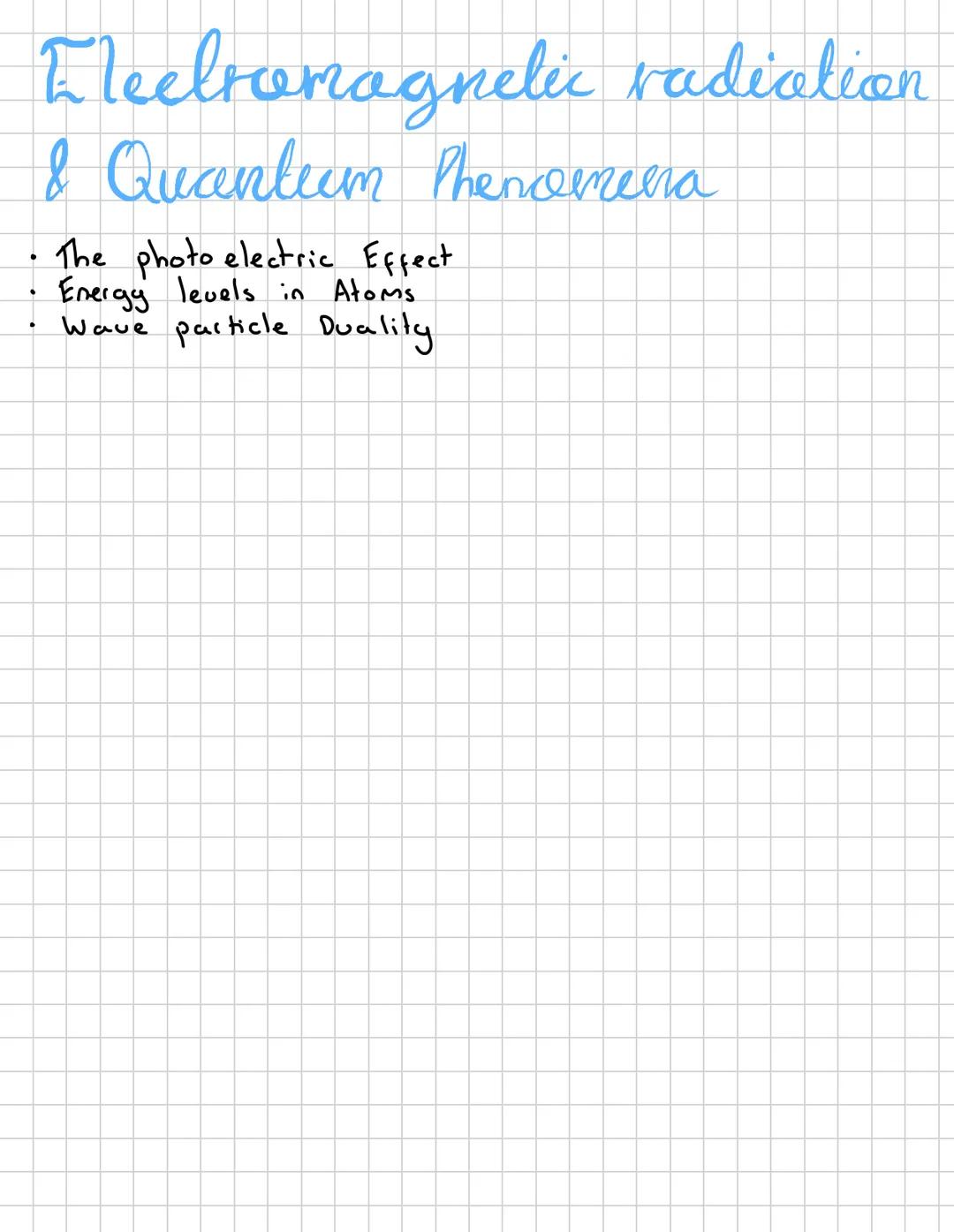

Electromagnetic Radiation & Quantum Phenomena

Get ready to explore three fascinating phenomena that revolutionised modern physics. The photoelectric effect shows how light can knock electrons out of metals, whilst energy levels in atoms explain why different elements glow with unique colours.

Wave-particle duality is perhaps the most incredible concept - it reveals that light and matter can behave as both waves and particles depending on how we observe them. These aren't just abstract theories; they're the foundation for technologies like solar panels, LED lights, and electron microscopes that you use every day.

Quick Tip: Think of quantum phenomena as nature's way of working in discrete "packets" rather than smooth, continuous flows - like climbing stairs instead of walking up a ramp.

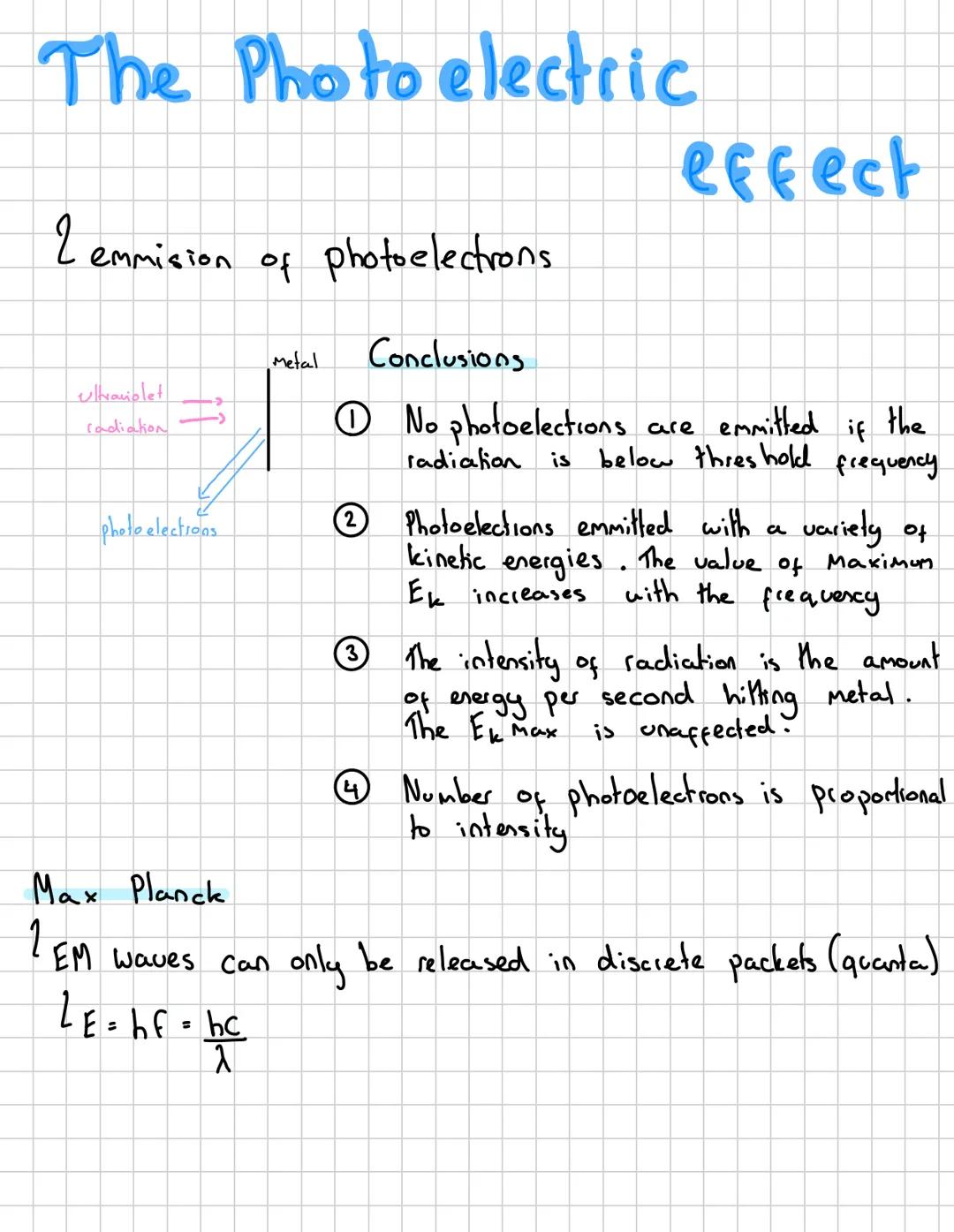

The Photoelectric Effect

When ultraviolet radiation hits a metal surface, it can knock out electrons called photoelectrons - but this process has some surprising rules. You'd expect brighter light to always produce faster electrons, but that's not what happens at all.

Here are the key discoveries that baffled scientists: First, no photoelectrons are emitted unless the radiation frequency exceeds a threshold frequency. Second, whilst photoelectrons have varying kinetic energies, the maximum kinetic energy only increases with frequency, not intensity.

Most surprisingly, increasing the light's intensity (brightness) doesn't affect the maximum kinetic energy at all - it just produces more photoelectrons. Max Planck solved this puzzle by proposing that electromagnetic waves come in discrete packets called quanta, with energy E = hf.

Remember: Frequency determines electron speed, whilst intensity determines the number of electrons emitted.

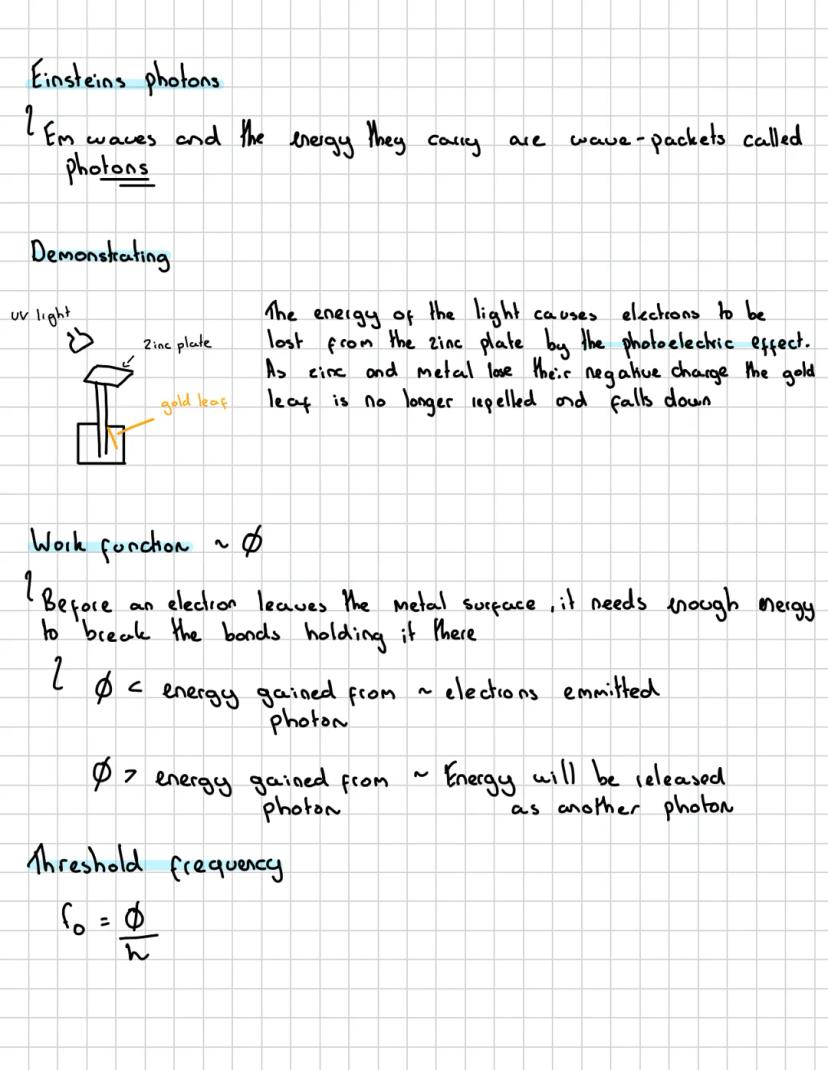

Einstein's Photons

Einstein took Planck's idea further, suggesting that electromagnetic waves travel as discrete energy packets called photons. You can demonstrate this using a simple experiment: when UV light hits a negatively charged zinc plate, electrons escape via the photoelectric effect, causing a gold leaf to fall as the charge neutralises.

Before an electron can escape a metal surface, it must overcome the work function (φ) - the energy needed to break the bonds holding it in place. If the photon's energy exceeds this work function, electrons are emitted; if not, the energy gets released as another photon instead.

The threshold frequency represents the minimum frequency needed for electron emission, calculated as f₀ = φ/h. This explains why dim UV light can trigger photoelectron emission whilst bright visible light cannot - it's all about having enough energy per photon, not total energy.

Key Insight: Think of the work function like an admission fee - each photon needs enough individual energy to "pay" for electron emission.

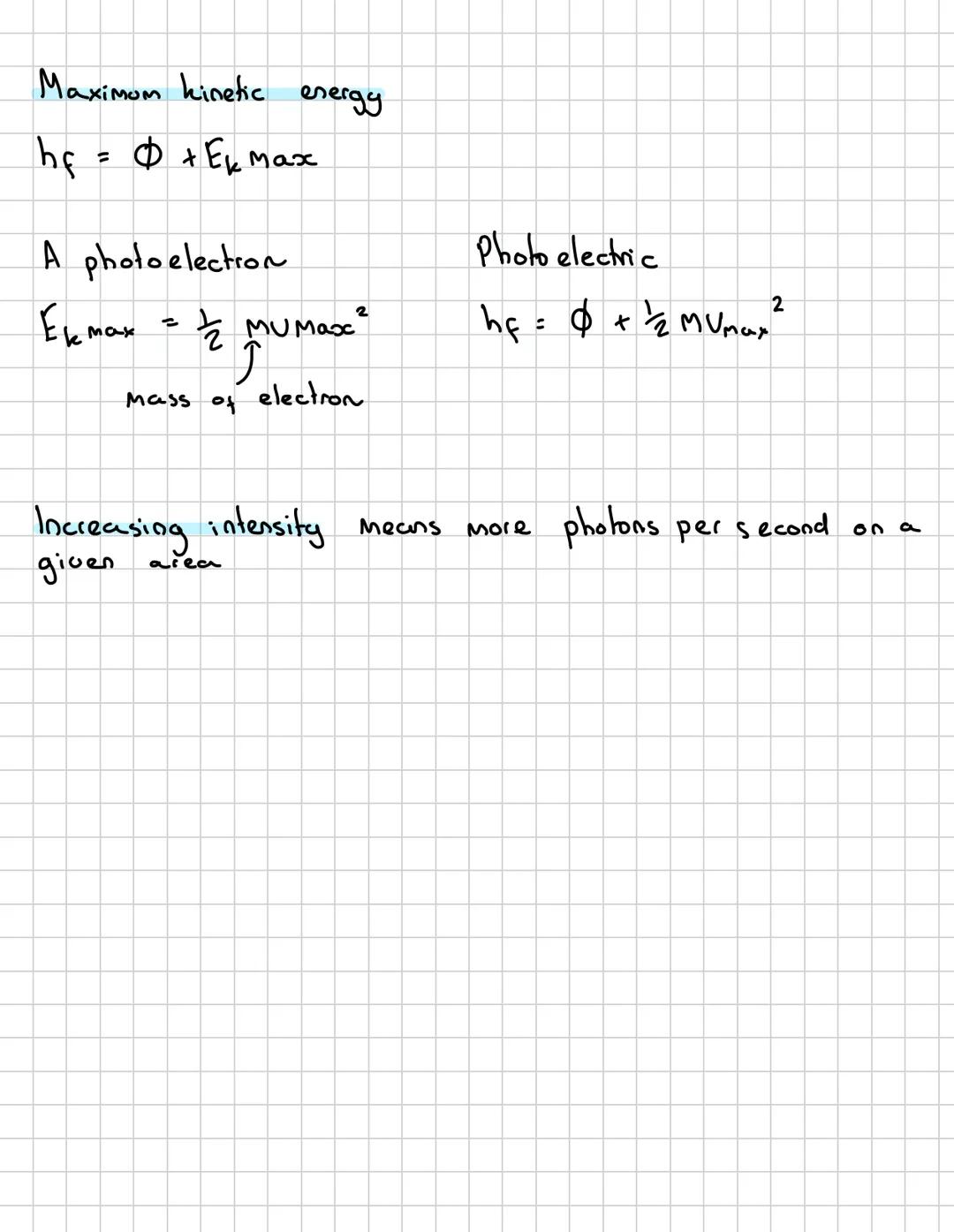

Maximum Kinetic Energy

The photoelectric equation hf = φ + Ekmax shows how photon energy gets distributed when hitting an electron. The photon's energy either helps the electron escape (work function) or gives it kinetic energy - sometimes both.

Maximum kinetic energy occurs when electrons escape from the surface with minimal energy loss, calculated as Ekmax = ½mVmax². Electrons deeper in the material lose more energy escaping, so they have lower final speeds.

Increasing light intensity means more photons per second hit the surface, producing more photoelectrons but not changing their maximum speed. Only increasing frequency (and thus individual photon energy) can boost the maximum kinetic energy of escaping electrons.

Exam Tip: Remember that intensity affects quantity of photoelectrons, whilst frequency affects their maximum energy.

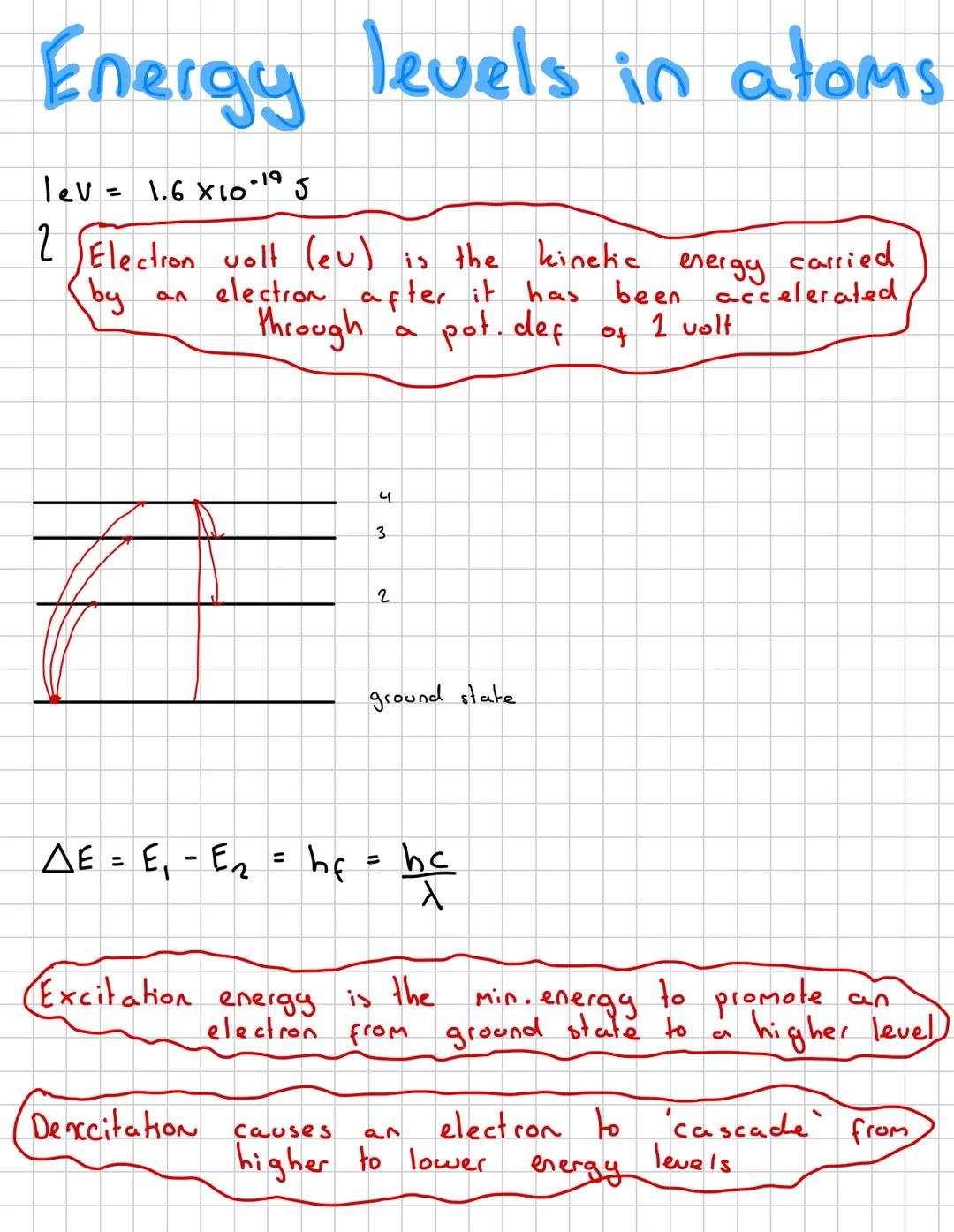

Energy Levels in Atoms

Electrons in atoms occupy specific energy levels rather than random positions - think of them like the rungs of a ladder. The ground state is the lowest energy level, whilst higher levels require specific amounts of energy to reach.

An electron volt (eV) equals 1.6 × 10⁻¹⁹ J and represents the kinetic energy an electron gains when accelerated through one volt. When electrons jump between levels, the energy difference equals ΔE = E₁ - E₂ = hf.

Excitation occurs when electrons absorb energy to jump to higher levels, whilst de-excitation happens when they cascade back down, releasing photons. Each transition produces light of a specific wavelength, creating the unique colours associated with different elements.

Visual Aid: Imagine energy levels as floors in a building - electrons can only exist on specific floors, never between them.

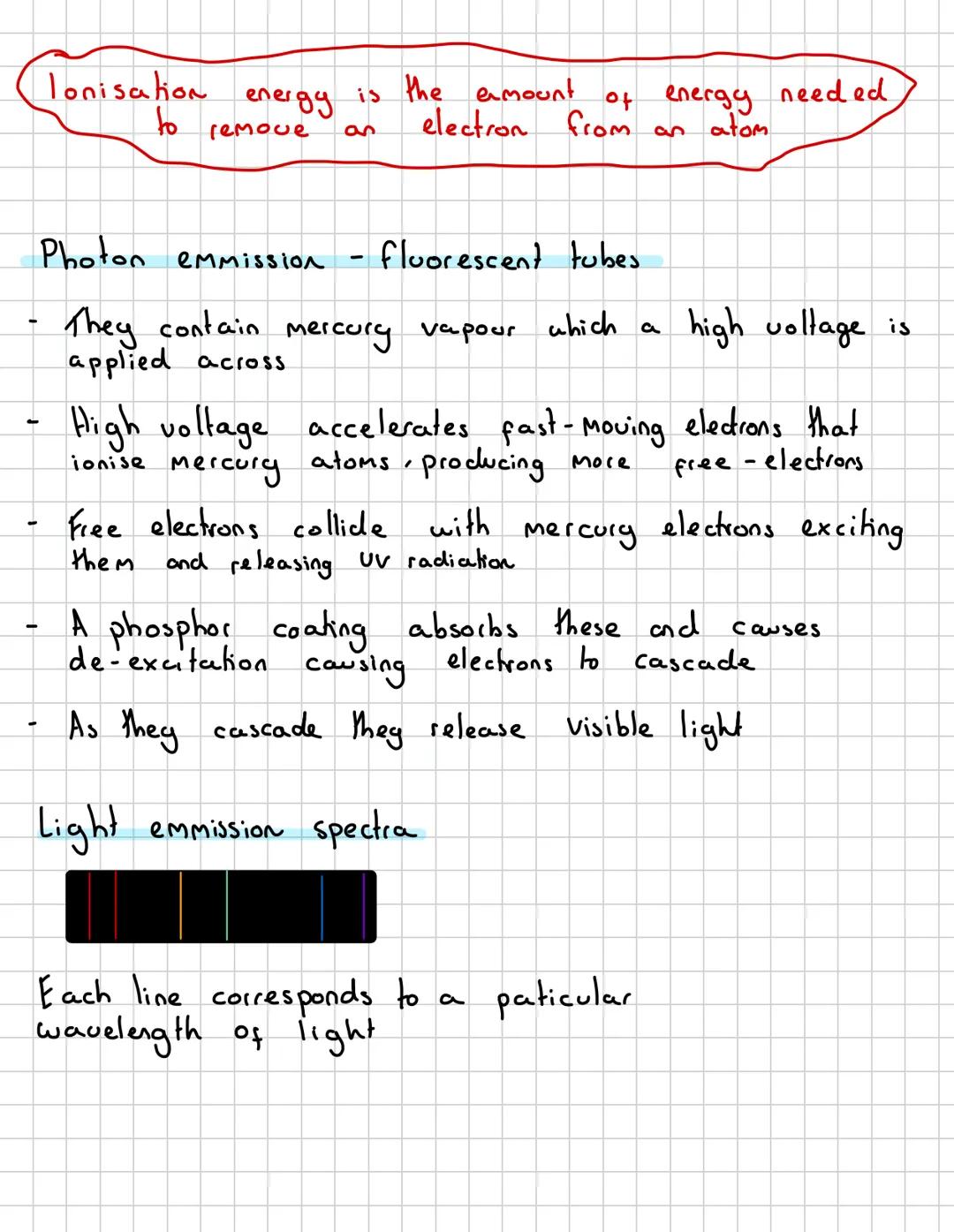

Ionisation and Light Emission

Ionisation energy is the minimum energy needed to completely remove an electron from an atom. This process is crucial for understanding how devices like fluorescent tubes work.

Fluorescent tubes contain mercury vapour and operate through a multi-step process. High voltage accelerates electrons that ionise mercury atoms, creating more free electrons. These colliding electrons excite mercury atoms, causing them to emit UV radiation.

The tube's phosphor coating absorbs UV photons and causes de-excitation in phosphor atoms. As electrons cascade down energy levels, they release visible light photons. Light emission spectra show distinct lines, each corresponding to specific wavelengths produced by particular electron transitions.

Real-world Connection: The same principle explains neon signs, LED lights, and even the aurora borealis!

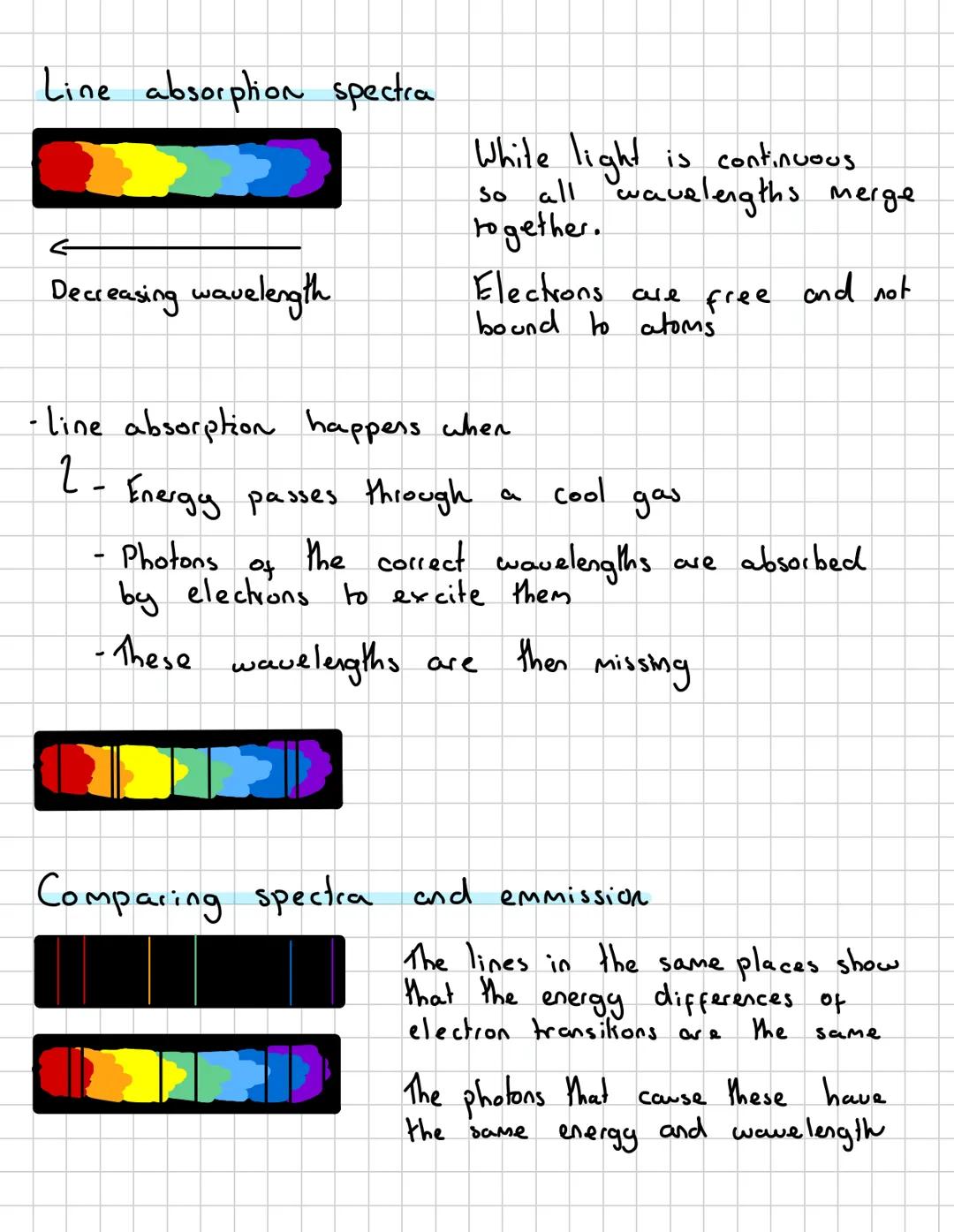

Line Absorption Spectra

Line absorption spectra reveal which wavelengths are missing when white light passes through cool gases. Unlike continuous white light that contains all wavelengths, absorption spectra show dark lines where specific wavelengths have been absorbed.

The absorption process is quite elegant: photons with exactly the right energy excite electrons to higher levels, removing those specific wavelengths from the transmitted light. The missing wavelengths appear as dark lines in the spectrum.

Comparing emission and absorption spectra from the same element reveals identical line positions. This proves that the energy differences between electron transitions are consistent - the photons that cause excitation during absorption are identical to those released during emission.

Scientific Application: Astronomers use absorption spectra to identify elements in distant stars by analysing which wavelengths are missing from starlight.

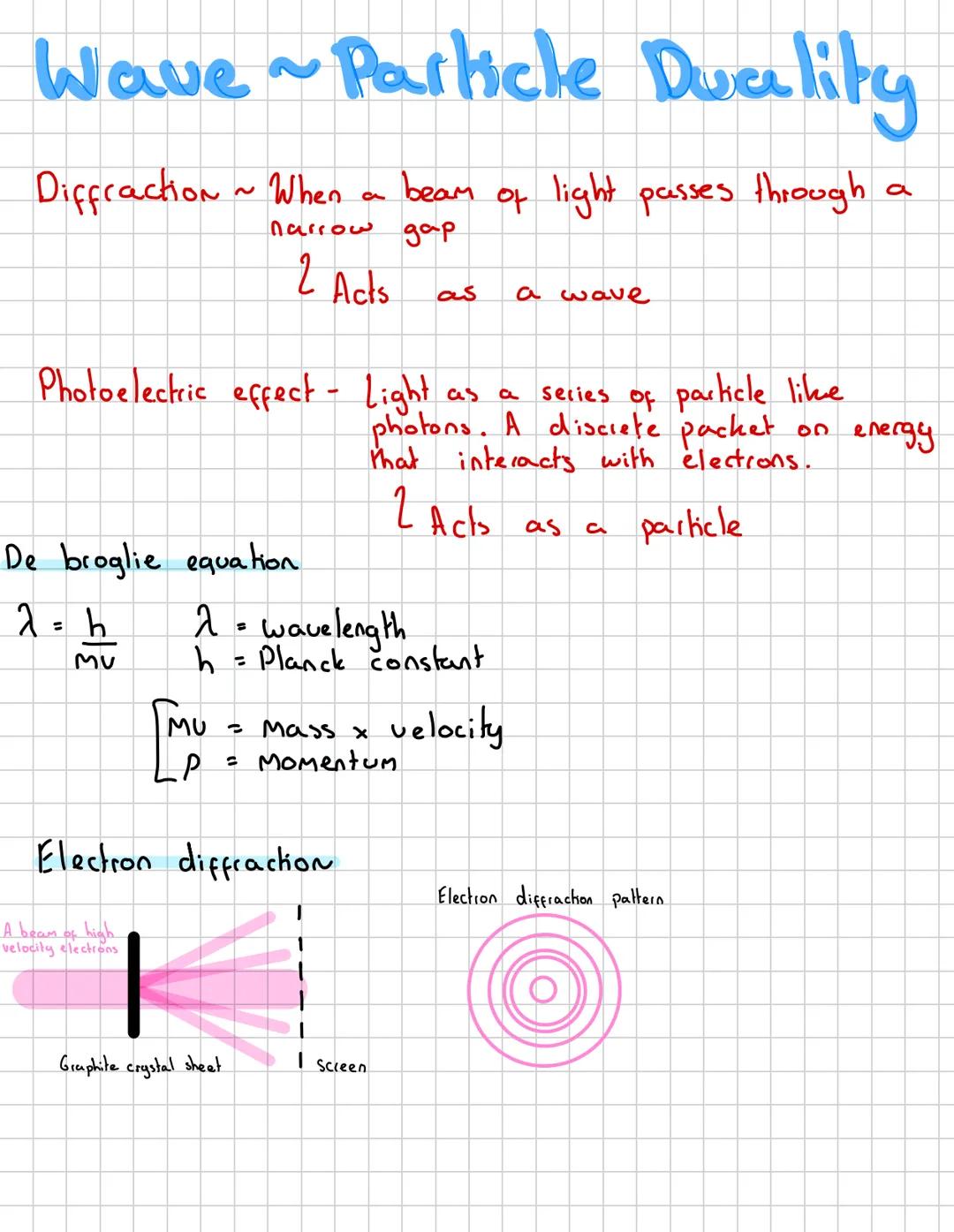

Wave-Particle Duality

Light exhibits wave-particle duality - behaving as both wave and particle depending on the experiment. Diffraction through narrow gaps demonstrates wave behaviour, whilst the photoelectric effect reveals particle-like photons interacting with individual electrons.

De Broglie's equation λ = h/mv extends this duality to matter, showing that particles also have wavelengths. The wavelength depends on Planck's constant divided by momentum (mass × velocity), meaning faster, heavier particles have shorter wavelengths.

Electron diffraction provides stunning proof of matter waves. When high-velocity electrons pass through a graphite crystal, they create diffraction patterns on a screen - clear evidence that particles can behave like waves under the right conditions.

Mind-bending Fact: You have a de Broglie wavelength too, but it's incredibly tiny because of your large mass compared to electrons!
